Dell DX6004S Systems

Getting Started With Your

System

Regulatory Model: E02S Series

Regulatory Type: E02S001

Notes, Cautions, and Warnings

NOTE: A NOTE indicates important information that helps you make better use of

your computer.

CAUTION: A CAUTION indicates potential damage to hardware or loss of data if

instructions are not followed.

WARNING: A WARNING indicates a potential for property damage,

personal injury, or death.

____________________

Information in this publication is subject to change without notice.

© 2010 Dell Inc. All rights reserved.

Reproduction of these materials in any manner whatsoever without the written permission of Dell Inc.

is strictly forbidden.

Trademarks used in this text: Dell™, the DELL logo, and PowerVault™ are trademarks of Dell Inc.,

®

®

Intel

and Xeon

are registered trademarks of Intel Corporation in the U.S. and other countries.

Other trademarks and trade names may be used in this publication to refer to either the entities claiming

the marks and names or their products. Dell Inc. disclaims any proprietary interest in trademarks and

trade names other than its own.

Regulatory Model: E02S Series

Regulatory Type: E02S001

August 2010 P/N KJRX4 Rev. A00

Installation and Configuration

WARNING: Before performing the following procedure, review the safety

instructions that came with the system.

Unpacking the System

Unpack your system and identify each item.

Installing the Rails and System in a Rack

Assemble the rails and install the system in the rack following the safety

instructions and the rack installation instructions provided with your system.

Getting Started With Your System 3

Connecting the Power Cable(s)

Connect the system’s power cable(s) to the system.

Securing the Power Cables

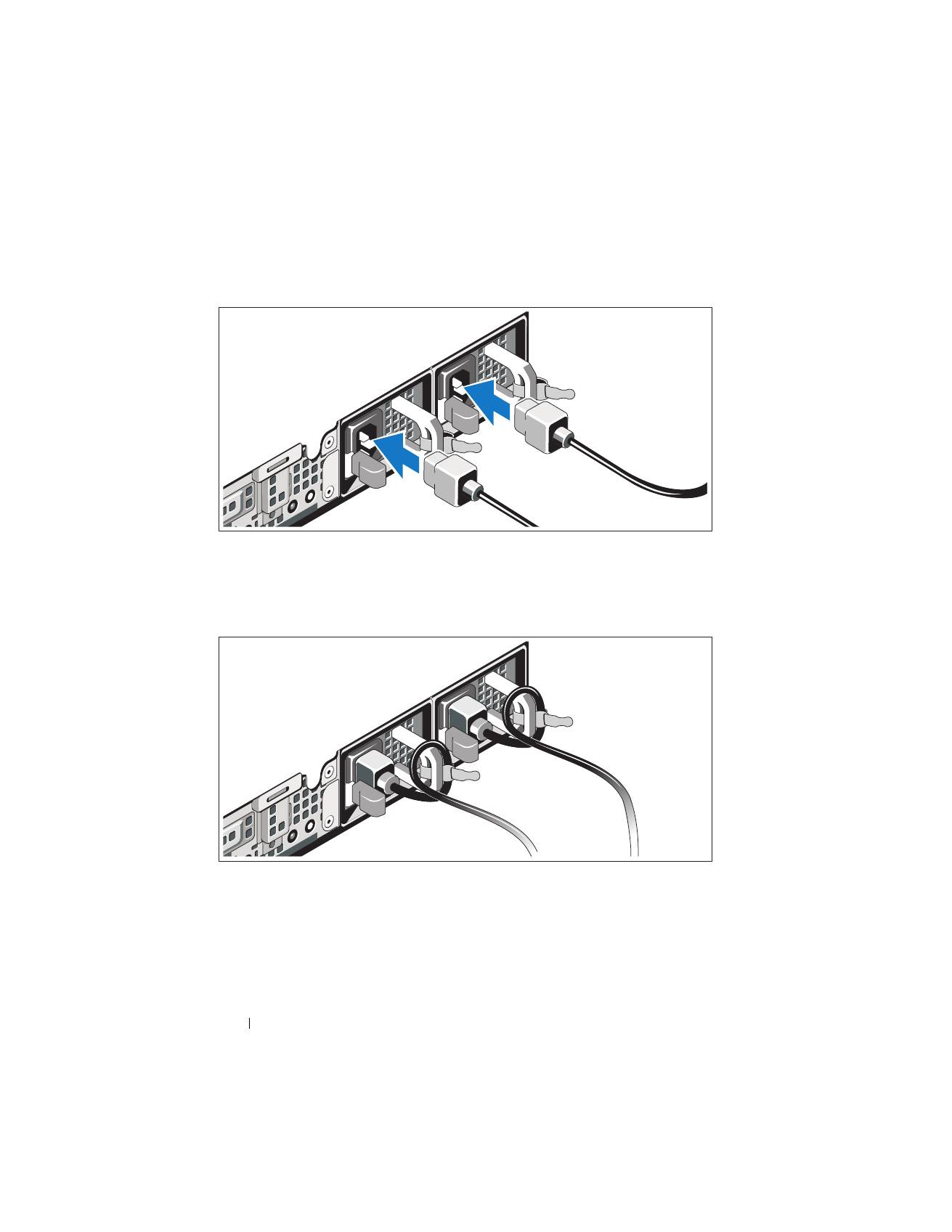

Bend the system power cables into a loop as shown in the illustration and

secure the cables to the brackets using the provided strap. Plug the other end

of the power cables into a grounded electrical outlet or a separate

power source such as an uninterrupted power supply (UPS) or

a power distribution unit (PDU).

4 Getting Started With Your System

Turning On the System

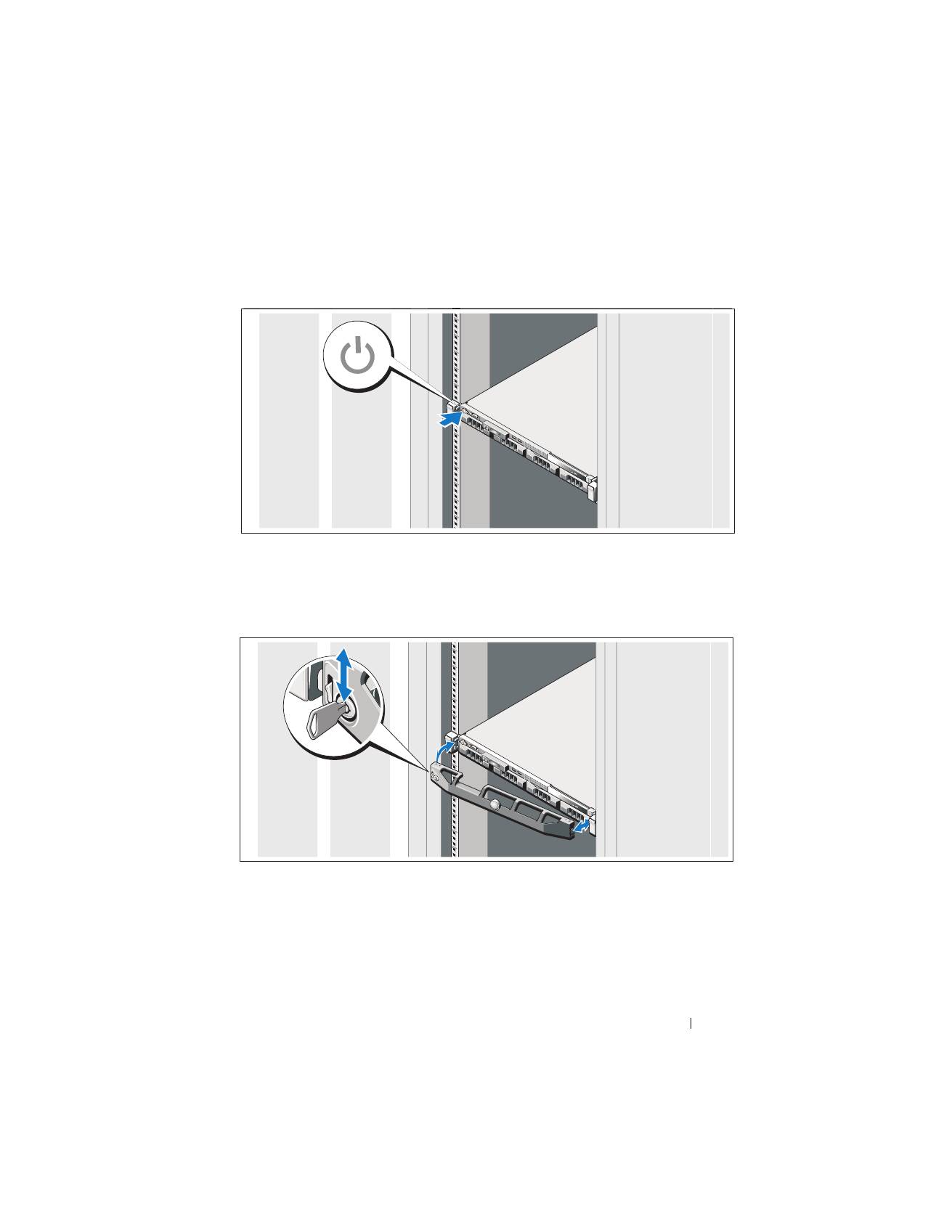

Press the power button on the system. The power indicators should light.

Installing the Optional Bezel

Install the bezel (optional).

Getting Started With Your System 5

Other Information You May Need

WARNING: See the safety and regulatory information that shipped with

your system. Warranty information may be included within this document or

as a separate document.

• The rack documentation included with your rack solution describes how to

install your system into a rack.

•The

Hardware Owner’s Manual

provides information about system

features and describes how to troubleshoot the system and install or

replace system components. This document is available online at

support.dell.com/manuals

.

• Any media that ships with your system that provides documentation

and tools for configuring and managing your system, including those

pertaining to the operating system, system management software,

system updates, and system components that you purchased

with your system.

NOTE: Always check for updates on support.dell.com/manuals and read the

updates first because they often supersede information in other documents.

Obtaining Technical Assistance

If you do not understand a procedure in this guide or if the system does not

perform as expected, see your Hardware Owner’s Manual. Dell offers

comprehensive hardware training and certification. See www.dell.com/training

for more information. This service may not be offered in all locations.

6 Getting Started With Your System

NOM Information (Mexico Only)

The following information is provided on the device described in this

document in compliance with the requirements of the official Mexican

standards (NOM):

Importer:

Model number: E07S

Supply voltage: 100–240 V CA

Frequency: 50/60 Hz

Current consumption: 5.2–2.6 A

Technical Specifications

Processor

Processor type Intel Xeon processor 3400 series

Expansion Bus

Bus type PCI Express Generation 2

Expansion slots One x16 half-length slot

One x8 half-length slot

NOTE: Both the slots support x8 routing.

Memory

Architecture 1066 MHz and 1333 MHz registered parity and

non registered DDR-III memory modules

Memory module sockets Six 240-pin

Memory module capacities 1 GB, 2 GB, 4 GB, and 8 GB (RDIMMs only)

Minimum RAM 1 GB

Maximum RAM 32 GB
