Dell PowerEdge M600: instruction

[]

Quick Start Guide

QUICK START GUIDE

FIBRE CHANNEL HBA INSTALLATION d

光纤通道 HBA 安装

光纖通道 HBA 安裝

INSTALLATION DE L'ADAPTATEUR HBA FIBRE CHANNEL

FIBRE-CHANNEL-HBA-INSTALLATION

INSTALLAZIONE DI HBA IN FIBRA OTTICA

ファイバチャネル HBA の取り付け

파이버 채널 HBA 설치

INSTALACJA ŚWIATŁOWODOWEJ KARTY HBA

Установка

FIBRE CHANNEL HBA

INSTALACIÓN DEL HBA FIBRE CHANNEL

Quick Start Guide

Installation Instructions

®

This Quick Start Guide describes how to install and configure your new QLogic SANblade

host bus adapter (HBA) and

SANsurfer Pro management application in four simple steps:

❑ Step 1. Verify the package contents.

❑ Step 2. Install the HBA hardware.

❑ Step 3. Install the HBA driver.

❑ Step 4. Install the SANsurfer Pro management application.

Keep the HBA in the antistatic bag until installation. The HBA contains parts that can be damaged by

electrostatic discharge (ESD). Before handling the HBA, use standard methods to discharge static

CAUTION!

electricity. Place the HBA on the bag when examining it. Retain the bag for future use.

Step 1. Verify the Package Contents

The QLogic HBA is shipped with the following items:

❑ QLogic SANblade HBA

❑ Low-profile bracket (not available in all models)

❑ Dell Documentation Kit

1

Step 2. Install the HBA Hardware

To install the HBA hardware, you need to open the computer and locate the appropriate bus slot. If necessary, consult

your computer system manual for instructions to remove the computer cover.

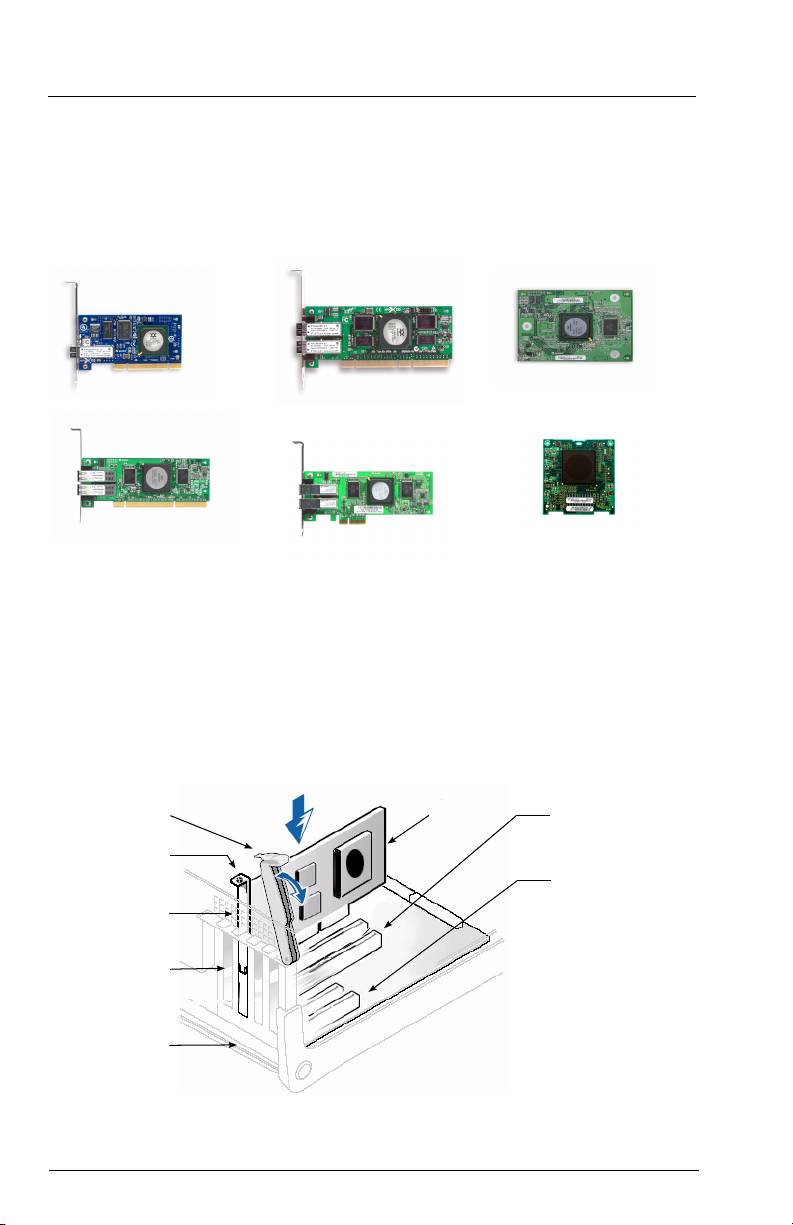

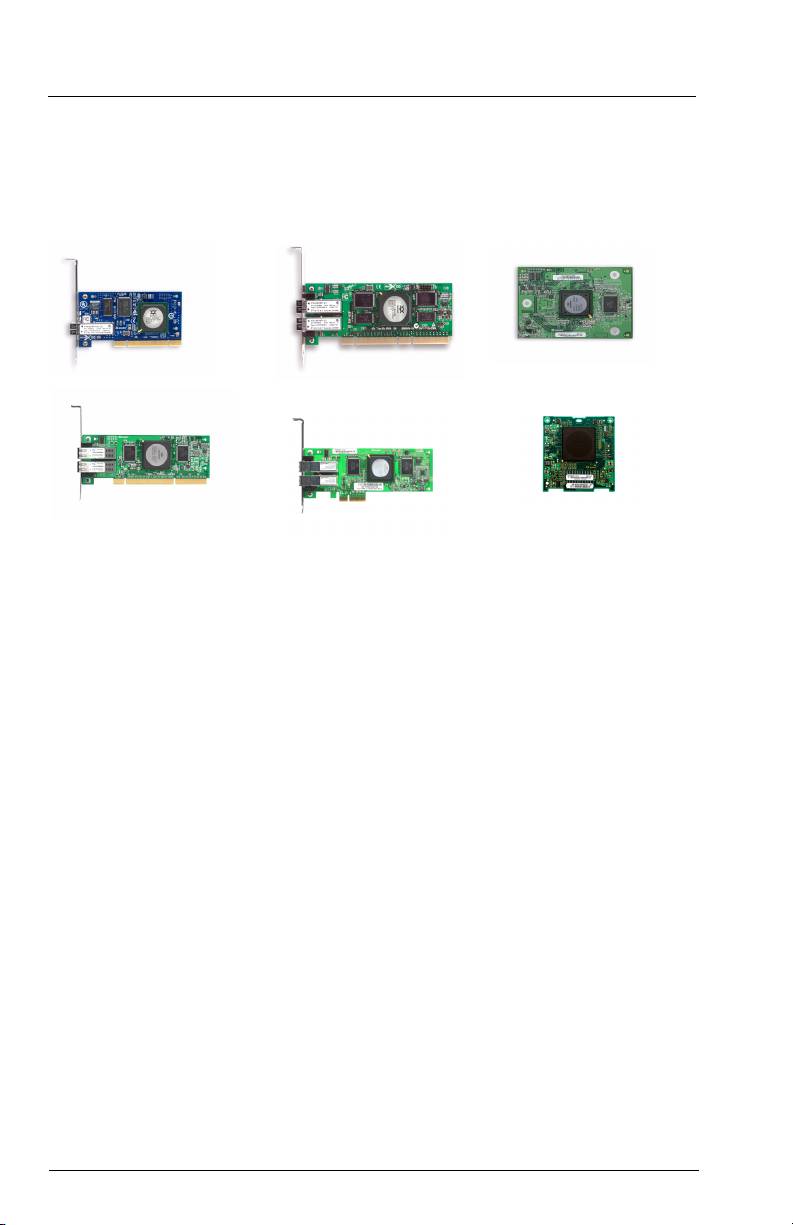

Depending on the HBA you are installing, the connector will look like one of the following samples:

32-bit PCI-X connector

64-bit PCI-X connector

QME2462

64-bit PCI-X 2.0 connector

x4 PCI Express connector

QME2472

Follow these steps to install the HBA hardware (for QME2462 and QME2472 installation instructions, please refer to

your Server Hardware Owner’s Manual):

1. Power off the computer, and then disconnect the power cable.

2. Remove the computer cover and find an empty bus slot.

3. Pull out the slot cover (if any) by removing the screw or releasing the lever.

4. Grasp the HBA by the top edge and seat it firmly into the slot.

5. Refasten the HBA’s retaining bracket using the existing screw or lever.

6. Close the computer cover.

7. Plug in the power cable and turn on the computer.

2

HBA

64-BIT PCI-X SLOT

LEVER

SCREW

OR

x4 PCI EXPRESS

HBA

SLOT

RETAINING

BRACKET

SLOT COVERS

SYSTEM

CHASSIS

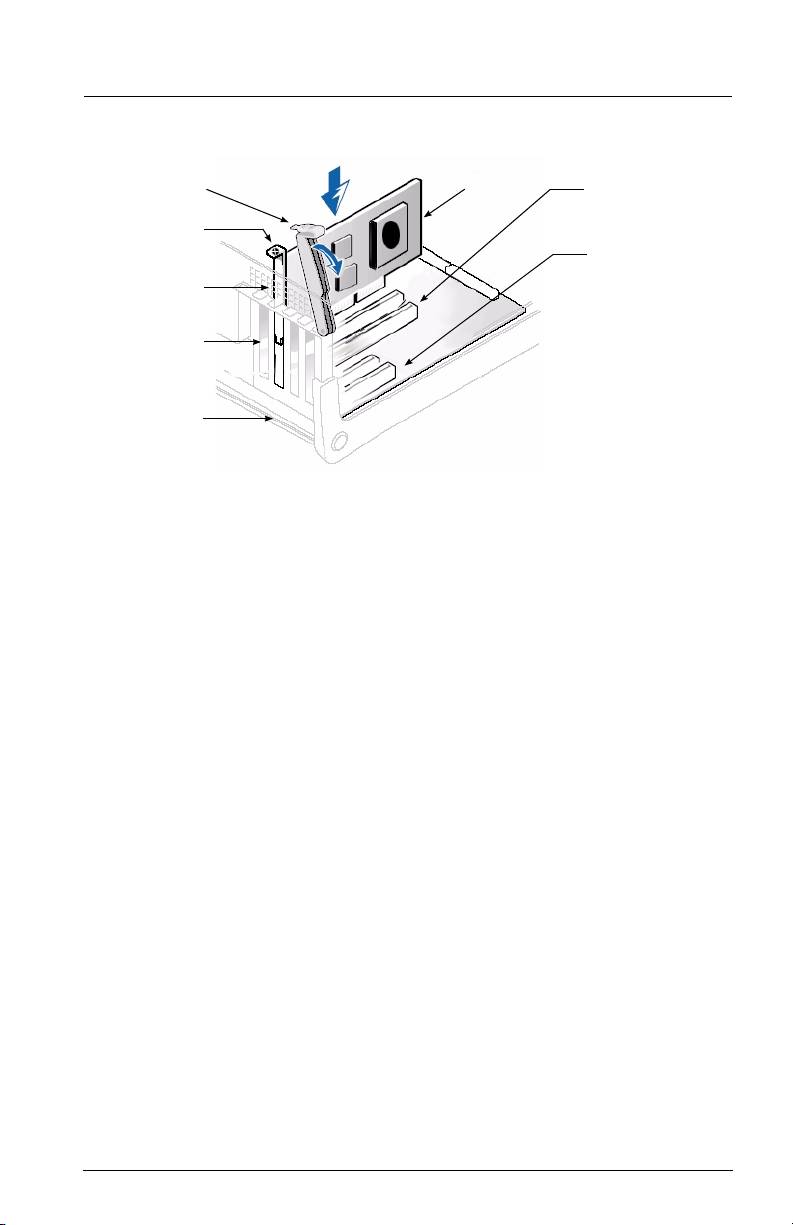

Sample motherboard and slots

Step 3. Install the HBA Driver

To retrieve and install the latest HBA driver, access the QLogic support page at:

http://support.qlogic.com/support/newoem_product_list_emc.asp?oemid=65&CATID=58604&type=Dell

Step 4. Install the SANsurfer Pro Management Application

To retrieve and install the latest SANsurfer FC HBA Manager utility, access the QLogic support

page at:

http://support.qlogic.com/support/newoem_product_list_emc.asp?oemid=65&CATID=58604&type=Dell

Congratulations! You have successfully installed your QLogic HBA and

management application!

The following section contains additional information about the SANblade QLogic HBA, including

the LED scheme, troubleshooting, warranty, technical support, and certification information.

3

HBA LEDs (Excludes the QME2462 HBA)

QLA234x/QLE220 HBA LED Scheme QME2472 HBA LED Scheme*

Green LED Amber LED Activity Green LED Amber LED Activity

❍❍Power off Flashing ❍ 4 Gbps

●●Power ❍ Flashing

1 Gbps or 2Gbps

●❍Online

❍● Link

For more information, please refer to your

established

Server Hardware Owner’s Manual

❍ Flashing Loss of

*

LEDs located on Fibre Channel Passthru Module

synchronization

Alternate

Alternate

Firmware error

flashing

flashing

Flashing ❍ Beacon

QLE246x HBA LED Scheme

Yellow LED Green LED Amber LED Activity

❍ ❍ ❍ Power off

● ● ● Power on (before firmware init)

Flashing Flashing Flashing Power on (after firmware init)

Yellow, Green and Amber LEDs flashing alternately Firmware error

❍ ❍ ●/Flashing Online, 1-Gbps link established

❍ ●/Flashing ❍ Online, 2-Gbps link established

●/Flashing ❍ ❍ Online, 4-Gbps link established

Flashing ❍ Flashing Beacon

Troubleshooting and Technical Support

The QLogic knowledge database contains troubleshooting information for the QLogic SANblade HBAs. Access the data

base from the QLogic web site www.qlogic.com/support/knowledge_base.asp.

For technical support, visit our web site support.qlogic.com,

email us at support@qlogic.com, or call at 952-932-4040.

Warranty

The QLogic SANblade HBA comes with a standard three year QLogic warranty, or as specified by other agreements.

Please check the QLogic Web site at www.qlogic.com

for warranty details.

Laser Safety (Excludes QME2462 and QME2472)

FDA Notice

This product complies with DHHS Rules 21CFR Chapter I, Subchapter J. This product has been designed and manufactured according to

IEC60825-1 on the safety label of laser product.

4

Class 1 Laser Product

Caution–Class 1 laser radiation when open

Appareil laser de classe 1

Do not view directly with optical instruments

Produkt der Laser Klasse 1

Attention–Radiation laser de classe 1

Luokan 1 Laserlaite

Ne pas regarder directement avec des instruments optiques

CLASS I LASER

Vorsicht–Laserstrahlung der Klasse 1 bei geöffneter Abdeckung

Direktes Ansehen mit optischen Instrumenten vermeiden

Varoitus–Luokan 1 lasersäteilyä, kun laite on auki

Älä katso suoraan laitteeseen käyttämällä optisia instrumentteja

Agency Certification

QLogic SANblade HBAs

The following sections contain a summary of EMC/EMI test specifications performed on the QLogic SANblade HBAs to comply with radiated

emission, radiated immunity, and product safety standards.

EMI and EMC Requirements

FCC Part 15 compliance: Class A (QLE200, QME2462, QME2472), Class B (QLA234x)

FCC compliance information statement: This device complies with Part 15 of the FCC Rules. Operation is subject to the following two

conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including

interference that may cause undesired operation.

ICES-003 compliance: Class A (QLE200, QME2462, QME2472), Class B (QLA234x)

❑ For QLE200, QME2462, and QME2472 HBAs: This Class A digital apparatus complies with Canadian ICES-003.

Cet appareil numériqué de la classe A est conformé à la norme NMB-003 du Canada.

❑ For QLA234x HBAs: This Class B digital apparatus complies with Canadian ICES-003.

Cet appareil numériqué de la classe B est conformé à la norme NMB-003 du Canada.

CE Mark 2004/108/EC EMC Directive compliance:

EN55022:1998/CISPR22:1997 - Class A (QLE200, QME2462, QME2472), Class B (QLA234x)

EN55024:1998

Immunity Standards

EN61000-4-2: ESD

EN61000-4-3: RF Electro Magnetic Field

EN61000-4-4: Fast Transient/Burst

EN61000-4-5: Fast Surge Common/ Differential

EN61000-4-6: RF Conducted Susceptibility

EN61000-4-8: Power Frequency Magnetic Filed

EN61000-4-11: Voltage Dips and Interrupt

EN61000-3-2: Harmonic Current Emission

EN61000-3-3: Voltage Fluctuation and Flicker

VCCI compliance: Class A (QLE200, QME2462, QME2472), Class B (QLA234x, QLE246x)

AS/NZS CISPR22 compliance:

Class A (QLE220, QME2462, QME2472), Class B (QLA234x, QLE246x)

CNS 13438 compliance: Class B (QLA234x)

MIC compliance:

Class A (QLE220, QME2462, QME2472), Class B (QLA234x)

❑ For QLE220, QLA234x, and QME2472 HBAs: Korea MIC Class A Certified

Product Name/Model Fibre Channel HBA

Certification holder QLogic Corporation

Manufactured date Refer to date code listed on product

Manufacturer/Country of origin QLogic Corporation/USA

A class equipment

As this equipment has undergone EMC registration for business

(Business purpose info/telecommunications

purpose, the seller and/or the buyer is asked to beware of this point

equipment)

and in case a wrongful sale or purchase has been made, it is asked

that a change to household use be made.

5

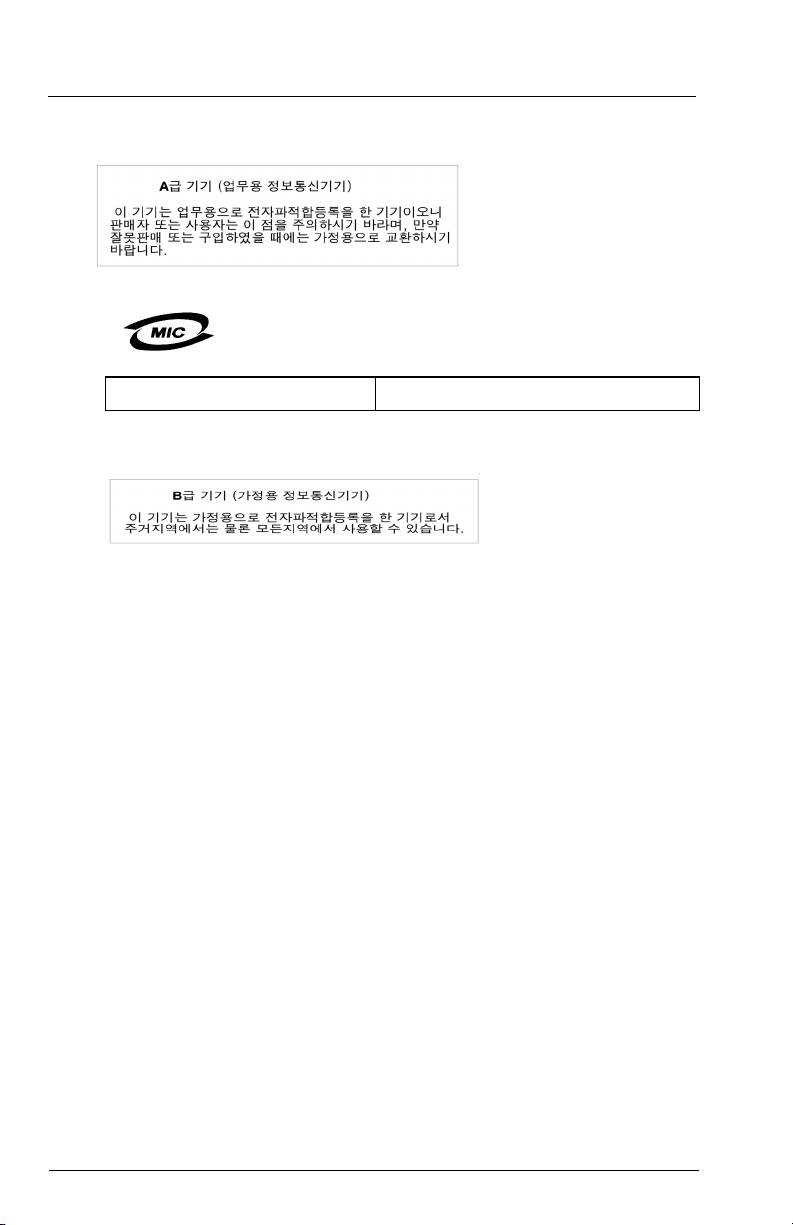

❑ Korean Language Format– Class A

❑ For QLE246x HBA: Korea MIC Class B Certified

Product Name/Model Fibre Channel HBA

Certification holder QLogic Corporation

Manufactured date Refer to date code listed on product

Manufacturer/Country of origin QLogic Corporation/USA

B class equipment

As this equipment has undergone EMC registration for

(Household purpose info/telecommunications

household purpose, this product can be used in any area

equipment)

including residential area.

❑ Korean Language Format– Class B

Product Safety Compliance

UL, cUL product safety compliance: QLE220, QLA234x, QLE246x

UL60950-1

CSA C22.2 No.60950-1

Class 1 Laser Product per DHHS 21CFR(J)

2006/95/EC low voltage directive: QLE220, QLA234x, QLE246x

TUV:

-EN60950-1:2001

-EN60825-1:1994+A1+A2

-EN60825-2:1994+A1

6
