Notes, Notices, and Cautions

NOTE: A NOTE indicates important information that helps you make better use of

your computer.

NOTICE: A NOTICE indicates either potential damage to hardware or loss of data

and tells you how to avoid the problem.

CAUTION: A CAUTION indicates a potential for property damage, personal injury,

or death.

____________________

Information in this document is subject to change without notice.

© 2007 Dell Inc. All rights reserved.

Reproduction in any manner whatsoever without the written permission of Dell Inc. is strictly

forbidden.

Trademarks used in this text: Dell, the DELL logo, and PowerEdge are trademarks of Dell Inc.; Intel,

Pentium, Celeron and Xeon are registered trademarks and Core is a trademark of Intel Corporation

in the U.S. and other countries; Microsoft, Windows, and Windows Server are either tradcmarks or

registered trademarks of Microsoft Corporation in the United States and/or other countries; Red Hat

and Enterprise Linux are registered trademarks of Red Hat Inc.; SUSE is a registered trademark

of Novell Inc..

Other trademarks and trade names may be used in this document to refer to either the entities claiming

the marks and names or their products. Dell Inc. disclaims any proprietary interest in trademarks and

trade names other than its own.

Model SMT

December 2007 P/N HR210 Rev. A00

System Features

The major hardware and software features of your system include:

• 1U/1S rack-mountable chassis with support for static rails and sliding rails.

NOTE: Use the System Setup program to view processor information. See

"Using the System Setup Program" in your Hardware Owner’s Manual.

• One of the following processors:

®

®

– Single Core Intel

Celeron

445 Processor

– Dual-Core Intel Core™2 Duo E6305 or E6405 Processor

®

– Quad-Core Intel Xeon

X3323, X3353, or X3363 Processor

• A minimum of 512-MB single or dual-ranked registered 667-MHz DDR2

memory modules with ECC, upgradeable to a maximum of 24-GB by

installing combinations of 512-MB, 1-GB, 2-GB, or 4-GB memory modules

in six memory module sockets on the system board.

• One of the following riser card options:

– Two riser cards (left and center risers), each providing a x8 lane width

PCI-Express expansion slot.

OR

– One riser card (center riser), providing a x8 lane width PCI-Express

expansion slot.

– One riser card (left riser) providing a 3.3 V, 64-bit 133MHz PCI-X

expansion slot.

• One 12.7 mm DVD, or combination CD-RW/DVD in a device drive bay.

• Support for the following internal hard-drive configurations:

– Up to two 3.5-inch, internal, SATA hard drives with the optional SAS

controller card (hot-plug option available).

– Up to two 3.5-inch, internal, Serial-Attached SCSI (SAS) hard drives

with an optional SAS controller card (hot-plug option available).

Getting Started With Your System 3

• Optional remote access controller for remote systems management, which

is installed on the dedicated slot on the system board.

• Optional USB flash drive emulates a diskette drive or hard drive.

• One 400-W power supply (optional redundant power supply available).

• Two integrated Gigabit Ethernet network adapters, capable of supporting

10-Mbps, 100-Mbps, and 1000-Mbps data rates with support for Wake-

on-LAN.

• A Dell Remote Access Controller Card (DRAC5), which provides remote

system management, crashed system recovery, and power control functions

for Dell PowerEdge

.

•

An integrated VGA-compatible video subsystem with an ATI ES1000,

33-MHz PCI video controller. This video subsystem contains a

minimum of 32MB of graphics memory with support for 2D graphics.

Maximum resolution is 1600 x 1200 with 65,536 colors; true-color

graphics are supported in the following resolutions: 640 x 480, 800 x 600,

1024 x 768, 1280 x 1024. When the optional remote access card is

installed, the maximum video resolution is 1280 x 1024

.

• Fan modules, each of which is comprised of two dual-rotor fans positioned

in front of the processor and memory.

• Fan modules, comprised of two dual-rotor fans positioned in front of the

PSU. These fans are used for the two redundant PSUs (hot-plug hard

drives and redundant PSU configuration).

• Serial connector for console redirection support.

• Security features, including chassis-intrusion detection and keylock

on the optional bezel.

• An integrated Trusted Platform Module (TPM) version 1.2 used for

security applications, capable of generating and storing keys, and storing

passwords and digital certifications. (Not available in China.)

4 Getting Started With Your System

• Systems management software/circuitry that monitors critical system

voltages and temperatures.

• Back-panel connectors include video, serial, two USB, and two network

adapter connectors.

• Front-panel connectors include one VGA and two USB connectors.

• One internal USB connector is included for a bootable memory key.

• Front-panel 1x5 LCD for system ID and error messaging.

For more information about specific features, see “Technical Specifications”

on page 11.

The following software is included with your system:

• A System Setup program for viewing and changing system configuration

information. For more information, see “Using the System Setup Program”

in the

Hardware Owner’s Manual

.

• Enhanced security features, including a system and setup passwords are

available through the System Setup program.

• Video drivers for displaying programs in high-resolution modes.

Systems management software and documentation CDs.

Supported Operating Systems

®

®

• Microsoft

Windows Server

2008 Web, Standard, and Enterprise

(32-bit x86) Editions (

when available

)

• Microsoft Windows Server 2008 Web, Standard, Small Business Server

(Premium and Standard), and Enterprise (x64) Editions (

when available

)

• Microsoft Windows Server 2003 Web, Standard, Small Business Server

(Premium and Standard), and Enterprise (32-bit x86) Editions

(SP1 and SP2)

• Microsoft Windows Server 2003 Standard and Enterprise (x64) Editions

• Microsoft Windows Server 2003 R2 Standard, Small Business Server

(Premium and Standard), and Enterprise (32-bit x86) Editions

Getting Started With Your System 5

• Microsoft Windows Server 2003 R2 Standard and Enterprise (x64)

Editions

®

®

•Red Hat

Enterprise Linux

ES (versions 4 and 5) (x86_32)

• Red Hat Enterprise Linux ES (versions 4 and 5) (x86_64)

®

•SUSE

Linux Enterprise Server 9 (SP4 or later) (x86_64)

• SUSE Linux Enterprise Server 10 (x86_64)

NOTE: For the latest information on supported operating systems,

see www.dell.com.

Other Information You May Need

CAUTION: The Product Information Guide provides important safety and

regulatory information. Warranty information may be included within this

document or as a separate document.

•The

Rack Installation Guide

or

Rack Installation Instructions

included

with your rack solution describes how to install your system into a rack.

•The

Getting Started Guide

provides an overview of system features,

setting up your system, and technical specifications.

•The

Hardware Owner’s Manual

provides information about system

features and describes how to troubleshoot the system and install

or replace system components.

• CDs included with your system provide documentation and tools

for configuring and managing your system.

• Systems management software documentation describes the features,

requirements, installation, and basic operation of the software.

• Operating system documentation describes how to install (if necessary),

configure, and use the operating system software.

• Documentation for any components you purchased separately provides

information to configure and install these options.

6 Getting Started With Your System

• Updates are sometimes included with the system to describe changes

to the system, software, and/or documentation.

NOTE: Always check for updates on support.dell.com and read the updates

first because they often supersede information in other documents.

• Release notes or readme files may be included to provide last-minute

updates to the system or documentation or advanced technical reference

material intended for experienced users or technicians.

Obtaining Technical Assistance

If you do not understand a procedure in this guide or if the system does not

perform as expected, see your Hardware Owner’s Manual.

Dell Enterprise Training and Certification is available; see

www.dell.com/training for more information. This service may not be offered

in all locations.

Installation and Configuration

CAUTION: Before performing the following procedure, read and follow the safety

instructions and important regulatory information in your Product Information

Guide.

CAUTION: Whenever you need to lift the system, get others to assist you. To avoid

injury, do not attempt to lift the system by yourself.

This section describes the steps to set up your system for the first time.

Unpacking the System

Unpack your system and identify each item. Keep all shipping materials in

case you need them later.

Getting Started With Your System 7

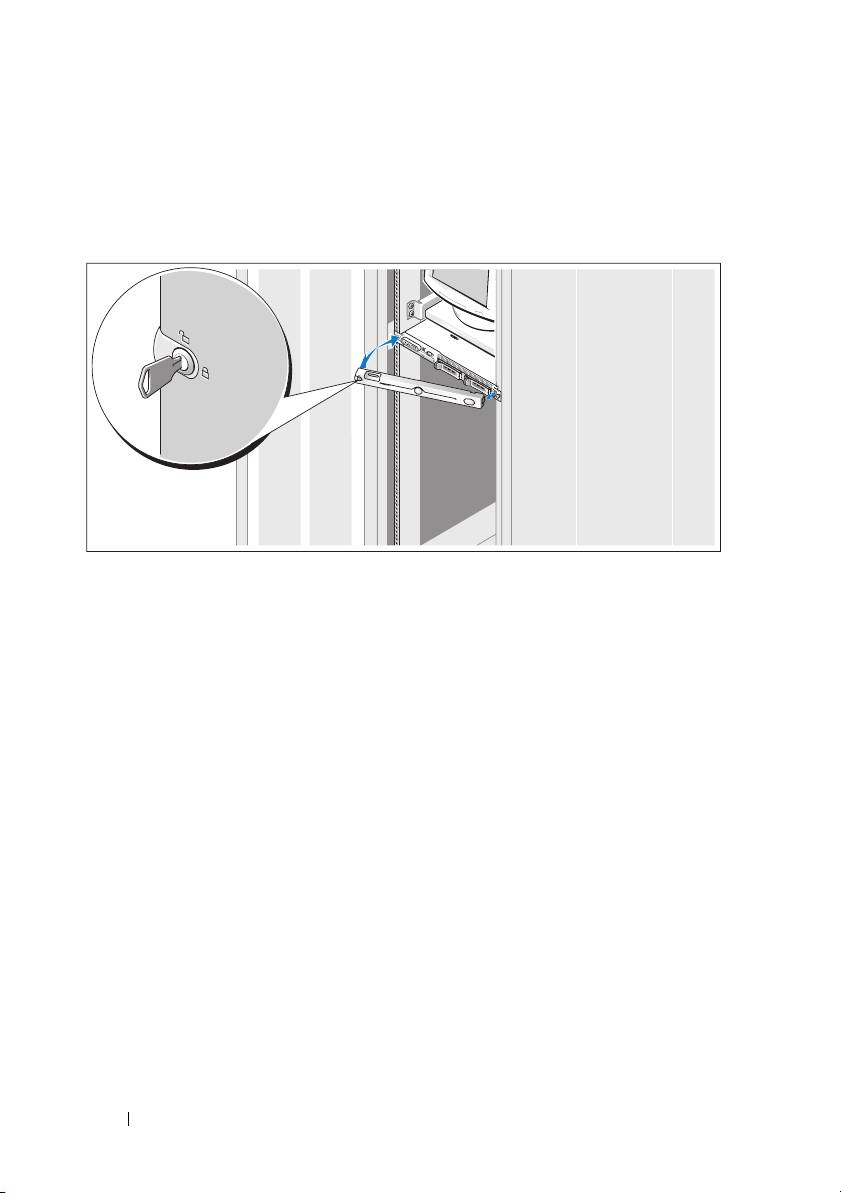

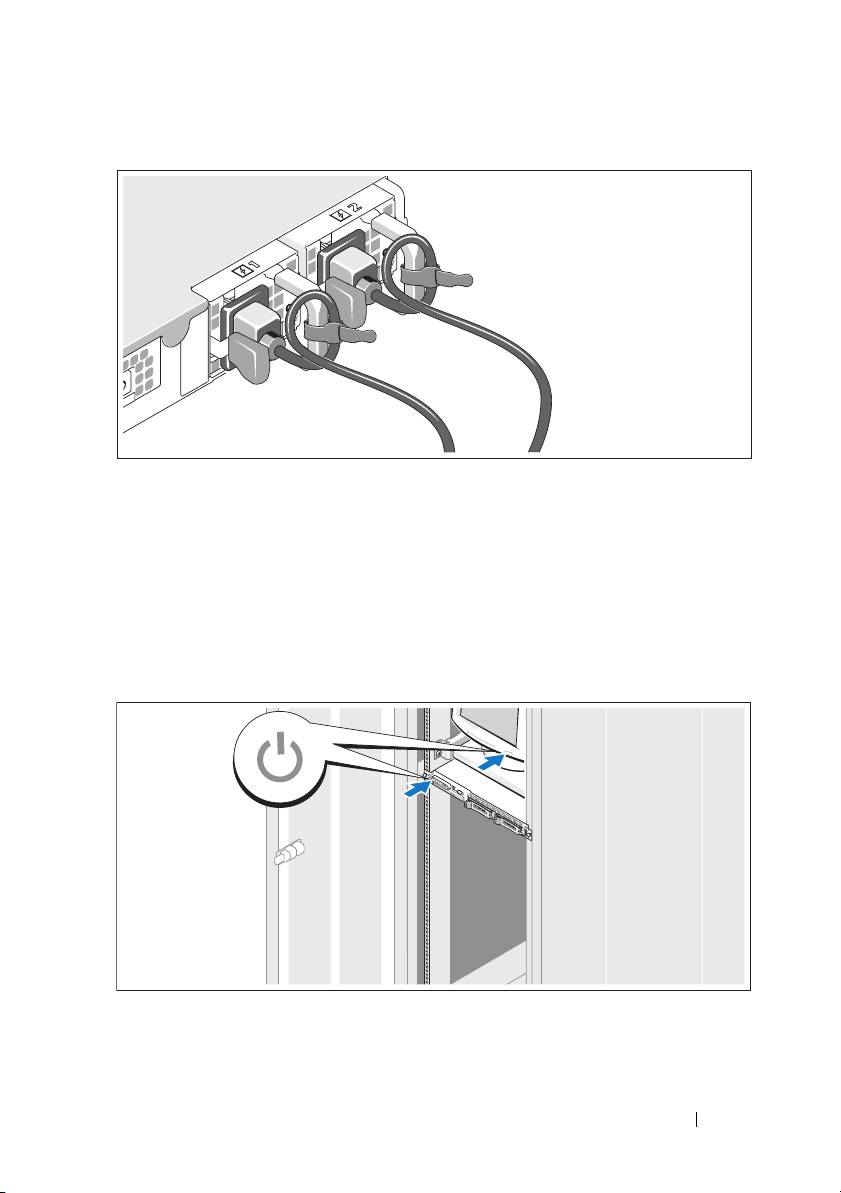

Environmental

NOTE: For additional information about environmental measurements for specific

system configurations, see www.dell.com/environmental_datasheets.

Temperature

Operating

10° to 35°C (50° to 95°F)

Storage

–40° to 65°C (–40° to 149°F)

Relative humidity

Operating

20% to 80% (noncondensing) with a maximum

humidity gradation of 10% per hour

Storage

5% to 95% (noncondensing)

Maximum vibration

Operating

0.26 Grms at 5–350 Hz for 15 min

Storage

1.54 Grms at 10–250 Hz for 15 min

Maximum shock

Operating

One shock pulse in the positive z axis (one pulse

on each side of the system) of 31 G for up to

2.6 ms

Storage

Six consecutively executed shock pulses in the

positive and negative x, y, and z axes (one pulse

on each side of the system) of 71 G for up to 2 ms

Altitude

Operating

–16 to 3,048 m (–50 to 10,000 ft)

NOTE: For altitudes above 2,950 feet, the maximum

operating temperature is derated 1°F/550 ft.

Storage

–16 to 10,600 m (–50 to 35,000 ft)

Airborne Contaminant Level

Class

G2 or lower as defined by ISA-S71.04-1985
