Dell™ Latitude™ E4200 Media Base

Model PR15S

www.dell.com | support.dell.com

Notes, Notices, and Cautions

NOTE: A NOTE indicates important information that helps you make better use of

your computer.

NOTICE: A NOTICE indicates either potential damage to hardware or loss of data

and tells you how to avoid the problem.

CAUTION: A CAUTION indicates a potential for property damage, personal injury,

or death.

____________________

Information in this document is subject to change without notice.

© 2008 Dell Inc. All rights reserved.

Reproduction of these materials in any manner whatsoever without the written permission of Dell Inc.

is strictly forbidden.

Trademarks used in this text: Dell, the DELL logo, and Latitude are trademarks of Dell Inc.; Microsoft

and Windows are registered trademarks of Microsoft Corporation in the United States and/or other

countries.

Other trademarks and trade names may be used in this document to refer to either the entities claiming

the marks and names or their products. Dell Inc. disclaims any proprietary interest in trademarks and

trade names other than its own.

Model PR15S

July 2008 P/N R962J Rev. A00

Media Base

The media base provides media capacity to your Dell™

Latitude™ E4200

.

The media base attaches to the bottom of the computer.

Top View

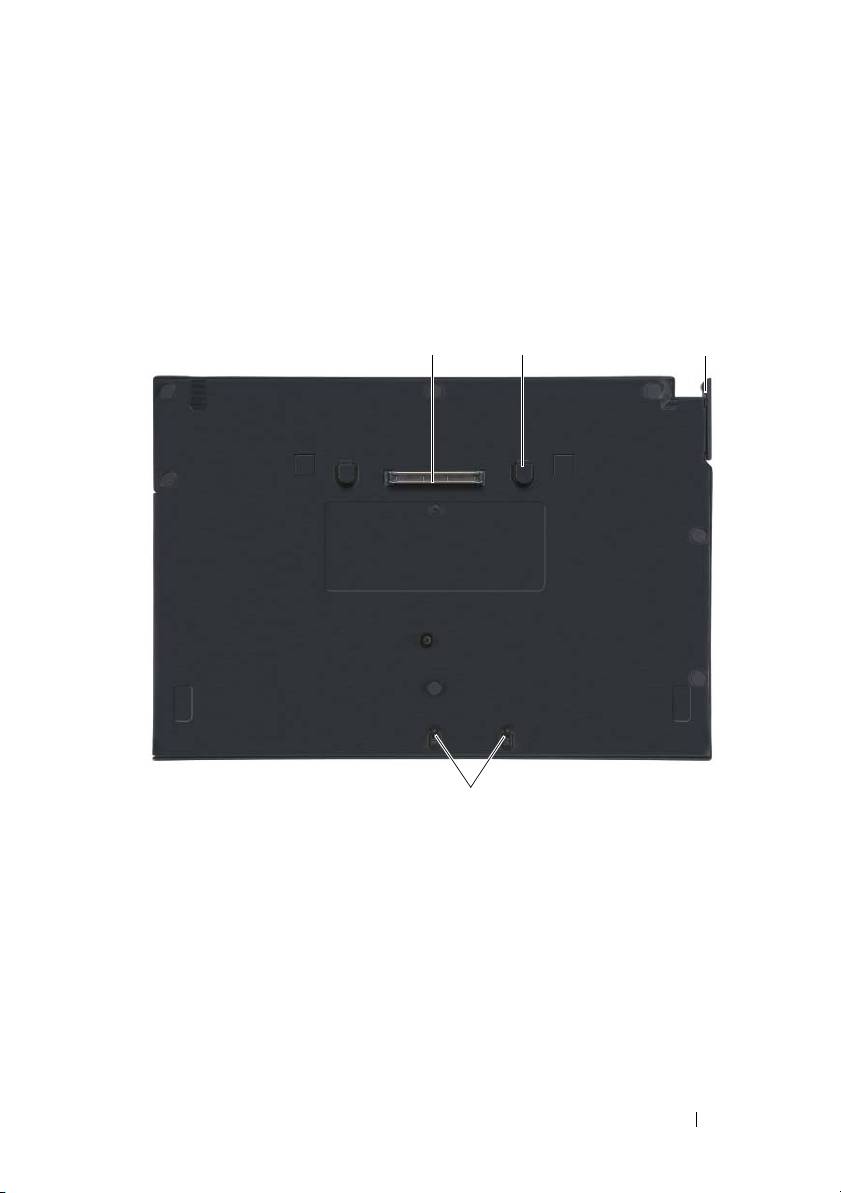

1 docking connector 2 release tabs (2)

3 release lever 4 attachment hooks

Media Base 3

4

3

Side View

1

1 media drive

Back View

1

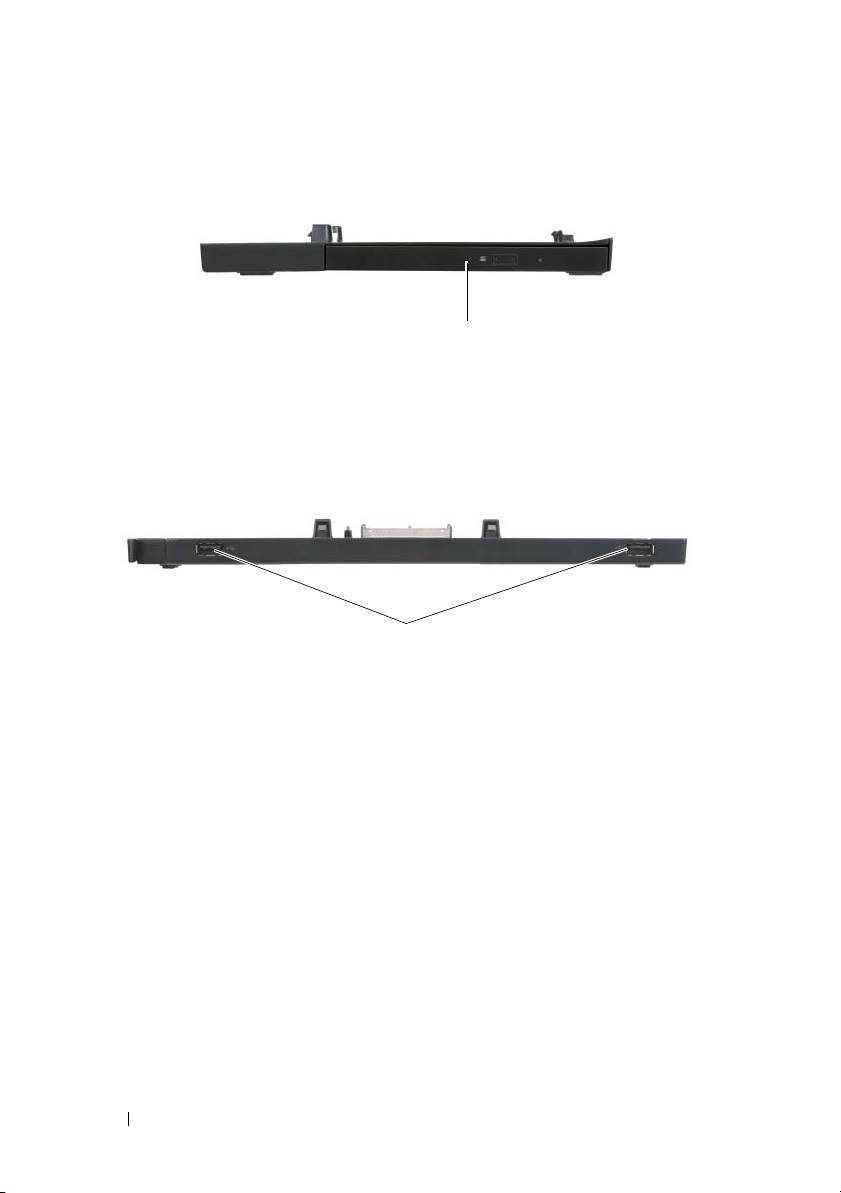

1USB ports (2)

4 Media Base

Docking Your Computer to the Media Base

1

Before you initially dock your computer, the operating system must

complete its setup process. To verify that the operating system setup

is complete:

a

Ensure that the computer is not connected to the media base.

b

Turn on the computer.

®

®

c

Verify that the Microsoft

Windows

desktop appears.

d

Shut down the computer through the Windows

Start

menu.

2

Align the front of the computer with the front of the media base and lower

the computer onto the media base.

1

2

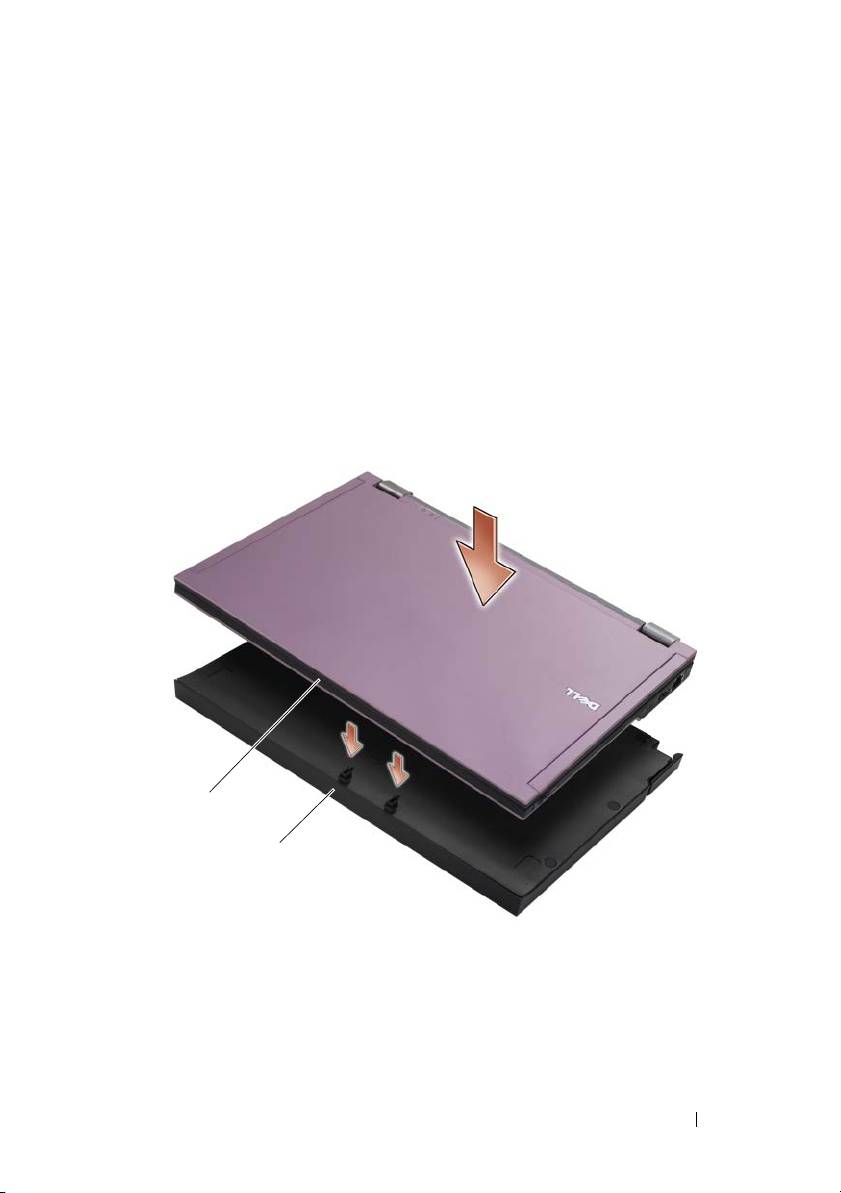

1 front of computer 2 media base

Media Base 5

3

Gently press the computer into the media base until it clicks into place.

NOTE: Your computer should be turned off only when you dock your computer

for the first time.

4

Turn on the computer.

The operating system recognizes the media base.

Undocking Your Computer From the Media Base

1

Before you undock your computer, save and close any open files, and exit

any open programs.

2

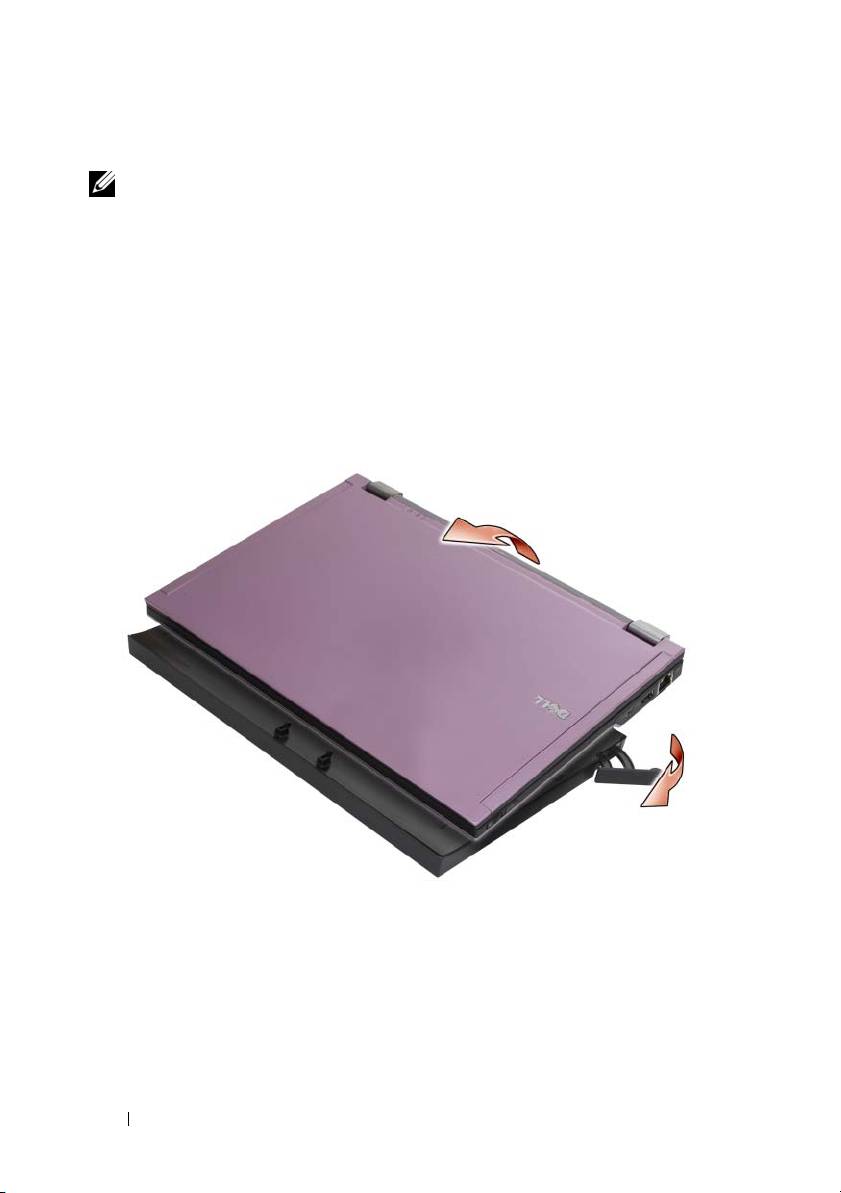

Pull the release lever toward the front of the computer.

3

Lift the computer out of the media base.

6 Media Base

Removing the Media Drive From the Media Base

1

Locate the screw in the middle of the media base on the same side

as the docking connector, and remove the screw.

2

Slide the media drive out of the media base.

3

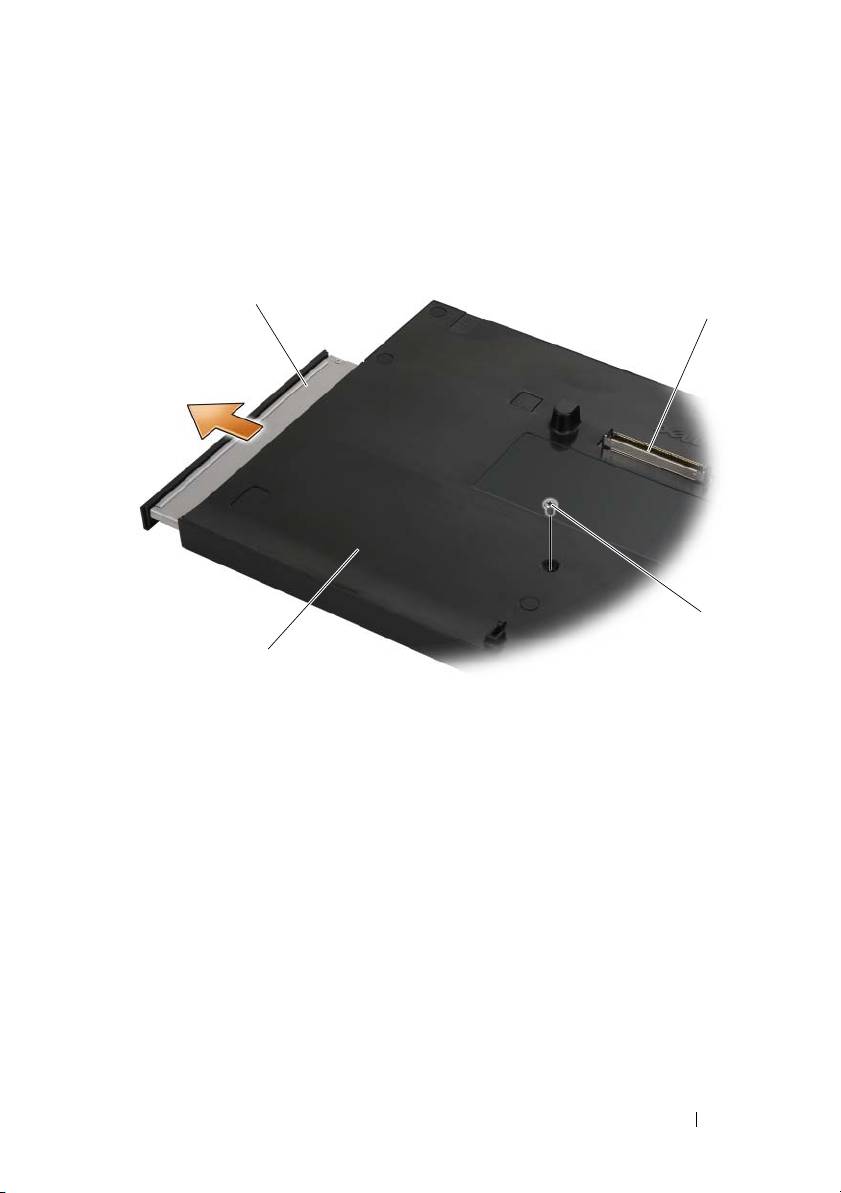

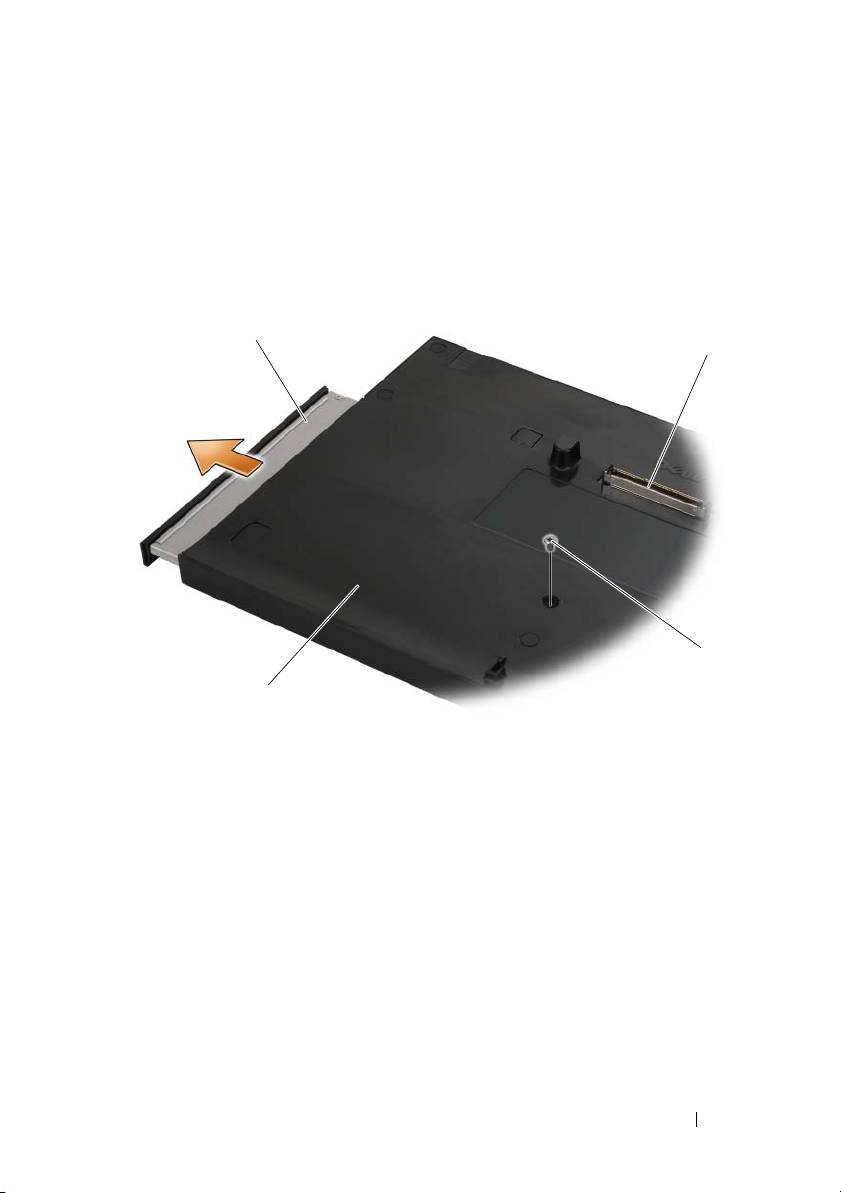

1 media drive 2 docking connector

3 screw 4 media base

Media Base 7

2

4
