Dell PowerEdge R515 Systems

Getting Started With Your System

Regulatory Model E12S Series and E13S Series

Notes, Cautions, and Warnings

NOTE:

A NOTE indicates important information that helps you make better use of

your computer.

CAUTION:

A CAUTION indicates potential damage to hardware or loss of data if

instructions are not followed.

WARNING:

A WARNING indicates a potential for property damage, personal

injury, or death.

____________________

Information in this publication is subject to change without notice.

© 2010 Dell Inc. All rights reserved.

Reproduction of these materials in any manner whatsoever without the written permission of Dell Inc.

is strictly forbidden.

Trademarks used in this text: Dell™, the DELL logo, and PowerEdge™  are trademarks of Dell Inc.

AMD

®

 is a registered trademark of Advanced Micro Devices, Inc. Microsoft

®

, Windows

®

, and

Windows Server

®

 are either trademarks or registered trademarks of Microsoft Corporation in the

United States and/or other countries. Red Hat Enterprise Linux

®

 and Enterprise Linux

®

 are registered

trademarks of Red Hat, Inc. in the United States and/or other countries. Novell

®

 and SUSE

®

 are

registered trademarks of Novell Inc. in the United States and other countries. Citrix

®

, Xen

®

, and

XenServer

®

 are either registered trademarks or trademarks of Citrix System, Inc. in the United States

and/or other countries.

Other trademarks and trade names may be used in this publication to refer to either the entities claiming

the marks and names or their products. Dell Inc. disclaims any proprietary interest in trademarks and

trade names other than its own.

Regulatory Model E12S Series and E13S Series

June 2010

P/N 9V9CK

Rev. A00

Getting Started With Your System

3

Installation and Configuration

WARNING:

Before performing the following procedure, review the safety

instructions that came with the system.

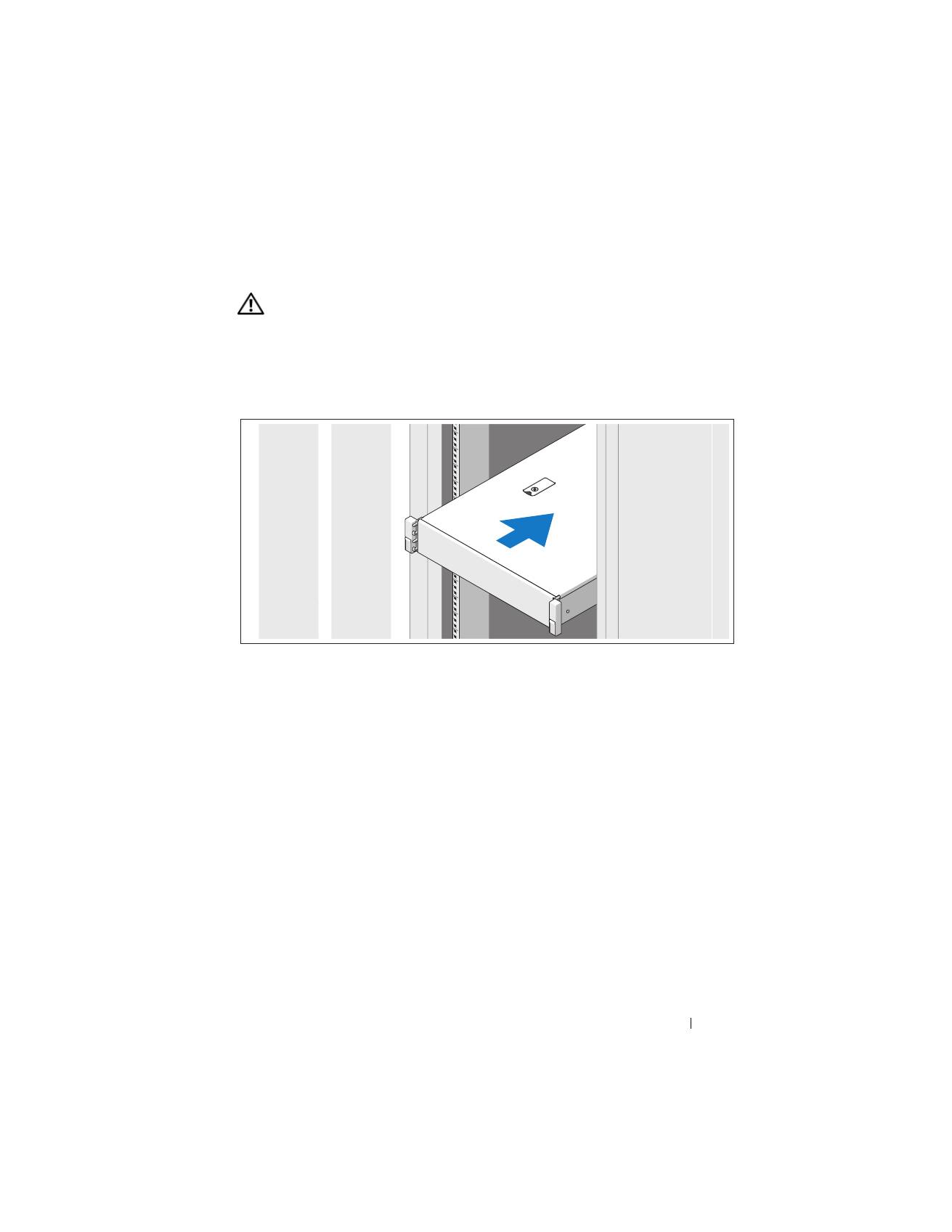

Unpacking the System

Unpack your system and identify each item.

Assemble the rails and install the system in the rack following the safety

instructions and the rack installation instructions provided with your system.

4

Getting Started With Your System

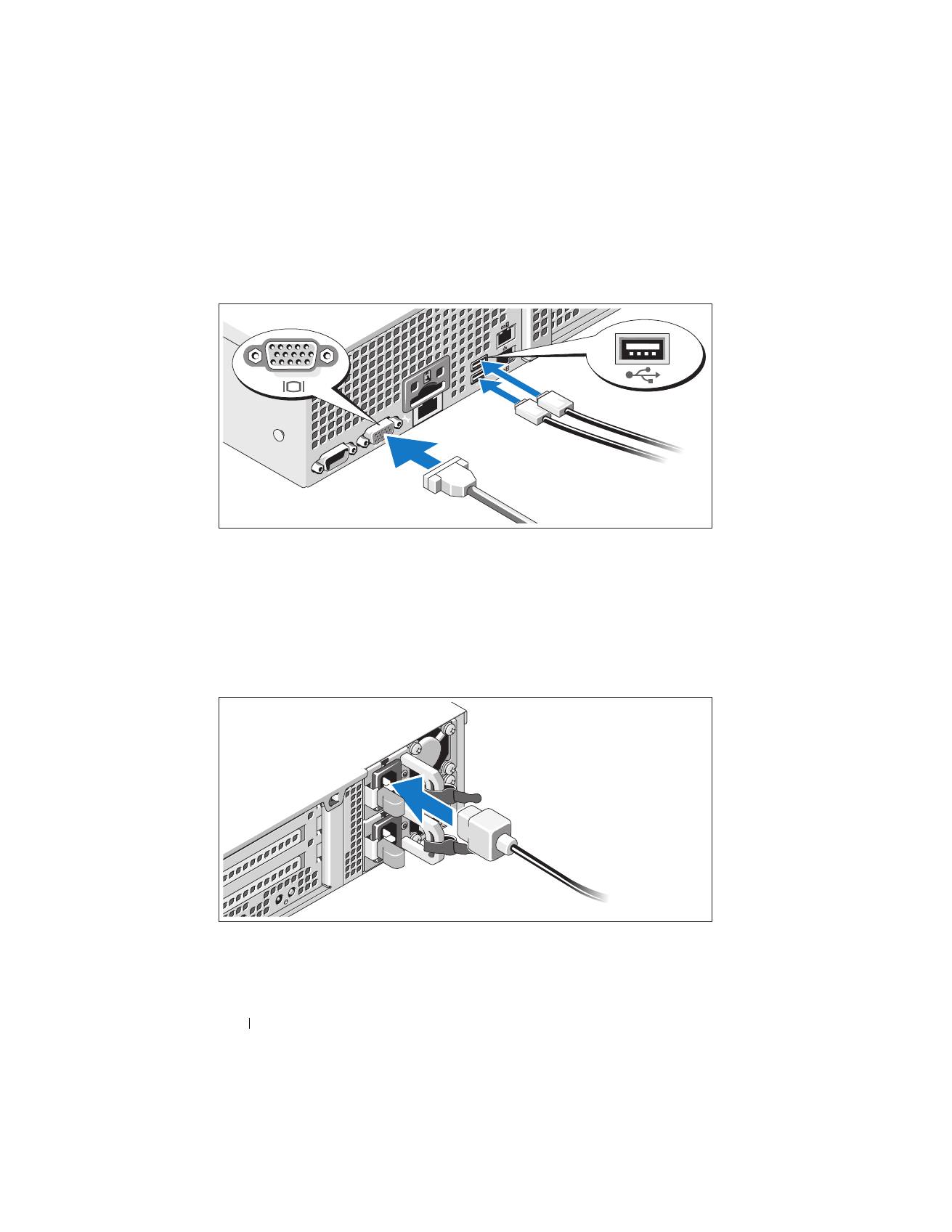

Optional – Connecting the Keyboard, Mouse, and Monitor

Connect the keyboard, mouse, and monitor (optional).

The connectors on the back of your system have icons indicating which cable

to plug into each connector. Be sure to tighten the screws (if any) on the

monitor's cable connector.

Connecting the Power Cable(s)

Connect the system’s power cable(s) to the system and, if a monitor is used,

connect the monitor’s power cable to the monitor.

Getting Started With Your System

5

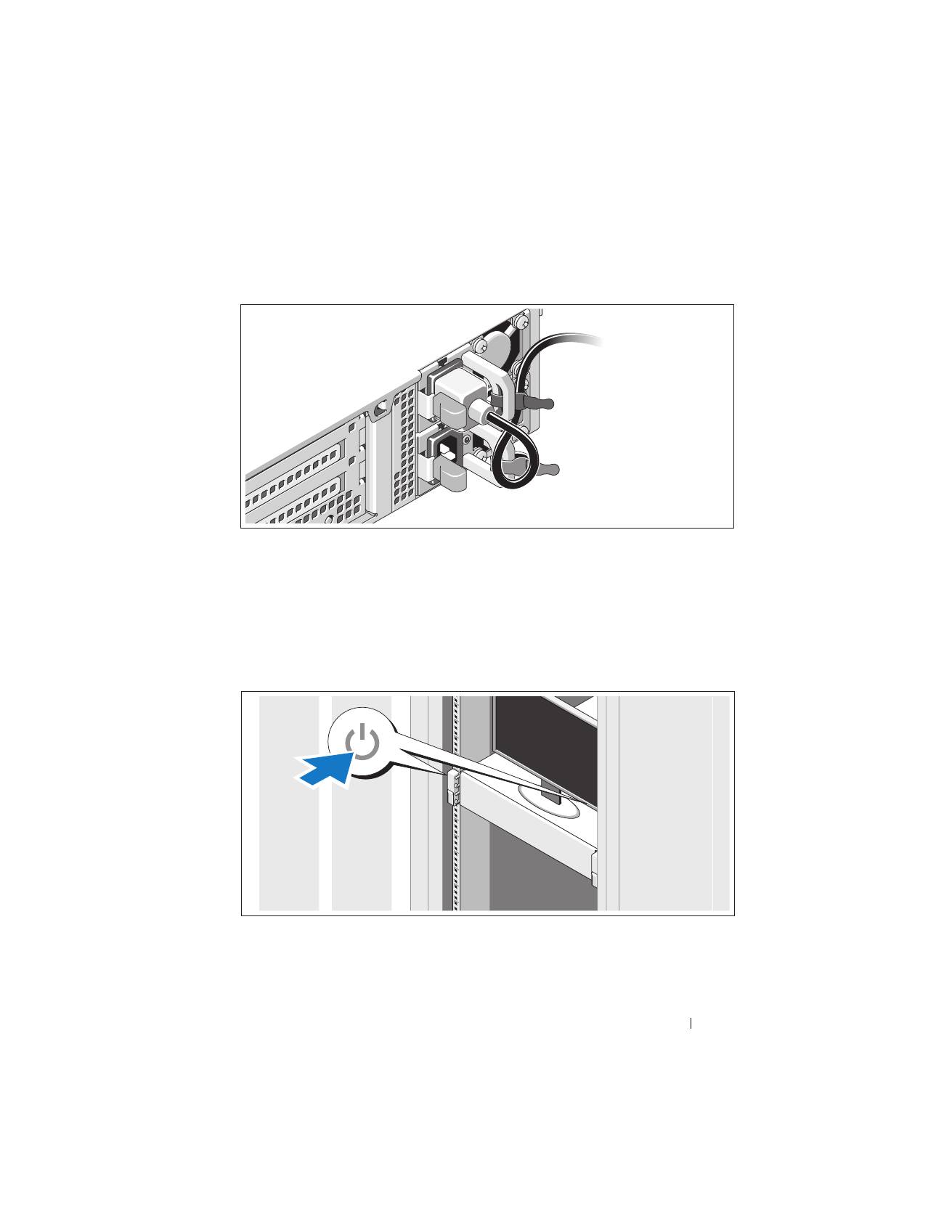

Securing the Power Cable(s)

Bend the system power cable into a loop as shown in the illustration and secure

the cable to the bracket using the provided strap. Plug the other end of the

power cable into a grounded electrical outlet or a separate power source such as

an uninterrupted power supply (UPS) or a power distribution unit (PDU).

Turning On the System

Press the power button on the system and the monitor. The power indicators

should light.

6

Getting Started With Your System

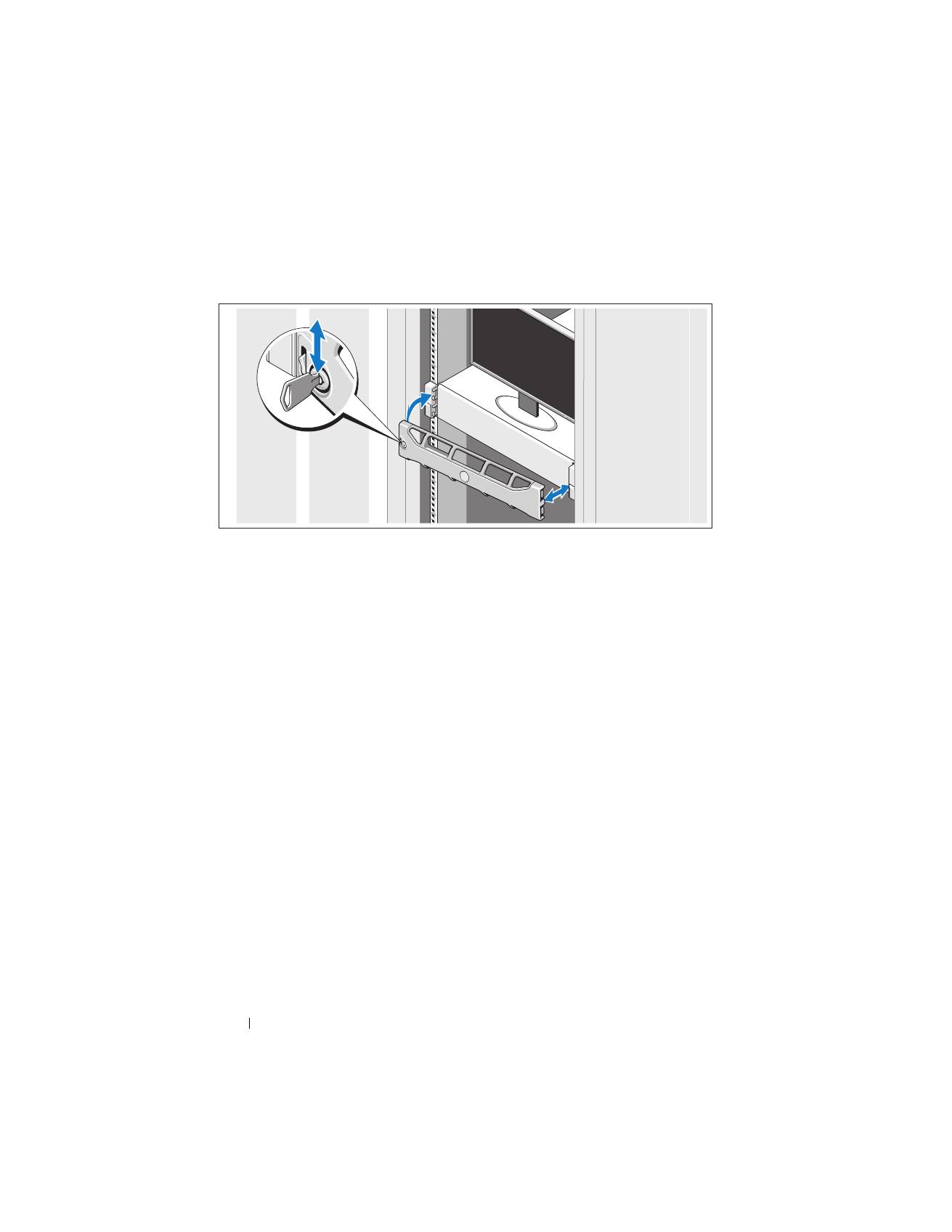

Installing the Optional Bezel

Install the bezel (optional).

Complete the Operating System Setup

If you purchased a preinstalled operating system, see the operating system

documentation that ships with your system. To install an operating system for

the first time, see the installation and configuration documentation for your

operating system. Be sure the operating system is installed before installing

hardware or software not purchased with the system.

Getting Started With Your System

7

Supported Operating Systems

NOTE:

For twelve–hard-drive systems with additional internal hard drives, it is

recommended that you install the operating system on the internal hard drives

in a RAID 1 configuration.

•

Microsoft Windows Server 2008 SP2 Web, Standard, and Enterprise (x86)

Editions

•

Microsoft Windows Server 2008 SP2 Web, Standard, Enterprise,

and Datacenter (x64) Editions

•

Microsoft Windows Server 2008 R2 Web, Standard, Enterprise,

and Datacenter (x64) Editions

•

Windows Small Business Server 2008 R2 (x64) Standard and

Premium Editions

•

Microsoft Windows Server 2008 R2 HPC (x64) Edition

•

Microsoft Windows Server 2008 SP2 HPC (x64) Edition

•

Red Hat Enterprise Linux 5.5 Standard (x86_64),

Advanced Platform (x86_64), and HPC Editions

•

SUSE Linux Enterprise Server 11 SP1 (x86_64)

•

SUSE Linux Enterprise Server 10 SP3 (x86_64)

•

VMware ESX 4.0 Update 2 Classic Edition

•

VMware ESXi 4.0 Update 2 Installable Edition

•

VMware ESX 4.1 Classic Edition

•

VMware ESXi 4.1 Installable Edition

•

Citrix XenServer 5.6 Enterprise Edition

•

Microsoft Hyper-V Windows Server 2008 R2 (stand-alone)

•

Microsoft Windows Server 2008 R2 Hyper-V role

NOTE:

For the latest information on supported operating systems,

see

support.dell.com

.

8

Getting Started With Your System

Other Information You May Need

WARNING:

See the safety and regulatory information that shipped with

your system. Warranty information may be included within this document or

as a separate document.

•

The rack documentation included with your rack solution describes

how to install your system into a rack.

•

The

Hardware Owner’s Manual

provides information about system

features and describes how to troubleshoot the system and install or

replace system components. This document is available online at

support.dell.com/manuals

.

•

Any media that ships with your system that provides documentation

and tools for configuring and managing your system, including those

pertaining to the operating system, system management software,

system updates, and system components that you purchased

with your system.

NOTE:

Always check for updates on

support.dell.com/manuals

 and read the

updates first because they often supersede information in other documents.

Obtaining Technical Assistance

If you do not understand a procedure in this guide or if the system does

not perform as expected, see your

Hardware Owner’s Manual

. Dell offers

comprehensive hardware training and certification. See

dell.com/training

 for

more information. This service may not be offered in all locations.

Getting Started With Your System

9

Technical Specifications

Processor

Processor type

Up to two AMD Opteron 4100 processors

Expansion Bus

Bus type

PCI Express Generation 2

Expansion slots using riser cards

NOTE:

Depending on the configuration, your system may have either riser 1 or riser 2.

Riser 1

OR

Riser 2

Slot 1: PCIe x4, half-length, full-height

Slot 2: PCIe x4, full-length, full-height

Slot 3: PCIe x8, half-length, full-height

Slot 4: PCIe x4, internal slot for integrated card

NOTE:

All four slots are x8 connectors.

Slot 1: PCIe x16, full-length, full-height

Slot 2: PCIe x4, internal for integrated card

NOTE:

A General Purpose Computation on

Graphics Processing Units (GPGPU) optimized

configuration is available on riser 2.

Memory

Architecture

1333 MHz DDR3 registered or

unbuffered Error Correcting Code (ECC)

DIMMs

Memory module sockets

Eight 240-pin

Memory module capacities

1 GB, 2 GB, 4 GB, or 8 GB

Minimum RAM

1 GB with a single processor (1 DIMM

per processor)

Maximum RAM

64 GB (8 GB dual-rank DIMMs)

128 GB (16 GB quad-rank DIMMs)

(when available)

10

Getting Started With Your System

Drives

Hard drives

Eight–hard-drive systems

Twelve–hard-drive systems

Up to eight 3.5" or 2.5", hot-swappable SAS,

SATA, or SSD drives

Up to twelve 3.5" or 2.5", hot-swappable SAS,

SATA, or SSD drives and up to two cabled

2.5" SAS or SSD drives

NOTE:

For twelve–hard-drive systems with

additional internal hard drives, it is

recommended that you install the operating

system on the internal hard drives in a RAID 1

configuration.

Optical drive

Optional internal slim-line SATA DVD-ROM

or DVD+/-RW

Optional external USB DVD-ROM

NOTE:

Twelve–hard-drive systems support

only an external USB DVD-ROM.

Connectors

Back

NIC

Two RJ-45 (for integrated 1-GB NICs)

Serial

9-pin, DTE, 16550-compatible

USB

Two 4-pin, USB 2.0-compliant

Video

15-pin VGA

Front

Video

15-pin VGA

USB

Two 4-pin, USB 2.0-compliant

Internal

USB

Two 4-pin, USB 2.0-compliant

Video

Video type

Matrox G200, integrated in the BMC

Video memory

8 MB

Getting Started With Your System

11

Power

AC power supply (per power supply)

Wattage

 750 W (optional redundant power supply)

Voltage

100–240 VAC, autoranging, 50–60 Hz

Heat dissipation

Eight–hard-drive systems

Twelve–hard-drive systems

2200 BTU/hr maximum

2450 BTU/hr maximum

Maximum inrush current

Under typical line conditions and over the

entire system ambient operating range,

the inrush current may reach 55 A per

power supply for 10 ms or less.

Batteries

System battery

CR 2032 3.0-V lithium ion coin cell

Physical

Height

Eight– hard-drive systems

Twelve–hard-drive systems

8.64 cm (3.4 in)

8.67 cm (3.42 in)

Width

Eight–hard-drive systems

Twelve–hard-drive systems

43.66 cm (17.19 in)

44.52 cm (17.53 in)

Depth

Eight–hard-drive systems

Twelve–hard-drive systems

61.02 cm (24.09 in)

66.46 cm (26.17 in)

Weight (maximum configuration)

Eight–hard-drive systems

Twelve–hard-drive systems

22.5 kg (49.5 lbs)

29.0 kg (63.8 lbs)

Weight (empty)

Eight–hard-drive systems

Twelve–hard-drive systems

13.5 kg (29.7 lbs)

15.85 kg (34.87 lbs)

12

Getting Started With Your System

Environmental

NOTE:

For additional information about environmental measurements for specific

system configurations, see

www.dell.com/environmental_datasheets

.

Temperature

Operating

10° to 35°C (50° to 95°F) with a maximum

temperature gradation of 10°C per hour

NOTE:

For altitudes above 2950 feet,

the maximum operating temperature is

derated 1ºF/550 ft.

Storage

–40° to 65°C (–40° to 149°F) with a

maximum temperature gradation

of 20°C per hour

Relative humidity

Operating

20% to 80% (noncondensing) with

a maximum humidity gradation

of 10% per hour

Storage

5% to 95%, maximum humidity gradation

of 10% per hour.

Maximum vibration

Operating

0.26 G at 5–350 Hz for 15 min

Storage

1.87 G at 10–500 Hz for 15 min

Maximum shock

Operating

One shock pulse in the positive z axis

(one pulse on each side of the system) of

31 G for 2.6 ms in the operational orientation

Storage

Six consecutively executed shock pulses in

the positive and negative x, y, and z axes

(one pulse on each side of the system)

of 71 G for up to 2 ms, and Square Wave

32G, 270in/sec

Getting Started With Your System

13

Altitude

Operating

–16 to 10,668 m (-50 to 35,000 ft)

NOTE:

For altitudes above 2950 feet,

the maximum operating temperature

is derated 1ºF/550 ft.

Storage

–16 to 10,600 m (–50 to 35,000 ft)

Airborne Contaminant Level

Class

G1 or lower as defined by ISA-S71.04-1985

Environmental

(continued)

14

Getting Started With Your System

Systémy Dell PowerEdge R515

Začínáme se systémem

Regulatorní model řady E12S a řady E13S

Poznámky a upozornění

POZNÁMKA:

POZNÁMKA označuje důležité informace, které pomáhají

lepšímu využití počítače.

UPOZORNĚNÍ:

UPOZORNĚNÍ poukazuje na možnost poškození

hardwaru nebo ztráty dat v případě nedodržení pokynů.

VAROVÁNÍ:

VAROVÁNÍ upozorňuje na potenciální nebezpečí

poškození majetku, úrazu nebo smrti.

____________________

Informace v této publikaci se mohou bez předchozího upozornění změnit.

© 2010 Dell Inc. Všechna práva vyhrazena.

Jakákoli reprodukce těchto materiálů bez písemného povolení společnosti Dell Inc. je přísně zakázána.

Ochranné známky použité v tomto textu: Dell™, logo DELL a PowerEdge™ jsou ochranné známky

společnosti Dell Inc. AMD

®

 je registrovaná ochranná známka společnosti Advanced Micro

Devices, Inc. Microsoft

®

, Windows

®

 a Windows Server

®

 jsou ochranné známky nebo registrované

ochranné známky společnosti Microsoft Corporation v USA a dalších zemích. Red Hat Enterprise

Linux

®

 a Enterprise Linux

®

 jsou registrované ochranné známky společnosti Red Hat, Inc. v USA a

dalších zemích. Novell

®

 a SUSE

®

 jsou registrované ochranné známky společnosti Novell Inc. v USA

a dalších zemích. Citrix

®

, Xen

®

 a XenServer

®

 jsou registrované ochranné známky nebo ochranné

známky společnosti Citrix System, Inc. v USA a dalších zemích.

V této publikaci mohou být použity další ochranné známky a obchodní názvy s odkazem na společnosti

vlastnící tyto známky a názvy nebo na jejich produkty. Společnost Dell Inc. nemá vlastnické zájmy

vůči ochranným známkám a obchodním názvům jiným než svým vlastním.

Regulatorní model řady E12S a řady E13S

Červen 2010

Č. dílu 9V9CK

Rev. A00

Začínáme se systémem

17

Instalace a konfigurace

VAROVÁNÍ:

Před provedením následujícího postupu si prostudujte

bezpečnostní pokyny dodané se systémem.

Rozbalení systému

Rozbalte systém a identifikujte jeho jednotlivé součásti.

Sestavte kolejničky a nainstalujte systém do stojanu podle bezpečnostních pokynů

a pokynů k instalaci do stojanu dodaných se systémem.

18

Začínáme se systémem

Volitelné – Připojení klávesnice, myši a monitoru

Připojte klávesnici, myš a monitor (volitelné).

Konektory na zadní straně systému mají ikony znázorňující, který kabel se má

připojit ke kterému konektoru. Zajistěte, aby šroubky na konektoru kabelu

monitoru byly dobře dotaženy (je-li jimi konektor vybaven).

Připojení napájecích kabelů

Připojte napájecí kabely k systému, a pokud používáte monitor, připojte napájecí

kabel také k monitoru.
