Konig Electronic High-definition DVB-T2 receiver: ENGLISH
ENGLISH: Konig Electronic High-definition DVB-T2 receiver
ENGLISH
RECORD Record the program
>
Play
*
Stop
=
Pause and resume play
¯ ˘
Fast forward or rewind
” ’
Previous and next
INSTALLATION

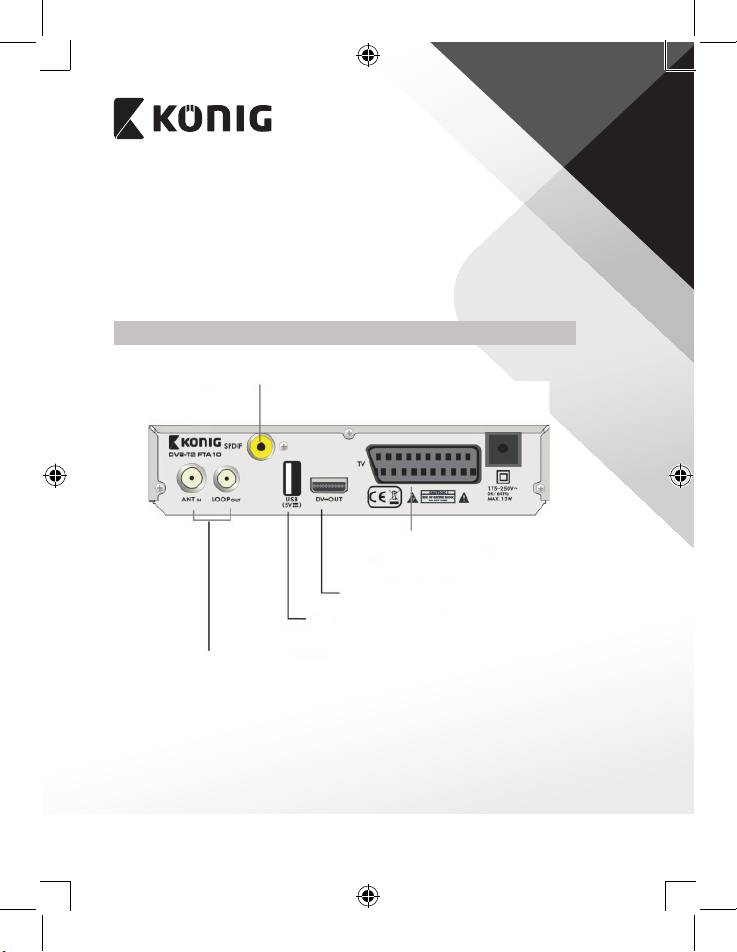

Rear panel:
CONNECT TO DIGITAL AMPLIFIER
CONNECT TO TV USING A
SCART CABLE
CONNECT TO TV’S HDMI INPUT
CONNECT TO USB DEVICE
ANT IN: CONNECT TO ANTENNA
LOOP OUT: CONNECT TO ANOTHER RECEIVER
7
ENGLISH

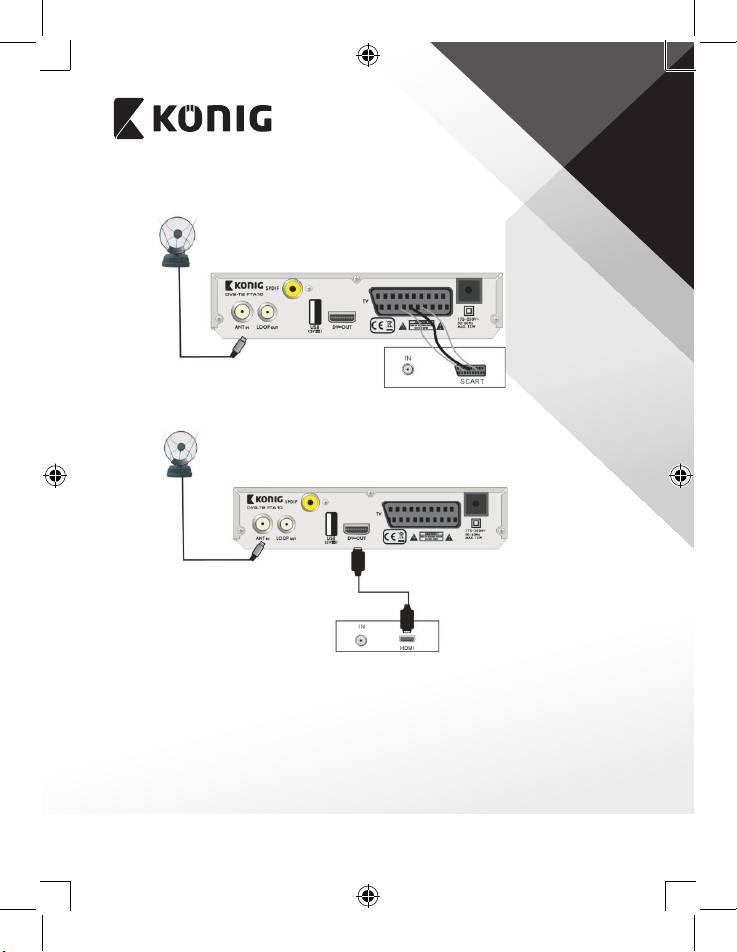

Connecting to TV using SCART/HDMI support:
Antenna
TV
Antenna
TV
8
ENGLISH
INSTALLATION GUIDE

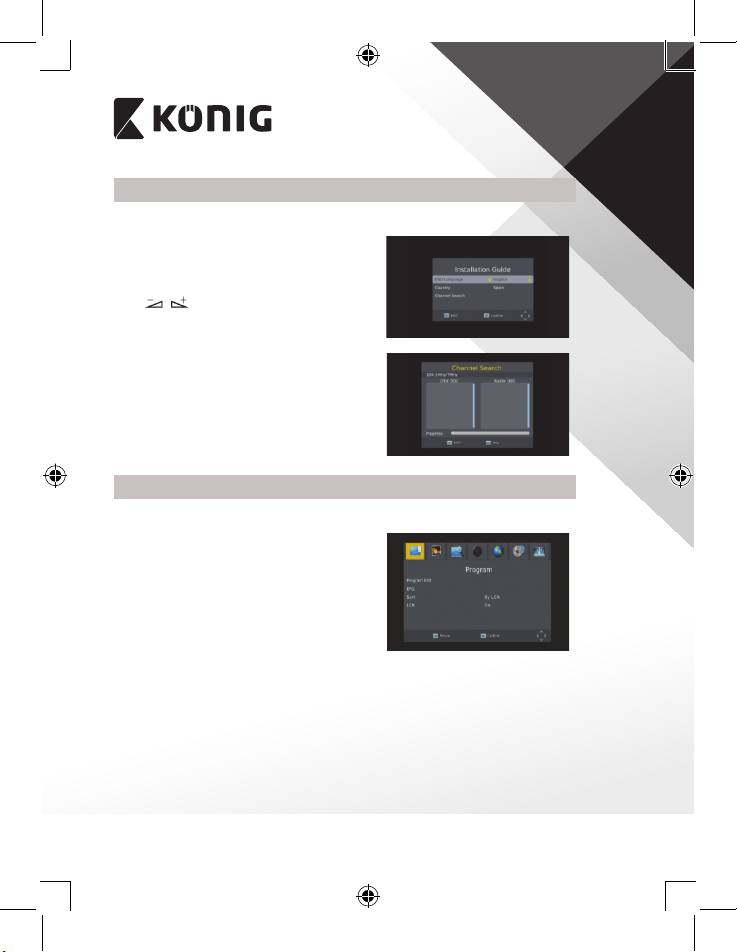

When powering on for the rst time, the Installation Guide will display as below.
Press PR+ and PR− to move the highlighted bar
to select OSD language, Country and Channel
Search.
Press
to move the cursor to choose
your choice.
Move the highlighter to the Channel Search
option and press OK to search channels.
Press [EXIT] to exit this menu.
MAIN MENU
When you press [MENU], you enter the Main Menu.
This menu consists of 7 major sub-menus as
follows.
- Program
- Picture
- Channel Search
- Time
- Option
- System
- USB
9
ENGLISH

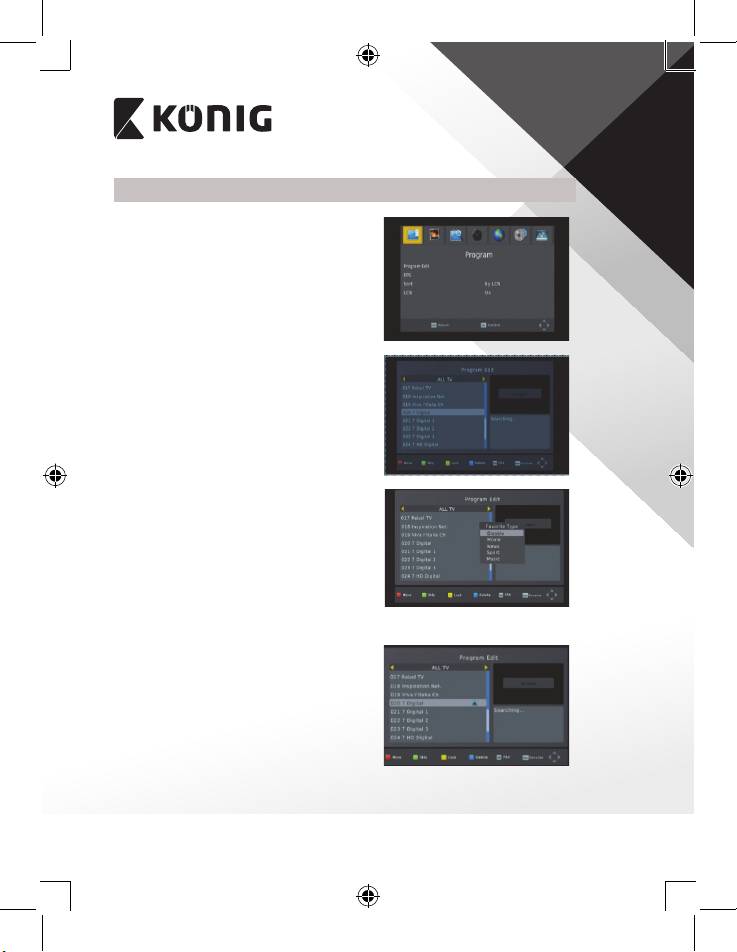

1. Program
This menu consists of 4 major sub-menus as
follow:
- Program edit
- EPG
- Sort
- LCN

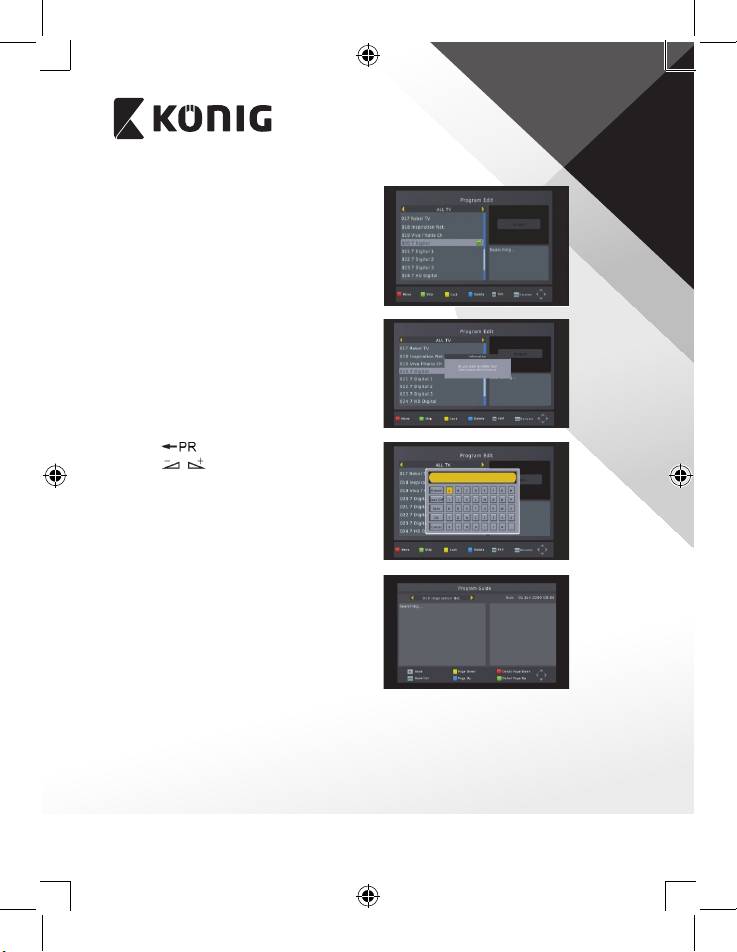

1.1 Program edit
Press OK to pop up the “Input Password”
dialogue box. You cannot open into the menu
unless the correct password is input. The default
password is “000000”.
1. Press PR+, PR− keys to select the programme
that you want to play, and then press OK to
view the programme in the small window.
If you move the yellow cursor to select
up or down, you will see a gray line which
indicates the playing program in the small
window.
2. Select the program and press FAV to pop
up the favourite type list. In the list, select
the favourite type that you want and press
OK, and then you will nd the favourite
icon is displayed to the right of the selected
program.
Select Disable in favourite type list to
remove all the favourite types you selected,
and the favourite icon will disappear behind
the programme.
3. Select the program and press the yellow key
to mark this program with the Lock icon. You
can cancel this icon by pressing the yellow
key once more.
10
ENGLISH
4. Select the programme and press the green
key to mark this program with the skip icon.
You can cancel this mark by pressing the
green key once more.
5. Select the program and press the blue key
to pop up a warning dialogue box: “Do you
want to delete this?” Press OK to delete it
and press EXIT to cancel.
6. Press
to pop up the rename window.
Press
to move the cursor left or right
to select the characters.

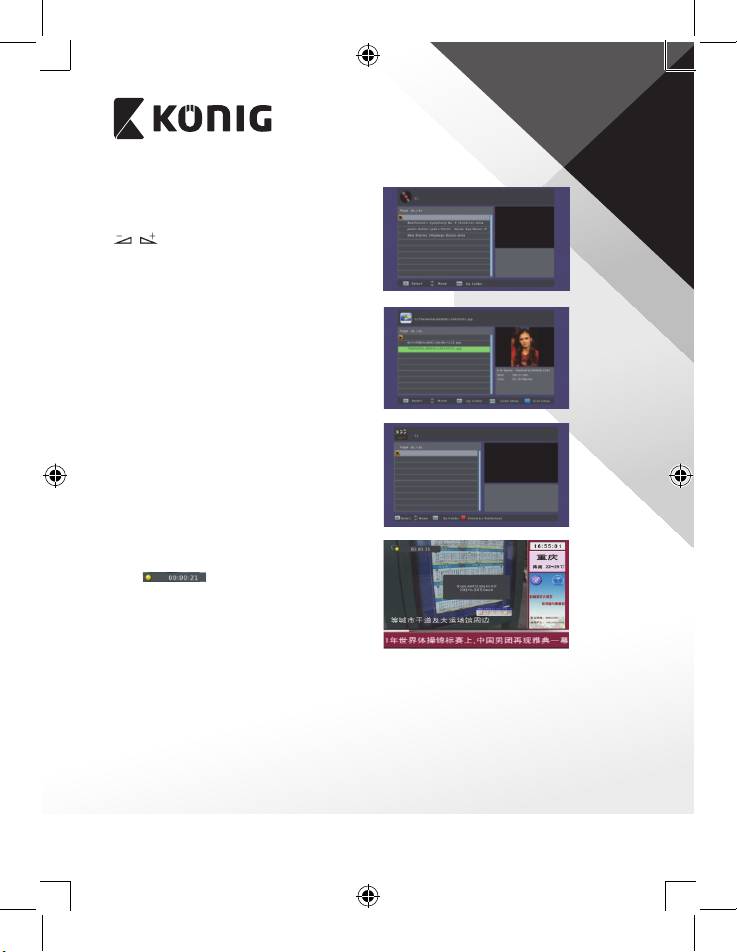

1.2 EPG
You can nd information for a programme in
the EPG window. Programmes are in the left
side list and details of the program are shown
on the right side. At the bottom of the window
you can see the function keys.
Press the blue key to page up in the program
list. Press the yellow key to page down in the
program list. Press the green key to page up
in the detail list and press the red key to page
down in the detail list.
11
ENGLISH
Press OK to select the program. You can see the
programme you selected in the book list.
In EPG mode you can press INFO to enter the
booking list. All the programmes you booked
will be in the schedule.
Press the red key to add a programme to the
booking list, and press the green key to edit the
programme. Press the blue key to delete the
programme.
Press EXIT to exit the booking list window.
1.3 SORT
Select by service ID, LCN, ONID or service name.
1.4 LCN
Select between On and O.

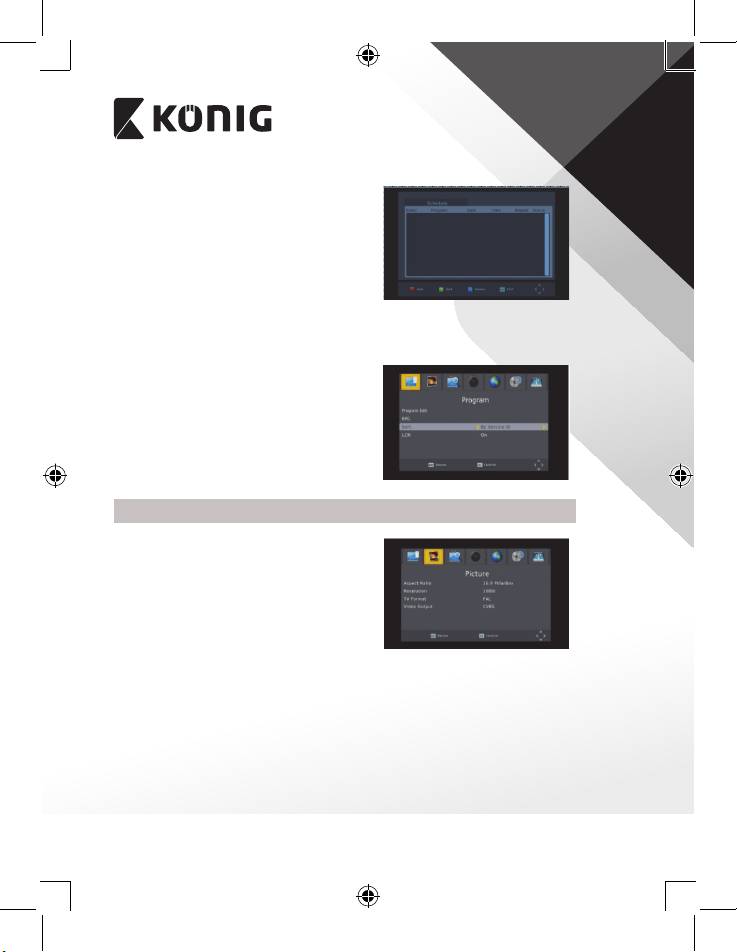

2. Picture
This menu consists of 4 major sub-menus as
follows:
- Aspect Ratio
- Resolution
- TV Format
- Video Output
2.1 Aspect Ratio
Select between 16:9 Pillar Box, 16:9 Pan&Scan, 4:3 Letter Box, 4:3 Pan&Scan, 4:3 Full,
16:9 Wide Screen and Auto.
2.2 Resolution
Select between 1080i, 1080p, 576i, 576p, 480i and 720p.
2.3 TV Format
Select between PAL and NTSC.
12
ENGLISH
2.4 Video Output
Select between CVBS and RGB.

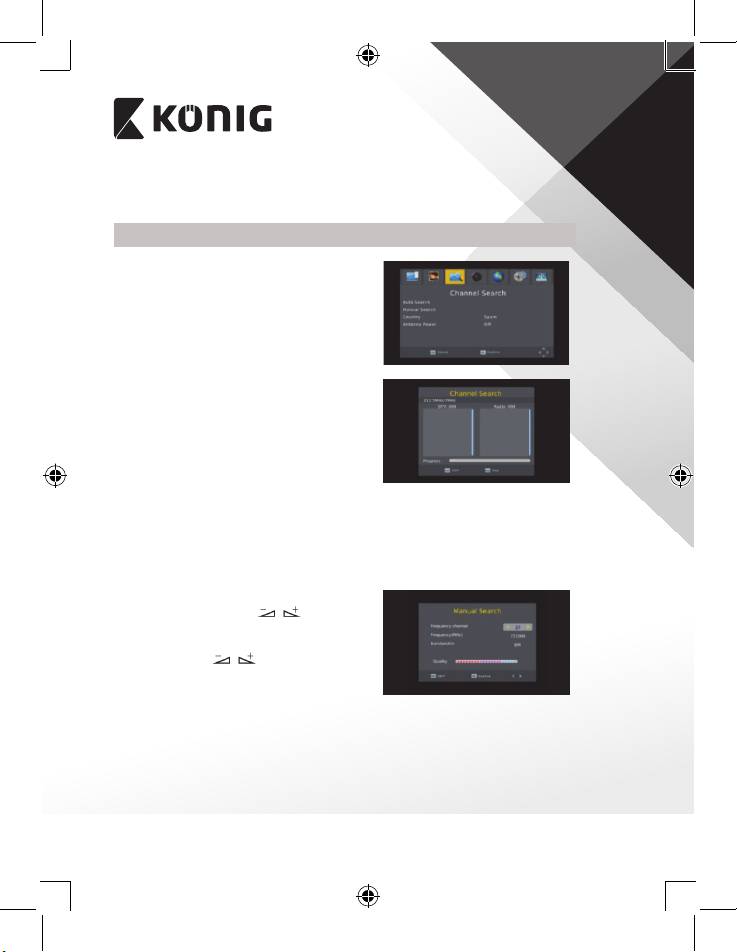

3. Channel search
This menu consists of 4 major sub-menus as
follows:
- Auto Search
- Manual Search
- Country
- Antenna Power
3.1 Auto search
Press OK on Auto Search to search channels.
For the rst searching, all searched TV channels
and radio channels will be displayed on the list
in order. Through one colour bar at the bottom
of the search window, users can know the
searching progress of the current channel. The
TV and Radio Channels you searched will be
shown in the list, you can know the number of
programmes at the top of the window. During
the search, you can press EXIT to cancel. After
searching, press EXIT to return to the normal
mode.
3.2 Manual search
Frequency channel: Press to select the
channel.
Frequency: Press the number key to input.
Bandwidth: Press to select between 6,
7 and 8M.
Through two colour bars at the bottom of the
search window, users can see the signal quality
and strength of the current channel.
After setting, press OK to enter the searching
window.
13
ENGLISH
3.3 Country
Press to select the country.
3.4 Antenna power
Select On or O.

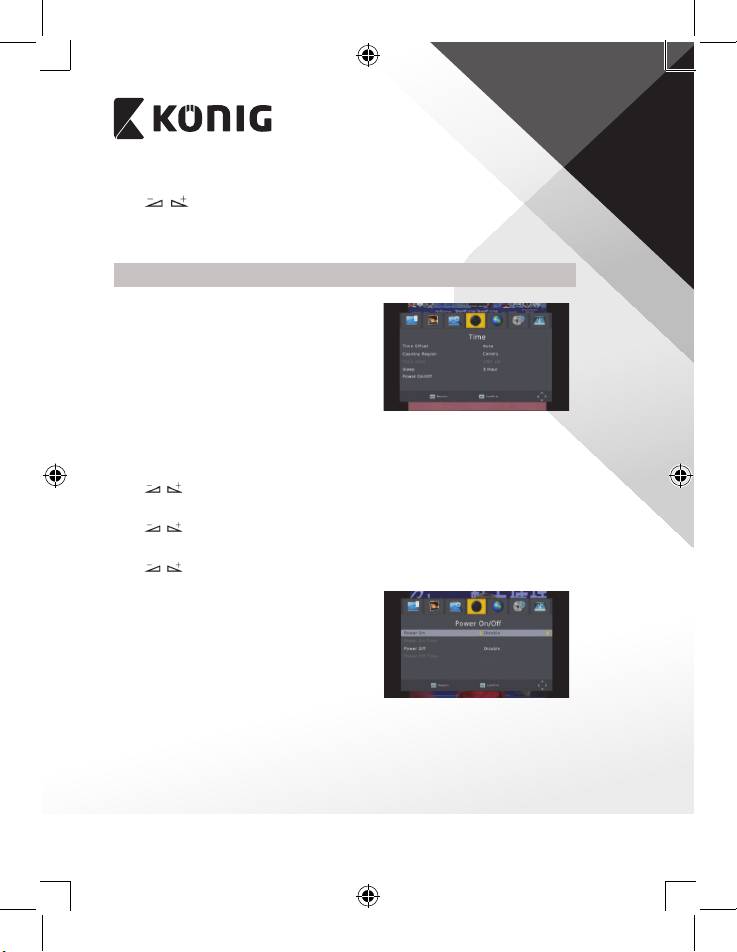

4. Time
There are 5 sub-menus in this menu
- Time Oset
- Country region
- Time zone
- Sleep
- Power On/O
Select between Auto and Manual. If you select
Auto, the time zone item will turn grey. If you
select Manual, you can edit the time zone item,
but the country region item will turn grey.
4.1 Country Region
Press to select.
4.2 Time zone
Press
to select from GMT-12 to GMT+12
4.3 Sleep
Press
to select among O, 1 hour or 12 hours.
4.4 Power On/O
Power On/O: Select Disable or Enable. When
selecting Enable you can edit Power On/O
Time by pressing the number keys.
Power On/O Time: Press the number key to
input.
14
ENGLISH

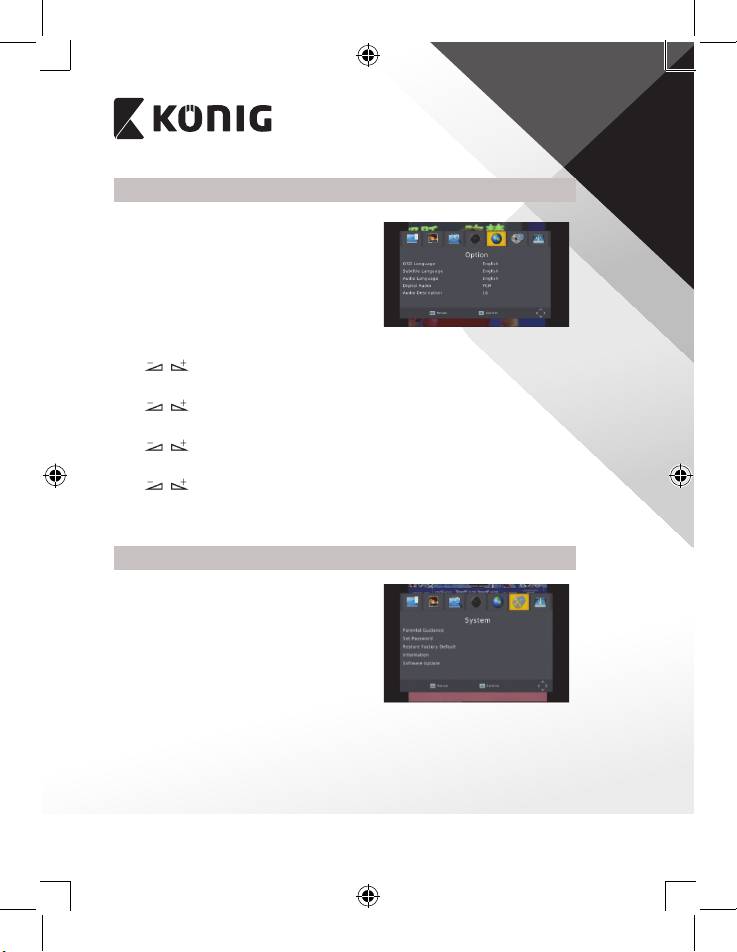

5. Option
There are 5 sub-menus in this menu
- OSD Language
- Subtitle Language
- Audio Language
- Digital Audio
- Audio Description
5.1 OSD language
Press to select the language in the circle.
5.2 Subtitle language
Press
to select the language in the circle.
5.3 Audio language
Press
to select the language in the circle.
5.4 Digital audio
Press
to select between PCM, RAW/HDMI RAW, RAW/HDMI PCM and O.
5.5 Audio description
Select from 1-31 and O.
6. System
There are 5 sub-menus in this menu.
- Parental Guidance
- Set Password
- Restore Factory Default
- Information
- Software update
15
ENGLISH

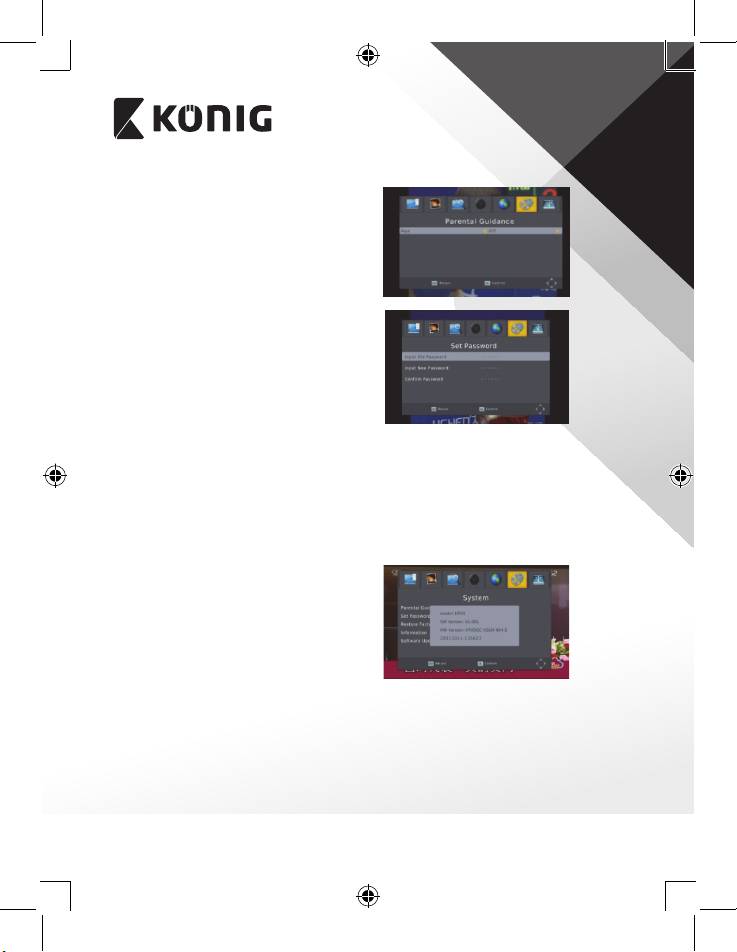

6.1 Parental guidance
The consumer can select an age from 4-18 or
O.
6.2 Set password
Input the old password: Input the password by
pressing the number keys 0-9.
Input the new password: Input the password
by pressing the number keys 0-9.
Conrm the new password: Press the number
keys 0-9 to input the new password again.
Note: The default password is: 000000. Please
record your new password. If your new
password is lost, please contact your service
provider.
6.3 Restore factory default
Choose the option of Restore Factory Default and press [OK] to restore.
Press [OK] to start and press [EXIT] to quit.
Note: Please use this function carefully.
6.4 Information
When you enter the Information menu, the
screen displays the receiver information, such
as model, SW version and so on.
Press [EXIT] to leave this menu.
16
ENGLISH

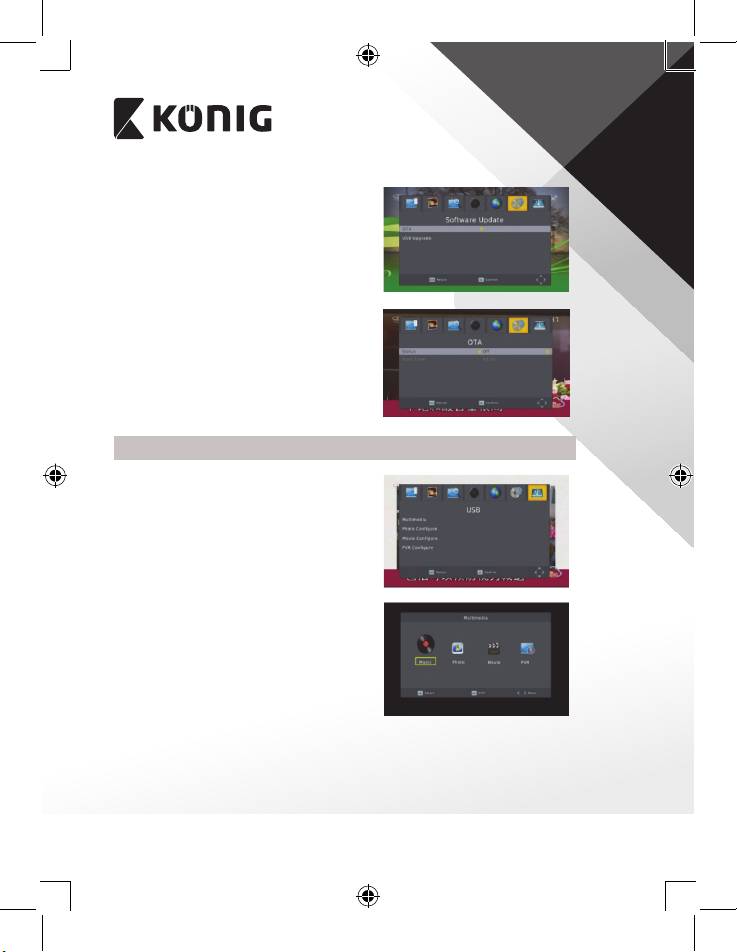

6.5 Software upgrade
There are 2 Update modes: OTA update and
USB update.
6.5.1 OTA upgrade
1. Status: Select between On and O. If you
select O, the Start Time turns grey.
2. Start Time: Select between 00:00 to 23:00.
6.5.2 USB upgrade
Press OK to upgrade through a USB Device.
7. USB
This menu has 5 sub-menus such as:
Multimedia, Photo Conguration, Movie
Conguration, PVR conguration and Record.
7.1 Multimedia
There are 4 sub-menus in this menu.
- Music
- Photo
- Movie
- PVR
These menus will be disabled when no USB
device is plugged in.
17
ENGLISH
7.1.1 Music
Press OK to enter the Music window. Press PR+,
PR- to move the cursor up and down. Press
to go back to the folder. Select the
music and press OK to play it. Press
>
and
=
to
play or pause and press
*
to stop playing.
7.1.2 Photo
Select the picture and press
>
to enter the slide
show mode.
Press the blue key to enter grid show mode. In
this mode, select the picture and press the OK
to see it in full screen.
7.1.3 Movie
Select the movie you want to watch and press
the red key to enter full screen mode.

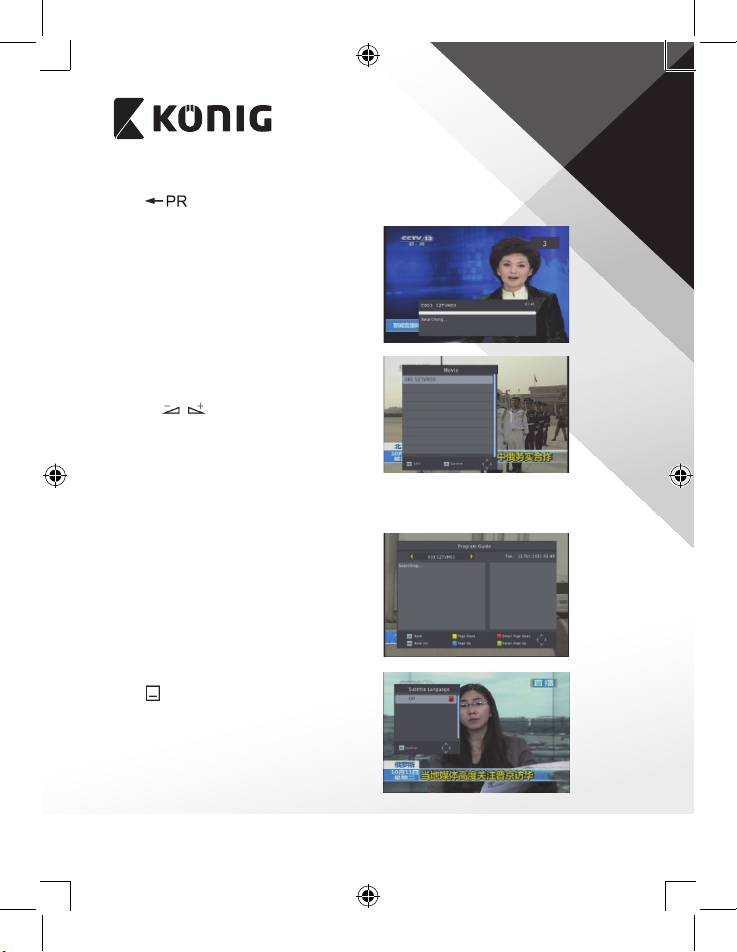

7.1.4 PVR
In normal mode, press the RECORD on RCU,
then will appear on the screen. It
means you are recording the program now.
Press “
*
” and a dialogue box will pop up: “Do
you want to stop recording?” Press OK to stop
recording and save it or press EXIT to continue
recording.
If you choose to stop recording, the program
you recorded will be added to the PVR RECORD
folder in PVR submenu.
18
ENGLISH
In PVR menu you can see the programme you
recorded.
Press the red key to switch to full screen mode
and press the exit key to go back to preview
mode. Press the yellow key to delete the
program. Press the green key to rename the
program. Press OK or
>
to play the programme.
Press
*
to stop playing.
Press
¯ ˘
to fast forward or rewind.

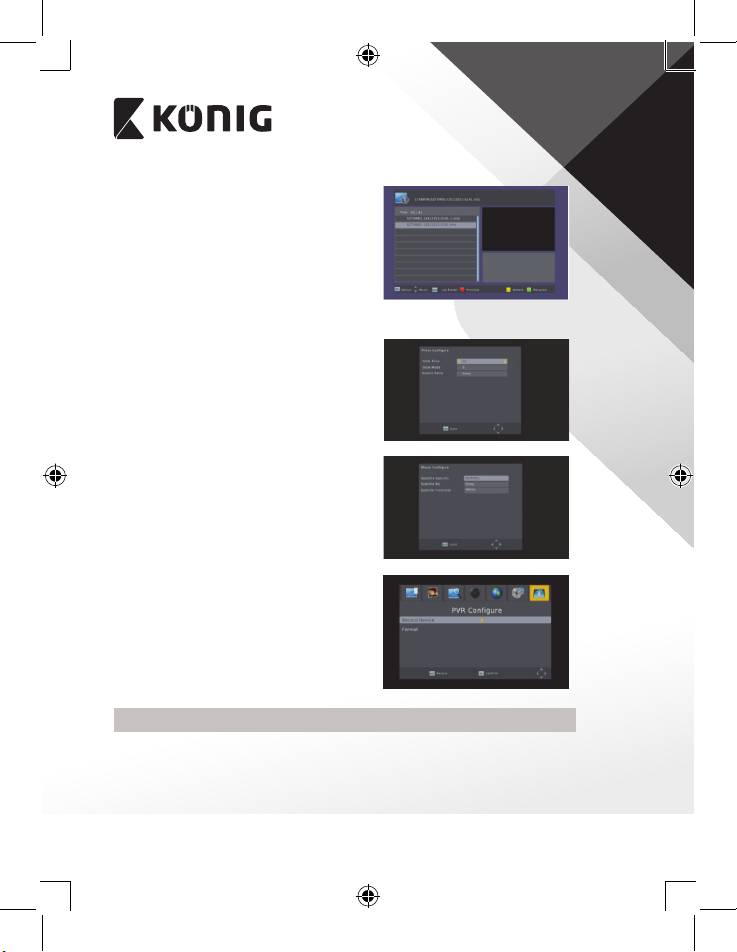

7.2 Photo conguration
1. Slide time: Select between 1 s – 8 s.
2. Slide mode: Select between 0 – 59 or
random.
3. Aspect ratio: Select between keep and
discard.
7.3 Movie conguration
1. Subtitle specic: Select normal, big or small.
2. Subtitle background: Select transparent,
grey, white, and yellow green.
3. Subtitle font color: Select red, white, black,
blue or green.
7.4 PVR conguration
1. Record device: Here you see the information
of the USB device
2. Format: Press OK to format the disk.
8. Hotkey
8.1 Number
Use the numeric keys (0-9) to input the number of the desired channel. If the input
number is beyond the valid channel number, the system will read “Invalid number”,
press OK to close this message.
19
ENGLISH

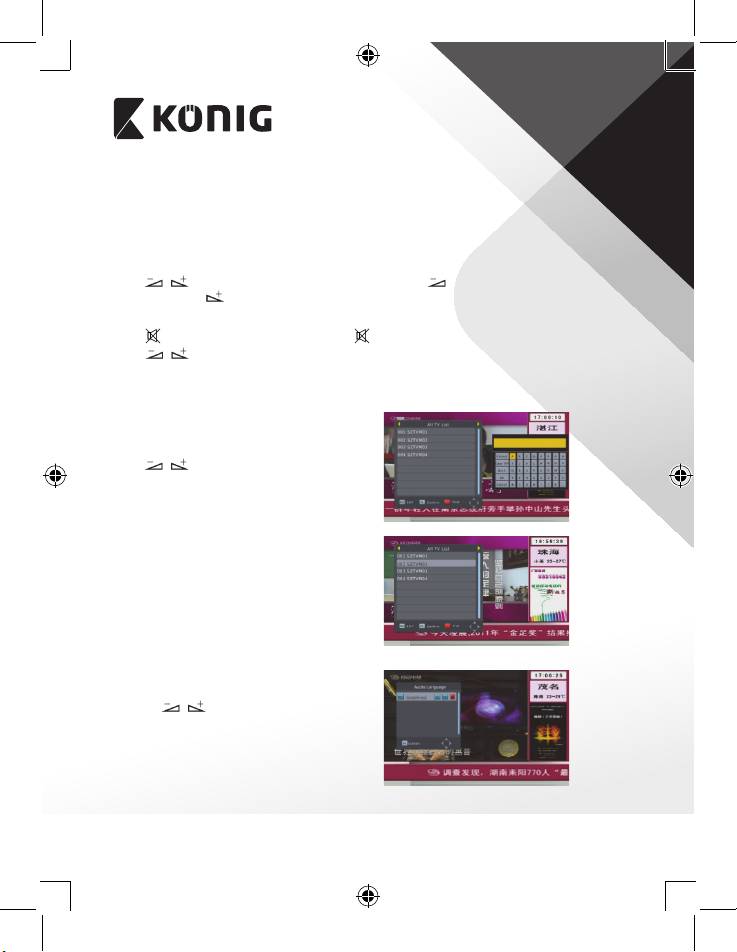

8.2 TV/Radio
In normal mode, press TV/RADIO to switch between TV mode and Radio mode.
8.3 Up/down
Press PR+, PR- to change the channel up or down.
8.4 Left/Right (VOL +/-)
Press
or VOL+, VOL- to change the volume. Press to decrease the
volume, or press to increase the volume.
8.5 Mute
Press
to mute the volume. You can press once again to restore the volume, or
press
to restore the volume.
8.6 Teletext
Press the Text to open teletext on the screen.
8.7 Find
Press the red (Find) key to pop up the Find
window.
Press
to enter into the character.
8.8 OK
1. During the viewing or listening, press OK to
pop up the TV programme list or the radio
programme list.
2. Press PR+, PR- to select the channel up or
down and then press the OK to play this
channel in Full-screen.
3. Press MENU or EXIT to close this window.
8.9 Audio
1. Press AUDIO to enter the Audio window.
2. Press to select between Left-Left,
Right-Right and Left-Right.
3. Changing the audio mode is only connected
with the current channel, not all the
channels.
4. Press EXIT to close this window.
20
ENGLISH
8.10 Recall
Press to switch the current channel to the previous channel.
8.11 Info
Press INFO to enter the information window.
8.12 FAV
1. Press the FAV to pop up the favourite group
window.
2. Press
to select the desired favourite
group. Press PR+, PR- to select the channel
up or down. Press OK at the selected channel
to view it in full screen. Press EXIT to exit.
3. If there is no favourite channel, the system
will advise you “No Favourite Programme!”
when you press FAV.
8.13 EPG
Please refer to 1.2 EPG for explanation.
8.14 Subtitle
Press
to open the subtitle window on the
screen.
21
ENGLISH
TROUBLESHOOTING
Problem Possible causes What to do
Check that the main cable
The display on the front
Main cable is not
is plugged into the power
panel does not light up.
connected.
socket.
No sound or picture, but
The receiver is in standby
the front panel shows
Press the standby button.
mode.
red light.
Check the cable
connections, antenna
No sound or picture. No signal or weak signal.
and other equipment
connected between the
antenna and the receiver.
Connect a signal
Signal is too strong.
attenuator to the antenna
input.
Bad picture/blocking
error.
Antenna noise factor
Change to an antenna
too high.
with lower noise factor.
The antenna is faulty. Change the antenna.
Check the UHF channel
The picture is not
The system is connected
xed in your system and
displayed on the screen,
by RF leads.
tune the UHF channel
when switched on.
properly.
The system is connected
by RF leads and the
Change the receiver
There is interference
output programme of
output program to a
on your terrestrial
the receiver interferes
more suitable program,
programme or video
with an existing terrestrial
or connect the system by
signal.
programme or Video
SCART leads.
signal.
22
ENGLISH
Problem Possible causes What to do
Battery exhausted. Change the batteries.
Aim RCU at the receiver,
The RCU is not working.
RCU is incorrectly aimed.
or check that nothing
blocks the front panel.
Note:
If you have tried all of the actions suggested above, without solving the problem,
please contact your retailer.
Safety precautions:
CAUTION
RISK OF ELECTRIC SHOCK
To reduce risk of electric shock, this product should ONLY be opened by an authorized
DO NOT OPEN
technician when service is required.
Disconnect the product from mains and other equipment if a problem should occur.
Do not expose the product to water or moisture.
Maintenance:
Clean only with a dry cloth.
Do not use cleaning solvents or abrasives.
Warranty:
No guarantee or liability can be accepted for any changes and modications of the product or damage caused due to
incorrect use of this product.
Disclaimer:
Designs and specications are subject to change without notice. All logos, brands and product names are trademarks or
registered trademarks of their respective holders and are hereby recognized as such.
This manual was produced with care. However, no rights can be derived. König Electronic can not accept liability for any
errors in this manual or their consequences.
Keep this manual and packaging for future reference.
Disposal:
This product is marked with this symbol. It means that used electrical and electronic products should not be
mixed with general household waste. There is a separate collections system for these products.
This product has been manufactured and supplied in compliance with all relevant regulations and directives, valid for all
member states of the European Union. It also complies to all applicable specications and regulations in the country of
sales.
Formal documentation is available upon request. This includes, but is not limited to: Declaration of Conformity (and
product identity), Material Safety Data Sheet, product test report.
Please contact our customer service desk for support:
via website: http://www.nedis.com/en-us/contact/contact-form.htm
via e-mail: service@nedis.com
via telephone: +31 (0)73-5993965 (during oce hours)
NEDIS B.V., De Tweeling 28, 5215 MC ’s-Hertogenbosch, THE NETHERLANDS
23
