Wireless Microphone System

ENGLISH

Introduction

Wireless microphone system with two microphones and an information display. The system

is equipped with a special voice limiter compressor to avoid distortion caused by high sound

peaks. Use 8 systems in one room without problems whereas regular systems with only 1

channel interfere.

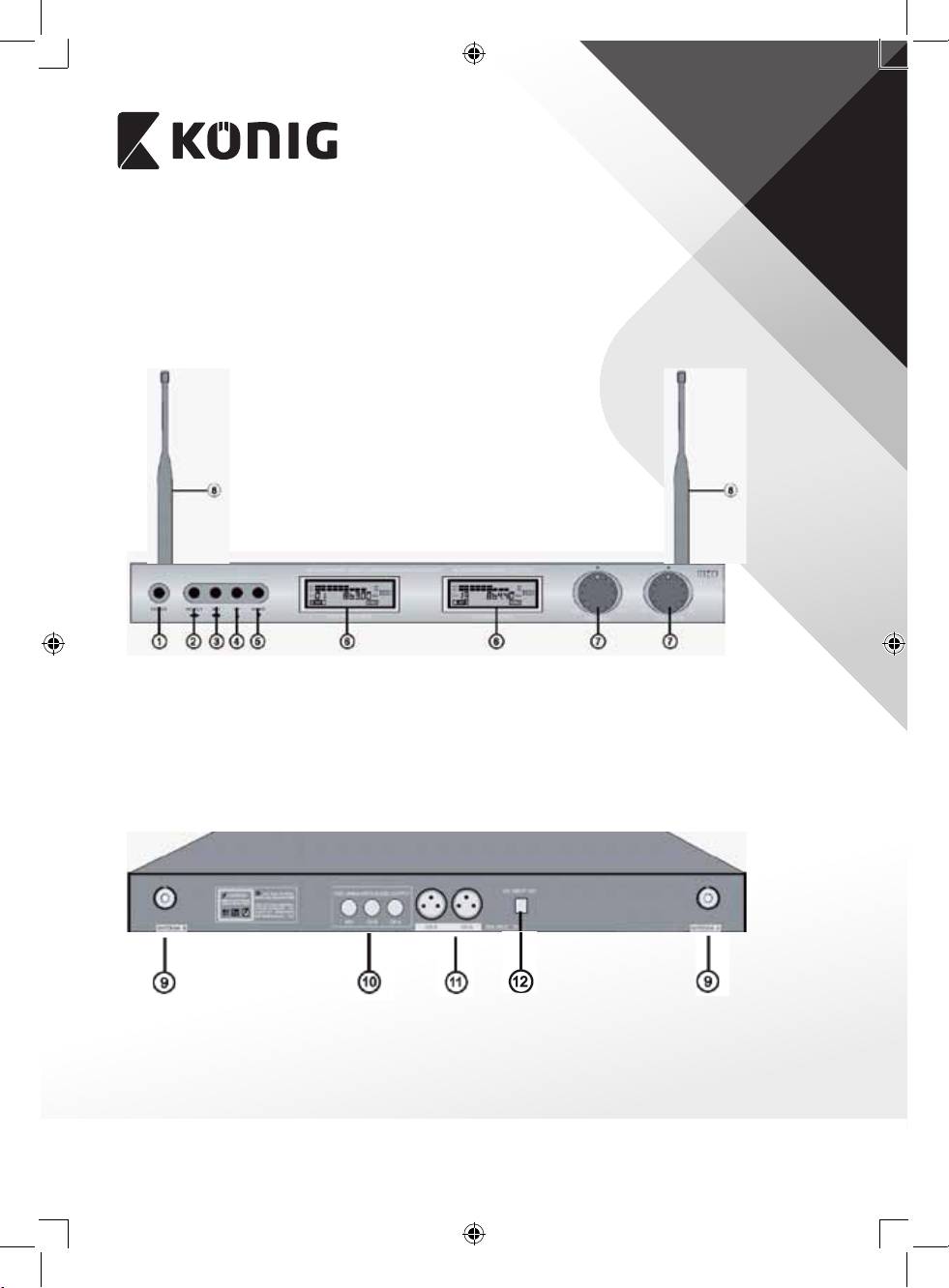

Description receiver

1. POWER: On/o button

2. SELECT: switch between receiver A and B for the use of buttons 3, 4 or 5

3. SET: button for function set, tune or pre-programmed channels

4. UP: button for tuning up or channel selection up of pre-programmed channels

5. DOWN: button for tuning down or channel selection down of pre-programmed channels

6. DISPLAY: separate for receiver A and B

7. VOLUME CONTROL: separate for receiver A and B

8. ANTENNA: separate antenna for receiver A and B

9. ANTENNA CONNECTOR: for connection of antenna A and B

10. UNBALANCED AUDIO OUTPUT: 6.35mm output for mixed signal (A+B) or separate signal

of receiver A and B

11. BALANCED AUDIO OUTPUT: separate XLR outputs for channel A & B

2

ENGLISH

Description LCD display receiver

• RF: Shows the strength of the received microphone signal

• AF: Shows the microphone’s audio signal level

• CH01: Selected pre-programmed channel

• A ANT: The antenna which receives the signal of the microphone (A for receiver A and B

for receiver B)

• 864.40: Frequency of the selected pre-programmed channel

• OPEN: Shows which receiver (display) is selected for the use of function buttons 2–5

• AUTO: Shows that the microphone is powered o. Appears also when there is no

connection with the microphone on the showed frequency in the display

• MUTE: There is no audio output from the receiver to mixer or amplier because the

microphone is powered o or there is no reception

• TUNE: Push the SELECT button (2) to switch between manual tuning or pre-programmed

channels. With manual tuning it’s possible to select the frequency by steps of

0.05MHz. The range is 840.00MHz till 868.00MHz. This feature oers the use of

other wireless microphones operating in the frequency band from 840.00MHz

till 868.00MHz. Note: the supplied microphones are pre-programmed from

863.00MHz till 865.00MHz

IMPORTANT NOTICE: It’s the responsibility of the user to ensure that the use of frequencies

comply with the local regulations and does not cause interference with other users.

3

ENGLISH

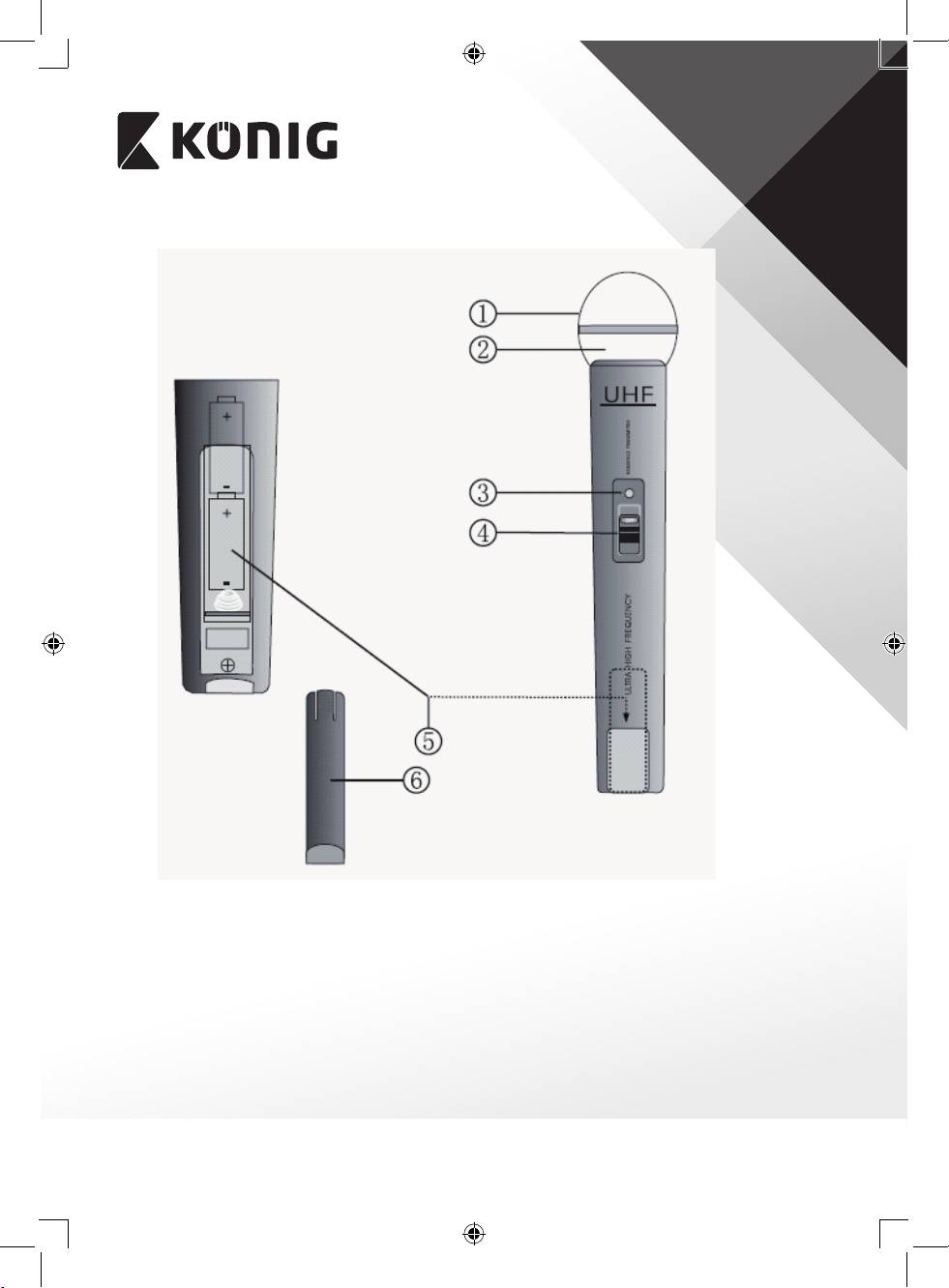

Description microphone

1. GRILL: Covers and protects the inner microphone element

2. MICROPHONE ELEMENT (inside): Picks up the audio signal

3. POWER/BATTERY INDICATOR: Flashes once when the power is on and lights up

constantly when the battery is running out of power

4. ON/OFF SWITCH: 3 Positions for ON, MUTE (middle position) or OFF

5. BATTERY COMPARTMENT: For 2x AA batteries

6. BATTERY COVER: Provides access to the battery compartment

4

ENGLISH

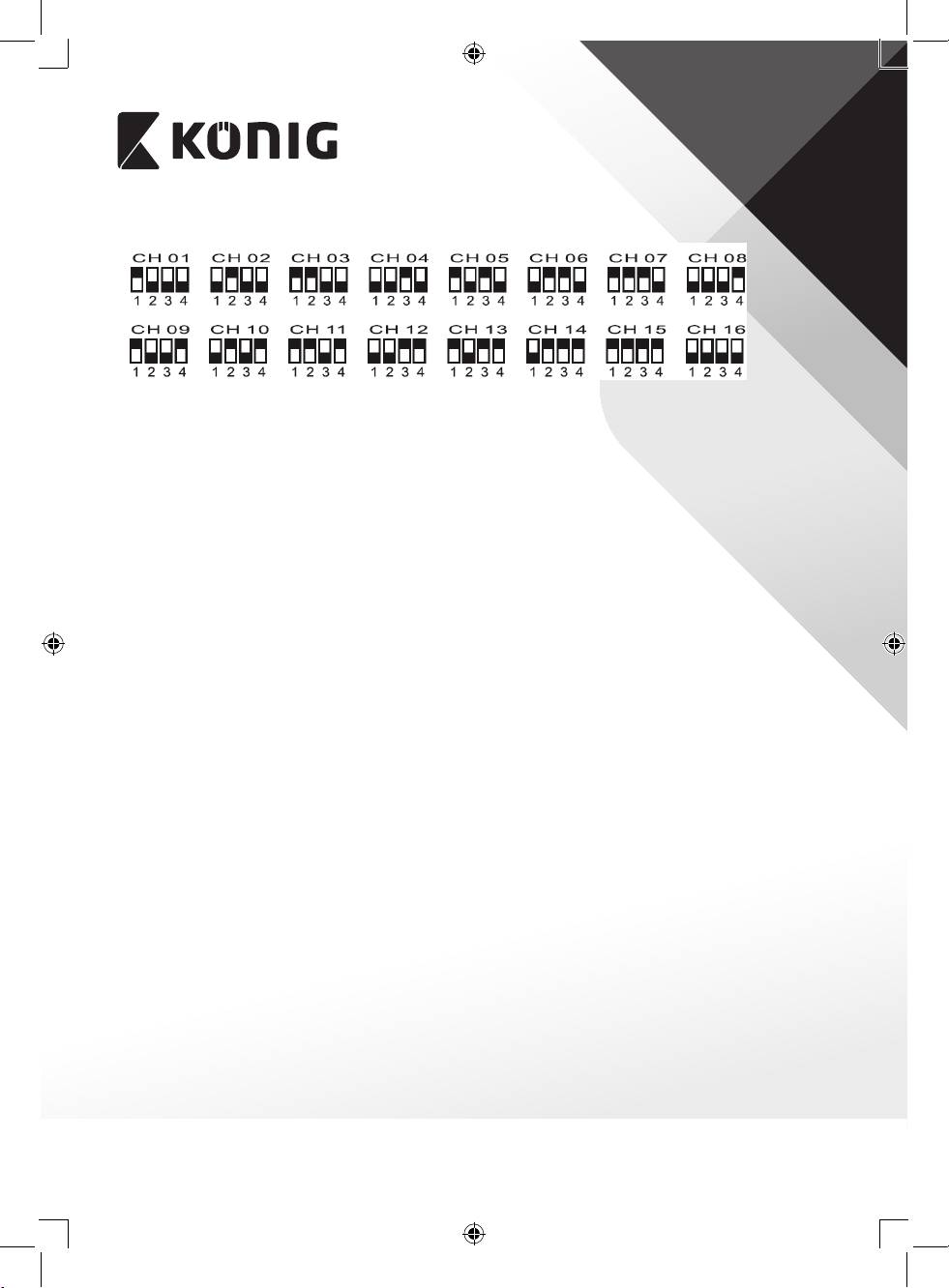

Channel selection microphone

Operation

1. Put the antennas straight up for optimal reception.

2. Connect the connection cable with the 6.35mm plugs to the output of the receiver and

input of the mixer or amplier. Or connect the receiver with the XLR cable (not included)

per channel (A/B) to a mixer or amplier.

3. Connect the DC plug of the AC/DC adapter to the DC input on the rear side of the

receiver. Connect the power plug to a wall outlet and switch on the receiver.

4. Open the battery compartment of the microphone and place 2x AA batteries according

to the polarity markers and select a channel.

5. After closing the battery compartment, switch on the microphone using the ON/OFF

switch.

6. The system is ready to use.

Specications

Frequency band: UHF 840–868 MHz

Pre-programmed frequency: UHF 863–865 MHz

Transmit power: 10 mW

Dynamic range: >90 dB

Total harmonic distortion: <0.5%

Frequency response: 40 Hz–15 KHz, ±3 dB

Modulation: FM

Audio output level: 0–400 mV

Power supply: 230–240 V AC, 17 V DC

Power consumption: 4 W

S/N ratio: >90 dB

Battery: 4x AA 1.5 V

Battery life: 4–6 hours

5

ENGLISH

Safety precautions:

CAUTION

RISK OF ELECTRIC SHOCK

To reduce risk of electric shock, this product should ONLY be opened by an authorized

DO NOT OPEN

technician when service is required.

Disconnect the product from mains and other equipment if a problem should occur.

Do not expose the product to water or moisture.

Maintenance:

Clean only with a dry cloth.

Do not use cleaning solvents or abrasives.

Warranty:

No guarantee or liability can be accepted for any changes and modications of the product or damage caused due to incorrect use

of this product.

General:

Designs and specications are subject to change without notice.

All logos brands and product names are trademarks or registered trademarks of their respective holders and are hereby recognized

as such.

Attention:

This product is marked with this symbol. It means that used electrical and electronic products should not be mixed with

general household waste. There is a separate collections system for these products.

This product has been manufactured and supplied in compliance with all relevant regulations and directives, valid for all member

states of the European Union. It also complies to all applicable specications and regulations in the country of sales.

Formal documentation is available upon request. This includes, but is not limited to: Declaration of Conformity (and product

identity), Material Safety Data Sheet, product test report.

Please contact our customer service desk for support:

via website: http://www.nedis.com/en-us/contact/contact-form.htm

via e-mail: service@nedis.com

via telephone: +31 (0)73-5993965 (during oce hours)
