Recommended focusing screens
Various interchangeable focusing screens are available for certain Nikon SLR
cameras to suit any picture-taking situation. The ones recommended for use
Jp
with this lens are:
Screen
EC-B
G1
En
ABCE
F
G3 G4 J K L M P U
Camera
EC-E
G2
F6
◎◎―◎――― ――◎―◎ ―◎
De
○
F5+DP-30
◎◎○◎◎―
◎― ◎ ―◎
(+0.5)
◎
○
◎
Fr
F5+DA-30
◎○◎◎―
◎―
―◎
(+0.5)
(+0.5)
(+0.5)
: Excellent focusing
Es
Ⴟ
: Acceptable focusing
Ⴜ
Slight vignetting or moiré patterns appear in the viewfinder, but not on the film.
Se
—
: Not available
( ) : Indicates degree of exposure compensation needed (center-weighted
Ru
metering only). For F6 cameras, compensate by selecting “Other screen“ in
Custom Setting “b6: Screen comp.“ and setting the EV level to -2.0 to +2.0
in 0.5 EV steps. When using screens other than type B or E, “Other screen“
Nl
must be selected even when the required compensation value is “0“ (no
compensation required). For F5 cameras, compensate using Custom Setting
It
#18 on the camera body. See user’s manual of the camera body for more
details.
Blank box means not applicable. Since type M screen can be used for
Ck
both macro photography at a magnification ratio of 1:1 or above and for
photomicrography, it has different applications than other screens.
Ch
Important
• For F5 cameras, only EC-B, EC-E, B, E, J, A, L focusing screens are usable in
Kr
Matrix Metering.
27

Lens care
•
Be careful not to hold the camera body when the lens is attached, as this may
Jp
cause damage to the camera (lens mount). Be sure to hold both the lens and
camera when carrying.
•
Be careful not to allow the CPU contacts to become dirty or damaged.
En
• If the lens mount rubber gasket is damaged, be sure to visit the nearest Nikon-
authorized service representative for repair.
De
•
Clean lens surfaces with a blower brush. To remove dirt and smudges, use a soft,
clean cotton cloth or lens tissue moistened with ethanol (alcohol) or lens cleaner.
Wipe in a circular motion from the center to outer edge, taking care not to leave
Fr
traces or touch other parts of the lens.
• Never use organic solvent such as thinner or benzene to clean the lens.
Es
• When storing the lens in its case, attach both the front and rear lens caps.
• When the lens is mounted on a camera, do not pick up or hold the camera
Se
and lens by the lens hood.
• When the lens will not be used for an extended period of time, store it in a
cool, dry place to prevent mold and rust. Be sure to store the lens away from
Ru
direct sunlight or chemicals such as camphor or naphthalene.
• Do not get water on the lens or drop it in water as this will cause it to rust and
Nl
malfunction.
• Reinforced plastic is used for certain parts of the lens. To avoid damage, never
It
leave the lens in an excessively hot place.
Standard accessories
Ck
• Slip-on front lens cap
• Rear Lens Cap
• Lens Hood HK-30
Ch
• Semi-soft Case CL-L1
• Dedicated filter holder
Kr
• 52mm Screw-on NC Filter
• Strap LN-1
Important
• The slip-in filter holder, with a 52mm screw-on filter attached, should be
inserted in the lens at all times.
Optional accessories
• 52mm screw-on filters (except circular polarizing filter
Ⅱ
)
• Slip-in Circular Polarizing Filter C-PL1L
• AF-S Teleconverters (TC-14E
Ⅱ
/TC-17E
Ⅱ
/TC-20E
Ⅲ
)
28

Specifications
Type of lens: G-type AF-S NIKKOR lens with built-in CPU and Nikon
bayonet mount
Jp
Focal length: 300mm
En
Maximum aperture: f/2.8
Lens construction: 11 elements in 8 groups (3 ED and some Nano Crystal
Coat-deposited lens elements), as well as 1 protective
De
glass
Picture angle: 8°10´ with 35mm (135) format Nikon film SLR
Fr
cameras and Nikon FX format digital SLR cameras
5°20´ with Nikon DX format digital SLR cameras
Es
6°40´ with IX240 system cameras
Distance
Output to camera
Se
information:
Focusing: Nikon Internal Focusing (IF) system, autofocus using a
Ru
Silent Wave Motor; manually via separate focus ring
Vibration reduction: Lens-shift method using voice coil motors (VCMs)
Nl
Shooting distance
Graduated in meters and feet from 2.2 m (8 ft) to
scale:
infinity (
∞)
It
Closest focusing
2.3 m (7.5 ft.) with autofocus
distance:
2.2 m (7.2 ft.) with manual focus
No. of diaphragm
9 pcs. (rounded)
Ck
blades:
Diaphragm: Fully automatic
Ch
Aperture range: f/2.8 to f/22
Exposure
Via full-aperture method with cameras with CPU
Kr
measurement:
interface system
Focusing limit
Provided; two ranges available: FULL (∞–2.3m), or
switch:
∞–6m
Tripod collar: Rotatable through 360°, lens rotating position index
at 90°, only tripod collar detachable
Dimensions: Approx. 124 mm dia. x 267.5 mm extension from the
camera’s lens-mount flange
Weight: Approx. 2,900 g (6.4 lbs)
Specifications and designs are subject to change without any notice or obligation on the
part of the manufacturer.
29

Hinweise für sicheren Betrieb
ACHTUNG
Jp
Keinesfalls zerlegen.
En
Beim Berühren der Innenteile von Kamera oder Objektiv droht
Verletzungsgefahr. Überlassen Sie Reparaturen unbedingt ausschließlich
De
qualifizierten Technikern. Kommt es durch einen heftigen Stoß (z.B. Fall auf den
Boden) zu einem Bruch von Kamera oder Objektiv, so trennen Sie zunächst das
Fr
Produkt vom Stromnetz bzw. entnehmen die Batterie(n) und geben es dann an
eine autorisierte Nikon-Servicestelle zur Überprüfung ab.
Es
Bei einer Störung sofort die Stromversorgung ausschalten.
Se
Bei Entwicklung von Rauch oder ungewöhnlichem Geruch durch Kamera oder
Objektiv entnehmen Sie sofort die Batterie(n); dabei vorsichtig vorgehen,
Ru
denn es besteht Verbrennungsgefahr. Bei einem Weiterbetrieb unter diesen
Umständen droht Verletzungsgefahr.
Nl
Nach dem Abtrennen von der Stromversorgung geben Sie das Gerät an eine
autorisierte Nikon-Servicestelle zur Überprüfung ab.
It
Kamera oder Objektiv keinesfalls bei Vorhandensein von
Ck
brennbarem Gas einsetzen.
Ch
Wird elektronisches Gerät bei brennbarem Gas betrieben, so droht u.U.
Explosions- oder Brandgefahr.
Kr
Keinesfalls durch Objektiv oder Sucher in die Sonne blicken.
Beim Betrachten der Sonne oder anderer starker Lichtquellen durch Objektiv
oder Sucher droht eine permanente Schädigung des Sehvermögens.
Dem Zugriff von Kindern entziehen.
Es ist unbedingt dafür zu sorgen, dass Kleinkinder keine Batterien oder andere
Kleinteile in den Mund nehmen können.
30

Jp
Beim Umgang mit Kamera und Objektiv unbedingt die
folgenden Vorsichtmaßnahmen beachten:
En
• Schützen Sie die Kamera und das Objektiv vor Feuchtigkeit. Andernfalls droht
De
Brand- oder Stromschlaggefahr.
• Handhaben oder berühren Sie die Kamera bzw. das Objektiv keinesfalls mit
Fr
nassen Händen. Andernfalls droht Stromschlaggefahr.
• Bei Gegenlichtaufnahmen nicht das Objektiv gegen die Sonne richten oder
Es
das Sonnenlicht direkt durch das Objektiv eintreten lassen. Dies könnte eine
Überhitzung der Kamera verursachen und ein Brand könnte die Folge sein.
Se
• Vor einem längeren Nichtgebrauch des Objektivs bringen Sie den vorderen
und hinteren Deckel an und bewahren das Objektiv geschützt vor direkter
Ru
Sonnenlichteinwirkung auf. Andernfalls droht Brandgefahr wegen möglicher
Fokussierung von Sonnenlicht durch das Objektiv auf brennbare Gegenstände.
Nl
It
Ck
Ch
Kr
31

Wir danken Ihnen für das Vertrauen, das Sie Nikon mit dem Kauf des
AF-S NIKKOR 300mm 1
:
2,8G ED VR
Ⅱ
entgegenbringen. Machen Sie
sich bitte vor dem Gebrauch dieses Objektivs mit dem Inhalt dieser
Jp
Bedienungsanleitung und dem Benutzerhandbuch Ihrer Kamera vertraut.
En

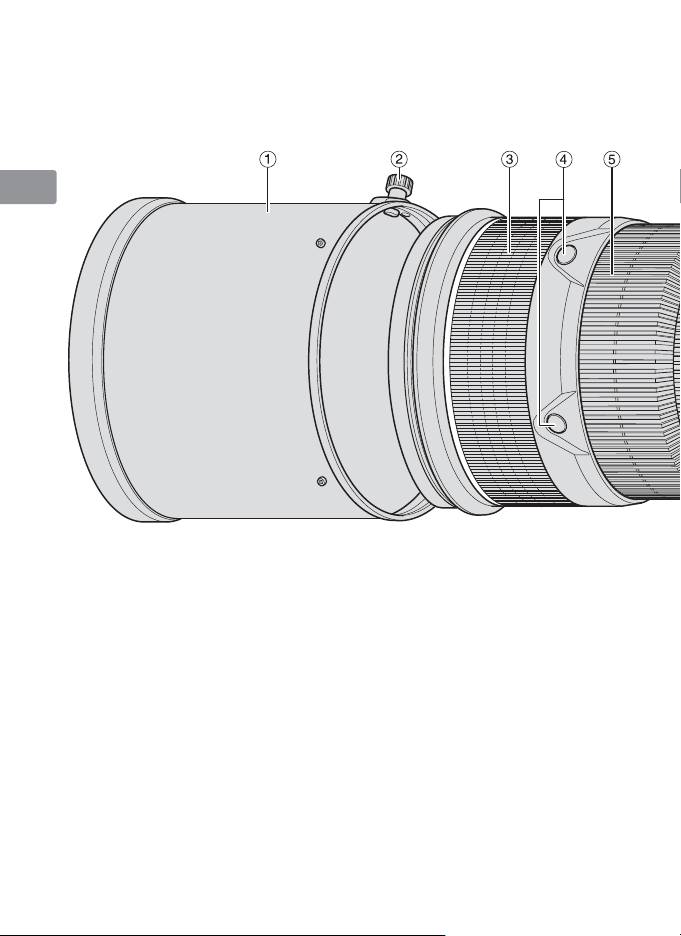

Nomenklatur
De
Fr
Es
Se
Ru
Nl
It
Ck
Ch
1 Gegenlichtblende (S. 40)
# Einsetzbarer Filterhalter (S. 40)
2 Halteschraube der Gegenlichtblende
$ Speichertaste (S. 36)
Kr
(S. 40)
% Montagemarkierung
3 Gummigriff
^ Dichtungsmanschette (S. 42)
4 Fokus-Betriebstaste (Fokussperre/
& CPU-Kontakte (S. 42)
Speicheraufruf/AF Start) (S. 36)
* Eingebauter Stativanschluß (S. 39)
5 Entfernungseinstellring (S. 35)
( Ösen für den Schulterriemen
6 Entfernungsskala (S. 39)
) Fokussierschalter (S. 35)
7 Entfernungsindexlinie (S. 39)
q Fokussier-Begrenzungsschalter
8 Tiefenschärfemarkierungen (S. 39)
(S. 35)
9 ON/OFF-Ringschalter für
w Bildstabilisatorschalter (VR) (S. 38)
Bildstabilisator (S. 38)
e Fokus-Betriebswahlschalter (AF-L/
0 Positionsindex für Objektivdrehung
MEMORY RECALL/AF-ON) (S. 36)
! Feststellschraube des
r Ton-Monitorschalter (S. 36)
Stativanschlusses (S. 39)
@ Knopf für einsetzbaren Filterhalter
( ): Seitennummer
(S. 40)
32
