Nikon AF-S 70-200mm f-4G ED VR: En

■

Built-in Flash Units

When using the built‑in flash on cameras equipped with a built‑in flash

unit, remove the lens hood to prevent vignetting (shadows created

En

where the end of the lens obscures the built‑in flash).

■

Vibration Reduction

Vibration reduction reduces blur caused by camera shake, allowing

shutter speeds up to five stops slower than would otherwise be the case

(Nikon measurements; effects vary with the photographer and shooting

conditions).

This increases the range of shutter speeds available and

permits hand‑held, tripod‑free photography in a wide range of situations.

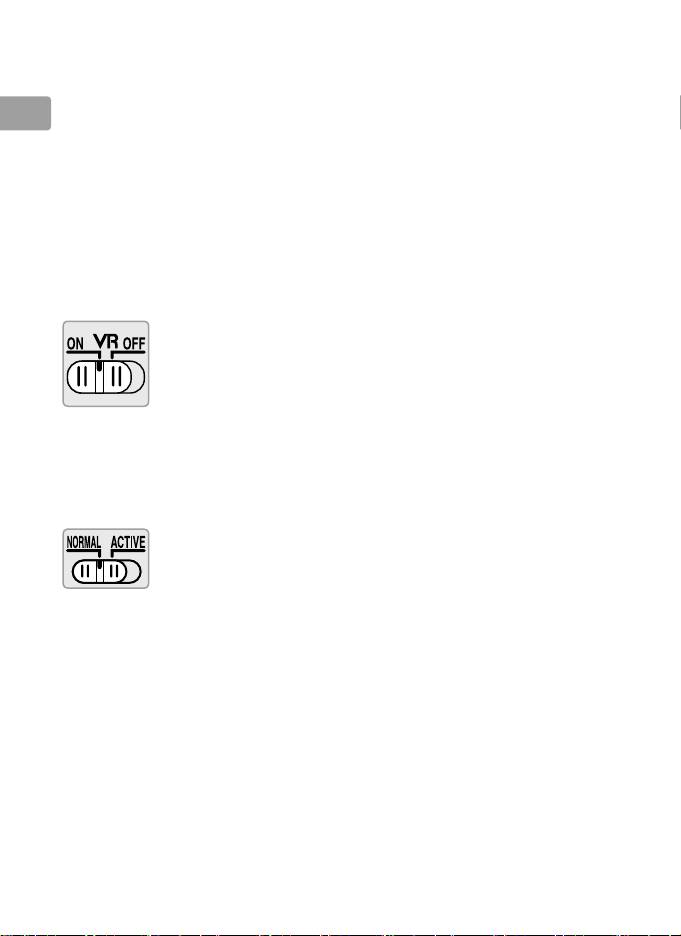

Using the Vibration Reduction ON/OFF Switch

Select ON to enable vibration reduction.

Vibration reduction is

activated when the shutter‑release button is pressed

halfway, reducing the effects of camera shake for

improved framing and focus.

Select OFF to turn vibration reduction off.

Using the Vibration Reduction Mode Switch

The vibration reduction mode switch is used to select the vibration

reduction mode when vibration reduction is on.

Select NORMAL to reduce the effects of vibration when

photographing from a fixed position and in other

situations with comparatively little camera motion.

Select ACTIVE to reduce the effects of vibration when

shooting from a moving vehicle, while walking, and in

other situations with active camera motion.

16

En_03

Using Vibration Reduction: Notes

•

Slide the vibration reduction switch to OFF if the camera does not

support vibration reduction (pg. 14).

Leaving vibration reduction on

may greatly increase the drain on the battery, particularly in the case of

En

Pronea 600i/6i cameras.

•

When using vibration reduction, press the shutter‑release button

halfway and wait for the image in the viewfinder to stabilize before

pressing the shutter‑release button the rest of the way down.

•

When vibration reduction is active, the image in the viewfinder may be

blurred after the shutter is released.

This does not indicate a

malfunction.

•

Slide the vibration reduction mode switch to NORMAL for panning

shots. When the camera is panned, vibration reduction applies only to

motion that is not part of the pan (if the camera is panned horizontally,

for example, vibration reduction will be applied only to vertical shake),

making it much easier to pan the camera smoothly in a wide arc.

•

Do not turn the camera off or remove the lens while vibration reduction

is in effect.

If power to the lens is cut while vibration reduction is on, the

lens may rattle when shaken.

This is not a malfunction, and can be

corrected by reattaching the lens and turning the camera on.

•

If the camera is equipped with a built‑in flash, vibration reduction will

be disabled while the flash charges.

•

Turn vibration reduction off when the camera is securely mounted on a

tripod, but leave it on if the tripod head is not secured or when using a

monopod.

17

En_03

■

The Lens Hood

The lens hoods protect the lens and block stray light that would

otherwise cause flare or ghosting.

En

Align the lens hood lock mark (—) with the

lens hood mounting mark (●) on the lens (e).

When attaching or removing the hood, hold it near the symbol on its

base and avoid gripping it too tightly.

Vignetting may occur if the hood is

not correctly attached.

The hood can be reversed and mounted on the lens when not in use.

When the hood is reversed, it can be attached and removed by rotating it

while holding it near the lock mark (—).

■

Focusing Screens

The following cameras support a variety of focusing screens for use in

different situations.

Screen

EC‑B

Camera A B C E

EC‑E G1 G2 G3 G4 J L M U

F6

 

—



— — — — —

  



F5+DP-30

    

  

(+0.5)













F5+DA-30







(+1.0)

(+0.5)

(+0.5)

(–1.0)

(+0.5)

(+1.0)

: Recommended.

: Vignetting visible in viewfinder (photographs are not affected).

—: Not compatible with camera.

( ): Figures in parentheses give the exposure compensation for center-

weighted metering.

Select “Other screen” for Custom Setting b6

(“Screen comp.”) when adjusting exposure compensation for the F6;

note that with screens other than B or E, “Other screen” must be

selected even when the value for exposure compensation is 0.

Exposure compensation for the F5 can be adjusted using Custom

Setting 18; see the camera manual for details.

Empty cell: Not suited to use with this lens.

Note that type M screens can

however be used for photomicrography and macro photography at

magnifications of 1 : 1 or higher.

Note: The F5 supports matrix metering with A, B, E, EC-B/EC-E, J, and L

18

focusing screens only.

En_03

The Optional RT-1 Tripod Collar Ring

Loosen the tripod collar ring attachment knob to rotate the camera to the

desired position and orient the display horizontally or vertically. Note that

your hand may come into contact with the tripod if you rotate the camera

En

while holding it by the handgrip. Depending on how the camera or

tripod is attached, camera shake may be reduced by attaching the tripod

to the camera tripod mount.

A

WARNING

Fully tighten the tripod collar ring attachment knob when attaching

tripod collar ring.

Failure to observe this precaution could result in the

tripod collar ring becoming detached from the lens, causing injury.

Attaching the Tripod Collar Ring

19

En_03

z

Loosen the tripod collar ring attachment knob

(q).

x

Open the ring.

Pull the attachment knob toward you (w) and

open the ring (e).

c

Place the lens in the ring (r).

v

Close the ring.

Pull the attachment knob toward you (t) and close

the ring (y).

Do not use excessive force, as your

hand could be caught in the ring.

b

Tighten the attachment knob (u).

Positioning the Camera

Loosen the attachment knob (q), adjust the position

indices to the desired vertical or horizontal orientation

(w), and then tighten the attachment knob (e).

Removing the Tripod Collar Ring

■

z

Loosen the attachment knob (q).

x

Remove the ring.

Pulling the attachment knob toward you (w), open

(e) and remove the lens (r).

■

Lens Care

•

Do not pick up or hold the lens or camera using only the lens hood.

•

Keep the CPU contacts clean.

En

•

Should the rubber lens‑mount gasket be damaged, cease use

immediately and take the lens to a Nikon‑authorized service center for

repair.

•

Use a blower to remove dust and lint from the lens surfaces.

To remove

smudges and fingerprints, apply a small amount of ethanol or lens

cleaner to a soft, clean cotton cloth or lens‑cleaning tissue and clean

from the center outwards using a circular motion, taking care not to

leave smears or touch the glass with your fingers.

•

Never use organic solvents such as paint thinner or benzene to clean

the lens.

•

The lens hood or NC filters can be used to protect the front lens

element.

•

Attach the front and rear caps before placing the lens in its flexible

pouch.

•

If the lens will not be used for an extended period, store it in a cool, dry

location to prevent mold and rust.

Do not store in direct sunlight or

with naphtha or camphor moth balls.

•

Keep the lens dry.

Rusting of the internal mechanism can cause

irreparable damage.

•

Leaving the lens in extremely hot locations could damage or warp parts

made from reinforced plastic.

■

Supplied Accessories

•

67 mm snap‑on Front Lens Cap LC‑67

•

Rear Lens Cap LF‑4

•

Bayonet Hood HB‑60

•

Flexible Lens Pouch CL‑1225

■

Compatible Accessories

•

67 mm screw‑on filters

•

Tripod collar ring RT‑1

•

AF‑I/AF‑S Teleconverters TC‑14E/TC‑14E II/TC‑17E II */TC‑20E */

TC‑20E II */TC‑20E III *

*

Autofocus is available only with cameras that offer f/8 support.

20

En_03

■

Specifications

Type Type G AF-S lens with built-in CPU and F mount

Focal length 70 – 200 mm

En

Maximum aperture f/4

Lens construction 20 elements in 14 groups (including 3 ED lens elements and lens

elements with Nano-Crystal coatings)

Angle of view

•

Nikon film SLR and FX‑format D‑SLR cameras: 34° 20′ – 12° 20′

•

Nikon DX‑format D‑SLR cameras: 22° 50′ – 8°

•

IX240 system cameras: 27° 40′ – 9° 50′

Focal length scale Graduated in millimeters (70, 85, 105, 135, 200)

Distance information Output to camera

Zoom Manual zoom using independent zoom ring

Focusing Nikon Internal Focusing (IF) System with autofocus

controlled by Silent Wave Motor and separate focus ring

for manual focus

Vibration reduction Lens shift using voice coil motors (VCMs)

Focus distance

1 m to infinity (∞)

indicator

Minimum focus

1 m (3.28 ft) from focal plane at all zoom positions

distance

Diaphragm blades 9 (rounded diaphragm opening)

Diaphragm Fully automatic

Aperture range f/4 to f/32

Metering Full aperture

Focus limit switch Two positions: FULL (∞ – 1 m) and ∞ – 3 m

Filter‑attachment size 67 mm (P = 0.75 mm

)

Dimensions Approx. 78 mm maximum diameter × 178.5 mm (distance

from camera lens mount flange)

Weight Approx. 850 g (30.0 oz)

Nikon reserves the right to change the specifications of the hardware

described in this manual at any time and without prior notice.
