Installation

!

 Keep this instruction manual in a safe place for future

reference. Should the appliance be sold, transferred or

moved, make sure the instruction manual accompanies

the washing machine to inform the new owner as to its

operation and features.

!

 Read these instructions carefully: they contain vital infor-

mation on installation, use and safety.

Unpacking and levelling

Unpacking

1. Unpack the washing

machine.

2. Check whether the

washing machine has

been damaged during

transport. If this is the

case, do not install it and

contact your retailer.

3. Remove the four

protective screws and

the rubber washer with

the respective spacer,

situated on the rear of the

appliance

(see figure)

.

4. Seal the gaps using the

plastic plugs provided.

5. Keep all the parts: you will need them again if the wa-

shing machine needs to be moved to another location.

Warning: should the screws be re-used, make sure you fasten

the shorter ones at the top.

!

 Packaging materials are not children’s toys.

Levelling

Your machine may make a considerable amount of noise if

the two front feet have not been adjusted correctly.

1. Install the washing ma-

chine on a flat sturdy floor,

without resting it up against

walls, furniture cabinets or

other.

2. If the floor is not perfectly

level, compensate for any

unevenness by tightening

or loosening the adjustable

front feet

(see figure)

; the

angle of inclination, measu-

red according to the worktop, must not exceed 2°.

Levelling your appliance correctly will provide it with sta-

bility and avoid any vibrations, noise and shifting during

operation. If it is placed on a fitted or loose carpet, adjust

the feet in such a way as to allow enough room for ventila-

tion beneath the washing machine.

Putting your appliance in place and moving it.

If  your washing machine is

equipped with a special set

of  retractable  wheels  you

can easy move it.  To lower

the wheels and thus move

the appliance effortlessly, just

pull the lever, situated on the

left-hand  side  beneath  the

base. Once the appliance is

in the required position, put

the lever back in place. The

washing  machine  is  now

firmly in place

(see figure)

.

Electric and water connections

Connecting the water inlet hose

1. Connect the supply pipe

by screwing it to a cold

water tab using a ¾ gas

threaded connection (see

figure).

Before performing the con-

nection, allow the water to

run freely until it is perfectly

clear.

2. Connect the other end of

the  water  inlet  hose  to  the

washing machine, screwing

it  onto  the  appliance’s  cold

water  inlet,  situated  on  the

top  right-hand  side  on  the

rear  of  the  appliance

(see

figure)

.

3. Make sure there are no kinks or bends in the hose.

!

  The water pressure at the tap must be within the values

indicated in the Technical details table

(on the next page)

.

!

  If the water inlet hose is not long enough, contact a spe-

cialist store or an authorised serviceman.

GB

15

65 - 100 cm

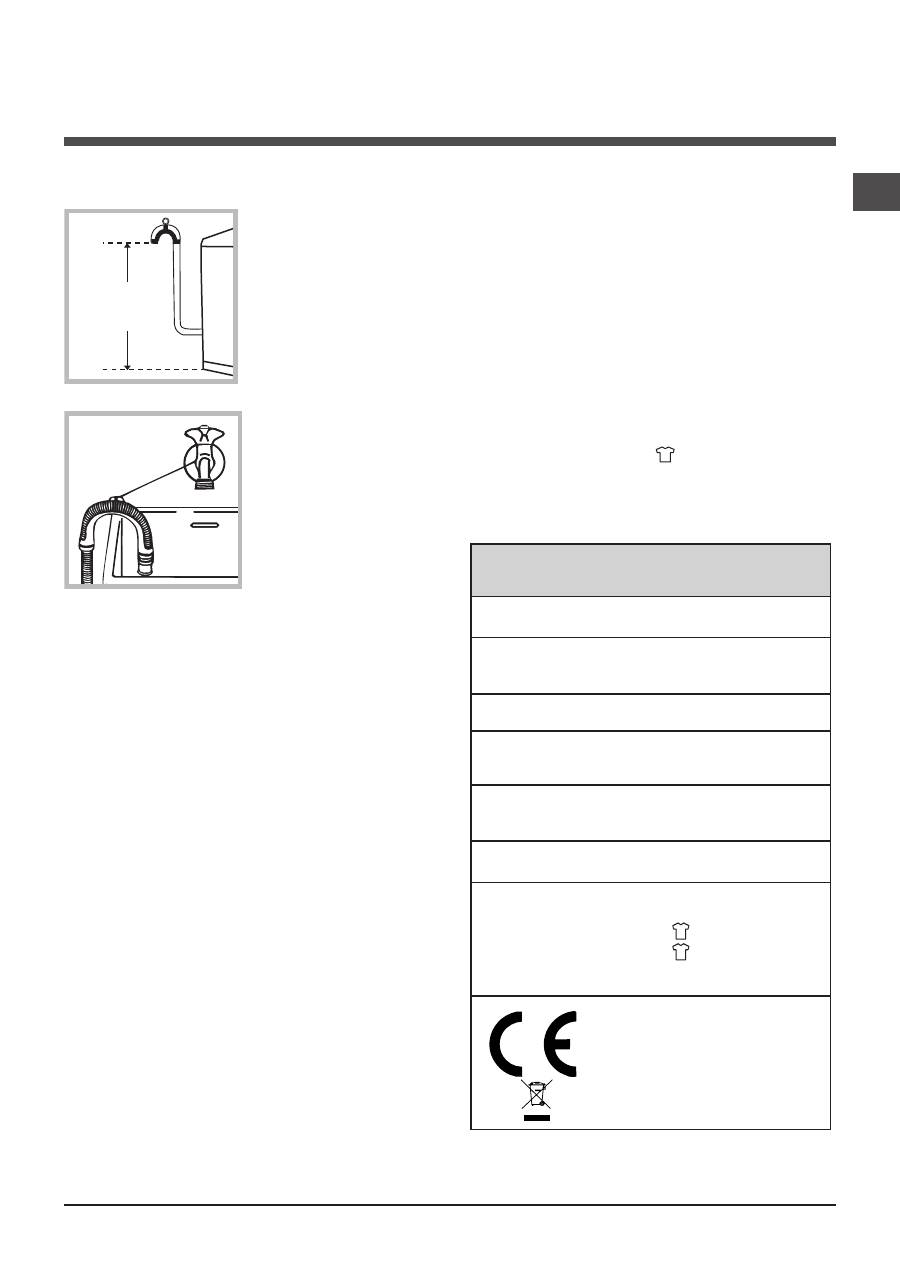

Connecting the drain hose

Connect the drain hose,

without bending it, to a drai-

nage duct or a wall drain

located at a height between

65 and 100 cm from the

floor;

alternatively, rest it on

the side of a washbasin

or bathtub, fastening the

duct supplied to the tap

(

see figure

). The free end

of the hose should not be

underwater.

!

 We advise against the use of hose extensions; if it is

absolutely necessary, the extension must have the same

diameter as the original hose and must not exceed 150 cm

in length.

Electrical connections

Before  plugging  the  appliance  into  the  electricity  socket,

make sure that:

• the socket is earthed and complies with all applicable laws;

• the socket is able to withstand the maximum power load

of the appliance as indicated in the Technical data table

(see opposite);

• the power supply voltage falls within the values indicated

in the Technical data table

 (see opposite);

• the  socket  is  compatible  with  the  plug  of  the  washing

machine. If this is not the case, replace the socket or the

plug.

!

 The washing machine must not be installed outdoors, even

in covered areas. It is extremely dangerous to leave the ap-

pliance exposed to rain, storms and other weather conditions.

!

 When the washing machine has been installed, the electricity

socket must be within easy reach.

!

 Do not use extension cords or multiple sockets.

!

 The cable should not be bent or compressed.

!

 The power supply cable must only be replaced by autho-

rised technicians.

Warning! The company shall not be held responsible in the

event that these regulations are not respected.

The first wash cycle

Once the appliance has been installed, and before you use

it for the first time, run a wash cycle with detergent and no

laundry, using the wash cycle

.

Technical details

Model

ECOT7D 149

Dimensions

40 cm wide

85 cm high

60 cm deep

Capacity

from 1 to 7 kg

Electric

connections

Please refer to the technical data plate

fixed to the machine.

Water

connections

maximum pressure 1 MPa (10 bar)

minimum pressure 0.05 MPa (0.5 bar)

drum capacity 42 litres

Spin speed

up to 1400 rpm

Test wash

cycles in

accordance

with directives

1061/2010 and

1015/2010.

programme

 (60°C)

programme

 (40°C)

This appliance is compliant with

the following European Community

Directives:

- 2004/108/CE (Electromagnetic

Compatibility)

- 2006/95/CE (Low Voltage)

- 2002/96/CE
