Pla

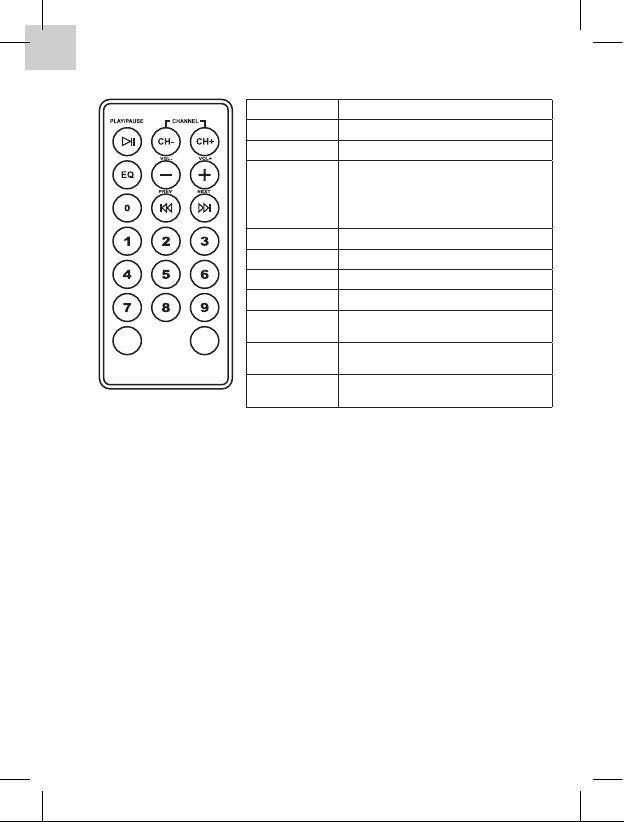

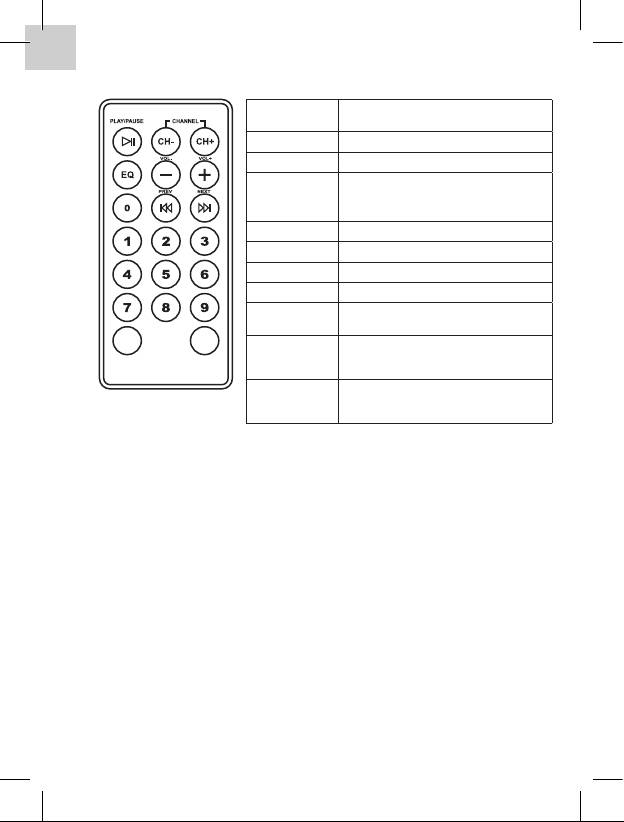

y / Pause Start / Stop the music

CH ( -- ) Frequency down

CH ( + ) Frequency up

Changes sound characteristic:

E0(NORM

AL) E2(ROCK)

→E1(POP)

→

→

EQ

E3(JAZZ)

→

E5(CLASSIC)

→

E5(COUNTRY)

Volume ( -- ) Volume down

Volume ( + ) Volume up

PREV Previous track

NEXT Next track

Number keys for setting the

0123456789

frequency and picking songs

PICK

CH SET

SONG

Con rms picking a song after

Pick Song

selection with the number keys

Con rms frequency setting after

CH Set

selection with the number keys

1.

The FM Transmitter has 206 frequencies (87.5 – 108.0 MHz) to use.

• Usage of the number keys (0 – 9) to select a frequency.

• Then press CH SET key to con rm and save the frequency.

2. Use number keys (0 – 9) to select the music track number.

• Then press PICK SONG key to con rm.

3. Every time EQ is pressed the sound characteristics are changed:

•

E0(NORM

AL)

→E1(POP)

→

E2(ROCK) E3(JAZZ) E4(CLASSIC)

→

→

→

E5(COUNTRY)

• Press EQ key for about 4 seconds and the system returns back to

E0(NORM

AL).

4. Last settings for volume, FM-transmission-frequency and music

track are stored when the device is turned o .

5. USB and SD-card can both be connected to the device. The  rst

medium connected, either USB or SD-card, is played. To select the

other medium, the  rst one must be disconnected.

6. When an external audio device is connected to the Line-In jack,

the playback from USB or SD-card stops automatically and cannot

be started or paused by pressing the PLAY/PAUSE button.

GB

Replacing the Remote Control Battery

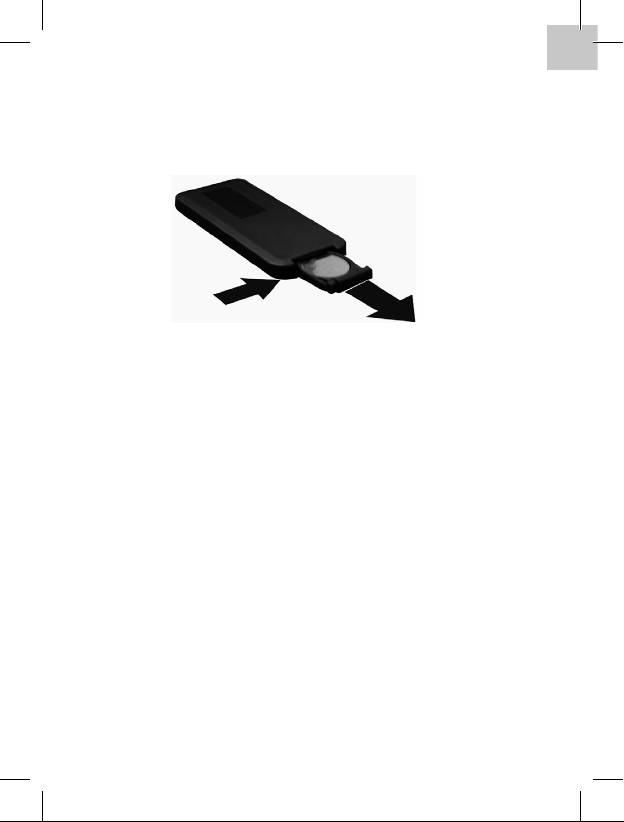

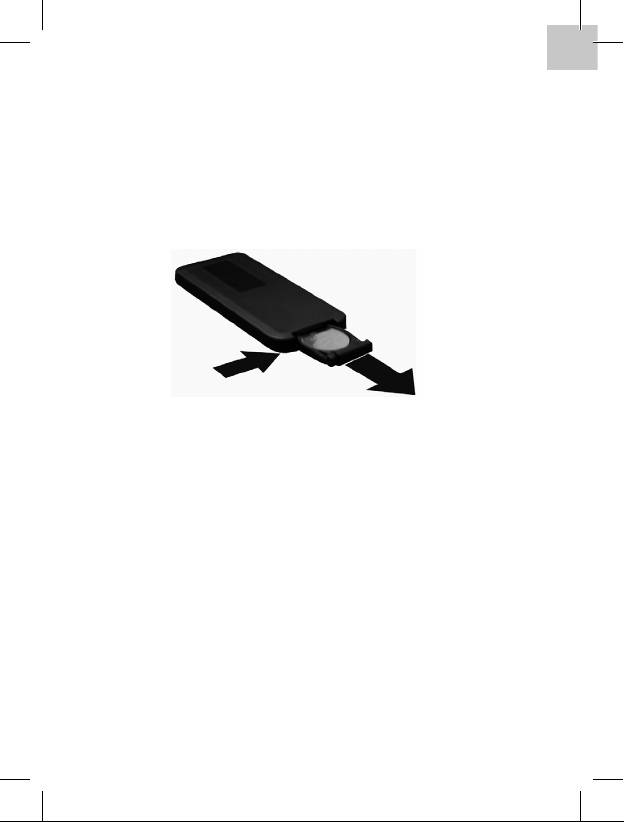

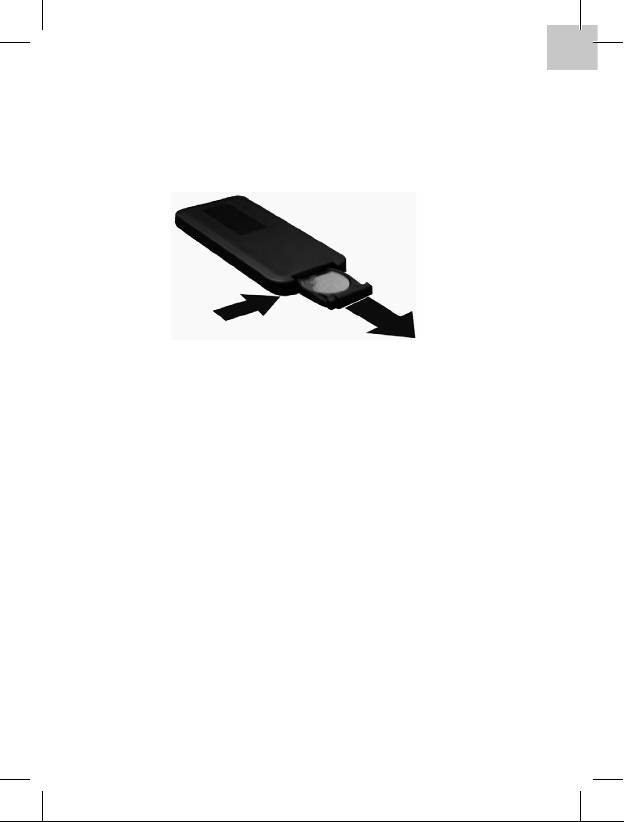

1. Remove the battery compartment cover by pulling the cover in

the direction of the arrow.

2. Remove the battery.

3. Insert the replacement battery.

• Keep attention on the direction of the correct polarization (+/-).

4. Put the cover back to the battery compartment.

Technical Parameters

Storage temperature: -5°C up to +45°C

Working conditions temperature: 0°C up to +40°C

Operation relative humidity: 20% – 90% (40°C)

Storage relative humidity: 20% – 93% (40°C)

EMI standard: FCC (class B)

Supply voltage: 12V-24V DC power

Electric current: 12V (normal working) <100mA

Bit rate: 32Kbps – 256Kbps

FM transmitting frequency: 87.5 – 108.0 MHz

Transmitting frequency options: Press CH key to switch channels

(can be stored in advance).

Frequency response: 30 – 15 KHz ± 3db

SNR (Signal to Noise Ratio): 30db

Harmonic distortion: ≤1%

Transmitting distance: 3 – 5 m

Security and Disposal Hints for Batteries

When a child swallowed a battery by mistake go to a doctor’s •

place or bring the child into a hospital promptly!

Never short batteries.•

Look for the right polarity (+) and (-) of batteries! Always change •

all batteries, never use old and new batteries or batteries of

erent types together.
