Acme PB01: инструкция

Model: PB01

power bank

www.acme.eu

4 GB User’s manual 32 Warranty card

8 LT Vartotojo gidas 33 Garantinis lapas

12 LV Lietošanas instrukcija 34 Garantijas lapa

16 EE Kasutusjuhend 35 Garantiileht

20 RU Инструкция пользователя 36 Гарантийный талон

24 PL Instrukcja obsługi 37 Karta gwarancyjna

28 DE Bedienungsanleitung 38 Garantieblatt

3

GB

Introduction

Please read this manual carefully FIRST, before using the device.

For your convenience, record the complete model number and the date

you received the product together with your purchase receipt and attach

it to the warranty and service information. Retain them in the event

warranty service is required. If you found this product faulty or damaged

due to quality problems, please return it to our repair department or the

agency where you bought it.

Features

• Compatible with most mobile phones and digital products.

• Standard USB output increases functionality.

• High-capacity power storage; High-current output enhances charging

eciency.

• Tactile ergonomic design for ease of carry and usage.

• LED power indicator light.

Specification

Batteries Type: Lithium-ion

Capacity: 1700 mAh

Input Voltage/Current: DC 5.0V / 1A

Output Voltage/Current: DC 5.0V / 1A

Dimension: 60 x 60 x 13.5mm

Weight: Approx. 53g

Indication: LED

Instruction

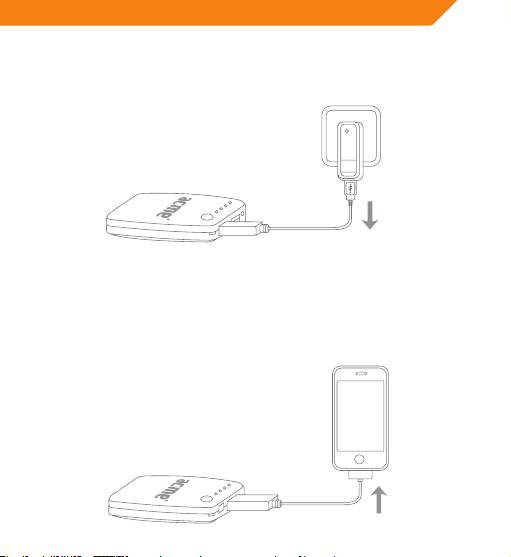

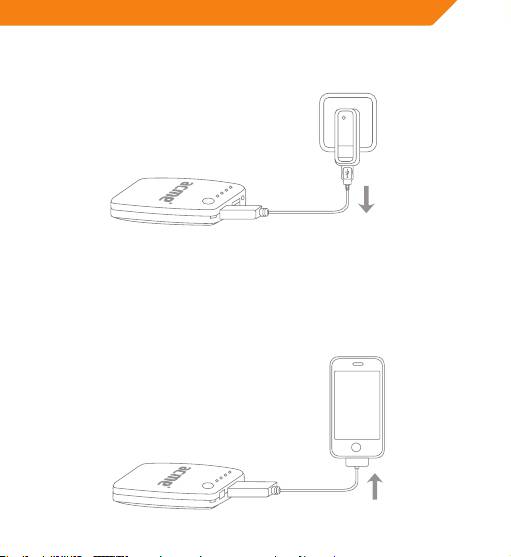

1. How to charge PB01: Connect PB01 with power adaptor which

is DC5V or PC USB slot by Micro USB cable. Four indicator lights

4 5

GB

alternately light up in a row when charging. Each light indicates 25%

power. Charging time is approximately 2 to 3.5 hours dependent on

current output.

2. How to charge devices with PB01: Connect device to PB01 using

the USB cable, then keep pressing the switch button for 1 second

to activate the PB01. Four lights respectively turn o in a row which

means PB01 is discharging while device is getting charged. Keep

pressing the switch button for 1 second to turn it o. Charging time

depends on battery capacity.

4 5

GB

3. How to check power level of PB01: Keep pressing the switch button

for 1 second to turn on power indicator lights, each light that comes

on accounts for 25% power.

50%

100%

25%

75%

4. How to turn on/o the LED lamp: Quickly double click the switch

button.

6 7

GB

NOTICE:

1. It is normal for the PB01 to become warm when charging.

2. Do not cover the PB01 when in use.

3. Do not expose the PB01 to excessive heat or cold.

4. Avoid exposure to drops and impacts.

Waste Electrical and Electronic Equipment (WEEE) Symbol

The use of the WEEE symbol indicates that this product

may not be treated as household waste. By ensuring this

product is disposed of correctly, you will help protect

the environment. For more detailed information about

the recycling of this product, please contact your local

authority, your household waste disposal service provider

or the shop where you purchased the product.

6 7
