Hotpoint-Ariston PC 760 F X-HA EU: Installation

GB

23

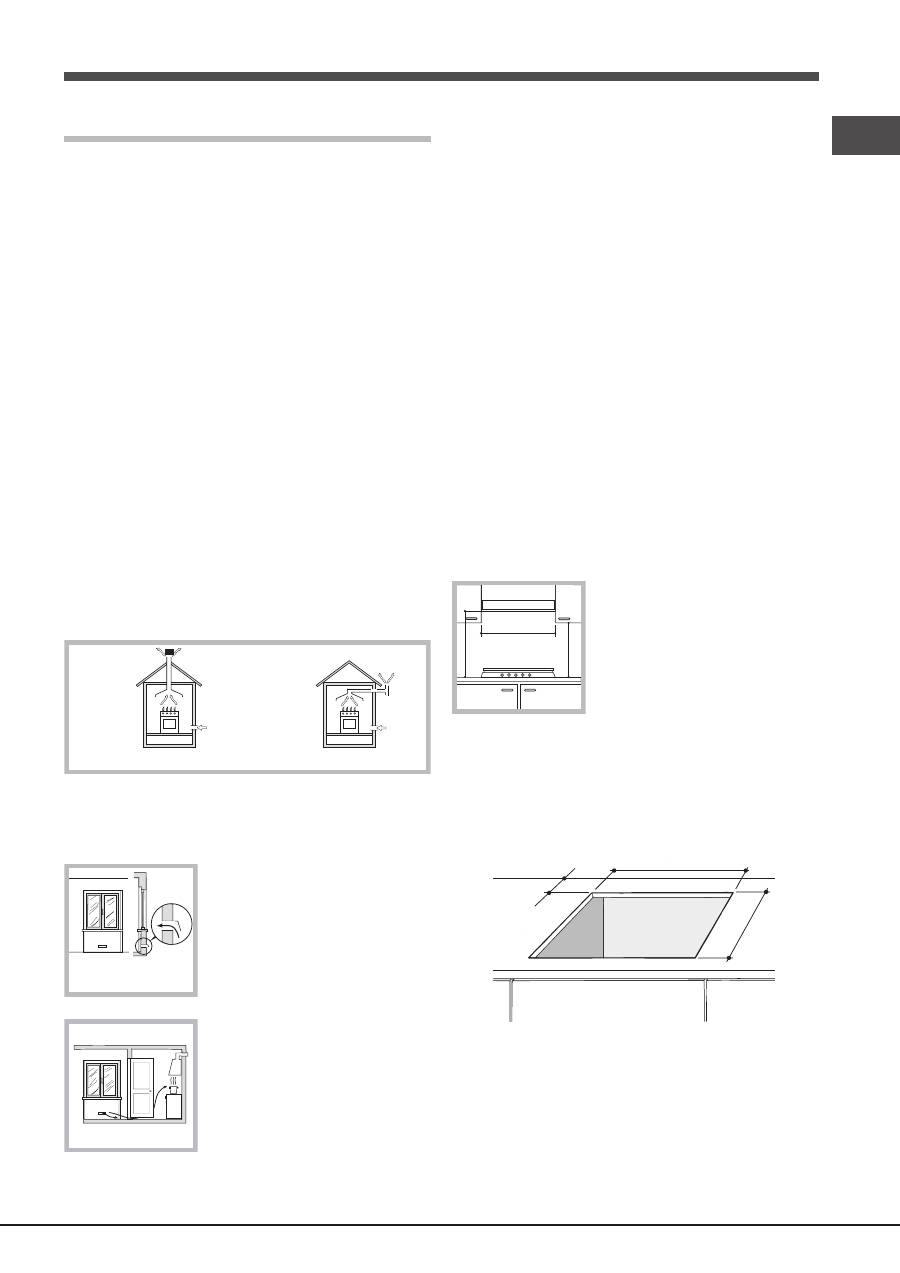

Installation

!

 Before operating your new appliance please read this

instruction booklet carefully. It contains important information

for safe use, installation and care of the appliance.

!

 Please keep these operating instructions for future reference.

Pass them on to possible new owners of the appliance.

Positioning

!

 Keep packaging material out of the reach of children. It can

become a choking or suffocation hazard (see Precautions

and tips).

!

 The appliance must be installed by a qualified professional

according to the instructions provided. Incorrect installation

may cause harm to people and animals or may damage

property.

!

 This unit may be installed and used only in permanently

ventilated rooms in accordance with British Standard

Codes Of Practice: B.S. 6172 / B.S. 5440, Par. 2 and B.S.

6891  Current  Editions. The  following  requirements  must

be observed:

•  The room must be equipped with an air extraction system

that expels any combustion fumes. This may consist of

a hood or an electric fan that automatically starts each

time the appliance is switched on.

In a chimney stack or branched flue.

(exclusively for cooking appliances)

Directly to

the Outside

•  The room must also allow proper air circulation, as air is

needed for combustion to occur normally. The flow of air

must not be less than 2 m

3

/h per kW of installed power.

The air circulation system may

take air directly from the outside

by means of a pipe with an inner

cross section of  at least 100 cm

2

;

the opening must not be vulnerable

to any type of blockages.

The system can also provide the air

needed for combustion indirectly,

i.e. from adjacent rooms fitted with

air circulation tubes as described

above. However, these rooms must

not be communal rooms, bedrooms

or  rooms  that  may  present  a  fire

hazard.

A

Examples of

ventilation holes

for comburant air.

Enlarging the ventilation slot

between window and floor.

Adjacent

Room

Room to be

Vented

•  Liquid petroleum gas sinks to the floor as it is heavier

than air. Therefore, rooms containing LPG cylinders must

also be equipped with vents to allow gas to escape in

the event of a leak. As a result LPG cylinders, whether

partially or completely full, must not be installed or stored

in rooms or storage areas that are below ground level

(cellars, etc.). It is advisable to keep only the cylinder

being used in the room, positioned so that it is not subject

to heat produced by external sources (ovens, fireplaces,

stoves, etc. ) which could raise the temperature of the

cylinder above 50°C.

Fitting the appliance

Gas and mixed hobs are manufactured with type X degree

protection against overheating. The following precautions

must be taken when installing the hob:

•  Kitchen cabinets adjacent to the appliance and taller than

the top of the hob must be at least 600 mm from the edge

of the hob.

•  Hoods  must  be  installed  according  to  their  relative

installation instruction manuals and at a minimum

distance of 650 mm from the hob (see figure).

•  Place the wall cabinets adjacent to the hood at a minimum

height of 420 mm from the hob (see figure).

If the hob is installed beneath a wall

cabinet, the latter must be situated

at a minimum of 700 mm above

the hob.

•  The  installation  cavity  should  have  the  dimensions

indicated in the figure.

  Fastening hooks are provided, allowing you to fasten

the hob to tops that are between 20 and 40 mm thick.

To ensure the hob is securely fastened to the top, we

recommend you use all the hooks provided.

555 mm

55 mm

475 mm

600mm min.

420mm min.

650mm min.

24

GB

Hook fastening diagram

Hooking position

Hooking position

for top

H=20mm

for top

H=30mm

Front

Hooking position

Back

for top

H=40mm

!

 Use the hooks contained in the “accessory pack”.

•  Where  the  hob  is  not  installed  over  a  built-in  oven,  a

wooden panel must be installed as insulation. This must

be placed at a minimum distance of 20 mm from the lower

part of the hob.

Ventilation

To ensure adequate ventilation, the back panel of the cabinet

must be removed. It is advisable to install the oven so that it

rests on two strips of wood, or on a completely flat surface

with an opening of at least 45 x 560 mm (see diagrams).

560 mm

.

45 mm.

Where a hob is installed above an oven without a forced

ventilation cooling system, adequate ventilation must be

provided inside the cabinet by means of air holes through

which air can pass (see figure).

Electrical connection

Hobs equipped with a three-pole power supply cable are

designed to operate with alternating current at the voltage and

frequency indicated on the data plate (this is located on the

lower part of the appliance). The earth wire in the cable has a

green and yellow cover. If the appliance is to be installed above

a built-in electric oven, the electrical connection of the hob and

the oven must be carried out separately, both for electrical

safety purposes and to make extracting the oven easier.

Connecting the supply cable to the mains

Install a standardised plug corresponding to the load

indicated on the data plate.

The appliance must be directly connected to the mains

using an omnipolar circuit-breaker with a minimum contact

opening of 3 mm installed between the appliance and the

mains.  The circuit-breaker must be suitable for the charge

indicated and must comply with current electrical regulations

(the earthing wire must not be interrupted by the circuit-

breaker). The supply cable must not come into contact with

surfaces with temperatures higher than 50°C.

!

 The installer must ensure that the correct electrical

connection has been made and that it is compliant with

safety regulations.

Before connecting to the power supply, make sure that:

•  The appliance is earthed and the plug is compliant with

the law.

•  The socket can withstand the maximum power of the

appliance, which is indicated on the data plate.

•  The voltage is in the range between the values indicated

on the data plate.

•  The socket is compatible with the plug of the appliance.

If the socket is incompatible with the plug, ask an

authorised technician to replace it. Do not use extension

cords or multiple sockets.

!

 Once the appliance has been installed, the power supply

cable and the electrical socket must be easily accessible.

!

 The cable must not be bent or compressed.

!

 The cable must be checked regularly and replaced by

authorised technicians only (see Assistance).

!

 The manufacturer declines any liability should these safety

measures not be observed.

Gas connection

The appliance should be connected to the main gas supply

or to a gas cylinder in compliance with current national

regulations. Before carrying out the connection, make sure

the cooker is compatible with the gas supply you wish to

use. If this is not the case, follow the instructions indicated

in the paragraph “Adapting to different types of gas.”

When using liquid gas from a cylinder, install a pressure

regulator which complies with current national regulations.

!

 Check that the pressure of the gas supply is consistent with the

values indicated in Table 1 (“Burner and nozzle specifications”).

This will ensure the safe operation and longevity of your

appliance while maintaining efficient energy consumption.

GB

25

Connection with a rigid pipe (copper or steel)

!

 Connection to the gas system must be carried out in such a

way as not to place any strain of any kind on the appliance.

There is an adjustable L-shaped pipe fitting on the appliance

supply ramp and this is fitted with a seal in order to prevent

leaks. The seal must always be replaced after rotating the

pipe fitting (seal provided with appliance). The gas supply

pipe fitting is a threaded 1/2 gas cylindrical male attachment.

Connecting a flexible jointless stainless steel pipe to

a threaded attachment

The gas supply pipe fitting is a threaded 1/2 gas cylindrical

male attachment.

These pipes must be installed so that they are never longer

than 2000 mm when fully extended. Once connection has

been carried out, make sure that the flexible metal pipe

does not touch any moving parts and is not compressed.

!

 Only use pipes and seals that comply with current national

regulations.

Checking the tightness of the connection

!

 When the installation process is complete, check the pipe

fittings for leaks using a soapy solution. Never use a flame.

Adapting to different types of gas

To adapt the hob to a different type of gas other than default

type (indicated on the rating plate at the base of the hob or

on the packaging), the burner nozzles should be replaced

as follows:

1. Remove the hob grids and slide the burners off their

seats.

2. Unscrew the nozzles using a 7 mm socket spanner, and

replace them with nozzles for the new type of gas (see

table 1 “Burner and nozzle characteristics”).

3. Reassemble the parts following the above procedure in

the reverse order.

4. Once this procedure is finished, replace the old rating

sticker with one indicating the new type of gas used.

Sticker are available from any of our Service Centres.

Replacing  the  nozzles  on  separate  “double  flame  “

burners

1. Remove the grids and slide the burners from their

housings. The burner consists of 2 separate parts (see

figure);

2. Unscrew the burers with a 7 mm wrench spanner. The

internal burner has a nozzle, the external burner has

two (of the same size). Replace the nozzle with models

suited to the new type of gas (see table 1).

3. Replace all the components by repeating the steps in

reverse order.

Replacing the Triple ring burner nozzles

1. Remove the pan supports and lift the burners out of their

housing. The burner consists of two separate parts (see

pictures).

2. Unscrew the nozzles using a 7 mm socket spanner.

Replace  the  nozzles  with  models  that  are  configured

for use with the new type of gas (see Table 1). The two

nozzles have the same hole diameter.

3. Replace all the components by completing the above

operations in reverse order.

•  Adjusting the burners’ primary air

Does not require adjusting.

•  Setting the burners to minimum

1. Turn the tap to the low flame position;

2. Remove the knob and adjust

the adjustment screw, which is

positioned in or next to the tap pin,

until the flame is small but steady.

3. Having adjusted the flame to the required low setting,

while the burner is alight, quickly change the position

of the knob from minimum to maximum and vice versa

several times, checking that the flame does not go out.

4. Some appliances have a safety device (thermocouple)

fitted. If the device fails to work when the burners are set

to the low flame setting, increase this low flame setting

using the adjusting screw.

5. Once the adjustment has been made, replace the

seals on the by-passes using sealing wax or a similar

substance.

!

 If the appliance is connected to liquid gas, the regulation

screw must be fastened as tightly as possible.

!

  Once  this  procedure  is  finished,  replace  the  old  rating

sticker with one indicating the new type of gas used. Stickers

are available from any of our Service Centres.

!

 Should the gas pressure used be different (or vary slightly)

from the recommended pressure, a suitable pressure

regulator must be fitted to the inlet pipe (in order to comply

with current national regulations).

26

GB

Electrical

connections

DATA PLATE

see data plate

This appliance conforms to the following

European Economic Community directives:

- 2006/95/EEC dated 12/12/06 (Low

Voltage) and subsequent amendments

- 2004/108/EEC dated 15/12/04

(Electromagnetic Compatibility) and

subsequent amendments

- 93/68/EEC dated 22/07/93 and

subsequent amendments.

- 2009/142/EEC dated 30/11/09 (Gas) and

subsequent amendments.

- 2012/19/EC and subsequent

amendments.

GB

27

PC 631 X/HA

PC 631 /HA

R

Ø145

S

PC 640 X/HA

PC 640 R/HA

PC 640 /HA

R

S

S

A

A

PC 640 T X/HA

PC 640 T GH/HA

PC 640 T AX/HA

PC 640 T R/HA

PC 640T GH R /HA

PC 640 T E X/HA

RR

TC

S

A

Burner                        Diameter     Thermal      Thermal    By-pass    Nozzle           Flow*              Thermal     Nozzle        Flow*

                                                       power          power       1/100       1/100             (g/h)                 power       1/100         (l/h)

                                                          kW               kW                                                                          kW

                                                      (p.c.s.*)       (p.c.s.*)                                                                  (p.c.s.*)

                                      (mm)       Reduced     Nominal     (mm)       (mm)         ***          **          Nominal       (mm)

Supply pressures

Nominal (mbar)

Minimum (mbar)

Maximum (mbar)

28-30

20

35

37

25

45

20

17

25

Fast (R)

Reduced Fast (RR)

Semi Fast (S)

Auxiliary (A)

Triple Crown (TC)

Ultrarapid (UR)

Semi-Fishburner (SP)

Double Flame

(DCDR Internal)

Double Flame (DCDR

External) 2 nozzle

100

100

75

55

130

100

—

30

130

0.70

0.70

0.40

0.40

1.50

0.70

0.70

0.40

1.50

3.00

2.60

1.65

1.00

3.30

3.40

1.50

0.90

4.10

39

39

28

28

61

39

39

28

61

86

80

64

50

65x2

91

60

44

70x2

218

189

120

73

240

247

109

65

298

214

186

118

71

236

243

107

64

293

3.00

2.60

1.65

1.00

3.60

3.40

1.50

0.90

4.10

132 (H)

122 (H)

96 (Z)

79 (6)

103x2

138 (H)

88

74

110x2

286

248

157

95

343

324

143

86

390

Burner and nozzle specifications

*

At 15°C and 1013,25 mbar - dry gas

**

Propane P.C.S. = 50.37 MJ/Kg

***

Butane  P.C.S. = 49.47 MJ/Kg

Natural  P.C.S. = 37.78 MJ/m³

Table 1                                                                                     Liquid Gas                                                  Natural Gas

PC 730 RT GH /HA

PC 730 RT X /HA

PC 750 X /HA

PC 750 AX /HA

PC 750 T X /HA

PC 750 T AX /HA

PC 750 T GH /HA

PC 750 T XX /HA

PC 750 T R /HA

PC 750 T /HA

PC 750 T E X/HA

PC 760 F X /HA

PC 760 F R /HA

RR

UR

S

S

S

A

RR

TC

S

S

A

DC

TC

SP

SP

RR

A

A

S
