Electrolux EHG30235 x: Possibilities for insertion

82

a)

Removable panel

b)

Space possibly useful for

connections

Fig. 12

Fig. 13

Fig. 14

Kitchen unit with door

Proper arrangements must be taken in

designing the furniture unit, in order to avoid

any contact with the bottom of the hob which

can be heated when it is operated. The

recommended solution is shown in Fig. 12.

The panel fitted under the hob should be easily

removable to allow an easy access if a

technical assistance intervention is needed.

Kitchen unit with oven

The hob recess dimensions must comply the

indication given in Fig. 11 and must be

provided with brackets to allow a continuous

supply of air.

To avoid overhating, the building in should be

carried out as shown in Figs. 13 and 14.

The hob electric connection and the oven one

must be carried out separately, both for safety

reasons and to allow the oven to be easily

taken off the unit.

Hanging furniture units or hoods must be

placed at 650 mm. minimum from the hob (Fig.

11).

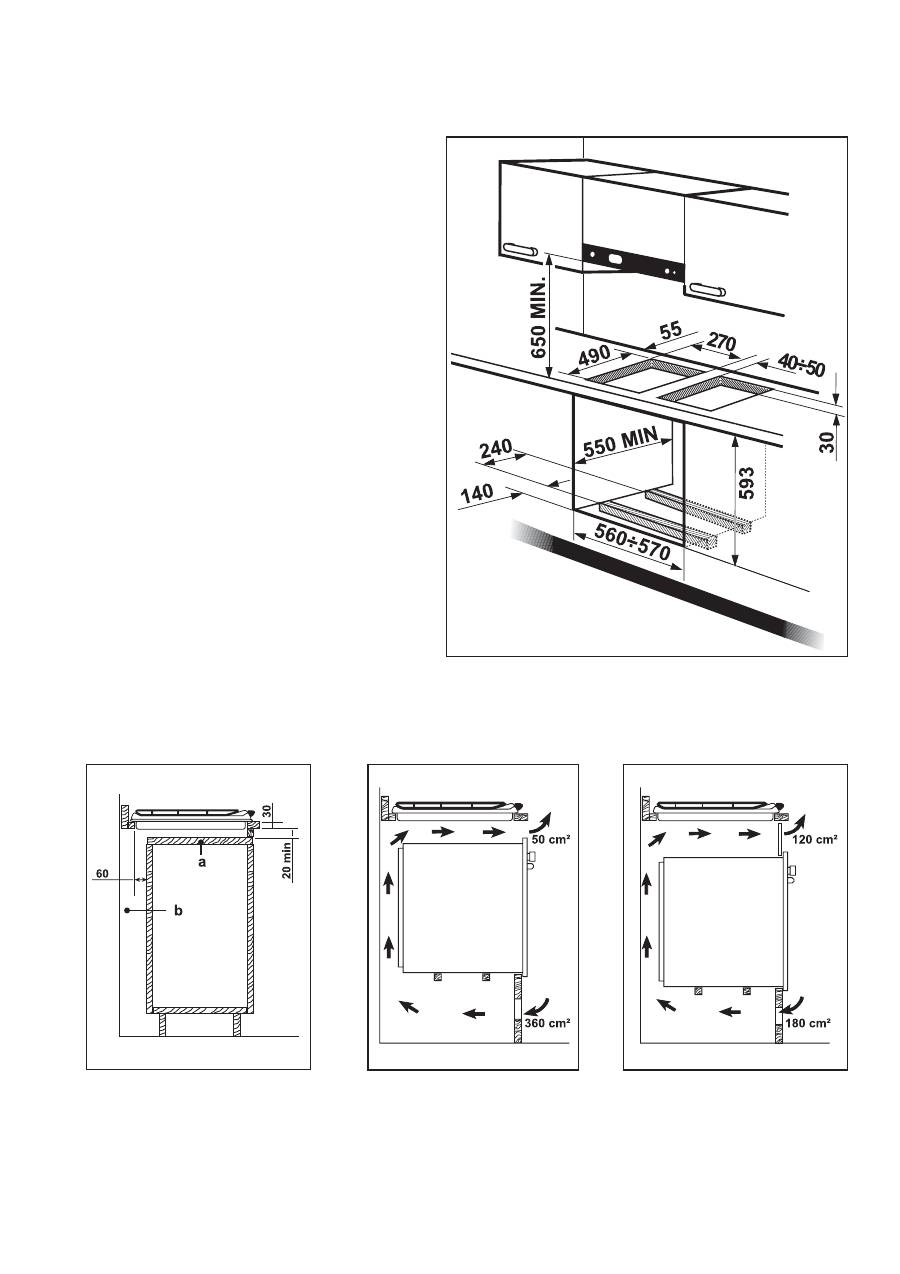

Possibilities for insertion

Fig. 11

FO 1013

FO 0939

FO 0938
