Electrolux EHG30235 x: Adaptation to different types of gas

80

Injectors replacement

• Remove the pan supports.

• Remove the burner's caps and crowns.

• With a socket spanner 7 unscrew and remove the

injectors (Fig. 7), and replace them with the ones

required for the type of gas in use (see

table 2

).

• Reassemble the parts, following the same procedu-

re backwards.

• Replace the rating label (placed near the gas supply

pipe) with the relevant one for the new type of gas

supply. You can find this label in the package of the

injectors supplied with the appliance.

Should the feeding gas pressure be different or variable

compared with the required pressure, an appropriate

pressure adjuster must be fitted on the gas supply pipe,

in compliance with the rules in force.

Adjustment of minimum level

To adjust the minimum level of the burners, proceed as

follows:

•

Light the burner.

•

Turn the knob on the minimum position.

•

Remove the knob.

•

With a thin screwdriver, adjust the by-pass screw

(see Fig. 8). If changing from natural gas to liquid

gas, completely tighten clockwise the screw, until

a small regular flame is obtained. If changing from

liquid gas to natural gas unscrew about 1/4 turn the

by-pass screw, until a small regular flame is obtained.

•

Finally check the flame does not go out when

quickly turning the knob from the maximum position

to the minimum position.

This procedure can easily be carried out, anyhow the hob

has been positioned or built in the working top.

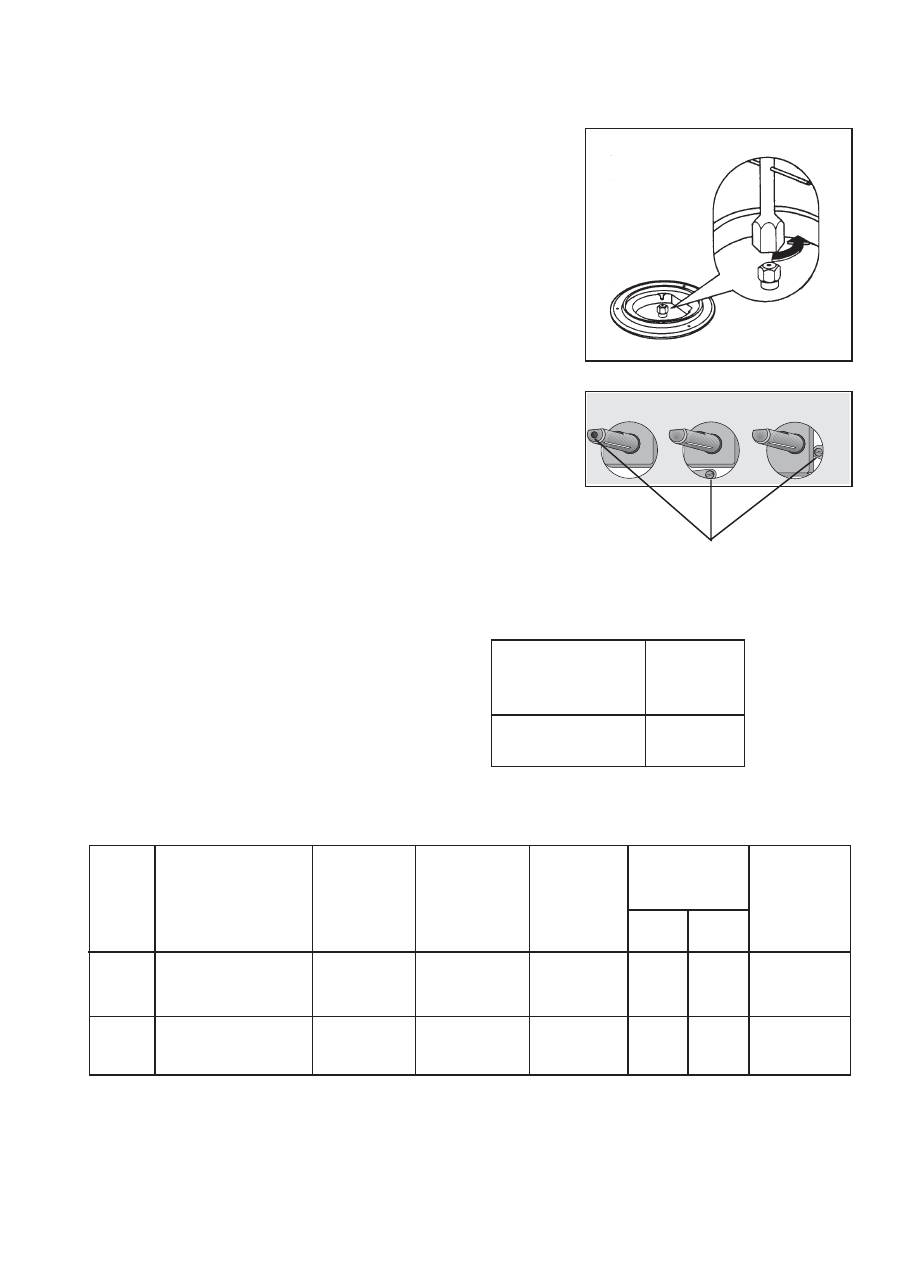

Fig. 7

  Burner

Ø By-pass

in 1/100

of mm.

Rapid

42

  Auxiliary

28

Table 1 : By-pass diameters

Table 2 : injectors

Fig. 8

Adaptation to different types of gas

!

!

!

!

!

!

!

!

!

!

By-pass screws

TYPE

TYPE OF

INJECTORS

NOMINAL

REDUCED

NOMINAL

NOMINAL

OF GAS

BURNER

MARKS

POWER

POWER

POWER

PRESSURE

1/100 mm

INPUT

k W

mbar

K W

m

3

/h

g/h

Rapid

119

3,0

0,75

0,286

-

20

Auxiliary

70

1,0

0,33

0,095

-

Rapid

86

2,8

0,75

-

202

28-30/37

Auxiliary

50

1,0

0,33

-

72

NATURAL

GAS

LIQUID

GAS
