Electrolux EHG30235 x: Electrical connection

78

The appliance is arranged to operate on a 230 V single-

phase power supply. Connection must be made in

compliance with current standards and regulations.

Before carrying out the connection, make sure:

1) the limiter valve and the electrical system can

take the appliance load (refer to the serial no.

plate);

2) the supply system is equipped with an efficient

earth connection in compliance with current

standards;

3) the socket or omnipolar switch used are easily

accessible with the appliance installed.

Fit the cable with a plug suitable for the load and connect

it to a suitable safety socket.

To connect directly to the mains, a suitable omnipolar

switch with contact gap of at least 3 mm complying with

current standards must be installed between the

appliance and the network.

The yellow/green earth wire must not be interrupted by

the switch.

The brown phase wire (coming from terminal “L” on the

terminal block) must always be connected to the power

supply phase wire.

In any case the power cable must be positioned in such

a way that no part of it reaches a temperature of more

than 90°C.

REPLACING THE POWER CABLE

The connection of the connection cable to theappliance's

terminal block is of type "Y". This means that its

replacement requires the specific equipment ofa

technician.In this case, only cable type H05V2V2-F T90

must beused. The cable section must be suitable to the

voltageand the working temperature.The yellow/green

earth wire must be approximately 2 cmlonger than the

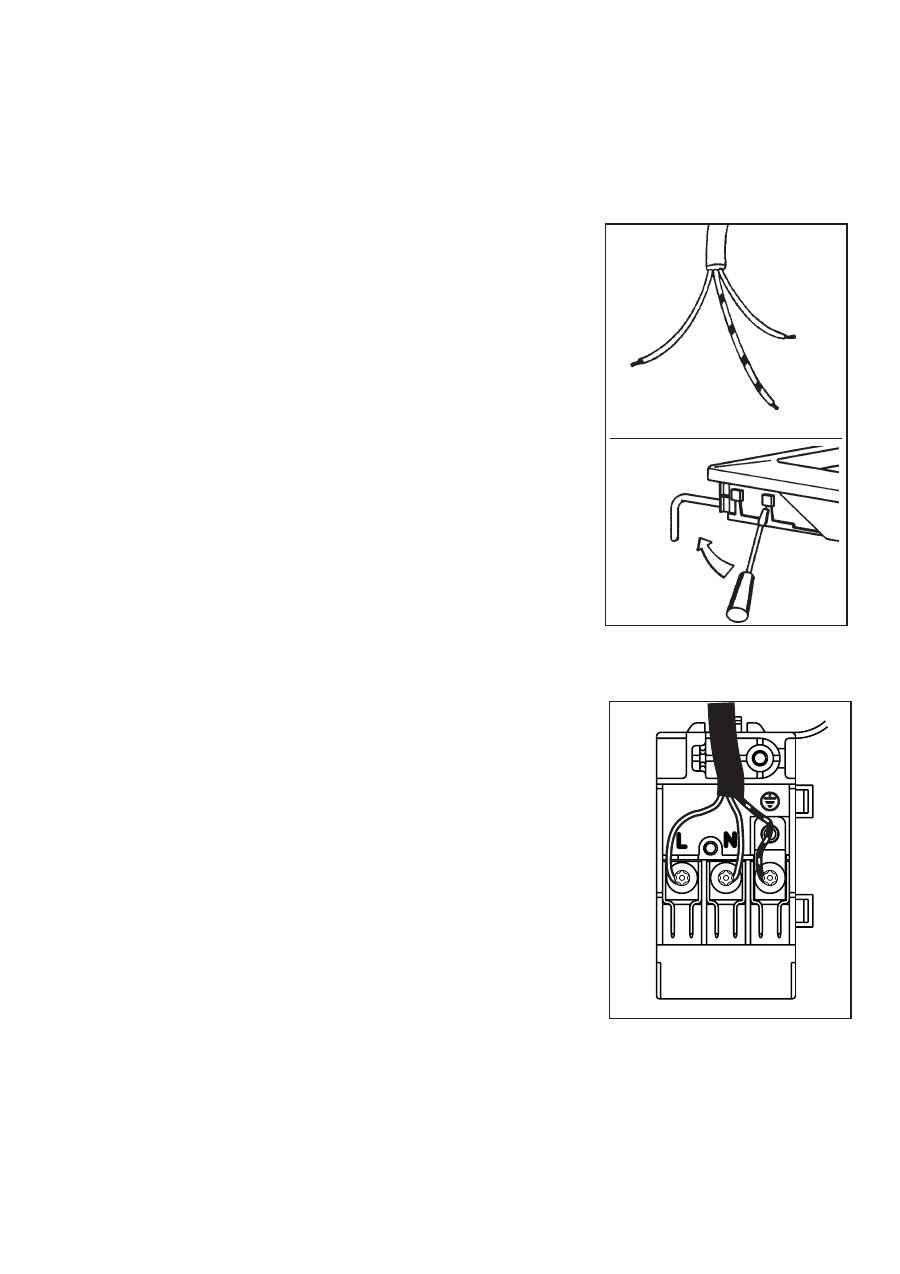

phase wires (Fig. 5-a).

After connection, test the heating elements by operating

them for about 3 minutes.

To open the terminal block and reach the terminals,

proceed as follows:

#

insert the point of a screwdriver into the visible

protrunding part of the terminal block;

#

exert a light pressure and lift (Fig. 5-b)

Electrical connection

Fig. 5-a

Neutral

Earth (yellow/green)

Fig. 5-b

Fig. 5-c
