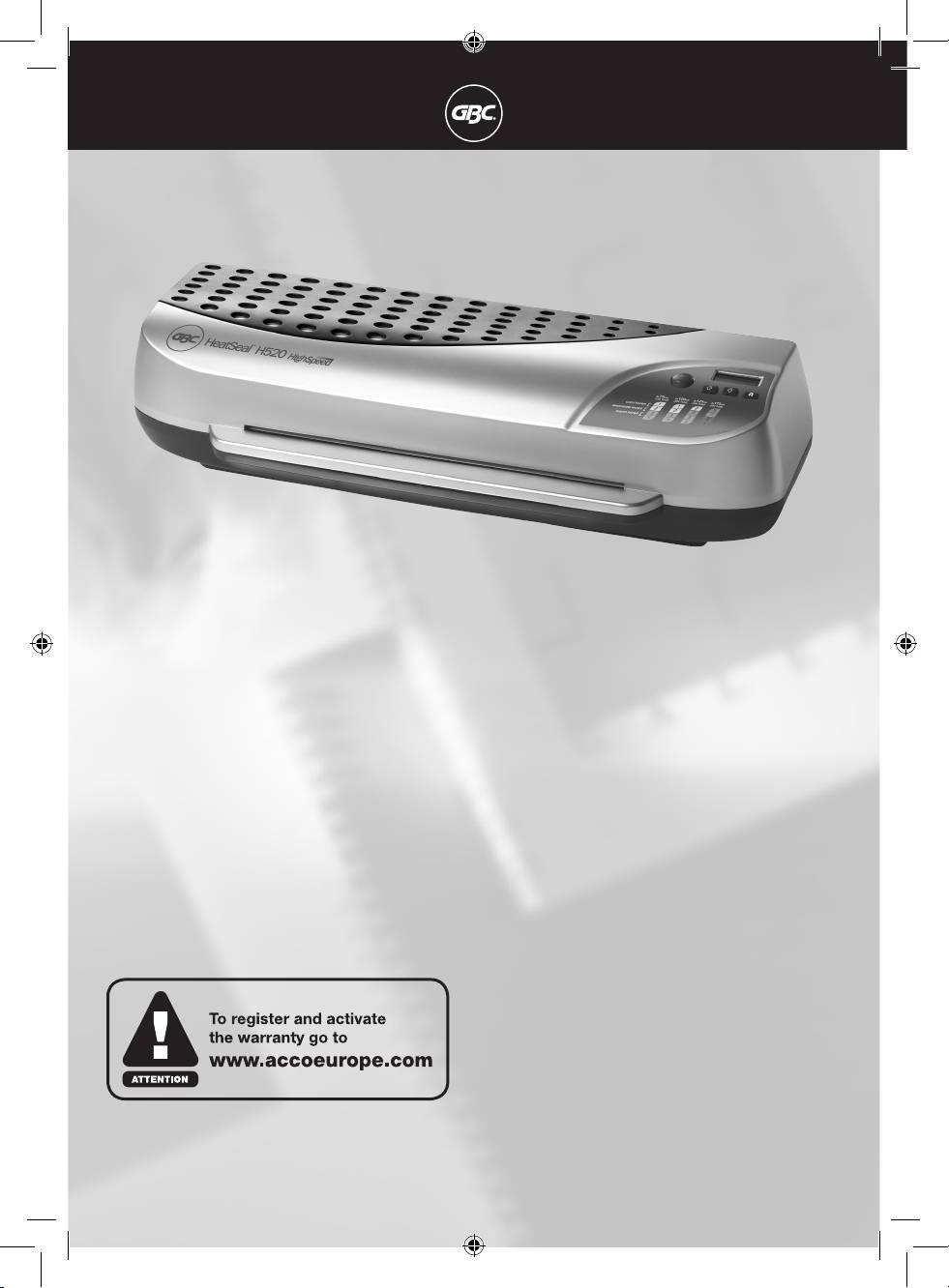

GBC H520 HeatSeal: инструкция

™

HeatSeal

H520

G

Instruction Manual

F

Manuel d’utilisation

D

Bedienungsanleitung

I

Manuale d’istruzioni

O

Gebruiksaanwijzing

E

Manual de instrucciones

P

Manual de Instruções

T

Kullanım Kılavuzu

K

Οδηγίες

c

Brugsvejledning

o

FI

Käyttöopas

o

NO

Bruksanvisning

S

Bruksanvisning

Q

Instrukcja obsługi

o

CZ

Návod k obsluze

H

Használati útmutató

RUS

o

Руководствo по

зкcплyатации

English 4

Français 6

Deutsch 8

Italiano 10

Nederlands 12

Español 14

Português 16

Türkçe 18

Ελληνικά 20

Dansk 22

Suomi 24

Norsk 26

Svenska 28

Polski 30

Česky 32

Magyar 34

Pyccкий 36

2

1

3

5

4

4

Specifications

GBC HeatSeal H520

Electrical

230V / 50Hz / 2.5A / 600W

Machine Dimensions

550 x 190 x 114mm

Machine Weight

6.3kg

Maximum Pouch Width

320mm

Minimum/Maximum Pouch Thickness

2 x 75 mic (Total 150) / 2 x 175 mic (Total 350)

Maximum Thru-put Thickness

1mm

Warm-Up Time (2 x 75 mic)

5 minutes

Speed

800mm per minute

Safety instructions

m

Important safeguards

m

YOUR SAFETY AS WELL AS THE SAFETY OF OTHERS IS IMPORTANT

WARNING: FOR YOUR PROTECTION DO NOT CONNECT

TO ACCO BRANDS EUROPE. IN THIS INSTRUCTION MANUAL AND ON

m

THE POUCH LAMINATOR TO ELECTRICAL POWER UNTIL

THE PRODUCT ARE IMPORTANT SAFETY MESSAGES. READ THESE

YOU READ THESE INSTRUCTIONS COMPLETELY. KEEP

MESSAGES CAREFULLY.

THESE INSTRUCTIONS IN A CONVENIENT LOCATION FOR

FUTURE REFERENCE. TO GUARD AGAINST INJURY, THE

THE SAFETY ALERT SYMBOL PRECEDES EACH SAFETY

FOLLOWING BASIC SAFETY PRECAUTIONS MUST BE

m

MESSAGE IN THIS INSTRUCTION MANUAL.

OBSERVED IN THE SET-UP AND USE OF THIS PRODUCT.

THIS SYMBOL INDICATES A POTENTIAL PERSONAL

SAFETY HAZARD THAT COULD HURT YOU OR OTHERS,

AS WELL AS CAUSE PRODUCT DAMAGE OR PROPERTY

General safeguards

DAMAGE.

• Use the unit only for its intended purposes of laminating documents.

THIS WARNING IS FOUND ON THE PRODUCT.

• Do not place anything in the throat opening of the laminator other than

pouches/documents.

m

WARNING

• Place unit on a secure, stable work area to prevent the unit from

c

Electrical shock hazard.

falling and possibly causing personal injury and damage to the unit.

Do not open. No user

• Follow all warnings and instructions marked on the unit.

servicable parts inside.

• The socket outlet shall be installed near the equipment and shall be

Refer servicing to qualified

easily accessible.

service personnel.

• Do not block the vent slots, this will cause the laminator to overheat.

This safety message means that you could be seriously hurt or killed if

• Never insert the loose end of the pouch first into the machine. This

you open the product and expose yourself to hazardous voltage.

could cause the machine to jam.

• Never attempt to do single sided lamination. This will cause the

Special notice

machine to jam.

• After laminating run a clean card through the machine to clean glue

Thank you, for your recent purchase of a GBC Pouch Laminator. Your

residue off of the rollers. This will extend the life of the rollers.

new laminator may emit a slight odour during the initial stage of

operation. It is normal and will diminish after several hours of operation.

Electrical safeguards

Cleaning

• The unit must be connected to a supply voltage corresponding to the

electrical rating shown on the unit.

Caution: Unplug this product before cleaning.

• Unplug the unit before moving it, or when it is not in use for an

m

• Wipe exterior only with a damp cloth. Do not use detergents

extended period of time.

or solvents.

• Do not operate with a damaged supply cord or plug. Do not alter the

• Do not use aerosol dusters or cleaners

attachment plug. The plug is configured for the appropriate electrical

• Do not spray anything into the product, foreign substances

supply.

can be explosive.

• Do not overload electrical outlets beyond their capacity; fire or

electrical shock could result.

Service

• The unit is intended for indoor use only.

• Do not spill liquid of any kind on this product.

• Do not attempt to service or repair the pouch laminator yourself.

• Close supervision is required when this product is used near children.

Unplug the unit and contact an authorised ACCO Brands Europe

service representative for any required repairs.

4

G

Operation, hot lamination

Operation, cold lamination

1

Connect the power cord plug to the appropriate power source.

1

Connect the power cord plug to the appropriate power source.

2

Push the power button to “ON” position, the LCD display will

2

Push the power button to “ON” position. The LCD display will

illuminate.

illuminate (fig.1).

3

Using the lamination guide located on the machine (fig.1), select the

3

The LCD display will automatically default to the “0” * Temp.

appropriate temperature setting for the pouch gauge thickness and

position.

material you are laminating using the Up/Down Arrow keys.

4

Follow the instructions included with your GBC self adhesive

Temperature Setting Guidelines

laminate or other pressure sensitive, non thermal laminating

When laminating thin paper with light ink coverage, set the temperature

pouches.

dial to the low end of the film gauge range. Thick paper with heavy ink

coverage requires higher settings within the range. Temperature settings

will vary due to the finish, chemistry and heat absorption properties

Reverse feature

of the material being laminated. If the laminated pouch is cloudy after

the first pass through the machine, adjust the temperature to the next

In the event of a misfeed or a jam follow these instructions.

higher position and run it through again. If waviness occurs, reduce the

1

Press the reverse button and hold down (fig.5). This will reverse

temperature to the next lower position. Always allow sufficient time for

the rotation of the rollers allowing the pouch to exit the front of the

the laminator temperature to adjust to the changes made to the settings.

machine.

4

When the laminator has reached the correct lamination temperature

2

Pull the document out of the laminator.

the countdown to ready will indicate “Ready” 0 minutes on the LCD

display.

3

After the document is out of the machine clean the rollers by

running the cleaning sheet through the laminator.

5

Centre the item to be laminated within the pouch left to right with

the top edge against the sealed edge of the pouch (fig.2).

Caution: Use caution when removing the laminated pouch

6

Insert the pouch with the sealed edge first into the machine (fig.3).

m

from the machine. It may be hot.

7

The laminated item will automatically exit at the rear of the machine.

After the pouch has stopped moving, carefully remove from the

machine and place on a cool flat surface for approximately one

minute for cooling (fig.4).

8

If you are finished laminating push the power switch to turn the

machine off.

Guarantee

Operation of this machine is guaranteed for two years from date of

persons not authorised by ACCO Brands Europe will invalidate the

purchase, subject to normal use. Within the guarantee period, ACCO

guarantee. It is our aim to ensure that our products perform to the

Brands Europe will at its own discretion either repair or replace the

specifications stated. This guarantee does not affect the legal rights

defective machine free of charge. Defects due to misuse or use for

which consumers have under applicable national legislation governing

inappropriate purposes are not covered under the guarantee. Proof

the sale of goods.

of date of purchase will be required. Repairs or alterations made by

Register this product online at www.accoeurope.com
