Hach-Lange POLYMETRON 9500 Amperometry Module User Manual: Installation

W A R N I N G

Indicates a potentially or imminently hazardous situation which, if not avoided, could result in death or serious

injury.

C A U T I O N

Indicates a potentially hazardous situation that may result in minor or moderate injury.

N O T I C E

Indicates a situation which, if not avoided, may cause damage to the instrument. Information that requires special

emphasis.

Precautionary labels

Read all labels and tags attached to the product. Personal injury or damage to the product could

occur if not observed. A symbol on the instrument is referenced in the manual with a precautionary

statement.

This symbol, when noted on a product, indicates a potential hazard which could cause serious

personal injury and/or death. The user should reference this instruction manual for operation and/or

safety information.

This symbol, when noted on a product enclosure or barrier, indicates that a risk of electrical shock

and/or electrocution exists and indicates that only individuals qualified to work with hazardous

voltages should open the enclosure or remove the barrier.

This symbol, when noted on the product, indicates the presence of devices sensitive to electrostatic

discharge and indicates that care must be taken to prevent damage to them.

Electrical equipment marked with this symbol may not be disposed of in European public disposal

systems. In conformity with European local and national regulations, European electrical equipment

users must now return old or end-of-life equipment to the manufacturer for disposal at no charge to

the user.

Note: For return for recycling, please contact the equipment producer or supplier for instructions on how to return

end-of-life equipment, producer-supplied electrical accessories, and all auxiliary items for proper disposal.

Products marked with this symbol indicates that the product contains toxic or hazardous substances

or elements. The number inside the symbol indicates the environmental protection use period in

years.

Product overview

The module, when installed in an sc200 or a Polymetron 9500 controller, allows an analog sensor to

connect to the controller.

Installation

W A R N I N G

Multiple hazards. Only qualified personnel must conduct the tasks described in this section of the document.

Connect the sensor to the module

W A R N I N G

Potential electrocution hazard. Always disconnect power to the controller when making electrical connections.

W A R N I N G

Electrocution hazard. High voltage wiring for the controller is conducted behind the high voltage barrier in the

controller enclosure. The barrier must remain in place except when installing modules, or when a qualified

installation technician is wiring for power, relays or analog and network cards.

4 English

N O T I C E

Potential instrument damage. Delicate internal electronic components can be damaged by static electricity,

resulting in degraded performance or eventual failure.

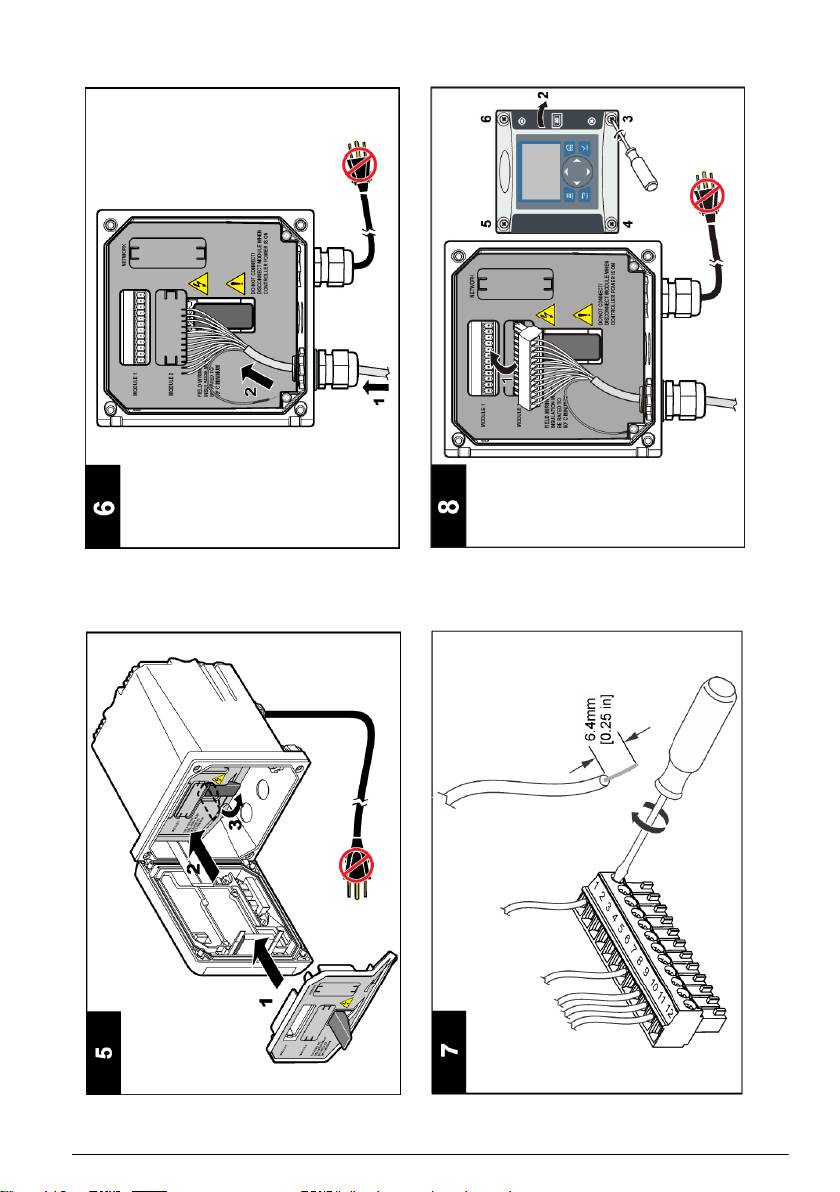

To install the module and connect the sensor, refer to the illustrated steps that follow and the wiring

table Table 1.

Be sure to connect all sensor ground/shield wires to the controller enclosure grounding screws.

Note: If the sensor cable is not long enough to reach the controller, an interconnect cable and junction box are

required to extend the distance.

Table 1 Dissolved oxygen and oxygen scavenger sensor wiring

Terminal Description Dissolved oxygen Oxygen scavenger

1 Temp + Black Black

2 Temp - Blue Blue

3 — — —

4 — — —

5 Ground Green Green

6 Earth Yellow Yellow

7 — — —

8 — — —

9 Working electrode White White

10 Counter electrode Red Gray

11 Reference electrode — Transparent

12 — — —

In Step 3 of the following sequence, set the switch as follows:

Switch Setting Description

Setting 1 Dissolved oxygen

Setting 2 Oxygen scavenger
