inStAllAtion   SAfety 6.  Safety

Only qualified contractors should carry out installation,

commissioning, maintenance and repair of the appliance.

6.1  General safety instructions

We guarantee trouble-free operation and operational reliability

only if the original accessories and spare parts intended for the

appliance are used.

6.2  Instructions, standards and regulations

Observe all applicable national and regional regulations

and instructions.

6.3  water installation

6.3.1  Cold water line

Steel or copper pipes or plastic pipework are approved as

materials.

A safety assembly is required (see chapter “Special accessories /

Safety assembly and pressure reducing valve”).

6.3.2  DHW line

Copper or plastic pipework are approved materials.

!

Risk of damage

When using plastic pipework, observe chapter

"Specification / Fault conditions".

The appliance must be operated with pressure taps.

7.  Equipment description

7.1  Standard delivery

SB 302 S and SB 402 S

— Cylinder incl. thermal insulation (directly applied foam)

— Cylinder casing

— Thermometer (in the flange aperture)

— Adaptor 1/2" with flat gasket for the connection of a DHW

circulation line

— Cold water inlet pipe G 1" with flat gasket

— Adhesive bezel

SB 602 ac and SB 1002 ac

— Cylinder excluding thermal insulation

— Thermometer (in the flange aperture)

— Anode consumption indication

— Label "Signal anode information"

— Information leaflet "Pressure relief valve"

SB 650/3 ac

— Cylinder excluding thermal insulation

— Information leaflet "Pressure relief valve"

inStAllAtion

7.2  Special accessories

Dummy flanges, indirect coils and flanged immersion heaters are

available as special accessories.

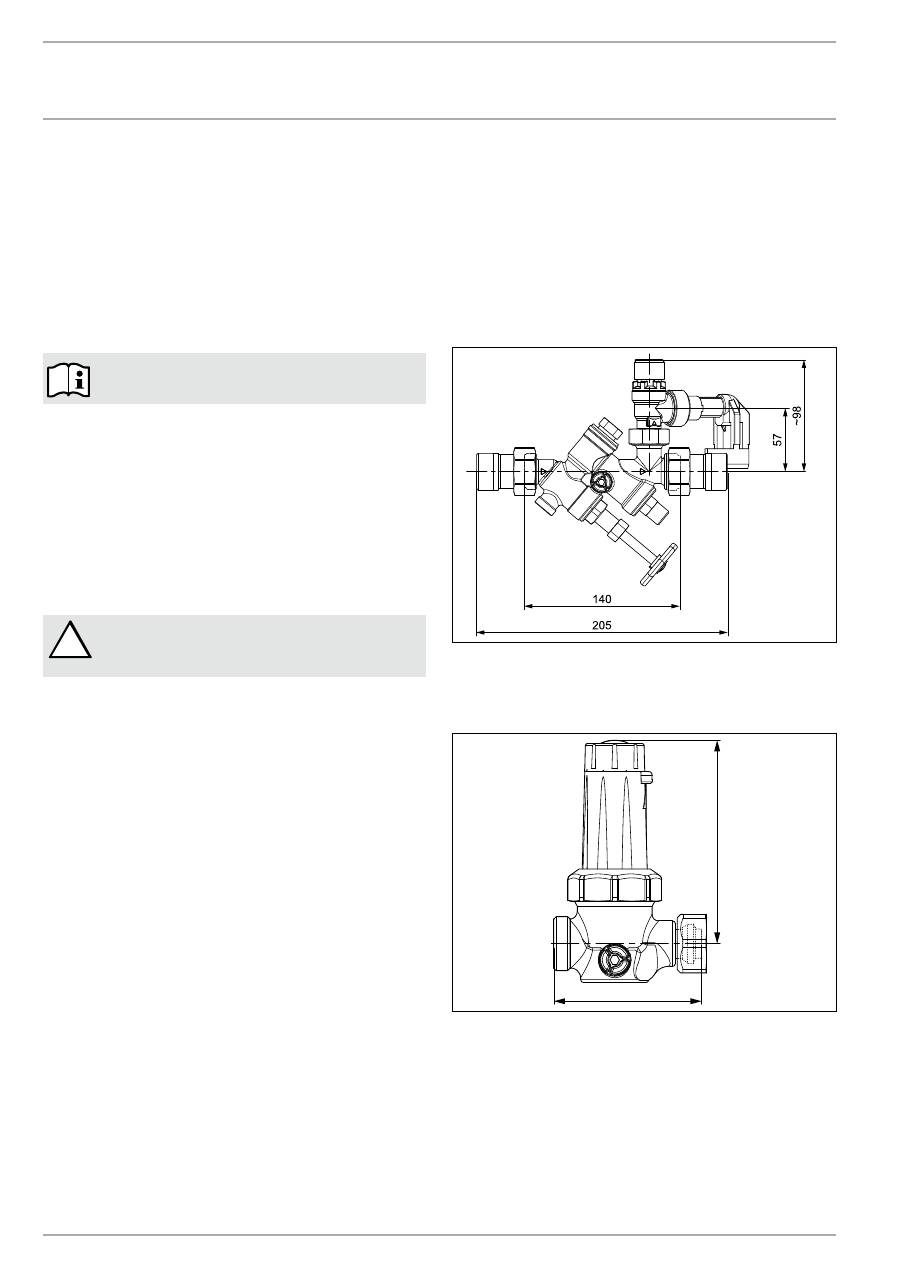

7.2.1  Safety assembly and pressure reducing valve

This type-tested safety assembly protects the appliance against

unacceptable excess pressure.

— Up to 0.48 MPa static pressure

Safety assembly ZH 1, part number 074370

D

00000

17

70

1

— More than 0.48 MPa static pressure

Safety assembly ZH 1, part number 074370

plus

Pressure reducing valve DMV/ZH 1, part number 074371

121

91

D

00000

17

70

2

D

00000

17

70

2

7.2.2  Thermal insulation

SB 602 ac

WDV 612, part number  232877

SB 1002 ac

WDV 1012, part number  232878

SB 650/3 ac

WDV 650, part number  232879
