www.stiebel-eltron.com

SHW  S |

17

EN

GL

ISH

cOntentS | OpeRatIOn

general information

oPeration

1.

General information ��������������������������������������� 17

1.1

Safety instructions ���������������������������������������������� 17

1.2

Other symbols in this documentation ���������������������� 17

1.3

Units of measurement ����������������������������������������� 18

2.

Safety �������������������������������������������������������� 18

2.1

Intended use ����������������������������������������������������� 18

2.2

General safety instructions ����������������������������������� 18

2.3

CE designation �������������������������������������������������� 18

2.4

Test symbols ����������������������������������������������������� 18

3.

Appliance description ������������������������������������� 18

4.

Settings ����������������������������������������������������� 19

5.

Cleaning, care and maintenance ������������������������� 19

6.

Troubleshooting  ������������������������������������������� 19

installation

7.

Safety �������������������������������������������������������� 20

7.1

General safety instructions ����������������������������������� 20

7.2

Instructions, standards and regulations ������������������� 20

8.

Appliance description ������������������������������������� 20

8.1

Standard delivery ����������������������������������������������� 20

8.2

Accessories ������������������������������������������������������� 20

9.

Preparations ������������������������������������������������ 20

9.1

Installation site �������������������������������������������������� 20

9.2

Transport ��������������������������������������������������������� 20

10.

Installation �������������������������������������������������� 20

10.1  Fitting the cylinder casing and DHW circulation line if

required ���������������������������������������������������������� 20

10.2  Thermometer ���������������������������������������������������� 21

10.3  Signal anode ����������������������������������������������������� 21

10.4  Water connection and safety assembly �������������������� 21

10.5  Power supply ���������������������������������������������������� 22

11.

Commissioning ��������������������������������������������� 23

11.1  Commissioning �������������������������������������������������� 23

11.2  Recommissioning ����������������������������������������������� 23

12.

Settings ����������������������������������������������������� 23

13.

Shutting down ���������������������������������������������� 23

14.

Troubleshooting �������������������������������������������� 24

15.

Maintenance ������������������������������������������������ 24

15.1  Checking the safety valve ������������������������������������� 24

15.2  Draining the appliance ���������������������������������������� 24

15.3  Replacing the signal anode ����������������������������������� 24

15.4  Cleaning and descaling the appliance ���������������������� 24

15.5  Replacing flanged immersion heater ����������������������� 24

16.

Specification ������������������������������������������������ 25

16.1  Dimensions and connections ��������������������������������� 25

16.2  Wiring diagrams and connections �������������������������� 27

16.3  Heat-up diagram ������������������������������������������������ 29

16.4  Fault conditions ������������������������������������������������� 29

16.5  Data table �������������������������������������������������������� 29

warranty | enVironment and recycling

OpeRatIOn

1.  general information

The chapter "Operation" is intended for appliance users and qual-

ified contractors.

The chapter "Installation" is intended for qualified contractors.

Note

Read these instructions carefully before using the appli-

ance and retain them for future reference.

Pass on the instructions to a new user if required.

1.1  safety instructions

1.1.1  structure of safety instructions

!

KEYWORD Type of risk

Here, possible consequences are listed that may result

from failure to observe the safety instructions.

f

f

Steps to prevent the risk are listed here.

1.1.2  symbols, type of risk

Symbol

type of risk

Injury

Electrocution

Burns

(burns, scalding)

1.1.3  Keywords

KeyWORd

Meaning

DANGER

Failure to observe this information will result in serious

injury or death.

WARNING

Failure to observe this information may result in serious

injury or death.

CAUTION

Failure to observe this information may result in non-seri-

ous or minor injury.

1.2  other symbols in this documentation

Note

General information is identified by the symbol shown

on the left.

f

f

Read these texts carefully.

!

background image

OpeRatIOn

Safety

18

 | SHW  S www.stiebel-eltron.com

Symbol

Meaning

Material damage

(Appliance and consequential losses, environmental pol-

lution)

Appliance disposal

f

f

This symbol indicates that you have to do something. The ac-

tion you need to take is described step by step.

1.3  units of measurement

Note

All measurements are given in mm unless stated oth-

erwise.

2.  safety

2.1  intended use

This pressure appliance is designed to heat DHW.

This appliance is designed for domestic use. It can be used safely

by untrained persons. The appliance can also be used in a non-do-

mestic environment, e.g. in a small business, as long as it is used

in the same way.

Any other use beyond that described shall be deemed inappropri-

ate. Observation of these instructions and of instructions for any

accessories used is also part of the correct use of this appliance.

Any modifications or conversions to the appliance void all war-

ranty rights.

2.2  general safety instructions

WARNING Burns

There is a risk of scalding at outlet temperatures in ex-

cess of 43 °C.

!

WARNING Injury

The appliance can be used by children aged 8 and above,

as well as by persons with limited physical, sensory or

mental abilities, or with a lack of experience and knowl-

edge, provided they are supervised or have been in-

structed in the safe use of the appliance and understand

the resulting dangers. Children must not play with the

appliance. Cleaning and user maintenance may not be

carried out by unsupervised children.

Note

The appliance is under pressure.

During the heat-up process, expansion water will drip

from the safety valve. If water continues to drip when

heating is completed, please inform your heating con-

tractor.

2.3  ce designation

The CE designation shows that the appliance meets all essential

requirements according to the:

- Electromagnetic Compatibility Directive

- Low Voltage Directive

2.4  test symbols

See type plate on the appliance.

3.  appliance description

The appliance electrically heats domestic hot water, with the tem-

perature controlled via the temperature selector. Subject to the

power supply and operating mode, the water is heated automat-

ically to the required temperature. You can use the appliance to

supply one or several draw-off points.

The steel cylinder is coated on the inside with special directly ap-

plied enamel and is equipped with a thermometer and a protective

anode. The anode with consumption indicator protects the cylin-

der interior from corrosion. The cylinder is enclosed by thermal

insulation and a casing.

The appliance is also protected against frost on the temperature

setting "cold" as long as the power supply is guaranteed. The ap-

pliance switches on in good time and heats the water. The water

supply line and the safety assembly are not protected against frost

by the appliance.

single circuit operation

The appliance automatically heats up at any temperature setting

subject to the availability of power.

dual circuit operation

During off-peak tariff periods (cheap rate periods of power supply

utilities), the appliance automatically heats up the water content

with standard heating output at any temperature settings. In ad-

dition, you can switch on rapid heating during peak tariff periods.

!

background image

OpeRatIOn

Settings

www.stiebel-eltron.com

SHW  S |

19

EN

GL

ISH

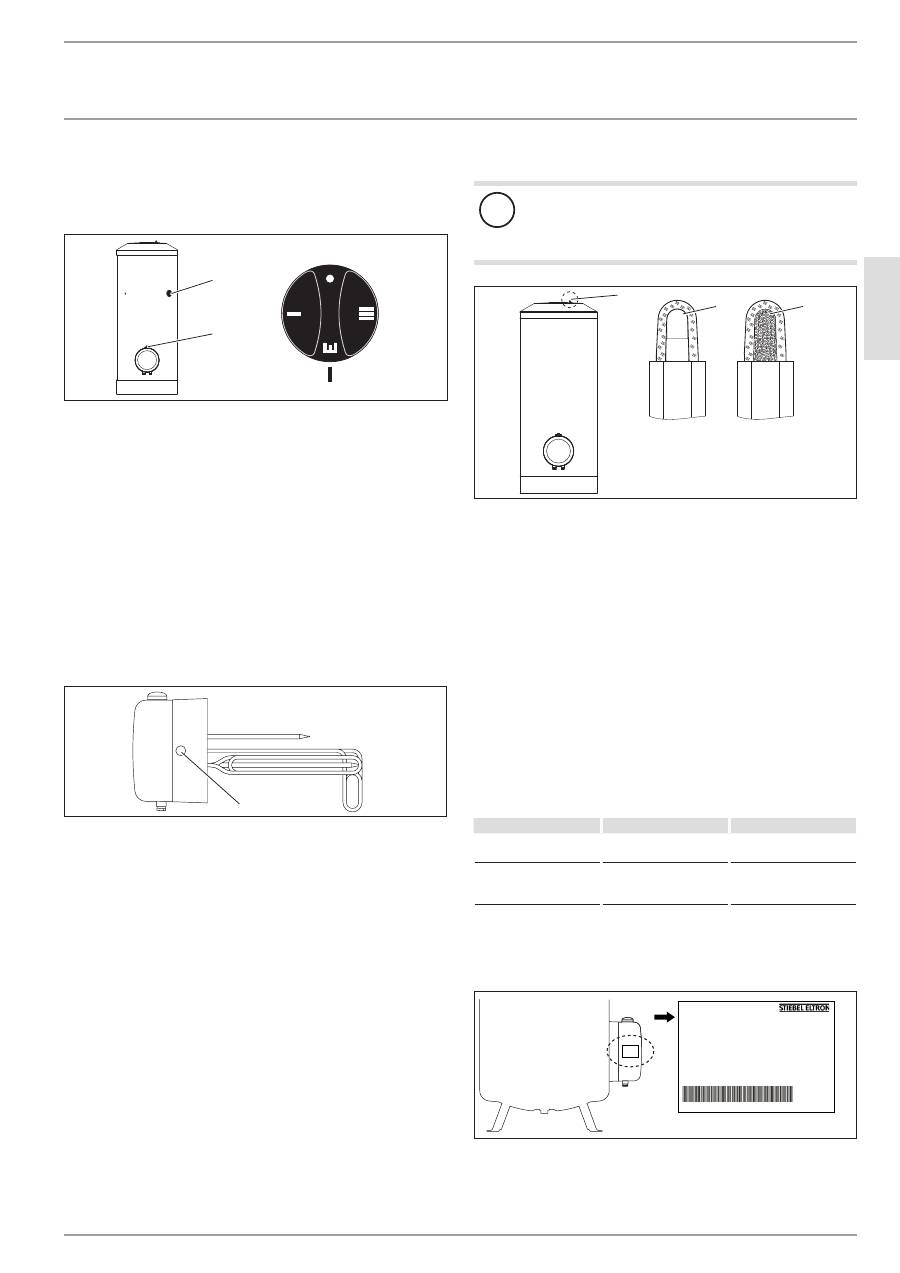

4.  settings

The temperature is infinitely adjustable. Depending upon the sys-

tem, the temperatures may vary from the set value.

26

�0

2�

09

�0

06

8�

1

2

1  Thermometer

2  Temperature selector

•

Cold (frost protection)

i

  Low temperature setting, 35 °C

e

  Recommended energy saving position,

low scaling, approx. 60 °C

iii

 Maximum temperature setting, 82 °C

Temperature selection is limited in the delivered condition. This

limitation can be cancelled by a qualified contractor (see chapter

"Installation / Settings").

dual circuit operation with rapid heat-up function

You can switch on rapid heating with the pushbutton whenever

necessary. Rapid heating stops and will not restart once the se-

lected temperature has been reached.

1

26

�02

�7

9�

00

02

1  Pushbutton for rapid heating

5.  cleaning, care and maintenance

f

f

Have the electrical safety of the appliance and the func-

tion of the safety assembly regularly checked by a heating

contractor.

f

f

Never use abrasive or corrosive cleaning agents. A damp

cloth is sufficient for cleaning the appliance.

signal anode with consumption indicator

!

Material damage

If the consumption indicator changes colour from white

to red, have the signal anode checked by a heating con-

tractor and if necessary replaced.

2

3

1

26

�0

2�

09

�0

06

1

1  Signal anode with consumption indicator

2  White  = anode OK

3  Red  = ask your heating contractor to check

scaling

Almost every type of water deposits lime at high temperatures.

This settles inside the appliance and affects both the performance

and service life. The heating elements must therefore be descaled

from time to time. A qualified contractor who knows the local

water quality will tell you when the next service is due.

f

f

Check the taps/valves regularly. You can remove limescale

deposits at the tap outlets using commercially available des-

caling agents.

f

f

Regularly activate the safety valve to prevent it from becom-

ing blocked e.g. by limescale deposits.

6.  troubleshooting

Fault

cause

Remedy

The water does not heat

up.

There is no power.

Check the fuses/MCBs in

your fuse box.

The flow rate is low.

The aerator in the tap or

shower head is scaled up

or contaminated.

Clean and/or descale the

aerator or shower head.

If you cannot remedy the fault, notify your heating contractor. To

facilitate and speed up your enquiry, please provide the serial

number from the type plate (no. 000000-0000-000000):

Nr.: 000000 - 0000 - 000000

26

�0

2�

09

�0

05

7
