14

 | sBp 1000-1500 e | e sol | e cool

www.stiebel-eltron.com

Contents | operation

general information

oPeration

1.

General information ��������������������������������������� 14

1.1

Safety instructions ���������������������������������������������� 14

1.2

Other symbols in this documentation ���������������������� 15

1.3

Units of measurement ����������������������������������������� 15

2.

Safety �������������������������������������������������������� 15

2.1

Intended use ����������������������������������������������������� 15

2.2

General safety instructions ����������������������������������� 15

3.

Appliance description ������������������������������������� 15

4.

Cleaning, care and maintenance ������������������������� 15

5.

Troubleshooting �������������������������������������������� 15

installation

6.

Safety �������������������������������������������������������� 16

6.1

General safety instructions ����������������������������������� 16

6.2

Regulations, standards and instructions ������������������� 16

7.

Appliance description ������������������������������������� 16

7.1

Standard delivery ����������������������������������������������� 16

7.2

Accessories ������������������������������������������������������� 16

8.

Preparations ������������������������������������������������ 16

8.1

Installation site �������������������������������������������������� 16

8.2

Transport ��������������������������������������������������������� 16

9.

Preparing for installation ��������������������������������� 16

9.1

Fitting the thermal insulation, if appropriate ������������� 16

9.2

Installing the manual air vent valve ������������������������� 17

9.3

Fitting the temperature sensor ������������������������������ 17

9.4

Where appropriate, fit the flanged or threaded

immersion heater. ���������������������������������������������� 17

10.

Commissioning ��������������������������������������������� 18

10.1  Commissioning �������������������������������������������������� 18

10.2  Recommissioning ����������������������������������������������� 18

11.

Shutting down ���������������������������������������������� 18

12.

Maintenance ������������������������������������������������ 18

12.1  Draining the appliance ���������������������������������������� 18

13.

Specification ������������������������������������������������ 19

13.1  Dimensions and connections ��������������������������������� 19

13.2  Fault conditions ������������������������������������������������� 22

13.3  Data table �������������������������������������������������������� 23

warranty

enVironment and recycling

operation

1.  general information

The chapter “Operation” is intended for appliance users and heat-

ing contractors.

The chapter “Installation” is intended for heating contractors.

Note

Read these instructions carefully before using the appli-

ance and retain them for future reference.

Pass on the instructions to a new user if required.

1.1  safety instructions

1.1.1  structure of safety instructions

!

KEYWORD Type of risk

Here, possible consequences are listed that may result

from failure to observe the safety instructions.

f

f

Steps to prevent the risk are listed.

1.1.2  symbols, type of risk

symbol

type of risk

Injury

Burns

(burns, scalding)

1.1.3  Keywords

KeyWord

Meaning

DANGER

Failure to observe this information will result in serious

injury or death.

WARNING

Failure to observe this information may result in serious

injury or death.

CAUTION

Failure to observe this information may result in non-

serious or minor injury.

!

background image

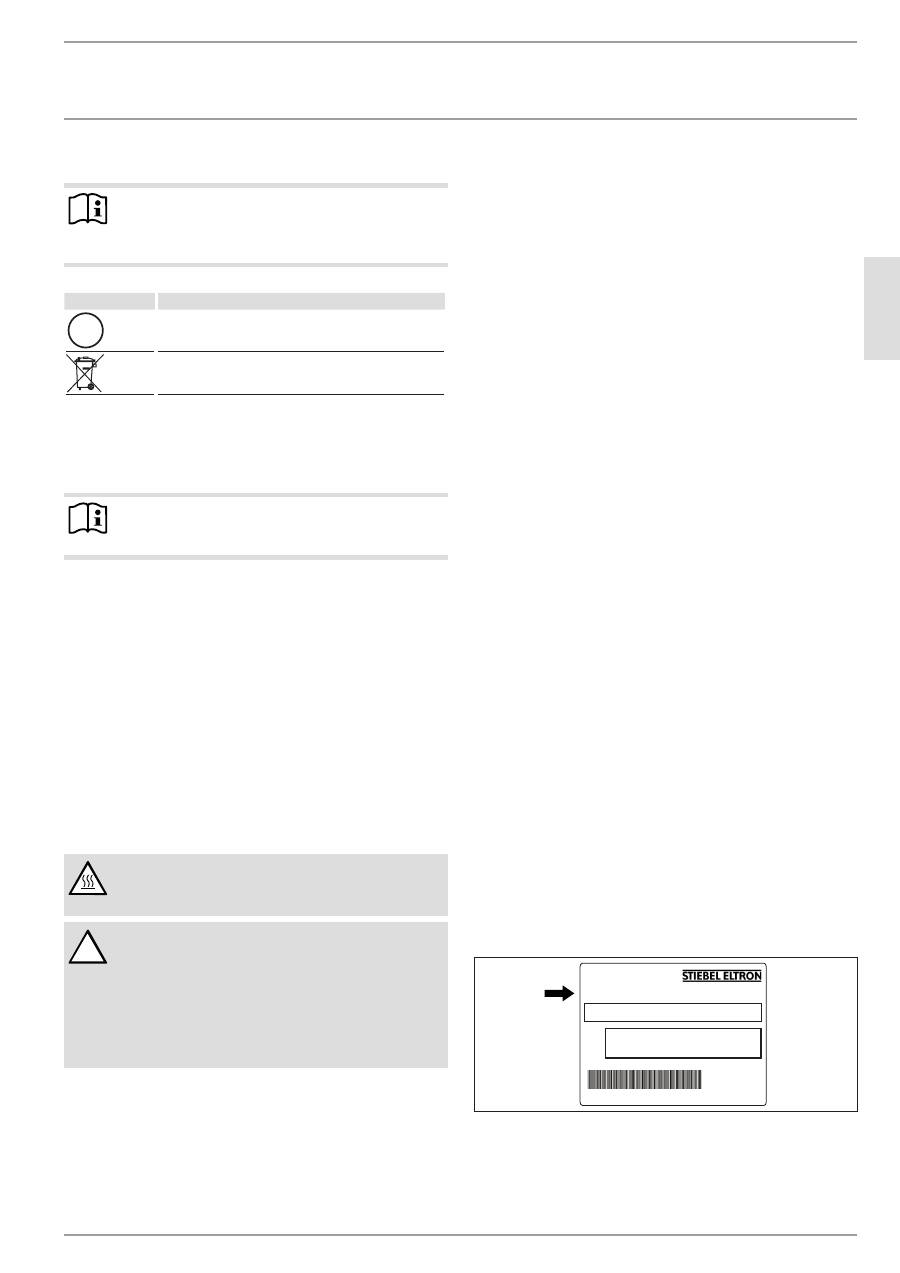

operation

safety

www.stiebel-eltron.com

sBp 1000-1500 e | e sol | e cool |

15

EN

G

LI

SH

1.2  other symbols in this documentation

Note

General information is identified by the symbol shown

on the left.

f

f

Read these texts carefully.

symbol

Meaning

Material losses

(appliance, consequential, environment)

Appliance disposal

f

f

This symbol indicates that you have to do something. The ac-

tion you need to take is described step by step.

1.3  units of measurement

Note

All measurements are given in mm unless stated oth-

erwise.

2.  safety

2.1  intended use

This appliance is generally intended to be used for the storage,

heating and cooling of process water.

SBP E cool appliances are also permitted to store cooled process

water down to + 7 °C.

Any other or additional use is inappropriate, in particular usage

with alternative storage media. Observation of these instructions

and of instructions for any accessories used is also part of the

correct use of this appliance.

2.2  general safety instructions

WARNING Burns

There is a risk of scalding at outlet temperatures in ex-

cess of 43 °C.

!

WARNING Injury

Where children or persons with limited physical, sensory

or mental abilities are allowed to control this appliance,

ensure that this will only happen under supervision or

after appropriate instruction by a person responsible

for their safety.

Children should be supervised to ensure that they never

play with the appliance!

3.  appliance description

This appliance is designed to extend the operating time of the

heat source and to bridge power-OFF periods. It is also designed

for  the  hydraulic  separation  of  the  volume  flow  between  the

heat/refrigerant source circuit and the heating/cooling circuit.

Suitable heat exchangers, flanged and threaded immersion heat-

ers can be fitted by contractors. In addition, up to two further heat

sources (e.g. a solid fuel boiler) can be connected. The appliance

is equipped for fitting five sensor wells. A sleeve enables a ther-

mometer to be fitted.

sBP e sol

SBP E SOL  buffer  cylinders  are  additionally  equipped  with  a

smooth tube indirect coil for heating the cylinder content with

solar energy.

sBP e cool

SBP E cool buffer cylinders are equipped with a vapour diffusion-

proof preinsulation to protect against the formation of condensate.

This must be combined with thermal insulation WD cool.

4.  cleaning, care and maintenance

f

f

Have a contractor regularly check the appliance, the safety

assembly and all fitted accessories.

f

f

Never use abrasive or corrosive cleaning agents. A damp

cloth is sufficient for cleaning all plastic parts.

scaling

f

f

Almost every type of water deposits limescale at high tem-

peratures. This settles inside the appliance and affects both

the performance and service life. The indirect coils and fitted

accessories should therefore be descaled from time to time.

A heating contractor who knows the local water quality will

tell you when the next service is due.

f

f

Check the taps/valves regularly. You can remove limescale

deposits at the tap outlets using commercially available des-

caling agents.

5.  troubleshooting

Telephone your contractor. To facilitate and speed up your enquiry,

please provide the serial number from the type plate (000000-

0000-000000):

Made in Germany

000000-0000-000000
