Brennenstuhl Multifunction Detector WMV Plus: Operating Instructions

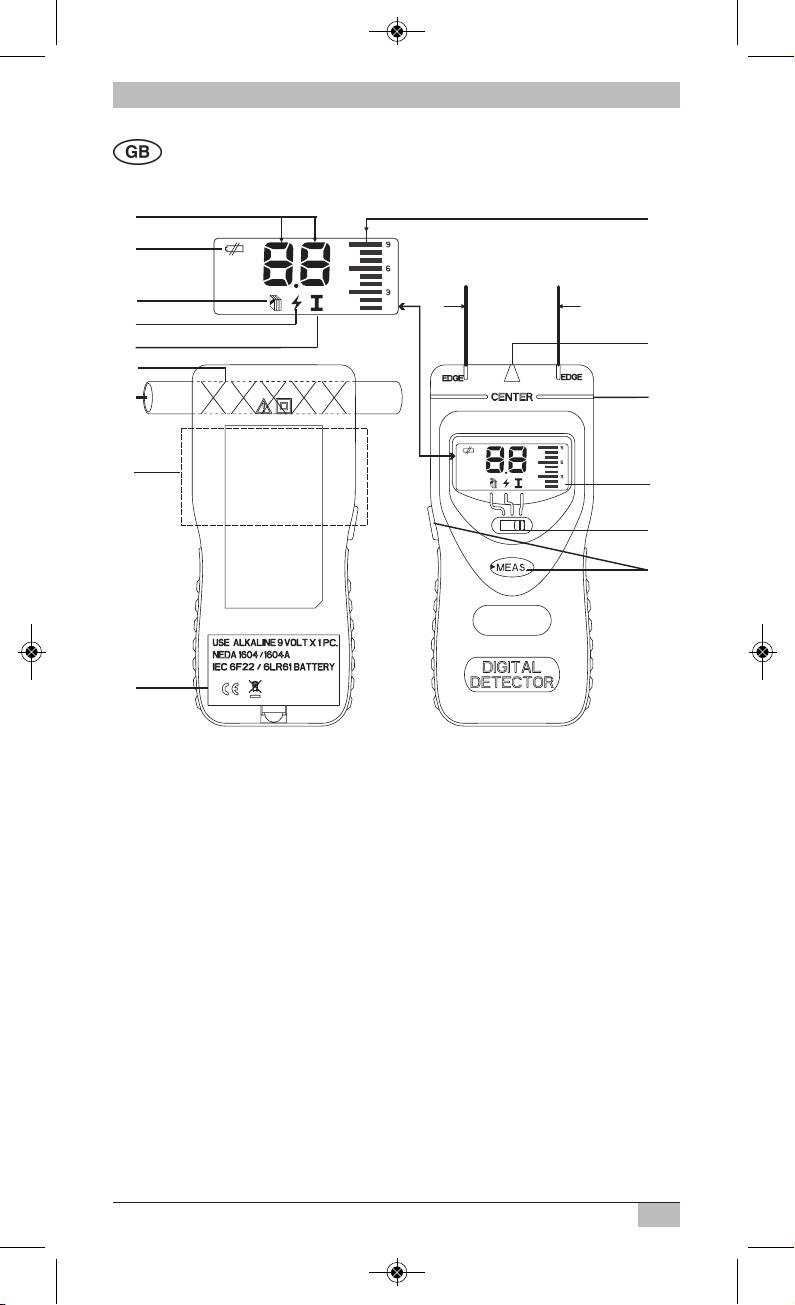

 Numeric Display

 Low Battery Alert

 Wood

 Alternating Current

 Metal

 Sensor Range Metal

 Metal Object

 Sensor Range Alternating Current

 Battery Compartment

 Bar Graph-Display

 Marking Point Wood

 Marking Point Metal

 LCD-Display

 Selector Switch

 On Button

 Sensor Range Wood

7

Operating Instructions

Operating Instructions WMV Plus

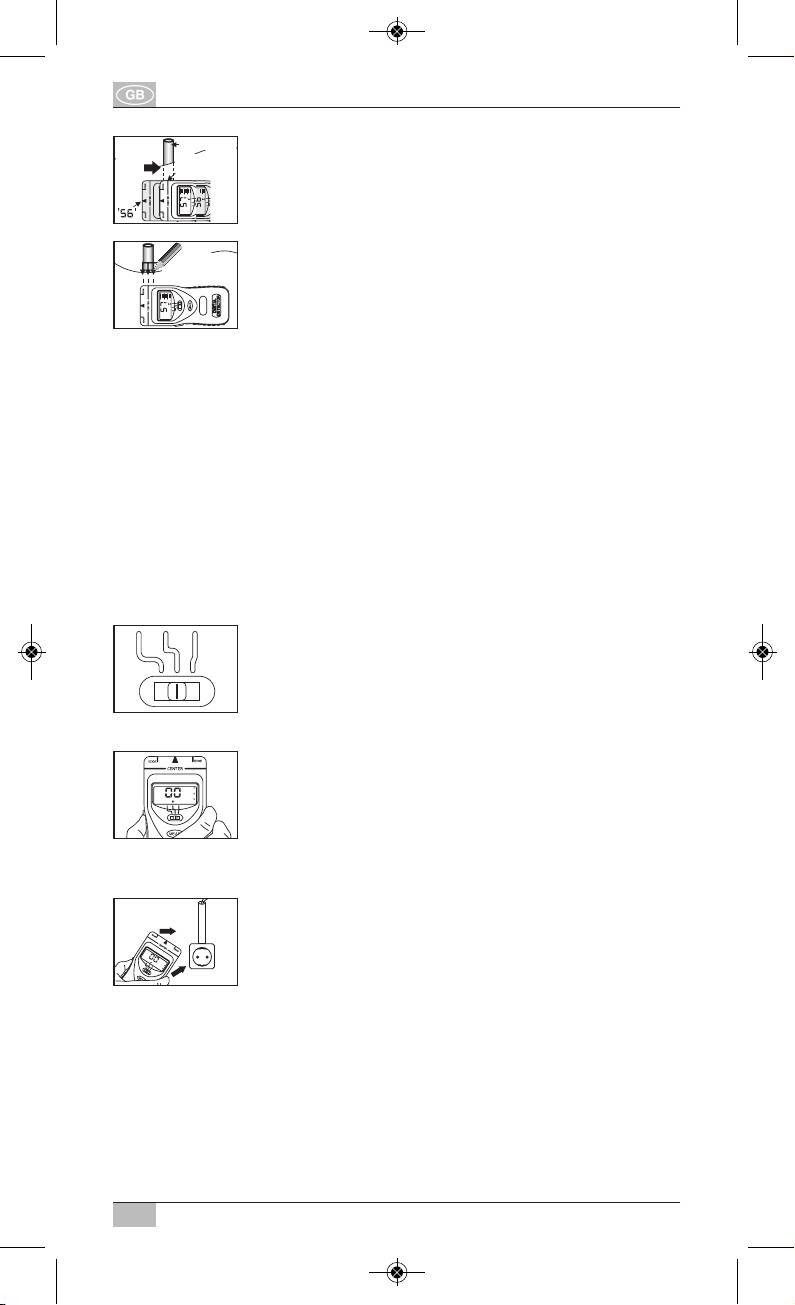

Inserting the Battery:

Remove the battery cover and insert a new battery (9V DC alkaline

block battery). Make sure you connect the poles correctly.

When the low battery alert ' ' appears in the display window

appears, the battery must be replaced with a new one. When disposing

of used batteries, please observe your local legal stipulations.

Stud locator

1. Turn the selector switch left to »«, to select the

function »stud locator«.

2. Set the device on the wall. Push and hold the on

button »« (either on the side or front) and wait

until the LCD-display shows »00« , which indicates

that the calibration is complete and the device is

ready to use.

3. Move the device slowly and evenly sideways.

4. Keep moving the detector across the surface until the numbers in

the display go up, i. e. 01, 02, 03…, which should be accompanied by

a signal tone that speeds up. Stop moving when the numeric values

on the display drop again.

5. Move the detector back slowly until the registered

value shows the highest number again.

Then release the on button »«

.

6. Mark the location with a pencil.

8

Reading increases Maximum

value »10«

Maximum

value

»10«

Pencil

WMV Plus Operating Instructions

N

OTES:

1. The device is not suitable for use on walls or ceilings that are

insulated with elements containing metallic fibres or on slab walls

and surfaces with thick plastering.

2. It is important to check the location of the stud again through,

other readings.

3. The object detected inside the wall can also possibly be an electrical

wire, a pipe or something else. For this reason, you should use

extreme caution when drilling, sawing or hammering nails since you

could hit a pipe or electrical wire. For safety’s sake, take other

readings in the »metal« and »alternating current« modes.

4. Keep your hand away from the device when it is in operation, in

order to prevent interference and inaccurate readings.

Detecting Metal

1. Turn the selector switch to the right to »«,

to select the function »metal«.

2. Set the device on the wall. Press and hold the on

button »« (either on the side or on the front) and

wait until the LCD-display reads »00« , which

signals that the calibration is complete and the

device is ready to use.

3. Move the device slowly and evenly sideways.

Metallic Object

Reading increases

Maximum value

4. Keep moving the detector across the surface until the numbers in the

display go up, i. e. 01, 02, 03…, which should be accompanied by a

signal tone that speeds up. Stop moving when the numeric values on

the display drop again.

9
