First things first

We would like to thank you for making an Acer notebook your choice for

meeting your mobile computing needs.

Your guides

To help you use your Acer notebook, we have designed a set of guides:

First off, the setup poster helps you get started with setting up your computer.

The TravelMate Series Generic User Guide contains useful information applying

to all models in the TravelMate product series. It covers basic topics such as

using the keyboard and audio, etc. Please understand that due to its nature, the

AcerSystem User Guide mentioned below will occasionally refer to functions or

features which are only contained in certain models of the series, but not

necessarily in the model you purchased. Such instances are marked in the text

with language such as "only for certain models."

This Quick Guide introduces you to the basic features and functions of your new

computer. For more on how your computer can help you to be more productive,

please refer to the AcerSystem User Guide. This guide contains detailed

information on such subjects as system utilities, data recovery, expansion

options and troubleshooting. In addition it contains warranty information and

the general regulations and safety notices for your notebook. It is available in

Portable Document Format (PDF) and comes preloaded on your notebook.

Follow these steps to access it:

1 Click on Start > All Programs > AcerSystem.

2 Click on AcerSystem User Guide.

Note: Viewing the file requires Adobe Reader. If Adobe Reader is not

installed on your computer, clicking on AcerSystem User Guide will run the

Adobe Reader setup program first. Follow the instructions on the screen to

complete the installation. For instructions on how to use Adobe Reader,

access the Help and Support menu.

4

English

Your Acer notebook tour

After setting up your computer as illustrated in the setup poster,

let us show you around your new Acer notebook.

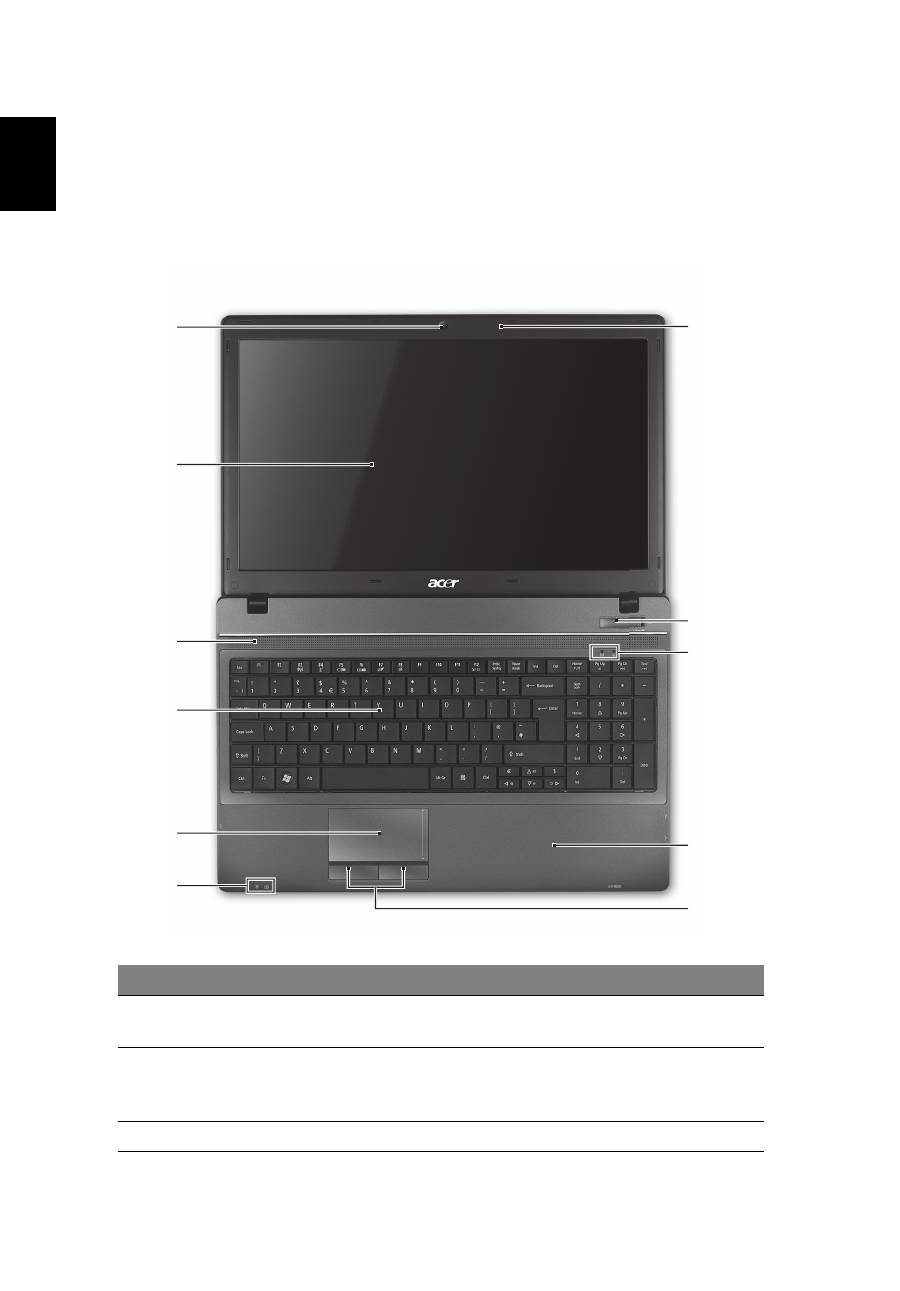

Top view

#

Icon

Item

Description

1

Acer Crystal Eye

webcam

Web camera for video communication.

(only for certain models)

2

Display screen

Also called Liquid-Crystal Display (LCD),

displays computer output (Configuration

may vary by models).

3

Speaker

Delivers audio output.

1

2

3

4

5

6

7

8

10

11

9

5

Eng

lis

h

1. The front panel indicators are visible even when the computer cover is closed.

4

Keyboard

For entering data into your computer.

5

Touchpad

Touch-sensitive pointing device which

functions like a computer mouse.

6

Power indicator

1

Indicates the computer's power status.

Battery indicator

1

Indicates the computer's battery status.

1. Charging: The light shows amber when

the battery is charging.

2. Fully charged: The light shows blue when

in AC mode.

7

Click buttons

(left and right)

The left and right buttons function like the

left and right mouse buttons.

8

Palmrest

Comfortable support area for your hands

when you use the computer.

9

HDD

Indicates when the hard disk drive is active.

Communication

indicator

Indicates the computer’s wireless

connectivity device status.

10

Power switch

Turns the computer on and off.

11

Microphone

Internal microphone for sound recording.

#

Icon

Item

Description

6

English

Hotkeys

The computer employs hotkeys or key combinations to access most of the

computer's controls like screen brightness and volume output.

To activate hotkeys, press and hold the <Fn> key before pressing the other key

in the hotkey combination.

Hotkey

Icon

Function

Description

<Fn> + <F3>

Communication Enables / disables the computer’s

communication devices.

(Communication devices may vary by

configuration.)

<Fn> + <F4>

Sleep

Puts the computer in Sleep mode.

<Fn> + <F5>

Display toggle

Switches display output between the

display screen, external monitor (if

connected) and both.

<Fn> + <F6>

Display off

Turns the display screen backlight off

to save power. Press any key to

return.

<Fn> + <F7>

Touchpad

toggle

Turns the touchpad on and off.

<Fn> + <F8>

Speaker toggle Turns the speakers on and off.

<Fn> + < >

Volume up

Increases the sound volume.

<Fn> + < >

Volume down

Decreases the sound volume.

<Fn> + < >

Brightness up

Increases the screen brightness.

<Fn> + < >

Brightness

down

Decreases the screen brightness.

7

Eng

lis

h

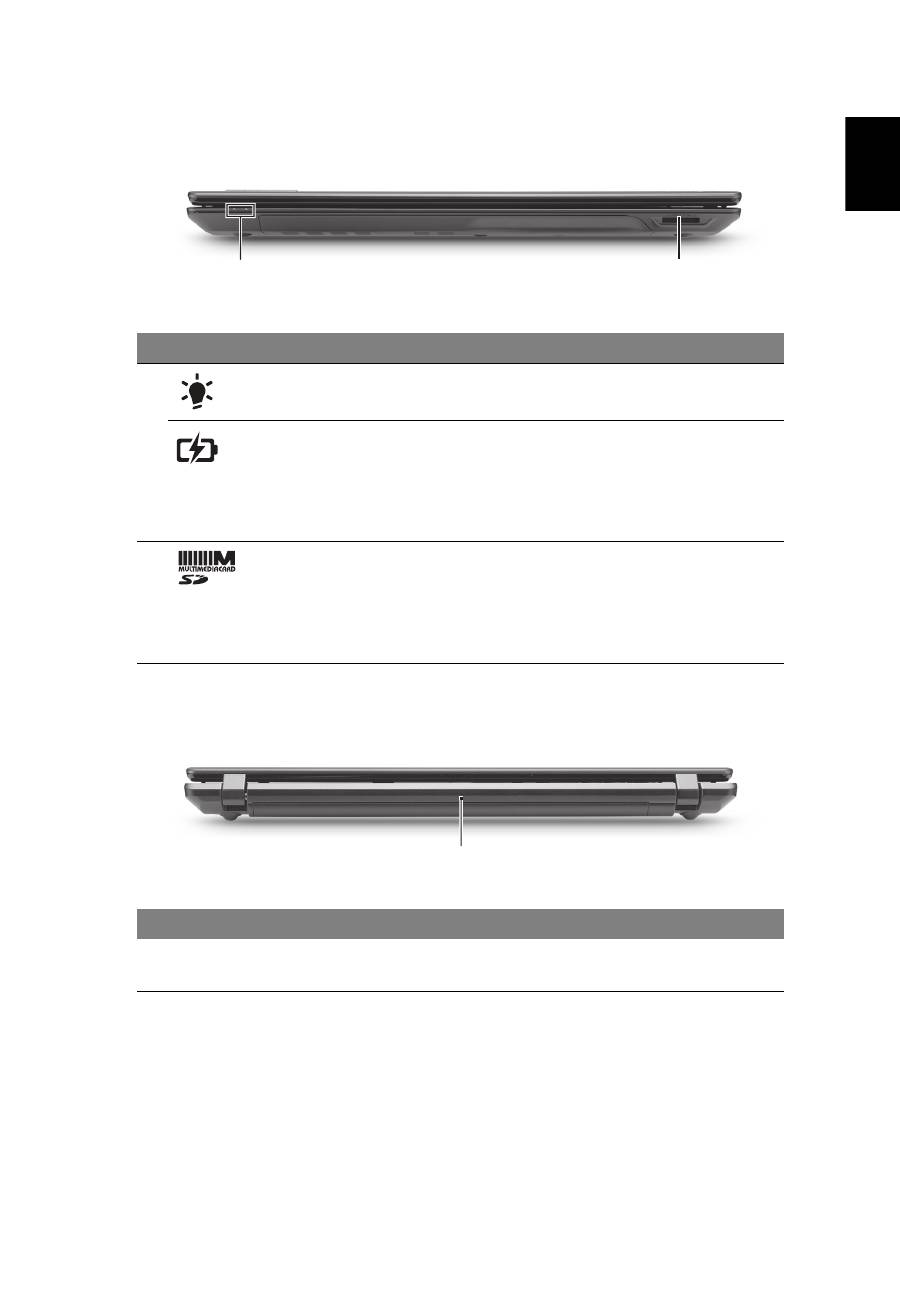

Closed front view

Rear view

#

Icon

Item

Description

1

Power indicator

1

Indicates the computer's power status.

Battery indicator

1

Indicates the computer's battery status.

1. Charging: The light shows amber

when the battery is charging.

2. Fully charged: The light shows blue

when in AC mode.

2

2-in-1 card reader

Accepts Secure Digital (SD),

MultiMediaCard (MMC).

Note: Push to remove/install the card.

Only one card can operate at any given

time.

#

Item

Description

1

Battery

Provides power for the computer to be used while

unplugged.

1

2

1

8

English

Left view

#

Icon

Item

Description

1

DC-in jack

Connects to an AC adapter.

2

Ventilation slots

Enable the computer to stay cool, even

after prolonged use.

3

External display

(VGA) port

Connects to a display device (e.g.,

external monitor, LCD projector).

4

Ethernet (RJ-45) port Connects to an Ethernet 10/100/1000-

based network.

5

HDMI port

Supports high-definition digital video

connections.

6

USB 2.0 port

Connects to USB 2.0 devices (e.g., USB

mouse, USB camera).

7

Microphone-in jack

Accepts inputs from external

microphones.

Headphones/speaker/

line-out jack

Connects to audio line-out devices

(e.g., speakers, headphones).

2

1

3

4 5 6

7

9

Eng

lis

h

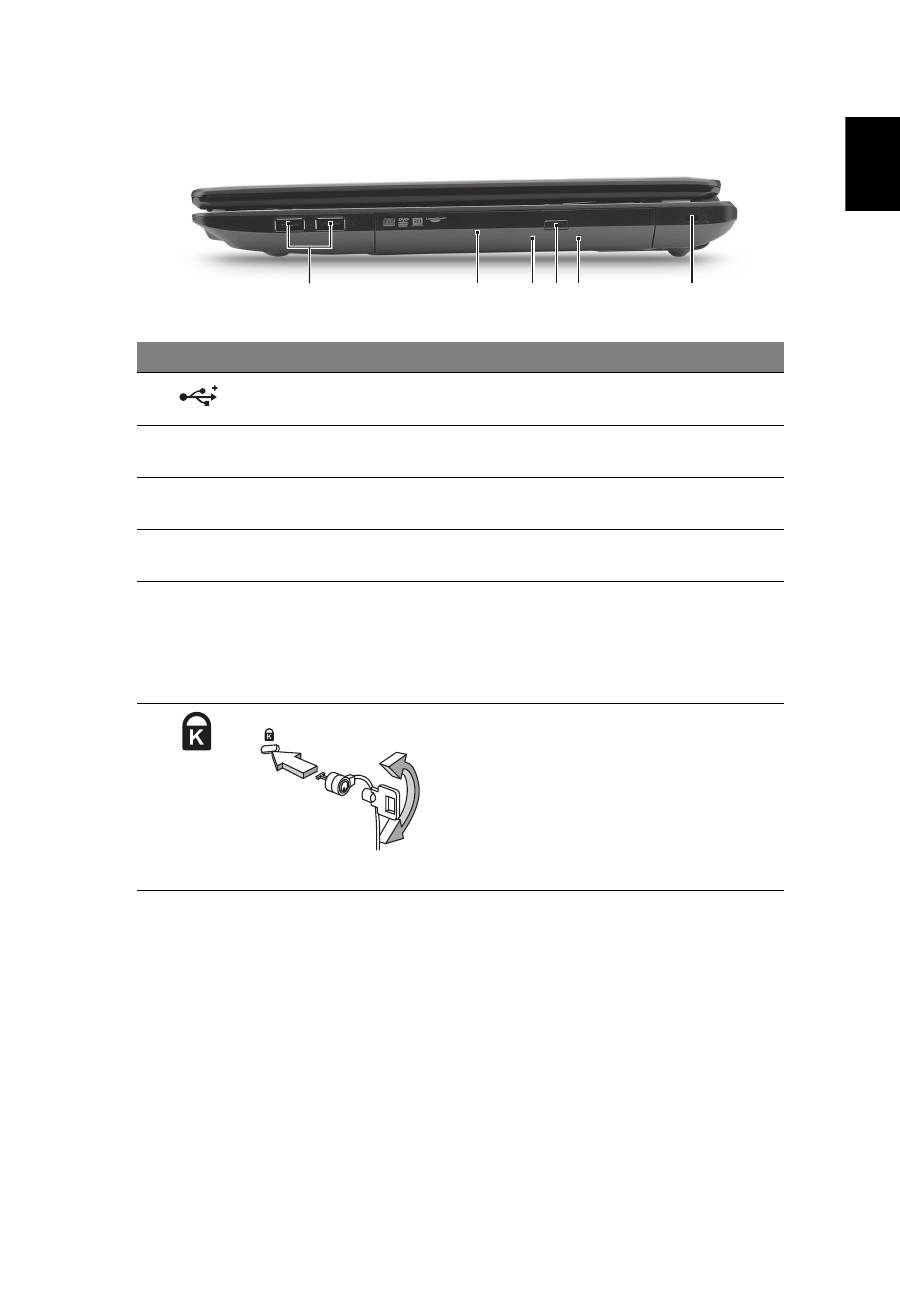

Right view

#

Icon

Item

Description

1

USB 2.0 port

Connects to USB 2.0 devices

(e.g., USB mouse, USB camera).

2

Optical drive

Internal optical drive; accepts CDs or

DVDs.

3

Optical disk access

indicator

Lights up when the optical drive is active.

4

Optical drive eject

button

Ejects the optical disk from the drive.

5

Emergency eject hole Ejects the optical drive tray when the

computer is turned off.

Note: Insert a paper clip to the

emergency eject hole to eject the optical

drive tray when the computer is off.

6

Kensington lock slot

Connects to a Kensington-compatible

computer security lock.

Note: Wrap the computer security lock

cable around an immovable object such

as a table or handle of a locked drawer.

Insert the lock into the notch and turn

the key to secure the lock. Some keyless

models are also available.

2

1

3 4 5

6

10

English

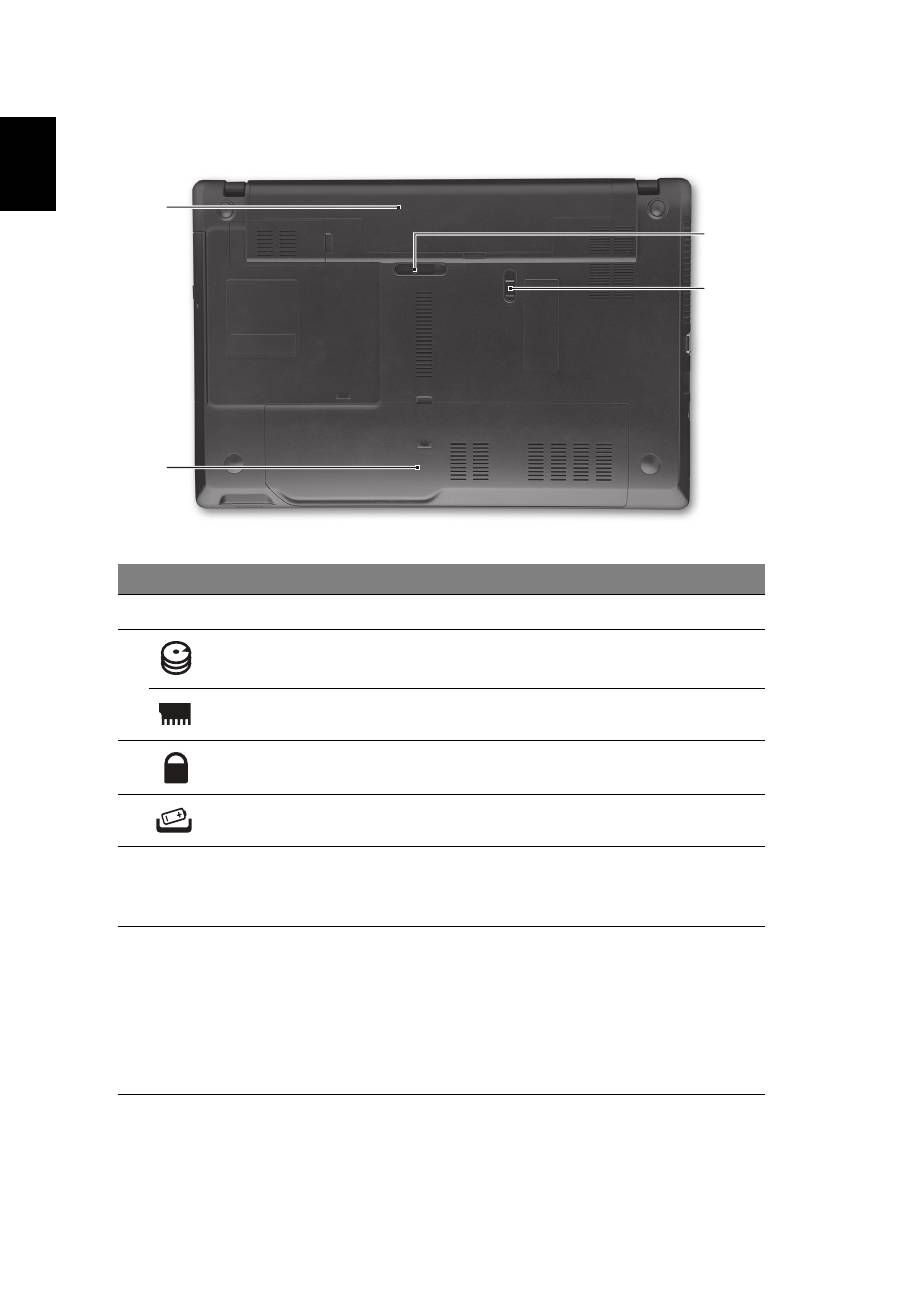

Base view

Environment

#

Icon

Item

Description

1

Battery bay

Houses the computer's battery pack.

2

Hard disk bay

Houses the computer's hard disk (secured

with screws).

Memory

compartment

Houses the computer's main memory.

3

Battery lock

Locks the battery in position.

4

Battery release latch

Releases the battery for removal.

•

Temperature:

•

Operating: 5 °C to 35 °C

•

Non-operating: -20 °C to 65 °C

•

Humidity (non-condensing):

•

Operating: 20% to 80%

•

Non-operating: 20% to 80%
