ASRock Z87M Extreme4: инструкция

Version 1.0

Published April 2013

Copyright©2013 ASRock INC. All rights reserved.

Copyright Notice:

No part of this documentation may be reproduced, transcribed, transmitted, or

translated in any language, in any form or by any means, except duplication of

documentation by the purchaser for backup purpose, without written consent of

ASRock Inc.

Products and corporate names appearing in this documentation may or may not

be registered trademarks or copyrights of their respective companies, and are used

only for identication or explanation and to the owners’ benet, without intent to

infringe.

Disclaimer:

Specications and information contained in this documentation are furnished for

informational use only and subject to change without notice, and should not be

constructed as a commitment by ASRock. ASRock assumes no responsibility for

any errors or omissions that may appear in this documentation.

With respect to the contents of this documentation, ASRock does not provide

warranty of any kind, either expressed or implied, including but not limited to

the implied warranties or conditions of merchantability or tness for a particular

purpose.

In no event shall ASRock, its directors, ocers, employees, or agents be liable for

any indirect, special, incidental, or consequential damages (including damages for

loss of prots, loss of business, loss of data, interruption of business and the like),

even if ASRock has been advised of the possibility of such damages arising from any

defect or error in the documentation or product.

e terms HDMI™ and HDMI High-Denition Multimedia Interface, and the HDMI

logo are trademarks or registered trademarks of HDMI Licensing LLC in the United

States and other countries.

is device complies with Part 15 of the FCC Rules. Operation is subject to the following

two conditions:

(1) this device may not cause harmful interference, and

(2) this device must accept any interference received, including interference that

may cause undesired operation.

CALIFORNIA, USA ONLY

e Lithium battery adopted on this motherboard contains Perchlorate, a toxic substance

controlled in Perchlorate Best Management Practices (BMP) regulations passed by the

California Legislature. When you discard the Lithium battery in California, USA, please

follow the related regulations in advance.

“Perchlorate Material-special handling may apply, see www.dtsc.ca.gov/hazardouswaste/

perchlorate”

ASRock Website: http://www.asrock.com

Manufactured under license under U.S. Patent Nos: 5,956,674; 5,974,380; 6,487,535;

7,003,467 & other U.S. and worldwide patents issued & pending. DTS, the Symbol, &

DTS and the Symbol together is a registered trademark & DTS Connect, DTS Interactive,

DTS Neo:PC are trademarks of DTS, Inc. Product includes soware.

© DTS, Inc., All Rights Reserved.

Z87M Extreme4

Motherboard Layout

English

1

No. Description

1 ATX 12V Power Connector (ATX12V1)

2 CPU Fan Connector (CPU_FAN1)

3 CPU Fan Connector (CPU_FAN2)

4 2 x 240-pin DDR3 DIMM Slots (DDR3_A1, DDR3_B1)

5 2 x 240-pin DDR3 DIMM Slots (DDR3_A2, DDR3_B2)

6 ATX Power Connector (ATXPWR1)

7 USB 3.0 Header (USB3_0_1)

8 SATA3 Connectors (SATA3_0_1)

9 SATA3 Connectors (SATA3_2_3)

10 SATA3 Connectors (SATA3_4_5)

11 Chassis Speaker Header (SPEAKER1)

12 Clear CMOS Jumper (CLRCMOS1)

13 Power LED Header (PLED1)

14 Infrared Module Header (IR1)

15 System Panel Header (PANEL1)

16 Chassis Fan Connector (CHA_FAN1)

17 USB 2.0 Header (USB4_5)

18 USB 2.0 Header (USB6_7)

19 TPM Header (TPMS1)

20 Chassis Intrusion Header (CI1)

21 COM Port Header (COM1)

22 Front Panel Audio Header (HD_AUDIO1)

23 Power Fan Connector (PWR_FAN1)

24 Chassis Fan Connector (CHA_FAN2)

English

2

Z87M Extreme4

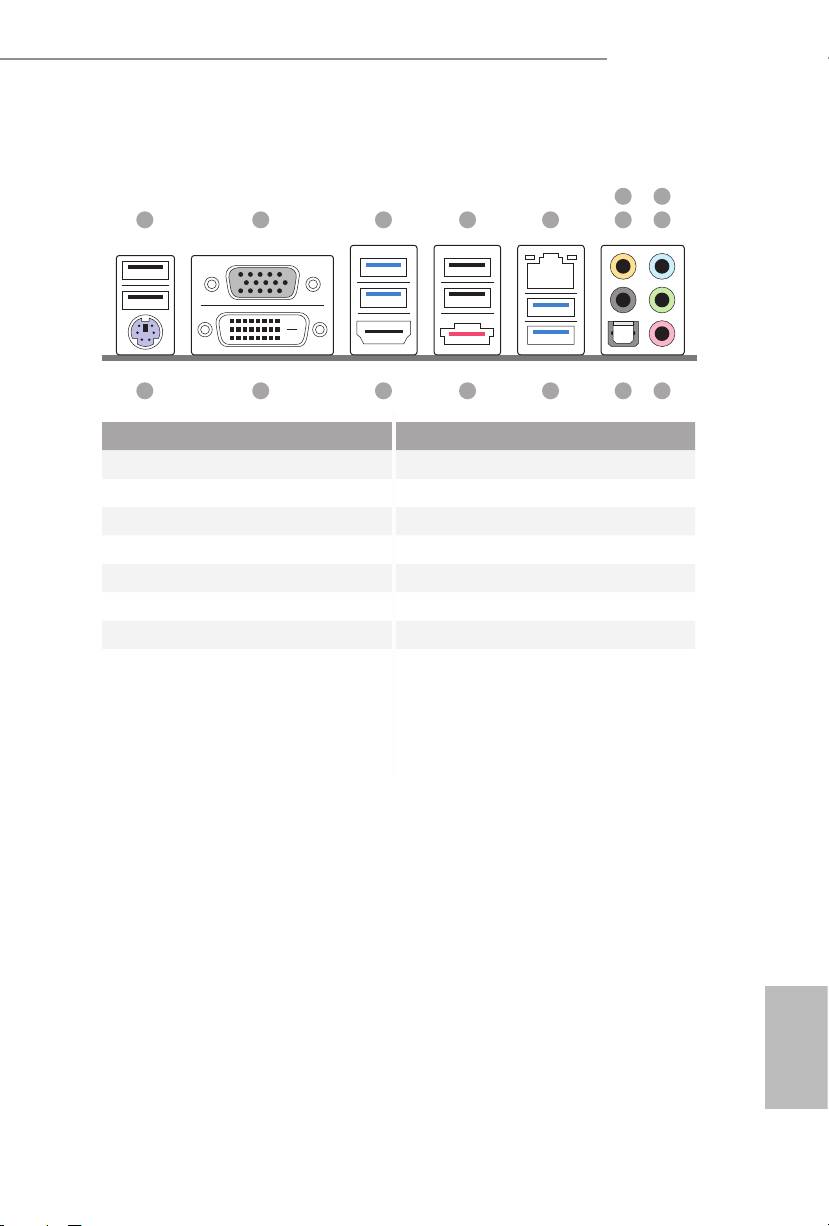

I/O Panel

6

8

1 2 3 754

9

10111213141516

No. Description No. Description

1 USB 2.0 Ports (USB23) 9 Front Speaker (Lime)**

2 VGA Port 10 Microphone (Pink)

3 USB 3.0 Ports (USB3_45) 11 Optical SPDIF Out Port

4 USB 2.0 Ports (USB01) 12 USB 3.0 Ports (USB3_67)

5 LAN RJ-45 Port* 13 eSATA Connector***

6 Central / Bass (Orange) 14 HDMI Port

7 Rear Speaker (Black) 15 DVI-D Port

8 Line In (Light Blue) 16 PS/2 Mouse/Keyboard Port

English

3

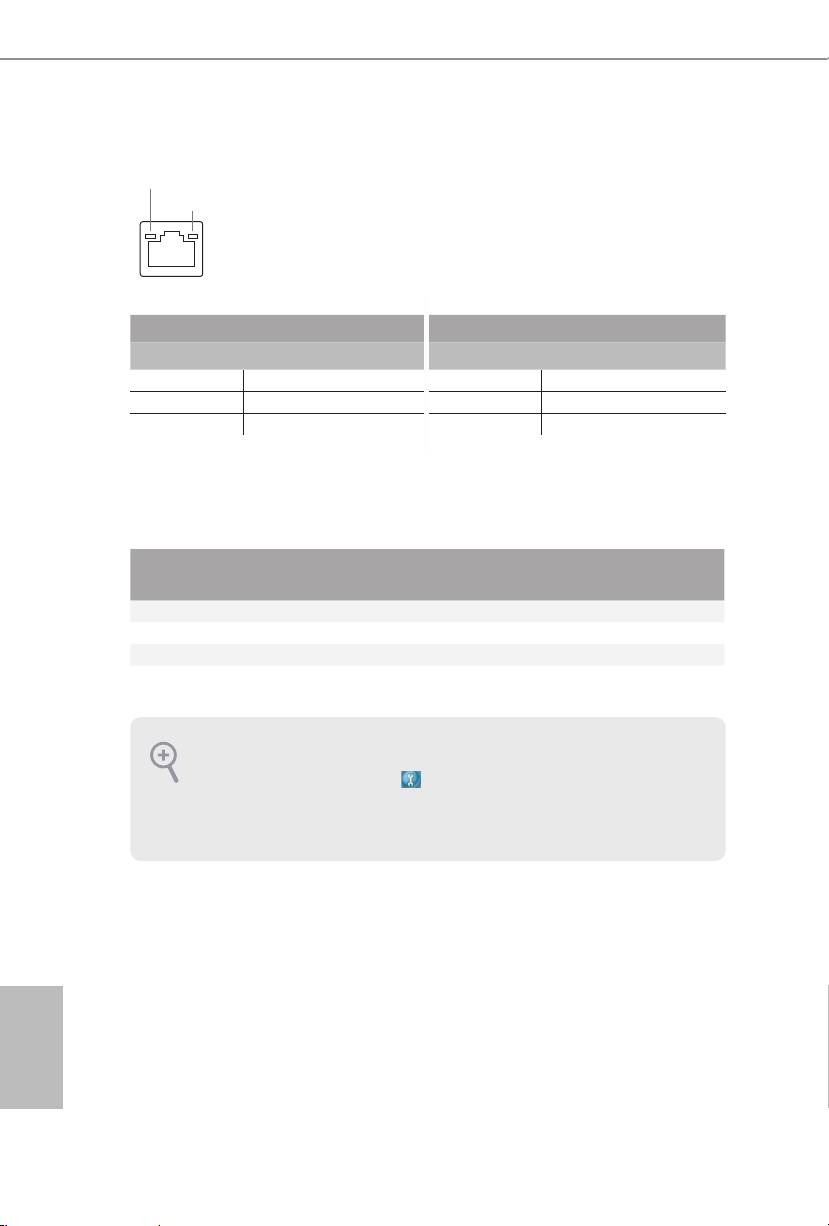

* ere are two LEDs on each LAN port. Please refer to the table below for the LAN port LED indications.

1 Introduction

ACT/LINK LED

ank you for purchasing ASRock Z87M Extreme4 motherboard, a reliable

SPEED LED

motherboard produced under ASRock’s consistently stringent quality control.

It delivers excellent performance with robust design conforming to ASRock’s

commitment to quality and endurance.

LAN Port

Activity / Link LED Speed LED

Status Description Status Description

O No Link O 10Mbps connection

Blinking Data Activity Orange 100Mbps connection

On Link Green 1Gbps connection

** If you use a 2-channel speaker, please connect the speaker’s plug into “Front Speaker Jack”. See the table below

1.1 Package Contents

for connection details in accordance with the type of speaker you use.

• ASRock Z87M Extreme4 Motherboard (Micro ATX Form Factor)

Audio Output

Front Speaker

Rear Speaker

Central / Bass

Line In

• ASRock Z87M Extreme4 Quick Installation Guide

Channels

(No. 9)

(No. 7)

(No. 6)

(No. 8)

• ASRock Z87M Extreme4 Support CD

2 V -- -- --

• 4 x Serial ATA (SATA) Data Cables (Optional)

4 V V -- --

• 1 x I/O Panel Shield

6 V V V --

8 V V V V

• 1 x ASRock SLI_Bridge_Card

To enable Multi-Streaming, you need to connect a front panel audio cable to the front

panel audio header. Aer restarting your computer, you will nd the “Mixer” tool on your

system. Please select “Mixer ToolBox” , click “Enable playback multi-streaming”, and

click “ok”. Choose “2CH”, “4CH”, “6CH”, or “8CH” and then you are allowed to select

“Realtek HDA Primary output” to use the Rear Speaker, Central/Bass, and Front Speaker,

or select “Realtek HDA Audio 2nd output” to use the front panel audio.

*** e eSATA connector supports SATA3 with cables within 1 meters.
