Copyright Notice:
No part of this installation guide may be reproduced, transcribed, transmitted, or trans-
lated in any language, in any form or by any means, except duplication of documentation
by the purchaser for backup purpose, without written consent of ASRock Inc.
Products and corporate names appearing in this guide may or may not be registered
trademarks or copyrights of their respective companies, and are used only for identica-
tion or explanation and to the owners’ benet, without intent to infringe.
Disclaimer:
Specications and information contained in this guide are furnished for informational use
only and subject to change without notice, and should not be constructed as a commit-
ment by ASRock. ASRock assumes no responsibility for any errors or omissions that may
appear in this guide.
With respect to the contents of this guide, ASRock does not provide warranty of any kind,
either expressed or implied, including but not limited to the implied warranties or condi-
tions of merchantability or tness for a particular purpose. In no event shall ASRock, its
directors, ofcers, employees, or agents be liable for any indirect, special, incidental, or
consequential damages (including damages for loss of prots, loss of business, loss of
data, interruption of business and the like), even if ASRock has been advised of the pos-
sibility of such damages arising from any defect or error in the guide or product.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following
two conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that
may cause undesired operation.
CALIFORNIA, USA ONLY
The Lithium battery adopted on this motherboard contains Perchlorate, a toxic substance
controlled in Perchlorate Best Management Practices (BMP) regulations passed by the
California Legislature. When you discard the Lithium battery in California, USA, please
follow the related regulations in advance.
“Perchlorate Material-special handling may apply, see
www.dtsc.ca.gov/hazardouswaste/perchlorate”
English
ASRock Website: http://www.asrock.com
Published July 2013
Copyright
©
2013 ASRock INC. All rights reserved.
1
ASRock X79 Extreme6/GB / X79 Extreme6 Motherboard
Motherboard Layout (X79 Extreme6/GB / X79 Extreme6)
1 Power Fan Connector (PWR_FAN1) 26 Reset Switch (RSTBTN1)
2 240-pin DDR3 DIMM Slot (DDR3_A1, Black) 27 Power Switch (PWRBTN1)
3 240-pin DDR3 DIMM Slot (DDR3_A2, Black) 28 Chassis Speaker Header (SPEAKER1, Black)
4 240-pin DDR3 DIMM Slot (DDR3_B1, Black) 29 System Panel Header (PANEL1, Black)
5 240-pin DDR3 DIMM Slot (DDR3_B2, Black) 30 Power LED Header (PLED1)
6 ATX 12V Power Connector (ATX12V1) 31 Dr. Debug
7 2011-Pin CPU Socket 32 Chassis Fan Connector (CHA_FAN3)
8 CPU Fan Connector (CPU_FAN2) 33 Clear CMOS Jumper (CLRCMOS1)
9 CPU Fan Connector (CPU_FAN1) 34 USB 2.0 Header (USB_8_9, Black)
10 240-pin DDR3 DIMM Slot (DDR3_D2, Black) 35 USB 2.0 Header (USB_6_7, Black)
11 240-pin DDR3 DIMM Slot (DDR3_D1, Black) 36 USB 2.0 Header (USB_4_5, Black)
12 240-pin DDR3 DIMM Slot (DDR3_C2, Black) 37 Consumer Infrared Module Header (CIR1, Gray)
13 240-pin DDR3 DIMM Slot (DDR3_C1, Black) 38 Front Panel IEEE 1394 Header
14 ATX Power Connector (ATXPWR1) (FRONT_1394, Black)
15 SATA3 Connector (SATA3_A2, Gray) 39 Infrared Module Header (IR1)
English
16 USB 3.0 Header (USB3_4_5, Black) 40 COM Port Header (COM1)
17 Intel X79 Chipset 41 Front Panel Audio Header (HD_AUDIO1, Black)
18 SB Fan Connector (SB_FAN1) 42 HDMI_SPDIF Header (HDMI_SPDIF1, Black)
19 SATA3 Connectors (SATA3_A0_A1, Gray) 43 PCI Express 3.0 x16 Slot (PCIE4, Black)
20 SATA3 Connectors (SATA3_0_1, Gray) 44 PCI Slot (PCI2, Black)
21 SATA2 Connectors (SATA2_2_3, Black) 45 PCI Express 3.0 x16 Slot (PCIE3, Black)
22 SATA2 Connectors (SATA2_0_1, Black) 46 PCI Slot (PCI1, Black)
23 Chassis Fan Connector (CHA_FAN1) 47 PCI Express 2.0 x1 Slot (PCIE2, Black)
24 Chassis Fan Connector (CHA_FAN2) 48 PCI Express 3.0 x16 Slot (PCIE1, Black)
25 SPI Flash Memory (64Mb) 49 SLI / XFIRE Power Connector
2
ASRock X79 Extreme6/GB / X79 Extreme6 Motherboard
1
2
3
4
5
6
7
8
9
10
11
12
13
24.4cm (9.6 in)
Keyb oar d
PS2
Mous e
PS2
PWR_FA N1
ATX12 V1
CMOS
Clr
CPU_FA N2
CPU_FA N1
SPDIF
Optical
SPDIF
Coaxial
USB 3. 0
T: US B0
B: USB 1
USB 3. 0
30.5cm (12.0 in)
T: US B2
B: USB 3
DDR3 240 0+
14
USB 2 .0
T: U SB0
Top:
B: US B1
RJ- 45
ATXPWR1
eSATA3
IEEE 1 39 4
B: U SB5
T: USB 4
USB 2.0
RoHS
15
CTR BASS
Bott om:
REAR SPK
Cent er:
SIDE SPK
Top:
DDR 3_ A1 ( 64 bi t, 2 40- pi n mo dul e)
DDR 3_ A2 ( 64 bi t, 2 40- pi n mo dul e)
DDR 3_ B1 ( 64 bi t, 2 40- pi n mo dul e)
DDR 3_ B2 ( 64 bi t, 2 40- pi n mo dul e)
DDR 3_ D2 ( 64 bi t, 2 40- pi n mo dul e)
DDR 3_ D1 ( 64 bi t, 2 40- pi n mo dul e)
DDR 3_ C2 ( 64 bi t, 2 40- pi n mo dul e)
DDR 3_ C1 ( 64 bi t, 2 40- pi n mo dul e)
SATA3_A 2
MIC IN
Bott om:
FRON T
Cent er:
LINE IN
Top:
16
4 Cha nne ls DDR3
USB3_ 4_5
1
SLI/ XFIR E_PW R1
49
LAN
PHY
2 oz Co ppe r PC B
17
48
PCIE 1
SB_FAN 1
PCI Express 3.0 Read y
18
47
PCIE 2
X
Fas t U SB
ErP/EuP R ead y
19
SATA3_A 0_A 1
46
PCI1
Sup er
Intel
20
I/O
SATA3_0 _1
X79
45
PCIE 3
Fron t USB 3.0
21
SATA2_2 _3
3-Way SLI
CMOS
44
AUDIO
Batter y
CODEC
PCI2
SATA2_0 _1
22
X
Fas t LAN
CHA_FA N1
CLRCM OS1
43
HDMI_ SPDIF1
CHA_FA N2
23
1
PCIE 4
1
1
SPEAKER 1
PLED1
64M b
HD_A UDIO 1
COM1
FRONT _139 4
USB_4 _5
USB_6 _7
USB_8 _9
1
24
Des ig ne d in Ta ip ei
IR1
CHA_FA N3
Dr.
PLED PWRB TN
PANEL1
BIO S
25
1
1
1
1
1
1
1
1
Debug
CIR1
1
PWRBT N1
RSTB TN1
HDLED RESET
42
41
40
373839
343536
33
32
3031
29
2728
26
I/O Panel (X79 Extreme6/GB / X79 Extreme6)
1 PS/2 Mouse Port (Green) 10 Microphone (Pink)
2 Coaxial SPDIF Out Port 11 IEEE 1394 Port (IEEE 1394)
* 3 LAN RJ-45 Port *** 12 eSATA3 Connector
4 USB 2.0 Ports (USB45) 13 USB 2.0 Ports (USB01)
5 Side Speaker (Gray) 14 USB 3.0 Ports (USB_23)
6 Rear Speaker (Black) 15 USB 3.0 Ports (USB_01)
7 Central / Bass (Orange) 16 Optical SPDIF Out Port
8 Line In (Light Blue) 17 Clear CMOS Switch (CLRCBTN)
** 9 Front Speaker (Lime) 18 PS/2 Keyboard Port (Purple)
* There are two LED next to the LAN port. Please refer to the table below for the LAN port LED
indications.
LAN Port LED Indications
ACT/LINK
SPEED
Activity/Link LED SPEED LED
LED
LED
Status Description Status Description
Off No Link Off 10Mbps connection
Blinking Data Activity Orange 100Mbps connection
On Link Green 1Gbps connection
LAN Port
**
If you use 2-channel speaker, please connect the speaker’s plug into “Front Speaker Jack”.
See the table below for connection details in accordance with the type of speaker you use.
TABLE for Audio Output Connection
Audio Output Channels Front Speaker Rear Speaker Central / Bass Side Speaker
(No. 9) (No. 6) (No. 7) (No. 5)
2 V -- -- --
4 V V -- --
English
6 V V V --
8 V V V V
3
ASRock X79 Extreme6/GB / X79 Extreme6 Motherboard
To enable Multi-Streaming function, you need to connect a front panel audio cable to the front
panel audio header. After restarting your computer, you will nd “Mixer” tool on your system.
Please select “Mixer ToolBox” , click “Enable playback multi-streaming”, and click
“ok”. Choose “2CH”, “4CH”, “6CH”, or “8CH” and then you are allowed to select “Realtek HDA
Primary output” to use Rear Speaker, Central/Bass, and Front Speaker, or select “Realtek
HDA Audio 2nd output” to use front panel audio.
*** eSATA3 connector supports SATA Gen3 in cable 1M.
English
4
ASRock X79 Extreme6/GB / X79 Extreme6 Motherboard

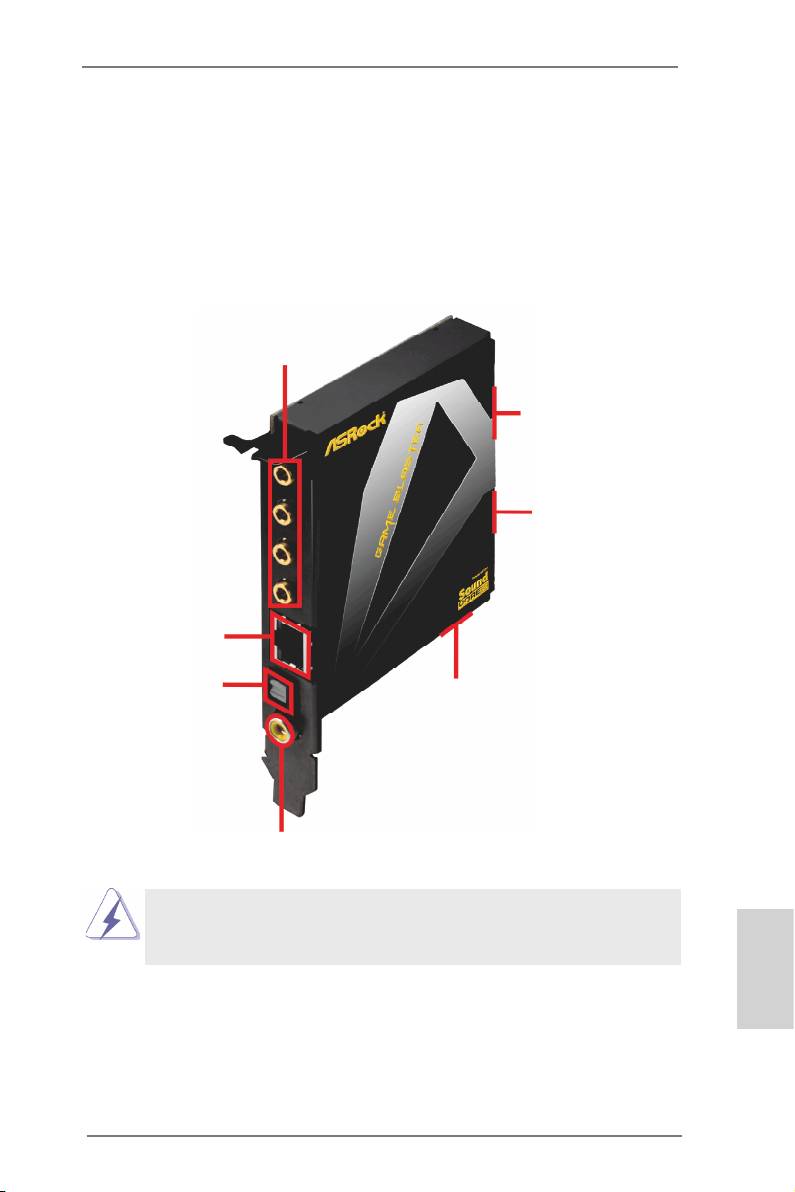

ASRock Game Blaster (X79 Extreme6/GB)
ASRock Game Blaster is packed with the new earthshattering Creative Sound
Core3D quad-core sound and voice processor. It is designed to deliver sound and
voice with unbeatable quality and accurate 3D positional audio. It also boosts gam-
ing performance, enables dual LAN with teaming function, and allows users to
morph their voice into miscellaneous characters which is amusingly funny.
4 x 1/8” Mini Jacks
** Front Panel Audio Header
*** HDMI_SPDIF Header
* LAN RJ-45 Port
Optical SPDIF Out Port
PCIE Gold Fingers
Coaxial SPDIF Out Port
ASRock Game Blaster is a proprietary card instead of a standard PCI-E x1 card.
Thus, it is only supported by some of ASRock’s motherboards. Please refer to
ASRock’s website for the motherboard support list.
English
5
ASRock X79 Extreme6/GB / X79 Extreme6 Motherboard

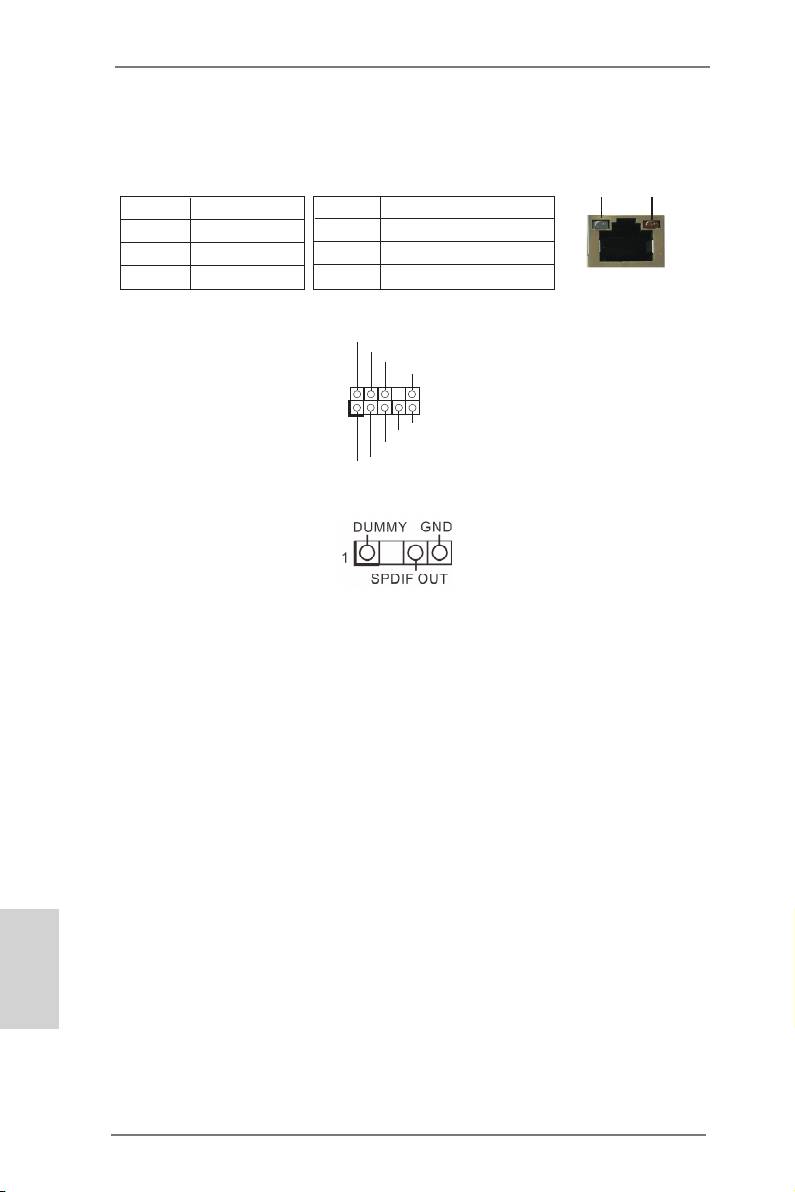

* There are two LEDs next to the LAN port. Please refer to the table below for the LAN port LED
indications.
LAN Port LED Indications
ACT/LINK
SPEED
LED
LED
Activity/Link LED SPEED LED
Status Description Status Description
Off No Link Off 10Mbps connection
Blinking Data Activity Green 100Mbps connection
On Link Green 1Gbps connection
LAN Port
GND
** Front Panel Audio Header
P RESENCE#
(9-pin F_AUDIO1)
M IC_RET
OUT_RET
1
O UT2_L
J _SENSE
O UT2_R
M IC2_R
M IC2_L
*** HDMI_SPDIF Header
(3-pin HDMI_SPDIF1)
**** The onboard audio will be disabled when ASRock Game Blaster is installed, but you can still
enable it in the UEFI setup.
English
6
ASRock X79 Extreme6/GB / X79 Extreme6 Motherboard
Specifications
Platform - Size: 4.3-in x 3.0-in, 11.0 cm x 7.5 cm
- Premium Gold Capacitor design (100% Japan-made high-
quality Conductive Polymer Capacitors)
Chipset - Creative Sound Core3D quad-core sound and voice
processor
- Powerful 32-bit 200Mhz QUAD-Processor SIMD DSP
- 102dB 24-bit DAC
- 101dB 24-bit ADC
Output Features - Supports Stereo / 2.1 Speakers / 5.1 Surround / 7.1
Surround-EX / Headphones
- Front Panel Headphone Out with built-in amplier (shared
with jack 4)
- Coaxial SPDIF Out Port
- Optical SPDIF Out Port
Input Features - Line in / Microphone in shared with 1/8" mini jack (jack 3)
- Front Panel Microphone In
Audio - Supports CrystalVoice
- Supports EAX1.0 to EAX5.0
- Supports Full Blu-ray Prole 2.0 Audio Decoder
- Supports Blu-ray Audio
- Supports AES-128 Encryption/Decryption Engine
LAN - Broadcom BCM57781
- PCIE x1 Gigabit LAN 10/100/1000 Mb/s
- Supports Wake-On-LAN
- Supports Energy Efcient Ethernet 802.3az
- Supports Dual LAN with Teaming function (for motherboards
with Broadcom LAN)
- Supports PXE
Rear Panel I/O I/O Panel
- 1 x Coaxial SPDIF Out Port
- 1 x Optical SPDIF Out Port
- 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED
LED)
- 4 x 1/8" mini jacks
Connector - 1 x HDMI_SPDIF header
English
- 1 x Front panel audio connector
®
®
TM
TM
OS - Microsoft
Windows
7 / 7 64-bit / Vista
/ Vista
64-bit
compliant
7
ASRock X79 Extreme6/GB / X79 Extreme6 Motherboard
1. Introduction
Thank you for purchasing ASRock X79 Extreme6/GB / X79 Extreme6 motherboard,
a reliable motherboard produced under ASRock’s consistently stringent quality con-
trol. It delivers excellent performance with robust design conforming to ASRock’s
commitment to quality and endurance.
This Quick Installation Guide contains introduction of the motherboard and step-by-
step installation guide. More detailed information of the motherboard can be found
in the user manual presented in the Support CD.
Because the motherboard specications and the BIOS software might be
updated, the content of this manual will be subject to change without no-
tice. In case any modications of this manual occur, the updated version
will be available on ASRock website without further notice. You may nd
the latest VGA cards and CPU support lists on ASRock website as well.
ASRock website http://www.asrock.com
If you require technical support related to this motherboard, please visit
our website for specic information about the model you are using.
www.asrock.com/support/index.asp
1.1 Package Contents
ASRock X79 Extreme6/GB / X79 Extreme6 Motherboard
(ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm)
ASRock X79 Extreme6/GB / X79 Extreme6 Quick Installation Guide
ASRock X79 Extreme6/GB / X79 Extreme6 Support CD
5 x Serial ATA (SATA) Data Cables (Optional)
1 x I/O Panel Shield
1 x Front USB 3.0 Panel
4 x HDD Screws
6 x Chassis Screws
1 x Rear USB 3.0 Bracket
1 x ASRock SLI_Bridge_2S Card
1 x ASRock 3-Way SLI-2S1S Bridge Card
1 x ASRock Game Blaster (X79 Extreme6/GB)
English
ASRock Reminds You...
®
TM
TM
To get better performance in Windows
7 / 7 64-bit / Vista
/ Vista
64-
bit, it is recommended to set the BIOS option in Storage Conguration to
AHCI mode. For the BIOS setup, please refer to the “User Manual” in our
support CD for details.
8
ASRock X79 Extreme6/GB / X79 Extreme6 Motherboard
1.2 Specifications
Platform - ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm
- Premium Gold Capacitor design (100% Japan-made high-
quality Conductive Polymer Capacitors)
®
TM
CPU - Supports Intel
Core
i7 processor family for the LGA 2011
Socket
- Digi Power Design
- 12 + 2 Power Phase Design
®
- Supports Intel
Turbo Boost 2.0 Technology
- Supports Hyper-Threading Technology (see CAUTION 1)
- Supports Untied Overclocking Technology
®
Chipset - Intel
X79
Memory - Quad Channel DDR3 Memory Technology (see CAUTION 2)
- 8 x DDR3 DIMM slots (see CAUTION 3)
- Supports DDR3 2400+(OC)/2133(OC)/1866(OC)/1600/1333/
1066 non-ECC, un-buffered memory
®
- Supports DDR3 ECC, un-buffered memory with Intel
®
Workstation 1S Xeon
processors E5 16xx/26xx/46xx series
in socket LGA 2011
- Max. capacity of system memory: 64GB (see CAUTION 4)
®
- Supports Intel
Extreme Memory Prole (XMP)1.3/1.2
Expansion Slot - 3 x PCI Express 3.0 x16 slots (PCIE1 @ x16 mode;
PCIE3 @ x16 mode; PCIE4 @ x8 mode) (see CAUTION 5)
- 1 x PCI Express 2.0 x1 slot
- 2 x PCI slots
TM
TM
TM
- Supports AMD
Quad CrossFireX
, 3-Way CrossFireX
TM
and CrossFireX
®
TM
TM
TM
- Supports NVIDIA
Quad SLI
, 3-Way SLI
and SLI
Audio ASRock Game Blaster Audio
(X79 Extreme6/GB) - Supported by the bundled ASRock Game Blaster
- Creative Sound Core3D quad-core sound and voice
processor
- Supports CrystalVoice
- Supports EAX1.0 to EAX5.0
Onboard Audio
English
- 7.1 CH HD Audio with Content Protection
(Realtek ALC898 Audio Codec)
- Premium Blu-ray audio support
9
ASRock X79 Extreme6/GB / X79 Extreme6 Motherboard
Audio - 7.1 CH HD Audio with Content Protection
(X79 Extreme6) (Realtek ALC898 Audio Codec)
- Premium Blu-ray audio support
LAN - PCIE x1 Gigabit LAN 10/100/1000 Mb/s
- Broadcom BCM57781
- Supports Wake-On-LAN
- Supports Energy Efcient Ethernet 802.3az
- Supports Dual LAN with Teaming function with the bundled
ASRock Game Blaster (X79 Extreme6/GB)
- Supports PXE
Rear Panel I/O I/O Panel
- 1 x PS/2 Mouse Port
- 1 x PS/2 Keyboard Port
- 1 x Coaxial SPDIF Out Port
- 1 x Optical SPDIF Out Port
- 4 x Ready-to-Use USB 2.0 Ports
- 1 x eSATA3 Connector
- 4 x Ready-to-Use USB 3.0 Ports
- 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED
LED)
- 1 x IEEE 1394 Port
- 1 x Clear CMOS Switch with LED
- HD Audio Jack: Side Speaker/Rear Speaker/Central/Bass/
Line in/Front Speaker/Microphone (see CAUTION 6)
®
SATA3 - 2 x SATA3 6.0 Gb/s connectors by Intel
X79, support RAID
(RAID 0, RAID 1, RAID 5, RAID 10 and Intel Rapid
Storage 3.0), NCQ, AHCI and "Hot Plug" functions
- 3 x SATA3 6.0 Gb/s connectors by ASMedia ASM1061,
support NCQ, AHCI and “Hot Plug” functions
®
USB3.0 - 4 x Rear USB 3.0 ports by TI
, support USB 1.0/2.0/3.0 up
to 5Gb/s
- 1 x Front USB 3.0 header (supports 2 USB 3.0 ports) by
ASMedia ASM1042, supports USB 1.0/2.0/3.0 up to 5Gb/s
Connector - 4 x SATA2 3.0 Gb/s connectors, support RAID (RAID 0,
English
RAID 1, RAID 5, RAID 10 and Intel Rapid Storage 3.0),
NCQ, AHCI and Hot Plug functions
- 5 x SATA3 6.0Gb/s connectors
- 1 x IR header
- 1 x CIR header
- 1 x COM port header
- 1 x HDMI_SPDIF header
10
ASRock X79 Extreme6/GB / X79 Extreme6 Motherboard
- 1 x IEEE 1394 header
- 1 x Power LED header
- CPU/Chassis/Power/SB FAN connector
- 24 pin ATX power connector
- 8 pin 12V power connector
- SLI/XFire power connector
- 3 x USB 2.0 headers (support 6 USB 2.0 ports)
- 1 x USB 3.0 header (supports 2 USB 3.0 ports)
- 1 x Dr. Debug with LED
Smart Switch - 1 x Clear CMOS Switch with LED
- 1 x Power Switch with LED
- 1 x Reset Switch with LED
BIOS Feature - 64Mb AMI UEFI Legal BIOS with GUI support
- Supports “Plug and Play”
- ACPI 1.1 Compliance Wake Up Events
- Supports jumperfree
- SMBIOS 2.3.1 Support
- CPU, VCCSA, DRAM, VTT, CPU PLL, PCH1.1V, PCH1.5V
Voltage Multi-adjustment
Support CD - Drivers, Utilities, AntiVirus Software (Trial Version),
CyberLink MediaEspresso 6.5 Trial
Unique Feature - ASRock Extreme Tuning Utility (AXTU) (see CAUTION 7)
- ASRock Instant Boot
- ASRock Instant Flash (see CAUTION 8)
- ASRock APP Charger (see CAUTION 9)
- ASRock XFast USB (see CAUTION 10)
- ASRock XFast LAN (see CAUTION 11)
- ASRock XFast RAM (see CAUTION 12)
- ASRock X-FAN (see CAUTION 13)
- ASRock Crashless BIOS (see CAUTION 14)
- Hybrid Booster:
- CPU Frequency Stepless Control (see CAUTION 15)
- ASRock U-COP (see CAUTION 16)
- Boot Failure Guard (B.F.G.)
- Good Night LED
Hardware - CPU Temperature Sensing
Monitor - Chassis Temperature Sensing
English
- CPU/Chassis/Power/SB Fan Tachometer
- CPU/Chassis Quiet Fan (Allows Chassis Fan Speed Auto-
Adjust by CPU Temperature)
11
ASRock X79 Extreme6/GB / X79 Extreme6 Motherboard
- CPU/Chassis/SB Fan Multi-Speed Control
- Voltage Monitoring: +12V, +5V, +3.3V, CPU Vcore
®
®
TM
TM
OS - Microsoft
Windows
7 / 7 64-bit / Vista
/ Vista
64-bit
/ XP / XP 64-bit compliant (see CAUTION 17)
Certications - FCC, CE, WHQL
- ErP/EuP Ready (ErP/EuP ready power supply is required)
(see CAUTION 18)
* For detailed product information, please visit our website: http://www.asrock.com
WARNING
Please realize that there is a certain risk involved with overclocking, including
adjusting the setting in the BIOS, applying Untied Overclocking Technology, or
using the third-party overclocking tools. Overclocking may affect your system
stability, or even cause damage to the components and devices of your system.
It should be done at your own risk and expense. We are not responsible for possible
damage caused by overclocking.
CAUTION!
1. About the setting of “Hyper Threading Technology”, please check page
82 of “User Manual” in the support CD.
2. This motherboard supports Quad Channel Memory Technology. Before
you implement Quad Channel Memory Technology, make sure to read
the installation guide of memory modules on page 19 for proper installa-
tion.
®
3. Due to Intel
CPU spec definition, please install the memory modules
on DDR3_A1, DDR3_B1, DDR3_C1 and DDR3_D1 for the rst priority.
If above four DDR3 DIMM slots are fully installed, and you want to use
more than four memory modules, please install the other memory mod-
ules from left to right (from DDR3_A2, DDR3_B2, DDR3_D2 to DDR3_
C2.)
4. Due to the operating system limitation, the actual memory size may be
®
less than 4GB for the reservation for system usage under Windows
7 /
TM
®
Vista
/ XP. For Windows
OS with 64-bit CPU, there is no such limita-
tion. You can use ASRock XFast RAM to utilize the memory that Win-
®
dows
cannot use.
®
5. Currently Intel
Socket 2011 Sandy Bridge-E Processor doesn’t support
English
PCIE 3.0, but this motherboard is already PCIE 3.0 hardware ready. It
depends on Intel’s CPU to enable PCIE 3.0. Please check Intel’s website
for information on future CPU updates and releases.
6. For microphone input, this motherboard supports both stereo and mono
modes. For audio output, this motherboard supports 2-channel, 4-chan-
nel, 6-channel, and 8-channel modes. Please check the table on page 3
for proper connection.
12
ASRock X79 Extreme6/GB / X79 Extreme6 Motherboard
7. ASRock Extreme Tuning Utility (AXTU) is an all-in-one tool to ne-tune dif-
ferent system functions in a user-friendly interface, which includes Hard-
ware Monitor, Fan Control, Overclocking, OC DNA and IES. In Hardware
Monitor, it shows the major readings of your system. In Fan Control, it
shows the fan speed and temperature for you to adjust. In Overclocking,
you are allowed to overclock CPU frequency for optimal system per-
formance. In OC DNA, you can save your OC settings as a prole and
share it with your friends. Your friends then can load the OC prole to
their own system to get the same OC settings. In IES (Intelligent Energy
Saver), the voltage regulator can reduce the number of output phases to
improve efciency when the CPU cores are idle without sacricing
computing performance. Please visit our website for the operation proce-
dures of ASRock Extreme Tuning Utility (AXTU).
ASRock website: http://www.asrock.com
8. ASRock Instant Flash is a BIOS ash utility embedded in Flash ROM.
This convenient BIOS update tool allows you to update system BIOS
®
without entering operating systems rst like MS-DOS or Windows
. With
this utility, you can press the <F6> key during the POST or the <F2>
key to enter into the BIOS setup menu to access ASRock Instant Flash.
Just launch this tool and save the new BIOS le to your USB ash drive,
oppy disk or hard drive, then you can update your BIOS only in a few
clicks without preparing an additional oppy diskette or other complicated
ash utility. Please be noted that the USB ash drive or hard drive must
use FAT32/16/12 le system.
9. If you desire a faster, less restricted way of charging your Apple devices,
such as iPhone/iPad/iPod Touch, ASRock has prepared a wonderful solu-
tion for you - ASRock APP Charger. Simply install the APP Charger
driver, it makes your iPhone charge much quickly from your computer and
up to 40% faster than before. ASRock APP Charger allows you to quickly
charge many Apple devices simultaneously and even supports continu-
ous charging when your PC enters into Standby mode (S1), Suspend to
RAM (S3), hibernation mode (S4) or power off (S5). With APP Charger
driver installed, you can easily enjoy the marvelous charging experience.
ASRock website: http://www.asrock.com/Feature/AppCharger/index.asp
10. ASRock XFast USB can boost USB storage device performance. The
performance may depend on the properties of the device.
11. ASRock XFast LAN provides a faster internet access, which includes the
benets listed below. LAN Application Prioritization: You can congure
your application’s priority ideally and/or add new programs. Lower La-
tency in Game: After setting online game’s priority higher, it can lower the
latency in games. Trafc Shaping: You can watch Youtube HD videos
and download simultaneously. Real-Time Analysis of Your Data: With
English
the status window, you can easily recognize which data streams you are
transferring currently.
13
ASRock X79 Extreme6/GB / X79 Extreme6 Motherboard
12. ASRock XFast RAM is a new function that is included into ASRock Ex-
treme Tuning Utility (AXTU). It fully utilizes the memory space that can-
®
not be used under Windows
OS 32-bit CPU. ASRock XFast RAM also
shortens the loading time of previously visited websites, making web surf-
ing faster than ever. And it also boosts the speed of Adobe Photoshop 5
times faster. Another advantage of ASRock XFast RAM is that it reduces
the frequency of accessing your SSDs or HDDs in order to extend their
lifespan.
13. ASRock X-FAN will be automatically activated only when the system
rises to a certain temperature under heavy-loading or overclocking. Nor-
mally, ASRock X-FAN will remain deactivated to give users the quietest
computing experience. The target temperature and fan speed settings
can be congured in the UEFI setup utility.
14. ASRock Crashless BIOS allows users to update their BIOS without fear
of failing. If power loss occurs during the BIOS update process, ASRock
Crashless BIOS will automatically nish the BIOS update procedure after
regaining power. Please note that BIOS les need to be placed in the
root directory of your USB disk. Only USB2.0 ports support this feature.
15. Although this motherboard offers stepless control, it is not recommended
to perform over-clocking. Frequencies other than the recommended CPU
bus frequencies may cause instability of the system or damage the CPU.
16. While CPU overheat is detected, the system will automatically shutdown.
Before you resume the system, please check if the CPU fan on the moth-
erboard functions properly and unplug the power cord, then plug it back
again. To improve heat dissipation, remember to spray thermal grease
between the CPU and the heatsink when you install the PC system.
17. Intel Rapid Storage Technology enterprise 3.0, ASRock XFast RAM and
®
®
ASRock Game Blaster are not supported by Microsoft
Windows
XP /
XP 64-bit.
18. EuP stands for Energy Using Product, was a provision regulated by the
European Union to dene the power consumption for the completed sys-
tem. According to EuP, the total AC power of the completed system
should be under 1.00W in off mode condition. To meet EuP standards,
an EuP ready motherboard and an EuP ready power supply are required.
According to Intel’s suggestion, the EuP ready power supply must meet
the standard of 5v, and the standby power efciency should be higher
than 50% under 100 mA current consumption. For EuP ready power sup-
ply selection, we recommend you to check with the power supply manu-
English
facturer for more details.
14
ASRock X79 Extreme6/GB / X79 Extreme6 Motherboard
Оглавление
- 1. Introduction
- 2. Installation
- 3. BIOS Information
- 1. Einführung
- 2. BIOS-Information
- 1. Introduction
- 2. Informations sur le BIOS
- 1. Introduzione
- 2. Informazioni sul BIOS
- 1. Introducción
- 2. BIOS Información
- 1. Введение
- 2. Информация о BIOS
- 1. Giriş
- 2. BIOS Bilgileri
- 1. 제품소개
- 2. 시스템 바이오스 정보
- 1. 主板簡介
- 2. BIOS 信息
- 1. 主機板簡介
- 2. BIOS 訊息
- 1. Penjelasan
