Copyright Notice:

No part of this installation guide may be reproduced, transcribed, transmitted, or trans-

lated in any language, in any form or by any means, except duplication of documentation

by the purchaser for backup purpose, without written consent of ASRock Inc.

Products and corporate names appearing in this guide may or may not be registered

trademarks or copyrights of their respective companies, and are used only for identica-

tion or explanation and to the owners’ benet, without intent to infringe.

Disclaimer:

Specications and information contained in this guide are furnished for informational use

only and subject to change without notice, and should not be constructed as a commit-

ment by ASRock. ASRock assumes no responsibility for any errors or omissions that may

appear in this guide.

With respect to the contents of this guide, ASRock does not provide warranty of any kind,

either expressed or implied, including but not limited to the implied warranties or condi-

tions of merchantability or tness for a particular purpose. In no event shall ASRock, its

directors, ofcers, employees, or agents be liable for any indirect, special, incidental, or

consequential damages (including damages for loss of prots, loss of business, loss of

data, interruption of business and the like), even if ASRock has been advised of the pos-

sibility of such damages arising from any defect or error in the guide or product.

This device complies with Part 15 of the FCC Rules. Operation is subject to the following

two conditions:

(1) this device may not cause harmful interference, and

(2) this device must accept any interference received, including interference that

may cause undesired operation.

CALIFORNIA, USA ONLY

The Lithium battery adopted on this motherboard contains Perchlorate, a toxic substance

controlled in Perchlorate Best Management Practices (BMP) regulations passed by the

California Legislature. When you discard the Lithium battery in California, USA, please

follow the related regulations in advance.

“Perchlorate Material-special handling may apply, see

www.dtsc.ca.gov/hazardouswaste/perchlorate”

English

ASRock Website: http://www.asrock.com

Published March 2013

Copyright

©

2013 ASRock INC. All rights reserved.

1

ASRock AD2550-ITX Motherboard

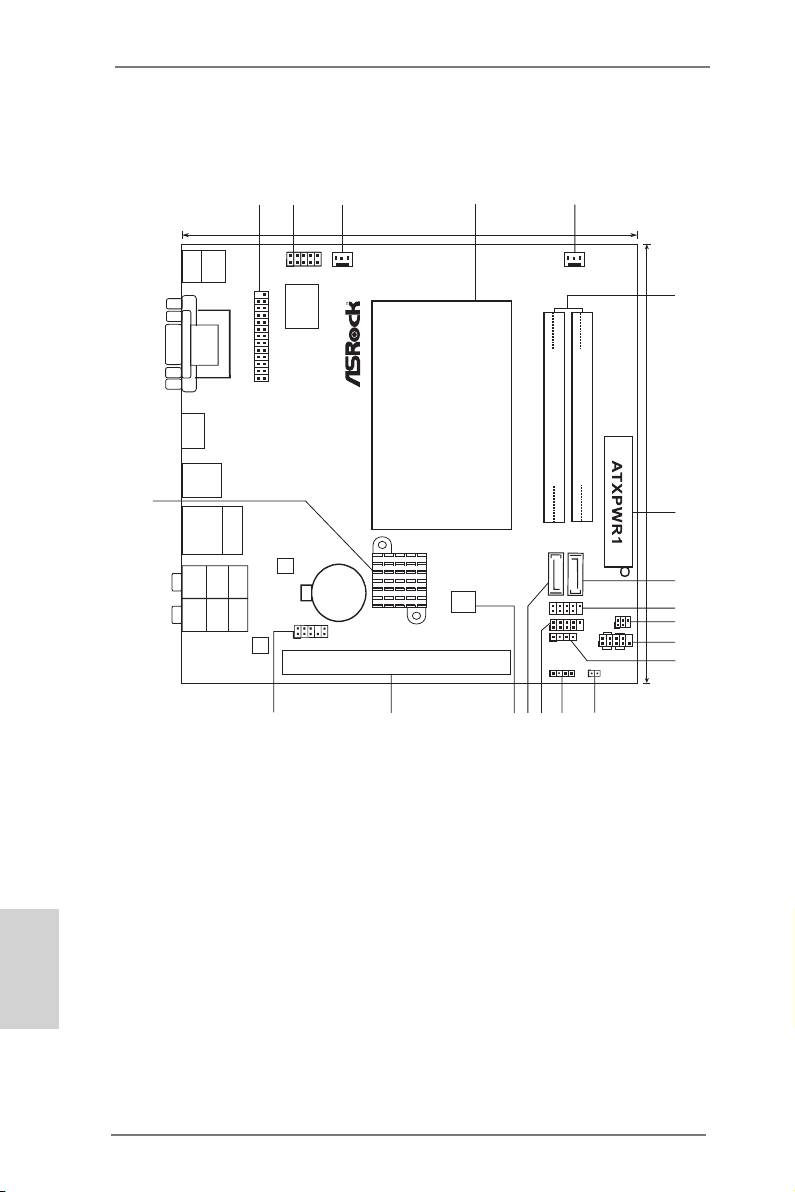

Motherboard Layout

1 Print Port Header (LPT1, White) 12 Consumer Infrared Module Header (CIR1)

2 COM Port Header (COM1) 13 Clear CMOS Jumper (CLRCMOS1)

3 CPU Fan Connector (CPU_FAN1) 14 Chassis Speaker Header

4 CPU Heatsink (SPEAKER 1, White)

5 Chassis Fan Connector (CHA_FAN1) 15 USB 2.0 Header (USB6_7, Blue)

6 2 x 204-pin DDR3 SO-DIMM Slots 16 SATA2 Connector (SATAII_1, Blue)

(DDR3_A1, DDR3_A2, Black) 17 16Mb SPI Flash

7 ATX Power Connector (ATXPWR1) 18 PCI Slot (PCI1)

8 SATA2 Connector (SATAII_2, Blue) 19 Front Panel Audio Header

English

9 USB 2.0 Header (USB8_9, Blue) (HD_AUDIO1, White)

10 Infrared Module Header (IR1) 20 Intel NM10 Express Chip

11 System Panel Header (PANEL1, White)

2

ASRock AD2550-ITX Motherboard

I/O Panel

1 USB 2.0 Ports ** 8 Front Speaker (Lime)

2 D-Sub Port 9 Microphone (Pink)

* 3 LAN RJ-45 Port 10 USB 2.0 Ports

4 Central / Bass (Orange) 11 USB 3.0 Ports (ASMedia ASM1042)

5 Rear Speaker (Black) 12 HDMI Port

6 Optical SPDIF Out Port 13 DVI-D Port

7 Line In (Light Blue) 14 PS/2 Keyboard Port (Purple)

* There are two LED next to the LAN port. Please refer to the table below for the LAN port LED

indications.

LAN Port LED Indications

ACT/LINK

SPEED

Activity/Link LED SPEED LED

LED

LED

Status Description Status Description

Off No Link Off 10Mbps connection

Blinking Data Activity Orange 100Mbps connection

On Link Green 1Gbps connection

LAN Port

**

If you use 2-channel speaker, please connect the speaker’s plug into “Front Speaker Jack”.

See the table below for connection details in accordance with the type of speaker you use.

TABLE for Audio Output Connection

Audio Output Channels Front Speaker Rear Speaker Central / Bass Line In or

(No. 8) (No. 5) (No. 4) Side Speaker

(No. 7)

2 V -- -- --

4 V V -- --

6 V V V --

8 V V V V

To enable Multi-Streaming function, you need to connect a front panel audio cable to the front

panel audio header. After restarting your computer, you will nd “Mixer” tool on your system.

English

Please select “Mixer ToolBox” , click “Enable playback multi-streaming”, and click

“ok”. Choose “2CH”, “4CH”, “6CH”, or “8CH” and then you are allowed to select “Realtek HDA

Primary output” to use Rear Speaker, Central/Bass, and Front Speaker, or select “Realtek

HDA Audio 2nd output” to use front panel audio.

3
