English

ASRock Website: http://www.asrock.com

Published July 2013

Copyright

©

2013 ASRock INC. All rights reserved.

1

ASRock X79 Extreme3 Motherboard

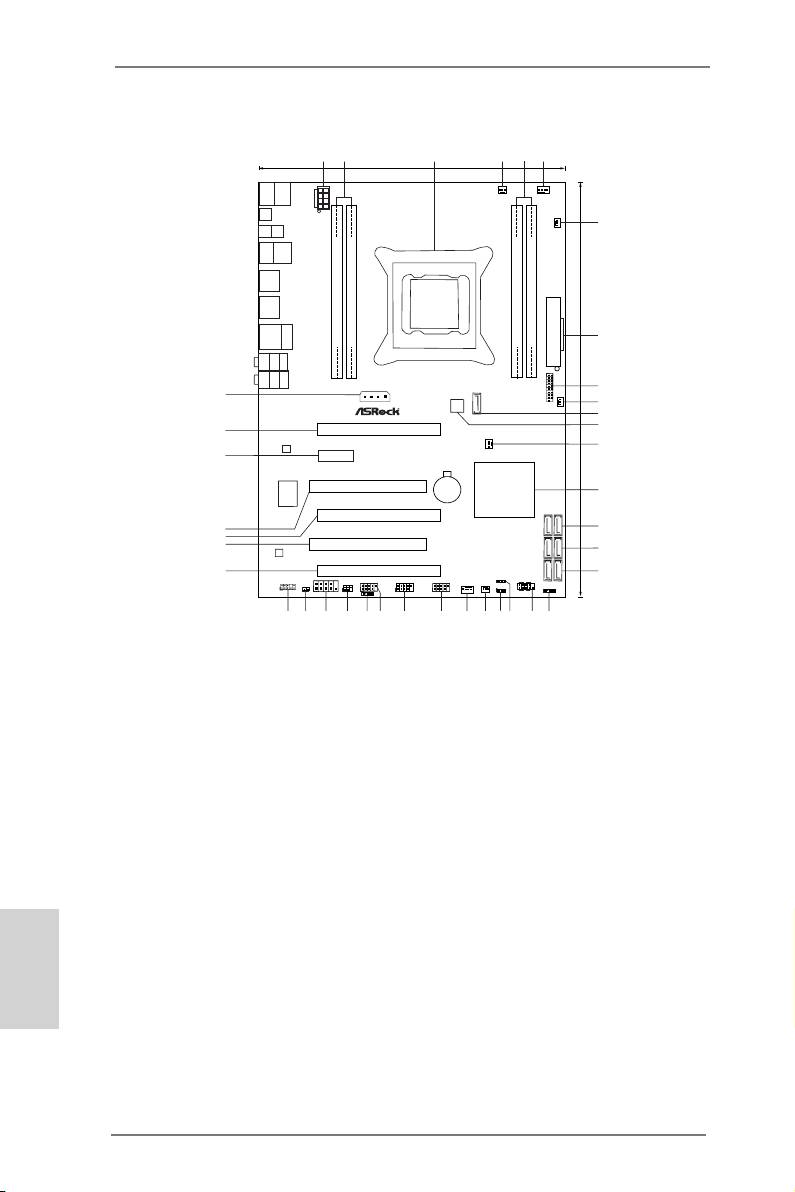

Motherboard Layout

1 ATX 12V Power Connector (ATX12V1) 21 Clear CMOS Jumper (CLRCMOS1)

2 2 x 240-pin DDR3 DIMM Slots 22 Chassis Fan Connector (CHA_FAN3)

(DDR3_A1, DDR3_B1, Black) 23 Chassis Fan Connector (CHA_FAN1)

3 2011-Pin CPU Socket 24 USB 2.0 Header (USB_10_11, Black)

4 CPU Fan Connector (CPU_FAN2) 25 USB 2.0 Header (USB_8_9, Black)

5 2 x 240-pin DDR3 DIMM Slots 26 USB 2.0 Header (USB_6_7, Black)

(DDR3_D1, DDR3_C1, Black) 27 Consumer Infrared Module Header

6 CPU Fan Connector (CPU_FAN1) (CIR1, Gray)

7 Power Fan Connector (PWR_FAN1) 28 Infrared Module Header (IR1)

8 ATX Power Connector (ATXPWR1) 29 COM Port Header (COM1)

9 USB 3.0 Header (USB3_2_3, Black) 30 HDMI_SPDIF Header

10 Chassis Fan Connector (CHA_FAN2) (HDMI_SPDIF1, Black)

11 SATA3 Connector (SATA3_A0, Gray) 31 Front Panel Audio Header

12 SPI Flash Memory (64Mb) (HD_AUDIO1, Black)

13 SB Fan Connector (SB_FAN1) 32 PCI Express 3.0 x16 Slot (PCIE4, Black)

14 Intel X79 Chipset 33 PCI Slot (PCI2, Black)

15 SATA3 Connectors (SATA3_0_1, Gray) 34 PCI Express 3.0 x16 Slot (PCIE3, Black)

English

16 SATA2 Connectors (SATA2_0_1, Black) 35 PCI Slot (PCI1, Black)

17 SATA2 Connectors (SATA2_2_3, Black) 36 PCI Express 2.0 x1 Slot (PCIE2, Black)

18 Chassis Speaker Header (SPEAKER1, Black) 37 PCI Express 3.0 x16 Slot (PCIE1, Black)

19 System Panel Header (PANEL1, Black) 38 SLI / XFIRE Power Connector

20 Power LED Header (PLED1)

2

ASRock X79 Extreme3 Motherboard

I/O Panel

1 PS/2 Mouse Port (Green) 10 Microphone (Pink)

2 Coaxial SPDIF Out Port 11 USB 2.0 Ports (USB45)

3 USB 2.0 Ports (USB01) 12 USB 3.0 Ports (USB3_0_1)

* 4 LAN RJ-45 Port 13 USB 2.0 Ports (USB23)

5 Side Speaker (Gray) *** 14 eSATA3 Connector

6 Rear Speaker (Black) 15 Optical SPDIF Out Port

7 Central / Bass (Orange) 16 Clear CMOS Switch (CLRCBTN)

8 Line In (Light Blue) 17 PS/2 Keyboard Port (Purple)

** 9 Front Speaker (Lime)

* There are two LED next to the LAN port. Please refer to the table below for the LAN port LED

indications.

LAN Port LED Indications

ACT/LINK

SPEED

Activity/Link LED SPEED LED

LED

LED

Status Description Status Description

Off No Link Off 10Mbps connection

Blinking Data Activity Orange 100Mbps connection

On Link Green 1Gbps connection

LAN Port

**

If you use 2-channel speaker, please connect the speaker’s plug into “Front Speaker Jack”.

See the table below for connection details in accordance with the type of speaker you use.

TABLE for Audio Output Connection

Audio Output Channels Front Speaker Rear Speaker Central / Bass Side Speaker

(No. 9) (No. 6) (No. 7) (No. 5)

2 V -- -- --

4 V V -- --

6 V V V --

8 V V V V

English

3

ASRock X79 Extreme3 Motherboard

To enable Multi-Streaming function, you need to connect a front panel audio cable to the front

panel audio header. After restarting your computer, you will nd “Mixer” tool on your system.

Please select “Mixer ToolBox” , click “Enable playback multi-streaming”, and click

“ok”. Choose “2CH”, “4CH”, “6CH”, or “8CH” and then you are allowed to select “Realtek HDA

Primary output” to use Rear Speaker, Central/Bass, and Front Speaker, or select “Realtek HDA

Audio 2nd output” to use front panel audio.

*** eSATA3 connector supports SATA Gen3 in cable 1M.

English

4

ASRock X79 Extreme3 Motherboard

1. Introduction

Thank you for purchasing ASRock X79 Extreme3 motherboard, a reliable moth-

erboard produced under ASRock’s consistently stringent quality control. It delivers

excellent performance with robust design conforming to ASRock’s commitment to

quality and endurance.

This Quick Installation Guide contains introduction of the motherboard and step-by-

step installation guide. More detailed information of the motherboard can be found

in the user manual presented in the Support CD.

Because the motherboard specications and the BIOS software might be

updated, the content of this manual will be subject to change without no-

tice. In case any modications of this manual occur, the updated version

will be available on ASRock website without further notice. You may nd

the latest VGA cards and CPU support lists on ASRock website as well.

ASRock website http://www.asrock.com

If you require technical support related to this motherboard, please visit

our website for specic information about the model you are using.

www.asrock.com/support/index.asp

1.1 Package Contents

ASRock X79 Extreme3 Motherboard

(ATX Form Factor: 12.0-in x 8.8-in, 30.5 cm x 22.4 cm)

ASRock X79 Extreme3 Quick Installation Guide

ASRock X79 Extreme3 Support CD

3 x Serial ATA (SATA) Data Cables (Optional)

1 x I/O Panel Shield

1 x ASRock SLI_Bridge_2S Card

1 x ASRock 3-Way SLI-2S1S Bridge Card

ASRock Reminds You...

®

TM

TM

To get better performance in Windows

7 / 7 64-bit / Vista

/ Vista

64-

bit, it is recommended to set the BIOS option in Storage Conguration to

AHCI mode. For the BIOS setup, please refer to the “User Manual” in our

support CD for details.

English

5

ASRock X79 Extreme3 Motherboard

1.2 Specifications

Platform - ATX Form Factor: 12.0-in x 8.8-in, 30.5 cm x 22.4 cm

- Premium Gold Capacitor design (100% Japan-made high-

quality Conductive Polymer Capacitors)

®

TM

CPU - Supports Intel

Core

i7 processor family for the LGA 2011

Socket

- Digi Power Design

- Advanced 5 + 1 Power Phase Design

®

- Supports Intel

Turbo Boost 2.0 Technology

- Supports Hyper-Threading Technology (see CAUTION 1)

- Supports Untied Overclocking Technology

®

Chipset - Intel

X79

Memory - Quad Channel DDR3 Memory Technology (see CAUTION 2)

- 4 x DDR3 DIMM slots

- Supports DDR3 2400+(OC)/2133(OC)/1866(OC)/1600/1333/

1066 non-ECC, un-buffered memory

®

- Supports DDR3 ECC, un-buffered memory with Intel

®

Workstation 1S Xeon

processors E5 16xx/26xx/46xx series

in socket LGA 2011

- Max. capacity of system memory: 32GB (see CAUTION 3)

®

- Supports Intel

Extreme Memory Prole (XMP)1.3/1.2

Expansion Slot - 3 x PCI Express 3.0 x16 slots (PCIE1/PCIE3: x16 mode;

PCIE4: x8 mode) (see CAUTION 4)

- 1 x PCI Express 2.0 x 1 slot

- 2 x PCI slots

TM

TM

TM

- Supports AMD

Quad CrossFireX

, 3-Way CrossFireX

TM

and CrossFireX

®

TM

TM

TM

- Supports NVIDIA

Quad SLI

, 3-Way SLI

and SLI

Audio - 7.1 CH HD Audio with Content Protection

(Realtek ALC898 Audio Codec)

- Premium Blu-ray audio support

LAN - PCIE x1 Gigabit LAN 10/100/1000 Mb/s

English

- Broadcom BCM57781

- Supports Wake-On-LAN

- Supports Energy Efcient Ethernet 802.3az

- Supports PXE

Rear Panel I/O I/O Panel

- 1 x PS/2 Mouse Port

- 1 x PS/2 Keyboard Port

6

ASRock X79 Extreme3 Motherboard

- 1 x Coaxial SPDIF Out Port

- 1 x Optical SPDIF Out Port

- 6 x Ready-to-Use USB 2.0 Ports

- 1 x eSATA3 Connector

- 2 x Ready-to-Use USB 3.0 Ports

- 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED

LED)

- 1 x Clear CMOS Switch with LED

- HD Audio Jack: Side Speaker/Rear Speaker/Central/Bass/

Line in/Front Speaker/Microphone (see CAUTION 5)

®

SATA3 - 2 x SATA3 6.0 Gb/s connectors by Intel

X79, support RAID

(RAID 0, RAID 1, RAID 5, RAID 10 and Intel Rapid

Storage3.0), NCQ, AHCI and "Hot Plug" functions

- 1 x SATA3 6.0 Gb/s connector by ASMedia ASM1061,

supports NCQ, AHCI and "Hot Plug" functions

USB3.0 - 2 x Rear USB 3.0 ports by Etron EJ168A, support

USB 1.0/2.0/3.0 up to 5Gb/s

- 1 x Front USB 3.0 header (supports 2 USB 3.0 ports) by

Etron EJ168A, supports USB 1.0/2.0/3.0 up to 5Gb/s

Connector - 4 x SATA2 3.0 Gb/s connectors, support RAID (RAID 0,

RAID 1, RAID 5, RAID 10 and Intel Rapid Storage3.0),

NCQ, AHCI and Hot Plug functions

- 3 x SATA3 6.0Gb/s connectors

- 1 x IR header

- 1 x CIR header

- 1 x COM port header

- 1 x HDMI_SPDIF header

- 1 x Power LED header

- CPU/Chassis/Power/SB FAN connector

- 24 pin ATX power connector

- 8 pin 12V power connector

- SLI/XFire power connector

- Front panel audio connector

- 3 x USB 2.0 headers (support 6 USB 2.0 ports)

- 1 x USB 3.0 header (supports 2 USB 3.0 ports)

Smart Switch - 1 x Clear CMOS Switch with LED

BIOS Feature - 64Mb AMI UEFI Legal BIOS with GUI support

English

- Supports “Plug and Play”

- ACPI 1.1 Compliance Wake Up Events

- Supports jumperfree

- SMBIOS 2.3.1 Support

7

ASRock X79 Extreme3 Motherboard

- CPU, VCCSA, DRAM, VTT, CPU PLL, PCH1.1V, PCH1.5V

Voltage Multi-adjustment

Support CD - Drivers, Utilities, AntiVirus Software (Trial Version),

CyberLink MediaEspresso 6.5 Trial

Unique Feature - ASRock Extreme Tuning Utility (AXTU) (see CAUTION 6)

- ASRock Instant Boot

- ASRock Instant Flash (see CAUTION 7)

- ASRock APP Charger (see CAUTION 8)

- ASRock XFast USB (see CAUTION 9)

- ASRock XFast LAN (see CAUTION 10)

- ASRock XFast Charger (see CAUTION 11)

- ASRock XFast RAM (see CAUTION 12)

- ASRock X-FAN (see CAUTION 13)

- ASRock Crashless BIOS (see CAUTION 14)

- Hybrid Booster:

- CPU Frequency Stepless Control (see CAUTION 15)

- ASRock U-COP (see CAUTION 16)

- Boot Failure Guard (B.F.G.)

- Good Night LED

Hardware - CPU Temperature Sensing

Monitor - Chassis Temperature Sensing

- CPU/Chassis/Power/SB Fan Tachometer

- CPU/Chassis Quiet Fan (Allows Chassis Fan Speed Auto-

Adjust by CPU Temperature)

- CPU/Chassis/SB Fan Multi-Speed Control

- Voltage Monitoring: +12V, +5V, +3.3V, CPU Vcore

®

®

TM

TM

OS - Microsoft

Windows

7 / 7 64-bit / Vista

/ Vista

64-bit

/ XP / XP 64-bit compliant (see CAUTION 17)

Certications - FCC, CE, WHQL

- ErP/EuP Ready (ErP/EuP ready power supply is required)

(see CAUTION 18)

* For detailed product information, please visit our website: http://www.asrock.com

English

8

ASRock X79 Extreme3 Motherboard

WARNING

Please realize that there is a certain risk involved with overclocking, including

adjusting the setting in the BIOS, applying Untied Overclocking Technology, or using

third-party overclocking tools. Overclocking may affect your system’s stability, or

even cause damage to the components and devices of your system. It should be

done at your own risk and expense. We are not responsible for possible damage

caused by overclocking.

CAUTION!

1. About the setting of “Hyper Threading Technology”, please check page

55 of the User Manual in the support CD.

2. This motherboard supports Quad Channel Memory Technology. Before

you implement Quad Channel Memory Technology, make sure to read

the installation guide of memory modules on page 16 for proper installa-

tion.

3. Due to the operating system limitation, the actual memory size may be

®

less than 4GB for the reservation for system usage under Windows

7 /

TM

®

Vista

/ XP. For Windows

OS with 64-bit CPU, there is no such limita-

tion. You can use ASRock XFast RAM to utilize the memory that Win-

®

dows

cannot use.

®

4. Currently Intel

Socket 2011 Sandy Bridge-E Processor doesn’t support

PCIE 3.0, but this motherboard is already PCIE 3.0 hardware ready. It

depends on Intel’s CPU to enable PCIE 3.0. Please check Intel’s website

for information on future CPU updates and releases.

5. For microphone input, this motherboard supports both stereo and mono

modes. For audio output, this motherboard supports 2-channel, 4-chan-

nel, 6-channel, and 8-channel modes. Please check the table on page 3

for proper connection.

6. ASRock Extreme Tuning Utility (AXTU) is an all-in-one tool to ne-tune dif-

ferent system functions in a user-friendly interface, which includes Hard-

ware Monitor, Fan Control, Overclocking, OC DNA and IES. In Hardware

Monitor, it shows the major readings of your system. In Fan Control, it

shows the fan speed and temperature for you to adjust. In Overclocking,

you are allowed to overclock CPU frequency for optimal system per-

formance. In OC DNA, you can save your OC settings as a prole and

share it with your friends. Your friends then can load the OC prole to

their own system to get the same OC settings. In IES (Intelligent Energy

Saver), the voltage regulator can reduce the number of output phases to

improve efciency when the CPU cores are idle without sacricing com-

puting performance. Please visit our website for the operation procedures

English

of ASRock Extreme Tuning Utility (AXTU).

ASRock website: http://www.asrock.com

7. ASRock Instant Flash is a BIOS ash utility embedded in Flash ROM.

This convenient BIOS update tool allows you to update system BIOS

®

without entering operating systems rst like MS-DOS or Windows

. With

9

ASRock X79 Extreme3 Motherboard
