ASRock Z77 Extreme4 Motherboard

Motherboard Layout

1 ATX 12V Power Connector (ATX12V1)

21 Dr. Debug

2 1155-Pin CPU Socket

22 Chassis Fan Connector (CHA_FAN1)

3 CPU Fan Connector (CPU_FAN1)

23 SPI Flash Memory (64Mb)

4 Power Fan Connector (PWR_FAN1)

24 USB 2.0 Header (USB6_7, Black)

5 CPU Fan Connector (CPU_FAN2)

25 USB 2.0 Header (USB4_5, Black)

6 2 x 240-pin DDR3 DIMM Slots

26 USB 2.0 Header (USB2_3, Black)

(DDR3_A1, DDR3_B1, Black)

27 Consumer Infrared Module Header

7 2 x 240-pin DDR3 DIMM Slots

(CIR1, Gray)

(DDR3_A2, DDR3_B2, Black)

28 COM Port Header (COM1)

8 ATX Power Connector (ATXPWR1)

29 HDMI_SPDIF Header

9 USB 3.0 Header (USB3_4_5, Black)

(HDMI_SPDIF1, Black)

10 Intel Z77 Chipset

30 Infrared Module Header (IR1)

English

11 SATA3 Connectors (SATA3_A0_A1, Gray)

31 Front Panel Audio Header

12 SATA3 Connectors (SATA3_0_1, Gray)

(HD_AUDIO1, Black)

13 SATA2 Connectors (SATA2_2_3, Black)

32 PCI Express 2.0 x1 Slot (PCIE4, Black)

14 SATA2 Connectors (SATA2_4_5, Black)

33 PCI Slot (PCI2, Black)

15 Clear CMOS Jumper (CLRCMOS1)

34 PCI Express 3.0 x16 Slot (PCIE3, Black)

16 Reset Switch (RSTBTN)

35 PCI Slot (PCI1, Black)

17 Chassis Speaker Header (SPEAKER1, Black)

36 PCI Express 3.0 x16 Slot (PCIE2, Black)

18 Power Switch (PWRBTN)

37 PCI Express 2.0 x1 Slot (PCIE1, Black)

19 Power LED Header (PLED1)

38 Chassis Fan Connector (CHA_FAN2)

20 System Panel Header (PANEL1, Black)

39 Chassis Fan Connector (CHA_FAN3)

2

ASRock Z77 Extreme4 Motherboard

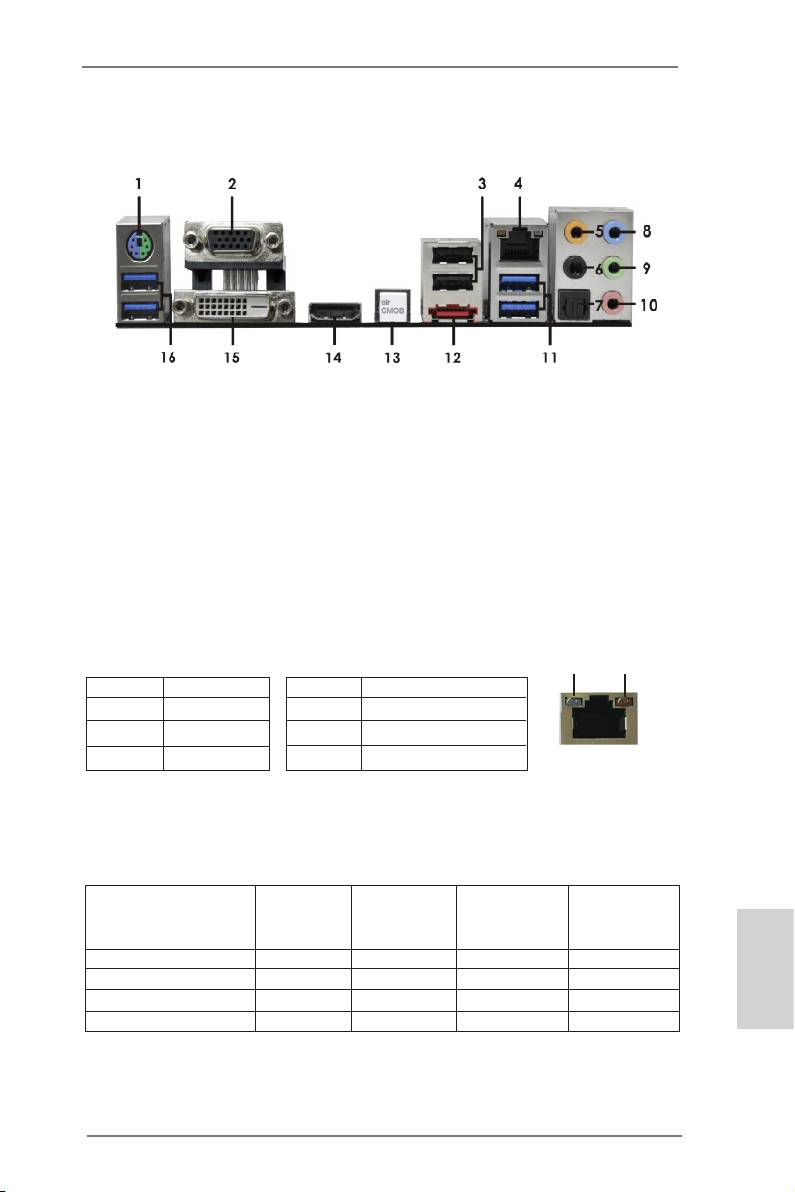

I/O Panel

1 PS/2 Keyboard/Mouse Port (Purple/Green) ** 9 Front Speaker (Lime)

2 D-Sub Port (VGA1) 10 Microphone (Pink)

3 USB 2.0 Ports (USB01) 11 USB 3.0 Ports (USB3_2_3)

* 4 LAN RJ-45 Port *** 12 eSATA3 Port (ESATA_1)

5 Central / Bass (Orange) 13 Clear CMOS Switch (CLRCBTN)

6 Rear Speaker (Black) 14 HDMI Port (HDMI1)

7 Optical SPDIF Out Port 15 DVI-D Port (DVI1)

8 Line In (Light Blue) 16 USB 3.0 Ports (USB3_01)

* There are two LED next to the LAN port. Please refer to the table below for the LAN port LED

indications.

LAN Port LED Indications

ACT/LINK

SPEED

LED

LED

Activity/Link LED SPEED LED

Status Description Status Description

Off No Link Off 10Mbps connection

Blinking Data Activity Orange 100Mbps connection

On Link Green 1Gbps connection

LAN Port

**

If you use 2-channel speaker, please connect the speaker’s plug into “Front Speaker Jack”.

See the table below for connection details in accordance with the type of speaker you use.

TABLE for Audio Output Connection

Audio Output Channels Front Speaker Rear Speaker Central / Bass Line in

(No. 9) (No. 6) (No. 5) (No. 8)

2 V -- -- --

4 V V -- --

English

6 V V V --

8 V V V V

3

ASRock Z77 Extreme4 Motherboard

To enable Multi-Streaming function, you need to connect a front panel audio cable to the front

panel audio header. After restarting your computer, you will nd “Mixer” tool on your system.

Please select “Mixer ToolBox” , click “Enable playback multi-streaming”, and click

“ok”. Choose “2CH”, “4CH”, “6CH”, or “8CH” and then you are allowed to select “Realtek HDA

Primary output” to use Rear Speaker, Central/Bass, and Front Speaker, or select “Realtek

HDA Audio 2nd output” to use front panel audio.

*** eSATA3 connector supports SATA Gen3 in cable 1M.
