ASRock Z87 Extreme4: инструкция

Version 1.0

Published April 2013

Copyright©2013 ASRock INC. All rights reserved.

Copyright Notice:

No part of this documentation may be reproduced, transcribed, transmitted, or

translated in any language, in any form or by any means, except duplication of

documentation by the purchaser for backup purpose, without written consent of

ASRock Inc.

Products and corporate names appearing in this documentation may or may not

be registered trademarks or copyrights of their respective companies, and are used

only for identication or explanation and to the owners’ benet, without intent to

infringe.

Disclaimer:

Specications and information contained in this documentation are furnished for

informational use only and subject to change without notice, and should not be

constructed as a commitment by ASRock. ASRock assumes no responsibility for

any errors or omissions that may appear in this documentation.

With respect to the contents of this documentation, ASRock does not provide

warranty of any kind, either expressed or implied, including but not limited to

the implied warranties or conditions of merchantability or tness for a particular

purpose.

In no event shall ASRock, its directors, ocers, employees, or agents be liable for

any indirect, special, incidental, or consequential damages (including damages for

loss of prots, loss of business, loss of data, interruption of business and the like),

even if ASRock has been advised of the possibility of such damages arising from any

defect or error in the documentation or product.

e terms HDMI™ and HDMI High-Denition Multimedia Interface, and the HDMI

logo are trademarks or registered trademarks of HDMI Licensing LLC in the United

States and other countries.

is device complies with Part 15 of the FCC Rules. Operation is subject to the following

two conditions:

(1) this device may not cause harmful interference, and

(2) this device must accept any interference received, including interference that

may cause undesired operation.

CALIFORNIA, USA ONLY

e Lithium battery adopted on this motherboard contains Perchlorate, a toxic substance

controlled in Perchlorate Best Management Practices (BMP) regulations passed by the

California Legislature. When you discard the Lithium battery in California, USA, please

follow the related regulations in advance.

“Perchlorate Material-special handling may apply, see www.dtsc.ca.gov/hazardouswaste/

perchlorate”

ASRock Website: http://www.asrock.com

Manufactured under license under U.S. Patent Nos: 5,956,674; 5,974,380; 6,487,535;

7,003,467 & other U.S. and worldwide patents issued & pending. DTS, the Symbol, &

DTS and the Symbol together is a registered trademark & DTS Connect, DTS Interactive,

DTS Neo:PC are trademarks of DTS, Inc. Product includes soware.

© DTS, Inc., All Rights Reserved.

Z87 Extreme4

Motherboard Layout

English

PB 1

No. Description

1 ATX 12V Power Connector (ATX12V1)

2 Chassis Fan Connector (CHA_FAN2)

3 CPU Fan Connector (CPU_FAN1)

4 CPU Fan Connector (CPU_FAN2)

5 2 x 240-pin DDR3 DIMM Slots (DDR3_A1, DDR3_B1)

6 2 x 240-pin DDR3 DIMM Slots (DDR3_A2, DDR3_B2)

7 ATX Power Connector (ATXPWR1)

8 USB 3.0 Header (USB3_4_5) (ASMedia Hub)

9 USB 3.0 Header (USB3_6_7) (ASMedia Hub)

10 Vertical Type A USB 3.0 (USB3_12)

11 SATA3 Connectors (SATA3_A0_A1)

12 SATA3 Connectors (SATA3_0_1)

13 SATA3 Connectors (SATA3_2_3)

14 SATA3 Connectors (SATA3_4_5)

15 Chassis Speaker Header (SPEAKER1)

16 BIOS Selection Jumper (BIOS_SEL1)

17 Clear CMOS Jumper (CLRCMOS1)

18 Power Switch (PWRBTN1)

19 Reset Switch (RSTBTN1)

20 Clear CMOS Switch

21 Power LED Header (PLED1)

22 System Panel Header (PANEL1)

23 USB 2.0 Header (USB2_3)

24 USB 2.0 Header (USB4_5)

25 USB 2.0 Header (USB6_7)

26 Chassis Fan Connector (CHA_FAN1)

27 COM Port Header (COM1)

28 Infrared Module Header (IR1)

29 Front Panel Audio Header (HD_AUDIO1)

30 Power Fan Connector (PWR_FAN1)

English

31 Chassis Fan Connector (CHA_FAN3)

2 3

Z87 Extreme4

I/O Panel

6

8

1 2 3 754

9

1011121314151617

No. Description No. Description

1 USB 2.0 Ports (USB01) 10 Microphone (Pink)

2 VGA Port 11 Optical SPDIF Out Port

3 Display Port 12 USB 3.0 Ports (USB3_23)

4 eSATA Connector*** 13 USB 3.0 Ports (USB3_01)

5 LAN RJ-45 Port* 14 HDMI-In Port

6 Central / Bass (Orange) 15 HDMI-Out Port

7 Rear Speaker (Black) 16 DVI-D Port

8 Line In (Light Blue) 17 PS/2 Mouse/Keyboard Port

9 Front Speaker (Lime)**

English

2 3

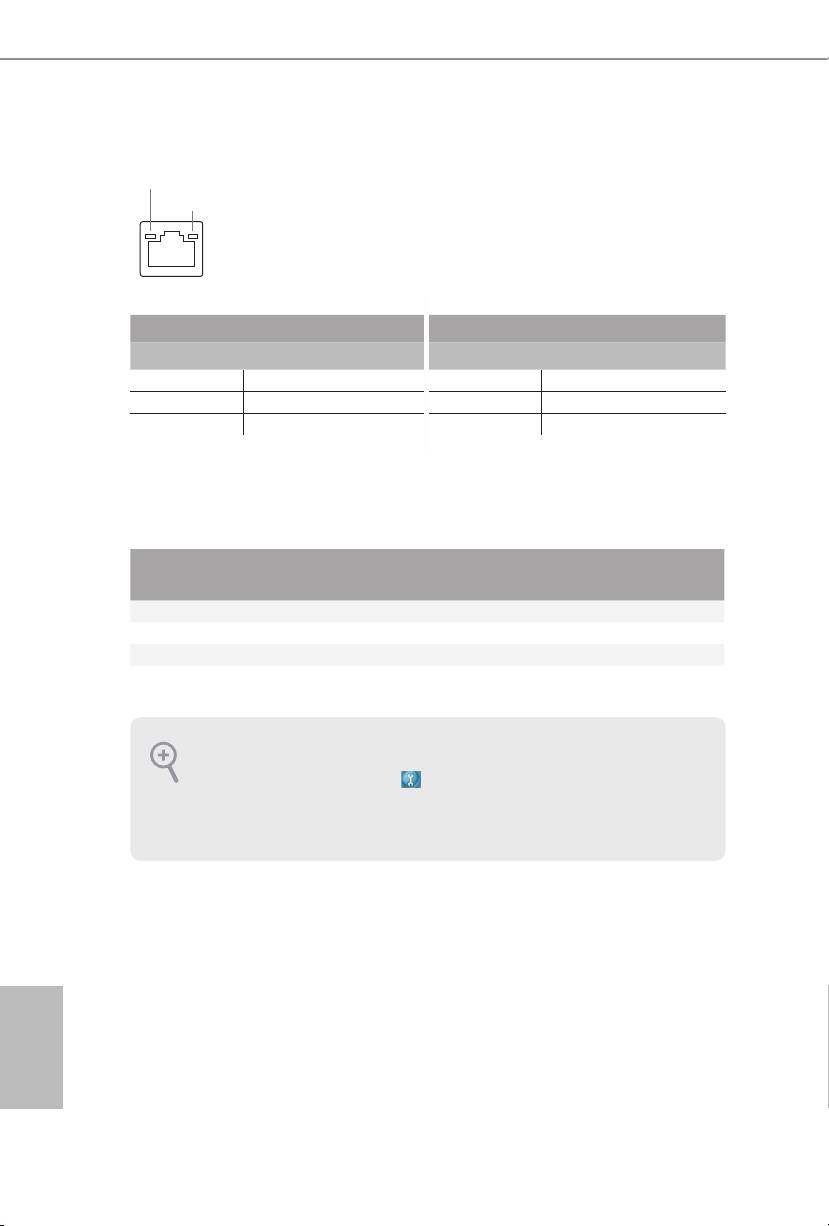

* ere are two LEDs on each LAN port. Please refer to the table below for the LAN port LED indications.

ACT/LINK LED

SPEED LED

LAN Port

Activity / Link LED Speed LED

Status Description Status Description

O No Link O 10Mbps connection

Blinking Data Activity Orange 100Mbps connection

On Link Green 1Gbps connection

** If you use a 2-channel speaker, please connect the speaker’s plug into “Front Speaker Jack”. See the table below

for connection details in accordance with the type of speaker you use.

Audio Output

Front Speaker

Rear Speaker

Central / Bass

Line In

Channels

(No. 9)

(No. 7)

(No. 6)

(No. 8)

2 V -- -- --

4 V V -- --

6 V V V --

8 V V V V

To enable Multi-Streaming, you need to connect a front panel audio cable to the front

panel audio header. Aer restarting your computer, you will nd the “Mixer” tool on your

system. Please select “Mixer ToolBox” , click “Enable playback multi-streaming”, and

click “ok”. Choose “2CH”, “4CH”, “6CH”, or “8CH” and then you are allowed to select

“Realtek HDA Primary output” to use the Rear Speaker, Central/Bass, and Front Speaker,

or select “Realtek HDA Audio 2nd output” to use the front panel audio.

*** e eSATA connector supports SATA with cables within 1 meters.

English

4 PB

Z87 Extreme4

1 Introduction

ank you for purchasing ASRock Z87 Extreme4 motherboard, a reliable

motherboard produced under ASRock’s consistently stringent quality control.

It delivers excellent performance with robust design conforming to ASRock’s

commitment to quality and endurance.

Because the motherboard specications and the BIOS soware might be updated, the

content of this documentation will be subject to change without notice. In case any modi-

cations of this documentation occur, the updated version will be available on ASRock’s

website without further notice. If you require technical support related to this mother-

board, please visit our website for specic information about the model you are using. You

may nd the latest VGA cards and CPU support list on ASRock’s website as well. ASRock

website http://www.asrock.com.

1.1 Package Contents

•

ASRock Z87 Extreme4 Motherboard (ATX Form Factor)

•

ASRock Z87 Extreme4 Quick Installation Guide

•

ASRock Z87 Extreme4 Support CD

•

4 x Serial ATA (SATA) Data Cables (Optional)

•

1 x I/O Panel Shield

•

1 x ASRock SLI_Bridge_2S Card

English

PB 5

1.2 Specications

Platform

•

ATX Form Factor

•

Premium Gold Capacitor design (100% Japan-made high-

quality Conductive Polymer Capacitors)

A-Style

•

Home Cloud

TM

•

Purity Sound

•

HDMI-In

CPU

•

Supports 4th Generation Intel® CoreTM i7 / i5 / i3 / Xeon® /

Pentium® / Celeron® in LGA1150 Package

•

Digi Power Design

•

12 Power Phase Design

®

•

Supports Intel

Turbo Boost 2.0 Technology

®

•

Supports Intel

K-Series unlocked CPU

•

Supports ASRock BCLK Full-range Overclocking

®

Chipset

•

Intel

Z87

Memory

•

Dual Channel DDR3 Memory Technology

•

4 x DDR3 DIMM slots

•

Supports DDR3 2933+(OC)/2800(OC)/2400(OC)/2133(OC)/

1866(OC)/1600/1333/1066 non-ECC, un-buered memory

•

Max. capacity of system memory: 32GB

(see CAUTION)

®

•

Supports Intel

Extreme Memory Prole (XMP)1.3/1.2

•

Distortion-Free Slot

Expansion

•

3 x PCI Express 3.0 x16 slots (PCIE2/PCIE4/PCIE5: single

Slot

at x16 (PCIE2); dual at x8 (PCIE2) / x8 (PCIE4); triple at x8

(PCIE2) / x4 (PCIE4) / x4 (PCIE5))

•

2 x PCI Express 2.0 x1 slots

•

2 x PCI slots

TM

TM

and

English

•

Supports AMD Quad CrossFireX

, 3-Way CrossFireX

TM

CrossFireX

TM

TM

•

Supports NVIDIA® Quad SLI

and SLI

6 7

Z87 Extreme4

Graphics

•

Intel® HD Graphics Built-in Visuals and the VGA outputs can

be supported only with processors which are GPU integrated.

•

Supports Intel® HD Graphics Built-in Visuals : Intel® Quick

Sync Video with AVC, MVC (S3D) and MPEG-2 Full

TM

HW Encode1, Intel® InTru

3D, Intel® Clear Video HD

TM

Technology, Intel® Insider

, Intel® HD Graphics 4400/4600

•

Pixel Shader 5.0, DirectX 11.1

•

Max. shared memory 1792MB

•

Four VGA Output options: D-sub, DVI-D, HDMI and

DisplayPort

•

Supports Triple Monitors

•

Supports HDMI Technology with max. resolution up to 4K ×

2K (4096x2304) @ 24Hz

•

Supports DVI-D with max. resolution up to 1920x1200 @

60Hz

•

Supports D-Sub with max. resolution up to 1920x1200 @

60Hz

•

Supports DisplayPort with max. resolution up to 4K × 2K

(4096x2304) @ 24Hz

•

Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and

HBR (High Bit Rate Audio) with HDMI (Compliant HDMI

monitor is required)

•

Supports HDCP function with DVI-D, HDMI and

DisplayPort ports

•

Supports Full HD 1080p Blu-ray (BD) / HD-DVD playback

with DVI-I, HDMI and DisplayPort ports

Audio

•

7.1 CH HD Audio with Content Protection (Realtek ALC1150

Audio Codec)

•

Premium Blu-ray audio support

•

Supports Purity Sound™

- 115dB SNR DAC with dierential amplier

- TI® NE5532 Premium Headset Amplier (supports up to

600 Ohms headsets)

- Direct Drive Technology

- EMI shielding cover

- PCB isolate shielding

English

•

Supports DTS Connect

6 7

ASRock FAN-Tastic Tuning

ASRock FAN-Tastic Tuning is included in A-Tuning. Congure up to ve dierent

fan speeds using the graph. e fans will automatically shi to the next speed level

when the assigned temperature is met.

ASRock Distortion-Free Slot

ASRock's new pin design for the memory slots and PCIe slots may appear to be the

same as former designs, but actually eectively reduces distortion and promotes

performance, because we strive for perfection even in the most trivial details.

English
