ASRock  P75 Pro3  Motherboard

English

Copyright Notice:

No part of this installation guide may be reproduced, transcribed, transmitted, or trans-

lated in any language, in any form or by any means, except duplication of documentation

by the purchaser for backup purpose, without written consent of ASRock Inc.

Products and corporate names appearing in this guide may or may not be registered

trademarks or copyrights of their respective companies, and are used only for identi

fi

 ca-

tion or explanation and to the owners’ bene

fi

 t, without intent to infringe.

Disclaimer:

Speci

fi

 cations and information contained in this guide are furnished for informational use

only and subject to change without notice, and should not be constructed as a commit-

ment by ASRock. ASRock assumes no responsibility for any errors or omissions that may

appear in this guide.

With respect to the contents of this guide, ASRock does not provide warranty of any kind,

either expressed or implied, including but not limited to the implied warranties or condi-

tions of merchantability or

fi

 tness for a particular purpose. In no event shall ASRock, its

directors, of

fi

 cers, employees, or agents be liable for any indirect, special, incidental, or

consequential damages (including damages for loss of pro

fi

 ts, loss of business, loss of

data, interruption of business and the like), even if ASRock has been advised of the pos-

sibility of such damages arising from any defect or error in the guide or product.

This device complies with Part 15 of the FCC Rules. Operation is subject to the following

two conditions:

(1)  this device may not cause harmful interference, and

(2)  this device must accept any interference received, including interference that

may cause undesired operation.

CALIFORNIA, USA ONLY

The Lithium battery adopted on this motherboard contains Perchlorate, a toxic substance

controlled in Perchlorate Best Management Practices (BMP) regulations passed by the

California Legislature. When you discard the Lithium battery in California, USA, please

follow the related regulations in advance.

“Perchlorate Material-special handling may apply, see

www.dtsc.ca.gov/hazardouswaste/perchlorate”

ASRock Website: http://www.asrock.com

Published August 2012

Copyright

©

2012 ASRock INC. All rights reserved.

2

ASRock  P75 Pro3  Motherboard

English

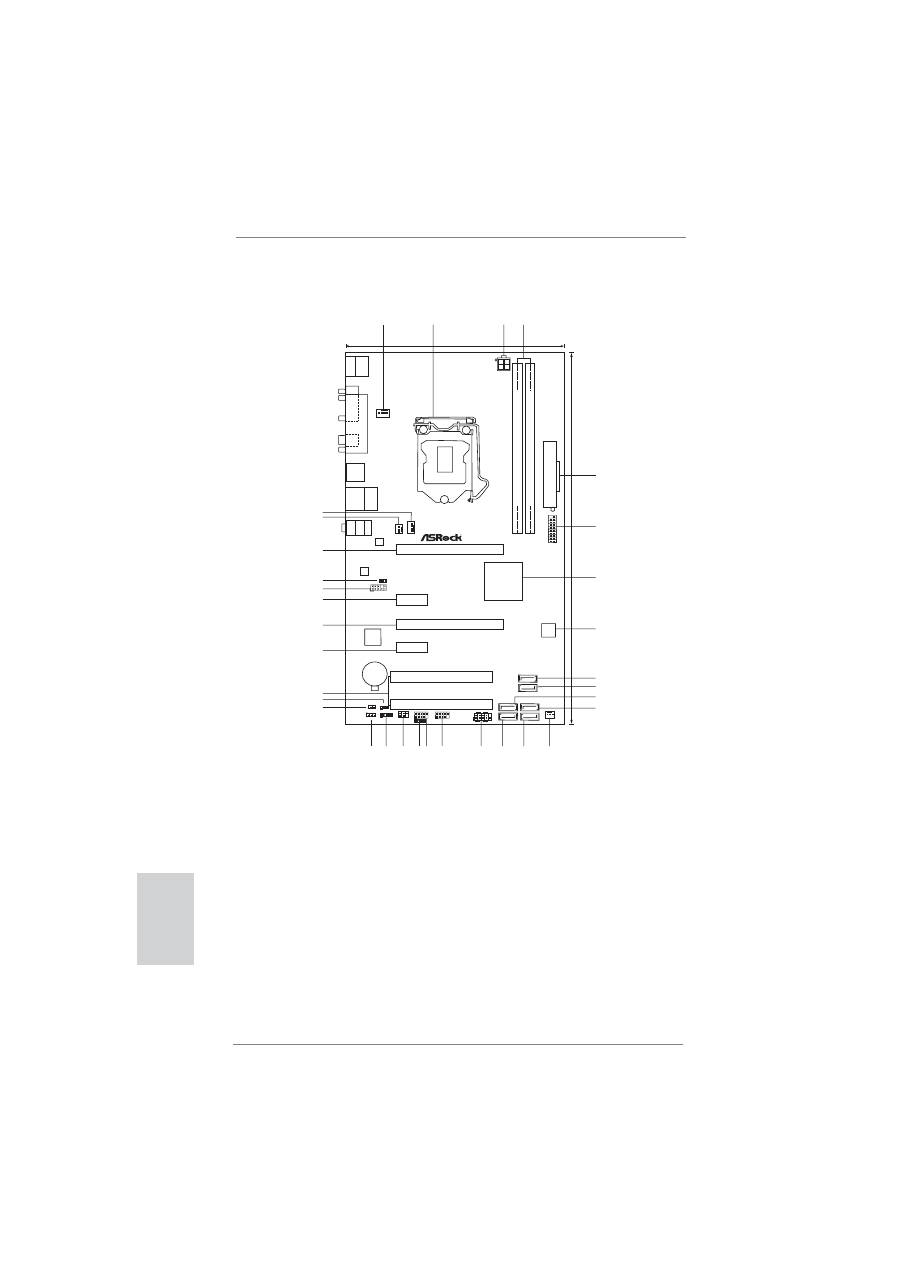

Motherboard Layout

Top:

RJ-45

USB 2.0

T: USB2

B: USB3

USB 3.0

T: USB0

B: USB1

PS2

Mouse/

Keyboard

USB

2

.0

T:

U

S

B

0

B:

USB1

DDR3_A1

(64

bit,

2

40-pin

module)

DDR3_B1

(64

bit,

2

40-pin

module)

T

op:

LINE

IN

Center:

FRONT

Bottom:

MIC

IN

Intel

B75

A

T

XPWR1

64Mb

BIOS

1

USB3_2_3

CMOS

Battery

Super

I/O

AUDIO

CODEC

HD_AUDIO1

1

PCIE1

PCI1

PCIE2

IR1

1

USB4_5

1

CIR1

1

CLRCMOS1

1

HDLED RESET

PLED PWRBTN

PANEL1

1

1

SPEAKER1

P75 Pro3

PCI Express 3.0

ErP/EuP Ready

RoHS

DDR3

LAN

PHY

CPU_FAN1

PWR_FAN1

SATA2_2

SATA2_1

SATA2_4

CHA_FAN1

1

HDMI_SPDIF1

CHA_FAN2

PLED1

1

1

2

3

4

5

6

17.8cm (7.0 in)

30.5cm

(12.0

in)

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

25

26

27

28

29

30

31

32

33

PCIE3

PCIE4

PCI2

X

Fast USB

X

Fast LAN

X

Fast RAM

SATA2_3

SATA3_0

SATA2_5

ATX12V1

PARALLEL

P

ORT

COM1

Coaxial

SPDIF

1

CI1

USB6_7

1

Front

USB

3.0

 1

CPU  Fan  Connector  (CPU_FAN1)

 2

1155-Pin  CPU  Socket

 3

ATX  12V  Power  Connector  (ATX12V1)

 4

2 x 240-pin  DDR3  DIMM  Slots

(DDR3_A1, DDR3_B1, Black)

 5

ATX  Power  Connector  (ATXPWR1)

 6

USB 3.0  Header  (USB3_2_3, Black)

 7

Intel  B75  Chipset

 8

SPI Flash Memory (64Mb)

 9

SATA3  Connector  (SATA3_0, Gray)

10

SATA2  Connector  (SATA2_5, Black)

11

SATA2  Connector  (SATA2_2, Black)

12

SATA2  Connector  (SATA2_4, Black)

13

Chassis  Fan  Connector  (CHA_FAN2)

14

SATA2  Connector  (SATA2_3, Black)

15

SATA2  Connector  (SATA2_1, Black)

16

System  Panel  Header  (PANEL1,  Black)

17

USB 2.0  Header  (USB6_7,  Black)

18

USB 2.0  Header  (USB4_5,  Black)

19

Consumer  Infrared  Module  Header

 (CIR1,

Gray)

20

Infrared  Module  Header  (IR1, Black)

21

Chassis  Speaker  Header  (SPEAKER1, Black)

22

Clear  CMOS  Jumper  (CLRCMOS1)

23

Chassis  Intrusion  Header  (CI1)

24

Power  LED  Header  (PLED1)

25

PCI  Slots  (PCI1-2, Black)

26

PCI  Express  2.0  x1  Slot  (PCIE4, Black)

27

PCI  Express  2.0  x16  Slot  (PCIE3, Black)

28

PCI  Express  2.0  x1  Slot  (PCIE2, Black)

29

Front  Panel  Audio  Header  (HD_AUDIO1, Black)

30

HDMI_SPDIF  Header  (HDMI_SPDIF1, Black)

31

PCI  Express  3.0  x16  Slot  (PCIE1, Black)

32

Power  Fan  Connector  (PWR_FAN1)

33

Chassis  Fan  Connector  (CHA_FAN1)

3

ASRock  P75 Pro3  Motherboard

English

I/O Panel

* There is one LED next to the LAN port. Please refer to the table below for the LAN port LED

   indications.



LAN Port LED Indications

       Activity/Link LED

SPEED LED

Status        Description            Status           Description

Off           No Link               Off              10Mbps connection

Blinking   Data Activity        Orange      100Mbps connection

On           Link

         Green        1Gbps connection

1

USB 2.0  Ports  (USB01)

2

Parallel  Port

      * 3

LAN  RJ-45  Port

4

Line  In  (Light  Blue)

     ** 5

Front  Speaker  (Lime)

6

Microphone  (Pink)

7

USB 2.0  Ports  (USB23)

8

USB 3.0  Ports  (USB3_0_1)

9

Coaxial  SPDIF  Out  Port

 10

COM

Port

11

PS/2  Mouse/Keyboard  Port  (Purple)

ACT/LINK

    LED

SPEED

  LED

LAN Port

** If you enable Multi-Streaming function, this motherboard can support up to 5.1 CH audio only.

    To enable Multi-Streaming function, you need to connect a front panel audio cable to the front

    panel audio header. Please refer to below steps for the software setting of Multi-Streaming.

    For Windows

®

 XP:

    After restarting your computer, you will fi nd “Mixer” tool on your system. Please select “Mixer

    ToolBox”                , click “Enable playback multi-streaming”, and click “ok”. Choose “2CH” or

    “4CH” and then you are allowed to select “Realtek HDA Primary output” to use Rear Speaker

    and Front Speaker, or select “Realtek HDA Audio 2nd output” to use front panel audio. Then

    reboot your system.

    For Windows

®

 7 / Vista

TM

:

    After restarting your computer, please double-click “Realtek HD Audio Manager” on the

    system tray. Set “Speaker Confi guration” to “Quadraphonic” or “Stereo”. Click “Device

    advanced settings”, choose “Make front and rear output devices playbacks two different audio

    streams simultaneously”, and click “ok”. Then reboot your system.

1

2

3

4

5

10

6

7

11

8

9

Audio Output Channels   Front Speaker        Line In

Microphone

 Front Panel

(No. 5)

(No. 4)

(No. 6)              Headphone

2 V

--

--

--

4 V

V

--

--

6

V

V V --

8

V

V V V
