Z87 Extreme9/ac
Chapter 2 Installation
is is an ATX form factor motherboard. Before you install the motherboard, study
the conguration of your chassis to ensure that the motherboard ts into it.
Pre-installation Precautions
Take note of the following precautions before you install motherboard components
or change any motherboard settings.
•
Make sure to unplug the power cord before installing or removing the motherboard.
Failure to do so may cause physical injuries to you and damages to motherboard
components.
•
In order to avoid damage from static electricity to the motherboard’s components,
NEVER place your motherboard directly on a carpet. Also remember to use a grounded
wrist strap or touch a safety grounded object before you handle the components.
•
Hold components by the edges and do not touch the ICs.
•
Whenever you uninstall any components, place them on a grounded anti-static pad or
in the bag that comes with the components.
•
When placing screws to secure the motherboard to the chassis, please do not over-
tighten the screws! Doing so may damage the motherboard.
English
18 19
Z87 Extreme9/ac
2.1 Installing the CPU
1. Before you insert the 1150-Pin CPU into the socket, please check if the PnP cap is on the
socket, if the CPU surface is unclean, or if there are any bent pins in the socket. Do not
force to insert the CPU into the socket if above situation is found. Otherwise, the CPU
will be seriously damaged.
2. Unplug all power cables before installing the CPU.
1
A
B
2
English
20 21
Z87 Extreme9/ac
3
4
5
English
20 21
Z87 Extreme9/ac
Please save and replace the cover if the processor is removed. e cover must be placed if
you wish to return the motherboard for aer service.
English
22 23
Z87 Extreme9/ac

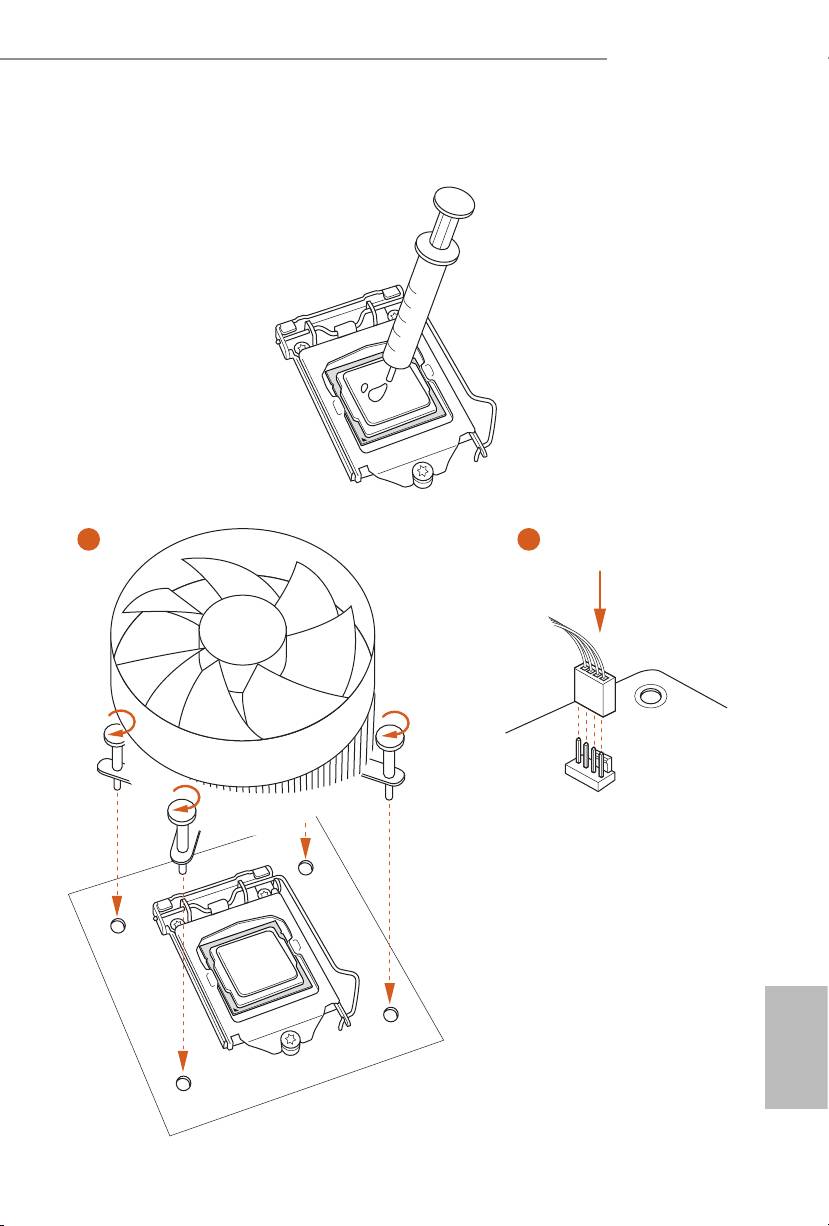

2.2 Installing the CPU Fan and Heatsink
1 2
FAN
CPU_
English
22 23
Z87 Extreme9/ac
2.3 Installing Memory Modules (DIMM)
is motherboard provides four 240-pin DDR3 (Double Data Rate 3) DIMM slots,
and supports Dual Channel Memory Technology.
1. For dual channel conguration, you always need to install identical (the same brand,
speed, size and chip-type) DDR3 DIMM pairs.
2. It is unable to activate Dual Channel Memory Technology with only one or three memory
module installed.
3. It is not allowed to install a DDR or DDR2 memory module into a DDR3 slot; otherwise,
this motherboard and DIMM may be damaged.
Dual Channel Memory Conguration
Priority DDR3_A1 DDR3_A2 DDR3_B1 DDR3_B2
1 Populated Populated
2 Populated Populated
3 Populated Populated Populated Populated
e DIMM only ts in one correct orientation. It will cause permanent damage to the
motherboard and the DIMM if you force the DIMM into the slot at incorrect orientation.
English
24 25
Z87 Extreme9/ac
1
2
3
English
24 25
Z87 Extreme9/ac
2.4 Expansion Slots (PCI and PCI Express Slots)
ere are 6 PCI Express slots and 1 mini-PCI Express slot on the motherboard.
Before installing an expansion card, please make sure that the power supply is switched o
or the power cord is unplugged. Please read the documentation of the expansion card and
make necessary hardware settings for the card before you start the installation.
PCIe slots:
PCIE1 (PCIe 3.0 x16 slot) is used for PCI Express x16 lane width graphics cards.
PCIE2 (PCIe 3.0 x16 slot) is used for PCI Express x16 lane width graphics cards.
PCIE3 (PCIe 3.0 x16 slot) is used for PCI Express x8 lane width graphics cards.
PCIE4 (PCIe 3.0 x16 slot) is used for PCI Express x8 lane width graphics cards.
PCIE5 (PCIe 2.0 x1 slot) is used for PCI Express x1 lane width cards.
PCIE6 (PCIe 3.0 x16 slot) is used for PCI Express x8 lane width graphics cards.
mini-PCIe slots:
MINI_PCIE1 (mini-PCIe slot) is used for WiFi + BT module.
PCIe Slot Congurations
PCIE1 PCIE2 PCIE3 PCIE4 PCIE6
Single Graphics Card N/A x16 N/A N/A N/A
Two Graphics Cards in
TM
TM
CrossFireX
or SLI
x16 N/A N/A x16 N/A
Mode
ree Graphics Cards in
TM
3-Way CrossFireX
Mode
x16 N/A x8 x8 N/A
TM
or 3-Way SLI
Mode
Four Graphics Cards in
TM
4-Way CrossFireX
Mode
x8 N/A x8 x8 x8
TM
or 4-Way SLI
Mode
English
For a better thermal environment, please connect a chassis fan to the motherboard’s chas-
sis fan connector (CHA_FAN1, CHA_FAN2 or CHA_FAN3) when using multiple graphics
cards.
26 27
Z87 Extreme9/ac
2.5 Jumpers Setup
e illustration shows how jumpers are setup. When the jumper cap is placed on
the pins, the jumper is “Short”. If no jumper cap is placed on the pins, the jumper
is “Open”. e illustration shows a 3-pin jumper whose pin1 and pin2 are “Short”
when a jumper cap is placed on these 2 pins.
Clear CMOS Jumper
(CLRCMOS1)
Clear CMOSDefault
(see p.1, No. 24)
CLRCMOS1 allows you to clear the data in CMOS. To clear and reset the system
parameters to default setup, please turn o the computer and unplug the power
cord from the power supply. Aer waiting for 15 seconds, use a jumper cap to
short pin2 and pin3 on CLRCMOS1 for 5 seconds. However, please do not clear
the CMOS right aer you update the BIOS. If you need to clear the CMOS when
you just nish updating the BIOS, you must boot up the system rst, and then shut
it down before you do the clear-CMOS action. Please be noted that the password,
date, time, and user default prole will be cleared only if the CMOS battery is
removed.
e Clear CMOS Button has the same function as the Clear CMOS jumper.
English
26 27
Z87 Extreme9/ac
2.6 Onboard Headers and Connectors
PLED+
System Panel Header
Connect the power
PLED-
PWRBTN#
(9-pin PANEL1)
GND
switch, reset switch and
(see p.1, No. 22)
system status indicator on
the chassis to this header
R ESET#
GND
according to the pin
HDLED-
HDLED+
assignments below. Note
the positive and negative
pins before connecting
the cables.
English
28 29
1
Onboard headers and connectors are NOT jumpers. Do NOT place jumper caps over these
headers and connectors. Placing jumper caps over the headers and connectors will cause
permanent damage to the motherboard.
GND
PWRBTN (Power Switch):
Connect to the power switch on the chassis front panel. You may congure the way to turn
o your system using the power switch.
RESET (Reset Switch):
Connect to the reset switch on the chassis front panel. Press the reset switch to restart the
computer if the computer freezes and fails to perform a normal restart.
PLED (System Power LED):
Connect to the power status indicator on the chassis front panel. e LED is on when the
system is operating. e LED keeps blinking when the system is in S1/S3 sleep state. e
LED is o when the system is in S4 sleep state or powered o (S5).
HDLED (Hard Drive Activity LED):
Connect to the hard drive activity LED on the chassis front panel. e LED is on when the
hard drive is reading or writing data.
e front panel design may dier by chassis. A front panel module mainly consists of power
switch, reset switch, power LED, hard drive activity LED, speaker and etc. When connect-
ing your chassis front panel module to this header, make sure the wire assignments and the
pin assignments are matched correctly.
Z87 Extreme9/ac
Power LED Header
Please connect the chassis
(3-pin PLED1)
power LED to this header
(see p.1, No. 23)
to
indicate the system’s
power status.
Serial ATA3 Connectors
ese ten SATA3
(SATA3_0_1:
connectors support SATA
see p.1, No. 14)
data cables for internal
(SATA3_2_3:
storage devices with up
see p.1, No. 15)
to 6.0 Gb/s data transfer
(SATA3_4_5:
rate. If the eSATA port
see p.1, No. 16)
on the rear I/O has been
(SATA3_A1_A2:
connected, the internal
see p.1, No. 12)
SATA3_A4 will not
(SATA3_A3_A4:
function.
see p.1, No. 13)
To minimize the boot
time, use Intel® Z87 SATA
ports (SATA3_0) for your
bootable devices.
USB 2.0 Headers
Besides two USB 2.0 ports
(9-pin USB2_3)
on the I/O panel, there
(see p.1, No. 28)
are three headers and one
(9-pin USB4_5)
port on this motherboard.
(see p.1, No. 27)
Each USB 2.0 header can
(9-pin USB6_7)
support two ports.
(see p.1, No. 26)
(USB8)
(see p.1, No. 25)
English
28 29
1
PLED-
PLED+
PLED+
SATA3_A1_A2SATA3_A3_A4
SATA3_0_1SATA3_4_5 SATA3_2_3
USB_PWR
P-
P+
GND
DUMMY
1
GND
P+
P-
USB_PWR
Z87 Extreme9/ac
USB 3.0 Headers
Besides six USB 3.0 ports
(19-pin USB3_6_7)
on the I/O panel, there
(see p.1, No. 10)
are two headers on this
(19-pin USB3_8_9)
motherboard. Each USB
(see p.1, No. 11)
3.0 header can support
two ports.
Front Panel Audio Header
is header is for
(9-pin HD_AUDIO1)
connecting audio devices
(see p.1, No. 32)
to the front audio panel.
Chassis Speaker Header
Please connect the chassis
(4-pin SPEAKER1)
speaker to this header.
(see p.1, No. 21)
English
30 31
1
VbusVbus
Vbus
IntA_PB_SSRX-
IntA_PA_SSRX-
IntA_PB_SSRX+
IntA_PA_SSRX+
GND
GND
IntA_PB_SSTX-
IntA_PA_SSTX-
IntA_PB_SSTX+
IntA_PA_SSTX+
GND
GND
IntA_PB_D-
IntA_PA_D-
IntA_PB_D+
IntA_PA_D+
Dummy
GND
PRESENCE#
MIC_RET
OUT_RET
1
OUT2_L
J_SENSE
OUT2_R
MIC2_R
MIC2_L
1. High Denition Audio supports Jack Sensing, but the panel wire on the chassis must sup-
port HDA to function correctly. Please follow the instructions in our manual and chassis
manual to install your system.
2. If you use an AC’97 audio panel, please install it to the front panel audio header by the
steps below:
A. Connect Mic_IN (MIC) to MIC2_L.
B. Connect Audio_R (RIN) to OUT2_R and Audio_L (LIN) to OUT2_L.
C. Connect Ground (GND) to Ground (GND).
D. MIC_RET and OUT_RET are for the HD audio panel only. You don’t need to connect
them for the AC’97 audio panel.
E. To activate the front mic, go to the “FrontMic” Tab in the Realtek Control panel and
adjust “Recording Volume”.
1
+5V
DUMMY
DUMMY
SPEAKER
Z87 Extreme9/ac
Chassis and Power Fan
Please connect fan cables
Connectors
CHA_FAN_SPEED
to the fan connectors and
+12V
(4-pin CHA_FAN1)
match the black wire to
GND
(see p.1, No. 18)
the ground pin.
(3-pin CHA_FAN2)
(see p.1, No. 33)
(3-pin CHA_FAN3)
(see p.1, No. 1)
(3-pin PWR _FAN1)
(see p.1, No. 6)
CPU Fan Connectors
is motherboard pro-
(4-pin CPU_FAN1)
vides a 4-Pin CPU fan
(see p.1, No. 4)
(Quiet Fan) connector.
If you plan to connect a
(3-pin CPU_FAN2)
3-Pin CPU fan, please
(see p.1, No. 5)
connect it to Pin 1-3.
ATX Power Connector
is motherboard pro-
(24-pin ATXPWR1)
vides a 24-pin ATX power
(see p.1, No. 9)
connector. To use a 20-pin
ATX power supply, please
plug it along Pin 1 and Pin
13.
ATX 12V Power
is motherboard pro-
Connector
vides two 8-pin ATX 12V
(8-pin ATX12V1)
power connectors. To use
(see p.1, No. 2)
a 4-pin ATX power sup-
(8-pin ATX12V2)
ply, please plug it along
(see p.1, No. 3)
Pin 1 and Pin 5.
English
30 31
FAN_SPEED_CONTROL
GND
GND
+12V
CPU_FAN_SPEED
+12V
CPU_FAN_SPEED
FA
N_SPEED_CONTROL
4
1
8 5
12
24
1
13
Z87 Extreme9/ac
SLI/XFIRE Power
Please connect this
Connector
connector with a hard
(4-pin SLI/XFIRE_
disk power connector
PWR1)
when two graphics cards
(see p.1, No. 30)
are installed on this
motherboard.
IRTX
Infrared Module Header
is header supports an optional
+5VSB
DUMMY
(5-pin IR1)
wireless transmitting and
(see p.1, No. 29)
receiving infrared module.
1
GND
IRRX
RRXD1
Serial Port Header
is COM1 header
DDTR#1
DDSR#1
(9-pin COM1)
CCTS#1
supports a serial port
(see p.1, No. 31)
module.
RRTS#1
GND
TTXD1
DDCD#1
English
32 33
1
RRI#1
Z87 Extreme9/ac
2.7 Smart Switches
e motherboard has three smart switches: Power Switch, Reset Switch and Clear
CMOS Button, allowing users to quickly turn on/o the system, reset the system or
clear the CMOS values.
Power Switch
Power Switch allows users
Power
(PWRBTN)
to quickly turn on/o the
(see p.1, No. 19)
system.
Reset Switch
Reset Switch allows
(RSTBTN)
Reset
users to quickly reset the
(see p.1, No. 20)
system.
BIOS Selection Switch
BIOS Selection Switch allows
(BIOS_SEL1)
the system to boot from either
(see p.1 No. 17)
BIOS A or BIOS B.
English
32 33
AB
is motherboard has two BIOS chips, a primary BIOS (BIOS_A) and a backup BIOS (BIOS_
B), which enhances the safety and stability of your system. Normally, the system will work
on the primary BIOS. However, if the primary BIOS is corrupted or damaged, just ip the
BIOS Selection Switch to “B”, then the backup BIOS will take over on the next system boot.
Aer that, use “Secure Backup UEFI” in the UEFI Setup Utility to duplicate a working copy
of the BIOS les to the primary BIOS to ensure normal system operation. For safety issues,
users are not able to update the backup BIOS manually. Users may refer to the BIOS LEDs
(BIOS_A_LED or BIOS_B_LED) to identify which BIOS is currently activated.
