QUICK MANUAL

Installation and Operating Instructions

17.0"/19.0" TFT LCD MONITOR

VMC-17LCDM

VMC-19LEDM

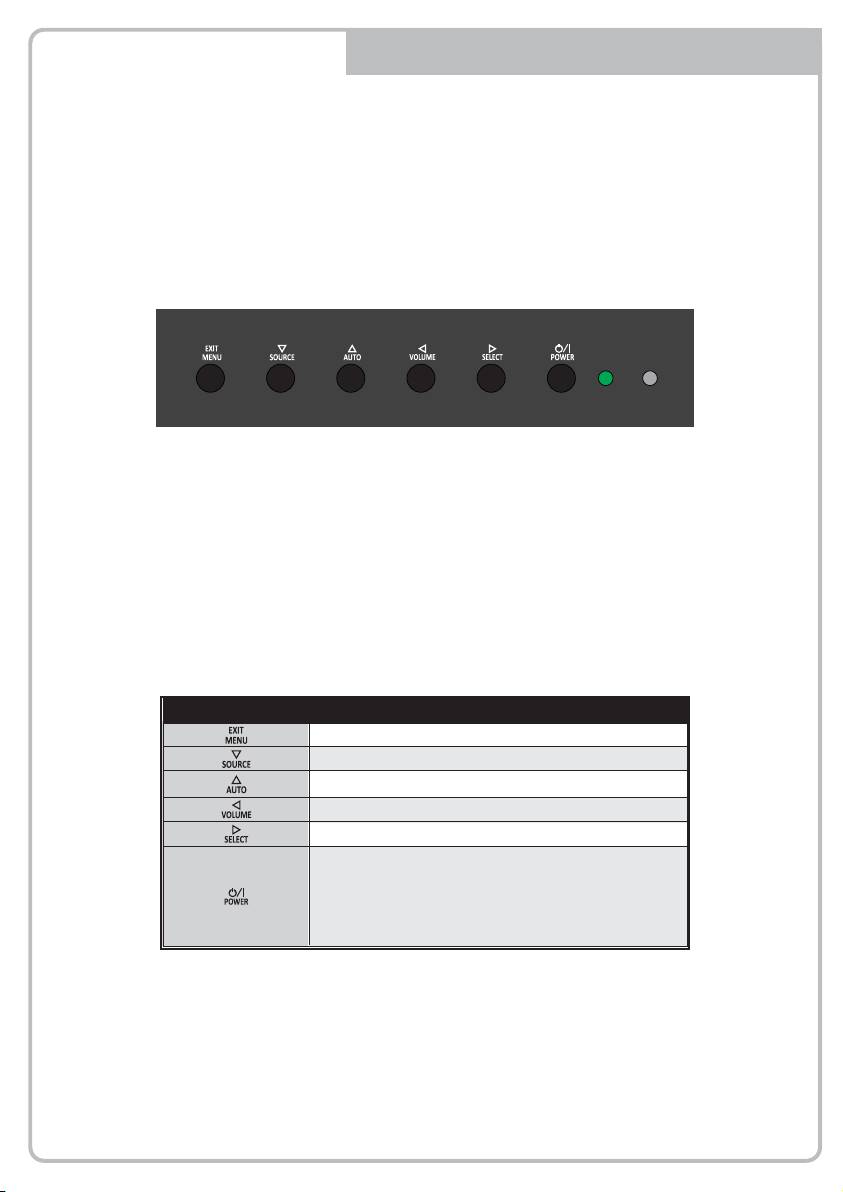

KEY BUTTON

SHORT KEY FUNCTION

OSD Key Function

Activates and exit the OSD

Select input source, and select the OSD menu

Move the OSD menu and auto adjustment of RGB source

Decrease the level of volume and move the previous menu

Increase the level of volume and select rhe OSD menu

Turns the power ON or OFF. There will be a few seconds

delay before the display appears. The power LED (next to the

power switch) lights with green when the power is turned ON.

The power is turned off by pressing the power switch again

and the power LED goes red.

CONNECTION

1 2 3 4 5 6 7 8

1

HDMI

2

VGA

HDMI signal input

VGA (PC RGB) signal input

3

VIDEO-1 IN / OUT

4

VIDEO-2 IN / OUT

VIDEO-1 signal input / looping out

VIDEO-2 signal input / looping out

5

AUDIO (VIDEO)

6

S-VIDEO

Stereo audio input for VIDEO or S-VIDEO

S-VIDEO signal input

7

AUDIO (PC)

8

DC12V

Stereo audio input for VGA

DC adapter input

INPUT SELECT

1. Press the SOURCE button and then ▲/▼ Button

AV1

to move the source

AV2

2. Press the ►button to select the source

3. Press the MENU/EXIT Button to exit the INPUT menu.

SVIDEO

HDMI

PC

Inputs can be set to AV1, AV2, S-VIDEO, HDMI and PC mode.

VOLUME MENU

Volume

50

Press the ◄ / ►button for adjusting the volume up and down.

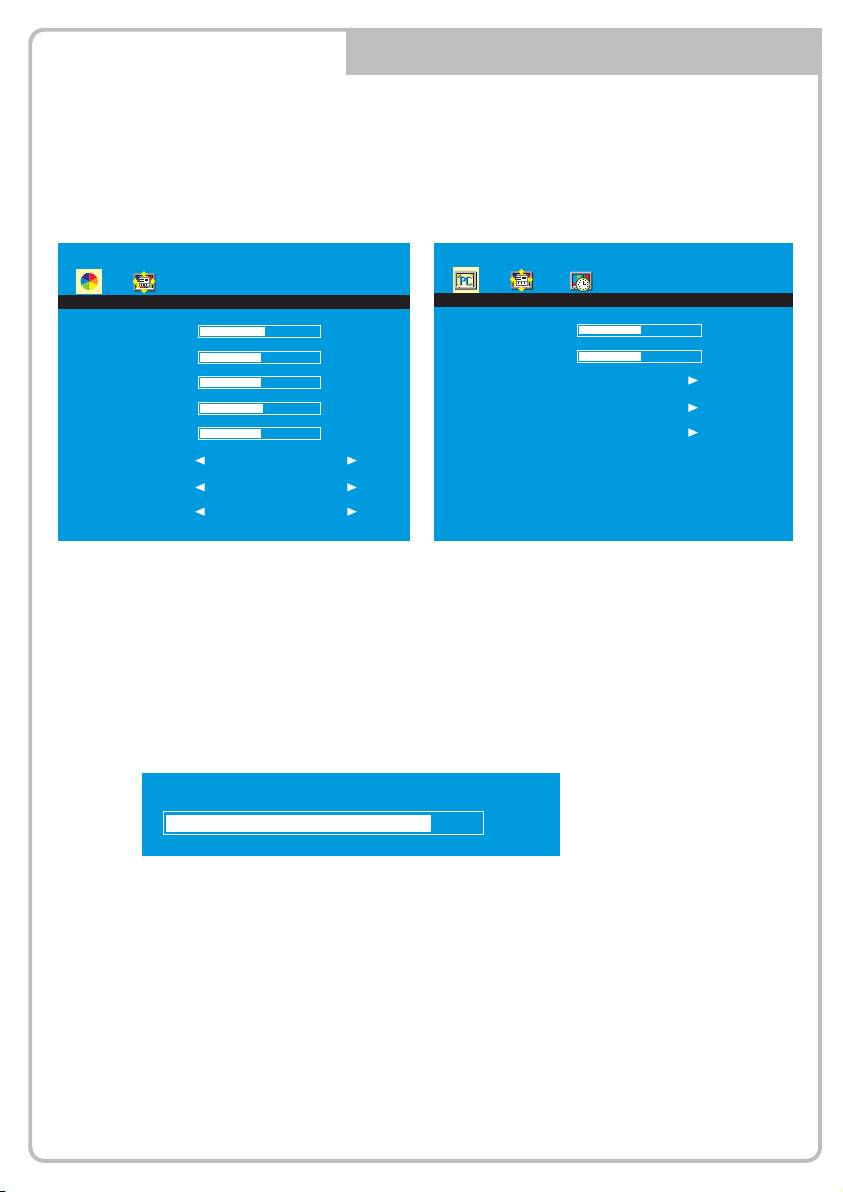

PICTURE MENU

AV1/2, S-VIDEO & HDMI Mode

PC Mode only



Contrast

57

Contrast

50

Brightness

50

Brightness

50

Tint

50

Color Tone

Color

55

Auto

Sharpness

51

Color Auto

Color Tone

Normal

Scale

Full

Picture Mode

Standard

1. Press the MENU/EXIT Button and then ◄ / ► Button to select the PICTURE menu.

2. Press the ▲or ▼ Button and then button to select the Button to select the adjustment

item you need.

3. Press the ◄ or ►Button to active the item.

Ex) if you select the BRIGHTNESS, then the below picture appears on the bottom screen.

Brightness

80

4. ‘Auto’ function is adjusting the location of screen by receiving the sync signal from PC.

Ex) Resolution change

5. ‘Color Auto’ is adjusting the optimum color coordination automatically.

6. Press the MENU/EXIT button to move to the previous menu.

SYSTEM MENU

SYSTEM

Key Lock

OFF

Language

English

H-Position

50

V-Position

50

Duration

15

Halftone

100

DPMS

OFF

No Operation

OFF

Reset

1. Press the MENU/EXIT Button and then ◄ / ► Button to select the SYSTEM menu.

2. Press the ▲ or ▼ Button and then button to select the Button to select the

adjustment item you need.

3. Press the ◄ or ►Button to active the item.

4. ‘Key Lock’ function is adjust the button lock option.

Release the lock - Press KEY LOCK button on the remote controller.

- Press & button on the key pad.

5. ‘Duration’ function is adjust the time to display OSD menu.

6. ‘Halftone’ function is adjust the transparency of the OSD menu.

7. ‘DPMS’ function is adjust the time to turn power off during no input signal.

8. ‘No Operation’ function is adjust the time to turn power off during no input key button.

FUNCTION MENU

PC Mode only

FUNCTION

H-Position

50

V-Position

50

Clock

100

Phase

100

1. Press the MENU/EXIT Button and then ◄ / ► Button to select the FUNCTION menu.

2. Press the ▲or ▼ Button and then button to select the Button to select the adjustment

item you need.

3. Press the ◄ or ►Button to active the item.

4. Press the MENU/EXIT button to move to the previous menu.

®

eneo

is a registered trademark of Videor E. Hartig GmbH

Exclusive distribution through specialised trade channels only.

Videor E. Hartig GmbH

Carl-Zeiss-Straße 8 • 63322 Rödermark, Germany

Tel. +49 (0) 6074 / 888-0 • Fax +49 (0) 6074 / 888-100

www.videor.com

Technical changes reserved.

www.eneo-security.com

© Copyright by Videor E. Hartig GmbH 11/2013
