ASRock Fatal1ty 990FX Professional: 2. Installation

2. Installation: ASRock Fatal1ty 990FX Professional

Fatal1ty 990FX Professional Series Motherboard

2. Installation

This is an ATX form factor (12.0-in x 9.6-in, 30.5 cm x 24.4 cm) motherboard.

Before you install the motherboard, study the con

guration of your chassis to ensure

that the motherboard

ts into it.

Pre-installation Precautions

Take note of the following precautions before you install motherboard

components or change any motherboard settings.

Before you install or remove any component, ensure that the

power is switched off or the power cord is detached from the

power supply. Failure to do so may cause severe damage to the

motherboard, peripherals, and/or components.

1. Unplug the power cord from the wall socket before touching any

component.

2. To avoid damaging the motherboard components due to static elec-

tricity, NEVER place your motherboard directly on the carpet or the

like. Also remember to use a grounded wrist strap or touch a safety

grounded object before you handle components.

3. Hold components by the edges and do not touch the ICs.

4. Whenever you uninstall any component, place it on a grounded anti-

static pad or in the bag that comes with the component.

When placing screws into the screw holes to secure the mother-

board to the chassis, please do not over-tighten the screws! Doing

so may damage the motherboard.

English

Fatal1ty 990FX Professional Series Motherboard

2.1 CPU Installation

Step 1. Unlock the socket by lifting the lever up to a 90

angle.

Step 2. Position the CPU directly above the socket such that the CPU corner with

the golden triangle matches the socket corner with a small triangle.

Step 3. Carefully insert the CPU into the socket until it

ts in place.

The CPU

ts only in one correct orientation. DO NOT force the CPU

into the socket to avoid bending of the pins.

Step 4. When the CPU is in place, press it

rmly on the socket while you push

down the socket lever to secure the CPU. The lever clicks on the side tab

to indicate that it is locked.

2.2 Installation of CPU Fan and Heatsink

After you install the CPU into this motherboard, it is necessary to install a

larger heatsink and cooling fan to dissipate heat. You also need to spray

thermal grease between the CPU and the heatsink to improve heat dis-

sipation. Make sure that the CPU and the heatsink are securely fastened

and in good contact with each other. Then connect the CPU fan to the

CPU FAN connector (CPU_FAN1, see Page 4, No. 4 or CPU_FAN2, see

Page 4, No. 5). For proper installation, please kindly refer to the instruc-

tion manuals of the CPU fan and the heatsink.

STEP 1:

Lift Up The Socket Lever

STEP 2 / STEP 3:

Match The CPU Golden Triangle

To The Socket Corner Small

Triangle

STEP 4:

Push Down And Lock

The Socket Lever

Lever 90° Up

CPU Golden Triangle

Socker Corner

Small Triangle

English

Fatal1ty 990FX Professional Series Motherboard

English

2.3 Installation of Memory Modules (DIMM)

This motherboard provides four 240-pin DDR3 (Double Data Rate 3) DIMM slots,

and supports Dual Channel Memory Technology. For dual channel con

guration,

you always need to install

identical

(the same brand, speed, size and chip-type)

DDR3 DIMM pair in the slots of the same color. In other words, you have to install

identical

DDR3 DIMM pair in

Dual Channel A

(DDR3_A1 and DDR3_B1; Red

slots; see p.4 No.8) or

identical

DDR3 DIMM pair in

Dual Channel B

(DDR3_

A2 and DDR3_B2; Black slots; see p.4 No.9), so that Dual Channel Memory

Technology can be activated. This motherboard also allows you to install four DDR3

DIMMs for dual channel con

guration, and please install

identical

DDR3 DIMMs in

all four slots. You may refer to the Dual Channel Memory Con

guration Table below.

Dual Channel Memory Con

gurations

DDR3_A1

DDR3_A2

DDR3_B1 DDR3_B2

(Red Slot) (Black Slot)

(1)

Populated -

Populated

(2)

Populated - Populated

(3)*

Populated

Populated Populated

For the con

guration (3), please install

identical

DDR3 DIMMs in all four

slots.

1. Please install the memory module into the black slot (DDR3_A2

and DDR3_B2) for the

rst priority.

2. If you want to install two memory modules, for optimal compatibility

and reliability, it is recommended to install them in the slots of the

same color. In other words, install them either in the set of red slots

(DDR3_A1 and DDR3_B1), or in the set of black slots (DDR3_A2

and DDR3_B2).

3. If only one memory module or three memory modules are installed

in the DDR3 DIMM slots on this motherboard, it is unable to activate

the Dual Channel Memory Technology.

4. If a pair of memory modules is NOT installed in the same Dual

Channel, for example, installing a pair of memory modules in

DDR3_A1 and DDR3_A2, it is unable to activate the Dual Channel

Memory Technology .

5. It is not allowed to install a DDR or DDR2 memory module into

DDR3 slot; otherwise, this motherboard and DIMM may be dam-

aged.

6. If you adopt DDR3 2100 memory modules on this motherboard, it is

recommended to install them on DDR3_A2 and DDR3_B2 slots.

Fatal1ty 990FX Professional Series Motherboard

Installing a DIMM

Please make sure to disconnect power supply before adding or

removing DIMMs or the system components.

Step 1. Unlock a DIMM slot by pressing the retaining clips outward.

Step 2. Align a DIMM on the slot such that the notch on the DIMM matches the

break on the slot.

The DIMM only

ts in one correct orientation. It will cause permanent

damage to the motherboard and the DIMM if you force the DIMM into

the slot at incorrect orientation.

Step 3. Firmly insert the DIMM into the slot until the retaining clips at both ends

fully snap back in place and the DIMM is properly seated.

English

Fatal1ty 990FX Professional Series Motherboard

2.4 Expansion Slots (PCI and PCI Express Slots)

There are 2 PCI slots and 5 PCI Express slots on this motherboard.

PCI Slots:

PCI slots are used to install expansion cards that have the 32-bit PCI

interface.

PCIE Slots:

PCIE1 / PCIE3 (PCIE x1 slot; Black) is used for PCI Express cards with

x1 lane width cards, such as Gigabit LAN card and SATA2 card.

PCIE2 / PCIE4 (PCIE x16 slot; Red) is used for PCI Express x16 lane

width graphics cards, or used to install PCI Express graphics cards to

support SLI

and CrossFireX

function.

PCIE5 (PCIE x16 slot; Red) is used for PCI Express x4 lane width

cards, or used to install PCI Express graphics cards to support 3-Way

CrossFireX

function.

1. In single VGA card mode, it is recommended to install a PCI Ex-

press x16 graphics card on PCIE2 slot.

2. In

CrossFireX

or SLI

mode, please install PCI Express x16

graphics cards on PCIE2 and PCIE4 slots. Therefore, both of these

two slots will work at x16 bandwidth.

3. In 3-Way CrossFireX

mode, please install PCI Express x16 graph-

ics cards on PCIE2, PCIE4 and PCIE5 slots. Therefore, PCIE2 and

PCIE4 slots will work at x16 bandwidth while PCIE5 slot will work at

x4 bandwidth.

4. Please connect a chassis fan to motherboard chassis fan connec-

tor (CHA_FAN1, CHA_FAN2 or CHA_FAN3) when using multiple

graphics cards for better thermal environment.

Installing an expansion card

Step 1.

Before installing the expansion card, please make sure that the power

supply is switched off or the power cord is unplugged. Please read the

documentation of the expansion card and make necessary hardware

settings for the card before you start the installation.

Step 2.

Remove the system unit cover (if your motherboard is already installed

in a chassis).

Step 3.

Remove the bracket facing the slot that you intend to use. Keep the

screws for later use.

Step 4.

Align the card connector with the slot and press

rmly until the card is

completely seated on the slot.

Step 5.

Fasten the card to the chassis with screws.

Step 6.

Replace the system cover.

English

Fatal1ty 990FX Professional Series Motherboard

2.5 SLI

and Quad SLI

Operation Guide

This motherboard supports NVIDIA

SLI

and Quad SLI

(Scalable Link Interface)

technology that allows you to install up to three identical PCI Express x16 graphics

cards. Currently,

NVIDIA

SLI

technology supports Windows

XP / XP 64-bit /

Vista

/ Vista

64-bit / 7 / 7 64-bit OS. NVIDIA

Quad SLI

technology support

Windows

Vista

/ Vista

64-bit / 7 / 7 64-bit OS only.

Please follow the installation

procedures in this section.

Requirements

1. For

SLI

technology, you should have two identical SLI

-ready

graphics cards that are NVIDIA

certi

ed. For Quad SLI

technolo-

gy, you should have two identical Quad SLI

-ready graphics cards

that are NVIDIA

certi

ed.

2. Make sure that your graphics card driver supports NVIDIA

SLI

technology. Download the driver from NVIDIA

website

(www.nvidia.com).

3. Make sure that your power supply unit (PSU) can provide at least

the minimum power required by your system. It is recommended

to use NVIDIA

certi

ed PSU. Please refer to NVIDIA

website for

details.

2.5.1 Graphics Card Setup

2.5.1.1 Installing Two SLI

-Ready Graphics Cards

Step 1. Install the identical SLI

-ready graphics cards that are NVIDIA

certi

because different types of graphics cards will not work together properly.

(Even the GPU chips version shall be the same.) Insert one graphics card

into PCIE2 slot and the other graphics card to PCIE4 slot. Make sure that

the cards are properly seated on the slots.

Step2. If required, connect the auxiliary power source to the PCI Express

graphics

cards.

English

Fatal1ty 990FX Professional Series Motherboard

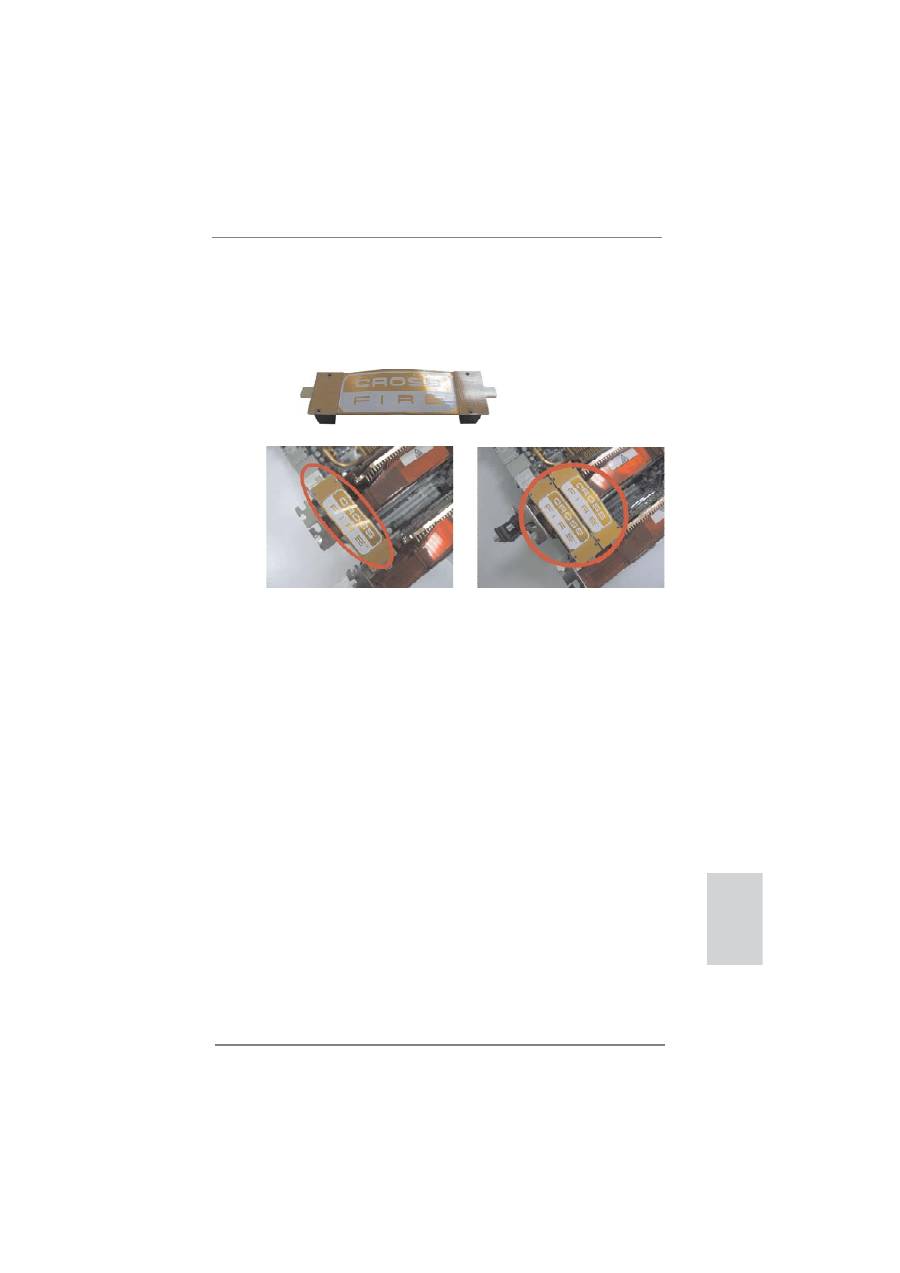

Step3. Align and insert ASRock SLI_Bridge_2S Card to the gold

ngers on each

graphics card. Make sure ASRock SLI_Bridge_2S Card is

rmly in place.

Step4. Connect a VGA cable or a DVI cable to the monitor connector or the DVI

connector of the graphics card that is inserted to PCIE2 slot.

2.5.2 Driver Installation and Setup

Install the graphics card drivers to your system. After that, you can enable the Multi-

Graphics Processing Unit (GPU) feature in the NVIDIA

nView system tray utility.

Please follow the below procedures to enable the multi-GPU feature.

For Windows

XP / XP 64-bit OS:

(For

SLI

mode only)

Double-click

NVIDIA Settings icon

on your Windows

taskbar.

C. Reboot your system.

D. You can freely enjoy the bene

t of SLI

feature.

B. From the pop-up menu, select

Set SLI and PhysX con

guration

. In

Set PhysX GPU acceleration

item, please select

Enabled

. In

Select

an SLI con

guration

item, please select

Enable SLI

. And click

Apply

English

Fatal1ty 990FX Professional Series Motherboard

For

Windows

Vista

/ Vista

64-bit / 7 / 7 64-bit OS:

(For

SLI

and Quad SLI

mode)

A. Click the

Start

icon on your Windows taskbar.

B. From the pop-up menu, select

All Programs

, and then click

NVIDIA

Corporation

Select

NVIDIA Control Panel

tab.

Select

Control Panel

tab.

F. Reboot your system.

G.You can freely enjoy the bene

t of SLI

or Quad SLI

feature.

* SLI

appearing here is a registered trademark of NVIDIA

Technologies Inc., and is used

only for identi

cation or explanation and to the owners’ bene

t, without intent to infringe.

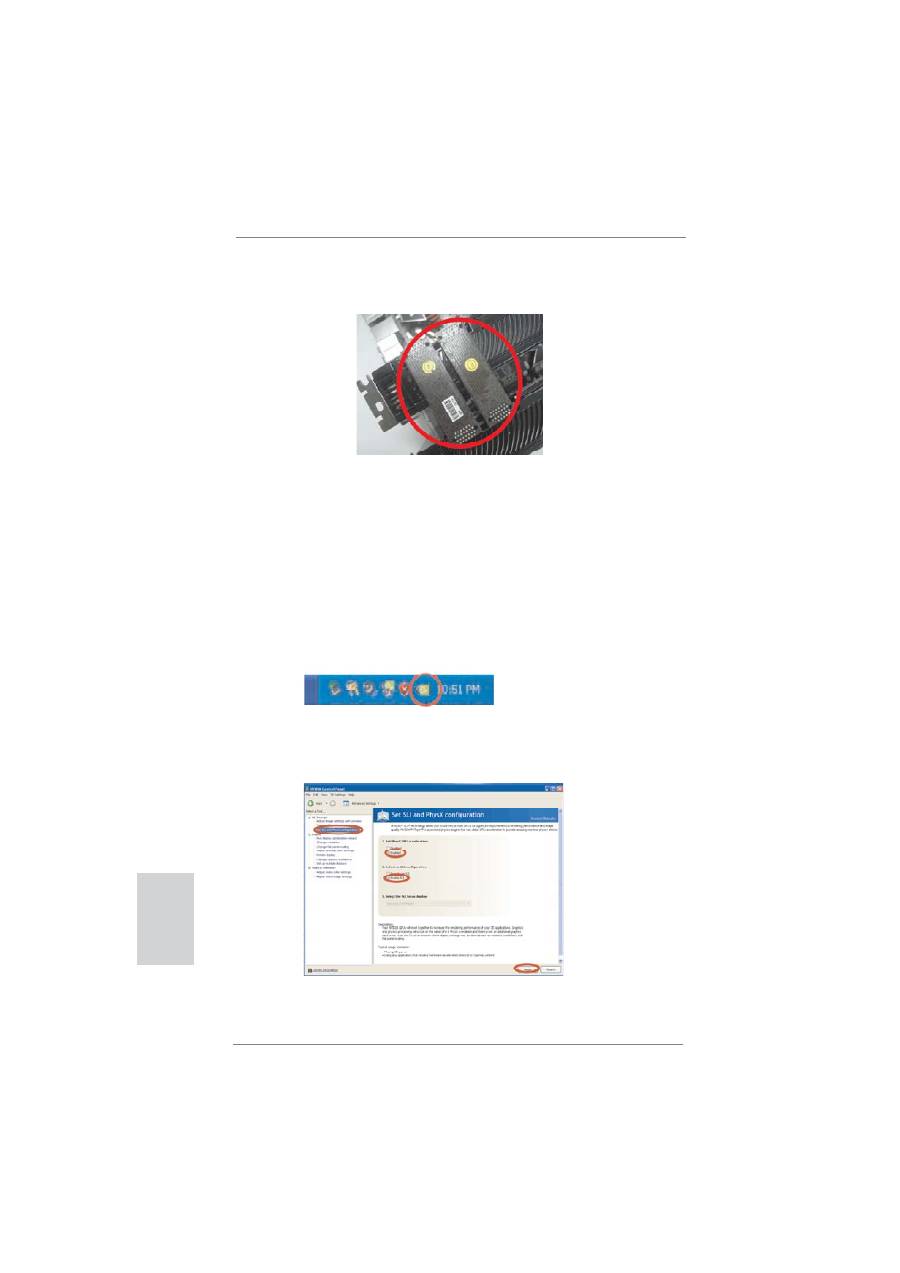

E. From the pop-up menu, select

Set SLI and PhysX con

guration

. In

Set PhysX GPU acceleration

item, please select

Enabled

. In

Select

an SLI con

guration

item, please select

Enable SLI

. And click

Apply

English

Fatal1ty 990FX Professional Series Motherboard

2.6 CrossFireX

, 3-Way CrossFireX

and Quad CrossFireX

Operation Guide

This motherboard supports CrossFireX

, 3-way CrossFireX

and Quad

CrossFireX

feature. CrossFireX

technology offers the most advantageous

means available of combining multiple high performance Graphics Processing

Units (GPU) in a single PC. Combining a range of different operating modes with

intelligent software design and an innovative interconnect mechanism, CrossFireX

enables the highest possible level of performance and image quality in any 3D

application. Currently CrossFireX

feature is supported with Windows

XP with

Service Pack 2 / Vista

/ 7 OS. 3-way CrossFireX

and Quad CrossFireX

feature

are supported with Windows

Vista

/ 7 OS only. Please check AMD website for

AMD

CrossFireX

driver updates.

2.6.1 Graphics Card Setup

2.6.1.1 Installing Two CrossFireX

-Ready Graphics

Cards

Different CrossFireX

cards may require different methods to enable CrossFi-

reX

feature. In below procedures, we use Radeon HD 3870 as the example

graphics card. For other CrossFireX

cards that AMD

has released or will

release in the future, please refer to AMD

graphics card manuals for detailed

installation guide.

Step 1. Insert one Radeon graphics card into PCIE2 slot and the other Radeon

graphics card to PCIE4 slot. Make sure that the cards are properly seated

on the slots.

1. If a customer incorrectly configures their system they will not see the

performance benefi ts of CrossFireX

. All three CrossFireX

components, a

CrossFireX

Ready graphics card, a CrossFireX

Ready motherboard and a

CrossFireX

Edition co-processor graphics card, must be installed correctly

to benefi t from the CrossFireX

multi-GPU platform.

2. If you pair a 12-pipe CrossFireX

Edition card with a 16-pipe card, both

cards will operate as 12-pipe cards while in CrossFireX

mode.

English

Fatal1ty 990FX Professional Series Motherboard

Step 2. Connect two Radeon graphics cards by installing CrossFire Bridge on

CrossFire Bridge Interconnects on the top of Radeon graphics cards.

(CrossFire Bridge is provided with the graphics card you purchase, not

bundled with this motherboard. Please refer to your graphics card vendor

for details.)

CrossFire Bridge

Step 3. Connect the DVI monitor cable to the DVI connector on the Radeon graph-

ics card on PCIE2 slot. (You may use the DVI to D-Sub adapter to convert

the DVI connector to D-Sub interface, and then connect the D-Sub monitor

cable to the DVI to D-Sub adapter.)

English

Fatal1ty 990FX Professional Series Motherboard

2.6.1.2 Installing Three CrossFireX

-Ready Graphics Cards

Step 1. Install one Radeon graphics card to PCIE2 slot. For the proper installation

procedures, please refer to section “Expansion Slots”.

Step 2. Install one Radeon graphics card to PCIE4 slot. For the proper installation

procedures, please refer to section “Expansion Slots”.

Step 3. Install one Radeon graphics card to PCIE5 slot. For the proper installation

procedures, please refer to section “Expansion Slots”.

Step 4. Use one CrossFire

Bridge to connect Radeon graphics cards on PCIE2

and PCIE4 slots, and use the other CrossFire

Bridge to connect Radeon

graphics cards on PCIE4 and PCIE5 slots. (CrossFire

Bridge is provided

with the graphics card you purchase, not bundled with this motherboard.

Please refer to your graphics card vendor for details.)

English

Fatal1ty 990FX Professional Series Motherboard

CrossFire

Bridge

Step 5. Connect the DVI monitor cable to the DVI connector on the Radeon graph-

ics card on PCIE2 slot. (You may use the DVI to D-Sub adapter to convert

the DVI connector to D-Sub interface, and then connect the D-Sub monitor

cable to the DVI to D-Sub adapter.)

English

Fatal1ty 990FX Professional Series Motherboard

The Catalyst Uninstaller is an optional download. We recommend using this

utility to uninstall any previously installed Catalyst drivers prior to installation.

Please check AMD website for ATI

driver updates.

Step 3. Install the required drivers to your system.

For Windows

XP OS:

AMD

recommends Windows

XP Service Pack 2 or higher to be

installed (If you have Windows

XP Service Pack 2 or higher installed

in your system, there is no need to download it again):

http://www.microsoft.com/windowsxp/sp2/default.mspx

B. You must have Microsoft .NET Framework installed prior to

downloading and installing the CATALYST Control Center. Please

check Microsoft website for details.

For

Windows

7 / Vista

OS:

Install the CATALYST Control Center. Please check AMD website for de-

tails.

Step 4. Restart your computer.

Step 5. Install the VGA card drivers to your system, and restart your computer.

Then you will

nd “ATI Catalyst Control Center” on your Windows

taskbar.

ATI Catalyst Control Center

2.6.2 Driver Installation and Setup

Step 1. Power on your computer and boot into OS.

Step 2. Remove the ATI

driver if you have any VGA driver installed in your sys-

tem.

Step 6. Double-click “ATI Catalyst Control Center”. Click “View”, select “CrossFi-

reX

”, and then check the item “Enable CrossFireX

”. Select “2 GPUs”

and click “Apply” (if you install two Radeon graphics cards). Select “3

GPUs” and click “OK” (if you install three Radeon graphics cards).

English

Fatal1ty 990FX Professional Series Motherboard

Although you have selected the option “Enable CrossFire

”, the Cross-

FireX

function may not work actually. Your computer will automatically

reboot. After restarting your computer, please con

rm whether the option

“Enable CrossFire

” in “ATI Catalyst Control Center” is selected or not;

if not, please select it again, and then you are able to enjoy the bene

t of

CrossFireX

feature.

Step 7. You can freely enjoy the bene

t of CrossFireX

, 3-Way CrossFireX

Quad CrossFireX

feature.

* CrossFireX

appearing here is a registered trademark of AMD

Technologies Inc., and is

used only for identi

cation or explanation and to the owners’ bene

t, without intent to infringe.

* For further information of AMD

CrossFireX

technology, please check AMD website for

updates and details.

2.7 Surround Display Feature

This motherboard supports Surround Display upgrade. With the external add-on PCI

Express VGA cards, you can easily enjoy the bene

ts of Surround Display feature.

For the detailed instruction, please refer to the document at the following path in the

Support CD:

..\ Surround Display Information

English

Fatal1ty 990FX Professional Series Motherboard

2.8 Jumpers Setup

The illustration shows how jumpers are

setup. When the jumper cap is placed on

pins, the jumper is “Short”. If no jumper cap

is placed on pins, the jumper is “Open”. The

illustration shows a 3-pin jumper whose

pin1 and pin2 are “Short” when jumper cap

is placed on these 2 pins.

Jumper Setting

Description

Clear CMOS Jumper

(CLRCMOS1)

(see p.4, No. 28)

Note: CLRCMOS1 allows you to clear the data in CMOS. To clear and reset the

system parameters to default setup, please turn off the computer and unplug

the power cord from the power supply. After waiting for 15 seconds, use a

jumper cap to short pin2 and pin3 on CLRCMOS1 for 5 seconds. However,

please do not clear the CMOS right after you update the BIOS. If you need

to clear the CMOS when you just

nish updating the BIOS, you must boot

up the system

rst, and then shut it down before you do the clear-CMOS ac-

tion. Please be noted that the password, date, time, user default pro

le, 1394

GUID and MAC address will be cleared only if the CMOS battery is removed.

Clear CMOS

Default

The Clear CMOS Switch has the same function as the Clear CMOS

jumper.

English

Fatal1ty 990FX Professional Series Motherboard

English

2.9 Onboard Headers and Connectors

Onboard headers and connectors are NOT jumpers. Do NOT place

jumper caps over these headers and connectors. Placing jumper caps

over the headers and connectors will cause permanent damage of the

motherboard!

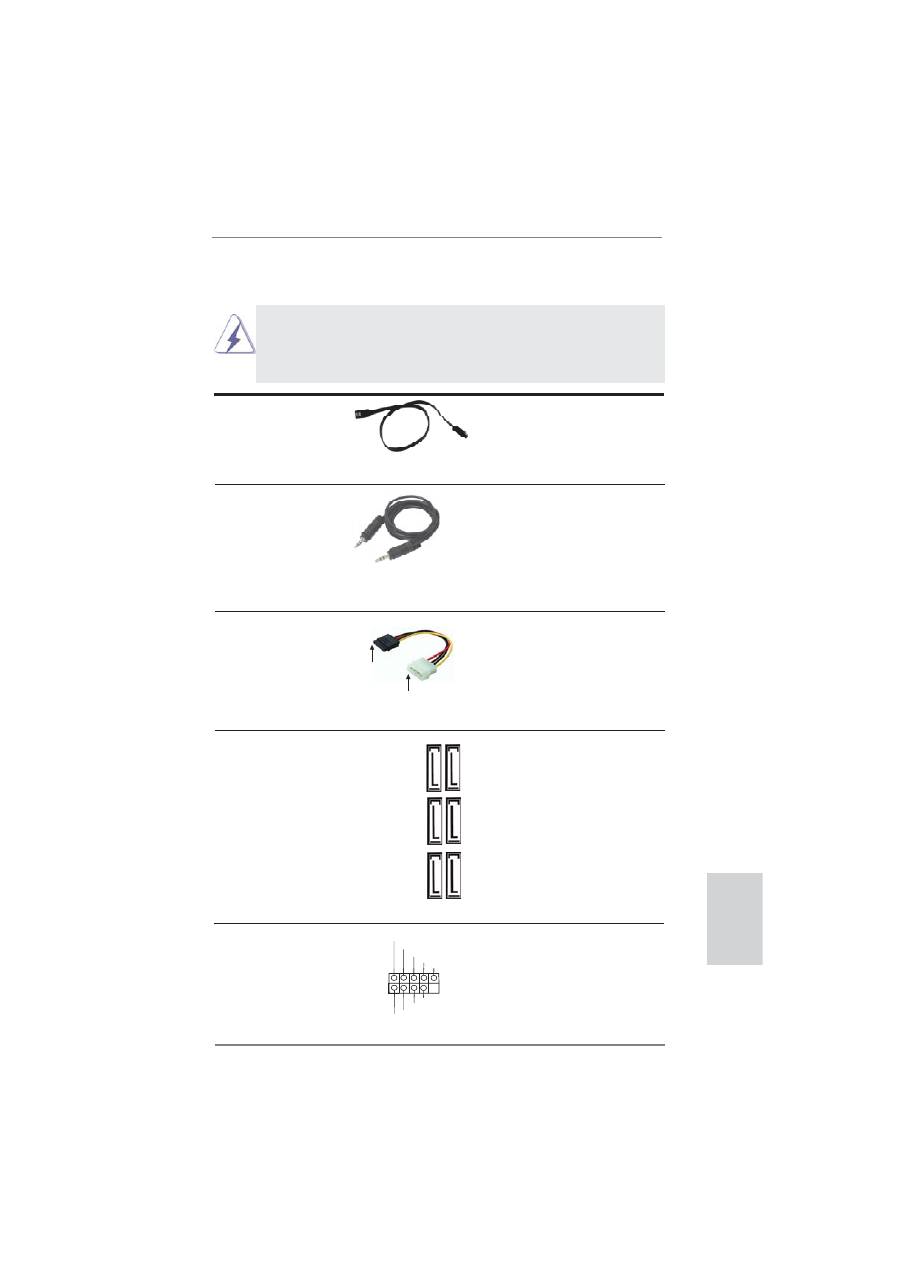

Serial ATA (SATA)

Either end of the SATA data

Data Cable

cable can be connected to the

(Optional)

SATA3 hard disk or the SATA3

connector on this motherboard.

3.5mm Audio Cable

Either end of the 3.5mm audio

(Optional)

cable can be connected to the

portable audio devices, such

as MP3 player and mobile

phone or the Line-in port of

your

PC.

connect to the SATA

HDD power connector

connect to the

power supply

Serial ATA (SATA)

Please connect the black end

Power Cable

of SATA power cable to the

(Optional)

power connector on each drive.

Then connect the white end of

SATA power cable to the power

connector of the power supply.

TA3_1_2 SA

TA3_3_4 SA

TA3_5_6

Serial ATA3 Connectors

These six Serial ATA3

(SATA3_1_2: see p.4, No. 19)

(SATA3) connectors support

(SATA3_3_4: see p.4, No. 18)

SATA data cables for internal

(SATA3_5_6: see p.4, No. 17)

storage devices. The current

SATA3 interface allows up to

6.0 Gb/s data transfer rate.

USB 2.0 Headers

Besides six default USB 2.0

(9-pin USB6_7)

ports on the I/O panel, there

(see p.4 No. 26)

are two USB 2.0 headers on

this motherboard. Each USB 2.0

header can support two USB

2.0

ports.

P-7

P+7

GND

DUMMY

USB PWR

USB_PWR

P-6

P+6

GND

Fatal1ty 990FX Professional Series Motherboard

English

USB 3.0 Header

Besides two default USB 3.0

(19-pin USB3_1_2)

ports on the I/O panel, there are

(see p.4 No. 12)

two USB 3.0 headers on this

motherboard. Each USB 3.0

header can support two USB

3.0

ports.

(19-pin USB3_3_4)

(see p.4 No. 13)

Infrared Module Header

This header supports an

(5-pin IR1)

optional wireless transmitting

(see p.4 No. 31)

and receiving infrared module.

Front Panel Audio Header

This is an interface for the front

(9-pin HD_AUDIO1)

panel audio cable that allows

(see p.4 No. 34)

convenient connection and

control of audio devices.

1. High De

nition Audio supports Jack Sensing, but the panel wire on

the chassis must support HDA to function correctly. Please follow the

instruction in our manual and chassis manual to install your system.

2. If you use AC’97 audio panel, please install it to the front panel audio

(9-pin USB8_9)

(see p.4 No. 25)

Fatal1ty 990FX Professional Series Motherboard

English

System Panel Header

This header accommodates

(9-pin PANEL1)

several system front panel

(see p.4 No. 27)

functions.

Connect the power switch, reset switch and system status indicator

on the chassis to this header according to the pin assignments below.

Note the positive and negative pins before connecting the cables.

PWRBTN (Power Switch):

Connect to the power switch on the chassis front panel. You may con-

gure the way to turn off your system using the power switch.

RESET (Reset Switch):

Connect to the reset switch on the chassis front panel. Press the reset

switch to restart the computer if the computer freezes and fails to per-

form a normal restart.

PLED (System Power LED):

Connect to the power status indicator on the chassis front panel. The

LED is on when the system is operating. The LED keeps blinking

when the sys-tem is in S1 sleep state. The LED is off when the system

is in S3/S4 sleep state or powered off (S5).

HDLED (Hard Drive Activity LED):

Connect to the hard drive activity LED on the chassis front panel. The

LED is on when the hard drive is reading or writing data.

The front panel design may differ by chassis. A front panel module

mainly consists of power switch, reset switch, power LED, hard drive

activity LED, speaker and etc. When connecting your chassis front

panel module to this header, make sure the wire assignments and the

pin assign-ments are matched correctly.

header as below:

A. Connect Mic_IN (MIC) to MIC2_L.

B. Connect Audio_R (RIN) to OUT2_R and Audio_L (LIN) to OUT2_L.

C. Connect Ground (GND) to Ground (GND).

D. MIC_RET and OUT_RET are for HD audio panel only. You don’t

need to connect them for AC’97 audio panel.

E. To activate the front mic.

For Windows

XP / XP 64-bit OS:

Select “Mixer”. Select “Recorder”. Then click “FrontMic”.

For Windows

7 / 7 64-bit / Vista

/ Vista

64-bit OS:

Go to the "FrontMic" Tab in the Realtek Control panel. Adjust

“Recording Volume”.

Fatal1ty 990FX Professional Series Motherboard

English

Chassis and Power Fan Connectors

Please connect the fan cables

(4-pin CHA_FAN1)

to the fan connectors and

(see p.4 No. 20)

match the black wire to the

ground pin. CHA_FAN1/2/3 fan

speed can be controlled through

(3-pin CHA_FAN2)

UEFI or AXTU.

(see p.4 No. 6)

(3-pin CHA_FAN3)

(see p.4 No. 24)

(3-pin PWR_FAN1)

(see p.4 No. 10)

GND

+12V

CHA_FAN_SPEED

GND

+12V

CHA_FAN_SPEED

FAN_SPEED_CONTROL

GND

+12V

CHA_FAN_SPEED

CPU Fan Connectors

Please connect the CPU fan

(4-pin CPU_FAN1)

cable to the connector and

(see p.4 No. 4)

match the black wire to the

ground

pin.

1 2

CPU

SPEE

NTR

Though this motherboard provides 4-Pin CPU fan (Quiet Fan) support, the 3-Pin

CPU fan still can work successfully even without the fan speed control function.

If you plan to connect the 3-Pin CPU fan to the CPU fan connector on this

motherboard, please connect it to Pin 1-3.

(3-pin CPU_FAN2)

(see p.4 No. 5)

GND

+12V

CPU_FAN_SPEED

Pin 1-3 Connected

3-Pin Fan Installation

PWR

SPEE

Power LED Header

Please connect the chassis

(3-pin PLED1)

power LED to this header to

(see p.4 No. 29)

indicate system power status.

The LED is on when the system

is operating. The LED keeps

blinking in S1 state. The LED is

off in S3/S4 state or S5 state

(power

off).

Chassis Speaker Header

Please connect the chassis

(4-pin SPEAKER 1)

speaker to this header.

(see p.4 No. 16)

+5V

UMM

SPEA

Fatal1ty 990FX Professional Series Motherboard

English

ATX 12V Power Connector

Please connect an ATX 12V

(8-pin ATX12V1)

power supply to this connector.

(see p.4 No. 2)

Though this motherboard provides 8-pin ATX 12V power connector, it can still work

if you adopt a traditional 4-pin ATX 12V power supply. To use the 4-pin ATX power

supply, please plug your power supply along with Pin 1 and Pin 5.

IEEE 1394 Header

Besides one default IEEE 1394

(9-pin FRONT_1394)

port on the I/O panel, there is

(see p.4 No. 33)

one IEEE 1394 header

(FRONT_1394) on this

motherboard. This IEEE 1394

header can support one IEEE

1394

port.

4-Pin ATX 12V Power Supply Installation

Serial port Header

This COM1 header supports a

(9-pin COM1)

serial port module.

(see p.4 No.30)

ATX Power Connector

Please connect an ATX power

(24-pin ATXPWR1)

supply to this connector.

(see p.4 No. 11)

Though this motherboard provides 24-pin ATX power connector,

it can still work if you adopt a traditional 20-pin ATX power supply.

To use the 20-pin ATX power supply, please plug your power

supply along with Pin 1 and Pin 13.

20-Pin ATX Power Supply Installation

5 1

8 4

Fatal1ty 990FX Professional Series Motherboard

English

HDMI_SPDIF Header

HDMI_SPDIF header, providing

(2-pin HDMI_SPDIF1)

SPDIF audio output to HDMI

(

see p.4 No. 1)

VGA card, allows the system to

connect HDMI Digital TV/

projector/LCD devices. Please

connect the HDMI_SPDIF

connector of HDMI VGA card to

this

header.

Front USB 3.0 Panel Installation Guide

Intall the Front USB 3.0 Panel into

the 2.5” drive bay of the chassis.

Step

Screw the Front USB 3.0 Panel to

the drive bay with six chassis screws.

Prepare the bundled Front USB 3.0

Panel, four HDD screws, and six

chassis screws.

Step

Screw the 2.5” HDD/SSD to the Front

USB 3.0 Panel with four HDD screws.

Step

The Front USB 3.0 Panel is ready

to use.

Plug the Front USB 3.0 cable into

the USB 3.0 header (USB3_1_2 or

USB3_3_4) on the motherboard.

Step

Fatal1ty 990FX Professional Series Motherboard

English

2.10 Smart Switches

This motherboard has three smart switches: power switch, reset switch and clear

CMOS switch, allowing users to quickly turn on/off or reset the system or clear the

CMOS values.

Power Switch

Power Switch is a smart switch,

(PWRBTN)

allowing users to quickly turn

(see p.4 No. 22)

on/off the system.

Reset Switch

Reset Switch is a smart switch,

(RSTBTN)

allowing users to quickly reset

(see p.4 No. 21)

the

system.

Clear CMOS Switch

Clear CMOS Switch is a smart

(CLRCBTN)

switch, allowing users to quickly

(see p.5 No. 20)

clear the CMOS values

Put the rear USB 3.0 bracket into

the chassis.

Screw the two screws into the rear

USB 3.0 bracket.

Step

Rear USB 3.0 Bracket Installation Guide

Put the USB 3.0 cable and the

rear USB 3.0 bracket together.

Unscrew the two screws from the Front

USB 3.0 Panel.

Step

Fatal1ty 990FX Professional Series Motherboard

2.11 Dr. Debug

Dr. Debug is used to provide code information, which makes troubleshooting even

easier. Please see the diagrams below for reading the Dr. Debug codes.

Status Code

Description

0x00

Not used

0x01

Power on. Reset type detection (soft/hard)

0x02

AP initialization before microcode loading

0x03

North Bridge initialization before microcode loading

0x04

South Bridge initialization before microcode loading

0x05

OEM initialization before microcode loading

0x06

Microcode loading

0x07

AP initialization after microcode loading

0x08

North Bridge initialization after microcode loading

0x09

South Bridge initialization after microcode loading

0x0A

OEM initialization after microcode loading

0x0B

Cache initialization

0x0C – 0x0D

Reserved for future AMI SEC error codes

0x0E

Microcode not found

0x0F

Microcode not loaded

0x10

PEI Core is started

0x11

Pre-memory CPU initialization is started

0x12

Pre-memory CPU initialization (CPU module speci

0x13

Pre-memory CPU initialization (CPU module speci

0x14

Pre-memory CPU initialization (CPU module speci

0x15

Pre-memory North Bridge initialization is started

0x16

Pre-Memory North Bridge initialization (North Bridge module speci

0x17

Pre-Memory North Bridge initialization (North Bridge module speci

0x18

Pre-Memory North Bridge initialization (North Bridge module speci

0x19

Pre-memory South Bridge initialization is started

0x1A

Pre-memory South Bridge initialization (South Bridge module speci

0x1B

Pre-memory South Bridge initialization (South Bridge module speci

0x1C

Pre-memory South Bridge initialization (South Bridge module speci

0x1D – 0x2A

OEM pre-memory initialization codes

0x2B

Memory initialization. Serial Presence Detect (SPD) data reading

0x2C

Memory initialization. Memory presence detection

0x2D

Memory initialization. Programming memory timing information

0x2E

Memory initialization. Con

guring memory

0x2F

Memory initialization (other)

0x30

Reserved for ASL (see ASL Status Codes section below)

0x31

Memory Installed

0x32

CPU post-memory initialization is started

0x33

CPU post-memory initialization. Cache initialization

0x34

CPU post-memory initialization. Application Processor(s) (AP) initialization

0x35

CPU post-memory initialization. Boot Strap Processor (BSP) selection

0x36

CPU post-memory initialization. System Management Mode (SMM)

initialization

English

Fatal1ty 990FX Professional Series Motherboard

0x37

Post-Memory North Bridge initialization is started

0x38

Post-Memory North Bridge initialization (North Bridge module speci

0x39

Post-Memory North Bridge initialization (North Bridge module speci

0x3A

Post-Memory North Bridge initialization (North Bridge module speci

0x3B

Post-Memory South Bridge initialization is started

0x3C

Post-Memory South Bridge initialization (South Bridge module speci

0x3D

Post-Memory South Bridge initialization (South Bridge module speci

0x3E

Post-Memory South Bridge initialization (South Bridge module speci

0x3F-0x4E

OEM post memory initialization codes

0x4F

DXE IPL is started

0x50

Memory initialization error. Invalid memory type or incompatible memory

speed

0x51

Memory initialization error. SPD reading has failed

0x52

Memory initialization error. Invalid memory size or memory modules do not

match

0x53

Memory initialization error. No usable memory detected

0x54

Unspeci

ed memory initialization error

0x55

Memory not installed

0x56

Invalid CPU type or Speed

0x57

CPU mismatch

0x58

CPU self test failed or possible CPU cache error

0x59

CPU micro-code is not found or micro-code update is failed

0x5A

Internal CPU error

0x5B

reset PPI is not available

0x5C-0x5F

Reserved for future AMI error codes

0xE0

S3 Resume is stared (S3 Resume PPI is called by the DXE IPL)

0xE1

S3 Boot Script execution

0xE2

Video repost

0xE3

OS S3 wake vector call

0xE4-0xE7

Reserved for future AMI progress codes

0xE8

S3 Resume Failed

0xE9

S3 Resume PPI not Found

0xEA

S3 Resume Boot Script Error

0xEB

S3 OS Wake Error

0xEC-0xEF

Reserved for future AMI error codes

0xF0

Recovery condition triggered by

rmware (Auto recovery)

0xF1

Recovery condition triggered by user (Forced recovery)

0xF2

Recovery process started

0xF3

Recovery

rmware image is found

0xF4

Recovery

rmware image is loaded

0xF5-0xF7

Reserved for future AMI progress codes

0xF8

Recovery PPI is not available

0xF9

Recovery capsule is not found

0xFA

Invalid recovery capsule

0xFB – 0xFF

Reserved for future AMI error codes

0x60

DXE Core is started

0x61

NVRAM initialization

English

Fatal1ty 990FX Professional Series Motherboard

0x62

Installation of the South Bridge Runtime Services

0x63

CPU DXE initialization is started

0x64

CPU DXE initialization (CPU module speci

0x65

CPU DXE initialization (CPU module speci

0x66

CPU DXE initialization (CPU module speci

0x67

CPU DXE initialization (CPU module speci

0x68

PCI host bridge initialization

0x69

North Bridge DXE initialization is started

0x6A

North Bridge DXE SMM initialization is started

0x6B

North Bridge DXE initialization (North Bridge module speci

0x6C

North Bridge DXE initialization (North Bridge module speci

0x6D

North Bridge DXE initialization (North Bridge module speci

0x6E

North Bridge DXE initialization (North Bridge module speci

0x6F

North Bridge DXE initialization (North Bridge module speci

0x70

South Bridge DXE initialization is started

0x71

South Bridge DXE SMM initialization is started

0x72

South Bridge devices initialization

0x73

South Bridge DXE Initialization (South Bridge module speci

0x74

South Bridge DXE Initialization (South Bridge module speci

0x75

South Bridge DXE Initialization (South Bridge module speci

0x76

South Bridge DXE Initialization (South Bridge module speci

0x77

South Bridge DXE Initialization (South Bridge module speci

0x78

ACPI module initialization

0x79

CSM initialization

0x7A – 0x7F

Reserved for future AMI DXE codes

0x80 – 0x8F

OEM DXE initialization codes

0x90

Boot Device Selection (BDS) phase is started

0x91

Driver connecting is started

0x92

PCI Bus initialization is started

0x93

PCI Bus Hot Plug Controller Initialization

0x94

PCI Bus Enumeration

0x95

PCI Bus Request Resources

0x96

PCI Bus Assign Resources

0x97

Console Output devices connect

0x98

Console input devices connect

0x99

Super IO Initialization

0x9A

USB initialization is started

0x9B

USB Reset

0x9C

USB Detect

0x9D

USB Enable

0x9E – 0x9F

Reserved for future AMI codes

0xA0

IDE initialization is started

0xA1

IDE Reset

0xA2

IDE Detect

0xA3

IDE Enable

0xA4

SCSI initialization is started

0xA5

SCSI Reset

English

Fatal1ty 990FX Professional Series Motherboard

0xA6

SCSI Detect

0xA7

SCSI Enable

0xA8

Setup Verifying Password

0xA9

Start of Setup

0xAA

Reserved for ASL (see ASL Status Codes section below)

0xAB

Setup Input Wait

0xAC

Reserved for ASL (see ASL Status Codes section below)

0xAD

Ready To Boot event

0xAE

Legacy Boot event

0xAF

Exit Boot Services event

0xB0

Runtime Set Virtual Address MAP Begin

0xB1

Runtime Set Virtual Address MAP End

0xB2

Legacy Option ROM Initialization

0xB3

System Reset

0xB4

USB hot plug

0xB5

PCI bus hot plug

0xB6

Clean-up of NVRAM

0xB7

Con

guration Reset (reset of NVRAM settings)

0xB8 – 0xBF

Reserved for future AMI codes

0xC0 – 0xCF

OEM BDS initialization codes

0xD0

CPU initialization error

0xD1

North Bridge initialization error

0xD2

South Bridge initialization error

0xD3

Some of the Architectural Protocols are not available

0xD4

PCI resource allocation error. Out of Resources

0xD5

No Space for Legacy Option ROM

0xD6

No Console Output Devices are found

0xD7

No Console Input Devices are found

0xD8

Invalid password

0xD9

Error loading Boot Option (LoadImage returned error)

0xDA

Boot Option is failed (StartImage returned error)

0xDB

Flash update is failed

0xDC

Reset protocol is not available

English

Fatal1ty 990FX Professional Series Motherboard

2.12 Driver Installation Guide

To install the drivers to your system, please insert the support CD to your optical

drive

rst. Then, the drivers compatible to your system can be auto-detected and

listed on the support CD driver page. Please follow the order from up to bottom side

to install those required drivers. Therefore, the drivers you install can work properly.

2.13 Installing Windows

7 / 7 64-bit / Vista

Vista

64-bit / XP / XP 64-bit With RAID Functions

If you want to install Windows

7 / 7 64-bit / Vista

/ Vista

64-bit / XP / XP 64-

bit on your SATA3 HDDs with RAID functions, please refer to the document at the

following path in the Support CD for detailed procedures:

..\ RAID Installation Guide

Using SATA3 HDDs without NCQ and Hot Plug functions (IDE mode)

STEP 1: Set up UEFI.

A.Enter UEFI SETUP UTILITY Advanced screen Storage Con

guration.

B.Set the “SATA Mode” option to [IDE]. (For SATA3_1 to SATA3_6 ports.)

Set the option “Marvell SATA3 Operation Mode” to [IDE]. (For eSATA3 ports.)

STEP 2: Install Windows

XP / XP 64-bit OS on your system.

2.14 Installing Windows

7 / 7 64-bit / Vista

Vista

64-bit / XP / XP 64-bit Without RAID Functions

If you want to install Windows

7 / 7 64-bit / Vista

/ Vista

64-bit / XP / XP 64-bit

OS on your SATA3 HDDs without RAID functions, please follow below procedures

according to the OS you install.

2.14.1 Installing Windows

XP / XP 64-bit Without RAID

Functions

If you want to install Windows

XP / XP 64-bit on your SATA3 HDDs without RAID

functions, please follow below steps.

English

Fatal1ty 990FX Professional Series Motherboard

2.15 Untied Overclocking Technology

This motherboard supports Untied Overclocking Technology, which means during

overclocking, FSB enjoys better margin due to

xed PCI / PCIE buses. Before you

enable Untied Overclocking function, please enter “Overclock Mode” option of UEFI

setup to set the selection from [Auto] to [Manual]. Therefore, CPU FSB is untied

during overclocking, but PCI / PCIE buses are in the

xed mode so that FSB can

operate under a more stable overclocking environment.

Please refer to the warning on page 10 for the possible overclocking risk

before you apply Untied Overclocking Technology.

STEP 1: Set up UEFI.

A.Enter UEFI SETUP UTILITY Advanced screen Storage Con

guration.

B.Set the “SATA Mode” option to [IDE]. (For SATA3_1 to SATA3_6 ports.)

Set the option “Marvell SATA3 Operation Mode” to [IDE]. (For eSATA3 ports.)

STEP 2: Install Windows

7 / 7 64-bit / Vista

/ Vista

64-bit OS on your sys-

tem.

Using SATA3 HDDs without NCQ and Hot Plug functions (IDE mode)

2.14.2 Installing Windows

7 / 7 64-bit / Vista

/ Vista

64-bit

Without RAID Functions

If you want to install Windows

7 / 7 64-bit / Vista

/ Vista

64-bit on your SATA3

HDDs without RAID functions, please follow below steps.

Using SATA3 HDDs with NCQ and Hot Plug functions (AHCI mode)

STEP 1: Set up UEFI.

A.Enter UEFI SETUP UTILITY Advanced screen Storage Con

guration.

B.Set the “SATA Mode” option to [AHCI]. (For SATA3_1 to SATA3_6 ports.)

Set the option “Marvell SATA3 Operation Mode” to [AHCI]. (For eSATA3 ports.)

STEP 2: Install Windows

7 / 7 64-bit / Vista

/ Vista

64-bit OS on your

system.

English

Fatal1ty 990FX Professional Series Motherboard

English

2.16

Teaming Function Operation Guide

Dual LAN with Teaming function enabled on this motherboard allows two single

connections to act as one single connection for twice the transmission bandwidth,

making data transmission more effective and improving the quality of transmission

of distant images. Fault tolerance on the dual LAN network prevents network

downtime by transferring the workload from a failed port to a working port.

The speed of transmission is subject to the actual network environment

or status even with Teaming enabled.

Before setting up Teaming function, please make sure if your Switch (or Router)

could support Teaming (IEEE 802.3ad Link Aggregation) function. Then, please

refer to following steps to set up Teaming function.

1. Install Teaming driver from the following path of motherboard Support CD:

32-bit:

.. \Drivers\LAN\Broadcom\Win7-64_Win7_Vista64_Vista_XP64_

XP(v14.8.4.1)\BACS\IA32

64-bit:

.. \Drivers\LAN\Broadcom\Win7-64_Win7_Vista64_Vista_XP64_

XP(v14.8.4.1)\BACS\x64

(This is a special driver for Teaming function only. If you don't want to use

Teaming, please install the LAN driver provided by our support CD link.)

2. From the

Teams

menu, select

Create Team

, or right-click one of the devices in

the “Unassigned Adapters” section and select

Create a Team

. This option is not

available if there are no devices listed in the “Unassigned Adapters” sections,

which means all adapters are already assigned to teams.

3. Click

Expert Mode

* If you want to always use Expert Mode to create a team, click Default to Expert

Mode on next start.

Fatal1ty 990FX Professional Series Motherboard

English

4. Click the

Create Team

tab.

* The

Create Team

tab appears only if there are teamable adapters available.

5. Click the

Team Name

fi eld to enter a team name.

6. Click the

Team Type

fi eld to select a team type.

7. Assign any available adapter or adapters to the team by selecting the adapter

from the

Load Balance Members

list. There must be at least one adapter

selected in the

Load Balance Members

list.

8. You can assign any other available adapter to be a standby member by selecting

it from the

Standby Member

list.

* There must be at least one Broadcom network adapter assigned to the team.

The Large Send Offl oad (LSO), Checksum Offl oad (CO), and RSS indicate if

the LSO, CO, and/or RSS properties are supported for the team. The LSO, CO,

and RSS properties are enabled for a team only when all of the members

support and are confi gured for the feature.

* Adding a network adapter to a team where its driver is disabled may negatively

affect the offl oading capabilities of the team. This may have an impact on the

team’s performance. Therefore, it is recommended that only driver-enabled

network adapters be added as members to a team.

Fatal1ty 990FX Professional Series Motherboard

English

9. Type the value for

Team MTU

10. Click

Create

to save the team information.

11. Repeat steps 5. through 10. to defi ne additional teams. As teams are defi ned,

they can be selected from the team list, but they have not yet been created.

Click the

Preview

tab to view the team structure before applying the changes.

12. Click

Apply/Exit

to create all the teams you have defi ned and exit the Manage

Teams window.

13. Click

Yes

when the message is displayed indicating that the network connection

will be temporarily interrupted.

* The team name cannot exceed 39 characters, cannot begin with spaces, and

cannot contain any of the following characters: & \ / : * ? < > |

* Team names must be unique. If you attempt to use a team name more than

once, an error message is displayed indicating that the name already exists.

* The maximum number of team members is 8.

* When team confi guration has been correctly performed, a virtual team adapter

driver is created for each confi gured team.

* If you disable a virtual team and later want to reenable it, you must fi rst disable

and reenable all team members before you reenable the virtual team.

* When you create Generic Trunking and Link Aggregation teams, you cannot

designate a standby member. Standby members work only with Smart Load

Balancing and Failover and SLB (Auto-Fallback Disable) types of teams.

* For an SLB (Auto-Fallback Disable) team, to restore traffi c to the load

balance members from the standby member, click the Fallback button on the

Team Properties tab.

* When confi guring an SLB team, although connecting team members to a hub

is supported for testing, it is recommended to connect team members to a

switch.

* Not all network adapters made by others are supported or fully certifi ed for

teaming.

Fatal1ty 990FX Professional Series Motherboard

English

14. Confi gure the team IP address.

a. From

Control Panel

, double-click

Network Connections

b. Right-click the name of the team to be confi gured, and then click

Properties

c. On the

General

tab, click

Internet Protocol (TCP/IP)

, and then click

Properties

d. Confi gure the IP address and any other necessary TCP/IP confi guration for

the team, and then click

when fi nished.

Топ 10 инструкций

100.00

MB QUART DSG 213

99.98

Skil 0790 RA

99.98

Bosch KGN39VW21

99.97

Sony CDX-CA750X RU

99.97

Braun 310 Series 3

99.96

Asus P3-PE5

99.96

Siemens MQ 5 N 298

99.96

YUKON EXTEND LRS-1000

99.96

Bosch GWS 22-230 JH Professional

99.96

Philips Lunettes 3D Active

К рейтингу инструкций и мануалов →

Другие инструкции

Asus V2-PH1

Asus Xonar Essence STX

Asus V2-PH2

Asus VH196 Series

ASRock Fatal1ty 990FX Professional: 2. Installation

2. Installation: ASRock Fatal1ty 990FX Professional

2. Installation

Оглавление

Топ 10 инструкций

Другие инструкции
