2. Installation

This is an ATX form factor (12.0-in x 8.8-in, 30.5 cm x 22.4 cm) motherboard.

Before you install the motherboard, study the con

guration of your chassis to ensure

that the motherboard

ts into it.

Pre-installation Precautions

Take note of the following precautions before you install motherboard

components or change any motherboard settings.

Before you install or remove any component, ensure that the

power is switched off or the power cord is detached from the

power supply. Failure to do so may cause severe damage to the

motherboard, peripherals, and/or components.

1. Unplug the power cord from the wall socket before touching any

component.

2. To avoid damaging the motherboard components due to static elec-

tricity, NEVER place your motherboard directly on the carpet or the

like. Also remember to use a grounded wrist strap or touch a safety

grounded object before you handle components.

3. Hold components by the edges and do not touch the ICs.

4. Whenever you uninstall any component, place it on a grounded anti-

static pad or in the bag that comes with the component.

When placing screws into the screw holes to secure the mother-

board to the chassis, please do not over-tighten the screws! Doing

so may damage the motherboard.

English

ASRock A75 Pro4 Motherboard

English

2.1 CPU Installation

Step 1. Unlock the socket by lifting the lever up to a 90

angle.

Step 2. Position the CPU directly above the socket such that the CPU corner with

the golden triangle matches the socket corner with a small triangle.

Step 3. Carefully insert the CPU into the socket until it

ts in place.

The CPU

ts only in one correct orientation. DO NOT force the CPU

into the socket to avoid bending of the pins.

Step 4. When the CPU is in place, press it

rmly on the socket while you push

down the socket lever to secure the CPU. The lever clicks on the side tab

to indicate that it is locked.

2.2 Installation of CPU Fan and Heatsink

After you install the CPU into this motherboard, it is necessary to install a

larger heatsink and cooling fan to dissipate heat. You also need to spray

thermal grease between the CPU and the heatsink to improve heat dis-

sipation. Make sure that the CPU and the heatsink are securely fastened

and in good contact with each other. Then connect the CPU fan to the

CPU FAN connector (CPU_FAN1, see Page 2, No. 5 or CPU_FAN2, see

Page 2, No. 6). For proper installation, please kindly refer to the instruc-

tion manuals of the CPU fan and the heatsink.

STEP 1:

Lift Up The Socket Lever

STEP 2 / STEP 3:

Match The CPU Golden Triangle

To The Socket Corner Small

Triangle

STEP 4:

Push Down And Lock

The Socket Lever

CPU Golden Triangle

Lever 90° Up

Socket Corner Small

Triangle

ASRock A75 Pro4 Motherboard

2.3 Installation of Memory Modules (DIMM)

This motherboard provides four 240-pin DDR3 (Double Data Rate 3) DIMM

slots, and supports Dual Channel Memory Technology. For dual channel con-

guration, you always need to install

identical

(the same brand, speed, size

and chip-type) DDR3 DIMM pair in the slots of the same color. In other words,

you have to install

identical

DDR3 DIMM pair in

Dual Channel A

(DDR3_A1

and DDR3_B1; Blue slots; see p.2 No.7) or

identical

DDR3 DIMM pair in

Dual

Channel B

(DDR3_A2 and DDR3_B2; White slots; see p.2 No.8), so that Dual

Channel Memory Technology can be activated. This motherboard also allows

you to install four DDR3 DIMMs for dual channel con

guration, and please in-

stall

identical

DDR3 DIMMs in all four slots. You may refer to the Dual Channel

Memory Con

guration Table below.

Dual Channel Memory Con

gurations

DDR3_A1

DDR3_A2

DDR3_B1 DDR3_B2

(Blue Slot) (White Slot) (Blue Slot) (White Slot)

(1)

Populated -

Populated

(2)

Populated - Populated

(3)*

Populated

Populated Populated

For the con

guration (3), please install

identical

DDR3 DIMMs in all four

slots.

1. If you want to install two memory modules, for optimal compatibility

and reliability, it is recommended to install them in the slots of the

same color. In other words, install them either in the set of blue

slots (DDR3_A1 and DDR3_B1), or in the set of white slots (DDR3_

A2 and DDR3_B2).

2. If only one memory module or three memory modules are installed

in the DDR3 DIMM slots on this motherboard, it is unable to activate

the Dual Channel Memory Technology.

3. If a pair of memory modules is NOT installed in the same Dual

Channel, for example, installing a pair of memory modules in

DDR3_A1 and DDR3_A2, it is unable to activate the Dual Channel

Memory Technology .

4. It is not allowed to install a DDR or DDR2 memory module into

DDR3 slot; otherwise, this motherboard and DIMM may be dam-

aged.

5. If you adopt DDR3 2400/1866/1600 memory modules on this

motherboard, it is recommended to install them on DDR3_A2 and

DDR3_B2 slots.

English

ASRock A75 Pro4 Motherboard

English

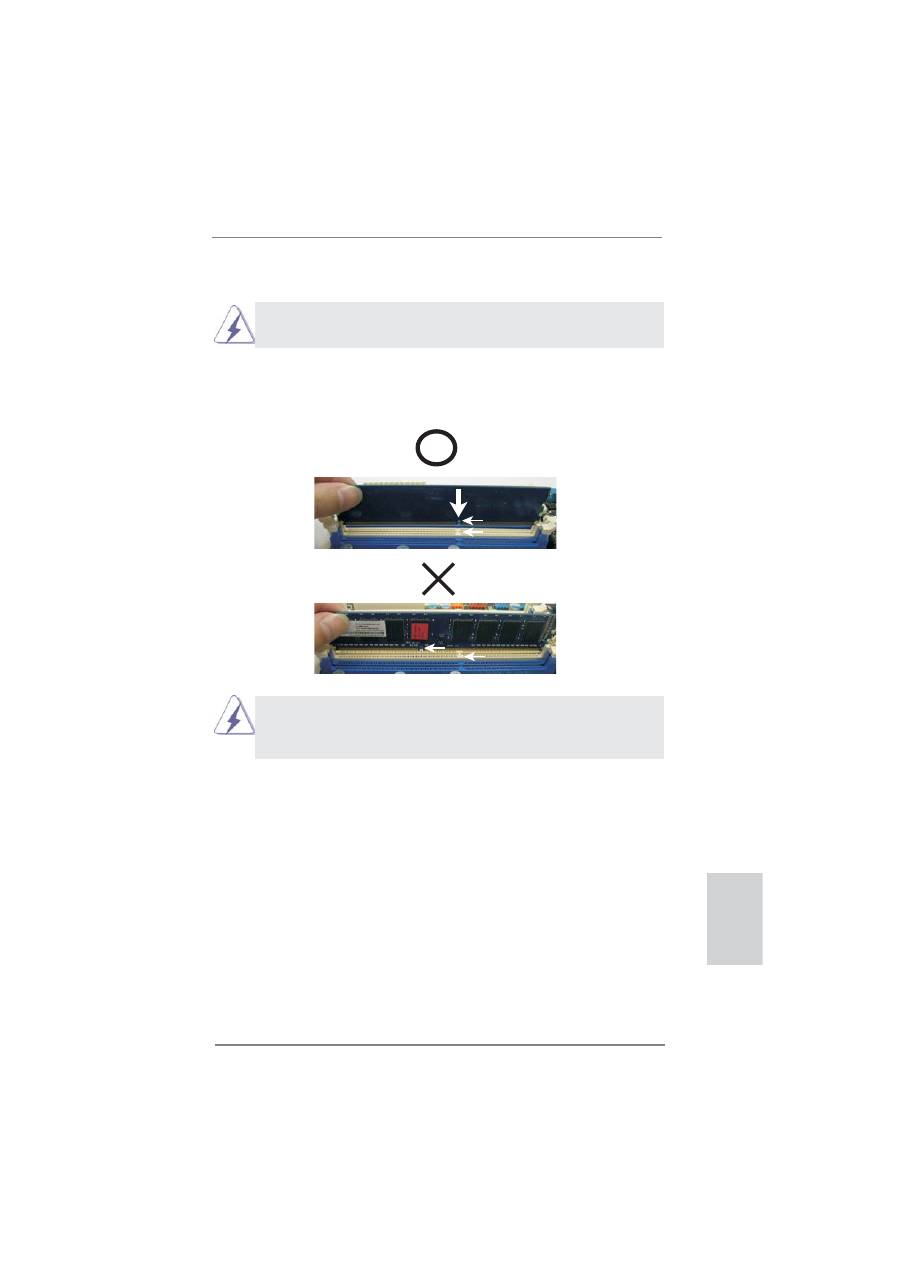

Installing a DIMM

Please make sure to disconnect power supply before adding or

removing DIMMs or the system components.

Step 1. Unlock a DIMM slot by pressing the retaining clips outward.

Step 2. Align a DIMM on the slot such that the notch on the DIMM matches the

break on the slot.

The DIMM only

ts in one correct orientation. It will cause permanent

damage to the motherboard and the DIMM if you force the DIMM into

the slot at incorrect orientation.

Step 3. Firmly insert the DIMM into the slot until the retaining clips at both ends

fully snap back in place and the DIMM is properly seated.

notch

break

notch

break

ASRock A75 Pro4 Motherboard

English

2.4 Expansion Slots (PCI and PCI Express Slots)

There are 3 PCI slots and 4 PCI Express slots on this motherboard.

PCI Slots:

PCI slots are used to install expansion cards that have the 32-bit PCI

interface.

PCIE Slots:

PCIE1 / PCIE3 (PCIE x1 slot; White) is used for PCI Express cards with

x1 lane width cards, such as Gigabit LAN card and SATA2 card.

PCIE2 (PCIE x16 slot; Blue) is used for PCI Express x16 lane width

graphics cards, or used to install PCI Express graphics cards to support

CrossFireX

function.

PCIE4 (PCIE x16 slot; Blue) is used for PCI Express x4 lane width

cards, or used to install PCI Express graphics cards to support

CrossFireX

function.

1. In single VGA card mode, it is recommended to install a PCI Ex-

press x16 graphics card on PCIE2 slot.

2. In CrossFireX

mode, please install PCI Express x16 graphics

cards on PCIE2 and PCIE4 slots.

3. Please connect a chassis fan to motherboard chassis fan connec-

tor (CHA_FAN1, CHA_FAN2 or CHA_FAN3) when using multiple

graphics cards for better thermal environment.

Installing an expansion card

Step 1.

Before installing the expansion card, please make sure that the power

supply is switched off or the power cord is unplugged. Please read the

documentation of the expansion card and make necessary hardware

settings for the card before you start the installation.

Step 2.

Remove the system unit cover (if your motherboard is already installed

in a chassis).

Step 3.

Remove the bracket facing the slot that you intend to use. Keep the

screws for later use.

Step 4.

Align the card connector with the slot and press

rmly until the card is

completely seated on the slot.

Step 5.

Fasten the card to the chassis with screws.

Step 6.

Replace the system cover.

ASRock A75 Pro4 Motherboard

English

2.5 CrossFireX

and Quad CrossFireX

Operation Guide

This motherboard supports CrossFireX

and Quad CrossFireX

feature.

CrossFireX

technology offers the most advantageous means available of

combining multiple high performance Graphics Processing Units (GPU) in a single

PC. Combining a range of different operating modes with intelligent software design

and an innovative interconnect mechanism, CrossFireX

enables the highest

possible level of performance and image quality in any 3D application. Currently

CrossFireX

feature is supported with Windows

XP with Service Pack 2 / Vista

7 OS. Quad CrossFireX

feature are supported with Windows

Vista

/ 7 OS only.

Please check AMD website for AMD CrossFireX

driver updates.

2.5.1 Graphics Card Setup

Different CrossFireX

cards may require different methods to enable CrossFi-

reX

feature. For other CrossFireX

cards that AMD has released or will release

in the future, please refer to AMD graphics card manuals for detailed installation

guide.

Step 1. Insert one Radeon graphics card into PCIE2 slot and the other Radeon

graphics card to PCIE4 slot. Make sure that the cards are properly seated

on the slots.

1. If a customer incorrectly configures their system they will not see the

performance bene

ts of CrossFireX

. All three CrossFireX

components, a

CrossFireX

Ready graphics card, a CrossFireX

Ready motherboard and a

CrossFireX

Edition co-processor graphics card, must be installed correctly

to bene

t from the CrossFireX

multi-GPU platform.

2. If you pair a 12-pipe CrossFireX

Edition card with a 16-pipe card, both cards

will operate as 12-pipe cards while in CrossFireX

mode.

ASRock A75 Pro4 Motherboard

English

Step 2. Connect two Radeon graphics cards by installing CrossFire Bridge on

CrossFire Bridge Interconnects on the top of Radeon graphics cards.

(CrossFire Bridge is provided with the graphics card you purchase, not

bundled with this motherboard. Please refer to your graphics card vendor

for details.)

CrossFire Bridge

Step 3. Connect the DVI monitor cable to the DVI connector on the Radeon graph-

ics card on PCIE2 slot. (You may use the DVI to D-Sub adapter to convert

the DVI connector to D-Sub interface, and then connect the D-Sub monitor

cable to the DVI to D-Sub adapter.)

ASRock A75 Pro4 Motherboard

English

The Catalyst Uninstaller is an optional download. We recommend using this

utility to uninstall any previously installed Catalyst drivers prior to installation.

Please check AMD website for AMD driver updates.

Step 3. Install the required drivers to your system.

For Windows

XP OS:

A. AMD recommends Windows

XP Service Pack 2 or higher to be

installed (If you have Windows

XP Service Pack 2 or higher installed

in your system, there is no need to download it again):

http://www.microsoft.com/windowsxp/sp2/default.mspx

B. You must have Microsoft .NET Framework installed prior to

downloading and installing the CATALYST Control Center. Please

check Microsoft website for details.

For

Windows

7 / Vista

OS:

Install the CATALYST Control Center. Please check AMD website for de-

tails.

Step 4. Restart your computer.

Step 5. Install the VGA card drivers to your system, and restart your computer.

Then you will

nd “ATI Catalyst Control Center” on your Windows

taskbar.

ATI Catalyst Control Center

2.5.2 Driver Installation and Setup

Step 1. Power on your computer and boot into OS.

Step 2. Remove the AMD driver if you have any VGA driver installed in your sys-

tem.

Step 6. Double-click “ATI Catalyst Control Center”. Click “View”, select “CrossFi-

reX

”, and then check the item “Enable CrossFireX

”. Select “2 GPUs”

and click “Apply” (if you install two Radeon graphics cards).

ASRock A75 Pro4 Motherboard

English

Although you have selected the option “Enable CrossFire

”, the Cross-

FireX

function may not work actually. Your computer will automatically

reboot. After restarting your computer, please con

rm whether the option

“Enable CrossFire

” in “ATI Catalyst Control Center” is selected or not;

if not, please select it again, and then you are able to enjoy the bene

t of

CrossFireX

feature.

Step 7. You can freely enjoy the bene

t of CrossFireX

or Quad CrossFireX

feature.

* CrossFireX

appearing here is a registered trademark of AMD Technologies Inc., and is

used only for identi

cation or explanation and to the owners’ bene

t, without intent to infringe.

* For further information of AMD CrossFireX

technology, please check AMD website for

updates and details.

ASRock A75 Pro4 Motherboard

English

2.6 AMD Dual Graphics Operation Guide

This motherboard supports AMD Dual Graphics feature. AMD Dual Graphics brings

multi-GPU performance capabilities by enabling an AMD A75 FCH (Hudson-D3)

integrated graphics processor and a discrete graphics processor to operate

simultaneously with combined output to a single display for blisteringly-fast frame

rates. Currently, AMD Dual Graphics Technology is only supported with Windows

OS, and is not available with Windows

Vista

/ XP OS.

What does an AMD Dual Graphics system include?

An AMD Dual Graphics system includes an AMD Radeon HD 65XX/64XX graphics

processor and a motherboard based on an AMD A75 FCH (Hudson-D3) integrated

chipset, all operating in a Windows

7 environment. Please refer to below PCI

Express graphics card support list for AMD Dual Graphics. For the future update of

more compatible PCI Express graphics cards, please visit AMD website for further

information.

Chipset

Model

Driver

AMD RADEON HD6670

ASUS DIS-PCIE2.1-ASUS-HDMI-EAH6670-DI-1GD3/1G-DDR3 8.86

AMD RADEON HD6570

MSI DIS-PCIE2.1-MSI-HDMI-R6570-MD1GD3-LP/1G-DDR3 8.86

AMD RADEON HD6450

MSI DIS-PCIE2.1-MSI-HDMI-R6450-MD1GD3-LP/1G-DDR3 8.86

Enjoy the benefit of AMD Dual Graphics

Step 1. Please keep the default UEFI setting of “Dual Graphics“ option on [Auto].

Step 2. Install one AMD RADEON HD6670 / 6570 / 6450 PCI Express graphics

card to PCIE2 slot (blue).

Step 3. Connect the monitor cable to the onboard VGA port. Please be noted that

the current VGA driver / VBIOS can allow Dual Graphics output from on-

board display only. For any future update, please refer to our website for

further information.

Step 4. Boot into OS. Please remove the AMD driver if you have any VGA driver

installed in your system.

Step 5. Install the onboard VGA driver from our support CD to your system for

both the onboard VGA and the discrete graphics card.

Step 6. Restart your computer. Right-click the desktop. Click “AMD VISION

Engine Control Center” to enter AMD VISION Engine Control Center.

ASRock A75 Pro4 Motherboard

English

* Dual Graphics appearing here is a registered trademark of AMD Technologies Inc., and is

used only for identi

cation or explanation and to the owners’ bene

t, without intent to infringe.

* For further information of AMD Dual Graphics technology, please check AMD website for up

dates and details.

Step 9. Click “Enable CrossFire

” and click “Apply“ to save your change.

Step 10. Reboot your system. Then you can freely enjoy the bene

t of Dual

Graphics feature.

AMD VISION Engine Control Center

Step 7. You can also click “AMD VISION Engine Control Center” on your

Windows

taskbar to enter AMD VISION Engine Control Center.

Step 8. In AMD VISION Engine Control Center, please choose “Performance”.

Click “AMD CrossFire

”.

ASRock A75 Pro4 Motherboard

English

2. If you have installed onboard VGA driver from our support CD to your system

already, you can freely enjoy the bene

ts of dual monitor function after your

system boots. If you haven’t installed onboard VGA driver yet, please install

onboard VGA driver from our support CD to your system and restart your

computer.

2.7 Dual Monitor and Surround Display Features

Dual Monitor Feature

This motherboard supports dual monitor feature. With the internal VGA output sup-

port (DVI-D, D-Sub and HDMI), you can easily enjoy the bene

ts of dual monitor

feature without installing any add-on VGA card to this motherboard. This mother-

board also provides independent display controllers for DVI-D, D-Sub and HDMI to

support dual VGA output so that DVI-D, D-sub and HDMI can drive same or different

display contents.

To enable dual monitor feature, please follow the below steps:

1. Connect DVI-D monitor cable to DVI-D port on the I/O panel, connect D-Sub

monitor cable to D-Sub port on the I/O panel, or connect HDMI monitor cable to

HDMI port on the I/O panel.

HDMI port

D-Sub port

DVI-D port

1. D-Sub, DVI-D and HDMI monitors cannot be enabled at the same

time. You can only choose the combination: DVI-D + HDMI, or HDMI

+ D-Sub.

2. When you playback HDCP-protected video from Blu-ray (BD) or

HD-DVD disc, the content will be displayed only in one of the two

monitors instead of both monitors.

3. To support Dual-link DVI monitor, please do not use D-Sub and HDMI

ports. Please connect the DVI monitor cable to the DVI port only.

ASRock A75 Pro4 Motherboard

English

Surround Display Feature

This motherboard supports surround display upgrade. With the internal VGA output

support (DVI-D, D-Sub and HDMI) and external add-on PCI Express VGA cards,

you can easily enjoy the bene

ts of surround display feature.

Please refer to the following steps to set up a surround display environment:

1. Install the PCI Express VGA cards on PCIE2 and PCIE4 slots. Please refer to

page 16 for proper expansion card installation procedures for details.

2. Connect DVI-D monitor cable to DVI-D port on the I/O panel, connect D-Sub

monitor cable to D-Sub port on the I/O panel, or connect HDMI monitor

cable to HDMI port on the I/O panel. Then connect other monitor cables to the

corresponding connectors of the add-on PCI Express VGA cards on PCIE2 and

PCIE4 slots.

3. Boot your system. Press <F2> or <Del> to enter UEFI setup. Enter “Share

Memory” option to adjust the memory capability to [32MB], [64MB], [128MB],

[256MB] or [512MB] to enable the function of D-sub. Please make sure that

the value you select is less than the total capability of the system memory. If you

do not adjust the UEFI setup, the default value of “Share Memory”, [Auto], will

disable D-Sub function when the add-on VGA card is inserted to this

motherboard.

4. Install the onboard VGA driver and the add-on PCI Express VGA card driver to

your system. If you have installed the drivers already, there is no need to install

them again.

5. Set up a multi-monitor display.

For Windows

XP / XP 64-bit OS:

Right click the desktop, choose “Properties”, and select the “Settings” tab

so that you can adjust the parameters of the multi-monitor according to

the steps below.

A. Click the “Identify” button to display a large number on each monitor.

B. Right-click the display icon in the Display Properties dialog that you

wish to be your primary monitor, and then select “Primary”. When

you use multiple monitors with your card, one monitor will always be

Primary, and all additional monitors will be designated as Secondary.

C. Select the display icon identi

ed by the number 2.

D. Click “Extend my Windows desktop onto this monitor”.

E. Right-click the display icon and select “Attached”, if necessary.

F. Set the “Screen Resolution” and “Color Quality” as appropriate for the

second monitor. Click “Apply” or “OK” to apply these new values.

G. Repeat steps C through E for the diaplay icon identi

ed by the number

one to six.

ASRock A75 Pro4 Motherboard

English

For Windows

7 / 7 64-bit / Vista

/ Vista

64-bit OS:

Right click the desktop, choose “Personalize”, and select the “Display

Settings” tab so that you can adjust the parameters of the multi-monitor

according to the steps below.

A. Click the number ”2” icon.

B. Click the items “This is my main monitor” and “Extend the desktop onto

this monitor”.

C. Click “OK” to save your change.

D. Repeat steps A through C for the display icon identi

ed by the number

three to six.

6. Use Surround Display. Click and drag the display icons to positions representing

the physical setup of your monitors that you would like to use. The placement

of display icons determines how you move items from one monitor to another.

HDCP Function

HDCP function is supported on this motherboard. To use HDCP

function with this motherboard, you need to adopt the monitor

that supports HDCP function as well. Therefore, you can enjoy

the superior display quality with high-de

nition HDCP

encryption contents. Please refer to below instruction for more

details about HDCP function.

What

HDCP?

HDCP stands for High-Bandwidth Digital Content Protection,

speci

cation developed by Intel

for protecting digital

entertainment content that uses the DVI interface. HDCP is a

copy protection scheme to eliminate the possibility of

intercepting digital data midstream between the video source,

or transmitter - such as a computer, DVD player or set-top box -

and the digital display, or receiver - such as a monitor, television

or projector. In other words, HDCP speci

cation is designed to

protect the integrity of content as it is being transmitted.

Products compatible with the HDCP scheme such as DVD

players, satellite and cable HDTV set-top-boxes, as well as few

entertainment PCs requires a secure connection to a compliant

display. Due to the increase in manufacturers employing HDCP

in their equipment, it is highly recommended that the HDTV or

LCD monitor you purchase is compatible.

ASRock A75 Pro4 Motherboard

* ASRock Smart Remote is only supported by some of ASRock motherboards. Please refer to

ASRock website for the motherboard support list: http://www.asrock.com

USB 2.0 header

(9-pin, blue)

CIR header

(4-pin, white)

2.8 ASRock Smart Remote Installation Guide

ASRock Smart Remote is only used for ASRock motherboard with CIR header.

Please refer to below procedures for the quick installation and usage of ASRock

Smart Remote.

Step1.

Find the CIR header located next

to the USB 2.0 header on ASRock

motherboard.

Step2.

Connect the front USB cable to the

USB 2.0 header (as below, pin 1-5)

and the CIR header. Please make

sure the wire assignments and the

pin assignments are matched

correctly.

1 2

USB_PWR

P-

P+

GND

ATX+5VSB

IRRX

IRTX

GND

DUMMY

Step3. Install

Multi-Angle CIR Receiver to

the front USB port. If Multi-Angle

CIR

Receiver cannot successfully

receive the infrared signals from

MCE Remote Controller, please try

to install it to the other front USB

port.

3 CIR sensors in different angles

1. Only one of the front USB port can support CIR function. When the

CIR function is enabled, the other port will remain USB function.

2. Multi-Angle

CIR

Receiver is used for front USB only. Please do not

use the rear USB bracket to connect it on the rear panel. Multi-Angle

CIR Receiver can receive the multi-direction infrared signals (top,

down and front), which is compatible with most of the chassis on the

market.

3. The Multi-Angle CIR Receiver does not support Hot-Plug function.

Please install it before you boot the system.

English

ASRock A75 Pro4 Motherboard

English

2.9 Jumpers Setup

The illustration shows how jumpers are

setup. When the jumper cap is placed on

pins, the jumper is “Short”. If no jumper cap

is placed on pins, the jumper is “Open”. The

illustration shows a 3-pin jumper whose

pin1 and pin2 are “Short” when jumper cap

is placed on these 2 pins.

Jumper Setting

Description

Clear CMOS Jumper

(CLRCMOS1)

(see p.2, No. 10)

Note: CLRCMOS1 allows you to clear the data in CMOS. To clear and reset the

system parameters to default setup, please turn off the computer and unplug

the power cord from the power supply. After waiting for 15 seconds, use a

jumper cap to short pin2 and pin3 on CLRCMOS1 for 5 seconds. However,

please do not clear the CMOS right after you update the BIOS. If you need

to clear the CMOS when you just

nish updating the BIOS, you must boot

up the system

rst, and then shut it down before you do the clear-CMOS ac-

tion. Please be noted that the password, date, time, user default pro

le, 1394

GUID and MAC address will be cleared only if the CMOS battery is removed.

Clear CMOS

Default

The Clear CMOS Switch has the same function as the Clear CMOS

jumper.

ASRock A75 Pro4 Motherboard

English

2.10 Onboard Headers and Connectors

Onboard headers and connectors are NOT jumpers. Do NOT place

jumper caps over these headers and connectors. Placing jumper caps

over the headers and connectors will cause permanent damage of the

motherboard!

Serial ATA3 Connectors

These

ve Serial ATA3

(SATA3_1: see p.2, No. 15)

(SATA3) connectors support

(SATA3_2: see p.2, No. 16)

SATA data cables for internal

(SATA3_3: see p.2, No. 14)

storage devices. The current

(SATA3_4: see p.2, No. 13)

SATA3 interface allows up to

(SATA3_5: see p.2, No. 12)

6.0 Gb/s data transfer rate.

Serial ATA (SATA)

Either end of the SATA data

Data Cable

cable can be connected to the

(Optional)

SATA3 hard disk or the SATA3

connector on this motherboard.

3.5mm Audio Cable

Either end of the 3.5mm audio

(Optional)

cable can be connected to the

portable audio devices, such

as MP3 player and mobile

phone or the Line-in port of

your

PC.

TA3_1 SA

TA3_3

TA3_2 SA

TA3_4

SATA3_5

USB_PWR

P-8

GND

DUMMY

USB_PWR

P+8

GND

P-9

P+9

USB

-10

MMY

USB

+10

-11

+11

USB 2.0 Headers

Besides two default USB 2.0

(9-pin USB6_7)

ports on the I/O panel, there

(see p.2 No. 28)

are three USB 2.0 headers on

this motherboard. Each USB 2.0

header can support two USB

2.0

ports.

(9-pin USB8_9)

(see p.2 No. 27)

(9-pin USB10_11)

(see p.2 No. 25)

ASRock A75 Pro4 Motherboard

English

Infrared Module Header

This header supports an

(5-pin IR1)

optional wireless transmitting

(see p.2 No. 23)

and receiving infrared module.

Front Panel Audio Header

This is an interface for the front

(9-pin HD_AUDIO1)

panel audio cable that allows

(see p.2 No. 33)

convenient connection and

control of audio devices.

Consumer Infrared Module Header

This header can be used to

(4-pin CIR1)

connect the remote

(see p.2 No. 29)

controller

receiver.

IRTX

+5VSB

DUMMY

IRRX

GND

ATX+5VSB

IRTX

GND

IRRX

J_SENSE

OUT2_L

MIC_RET

PRESENCE#

GND

OUT2_R

MIC2_R

MIC2_L

OUT_RET

1. High De

nition Audio supports Jack Sensing, but the panel wire on

the chassis must support HDA to function correctly. Please follow the

instruction in our manual and chassis manual to install your system.

2. If you use AC’97 audio panel, please install it to the front panel audio

header as below:

A. Connect Mic_IN (MIC) to MIC2_L.

B. Connect Audio_R (RIN) to OUT2_R and Audio_L (LIN) to OUT2_L.

C. Connect Ground (GND) to Ground (GND).

D. MIC_RET and OUT_RET are for HD audio panel only. You don’t

need to connect them for AC’97 audio panel.

E. To activate the front mic.

For Windows

XP / XP 64-bit OS:

Select “Mixer”. Select “Recorder”. Then click “FrontMic”.

For Windows

7 / 7 64-bit / Vista

/ Vista

64-bit OS:

Go to the "FrontMic" Tab in the Realtek Control panel. Adjust

“Recording Volume”.

System Panel Header

This header accommodates

(9-pin PANEL1)

several system front panel

(see p.2 No. 20)

functions.

Connect the power switch, reset switch and system status indicator

on the chassis to this header according to the pin assignments below.

Note the positive and negative pins before connecting the cables.

PWRBTN (Power Switch):

Connect to the power switch on the chassis front panel. You may con-

gure the way to turn off your system using the power switch.

ASRock A75 Pro4 Motherboard

English

RESET (Reset Switch):

Connect to the reset switch on the chassis front panel. Press the reset

switch to restart the computer if the computer freezes and fails to per-

form a normal restart.

PLED (System Power LED):

Connect to the power status indicator on the chassis front panel. The

LED is on when the system is operating. The LED keeps blinking

when the sys-tem is in S1 sleep state. The LED is off when the system

is in S3/S4 sleep state or powered off (S5).

HDLED (Hard Drive Activity LED):

Connect to the hard drive activity LED on the chassis front panel. The

LED is on when the hard drive is reading or writing data.

The front panel design may differ by chassis. A front panel module

mainly consists of power switch, reset switch, power LED, hard drive

activity LED, speaker and etc. When connecting your chassis front

panel module to this header, make sure the wire assignments and the

pin assign-ments are matched correctly.

Power LED Header

Please connect the chassis

(3-pin PLED1)

power LED to this header to

(see p.2 No. 24)

indicate system power status.

The LED is on when the system

is operating. The LED keeps

blinking in S1 state. The LED is

off in S3/S4 state or S5 state

(power

off).

Chassis Speaker Header

Please connect the chassis

(4-pin SPEAKER 1)

speaker to this header.

(see p.2 No. 21)

PLED+

PLED-

Chassis and Power Fan Connectors

Please connect the fan cables

(4-pin CHA_FAN1)

to the fan connectors and

(see p.2 No. 22)

match the black wire to the

ground pin. CHA_FAN1/2/3 fan

(3-pin CHA_FAN2)

speed can be controlled through

(see p.2 No. 41)

UEFI or AXTU.

(3-pin CHA_FAN3)

(see p.2 No. 42)

(3-pin PWR_FAN1)

(see p.2 No. 1)

GND

+12V

CHA_FAN_SPEED

FAN_SPEED_CONTROL

ASRock A75 Pro4 Motherboard

English

CPU Fan Connectors

Please connect the CPU fan

(4-pin CPU_FAN1)

cable to the connector and

(see p.2 No. 5)

match the black wire to the

ground

pin.

Though this motherboard provides 4-Pin CPU fan (Quiet Fan) support, the 3-Pin

CPU fan still can work successfully even without the fan speed control function.

If you plan to connect the 3-Pin CPU fan to the CPU fan connector on this

motherboard, please connect it to Pin 1-3.

ATX Power Connector

Please connect an ATX power

(24-pin ATXPWR1)

supply to this connector.

(see p.2 No. 9)

Though this motherboard provides 24-pin ATX power connector,

it can still work if you adopt a traditional 20-pin ATX power supply.

To use the 20-pin ATX power supply, please plug your power

supply along with Pin 1 and Pin 13.

ATX 12V Power Connector

Please connect an ATX 12V

(8-pin ATX12V1)

power supply to this connector.

(see p.2 No. 2)

Though this motherboard provides 8-pin ATX 12V power connector, it can still work

if you adopt a traditional 4-pin ATX 12V power supply. To use the

4-pin ATX power supply, please plug your power supply along with

Pin 1 and Pin 5.

IEEE 1394 Header

Besides one default IEEE 1394

(9-pin FRONT_1394)

port on the I/O panel, there is

(see p.2 No. 32)

one IEEE 1394 header

(FRONT_1394) on this

motherboard. This IEEE 1394

header can support one IEEE

1394

port.

(3-pin CPU_FAN2)

(see p.2 No. 6)

20-Pin ATX Power Supply Installation

4-Pin ATX 12V Power Supply Installation

Pin 1-3 Connected

3-Pin Fan Installation

+12V

GND

+12V

RXTPBM_

GND

RXTPAM_

RXTPBP_

GND

RXTPAP_

GND

+12V

CPU_FAN_SPEED

FAN_SPEED_CONTROL

1 2 3 4

GND

+12V

CPU_FAN_SPEED

4 8

1 5

4 8

1 5

ASRock A75 Pro4 Motherboard

English

Serial port Header

This COM1 header supports a

(9-pin COM1)

serial port module.

(see p.2 No.30)

HDMI_SPDIF Header

HDMI_SPDIF header, providing

(2-pin HDMI_SPDIF1)

SPDIF audio output to HDMI

(

see p.2 No. 31)

VGA card, allows the system to

connect HDMI Digital TV/

projector/LCD devices. Please

connect the HDMI_SPDIF

connector of HDMI VGA card to

this

header.

SPDIFOUT

GND

2.11 Smart Switches

This motherboard has three smart switches: power switch, reset switch and clear

CMOS switch, allowing users to quickly turn on/off or reset the system or clear the

CMOS values.

Power Switch

Power Switch is a smart switch,

(PWRBTN)

allowing users to quickly turn

(see p.2 No. 18)

on/off the system.

Reset Switch

Reset Switch is a smart switch,

(RSTBTN)

allowing users to quickly reset

(see p.2 No. 19)

the

system.

Clear CMOS Switch

Clear CMOS Switch is a smart

(CLRCBTN)

switch, allowing users to quickly

(see p.3 No. 14)

clear the CMOS values

RESET

clr

CMOS

ASRock A75 Pro4 Motherboard

English

2.12 Dr. Debug

Dr. Debug is used to provide code information, which makes troubleshooting even

easier. Please see the diagrams below for reading the Dr. Debug codes.

Status Code

Description

0x00

Not used

0x01

Power on. Reset type detection (soft/hard)

0x02

AP initialization before microcode loading

0x03

North Bridge initialization before microcode loading

0x04

South Bridge initialization before microcode loading

0x05

OEM initialization before microcode loading

0x06

Microcode loading

0x07

AP initialization after microcode loading

0x08

North Bridge initialization after microcode loading

0x09

South Bridge initialization after microcode loading

0x0A

OEM initialization after microcode loading

0x0B

Cache initialization

0x0C – 0x0D

Reserved for future AMI SEC error codes

0x0E

Microcode not found

0x0F

Microcode not loaded

0x10

PEI Core is started

0x11

Pre-memory CPU initialization is started

0x12

Pre-memory CPU initialization (CPU module speci

0x13

Pre-memory CPU initialization (CPU module speci

0x14

Pre-memory CPU initialization (CPU module speci

0x15

Pre-memory North Bridge initialization is started

0x16

Pre-Memory North Bridge initialization (North Bridge module speci

0x17

Pre-Memory North Bridge initialization (North Bridge module speci

0x18

Pre-Memory North Bridge initialization (North Bridge module speci

0x19

Pre-memory South Bridge initialization is started

0x1A

Pre-memory South Bridge initialization (South Bridge module speci

0x1B

Pre-memory South Bridge initialization (South Bridge module speci

0x1C

Pre-memory South Bridge initialization (South Bridge module speci

0x1D – 0x2A

OEM pre-memory initialization codes

0x2B

Memory initialization. Serial Presence Detect (SPD) data reading

0x2C

Memory initialization. Memory presence detection

0x2D

Memory initialization. Programming memory timing information

0x2E

Memory initialization. Con

guring memory

0x2F

Memory initialization (other)

0x30

Reserved for ASL (see ASL Status Codes section below)

0x31

Memory Installed

0x32

CPU post-memory initialization is started

0x33

CPU post-memory initialization. Cache initialization

0x34

CPU post-memory initialization. Application Processor(s) (AP) initialization

0x35

CPU post-memory initialization. Boot Strap Processor (BSP) selection

0x36

CPU post-memory initialization. System Management Mode (SMM)

initialization

ASRock A75 Pro4 Motherboard

0x37

Post-Memory North Bridge initialization is started

0x38

Post-Memory North Bridge initialization (North Bridge module speci

0x39

Post-Memory North Bridge initialization (North Bridge module speci

0x3A

Post-Memory North Bridge initialization (North Bridge module speci

0x3B

Post-Memory South Bridge initialization is started

0x3C

Post-Memory South Bridge initialization (South Bridge module speci

0x3D

Post-Memory South Bridge initialization (South Bridge module speci

0x3E

Post-Memory South Bridge initialization (South Bridge module speci

0x3F-0x4E

OEM post memory initialization codes

0x4F

DXE IPL is started

0x50

Memory initialization error. Invalid memory type or incompatible memory

speed

0x51

Memory initialization error. SPD reading has failed

0x52

Memory initialization error. Invalid memory size or memory modules do not

match

0x53

Memory initialization error. No usable memory detected

0x54

Unspeci

ed memory initialization error

0x55

Memory not installed

0x56

Invalid CPU type or Speed

0x57

CPU mismatch

0x58

CPU self test failed or possible CPU cache error

0x59

CPU micro-code is not found or micro-code update is failed

0x5A

Internal CPU error

0x5B

reset PPI is not available

0x5C-0x5F

Reserved for future AMI error codes

0xE0

S3 Resume is stared (S3 Resume PPI is called by the DXE IPL)

0xE1

S3 Boot Script execution

0xE2

Video repost

0xE3

OS S3 wake vector call

0xE4-0xE7

Reserved for future AMI progress codes

0xE8

S3 Resume Failed

0xE9

S3 Resume PPI not Found

0xEA

S3 Resume Boot Script Error

0xEB

S3 OS Wake Error

0xEC-0xEF

Reserved for future AMI error codes

0xF0

Recovery condition triggered by

rmware (Auto recovery)

0xF1

Recovery condition triggered by user (Forced recovery)

0xF2

Recovery process started

0xF3

Recovery

rmware image is found

0xF4

Recovery

rmware image is loaded

0xF5-0xF7

Reserved for future AMI progress codes

0xF8

Recovery PPI is not available

0xF9

Recovery capsule is not found

0xFA

Invalid recovery capsule

0xFB – 0xFF

Reserved for future AMI error codes

0x60

DXE Core is started

0X61

NVRAM initialization

English

ASRock A75 Pro4 Motherboard

English

0x62

Installation of the South Bridge Runtime Services

0x63

CPU DXE initialization is started

0x64

CPU DXE initialization (CPU module speci

0x65

CPU DXE initialization (CPU module speci

0x66

CPU DXE initialization (CPU module speci

0x67

CPU DXE initialization (CPU module speci

0x68

PCI host bridge initialization

0x69

North Bridge DXE initialization is started

0x6A

North Bridge DXE SMM initialization is started

0x6B
