Indesit PWC 7105W: instruction

Instructions for use

WASHING MACHINE

Contents

GB

Installation, 2-3

Unpacking and levelling

GB

F AR

Connecting the electricity and water supplies

The first wash cycle

English,1

Français,13

, 25

Technical data

Description of the washing machine

and starting a wash cycle, 4-5

FA

CSI

Control panel

Indicator lights

,37 Ðóññêèé,49

Starting a wash cycle

Wash cycles, 6

Table of wash cycles

Personalisation, 7

Setting the temperature

PWC 7105 W

Setting the spin speed

Functions

Detergents and laundry, 8

Detergent dispenser drawer

Preparing the laundry

Garments requiring special care

Load balancing system

Precautions and tips, 9

General safety

Disposal

Opening the porthole door manually

Care and maintenance, 10

Cutting off the water or electricity supply

Cleaning the washing machine

Cleaning the detergent dispenser drawer

Cleaning the pump

Checking the water inlet hose

Troubleshooting, 11

Service, 12

1

Installation

 This instruction manual should be kept in a safe

Levelling the machine correctly will provide it with

GB

place for future reference. If the washing machine is

stability, help to avoid vibrations and excessive noise

sold, transferred or moved, make sure that the

and prevent it from shifting while it is operating. If it is

instruction manual remains with the machine so that

placed on carpet or a rug, adjust the feet in such a

the new owner is able to familiarise himself/herself

way as to allow a sufficient ventilation space

with its operation and features.

underneath the washing machine.

 Read these instructions carefully: they contain vital

information relating to the safe installation and

Connecting the electricity and water

operation of the appliance.

supplies

Unpacking and levelling

Connecting the water inlet hose

Unpacking

1. Connect the supply

pipe by screwing it to a

1. Remove the washing machine from its packaging.

cold water tab using a ¾

2. Make sure that the washing machine has not been

gas threaded connection

damaged during the transportation process. If it has

(see figure).

been damaged, contact the retailer and do not

Before performing the

proceed any further with the installation process.

connection, allow the

water to run freely until it

3. Remove the 4

is perfectly clear.

protective screws (used

during transportation) and

the rubber washer with

2. Connect the inlet hose

the corresponding

to the washing machine

spacer, located on the

by screwing it onto the

rear part of the appliance

corresponding water inlet

(see figure).

of the appliance, which is

situated on the top right-

hand side of the rear part

of the appliance (see

4. Close off the holes using the plastic plugs provided.

figure).

5. Keep all the parts in a safe place: you will need

them again if the washing machine needs to be

moved to another location.

3. Make sure that the hose is not folded over or bent.

 Packaging materials should not be used as toys for

 The water pressure at the tap must fall within the

children.

values indicated in the Technical details table (see

next page).

Levelling

 If the inlet hose is not long enough, contact a

1. Install the washing machine on a flat sturdy floor,

specialised shop or an authorised technician.

without resting it up against walls, furniture cabinets

or anything else.

 Never use second-hand hoses.

2. If the floor is not

 Use the ones supplied with the machine.

perfectly level, compen-

sate for any unevenness

by tightening or loosening

the adjustable front feet

(see figure); the angle of

inclination, measured in

relation to the worktop,

must not exceed 2°.

2

Connecting the drain hose

 Do not use extension cords or multiple sockets.

GB

Connect the drain hose,

 The cable should not be bent or compressed.

without bending it, to a

drainage duct or a wall

 The power supply cable must only be replaced by

drain located at a height

authorised technicians.

between 65 and 100 cm

65 - 100 cm

from the floor;

Warning! The company shall not be held responsible

in the event that these regulations are not respected.

The first wash cycle

alternatively, rest it on

Once the appliance has been installed, and before

the side of a washbasin

you use it for the first time, run a wash cycle with

or bathtub, fastening the

detergent and no laundry, using the wash cycle 2.

duct supplied to the tap

(see figure). The free end

of the hose should not

be underwater.

 We advise against the use of hose extensions; if it is

absolutely necessary, the extension must have the

same diameter as the original hose and must not

exceed 150 cm in length.

Technical data

Electrical connections

Model

PWC 7105 W

width 59.5 cm

Before plugging the appliance into the electricity

Dimensions

height 85 cm

socket, make sure that:

depth 55 cm

 the socket is earthed and complies with all

Capacity

from 1 to 7 kg

applicable laws;

Electrical

please refer to the technical data

connections

 the socket is able to withstand the maximum power

plate fixed to the machine

load of the appliance as indicated in the Technical

maximum pressure 1 MPa (10 bar)

data table (see opposite);

Water connections

minimum pressure 0.05 MPa (0.5 bar)

drum capacity 52 litres

 the power supply voltage falls within the values

indicated in the Technical data table (see opposite);

Spin speed

up to 1000 rotations per minute

Energy rated

 the socket is compatible with the plug of the

programmes

washing machine. If this is not the case, replace

programme 2; temperature 60°C;

according to

using a load of 7 kg.

the socket or the plug.

regulation

EN 60456

 The washing machine must not be installed

This appliance conforms to the

outdoors, even in covered areas. It is extremely

following EC Directives:

dangerous to leave the appliance exposed to rain,

- 89/336/EEC dated 03/05/89

storms and other weather conditions.

(Electromagnetic Compatibility) and

subsequent modifications

- 2002/96/EC

 When the washing machine has been installed, the

- 2006/95/EC Low Voltage)

electricity socket must be within easy reach.

3

Description of the washing machine

and starting a wash cycle

Control panel

GB

WASH CYCLE PROGRESS

indicator lights

FUNCTION

INDICATOR

buttons with

ON/OFF

LIGHTS

indicator lights

button

WASH CYCLE

START/

knob

DOOR LOCKED

PAUSE

Detergent dispenser drawer

indicator light

button with

TEMPERATURE

indicator light

button

SPIN

DELAY TIMER

button

button

Detergent dispenser drawer: used to dispense

WASH CYCLE PROGRESS

indicator light

s: used to

detergents and washing additives (see Detergents

monitor the progress of the wash cycle.

and laundry).

The illuminated indicator light shows which phase is in

progress.

ON/OFF button: switches the washing machine on

and off.

DOOR LOCKED indicator light: indicates whether

the door may be opened or not (see next page).

WASH CYCLE knob: programmes the wash cycles.

During the wash cycle, the knob does not move.

START/PAUSE button with indicator light: starts or

temporarily interrupts the wash cycles.

FUNCTION buttons with indicator light: used to

N.B. To pause the wash cycle in progress, press this

select the available functions. The indicator light

button; the corresponding indicator light will flash

corresponding to the selected function will remain lit.

orange, while the indicator light for the current wash

cycle phase will remain lit in a fixed manner. If the

TEMPERATURE button: sets the temperature or the

DOOR LOCKED

indicator light is switched off, the

cold wash cycle (see Personalisation).

door may be opened.

To start the wash cycle from the point at which it was

SPIN button: sets the spin speed or exclude the spin

interrupted, press this button again.

cycle completely (see Personalisation).

Standby mode

DELAY TIMER button: delays the start of the wash

This washing machine, in compliance with new

cycle by up to 9 hours.

energy saving regulations, is fitted with an automatic

Press the button repeatedly until the indicator light

standby system which is enabled after a few minutes

corresponding to the desired delay time turns on.

if no activity is detected. Press the ON-OFF button

When the button is pressed for the fourth time, the

briefly and wait for the machine to start up again.

option will be deactivated.

N.B.: once the START/PAUSE button has been

pressed, the delay time can only be modified by

decreasing it until the set programme is launched.

This option is available on all programmes.

4

Indicator lights

Wash

GB

The indicator lights provide important information.

Rinse

This is what they can tell you:

Spin

Delayed start

Drain

If the DELAY TIMER function has been activated (see

End of wash cycle

END

Personalisation), after the wash cycle has been

started the indicator light corresponding to the

selected delay period will begin to flash:

Function buttons and corresponding indicator lights

When a function is selected, the corresponding

indicator light will illuminate.

If the selected function is not compatible with the

programmed wash cycle, the corresponding indicator

light will flash and the function will not be activated.

If the selected function is not compatible with another

function which has been selected previously, the

indicator light corresponding to the first function

As time passes, the remaining delay will be displayed

selected will flash and only the second function will be

and the corresponding indicator light will flash:

activated; the indicator light corresponding to the

enabled option will remain lit.

Note: if the SMART function is active, all other non-

compatible functions cannot be activated.

Door locked indicator light

When the indicator light is on, the porthole door is

locked to prevent it from being opened; make sure

the indicator light is off before opening the door.

The set programme will start once the selected time

To open the door during a running wash cycle, press

delay has expired.

the START/PAUSE button; the door may be opened

once the DOOR LOCKED indicator light turns off.

Wash cycle phase indicator lights

 If the "functions" and START/PAUSE indicator lights

Once the desired wash cycle has been selected and has

flash fast and the "current phase" and DOOR

begun, the indicator lights switch on one by one to

LOCKED indicator lights turn on, there is an anomaly

indicate which phase of the cycle is currently in progress.

(see "Troubleshooting").

Starting a wash cycle

1. Turn the washing machine on by pressing the ON/OFF button. All the indicator lights will turn on for a few

seconds, then only the indicator lights relative to the selected programme settings will remain lit and the START/

PAUSE indicator light will flash.

2. Load the laundry and close the door.

3. Set the WASH CYCLE knob to the desired programme.

4. Set the washing temperature (see Personalisation).

5. Set the spin speed (see Personalisation).

6. Measure out the detergent and washing additives (see Detergents and laundry).

7. Select the desired functions.

8. Start the wash cycle by pressing the START/PAUSE button and the corresponding indicator light will remain lit

in a fixed manner, in blu.

To cancel the set wash cycle, pause the machine by pressing the START/PAUSE button and select a new cycle.

9. At the end of the wash cycle the

indicator light will switch on. The door can be opened once the DOOR

LOCK

indicator light turns off. Take out your laundry and leave the appliance door ajar to make sure the drum

dries completely. Switch the washing machine off by pressing the ON/OFF button.

5

Wash cycles

Table of wash cycles

GB

Detergents

Max.

Max.

Max.

Cycle

Description of the wash cycle

temp.

speed

Main

load

Pre-wash

Bleach

Fabric softener

duration

Wash

cycles

(°C)

(rpm)

wash

(kg)

Smart cycles

Cottons with Pre-wash: extremely

1

90°

1000

•

•

-

•

7 171

soiled whites.

2 Cotton: extremely soiled whites.

90°

1000 -

•

•

•

7 152

Cotton (1): heavily soiled whites and

2

60°

1000 -

•

•

•

7 153

resistant colours.

Cotton (2): heavily soiled whites and

2

40°

1000 -

•

•

•

7 147

delicate colours.

White Cotton: heavily soiled whites

3

60°

1000 -

•

•

•

7 130

and resistant colours.

Coloured Cottons (3)

: lightly soiled

4

40°

1000 -

•

•

•

7 92

whites and delicate colours.

Synthetics: heavily soiled resistant

5

60°

800 -

•

•

•

3 80

colours.

Synthetics: lightly soiled resistant

6

40°

800 -

•

•

•

3 74

colours.

7 Jeans

40°

800 -

•

-

•

3,5 80

8 Shirts

40°

600 -

•

•

•

2 70

Mix-Cool 30’: to refresh lightly soiled

garments quickly (not suitable for

Cold

9

800 -

•

-

•

3 30

wool, silk and clothes which require

water

washing by hand).

Special cycles

10 Wool: for wool, cashmere, etc.

40°

600 -

•

-

•

1,5 55

Silk: for garments in silk and viscose,

11

30°

0 -

•

-

•

1 55

lingerie.

Max.

12 Sport Shoes

30°

600 -

•

-

•

50

2 pairs

13 Outwear*

30°

400 -

•

- -

2 46

Partial cycles

Rinse

- 1000 - -

•

•

7 36

Spin

- 1000 - - - - 7 16

Drain

- 0 - - - - 7 2

The information contained in the table is intended as a guide only.

For all Test Institutes:

1) Test wash cycle in compliance with regulation EN 60456: set wash cycle 2 with a temperature of 60°C.

2) Long wash cycle for cottons: set wash cycle 2 with a temperature of 40°C.

3) Short wash cycle for cottons: set wash cycle 4 with a temperature of 40°C.

6

Personalisation

Setting the temperature

GB

Press the TEMPERATURE button to set the wash temperature (see Table of wash cycles).

The temperature may be lowered, or even set to a cold wash

.

The washing machine will automatically prevent you from selecting a temperature which is higher than the

maximum value set for each wash cycle.

Setting the spin speed

Press the SPIN SPEED button to set the spin speed for the selected wash cycle.

The maximum spin speeds available for each wash cycle are as follows:

Wash cycles Maximum spin speed

Cottons 1000 rpm

Synthetics 800 rpm

Wool 600 rpm

Silk drain only

The spin speed may be lowered, or the spin cycle can be excluded altogether by selecting the symbol

.

The washing machine will automatically prevent you from selecting a spin speed which is higher than the

maximum speed set for each wash cycle.

Functions

The various wash functions available with this washing machine will help to achieve the desired results, every time.

To activate the functions:

1. Press the button corresponding to the desired function;

2. the function is enabled when the corresponding indicator light is illuminated.

Note: If the indicator light flashes rapidly, this signals that this particular function may not be selected in

conjunction with the selected wash cycle.

The option optimises washing to suit the quantity of laundry loaded into the machine, thereby reducing the

overall wash cycle duration while minimising water and energy consumption. Press the button to select

the type of wash cycle desired:

Intense: vigorous wash cycle for garments with a heavy soil level.

4 You: standard wash cycle for garments with a normal soil level.

Fast: quick wash cycle for garments with a light soil level.

 This may only be used in conjunction with wash cycles 1, 2, 3, 4, 5, 6 (all three levels) and 7, 8, 9 (4 You and

Fast levels).

Extra Rinse

By selecting this option, the efficiency of the rinse is increased and optimal detergent removal is guaranteed. It is

particularly useful for sensitive skin.

 It cannot be used in conjunction with wash cycles 9, , .

Easy iron

By selecting this function, the wash and spin cycles will be modified in order to reduce the formation of creases. At

the end of the cycle the washing machine will perform slow rotations of the drum, while the EASY IRON and

START/PAUSE indicator lights will flash (blue and orange respectively). To end the cycle, press the START/PAUSE

button or the EASY IRON button. For wash cycles number 11-13, the machine will end the cycle while the laundry

is soaking; the EASY IRON and START/PAUSE indicator lights will flash. To drain the water so that the laundry may

be removed, press the START/PAUSE button or the EASY IRON button.

 It cannot be used in conjunction with wash cycles 9, 10, 12, , .

Stain removal

Bleaching cycle designed to remove the toughest stains. Please remember to pour the bleach into extra

compartment 4 (see Bleach cycle).

 This function may not be used in conjunction with wash cycles 1, 7, 9, 10, 11, 12, 13, , .

7

Detergents and laundry

Detergent dispenser drawer

Delicate fabrics: max. 2 kg

GB

Wool: max. 1,5 kg

Good washing results also depend on the correct

Silk: max. 1 kg

dose of detergent: adding too much detergent will not

necessarily result in a more efficient wash, and may in

How much does your laundry weigh?

fact cause build up on the inside of your appliance

1 sheet 400-500 g

and contribute to environmental pollution.

1 pillow case 150-200 g

1 tablecloth 400-500 g

 Do not use hand washing detergents because these

1 bathrobe 900-1200 g

create too much foam.

1 towel 150-250 g

Open the detergent

4

4

dispenser drawer and pour

Garments requiring special care

in the detergent or

washing additive, as

Jeans: turn the garments inside out before washing

1

1

3

3

follows.

and use liquid detergent. Use wash cycle 7.

2

2

Shirts: use special wash cycle 8 to wash shirts in

Compartment 1: Pre-

various fabrics and colours.

wash detergent

It guarantees maximum care is taken of the garments

(powder)

and minimises the formation of creases.

Before pouring in the

Mix-Cool 30: this wash cycle was designed to wash

detergent, make sure that

lightly soiled garments quickly: it lasts just 30 minutes

extra compartment 4 has been removed.

and therefore saves both energy and time. By selecting

compartment 2: Detergent for the wash cycle

wash cycle 9, it is possible to wash different fabrics

(powder or liquid)

(except for wool and silk items) using a cold cycle, up to

Liquid detergent should only be poured in immediately

a maximum load of 3 kg.

prior to the start of the wash cycle.

Wool: wash cycle 10 can be used to wash all woollen

compartment 3: Additives (fabric softeners, etc.)

garments in the machine, even those carrying the hand

The fabric softener should not overflow the grid.

wash only

label. To achieve the best results, use a

extra compartment 4: Bleach

special detergent and do not exceed the maximum load

of 1,5 kg.

Bleach cycle

Silk: use special wash cycle 11 to wash all silk

garments. We recommend the use of special detergent

 Traditional bleach should be used on sturdy white

which has been designed to wash delicate clothes.

fabrics, and delicate bleach for coloured fabrics,

Curtains: we recommend you fold the curtains and place

synthetics and for wool.

them in a pillow case or mesh bag. Use wash cycle 11.

This option is particularly useful for the removal of

Sport Shoes (wash cycle 12): is for washing sports

stubborn stains. Place extra compartment 4 (supplied)

shoes; for best results, do not wash more than 2 pairs

into compartment 1. When pouring in the bleach, be

simultaneously.

careful not to exceed the "max" level marked on the

Outwear (wash cycle 13): is studied for washing water-

central pivot (see figure). To run the bleach cycle on its

repellent fabrics and winter jackets (e.g. Gore-Tex,

own, pour the bleach into extra compartment 4, set the

polyester, nylon); for best results, use a liquid detergent

"Rinse"

programme and activate the "Stain removal"

and dosage suitable for a half-load; pre-treat necks,

option. To bleach during a wash cycle, pour in the

cuffs and stains if necessary; do not use softeners or

detergent and any fabric softener you wish to use, set

detergents containing softeners. Stuffed duvets cannot

the desired wash cycle and enable the "Stain removal"

be washed with this programme.

option. The use of extra compartment 4 excludes the

Pre-wash option.

Load balancing system

Before every spin cycle, to avoid excessive vibrations

Preparing the laundry

and to distribute the load in a uniform manner, the drum

rotates continuously at a speed which is slightly greater

 Divide the laundry according to:

than the washing rotation speed. If, after several

- the type of fabric/the symbol on the label

attempts, the load is not balanced correctly, the ma-

- the colours: separate coloured garments from whites.

chine spins at a reduced spin speed. If the load is

 Empty all garment pockets and check the buttons.

excessively unbalanced, the washing machine performs

 Do not exceed the listed values, which refer to the

the distribution process instead of spinning. To encour-

weight of the laundry when dry:

age improved load distribution and balance, we recom-

Durable fabrics: max. 7 kg

mend small and large garments are mixed in the load.

Synthetic fabrics: max. 3 kg

8

Precautions and tips

 This washing machine was designed and

Opening the porthole door manually

GB

constructed in accordance with international safety

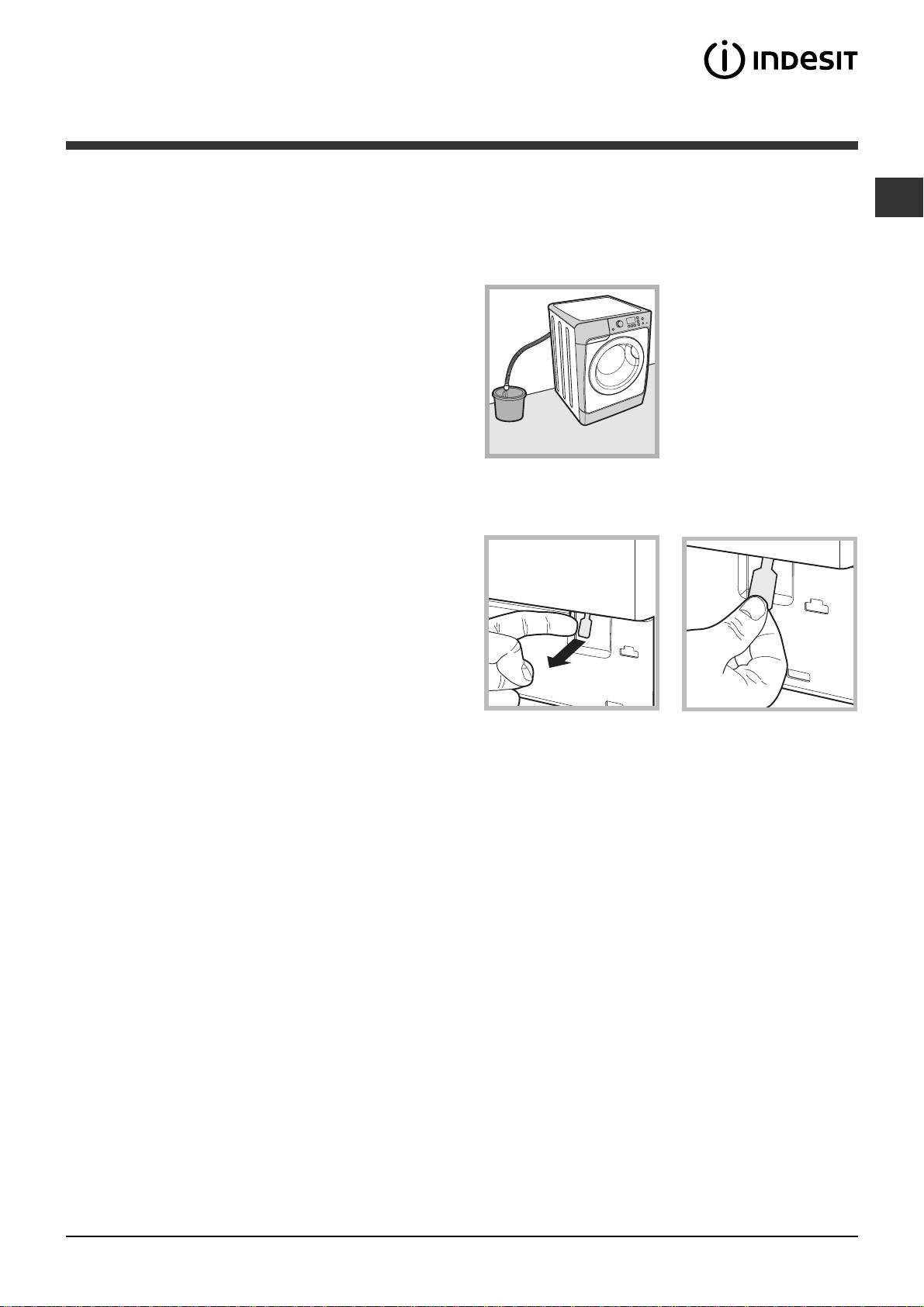

In the event that it is not possible to open the

regulations. The following information is provided for

porthole door due to a powercut, and if you wish to

safety reasons and must therefore be read carefully.

remove the laundry, proceed as follows:

General safety

1. remove the plug from

 This appliance was designed for domestic use only.

the electrical socket.

2. make sure the water

 The washing machine must only be used by adults, in

level inside the machine is

accordance with the instructions provided in this manual.

lower than the door

 Do not touch the machine when barefoot or with

opening; if it is not, remove

wet or damp hands or feet.

excess water using the

 Do not pull on the power supply cable when

drain hose, collecting it in a

unplugging the appliance from the electricity

bucket as indicated in the

socket. Hold the plug and pull.

figure.

 Do not open the detergent dispenser drawer while

the machine is in operation.

3. remove the cover panel on the lower front part of

the washing machine (see overleaf).

 Do not touch the drained water as it may reach

extremely high temperatures.

 Never force the porthole door. This could damage

the safety lock mechanism designed to prevent

accidental opening.

 If the appliance breaks down, do not under any

circumstances access the internal mechanisms in

an attempt to repair it yourself.

 Always keep children well away from the appliance

while it is operating.

 The door can become quite hot during the wash cycle.

 If the appliance has to be moved, work in a group

4. pull outwards using the tab as indicated in the

of two or three people and handle it with the utmost

figure, until the plastic tie-rod is freed from its stop

care. Never try to do this alone, because the

position; pull downwards and open the door at the

appliance is very heavy.

same time.

 Before loading laundry into the washing machine,

make sure the drum is empty.

5. reposition the panel, making sure the hooks are

securely in place before you push it onto the

Disposal

appliance.

 Disposing of the packaging materials: observe local

regulations so that the packaging may be re-used.

 The European Directive 2002/96/EC on Waste

Electrical and Electronic Equipment, requires that

old household electrical appliances must not be

disposed of in the normal unsorted municipal waste

stream. Old appliances must be collected

separately in order to optimise the recovery and

recycling of the materials they contain and reduce

the impact on human health and the environment.

The crossed out "wheeled bin" symbol on the

product reminds you of your obligation, that when

you dispose of the appliance it must be separately

collected.

Consumers should contact their local authority or

retailer for information concerning the correct

disposal of their old appliance.

9
