ABOUT DISTANCE DISPLAY

When you use the combination of MZ / Z series, and *ist film SLR cameras or PENTAX digital SLR

cameras with a lens which is produced after A series lens, the LCD panel of flash unit will indicate the

effective flash distance ranges. If you use an earlier series lens with these cameras, the effective

distance ranges will not appear on the LCD panel.

TTL AUTO FLASH

In the TTL AUTO Mode, the camera will control the amount of flash lighting to provide the appropriate

exposure for the subject.

1. Set the camera’s exposure mode to P (PICT) Mode.

2. Turn on the power switch of the flash, the TTL mark will appear on the LCD panel and flash will start

charging. (If TTL mark does not appear, depress the MODE button several times to select the TTL

mode).

3. Focus on your subject.

4. Check that the subject is located within the effective distance range, indicated on the LCD panel.

5. Press the shutter button, after the flash is fully charged.

When the flash is fully charged, the ready light in the viewfinder, and

appears on the flash unit.

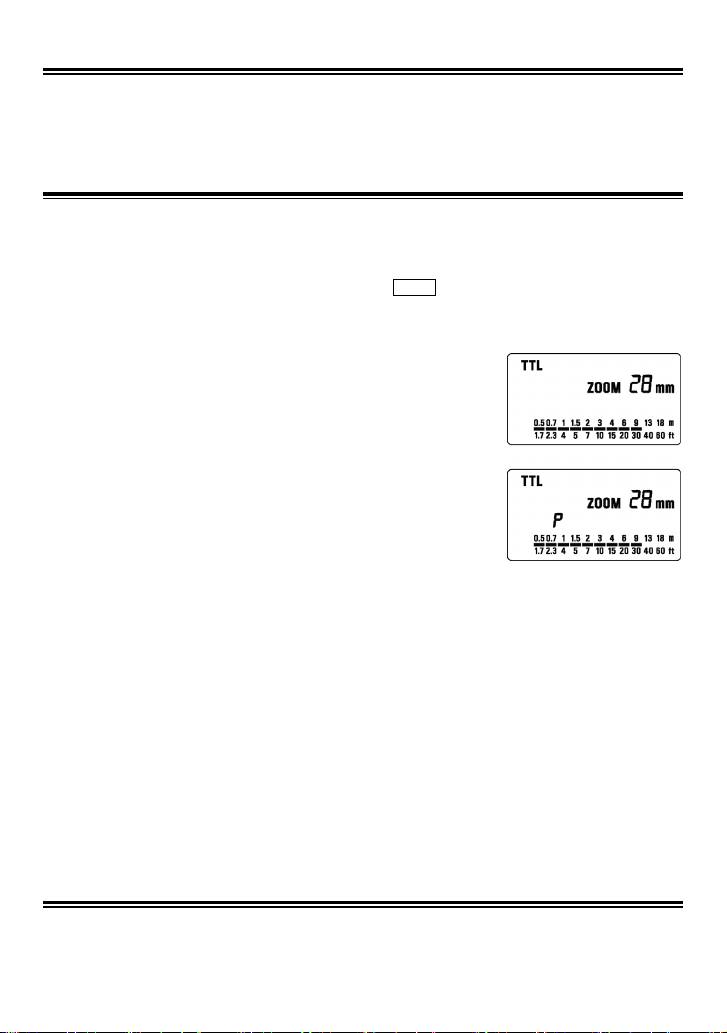

◆ If flashgun is used with a P-TTL compatible camera, TTL will be

controlled by the P-TTL system. If the flash is set as TTL, “P" will be

displayed on the liquid crystal display.

◆ When the camera receives the appropriate exposure, the TTL icon on

the LCD panel will appear for 5 seconds. If this indication does not

appear, the flash illumination is not enough for that particular situation.

Please re-take the picture, at a closer distance. (In the case of digital

SLR cameras, “Flash Exposure Level” cannot be confirmed from the

camera’s viewfinder display or from the blinking display indicator of

the flash’s LCD panel. Please confirm the Flash Exposure

Level visually from the image that you capture.)

◆ The AF Auxiliary Light will turn on automatically as you focus on a subject in a dark area. The

effective range of the AF Auxiliary Light is up to about 0.7meter to 9meter (2.3-29.5 feet).

◆ When the flash is fully charged, the flash mark will appear in the finder. If the shutter is released

before the flash is fully charged, the flash will not fire, and the camera will take the picture at a slow

shutter speed.

USING FLASH IN OTHER CAMERA MODES

Shutter Speed Priority Setting

When you set the desired shutter speed, the camera will select the appropriate aperture value. You

cannot choose shutter a speed faster than the camera’s sync speed.

Aperture Priority Setting

By selecting the Av mode, after you select the desired aperture the camera will set the appropriate

shutter speed for the background exposure.

When used with M Mode

You can set the desired shutter speed and aperture value. You can set the shutter speed from top

sync speed to bulb.

LIMITS OF CONTINUOUS SHOOTING

To prevent overheating of the flash’s circuitry, please do not use your Flash unit for at least 10minutes

after using the number of flash exposures, shown in the below table have been made in quick

succession.

16
