ASRock X79 Extreme7: Installing OS on a HDD Larger Than 2TB

232

ASRock  X79  Extreme7  Motherboard

Installing OS on a HDD Larger Than 2TB

This motherboard is adopting UEFI BIOS that allows Windows

®

 OS to be installed

on a large size HDD (>2TB). Please follow below procedure to install the operating

system.

1. Please make sure to use

Windows

®

 Vista

TM

 64-bit (with SP1 or above)

 or

Windows

®

 7 64-bit

.

2. Press <F2> or <Delete> at system POST. Set

AHCI Mode

 in UEFI Setup Utility >

    Advanced > Storage Con

fi

 guration > SATA Mode.

3. Choose the item

“UEFI:xxx“

 to boot in UEFI Setup Utility > Boot > Boot Option #1.

    (“xxx” is the device which contains your Windows

®

 installation

fi

 les. Normally it is

    an optical drive.) You can also press <F11> to launch boot menu at system POST

    and choose the item

“UEFI:xxx“

 to boot.

4. Start Windows

®

 installation.

English

233

ASRock  X79  Extreme7  Motherboard

English

Installing OS on a HDD Larger Than 2TB in RAID Mode

This motherboard adopts UEFI BIOS that allows Windows

®

 OS to be installed on a

large size HDD (>2TB). Please follow the procedures below to install the operating

system.

1. Please make sure to use

Windows

®

 Vista

TM

 64-bit (with SP1 or above)

 or

Windows

®

 7 64-bit

.

2. Copy Intel

®

 RAID drivers into a USB

fl

 ash disk.

    You can download the driver from ASRock website. (http://download.asrock.

    com/drivers/Intel/SATA/Floppy_Win7-64_Win7_Vista64_Vista_XP64_

    XP(v10.6.0.1002)Z68.zip) and unzip the

fi

 le into the USB

fl

 ash disk.

OR

 Please copy the

fi

 le from ASRock motherboard support CD. (please copy the

fi

 les under following directory: D:\ AMD64\Win7-64_Vista64_Intel_v10.6.0.100)

3. Create RAID array for you system. Please refer to "Intel RAID Installation Guide"

fi

 le for details.

4. Install Windows

®

 Vista

TM

 64-bit / 7 64-bit:

    A. Insert your Windows

®

 Vista

TM

 64-bit / 7 64-bit installation disc to the optical

         drive.

    B. Press <F11> to launch boot menu at system POST and choose the item

         “UEFI:xxx“ to boot.

    C. Start Windows

®

 Installation. When you see “Where do you want to install

         Windows?” page, please click “Load Driver”.

    D. Plug the USB

fl

 ash disk into your USB port; select “Browse” to

fi

 nd the RAID

         driver. Then choose the directory (xx\AMD64\) you have copied in the

fi

 rst

         step.

234

ASRock  X79  Extreme7  Motherboard

English

If you install Windows

®

 7 64-bit / Vista

TM

 64-bit in a large hard disk (ex. Disk

volume > 2TB), it may take more time to boot into Windows

®

 or install driver/

utilities. If you encounter this problem, you will need to following instructions

to

fi

 x this problem.

Windows

®

 Vista

TM

 64-bit:

Microsoft

®

 does not provide hot

fi

 x for this problem. The steps listed below

are Microsoft

®

's suggested solution:

A. Disable System Restore.

     a. Type “systempropertiesprotection” in the Start Menu. Then press

         "Enter".

     b. De-select Local Disks for System Restore. Then Click “Turn System

         Restore Off” to con

fi

 rm. Then Press “Ok”.

    E. Please keep the USB

fl

 ash disk installed until the system

fi

 rst reboot.

    F. Continue to install OS by following the Windows

®

 instructions.

5. Follow Windows

®

 Installation Guide to install OS.

235

ASRock  X79  Extreme7  Motherboard

English

B. Disable “Volume Shadow Copy” service.

     a. Type “computer management” in the Start Menu, then press “Enter”.

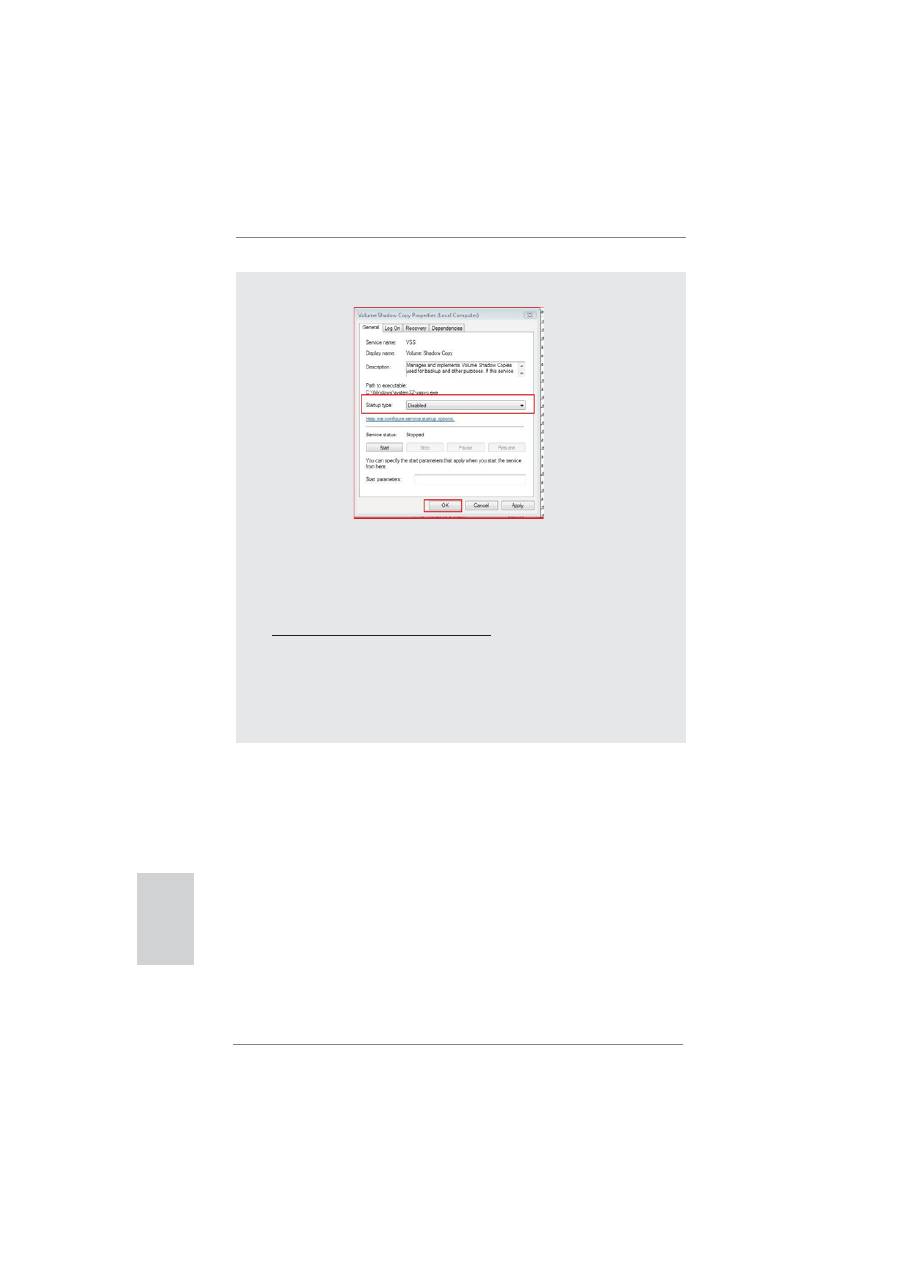

     b. Go to “Services and Applications>Services”; Then double click “Volume

         Shadow Copy”.

236

ASRock  X79  Extreme7  Motherboard

English

     c. Set “Startup type” to “Disable” then Click “OK”.

C. Reboot your system.

D. After reboot, please start to install motherboard drivers and utilities.

Windows

®

 7 64-bit:

A. Please request the hot

fi

 x KB2505454 through this link:

    http://support.microsoft.com/kb/2505454/

B. After installing Windows

®

 7 64-bit, install the hot

fi

 x kb2505454.

    (This may take a long time; >30 mins.)

C. Reboot your system. (It may take about 5 minutes to reboot.)

D. Windows

®

 will install this hot

fi

 x then reboot by itself.

E. Please start to install motherboard drivers and utilities.

6. Finish.
