ASRock FM2A85X Extreme4: Installing OS on a HDD Larger Than 2TB

173

ASRock  FM2A85X Extreme4  Motherboard

English

Installing OS on a HDD Larger Than 2TB

This motherboard is adopting UEFI BIOS that allows Windows

®

 OS to be installed

on a large size HDD (>2TB). Please follow below procedure to install the operating

system.

1. Please make sure to use

Windows

®

 Vista

TM

 64-bit (with SP1 or above)

,

Windows

®

 7 64-bit

 or

Windows

®

 8 64-bit

.

2. Press <F2> or <Delete> at system POST. Set

AHCI Mode

 in UEFI Setup Utility >

    Advanced > Storage Con

fi

 guration > SATA Mode.

3. Choose the item

“UEFI:xxx“

 to boot in UEFI Setup Utility > Boot > Boot Option #1.

    (“xxx” is the device which contains your Windows

®

 installation

fi

 les. Normally it is

    an optical drive.) You can also press <F11> to launch boot menu at system POST

    and choose the item

“UEFI:xxx“

 to boot.

4. Start Windows

®

 installation.

174

ASRock  FM2A85X Extreme4  Motherboard

English

Installing OS on a HDD Larger Than 2TB in RAID Mode

This motherboard is adopting UEFI BIOS that allows Windows

®

 OS to be installed

on a large size HDD (>2TB). Please follow below procedure to install the operating

system.

1. Please make sure to use

Windows

®

 Vista

TM

 64-bit (with SP1 or above)

,

Windows

®

 7 64-bit

 or

Windows

®

 8 64-bit

.

2. Press <F2> or <Delete> at system POST. Set

RAID Mode

 in UEFI Setup Utility >

    Advanced > Storage Con

fi

 guration > SATA Mode.

3. Choose

onboard RAID 3TB+ unlocker

 >

UEFI Mode For GPT partition

. Press

    <F10> to save the change and exit.

4. Press <F11> to enter Boot Manual. Choose

UEFI : Built - in EFI Shell

.

5. Key in

drvcfg

, for example you will see below:

    Drv[4E]   Ctrl[B5]   Lang[eng]

6. Key in

dh [Drv number]

, for example: key in

dh 4E

.

175

ASRock  FM2A85X Extreme4  Motherboard

English

7. And then key in

drvcfg –s [Drv number] [Ctrl number]

 to enter Raid Utility.

    For example: key in

drvcfg –s 4E B5

.

8. Choose

Logical Drive Main Menu

 to set up Raid Drive.

9. Choose

Logical Drive Create Menu

 to create a Raid Drive.

10. Choose

Usable Physical Drive List

 to select Raid HDD.

176

ASRock  FM2A85X Extreme4  Motherboard

English

11. Press

Space

 on keyboard to toggle checkbox.

12. Choose

Ld Size setting

, and key in the Raid size.

13. After set up Raid size, please click

Start to Create

.

14. Press <F10> to exit Utility.

15. During reboot, please press <F11> to enter Boot Manual. Choose

UEFI: SCSI

      CD/DVD Drive

.

      * This option only shows on Windows

®

 8 64-bit, 7 64-bit and Vista

TM

 64-bit OS.

177

ASRock  FM2A85X Extreme4  Motherboard

English

16. Follow Windows

®

 Installation Guide to install OS.

If you install Windows

®

 8 64-bit / 7 64-bit / Vista

TM

 64-bit in a large hard

disk (ex. Disk volume > 2TB), it may take more time to boot into Windows

®

or install driver/utilities. If you encounter this problem, you will need to

following instructions to

fi

 x this problem.

Windows

®

 Vista

TM

 64-bit:

Microsoft

®

 does not provide hotfix for this problem. Below steps are

Microsoft

®

 suggested solution:

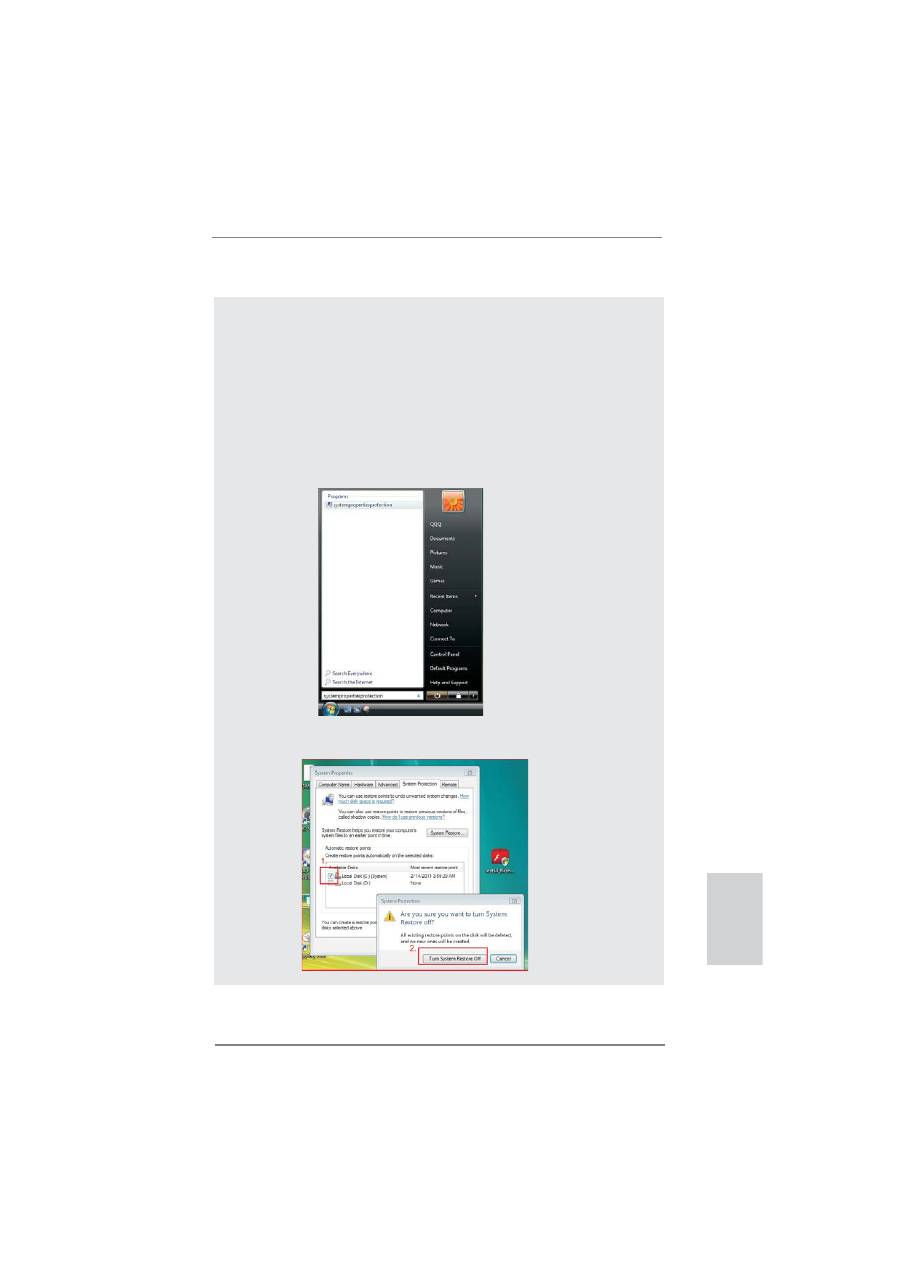

A. Disable System Restore.

     a. Type “systempropertiesprotection” in the Start Menu. Then press

         "Enter".

     b. De-select Local Disks for System Restore. Then Click “Turn System

         Restore Off” to con

fi

 rm. Then Press “Ok”.

178

ASRock  FM2A85X Extreme4  Motherboard

English

B. Disable “Volume Shadow Copy” service.

     a. Type “computer management” in the Start Menu, then press “Enter”.

     b. Go to “Services and Applications>Services”; Then double click “Volume

         Shadow Copy”.

     c. Set “Startup type” to “Disable” then Click “OK”.

179

ASRock  FM2A85X Extreme4  Motherboard

English

17. Finish.

C. Reboot your system.

D. After reboot, please start to install motherboard drivers and utilities.

Windows

®

 8 64-bit / 7 64-bit:

A. Please request the hot

fi

 x KB2505454 thru this link:

    http://support.microsoft.com/kb/2505454/

B. After installing Windows

®

 8 64-bit / 7 64-bit, install the hot

fi

 x kb2505454.

    (This may take long time; >30 mins.)

C. Reboot your system. (It may take about 5 mins to boot.)

D. The Windows

®

 will install this hot

fi

 x then reboot by itself.

E. Please start to install motherboard drivers and utilities.
