2. Installation

Pre-installation Precautions

Take note of the following precautions before you install mother-

board components or change any motherboard settings.

1.  Unplug the power cord from the wall socket before touching any

component. Failure to do so may cause severe damage to the

motherboard, peripherals, and/or components.

2.  To avoid damaging the motherboard components due to static

electricity, NEVER place your motherboard directly on the car-

pet or the like. Also remember to use a grounded wrist strap or

touch a safety grounded object before you handle components.

3.  Hold components by the edges and do not touch the ICs.

4.  Whenever you uninstall any component, place it on a grounded

antstatic pad or in the bag that comes with the component.

5.  When placing screws into the screw holes to secure the moth-

erboard to the chassis, please do not over-tighten the screws!

Doing so may damage the motherboard.

2.1 CPU Installation

For the installation of Intel 1155-Pin CPU,

please follow the steps below.

Before you insert the 1155-Pin CPU into the socket, please check if the

CPU surface is unclean or if there is any bent pin on the socket. Do not

force to insert the CPU into the socket if above situation is found. Other-

wise, the CPU will be seriously damaged.

1155-Pin Socket Overview

Contact Array

Socket Body

Load Lever

Load Plate

English

13

ASRock  Z68M-ITX/HT  Motherboard

English

Step 1.  Open the socket:

Step 1-1.  Disengaging the lever by depressing

down and out on the hook to clear

retention tab.

Step 1-2.  Rotate the load lever to fully open po-

sition at approximately 135 degrees.

Step 1-3.  Rotate the load plate to fully open po-

sition at approximately 100 degrees.

Step 2.  Remove PnP Cap (Pick and Place Cap).

1. It is recommended to use the cap tab to handle and avoid kicking

    off the PnP cap.

2. This cap must be placed if returning the motherboard for after

    service.

Step 3.  Insert the 1155-Pin CPU:

Step 3-1.  Hold the CPU by the edges where

are marked with black lines.

Step 3-2.  Orient the CPU with IHS (Integrated

Heat Sink) up. Locate Pin1 and the

two orientation key notches.

For proper inserting, please ensure to match the two orientation key

notches of the CPU with the two alignment keys of the socket.

black line

Pin1

alignment  key

alignment  key

Pin1

1155-Pin CPU

1155-Pin Socket

orientation key  notch

orientation key  notch

14

ASRock  Z68M-ITX/HT  Motherboard

Step 3-3.  Carefully place the CPU into the

socket by using a purely vertical mo-

tion.

Step 3-4.  Verify that the CPU is within the sock-

et and properly mated to the orient

keys.

Step 4.  Close the socket:

Step 4-1.  Rotate the load plate onto the IHS.

Step 4-2.  While pressing down lightly on load

plate, engage the load lever.

Step 4-3.  Secure load lever with load plate tab

under retention tab of load lever.

2.2    Installation of CPU Fan and Heatsink

For proper installation, please kindly refer to the instruction manuals of your CPU

fan and heatsink.

Below is an example to illustrate the installation of the heatsink for 1155-Pin CPU.

Step 1.  Apply thermal interface material onto center of

IHS on the socket surface.

Step 2.  Place the heatsink onto the socket. Ensure

fan cables are oriented on side closest to the

CPU fan connector on the motherboard (CPU_

FAN1, see page 2, No. 18).

Step 3.  Align fasteners with the motherboard through-

holes.

Step 4.  Rotate the fastener clockwise, then press

down on fastener caps with thumb to install

and lock. Repeat with remaining fasteners.

If you press down the fasteners without rotating them clockwise, the

heatsink cannot be secured on the motherboard.

Step 5.  Connect fan header with the CPU fan connector on the motherboard.

Step 6.  Secure excess cable with tie-wrap to ensure cable does not interfere with

fan operation or contact other components.

Apply Thermal

Interface Material

Fan cables on side

closest to MB header

Fastener slots

pointing straight out

Press Down

(4 Places)

English

15

ASRock  Z68M-ITX/HT  Motherboard

English

2.3  Installation of Memory Modules (DIMM)

This motherboard provides two 240-pin DDR3 (Double Data Rate 3) DIMM slots,

and supports Dual Channel Memory Technology. For dual channel configuration,

you always need to install two identical (the same brand, speed, size and chip-

type) memory modules in the DDR3 DIMM slots to activate Dual Channel Memory

Technology. Otherwise, it will operate at single channel mode.

1.

It is not allowed to install a DDR or DDR2 memory module into

DDR3 slot;otherwise, this motherboard and DIMM may be

 damaged.

2.

If you install only one memory module or two non-identical

memory modules, it is unable to activate the Dual Channel

 Memory

Technology.

3.

Some DDR3 1GB double-sided DIMMs with 16 chips may not

work on this motherboard. It is not recommended to install them

on this motherboard.

notch

break

notch

break

Installing a DIMM

Please make sure to disconnect power supply before adding or

removing DIMMs or the system components.

Step 1.  Unlock a DIMM slot by pressing the retaining clips outward.

Step 2.  Align a DIMM on the slot such that the notch on the DIMM matches the

break on the slot.

The DIMM only

fi

 ts in one correct orientation. It will cause permanent

damage to the motherboard and the DIMM if you force the DIMM into

the slot at incorrect orientation.

Step 3.  Firmly insert the DIMM into the slot until the retaining clips at both ends

fully snap back in place and the DIMM is properly seated.

16

ASRock  Z68M-ITX/HT  Motherboard

English

2.4 Expansion Slot (PCI Express Slot)

There is 1 PCI Express slot on this motherboard.

PCIE slots:

PCIE1 (PCIE x16 slot; Blue) is used for PCI Express x16 lane width

graphics cards.

Installing an expansion card

Step 1.

Before installing the expansion card, please make sure that the power

supply is switched off or the power cord is unplugged. Please read the

documentation of the expansion card and make necessary hardware

settings for the card before you start the installation.

Step 2.

Remove the system unit cover (if your motherboard is already installed

in a chassis).

Step 3.

Remove  the  bracket facing the slot that you intend to use. Keep the

screws for later use.

Step 4.

Align the card connector with the slot and press

fi

 rmly until the card is

completely seated on the slot.

Step 5.

Fasten the card to the chassis with screws.

Step 6.

Replace the system cover.

17

ASRock  Z68M-ITX/HT  Motherboard

English

HDMI port

2. If you have installed onboard VGA driver from our support CD to your system

    already, you can freely enjoy the bene

fi

 ts of dual monitor function after your

    system boots. If you haven’t installed onboard VGA driver yet, please install

    onboard VGA driver from our support CD to your system and restart your

    computer.

2.5 Dual Monitor and Surround Display Features

Dual Monitor Feature

This motherboard supports dual monitor feature. With the internal VGA output sup-

port (DVI-D, D-Sub and HDMI), you can easily enjoy the bene

fi

 ts of dual monitor

feature without installing any add-on VGA card to this motherboard. This mother-

board also provides independent display controllers for DVI-D, D-Sub and HDMI to

support dual VGA output so that DVI-D, D-sub and HDMI can drive same or different

display contents.

To enable dual monitor feature, please follow the below steps:

1. Connect DVI-D monitor cable to DVI-D port on the I/O panel, connect D-Sub

    monitor cable to D-Sub port on the I/O panel, or connect HDMI monitor

    cable to HDMI port on the I/O panel.

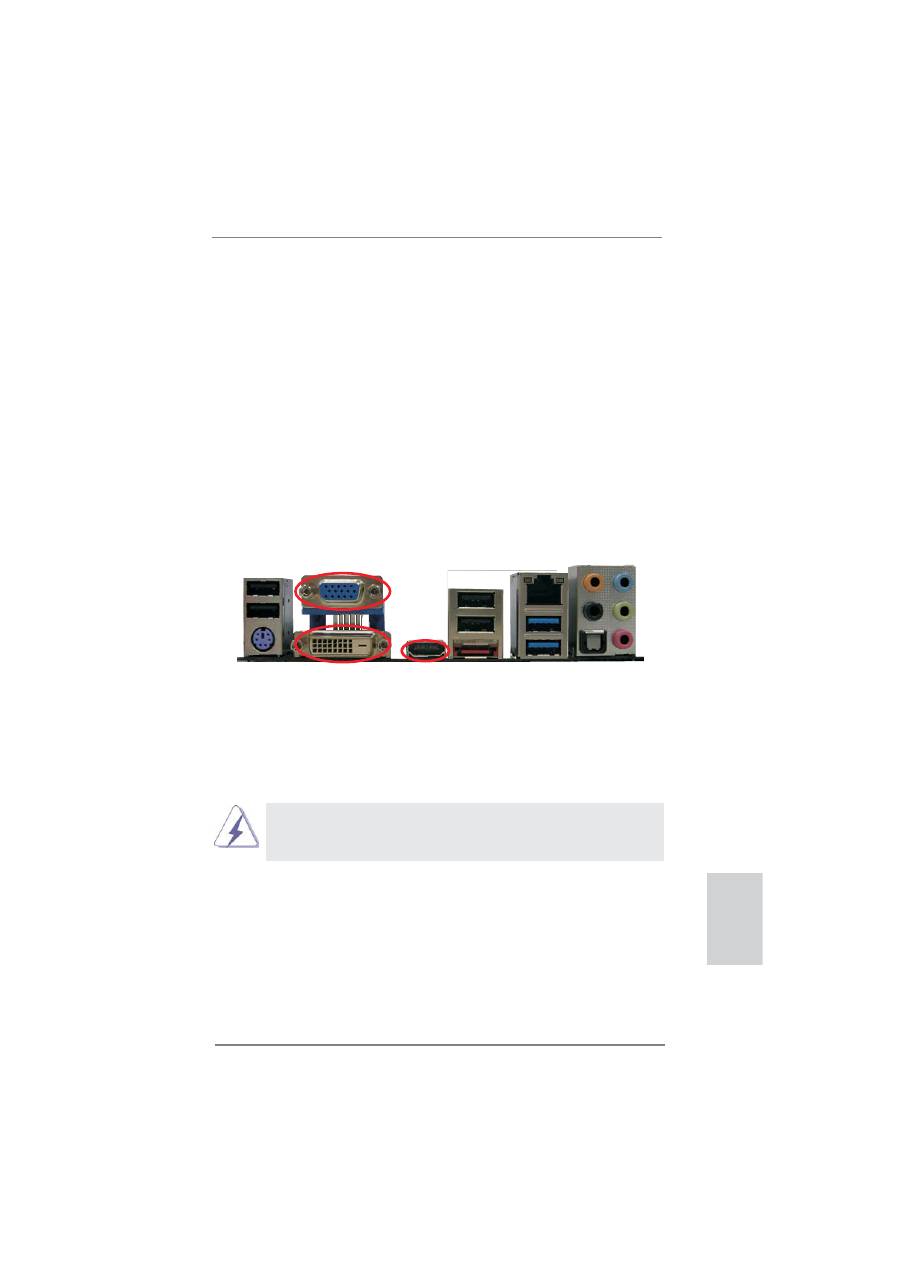

D-Sub port

DVI-D port

D-Sub, DVI-D and HDMI monitors cannot be enabled at the same time.

You can only choose the combination: DVI-D + HDMI, DVI-D + D-Sub,

or HDMI + D-Sub.

18

ASRock  Z68M-ITX/HT  Motherboard

English

Surround Display Feature

This motherboard supports surround display upgrade. With the internal VGA output

support (DVI-D, D-Sub and HDMI) and external add-on PCI Express VGA cards,

you can easily enjoy the bene

fi

 ts of surround display feature.

Please refer to the following steps to set up a surround display environment:

1. Install the PCI Express VGA card on PCIE1 slot. Please refer to page 16 for

    proper expansion card installation procedures for details.

2. Connect DVI-D monitor cable to DVI-D port on the I/O panel, connect D-Sub

    monitor cable to D-Sub port on the I/O panel, or connect HDMI monitor

    cable to HDMI port on the I/O panel. Then connect other monitor cables to the

    corresponding connectors of the add-on PCI Express VGA card on PCIE1 slot.

3. Boot your system. Press <F2> or <Del> to enter UEFI setup. Enter “Share

    Memory” option to adjust the memory capability to [32MB], [64MB], [128MB],

    [256MB] or [512MB] to enable the function of D-sub. Please make sure that

    the value you select is less than the total capability of the system memory. If you

    do not adjust the UEFI setup, the default value of “Share Memory”, [Auto], will

    disable D-Sub function when the add-on VGA card is inserted to this

    motherboard.

4. Install the onboard VGA driver and the add-on PCI Express VGA card driver to

    your system. If you have installed the drivers already, there is no need to install

    them again.

5. Set up a multi-monitor display.

    For Windows

®

 XP / XP 64-bit OS:

Right click the desktop, choose “Properties”, and select the “Settings” tab

so that you can adjust the parameters of the multi-monitor according to

the steps below.

A. Click the “Identify” button to display a large number on each monitor.

B. Right-click the display icon in the Display Properties dialog that you

    wish to be your primary monitor, and then select “Primary”. When

    you use multiple monitors with your card, one monitor will always be

    Primary, and all additional monitors will be designated as Secondary.

C. Select the display icon identi

fi

 ed by the number 2.

D. Click “Extend my Windows desktop onto this monitor”.

E. Right-click the display icon and select “Attached”, if necessary.

F. Set the “Screen Resolution” and “Color Quality” as appropriate for the

    second monitor. Click “Apply” or “OK” to apply these new values.

G. Repeat steps C through E for the diaplay icon identi

fi

 ed by the number

     one, two, three and four.

19

ASRock  Z68M-ITX/HT  Motherboard

English

    For Windows

®

 7 / 7 64-bit / Vista

TM

 / Vista

TM

 64-bit OS:

Right click the desktop, choose “Personalize”, and select the “Display

Settings” tab so that you can adjust the parameters of the multi-monitor

according to the steps below.

A. Click the number ”2” icon.

B. Click the items “This is my main monitor” and “Extend the desktop onto

    this monitor”.

C. Click “OK” to save your change.

D. Repeat steps A through C for the display icon identi

fi

 ed by the number

     three and four.

6. Use Surround Display. Click and drag the display icons to positions representing

    the physical setup of your monitors that you would like to use. The placement

    of display icons determines how you move items from one monitor to another.

HDCP Function

HDCP function is supported on this motherboard. To use HDCP

function with this motherboard, you need to adopt the monitor

that supports HDCP function as well. Therefore, you can enjoy

the superior display quality with high-de

fi

 nition HDCP

encryption contents. Please refer to below instruction for more

details about HDCP function.

  What

is

HDCP?

HDCP stands for High-Bandwidth Digital Content Protection,

  a

speci

fi

 cation developed by Intel

®

 for protecting digital

entertainment content that uses the DVI interface. HDCP is a

copy protection scheme to eliminate the possibility of

intercepting digital data midstream between the video source,

or transmitter - such as a computer, DVD player or set-top box -

and the digital display, or receiver - such as a monitor, television

or projector. In other words, HDCP speci

fi

 cation is designed to

protect the integrity of content as it is being transmitted.

Products compatible with the HDCP scheme such as DVD

players, satellite and cable HDTV set-top-boxes, as well as few

entertainment PCs requires a secure connection to a compliant

display. Due to the increase in manufacturers employing HDCP

in their equipment, it is highly recommended that the HDTV or

LCD monitor you purchase is compatible.

20

ASRock  Z68M-ITX/HT  Motherboard

English

* ASRock Smart Remote is only supported by some of ASRock motherboards. Please refer to

  ASRock website for the motherboard support list: http://www.asrock.com

USB 2.0 header (9-pin, blue)

CIR header (4-pin, white)

2.6 ASRock Smart Remote Installation Guide

ASRock Smart Remote is only used for ASRock motherboard with CIR header.

Please refer to below procedures for the quick installation and usage of ASRock

Smart Remote.

Step1.

Find the CIR header located next

to the USB 2.0 header on ASRock

 motherboard.

Step2.

Connect the front USB cable to the

USB 2.0 header (as below, pin 1-5)

and the CIR header. Please make

sure the wire assignments and the

pin assignments are matched

 correctly.

1 2

4

3

5

USB_PWR

P-

P+

GND

ATX+5VSB

IRRX

IRTX

GND

DUMMY

Step3. Install

Multi-Angle CIR Receiver to

the front USB port. If Multi-Angle

 CIR

Receiver cannot successfully

receive the infrared signals from

MCE Remote Controller, please try

to install it to the other front USB

 port.

3 CIR sensors in different angles

1.

Only one of the front USB port can support CIR function. When

the CIR function is enabled, the other port will remain USB

 function.

2.

Multi-Angle CIR Receiver is used for front USB only. Please do

not use the rear USB bracket to connect it on the rear panel.

Multi-Angle CIR Receiver can receive the multi-direction infrared

signals (top, down and front), which is compatible with most of

the chassis on the market.

3.

The Multi-Angle CIR Receiver does not support Hot-Plug

function. Please install it before you boot the system.

21

ASRock  Z68M-ITX/HT  Motherboard

English

2.7 Jumpers Setup

The illustration shows how jumpers are

setup. When the jumper cap is placed on

pins, the jumper is “Short”. If no jumper cap

is placed on pins, the jumper is “Open”. The

illustration shows a 3-pin jumper whose

pin1 and  pin2 are “Short” when jumper cap

is placed on these 2 pins.

Jumper Setting

Description

Clear CMOS Jumper

(CLRCMOS1)

(see p.2,  No. 6)

Note:  CLRCMOS1 allows you to clear the data in CMOS. To clear and reset the

system parameters to default setup, please turn off the computer and unplug

the power cord from the power supply. After waiting for 15 seconds, use a

jumper cap to short pin2 and pin3 on CLRCMOS1 for 5 seconds. However,

please do not clear the CMOS right after you update the BIOS. If you need

to clear the CMOS when you just

fi

 nish updating the BIOS, you must boot up

the system

fi

 rst, and then shut it down before you do the clear-CMOS action.

Please be noted that the password, date, time and user default pro

fi

 le will be

cleared only if the CMOS battery is removed.

Clear CMOS

Default

2.8 Onboard Headers and Connectors

Onboard headers and connectors are NOT jumpers. Do NOT place

jumper caps over these headers and connectors. Placing jumper caps

over the headers and connectors will cause permanent damage of the

motherboard!

Serial ATAII Connectors

These two Serial ATAII

(SATA_2 (PORT 4):

(SATAII) connectors support

see  p.2, No. 4)

SATA data cables for internal

(SATA_3 (PORT 3):

storage devices. The current

see  p.2, No. 5)

SATAII interface allows up to

3.0 Gb/s data transfer rate.

SATA_3 (PORT 3)

SATA_2 (PORT 4)

22

ASRock  Z68M-ITX/HT  Motherboard

English

USB 2.0 Headers

Besides four default USB 2.0

(9-pin USB6_7)

ports on the I/O panel, there

(see p.2  No. 11)

are two USB 2.0 headers on

this motherboard. Each

USB 2.0 header can support

two USB 2.0 ports.

(9-pin USB8_9)

(see p.2  No. 9)

1

USB_PWR

P-8

GND

DUMMY

USB_PWR

P+8

GND

P-9

P+9

Consumer Infrared Module Header

This header can be used to

(4-pin CIR1)

connect the remote

(see  p.2  No. 10)

 controller

receiver.

1

ATX+5VSB

IRTX

GND

IRRX

J_SENSE

OUT2_L

1

MIC_RET

PRESENCE#

GND

OUT2_R

MIC2_R

MIC2_L

OUT_RET

Front Panel Audio Header

This is an interface for front

(9-pin HD_AUDIO1)

panel audio cable that allows

(see p.2  No. 15)

convenient connection and

control of audio devices.

3.5mm Audio Cable

Either end of the 3.5mm audio

(Optional)

cable can be connected to the

portable audio devices, such

as MP3 player and mobile

phone or the Line-in port of

 your

PC.

Serial ATA3 Connectors

These two Serial ATA3 (SATA3)

(SATA_0 (PORT 0):

connectors support SATA data

see  p.2, No. 3)

cables for internal storage

(SATA_1 (PORT 1):

devices. The current SATA3

see  p.2, No. 2)

interface allows up to 6.0 Gb/s

data transfer rate.

SATA_1 (PORT 1)

SATA_0 (PORT 0)

Serial ATA (SATA)

Either end of the SATA data

Data Cable

cable can be connected to the

(Optional)

SATA / SATAII / SATA3 hard

disk or the SATAII / SATA3

connector on this motherboard.

23

ASRock  Z68M-ITX/HT  Motherboard

English

1. High De

fi

 nition Audio supports Jack Sensing, but the panel wire on

    the chassis must support HDA to function correctly. Please follow the

    instruction in our manual and chassis manual to install your system.

2. If you use AC’97 audio panel, please install it to the front panel audio

    header as below:

    A. Connect Mic_IN (MIC) to MIC2_L.

    B. Connect Audio_R (RIN) to OUT2_R and Audio_L (LIN) to OUT2_L.

    C. Connect Ground (GND) to Ground (GND).

    D. MIC_RET and OUT_RET are for HD audio panel only. You don’t

         need to connect them for AC’97 audio panel.

    E. To activate the front mic.

         For Windows

®

 XP / XP 64-bit OS:

                 Select “Mixer”. Select “Recorder”. Then click “FrontMic”.

         For Windows

®

 7 / 7 64-bit / Vista

TM

 / Vista

TM

 64-bit OS:

         Go to the "FrontMic" Tab in the Realtek Control panel. Adjust

         “Recording Volume”.

System Panel Header

This header accommodates

(9-pin PANEL1)

several system front panel

(see p.2  No. 1)

 functions.

Connect the power switch, reset switch and system status indicator on the

chassis to this header according to the pin assignments below. Note the

positive and negative pins before connecting the cables.

PWRBTN (Power Switch):

Connect to the power switch on the chassis front panel. You may con

fi

 gure

the way to turn off your system using the power switch.

RESET (Reset Switch):

Connect to the reset switch on the chassis front panel. Press the reset

switch to restart the computer if the computer freezes and fails to perform a

normal restart.

PLED (System Power LED):

Connect to the power status indicator on the chassis front panel. The LED

is on when the system is operating. The LED keeps blinking when the sys-

tem is in S1 sleep state. The LED is off when the system is in S3/S4 sleep

state or powered off (S5).

HDLED (Hard Drive Activity LED):

Connect to the hard drive activity LED on the chassis front panel. The LED

is on when the hard drive is reading or writing data.

The front panel design may differ by chassis. A front panel module mainly

consists of power switch, reset switch, power LED, hard drive activity LED,

speaker and etc. When connecting your chassis front panel module to this

header, make sure the wire assignments and the pin assign-ments are

matched correctly.

24

ASRock  Z68M-ITX/HT  Motherboard

English

Power LED Header

Please connect the chassis

(3-pin PLED1)

power LED to this header to

(see p.2  No. 20)

indicate system power status.

The LED is on when the system

is operating. The LED keeps

blinking in S1 state. The LED is

off in S3/S4 state or S5 state

(power

off).

1

PLED+

PLED+

PLED-

Chassis Fan Connector

Please connect the fan cables

(3-pin CHA_FAN1)

to the fan connectors and

(see p.2  No. 19)

match the black wire to the

ground

pin.

CPU Fan Connectors

Please connect the CPU fan

(4-pin CPU_FAN1)

cable to the connector and

(see p.2  No. 18)

match the black wire to the

ground

pin.

       Though this motherboard provides 4-Pin CPU fan (Quiet Fan) support, the 3-Pin

       CPU fan still can work successfully even without the fan speed control function.

       If you plan to connect the 3-Pin CPU fan to the CPU fan connector on this

       motherboard, please connect it to Pin 1-3.

3-Pin Fan Installation

Pin 1-3 Connected

ATX Power Connector

Please connect an ATX power

(24-pin ATXPWR1)

supply to this connector.

(see p.2  No. 8)

20-Pin ATX Power Supply Installation

Though this motherboard provides 24-pin ATX power connector, it can still work if

you adopt a traditional 20-pin ATX power supply. To use the 20-pin ATX power

supply, please plug your power supply along with Pin 1 and Pin 13.

ATX 12V Power Connector

Please connect an ATX 12V

(4-pin  ATX12V1)

power supply to this connector.

(see p.2  No. 16)

12                                 1

24

         13

12                                             1

24

                      13

GND

+12V

CPU_FAN_SPEED

FAN_SPEED_CONTROL

4  3  2  1

25

ASRock  Z68M-ITX/HT  Motherboard

English

2.9   Driver Installation Guide

To install the drivers to your system, please insert the support CD to your optical

drive

fi

 rst. Then, the drivers compatible to your system can be auto-detected and

listed on the support CD driver page. Please follow the order from up to bottom side

to install those required drivers. Therefore, the drivers you install can work properly.

2.10 Installing

Windows

®

 7 / 7 64-bit / Vista

TM

/ Vista

TM

64-bit With RAID Functions

If you want to install Windows

®

 7 / 7 64-bit / Vista

TM

 / Vista

TM

 64-bit on your SATA

/ SATAII / SATA3 HDDs with RAID functions, please refer to the document at the

following path in the Support CD for detailed procedures:

..\ RAID Installation Guide

RAID mode is not supported under Windows

®

 XP / XP 64-bit OS.

2.11 Installing

Windows

®

 7 / 7 64-bit / Vista

TM

/ Vista

TM

64-bit / XP

/ XP 64-bit Without RAID Functions

If you want to install Windows

®

 7 / 7 64-bit / Vista

TM

 / Vista

TM

 64-bit / XP / XP 64-

bit OS on your SATA / SATAII / SATA3 HDDs without RAID functions, please follow

below procedures according to the OS you install.

2.11.1   Installing Windows

®

 XP / XP 64-bit Without RAID

 Functions

If you want to install Windows

®

 XP / XP 64-bit OS on your SATA / SATAII / SATA3

HDDs without RAID functions, please follow below steps.

STEP 1: Set up UEFI.

A. Enter UEFI SETUP UTILITY        Advanced screen        SATA Con

fi

 guration.

B. Set the option “SATA Mode” to [IDE].

STEP 2: Install Windows

®

 XP / XP 64-bit OS on your system.

Using SATA / SATAII / SATA3 HDDs without NCQ function

AHCI mode is not supported under Windows

®

 XP / XP 64-bit OS.

26

ASRock  Z68M-ITX/HT  Motherboard

English

2.11.2   Installing Windows

®

 7 / 7 64-bit / Vista

TM

/ Vista

TM

64-bit

Without RAID Functions

If you want to install Windows

®

 7 / 7 64-bit / Vista

TM

 / Vista

TM

 64-bit OS on your SATA

/ SATAII / SATA3 HDDs without RAID functions, please follow below steps.

Using SATA / SATAII / SATA3 HDDs with NCQ function

STEP 1: Set Up UEFI.

A. Enter UEFI SETUP UTILITY        Advanced screen        SATA Con

fi

 guration.

B. Set the option “SATA Mode” to [IDE].

STEP 2: Install Windows

®

 7 / 7 64-bit / Vista

TM

 / Vista

TM

 64-bit OS on your

 system.

Using SATA / SATAII / SATA3 HDDs without NCQ function

STEP 1: Set up UEFI.

A. Enter UEFI SETUP UTILITY        Advanced screen        SATA Con

fi

 guration.

B. Set the option “SATA Mode” to [AHCI].

STEP 2: Install Windows

®

 7 / 7 64-bit / Vista

TM

 / Vista

TM

 64-bit OS on your

 system.
