2.3 CPU Installation

In order to provide the LGA 1155 CPU sock-

Load

Plate

ets more protection and make the instal-

Load

Lever

lation process easier, ASRock has added

Cover

a new protection cover on top of the load

plate to replace the former PnP caps that

were under the load plate. For the installa-

Contact

Socket

Array

Body

®

tion of Intel

1155-Pin CPUs with the new

protection cover, please follow the steps

1155-Pin Socket Overview

below.

Before you insert the 1155-Pin CPU into the socket, please check if the

CPU surface is unclean or if there are any bent pins in the socket. Do

not force to insert the CPU into the socket if above situation is found.

Otherwise, the CPU will be seriously damaged.

Step 1. Open the socket:

Step 1-1. Disengage the lever by pressing it

down and sliding it out of the hook.

You do not have to remove the pro-

tection cover.

Step 1-2. Keep the lever positioned at about

135 degrees in order to flip up the

load plate.

Step 2. Insert the 1155-Pin CPU:

Step 2-1. Hold the CPU by the edge which is

English

black line

marked with a black line.

Step 2-2. Orient the CPU with the IHS (Inte-

grated Heat Sink) up. Locate Pin1

and the two orientation key notches.

16

Fatal1ty Z77 Professional Series Motherboard

orientation key notch

alignment key

Pin1

Pin1

alignment key

orientation key notch

1155-Pin Socket

1155-Pin CPU

For proper installation, please ensure to match the two orientation

key notches of the CPU with the two alignment keys of the socket.

Step 2-3. Carefully place the CPU into the

socket.

Step 2-4. Verify that the CPU is within the sock-

et and properly mated to the orient

keys.

Step 3. Close the socket:

Step 3-1. Flip the load plate onto the IHS.

Step 3-2. Press down the load lever, and se-

cure it with the load plate tab under

the retention tab. The protection

cover will automatically come off by

itself.

Please save and replace the cover if the processor is removed. The

cover must be placed if you wish to return the motherboard for after

service.

English

17

Fatal1ty Z77 Professional Series Motherboard

2.4 Installation of CPU Fan and Heatsink

This motherboard is equipped with 1155-Pin socket that supports Intel 1155-Pin

CPUs. Please adopt the type of heatsink and cooling fan compliant with Intel 1155-

Pin CPU to dissipate heat. Before you install the heatsink, you need to spray ther-

mal interface material between the CPU and the heatsink to improve heat dissipa-

tion. Ensure that the CPU and the heatsink are securely fastened and in good con-

tact with each other. Then connect the CPU fan to the CPU_FAN connector (CPU_

FAN1, see page 4, No. 3 or CPU_FAN2, see page 4. No.4).

For proper installation, please kindly refer to the instruction manuals of your

CPU fan and heatsink.

Below is an example to illustrate the installation of the heatsink for 1155-Pin CPUs.

Step 1. Apply thermal interface material onto the cen-

ter of the IHS on the socket’s surface.

Step 2. Place the heatsink onto the socket. Ensure

that the fan cables are oriented on side closest

to the CPU fan connector on the motherboard

(CPU_FAN1, see page 4, No. 3 or CPU_

FAN2, see page 4. No.4).

Step 3. Align fasteners with the motherboard through-

holes.

Step 4. Rotate the fastener clockwise, then press

down on fastener caps with thumb to install

and lock. Repeat with remaining fasteners.

If you press down the fasteners without rotating them clockwise, the

heatsink cannot be secured on the motherboard.

Step 5. Connect fan header with the CPU fan connector on the motherboard.

Step 6. Secure redundant cable with tie-wrap to ensure the cable does not

English

interfere with fan operation or contact other components.

18

Fatal1ty Z77 Professional Series Motherboard

Please be noticed that this motherboard supports Combo Cooler

Option (C.C.O.), which provides exible options to adopt three dif-

ferent CPU cooler types, Socket LGA 775, LGA 1155 and LGA 1156.

The white throughholes are for Socket LGA

1155/1156 CPU fan.

2.5 Installation of Memory Modules (DIMM)

This motherboard provides four 240-pin DDR3 (Double Data Rate 3) DIMM

slots, and supports Dual Channel Memory Technology. For dual channel con-

guration, you always need to install identical (the same brand, speed, size

and chip-type) DDR3 DIMM pair in the slots: You have to install identical

DDR3 DIMMs in Dual Channel A (DDR3_A1 and DDR3_B1; Black slots; see p.4

No. 5) or identical DDR3 DIMMs in Dual Channel B (DDR3_A2 and DDR3_

B2; Black slots; see p.4 No. 6), so that Dual Channel Memory Technology can

be activated. This motherboard also allows you to install four DDR3 DIMMs

for dual channel conguration, please install identical DDR3 DIMMs in all four

slots. You may refer to the Dual Channel Memory Conguration Table below.

Dual Channel Memory Conguration

DDR3_A1 DDR3_A2 DDR3_B1 DDR3_B2

(Black Slot) (Black Slot) (Black Slot) (Black Slot)

(1) Populated - Populated -

(2) - Populated - Populated

(3)* Populated Populated Populated Populated

*

For conguration (3), please install identical DDR3 DIMMs in all four

slots.

1. If you want to install two memory modules, for optimal compatibility

and reliability, it is recommended to install them in the slots: DDR3_

A1 and DDR3_B1, or DDR3_A2 and DDR3_B2.

2. If only one memory module or three memory modules are installed

in the DDR3 DIMM slots on this motherboard, it is unable to activate

Dual Channel Memory Technology.

3. If a pair of memory modules is NOT installed in the same Dual

Channel, for example, installing a pair of memory modules in

DDR3_A1 and DDR3_A2, it is unable to activate Dual Channel

Memory Technology.

4. It is not allowed to install a DDR or DDR2 memory module into

DDR3 slot; otherwise, this motherboard and DIMM may be dam-

aged.

5. Some DDR3 1GB double-sided DIMMs with 16 chips may not work

on this motherboard. It is not recommended to install them on this

English

motherboard.

6. For optimal compatibility and stability while overclocking memory

frequency, it is recommended to install one memory module on

DDR3_B2 slot or two memory modules on DDR3_A2 and DDR3_

B2 slots.

19

Fatal1ty Z77 Professional Series Motherboard

Installing a DIMM

Please make sure to disconnect power supply before adding or

removing DIMMs or the system components.

Step 1. Unlock a DIMM slot by pressing the retaining clips outward.

Step 2. Align a DIMM on the slot such that the notch on the DIMM matches the

break on the slot.

notch

brea k

notch

brea k

The DIMM only ts in one correct orientation. It will cause permanent

damage to the motherboard and the DIMM if you force the DIMM into

the slot at incorrect orientation.

Step 3. Firmly insert the DIMM into the slot until the retaining clips at both ends

fully snap back in place and the DIMM is properly seated.

English

20

Fatal1ty Z77 Professional Series Motherboard

2.6 Expansion Slots (PCI and PCI Express Slots)

There are 2 PCI slots and 5 PCI Express slots on this motherboard.

PCI slots: PCI slots are used to install expansion cards that have the 32-bit PCI

interface.

PCIE slots: PCIE1 (PCIE 2.0 x1 slot) is used for a PCI Express x1 lane width card,

such as a Gigabit LAN card, SATA2 card or ASRock Game Blaster, etc.

PCIE3 (PCIE 2.0 x1 slot) is used for a PCI Express x1 lane width card,

such as a Gigabit LAN card, SATA2 card, etc.

PCIE2 (PCIE 3.0 x16 slot) is used for PCI Express x16 lane width

graphics cards, or to install PCI Express graphics cards to support

TM

TM

CrossFireX

or SLI

function.

PCIE4 (PCIE 3.0 x16 slot) is used for PCI Express x8 lane width graph-

ics cards, or to install PCI Express graphics cards to support CrossFi-

TM

TM

reX

or SLI

function.

PCIE5 (PCIE 2.0 x16 slot) is used for PCI Express x4 lane width graph-

ics cards, or to install PCI Express graphics cards to support 3-Way

TM

CrossFireX

.

1. In single VGA card mode, it is recommended to install a PCI Express

x16 graphics card on PCIE2 slot.

TM

TM

2. In CrossFireX

mode or SLI

mode, please install the PCI Express

x16 graphics cards on PCIE2 and PCIE4 slots. Therefore, both these

two slots will work at x8 bandwidth.

TM

3. In 3-Way CrossFireX

mode, please install PCI Express x16

graphics cards on PCIE2, PCIE4 and PCIE5 slots. Therefore, PCIE2

and PCIE4 slots will work at x8 bandwidth while PCIE5 slot will work

at x4 bandwidth.

4. Please connect a chassis fan to the motherboard’s chassis fan

connector (CHA_FAN1, CHA_FAN2 or CHA_FAN3) when using

multiple graphics cards for better thermal environment.

5. Only PCIE2 and PCIE4 slots support Gen 3 speed. To run the PCI

Express in Gen 3 speed, please install an Ivy Bridge CPU. If you

install a Sandy Bridge CPU, the PCI Express will run only at PCI

Express Gen 2 speed.

English

21

Fatal1ty Z77 Professional Series Motherboard

Installing an expansion card

Step 1. Before installing an expansion card, please make sure that the power

supply is switched off or the power cord is unplugged. Please read the

documentation of the expansion card and make necessary hardware

settings for the card before you start the installation.

Step 2. Remove the system unit cover (if your motherboard is already installed

in a chassis).

Step 3. Remove the bracket facing the slot that you intend to use. Keep the

screws for later use.

Step 4. Align the card connector with the slot and press rmly until the card is

completely seated on the slot.

Step 5. Fasten the card to the chassis with screws.

Step 6. Replace the system cover.

English

22

Fatal1ty Z77 Professional Series Motherboard

TM

TM

2.7 SLI

and Quad SLI

Operation Guide

®

TM

TM

This motherboard supports NVIDIA

SLI

and Quad SLI

(Scalable Link Interface)

technology that allows you to install up to two identical PCI Express x16 graphics

®

TM

®

cards. Currently, NVIDIA

SLI

technology supports Windows

XP / XP 64-bit /

TM

TM

®

TM

Vista

/ Vista

64-bit / 7 / 7 64-bit OS. NVIDIA

Quad SLI

technology support

®

TM

TM

Windows

Vista

/ Vista

64-bit / 7 / 7 64-bit OS only. Please follow the installation

procedures in this section.

Requirements

1. For SLITM technology, you should have two identical SLITM-ready graphics

®

cards that are NVIDIA

certied. For Quad SLITM technology, you should

have two identical Quad SLITM-ready graphics cards (dual-GPU on each

®

graphics card) that are NVIDIA

certied.

®

TM

2. Make sure that your graphics card driver supports NVIDIA

SLI

®

technology. Download the driver from NVIDIA

website

(www.nvidia.com).

3. Make sure that your power supply unit (PSU) can provide at least the

minimum power required by your system. It is recommended to use

®

®

NVIDIA

certied PSU. Please refer to NVIDIA

website for details.

2.7.1 Graphics Card Setup

TM

2.7.1.1 Installing Two SLI

-Ready Graphics Cards

TM

®

Step 1. Install the identical SLI

-ready graphics cards that are NVIDIA

certied

because different types of graphics cards will not work together properly.

(Even the GPU chips version shall be the same.) Insert one graphics card

into PCIE2 slot and the other graphics card to PCIE4 slot. Make sure that

the cards are properly seated on the slots.

English

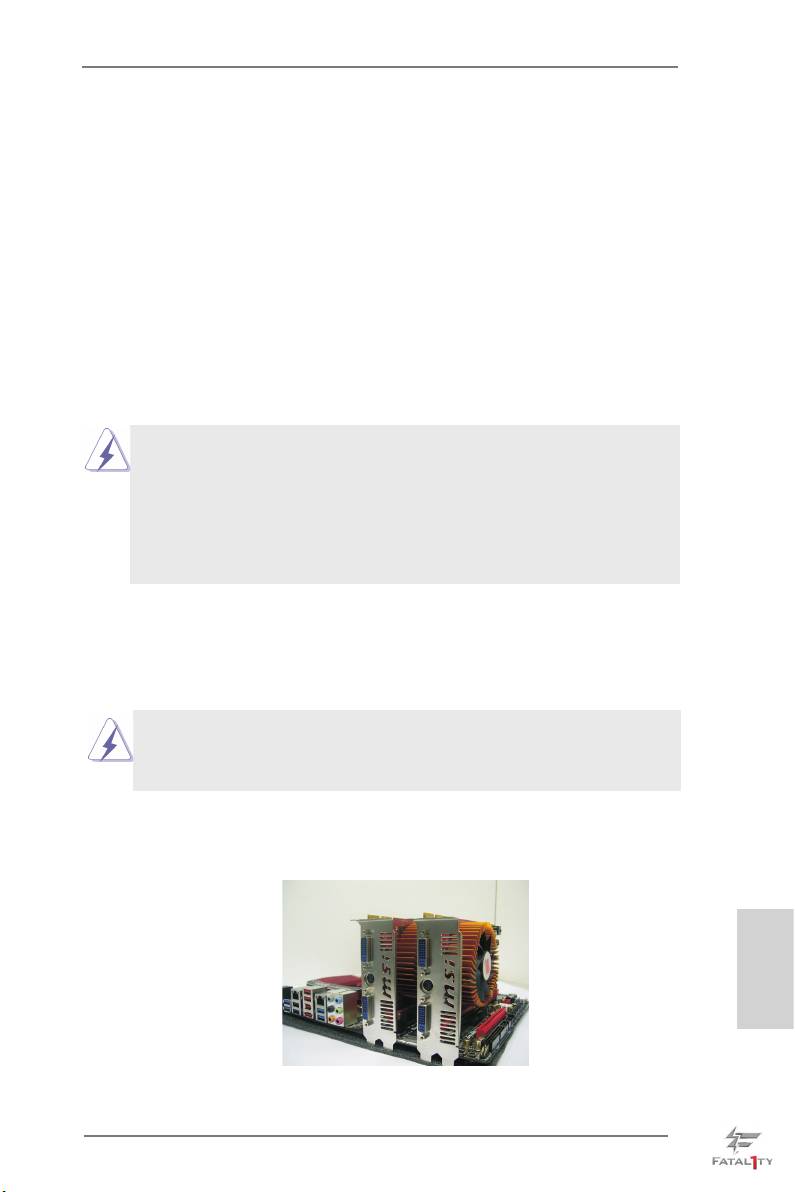

Step2. If required, connect the auxiliary power source to the PCI Express

graphics cards.

23

Fatal1ty Z77 Professional Series Motherboard

Step3. Align and insert SLI_Bridge_2S Card to the goldngers on each graphics

card. Make sure SLI_Bridge_2S Card is rmly in place.

Step4. Connect a VGA cable or a DVI cable to the monitor connector or the DVI

connector of the graphics card that is inserted to PCIE2 slot.

English

24

Fatal1ty Z77 Professional Series Motherboard

2.7.2 Driver Installation and Setup

Install the graphics card drivers to your system. After that, you can enable the Multi-

®

Graphics Processing Unit (GPU) feature in the NVIDIA

nView system tray utility.

Please follow the below procedures to enable the multi-GPU feature.

®

For Windows

XP / XP 64-bit OS:

TM

(For SLI

mode only)

®

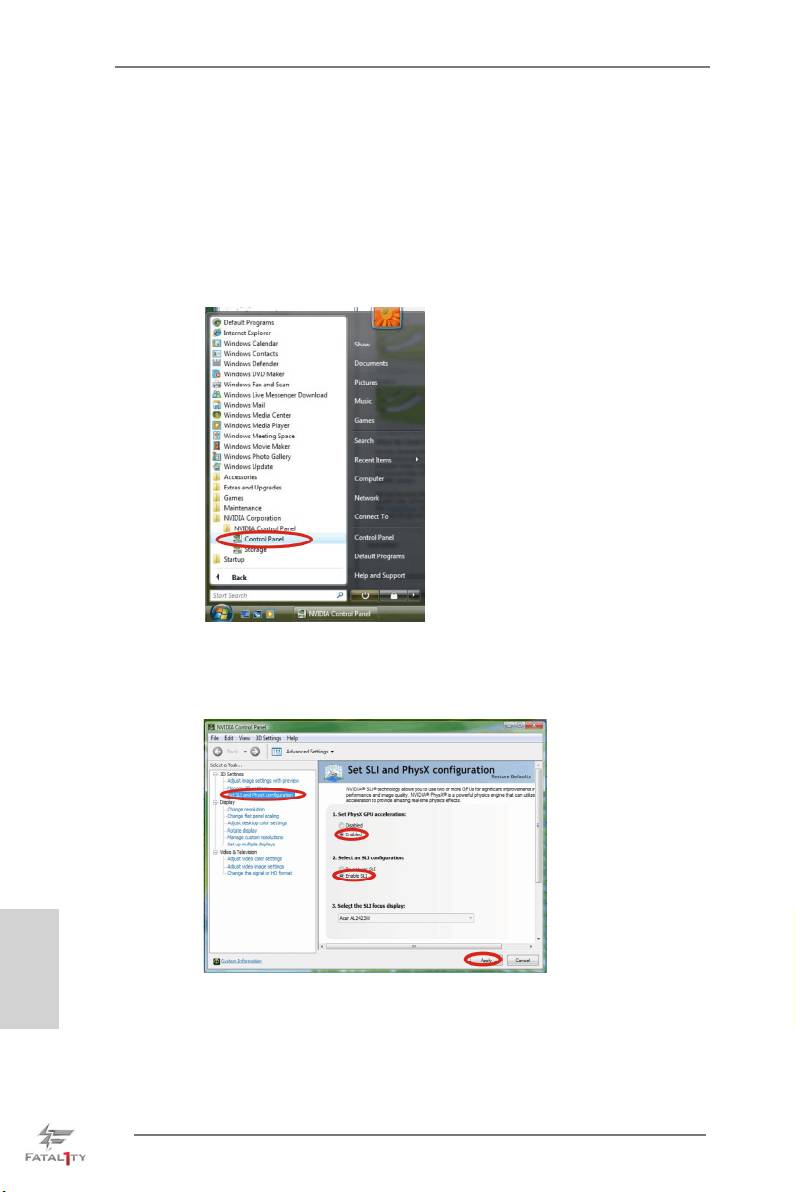

A. Double-click NVIDIA Settings icon on your Windows

taskbar.

B. From the pop-up menu, select Set SLI and PhysX conguration. In

Set PhysX GPU acceleration item, please select Enabled. In Select

an SLI conguration item, please select Enable SLI. And click Apply.

C. Reboot your system.

TM

D. You can freely enjoy the benet of SLI

feature.

English

25

Fatal1ty Z77 Professional Series Motherboard

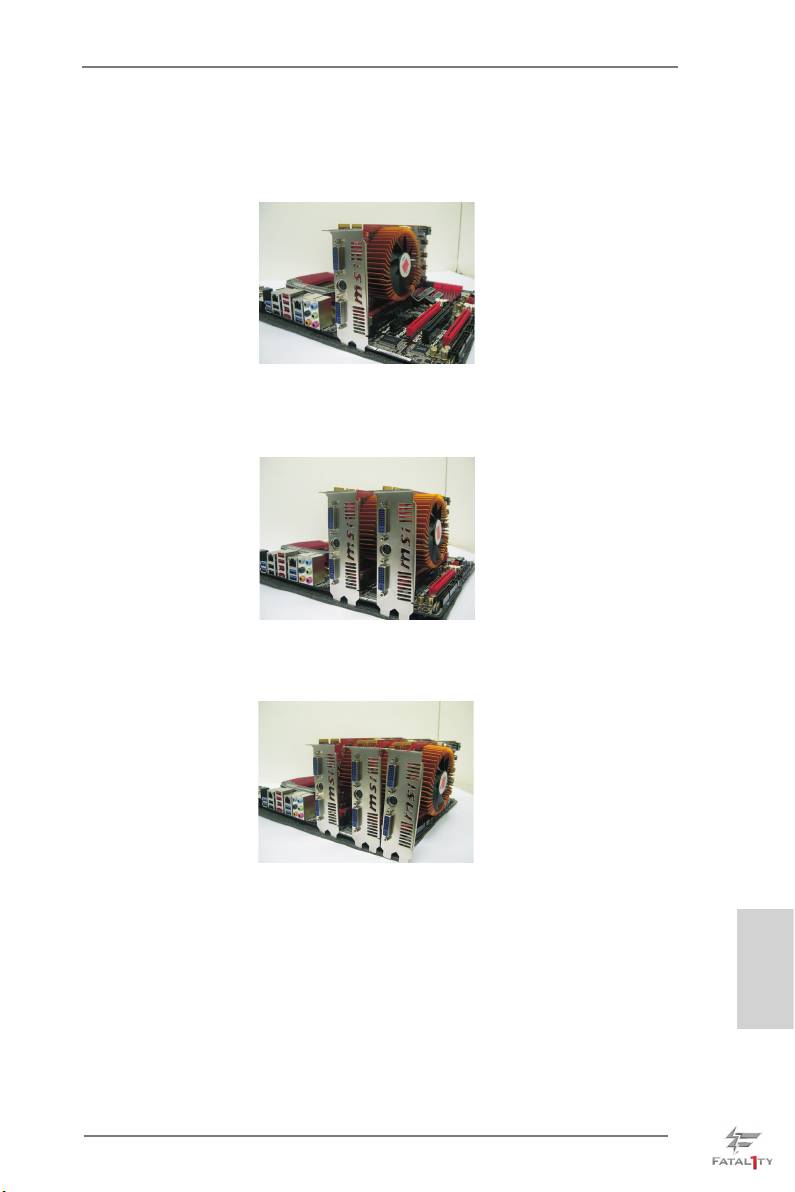

TM

TM

Although you have selected the option “Enable CrossFire

”, the CrossFireX

function may not work actually. Your computer will automatically reboot. After

restarting your computer, please conrm whether the option “Enable

TM

CrossFire

” in “ATI Catalyst Control Center” is selected or not; if not, please

TM

select it again, and then you are able to enjoy the benet of CrossFireX

feature.

TM

TM

Step 7. You can freely enjoy the benet of CrossFireX

, 3-Way CrossFireX

or

TM

Quad CrossFireX

feature.

TM

TM

* CrossFireX

appearing here is a registered trademark of ATI

Technologies Inc., and is

used only for identication or explanation and to the owners’ benet, without intent to infringe.

TM

TM

* For further information of ATI

CrossFireX

technology, please check AMD website for

updates and details.

English

32

Fatal1ty Z77 Professional Series Motherboard

2.9 Dual Monitor and Surround Display Features

Dual Monitor Feature

This motherboard supports dual monitor feature. With the internal VGA output sup-

port (HDMI and DisplayPort), you can easily enjoy the benets of dual monitor fea-

ture without installing any add-on VGA card to this motherboard. This motherboard

also provides independent display controllers for HDMI and DisplayPort to support

dual VGA output so that HDMI and DisplayPort can drive same or different display

contents.

To enable dual monitor feature, please follow the below steps:

1. Connect HDMI monitor cable to HDMI port on the I/O panel, and connect

DisplayPort monitor cable to DisplayPort on the I/O panel.

DisplayPort

HDMI port

2. If you have installed onboard VGA driver from our support CD to your system

already, you can freely enjoy the benets of dual monitor function after your

system boots. If you haven’t installed onboard VGA driver yet, please install

onboard VGA driver from our support CD to your system and restart your

computer.

English

33

Fatal1ty Z77 Professional Series Motherboard

Surround Display Feature

This motherboard supports surround display upgrade. With the internal VGA output

support (HDMI and DisplayPort) and external add-on PCI Express VGA cards, you

can easily enjoy the benets of surround display feature.

Please refer to the following steps to set up a surround display environment:

1. Install the PCI Express VGA cards on PCIE2, PCIE4 and PCIE5 slots. Please

refer to page 21 for proper expansion card installation procedures.

2. Connect HDMI monitor cable to HDMI port on the I/O panel, and connect

DisplayPort monitor cable to DisplayPort on the I/O panel. Then connect other

monitor cables to the corresponding connectors of the add-on PCI Express VGA

cards on PCIE2, PCIE4 and PCIE5 slots.

3. Boot your system. Press <F2> or <Del> to enter UEFI setup. Enter “Share

Memory” option to adjust the memory capability to [32MB], [64MB], [128MB],

[256MB] or [512MB] to enable the function of D-sub. Please make sure that the

value you select is less than the total capability of the system memory. If you do

not adjust the UEFI setup, the default value of “Share Memory”, [Auto], will

disable D-Sub function when an add-on VGA card is inserted to this motherboard.

4. Install the onboard VGA driver and the add-on PCI Express VGA card driver to

your system. If you have installed the drivers already, there is no need to install

them again.

5. Set up a multi-monitor display.

®

For Windows

XP / XP 64-bit OS:

Right click on desktop, choose “Properties”, and select the “Settings” tab

so that you can adjust the parameters of the multi-monitors according to

the steps below.

A. Click the “Identify” button to display a large number on each monitor.

B. Right-click the display icon in the Display Properties dialog that you

wish to be your primary monitor, and then select “Primary”. When

you use multiple monitors with your card, one monitor will always be

Primary, and all additional monitors will be designated as Secondary.

C. Select the display icon identied by the number 2.

D. Click “Extend my Windows desktop onto this monitor”.

English

E. Right-click the display icon and select “Attached”, if necessary.

F. Set the appropriate “Screen Resolution” and “Color Quality” for the

second monitor. Click “Apply” or “OK” to apply these new values.

G. Repeat steps C through E for the display icon identied by the

numbers three to eight.

34

Fatal1ty Z77 Professional Series Motherboard

®

TM

TM

For Windows

7 / 7 64-bit / Vista

/ Vista

64-bit OS:

Right click the desktop, choose “Personalize”, and select the “Display

Settings” tab so that you can adjust the parameters of the multi-monitors

according to the steps below.

A. Click the number ”2” icon.

B. Click the items “This is my main monitor” and “Extend the desktop onto

this monitor”.

C. Click “OK” to save your change.

D. Repeat steps A through C for the display icons identied by the number

three to eight.

6. Use Surround Display. Click and drag the display icons to positions representing

the physical setup of your monitors that you would like to use. The placement of

display icons determines how you move items from one monitor to another.

HDCP Function

HDCP function is supported on this motherboard. To use HDCP

function with this motherboard, you need to adopt a monitor

that supports HDCP function as well. Therefore, you can enjoy

the superior display quality with high-denition HDCP

encryption contents. Please refer to the instructions below for

more details about HDCP function.

What is HDCP?

HDCP stands for High-Bandwidth Digital Content Protection, a

®

specication developed by Intel

for protecting digital

entertainment content that uses the DVI interface. HDCP is a

copy protection scheme to eliminate the possibility of

intercepting digital data midstream between the video source,

or transmitter - such as a computer, DVD player or set-top box -

and the digital display, or receiver - such as a monitor, television

or projector. In other words, HDCP specication is designed to

protect the integrity of content as it is being transmitted.

Products compatible with the HDCP scheme such as DVD

players, satellite and cable HDTV set-top-boxes, as well as few

English

entertainment PCs requires a secure connection to a compliant

display. Due to the increase in manufacturers employing HDCP

in their equipment, it is highly recommended that the HDTV or

LCD monitor you purchase is compatible.

35

Fatal1ty Z77 Professional Series Motherboard

2.10 Jumpers Setup

The illustration shows how jumpers are

setup. When the jumper cap is placed on

pins, the jumper is “Short”. If no jumper cap

is placed on pins, the jumper is “Open”. The

illustration shows a 3-pin jumper whose

pin1 and pin2 are “Short” when jumper cap

is placed on these 2 pins.

Jumper Setting Description

Clear CMOS Jumper

(CLRCMOS1)

(see p.4, No. 27)

Clear CMOSDefault

Note: CLRCMOS1 allows you to clear the data in CMOS. To clear and reset the

system parameters to default setup, please turn off the computer and unplug

the power cord from the power supply. After waiting for 15 seconds, use a

jumper cap to short pin2 and pin3 on CLRCMOS1 for 5 seconds. However,

please do not clear the CMOS right after you update the BIOS. If you need

to clear the CMOS when you just nish updating the BIOS, you must boot

up the system rst, and then shut it down before you do the clear-CMOS ac-

tion. Please be noted that the password, date, time, user default prole, 1394

GUID and MAC address will be cleared only if the CMOS battery is removed.

The Clear CMOS Switch has the same function as the Clear CMOS

jumper.

English

36

Fatal1ty Z77 Professional Series Motherboard

2.11 Onboard Headers and Connectors

Onboard headers and connectors are NOT jumpers. Do NOT place

jumper caps over these headers and connectors. Placing jumper caps

over the headers and connectors will cause permanent damage of the

motherboard!

FDD connector

(33-pin FLOPPY1)

(see p.4 No. 30)

the red-striped side to Pin1

Note: Make sure the red-striped side of the cable is plugged into Pin1 side of the

connector.

Primary IDE connector (Black)

(39-pin IDE1, see p.4 No. 8)

connect the blue end

connect the black end

to the motherboard

to the IDE devices

80-conductor ATA 66/100/133 cable

Note: Please refer to the instruction of your IDE device vendor for the details.

Serial ATA2 Connectors These four Serial ATA2 (SATA2)

(SATA2_2_3: see p.4, No. 14)

connectors support SATA data

SATA2_2 SATA2_3

(SATA2_4_5: see p.4, No. 15)

cables for internal storage

devices. The current SATA2

interface allows up to 3.0 Gb/s

SATA2_4 SATA2_5

data transfer rate.

Serial ATA3 Connectors These six Serial ATA3 (SATA3)

(SATA3_0_1: see p.4, No. 13)

connectors support SATA data

SATA3_A3 SATA3_A4

(SATA3_A1_A2: see p.4, No. 12)

cables for internal storage

(SATA3_A3_A4: see p.4, No. 11)

devices. The current SATA3

interface allows up to 6.0 Gb/s

SATA3_A1 SATA3_A2

data transfer rate. If the eSATA3

port on the rear I/O has been

English

connected, the internal

SATA3_0 SATA3_1

SATA3_A4 will not function.

37

Fatal1ty Z77 Professional Series Motherboard

Serial ATA (SATA) Either end of the SATA data

Data Cable cable can be connected to the

(Optional)

SATA / SATA2 / SATA3 hard

disk or the SATA2 / SATA3

connector on this motherboard.

Serial ATA (SATA) Please connect the black end

Power Cable of SATA power cable to the

(Optional)

power connector on each drive.

Then connect the white end of

SATA power cable to the power

connect to the

power supply

connector of the power supply.

USB 2.0 Headers Besides six default USB 2.0

(9-pin USB_6_7)

ports on the I/O panel, there are

(see p.4, No. 24)

two USB 2.0 headers on this

motherboard. Each USB 2.0

header can support two USB 2.0

ports.

U SB_PWR

(9-pin USB_8_9)

P-9

P +9

GND

(see p.4, No. 25)

DUMMY

1

GND

P +8

P-8

U SB_PWR

USB 3.0 Header Besides six default USB 3.0

(19-pin USB3_6_7)

ports on the I/O panel, there is

(see p.4, No. 9)

one USB 3.0 header on this

motherboard. This USB 3.0

header can support two USB 3.0

ports.

Infrared Module Header This header supports an

(5-pin IR1)

optional wireless transmitting

English

(see p.4, No. 29)

and receiving infrared module.

Internal Audio Connectors This connector allows you

(4-pin CD1)

to receive stereo audio input

(CD1: see p.4 No. 42)

from sound sources such as

a CD-ROM, DVD-ROM, TV

CD1

tuner card, or MPEG card.

38

Fatal1ty Z77 Professional Series Motherboard

connect to the SATA

HDD power connector

Front Panel Audio Header This is an interface for front

GND

P RESENCE#

M IC_RET

(9-pin HD_AUDIO1)

panel audio cable that allows

OUT_RET

(see p.4, No. 32)

convenient connection and

1

control of audio devices.

O UT2_L

J _SENSE

O UT2_R

M IC2_R

M IC2_L

1. High Denition Audio supports Jack Sensing, but the panel wire on the

chassis must support HDA to function correctly. Please follow the

instruction in our manual and chassis manual to install your system.

2. If you use AC’97 audio panel, please install it to the front panel audio

header as below:

A. Connect Mic_IN (MIC) to MIC2_L.

B. Connect Audio_R (RIN) to OUT2_R and Audio_L (LIN) to OUT2_L.

C. Connect Ground (GND) to Ground (GND).

D. MIC_RET and OUT_RET are for HD audio panel only. You don’t need

to connect them for AC’97 audio panel.

E. To activate the front mic.

®

For Windows

XP / XP 64-bit OS:

Select “Mixer”. Select “Recorder”. Then click “FrontMic”.

®

TM

TM

For Windows

7 / 7 64-bit / Vista

/ Vista

64-bit OS:

Go to the “FrontMic” Tab in the Realtek Control panel. Adjust

“Recording Volume”.

System Panel Header This header accommodates

(9-pin PANEL1)

several system front panel

(see p.4, No. 21)

functions.

Connect the power switch, reset switch and system status indicator on the

chassis to this header according to the pin assignments below. Note the

positive and negative pins before connecting the cables.

PWRBTN (Power Switch):

Connect to the power switch on the chassis front panel. You may congure

the way to turn off your system using the power switch.

RESET (Reset Switch):

Connect to the reset switch on the chassis front panel. Press the reset

switch to restart the computer if the computer freezes and fails to perform a

normal restart.

English

PLED (System Power LED):

Connect to the power status indicator on the chassis front panel. The LED

is on when the system is operating. The LED keeps blinking when the sys-

tem is in S1/S3 sleep state. The LED is off when the system is in S4 sleep

state or powered off (S5).

39

Fatal1ty Z77 Professional Series Motherboard

HDLED (Hard Drive Activity LED):

Connect to the hard drive activity LED on the chassis front panel. The LED

is on when the hard drive is reading or writing data.

The front panel design may differ by chassis. A front panel module mainly

consists of power switch, reset switch, power LED, hard drive activity LED,

speaker and etc. When connecting your chassis front panel module to this

header, make sure the wire assignments and the pin assign-ments are

matched correctly.

Chassis Speaker Header Please connect the chassis

(4-pin SPEAKER 1)

speaker to this header.

(see p.4, No. 20)

Power LED Header Please connect the chassis

(3-pin PLED1)

power LED to this header to

(see p.4, No. 19)

indicate system power status.

The LED is on when the system

is operating. The LED keeps

blinking in S1/S3 state. The

LED is off in S4 state or S5

state (power off).

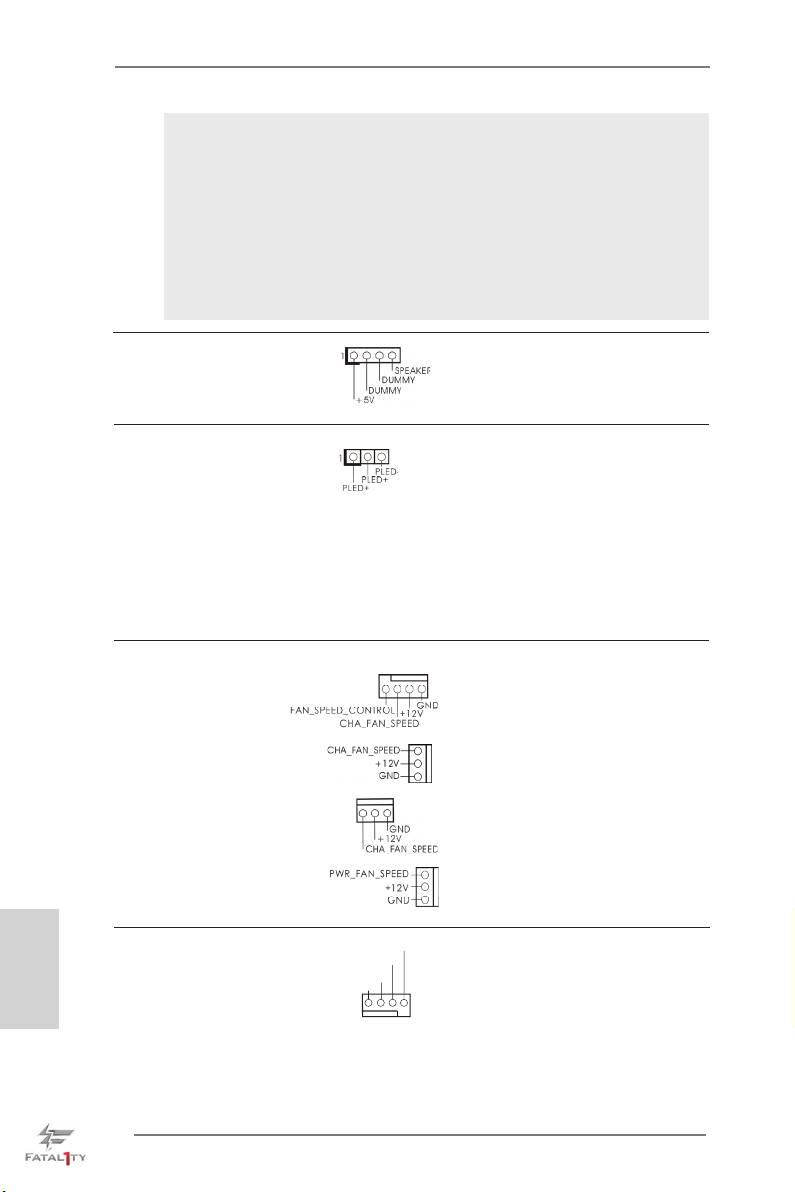

Chassis and Power Fan Connectors Please connect the fan cables

(4-pin CHA_FAN1)

to the fan connectors and match

(see p.4, No. 26)

the black wire to the ground pin.

CHA_FAN1, CHA_FAN2 and

(3-pin CHA_FAN2)

CHA_FAN3 support Fan

(see p.4, No. 43)

Control.

(3-pin CHA_FAN3)

(see p.4, No. 22)

(3-pin PWR_FAN1)

(see p.4, No. 41)

English

CPU Fan Connectors Please connect the CPU fan

FAN_SPEED_CONTROL

CPU_FAN_SPEED

(4-pin CPU_FAN1)

cable to the connector and

+ 12V

GND

(see p.4, No. 3)

match the black wire to the

ground pin.

1 2 3 4

40

Fatal1ty Z77 Professional Series Motherboard

Though this motherboard provides 4-Pin CPU fan (Quiet Fan) support, the 3-Pin

CPU fan still can work successfully even without the fan speed control function.

If you plan to connect the 3-Pin CPU fan to the CPU fan connector on this

motherboard, please connect it to Pin 1-3.

Pin 1-3 Connected

3-Pin Fan Installation

(3-pin CPU_FAN2)

GND

+ 12V

(see p.4, No. 4)

CPU_FAN_SPEED

ATX Power Connector Please connect an ATX power

12

24

(24-pin ATXPWR1)

supply to this connector.

(see p.4, No. 7)

1

13

Though this motherboard provides 24-pin ATX power connector,

12

24

it can still work if you adopt a traditional 20-pin ATX power supply.

To use the 20-pin ATX power supply, please plug your

power supply along with Pin 1 and Pin 13.

20-Pin ATX Power Supply Installation

1

13

ATX 12V Power Connector Please connect an ATX 12V

8 5

(8-pin ATX12V1)

power supply to this connector.

4 1

(see p.4, No. 2)

Though this motherboard provides 8-pin ATX 12V power connector, it can still work

if you adopt a traditional 4-pin ATX 12V power supply. To use the 4-pin ATX power

supply, please plug your power supply along with Pin 1 and Pin 5.

8 5

4-Pin ATX 12V Power Supply Installation

4 1

IEEE 1394 Header Besides one default IEEE 1394

RXTPAM_0

GND

(9-pin FRONT_1394)

port on the I/O panel, there

R XTPBM_0

+ 12V

GND

(see p.4 No. 28)

is one IEEE 1394 header

1

(FRONT_1394) on this

English

+ 12V

R XTPBP_0

motherboard. This IEEE 1394

GND

RXTPAP_0

header can support one IEEE

1394 port.

41

Fatal1ty Z77 Professional Series Motherboard

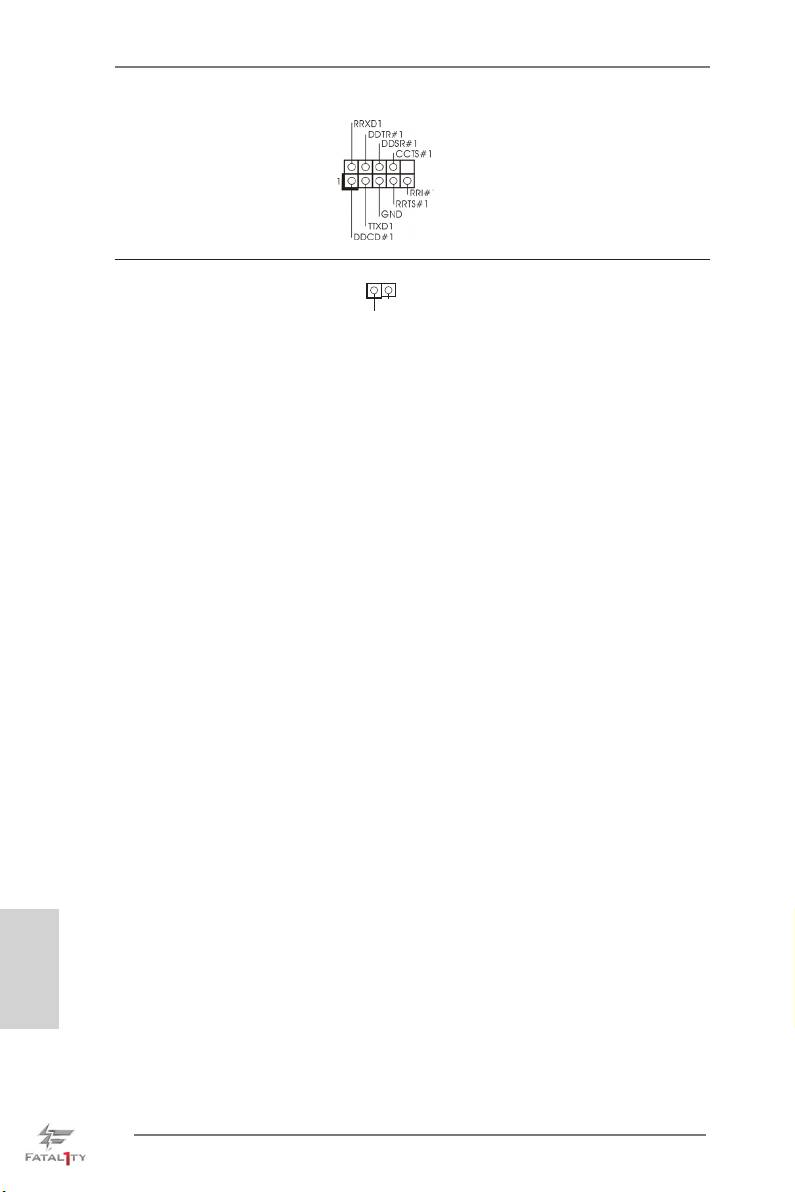

0xA6 SCSI Detect

0xA7 SCSI Enable

0xA8 Setup Verifying Password

0xA9 Start of Setup

0xAA Reserved for ASL (see ASL Status Codes section below)

0xAB Setup Input Wait

0xAC Reserved for ASL (see ASL Status Codes section below)

0xAD Ready To Boot event

0xAE Legacy Boot event

0xAF Exit Boot Services event

0xB0 Runtime Set Virtual Address MAP Begin

0xB1 Runtime Set Virtual Address MAP End

0xB2 Legacy Option ROM Initialization

0xB3 System Reset

0xB4 USB hot plug

0xB5 PCI bus hot plug

0xB6 Clean-up of NVRAM

0xB7 Conguration Reset (reset of NVRAM settings)

0xB8 – 0xBF Reserved for future AMI codes

0xC0 – 0xCF OEM BDS initialization codes

0xD0 CPU initialization error

0xD1 North Bridge initialization error

0xD2 South Bridge initialization error

0xD3 Some of the Architectural Protocols are not available

0xD4 PCI resource allocation error. Out of Resources

0xD5 No Space for Legacy Option ROM

0xD6 No Console Output Devices are found

0xD7 No Console Input Devices are found

0xD8 Invalid password

0xD9 Error loading Boot Option (LoadImage returned error)

0xDA Boot Option is failed (StartImage returned error)

0xDB Flash update is failed

0xDC Reset protocol is not available

English

48

Fatal1ty Z77 Professional Series Motherboard

2.14 Driver Installation Guide

To install the drivers to your system, please insert the support CD to your optical

drive rst. Then, the drivers compatible to your system can be auto-detected and

listed on the support CD driver page. Please follow the order from up to bottom side

to install those required drivers. Therefore, the drivers you install can work properly.

®

TM

TM

2.15 Installing Windows

7 / 7 64-bit / Vista

/ Vista

64-bit / XP /

XP 64-bit With RAID Functions

®

TM

TM

If you want to install Windows

7 / 7 64-bit / Vista

/ Vista

64-bit / XP / XP 64-

bit on your SATA / SATA2 / SATA3 HDDs with RAID functions, please refer to the

document at the following path in the Support CD for detailed procedures:

..\ RAID Installation Guide

®

TM

TM

2.16 Installing Windows

7 / 7 64-bit / Vista

/ Vista

64-bit / XP /

XP 64-bit Without RAID Functions

®

TM

TM

If you want to install Windows

7 / 7 64-bit / Vista

/ Vista

64-bit / XP / XP 64-

bit OS on your SATA / SATA2 / SATA3 HDDs without RAID functions, please follow

below procedures according to the OS you install.

®

2.16.1 Installing Windows

XP / XP 64-bit Without RAID Functions

®

If you want to install Windows

XP / XP 64-bit OS on your SATA / SATA2 / SATA3

HDDs without RAID functions, please follow below steps.

Using SATA / SATA2 / SATA3 HDDs without NCQ function

STEP 1: Set Up UEFI.

A. Enter UEFI SETUP UTILITY Advanced screen Storage Conguration.

B. Set the option “SATA Mode Selection” to [IDE] for SATA2_2 to SATA2_5 and

SATA3_0 and SATA3_1 ports.

Set the option “ASMedia SATA3 Mode” to [IDE] for SATA3_A1 to SATA2_A4

ports.

®

STEP 2: Install Windows

XP / XP 64-bit OS on your system.

English

49

Fatal1ty Z77 Professional Series Motherboard

®

TM

TM

2.16.2 Installing Windows

7 / 7 64-bit / Vista

/ Vista

64-bit

Without RAID Functions

®

TM

TM

If you want to install Windows

7 / 7 64-bit / Vista

/ Vista

64-bit OS on your SATA

/ SATA2 / SATA3 HDDs without RAID functions, please follow below steps.

Using SATA / SATA2 / SATA3 HDDs without NCQ function

STEP 1: Set Up UEFI.

A. Enter UEFI SETUP UTILITY Advanced screen Storage Conguration.

B. Set the option “SATA Mode Selection” to [IDE] for SATA2_2 to SATA2_5 and

SATA3_0 and SATA3_1 ports.

Set the option “ASMedia SATA3 Mode” to [IDE] for SATA3_A1 to SATA2_A4

ports.

®

STEP 2: Install Windows

XP / XP 64-bit OS on your system.

Using SATA / SATA2 / SATA3 HDDs with NCQ function

STEP 1: Set Up UEFI.

A. Enter UEFI SETUP UTILITY Advanced screen Storage Conguration.

B. Set the option “SATA Mode Selection” to [AHCI] for SATA2_2 to SATA2_5 and

SATA3_0 and SATA3_1 ports.

Set the option “ASMedia SATA3 Mode” to [AHCI] for SATA3_A1 to SATA2_A4

ports.

®

STEP 2: Install Windows

XP / XP 64-bit OS on your system.

English

50

Fatal1ty Z77 Professional Series Motherboard

2.17 Teaming Function Operation Guide

Dual LAN with Teaming function enabled on this motherboard allows two single

connections to act as one single connection for twice the transmission bandwidth,

making data transmission more effective and improving the quality of transmission

of distant images. Fault tolerance on the dual LAN network prevents network

downtime by transferring the workload from a failed port to a working port.

The speed of transmission is subject to the actual network environment

or status even with Teaming enabled.

Before setting up Teaming function, please make sure if your Switch (or Router)

could support Teaming (IEEE 802.3ad Link Aggregation) function. Then, please

refer to following steps to set up Teaming function.

1. Install Teaming driver from the following path of motherboard Support CD:

32-bit: .. \Drivers\LAN\Broadcom\Teaming\IA32

64-bit: .. \Drivers\LAN\Broadcom\Teaming\x64

(This is a special driver for Teaming function only. If you don't want to use

Teaming, please install the LAN driver provided by our support CD link.)

2. From the Teams menu, select Create Team, or right-click one of the devices in

the “Unassigned Adapters” section and select Create a Team. This option is not

available if there are no devices listed in the “Unassigned Adapters” sections,

which means all adapters are already assigned to teams.

3. Click Expert Mode.

* If you want to always use Expert Mode to create a team, click Default to Expert

Mode on next start.

English

51

Fatal1ty Z77 Professional Series Motherboard

4. Click the Create Team tab.

* The Create Team tab appears only if there are teamable adapters available.

5. Click the Team Name eld to enter a team name.

6. Click the Team Type eld to select a team type.

7. Assign any available adapter or adapters to the team by selecting the adapter

from the Load Balance Members list. There must be at least one adapter

selected in the Load Balance Members list.

8. You can assign any other available adapter to be a standby member by selecting

it from the Standby Member list.

* There must be at least one Broadcom network adapter assigned to the team.

The Large Send Ofoad (LSO), Checksum Ofoad (CO), and RSS indicate if

English

the LSO, CO, and/or RSS properties are supported for the team. The LSO, CO,

and RSS properties are enabled for a team only when all of the members

support and are congured for the feature.

* Adding a network adapter to a team where its driver is disabled may negatively

affect the ofoading capabilities of the team. This may have an impact on the

team’s performance. Therefore, it is recommended that only driver-enabled

network adapters be added as members to a team.

52

Fatal1ty Z77 Professional Series Motherboard

9. Type the value for Team MTU.

10. Click Create to save the team information.

11. Repeat steps 5. through 10. to dene additional teams. As teams are dened,

they can be selected from the team list, but they have not yet been created.

Click the Preview tab to view the team structure before applying the changes.

12. Click Apply/Exit to create all the teams you have dened and exit the Manage

Teams window.

13. Click Yes when the message is displayed indicating that the network connection

will be temporarily interrupted.

* The team name cannot exceed 39 characters, cannot begin with spaces, and

cannot contain any of the following characters: & \ / : * ? < > |

* Team names must be unique. If you attempt to use a team name more than

once, an error message is displayed indicating that the name already exists.

* The maximum number of team members is 8.

* When team conguration has been correctly performed, a virtual team adapter

driver is created for each congured team.

* If you disable a virtual team and later want to reenable it, you must rst disable

and reenable all team members before you reenable the virtual team.

* When you create Generic Trunking and Link Aggregation teams, you cannot

designate a standby member. Standby members work only with Smart Load

Balancing and Failover and SLB (Auto-Fallback Disable) types of teams.

* For an SLB (Auto-Fallback Disable) team, to restore trafc to the load

balance members from the standby member, click the Fallback button on the

Team Properties tab.

* When conguring an SLB team, although connecting team members to a hub

English

is supported for testing, it is recommended to connect team members to a

switch.

* Not all network adapters made by others are supported or fully certied for

teaming.

53

Fatal1ty Z77 Professional Series Motherboard

14. Congure the team IP address.

a. From Control Panel, double-click Network Connections.

b. Right-click the name of the team to be congured, and then click Properties.

c. On the General tab, click Internet Protocol (TCP/IP), and then click

Properties.

d. Congure the IP address and any other necessary TCP/IP conguration for

the team, and then click OK when nished.

English

54

Fatal1ty Z77 Professional Series Motherboard
