Xoro HSD 8450: SETUP
SETUP: Xoro HSD 8450

SETUP
General Operation
1. Press SETUP to enter the Setup Menu.
2. Press ENTER to the next level submenu or confirm your selection.
3. Press to enter the submenu or return to the previous menu
4. Press to highlight the desired menu.
5. To exit from the menu
6. Press SETUP again and the settings will be stored in the player's memory even if
the player is switched off.
The Setup is divided into different section: General Setup, Audio Setup, Dolby Digital Setup,
English
Video Setup and the Preference Page.

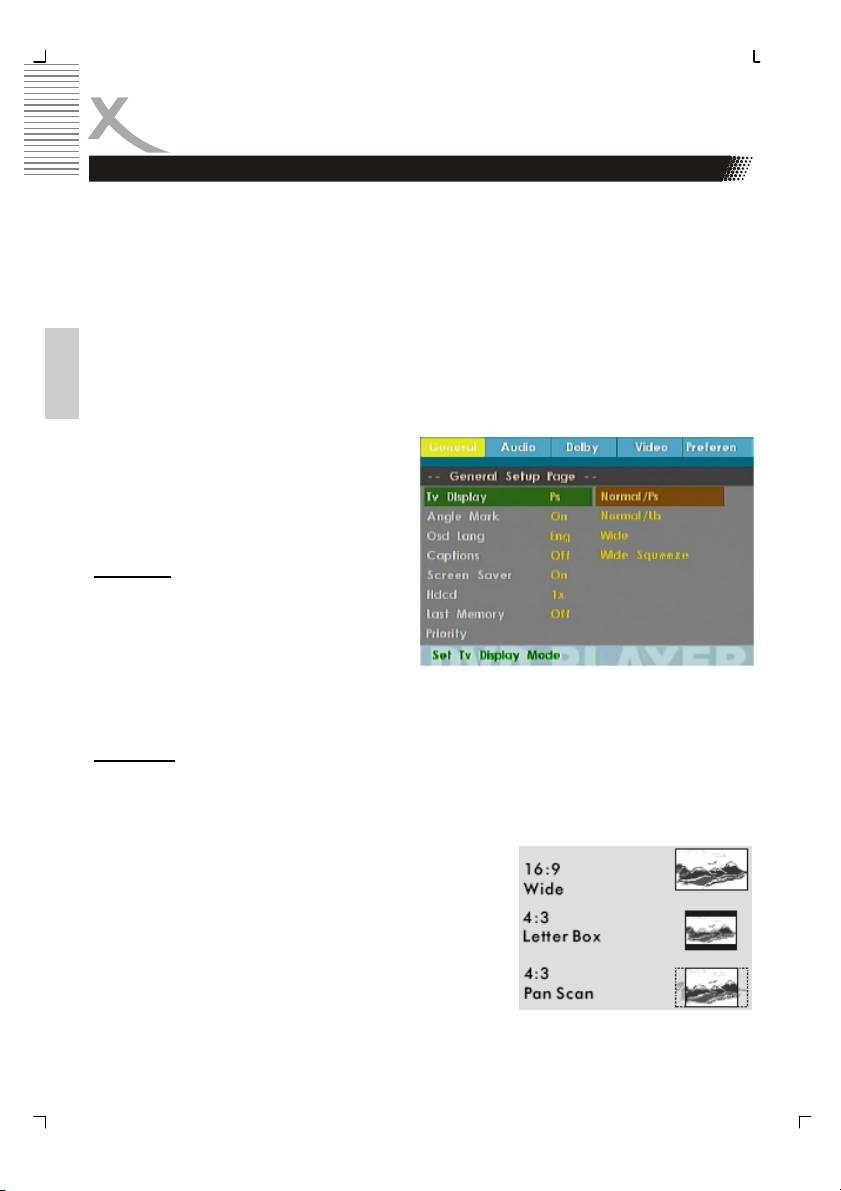

General Setup Page
The options included in General Setup page
are:" TV Display", "Angle Mark", "OSD lang",
"Captions", "Screen Saver", “HDCD” and
“Last Memory”.
OSD Lang
You can select your own preferred language
settings. This DVD system will automatically
switch to the selected language whenever
you load a disc. If the language selected is
not available on the disc, the disc's default
language will be used instead. The OSD
language in the system menu will remain once selected.
TV Display
Set the aspect ratio of the DVD Player according to the TV you have connected.
Normal/PS
If you have a normal TV and want both sides of the picture to be trimmed or formatted to fit
your TV screen.
Normal/LB
If you have a normal TV. In this case , a wide picture with
black bands on the upper and lower portions of the TV
screen will be displayed.
Wide
If you have a wide-screen TV.
34 HSD 8450

SETUP
General Setup Page
Angle Mark
Displays current angle setting information on the right hand corner of the TFT screen if avail-
able on the disc. The options are:
On: Enable Angle Mark.
Off: Disable the current angle setting display.
Closed Captions
English
Closed captions are data that are hidden in the video signal of some discs. Captions are
different from subtitles because captions hearing are impaired by showing the sound effects
(e.g. "phone ringing" and “footsteps"), while subtitles do not. Before you select this function,
please ensure that the disc contains closed captions information and your TV set also has
this function.
On: Enable Closed Captions.
Off: Disable Closed Captions.
Screen Saver
This function is used to turn the screen saver On or Off.
On: In STOP, PAUSE or No DISC mode, if no actions are performed about 3 minutes,
the Screen Saver will be activated.
Off: Screen Saver is disabled.
HDCD
HDCD encodes the equivalent of 20 bits worth of data in a 16-bit digital audio signal by utiliz-
ing custom dithering, audio filters, and some reversible amplitude and gain encoding; Peak
Extend, which is a reversible soft limiter and Low Level Range Extend, which is a reversible
gain on low-level signals. HDCD provides several digital features, which the audio mastering
engineer controls at his/her own discretion. They include:
Dynamic range compression and expansion, with which virtually 4 more bits of accuracy can
be added to the musical signal.
Precision digital interpolation filtering with multiple modes of operation, which can reduce
alias distortion and temporal smearing, resulting in a more natural, open, and accurate
sound reproduction.
The options are: x1, x2 or Off.
Last Memory
If the option “ON” is set, than the players remembers the last playback position by Video-
DVD.
HSD 8450 35

SETUP

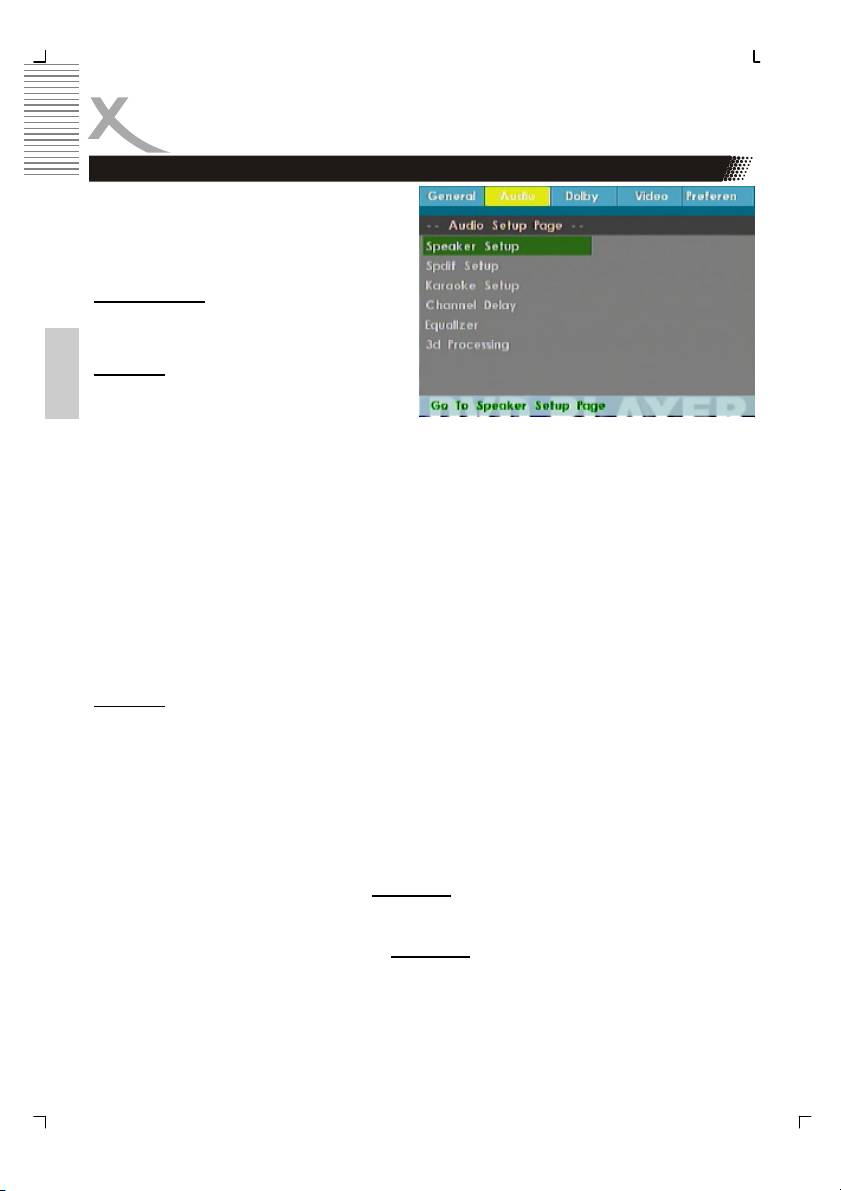

Audio Setup Page
The options in Audio Setup Page are
“Speaker Setup”, “SPDIF Output”, “Channel
Delay”, “Equilizer” and “3D Processing”.
Speaker Setup
The options are “Down mix”, “Speakers” and
“Test Tone”.
Downmix
This options allows you to set the stereo
English
analogue output of your DVD Player.
LT/RT
Select this option if your DVD Player is connected to a Dolby Pro Logic decoder.
Stereo
Select this option when output delivers sound from only the two front speakers.
Virtual Surround
With this option creates the player a surround sound on two speakers.
Off
The audio signal will be transmitted without any changes.
Speakers
With this option you can define the connected speaker sizes and the player adjusted the
output level in order to the settings.
Front Speaker Big or Small
Center Speaker Big, Small or Off
Rear Speaker Big, Small or Off
Subwoofer On or Off
Notes:
• If you had chosen in the menu DOWNMIX the option LT/RT, Stereo or Virtual Sur-
round than only the size of the front speaker can be set and the subwoofer can be
switch on or off. The both other options are not active.
• If you had chosen in the menu DOWNMIX the option OFF than you can set all
speakers.
36 HSD 8450

SETUP
Audio Setup Page
Test Tone
With the test tone you can check the wire connection to the speaker. The Player produces
for every speaker a test tone and displays on the screen on which speaker is the test tone
available.
Note:
The Test Tone can be uses only when the menu DOWNMIX is set by OFF.
English
SPDIF Output
The setting is responsible for the digital audio output like Dolby Digital or DTS by the coaxial
or optical audio output to the AV Receiver or AV Amplifier. The options are:
SPDIF OFF: Deactivates the digital output
SPDIF/PCM: Output of digital audio in the PCM format
SPDIF/RAW: Output of all kind of digital audio formats.
LPCM Output
During the development by High Definition Video was also developed the high quality Audio.
Since a couple of years the standard format is LPCM with a sampling rate of 192 kHz and a
sample size of 24 bit.
For compatibility reasons the player is able to educe the sampling rate, because not all and
specially older Digital-Analogue-Converter) can not handle 192 kHz.
The options by LPCM output are 192k, 96k and 48k.
Note:
The option is only than active, when you uses PCM output in the SPDIF settings.
HSD 8450 37

SETUP
Audio Setup Page

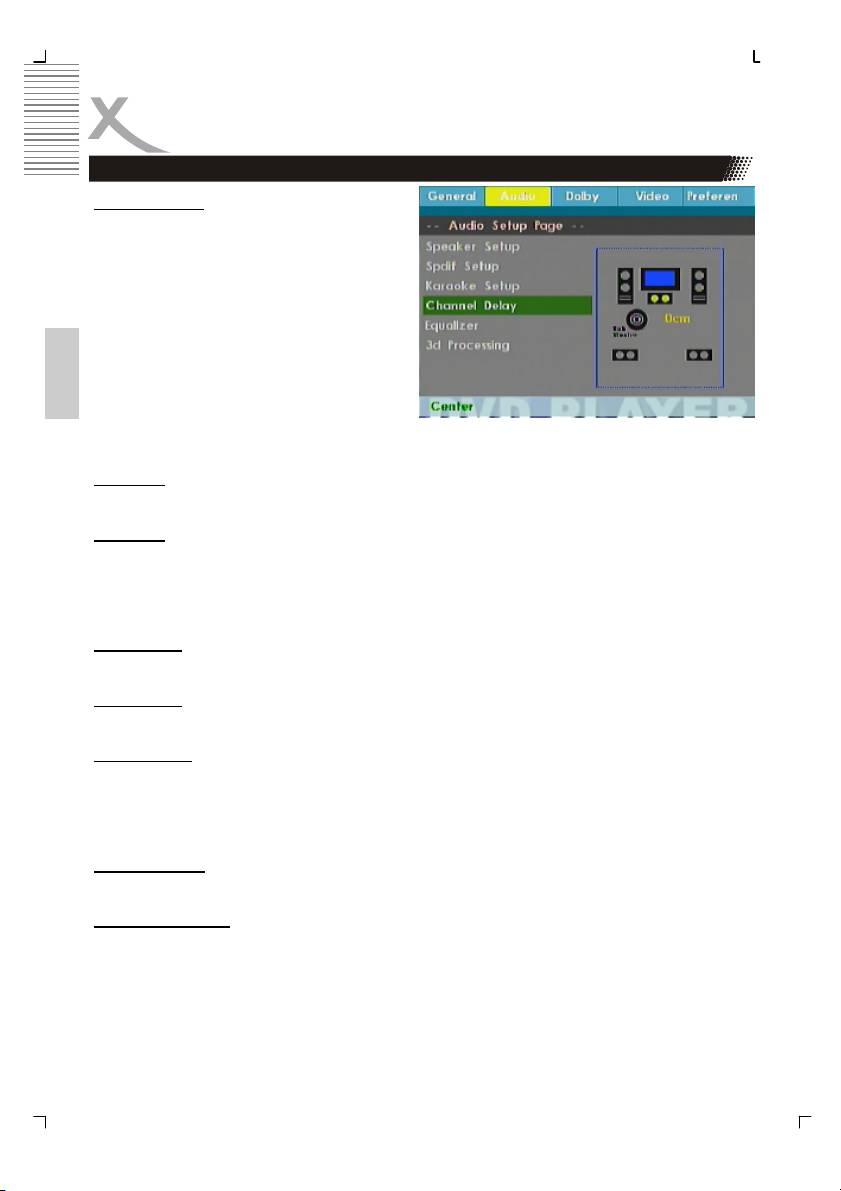

Channel Delay
Before you can set the channel delay, please
pay attention that the Downmix is switched
off.
You can set the channel delay for the Center
speaker, Subwoofer, Right and Left surround
speakers.
Start the Chennel Delay option by pressing
the ENTER button and choose the speaker
which you want to set by using the
S or T
buttons. By pressing the
W or X buttons you
English
can set the channel delay in centimetres.
Higher Values produces a stronger delay.
Equalizer
The equalizer settings are divided into Equalizer, Bass-boost, Super-Bass and Treble-Boost.
Equalizer
With this option you can change the sound output by presets equalizer settings. This presets
are good for listening music and different music styles. The presets or options are:
Rock, Pop, Live, Dance, Techno, Classic, Soft and Off.
Bass-Boost
The option Bass-Boost changes the bass output into deep and powerful bass sound.
Super-Bass
The Super-Bass settings increases the bass sound much more than the Bass-Boost option.
Treble-Boost
The option Treble-Boost changes the treble sound output into higher level. Please uses this
option carefully, because the increasing of the treble can be distorts the sound and make a
strong influence to the sound quality.
3D Processing
The 3D processing includes settings for Dolby-Pro Logic II and the hall effects.
Dolby Pro Logic II
The Dolby Pro Logic II affords a surround sound on stereo speakers, which is nearly similar
to an 5.1 speaker set. Additional two operation methods are by Dolby Pro Logic II possible:
Movie Mode and Music Mode.
In both mode you have some additional settings for adjustment the sound mode.
38 HSD 8450

SETUP

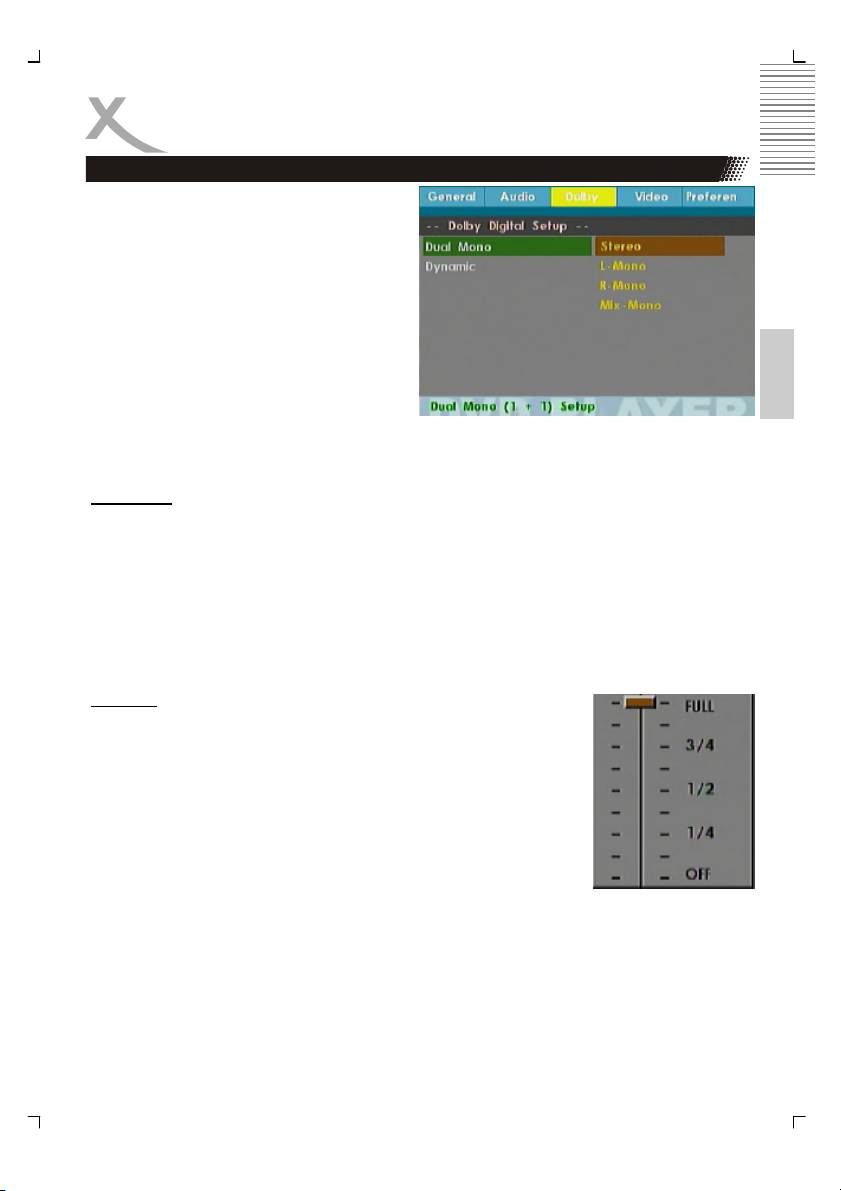

Dolby Digital Setup Page
The Dolby Digital Setup Page includes the
options for „Dual Mono“ and „Dynamic“.
English
Dual Mono
To select the setting that matches the number of speakers you have connected.
Stereo: Left mono sound will send output signals to Left speaker and Right mono
sound will send output signals to Right speaker.
L-Mono: Left mono sound will send output signals to Left speaker and Right speaker.
R-Mono: Right mono sound will send output signals to Left speaker a. Right speaker.
Mix-Mono: Left and Right mixed mono sound will send output signals to Left and Right
speakers.
Dynamic
To optimize the dynamic sound output high volume outputs are sof-
tened, enabling you to watch your favourite movie without disturbing
others.
The levels for dynamic selection: Full, 7/8, 3/4, 5/8, 1/2, 3/8, 1/4, 1/8
and Off.
HSD 8450 39

SETUP
Video Setup Page
The Video Setup Page includes the settings
for „Component“, „Resolution“, „Quality“, and
„HDMI Setup“.
Component
The setting component specify the kind of
video output.
RGB
This setting is useful, when you connect the
DVD player with your TV set and the TV set
English
has a SCART connector which supports
RGB signals. With RGB signals on SCART
you can get a better picture quality compare to FBAS signals (YUV setting).
YUV
This setting is useful, when you connect the DVD player with your TV set and the TV set has
a SCART connector which does supports RGB signals. Here you need the YUV setting for
getting FBAS signal by SCART.
If you connect the DVD player with a 3-wire component cable and connect them by YPbPr to
your TV set, than please use also the YUV setting.
Off
If you connect the DVD player by S-Video with a S-Video cable to your TV set, than please
the setting S-Video.

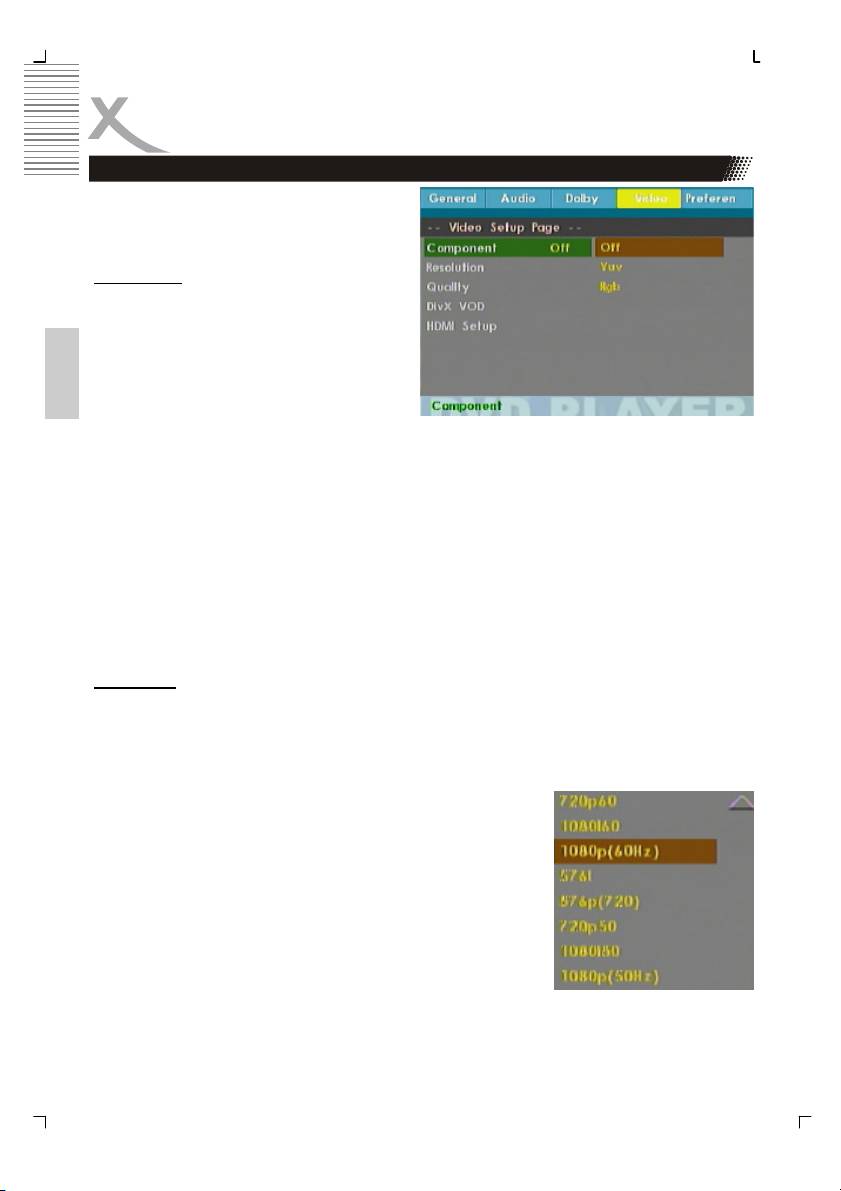

Resolution
With this option you can choose the resolution when you have connected the player with a
HDMI or an 3-component wire to the TV set. The player provided an up-scaling function, so
that the video output are extrapolate to maximum of 1080. On one side you can select the
resolution for PAL or NTSC content and TV set’s. In case of an 3-componend-wire connec-
tion you can also choose the progressive video output by using every resolution with the
sign “p”, for example 576p, 720p or 1080p.
Settings for PAL:
576i, 576p, 720p50, 1080i50 and 1080p50
Setting for NTSC:
480i, 480p, 720p60, 1080i60 and 1080p60
The option “MULTI” try to adjust the setting automatically with
the TV set.
Notes:
Please uses only this kind of resolution which is provided by the TV set.
40 HSD 8450

SETUP
Video Setup Page
Quality
The quality settings included option for “SHARPNESS”, BRIGHTNESS”, “CONTRAST”,
“GAMMA”, “HUE”, “SATURATION” and “LUMA DELAY”.
Sharpness
The options are “High”, “Middle” and “Low”. By the setting “Low” the DVD player produces a
very soften picture. By the setting “High” the picture is very sharp.
English
Brightness and Contrast
The settings for brightness and contrast can be changes by using the scroll bar, which are
displayed, when you want to change to settings.
Gamma
Normally and in ideally a TV set or other system shows a brightness value of 0 as black and
a brightness value of 1 as white on the screen. Every brightness value between 0 and 1 are
shown as grey steps. Such kind of linearity are mostly impossible, so that often the black,
white or grey parts are disproportionately detail displayed.

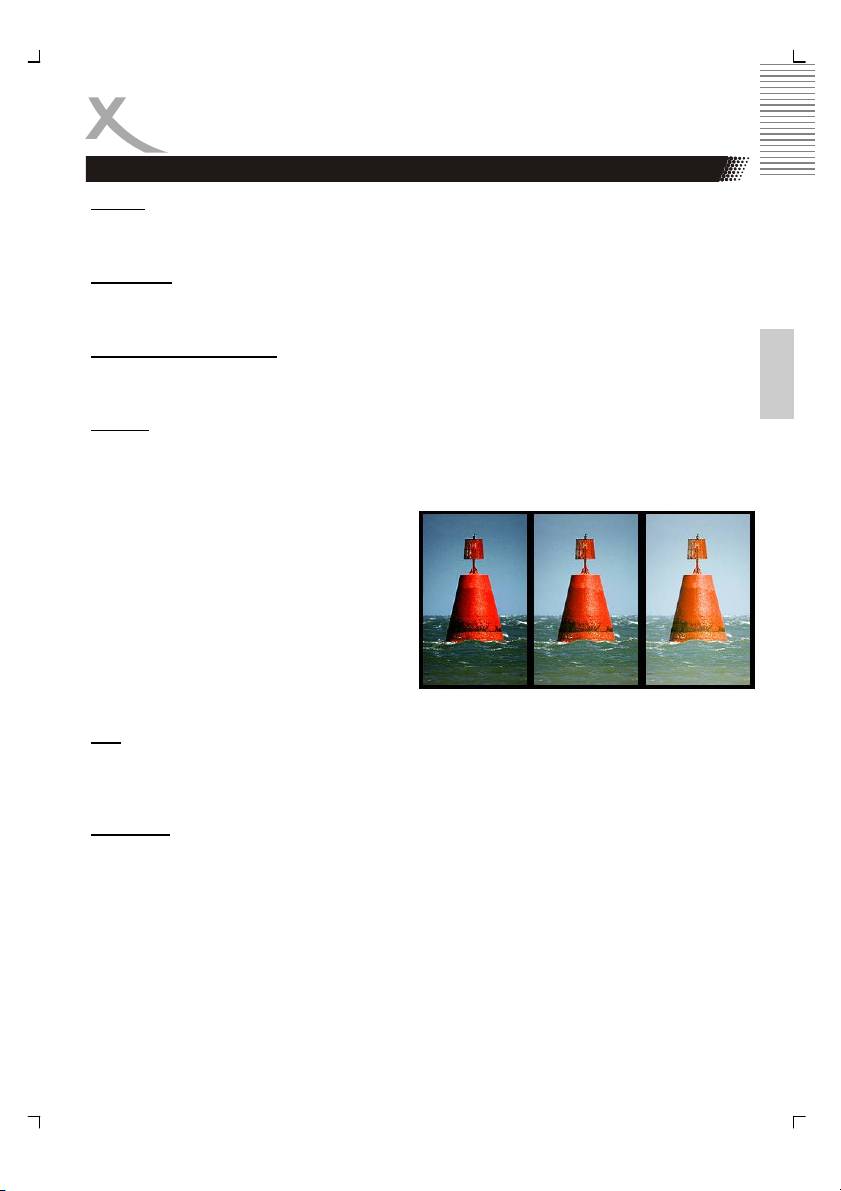

With the Gamma option you can try to in-
crease the white and black parts. The picture
shows the different settings of Gamma. For
example if the right hand part demonstrate an
normally setting (option OFF) than you can
influence of the other option. The middle part
of the picture shows a small gamma correc-
tion and the left hand part shows the highest
option (High).
Hue
You can change the Hue setting by using the < / > button and in order to the modification the
picture changes on the screen.
Saturation
You can change the Saturation setting by using the < / > button and in order to the modifica-
tion the picture changes on the screen.
HSD 8450 41

SETUP
Video Setup Page
Luma Delay
Sometimes by FBAS (CVBS) or S-Video it
could be happened a time delay by chromi-
nance or luminance signal. The right picture
demonstrates this kind of delay. The top
picture shows a normal view without any
delay. He bottom picture shows a visible
distortion so that the letters looks like with a
shadow or like double transmitted.
If such kind of error is visible on the screen
English
by using FBAS (CVBS) or S-Video you can
try to fix them by using the option “1T”.
Note:
If the error can not be solved, please pay attention and use a high quality component or S-
Video cable. Additional your TV set has also some settings for adjustment.
HDMI Setup
With this option you can activate the HDMI
port. Additional you can set in which kind the
audio signal will be transmitted by HDMI.
HDMI
Activates the HDMI port (On) or switches
them off (OFF).
Audio Source
With this option you can define in which kind
the audio signal are transmitted by HDMI.
PCM
Only audio signal which are formatted in PCM are forwarded by HDMI
Multi
Every kind of audio formats are carry by HDMI.
42 HSD 8450

SETUP

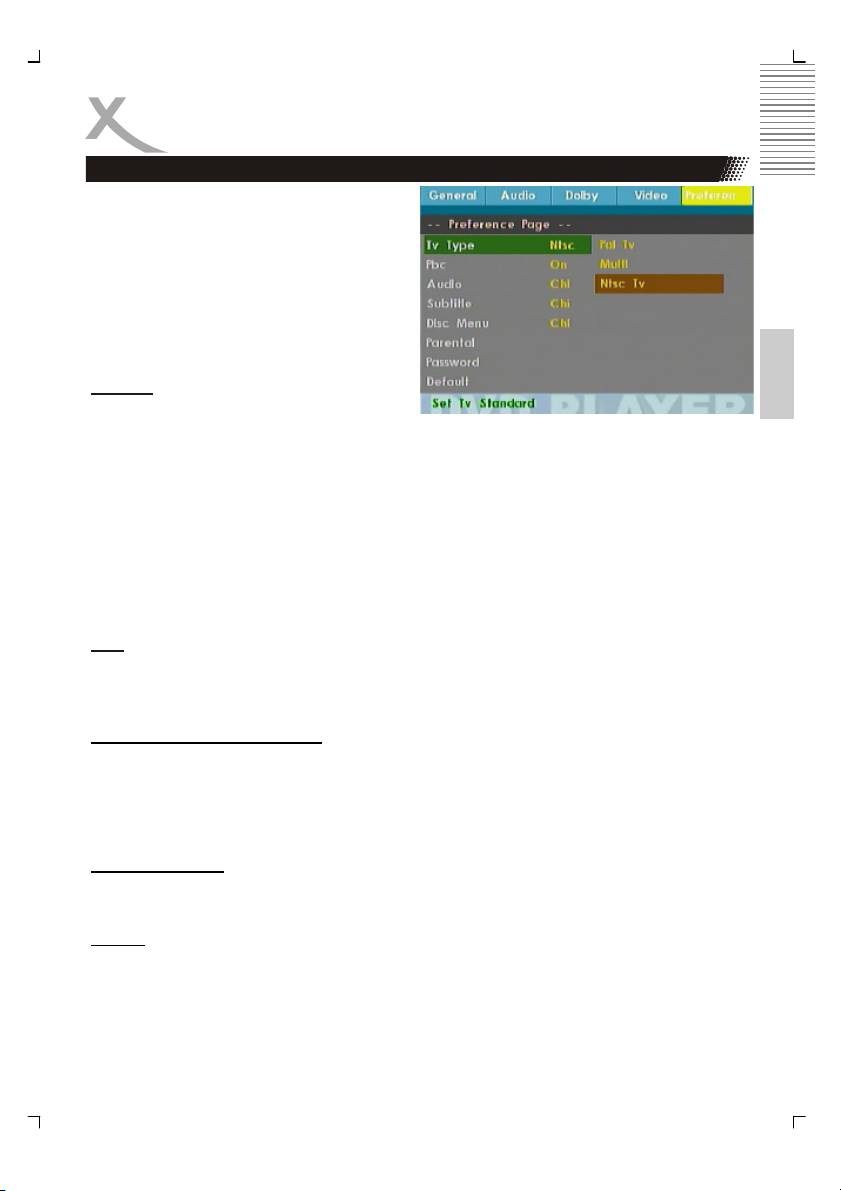

Preference Page
The options included in Preference page are:
“TV Type”, “PBC”, “Audio”, “Subtitle”, “Disc
Menu”, “Parental”, “Password” and “Default”.
Note:
Some Preference features can be selected
only during No Disc condition or STOP mode.
English
TV Type
Selecting the colour system that corresponds
to your TV when AV outputs. This DVD
Player is compatible with both NTSC and PAL. In order for a DVD disc to play on this Player,
the colour system of the Disc, the TV and the DVD Player should match.
PAL
Select this if the connected TV is PAL system. It will change the video signal of a NTSC disc
and output in PAL format.
NTSC
Select this if the connected TV is NTSC system. It will change the video signal of a PAL disc
and output in NTSC format.
PBC
The PBC settings are responsible by SVCD or VCD and allowed the access to chapters and
menus in SVCD or VCD content.
Audio, Subtitle and Disc menu
These options set the Audio, Subtitle and Disc menu language fit for you.
• Audio (disc 's soundtrack / languages)
• Subtitle (disc 's subtitles / languages)
• Disc Menu (disc 's menu / languages)
MPEG-4 Subtitles
Here you can choose the region (West Europe, Central Europe and Russia) for displaying
the special characters.
Default
Setting the 'Default ' function will reset all options and your personal settings to the factory
defaults and all your personal settings will be erased.
Caution!
When this function is activated, all settings will be reset to factory defaults.
HSD 8450 43

SETUP
Preference Page
Parental
DVD video discs equipped with the parental lock function are rated according to their con-
tent. The contents allowed by a parental lock level and the way a DVD video disc can be
controlled may vary from disc to disc. For example, if the disc allowed, you could edit out
violent scenes unsuitable for children and replace them with more suitable scenes, or lock
out playback of the disc all together.
Ratings
• KID Safe - Kids material. Recommended especially for children and viewers of all
ages.
English
• 2 G - General Audience. Recommended as acceptable for viewers of all ages.
• 3 PG - Parental Guidance suggested.
• 4 PG13 - Material is unsuitable for children under age 13.
• 5-6 PG-R - Parental Guidance-Restricted. Recommended that parents restrict chil
dren under 17 from viewing or allow to view only when supervised by a parent or
adult guardian.
• 7 NC17 - No children under age 17. Not recommended viewing for children under
age 17.
• 8 ADULT - Mature material. Should be viewed only by adults due to graphic sexual
material, violence or language.
Note:
Some DVDs are not encoded with a rating though the movie rating may be printed on the
Disc cover. The rating level feature does not work for such Discs.

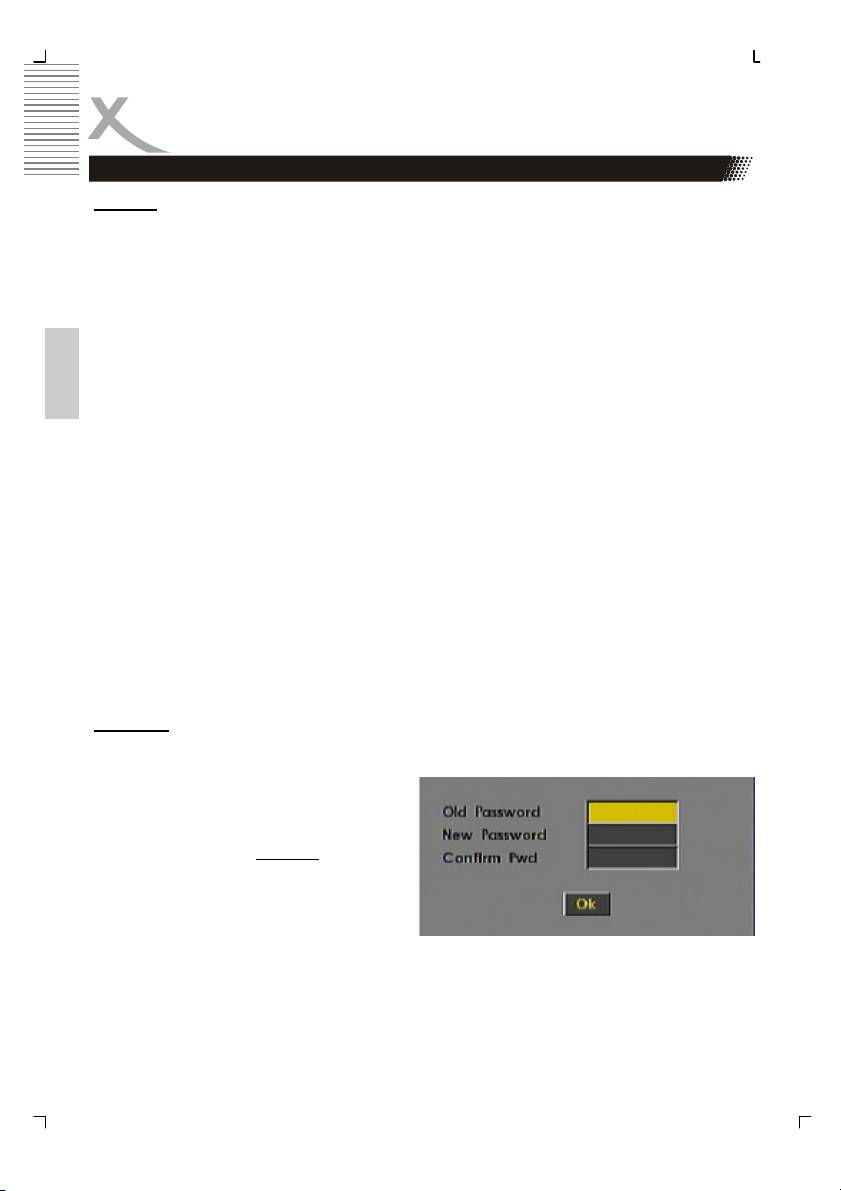

Password
This feature is used for Parental Control. Enter your four digit password when a hint is dis-
played on the screen. The default password is 8 8 8 8.
1. Insert the old password
2. Insert the new password.
3. Confirm the new password
4. Navigate to OK-Field
and press
ENTER button.
44 HSD 8450
Оглавление
- Inhaltsangabe
- SICHERHEITSHINWEISE
- Hinweise
- Schnellstartanleitung
- Bedienelemente
- Verbinden
- Fernbedienung
- Abspielen
- CD Ripping
- Einstellungen
- Fehlerbehebung
- Spezifikation
- Glossar
- Table of Content
- Safety Information
- Recycling Information
- Accessoires
- Quick Start Guide
- Control Elements
- Connection
- Remote Control
- PLAYBACK
- CD Ripping
- SETUP
- TROUBLESHOOTING
- Specification
- GLOSSARY
- TABLE DES MATIERES
- Recyclage Information
- INTRODUCTION
- GUIDE DE DÉMARRAGE RAPIDE
- INTERFACES ET COMMANDES
- CONNEXIONS
- TÉLÉCOMMANDE
- LECTURE
- CD Ripping
- CONFIGURATION
- CONFIGURATION
- DÉPANNAGE
- CARACTÉRISTIQUES
- GLOSSAIRE
- INFORMACIÓN DE SEGURIDAD
- Notas
- Guía de Comienzo Rápida
- ELEMENTOS DE CONTROL
- CONECTANDO
- TELECOMANDO
- CD Ripping
- SETUP
- Problemas
- XORO by MAS Elektronik AG
