MPM MOD-05: GB

GB

16

1.Suctionpowerregulation

2.Aluminiumtelescopicpipe

3.Cordwinder

4Switchon/offbutton

5.Dustbagllingindicator

6Uppercover

7.Floor/carpetnozzle

8.Crevicenozzlewitharemovablebrush

9.Smalldustbrush

10.Rubbercoveredrolls

11.Textiledustbag(4.0litres)

12.Uppercoveropeningbutton

13.Filtercover

14.Airoutletlter

15.Accessoriescontainer

16.Handle

17.Suctionpowerregulator

18.Suctionhoseconnectionhole

19.Telescopicpipelockingbutton

20.Suctionhose

21.Hoseholder

18

22.Suctionhosegrip

23.Guide

12

24.Motorlter

6

5

1

3

4

16

23

14

16

10

11

13

20

7

9

17

8

22

21

24

15

19

2

GB

18

ASSEMBLY

1. Placethesuctionhosefastener(21)intotheconnectionhole(18).Thelockingissignalledbya

click.Inordertodisassemblethoseelements,presstwobuttonsonthefastenerandremovethe

suctionhosefromthehole.

2. Connectthealuminiumtelescopicpipe(2)tothegrip(22)(totheotherendofsuctionhose).Put

oneofthesuctionnozzlesontheendofsuctionpipe.Crevicenozzlewitharemovable(8)and

smalldustbrush(9)areplacedinaspecialcontainerforaccessories(15).Inordertoaccessit,

liftthecontainer'scover.Extendthetelescopicpipetoadesiredlengthbypressingtheblocking

button(19)andthenreleasethebutton.Thesuctionpipewillbelockedinadesiredposition.

OPERATION

1. Beforeswitchingonthevacuumcleaner,unwindthecordandinserttheplugintothesocket.

Yellowmarkingonthecordindicatesanoptimallength.Donotunwindthecordbeyondthered

marking!Whenunwindingthecord,donotpressthecordwinderbutton(3).

2. Pressthebutton(4)toswitchthevacuumcleaneron.

3. Towindthepowercord,pressthecordwinderbutton(3)withonehandandholdthecordwith

theotherhandtopreventasuddenmovement,whichmaydamagethecord.

Notice!Itisadvisedthatthesuctionpowerregulator(1)beset atMINbeforeswitchingonthe

vacuumcleaner!Whenvacuumcleaning,thesuctionpowercanbeadjustedbyturningaroundthe

suctionpowerregulatortoreachadesiredposition.Ifthesuctionpipejamsoradustbagisfull,

thedustbagllingindicatorwillchangetored.Replacethedustbagorunblockthesuctionpipe.

Suctionpowercanbeadjustedwiththesuctionpowerslide(17).Toreducethesuctionpower,pull

theslideslightly.

4. Tofacilitatestoringthevacuumcleanerafteruse,usetheguide(22)placedatthebackofthede-

viceovertheltercover(13).Placetheraillocatedatthebackoftheoor/carpetnozzletogether

withthesuctionhoseandsuctionpipeontheguide.Thesecondguide,whichfacilitatesstoring

thevacuumcleanerintheverticalposition,isplacedatthebottomofthedevice.Tofacilitate

carryingaround,useanergonomicgrip(16)





- intendedforcleaninglargeandatsurface.Tofacilitatecleaning,thevacuumcleanerisequip-

pedwithrollers,whichimprovemovabilityinareas,whicharehardtoaccess,andaexiblejoint

connectingitwiththesuctionhosewhichhelptouseitatdifferentangles.

- afterpressingthebuttonontheupperpartofthenozzle(switchingtothe”brushmode”),several

rowsofrigidhairandarubberstripewillappeartofacilitatecleaningofcarpets



- usedtocleanthecorners,areasnearthefurnitureaswellasbendsandgaps.Greatforcleaning

computerkeyboards,drawers,radiatorsandwindowframes

- byputtingthehairbushonthenozzle,wecanusethetooltocleanwindowcurtains,furniture,

upholstery,creasesonupholsteredfurniture(sofas,couches,fragileelementssuchaslampsha-

des)



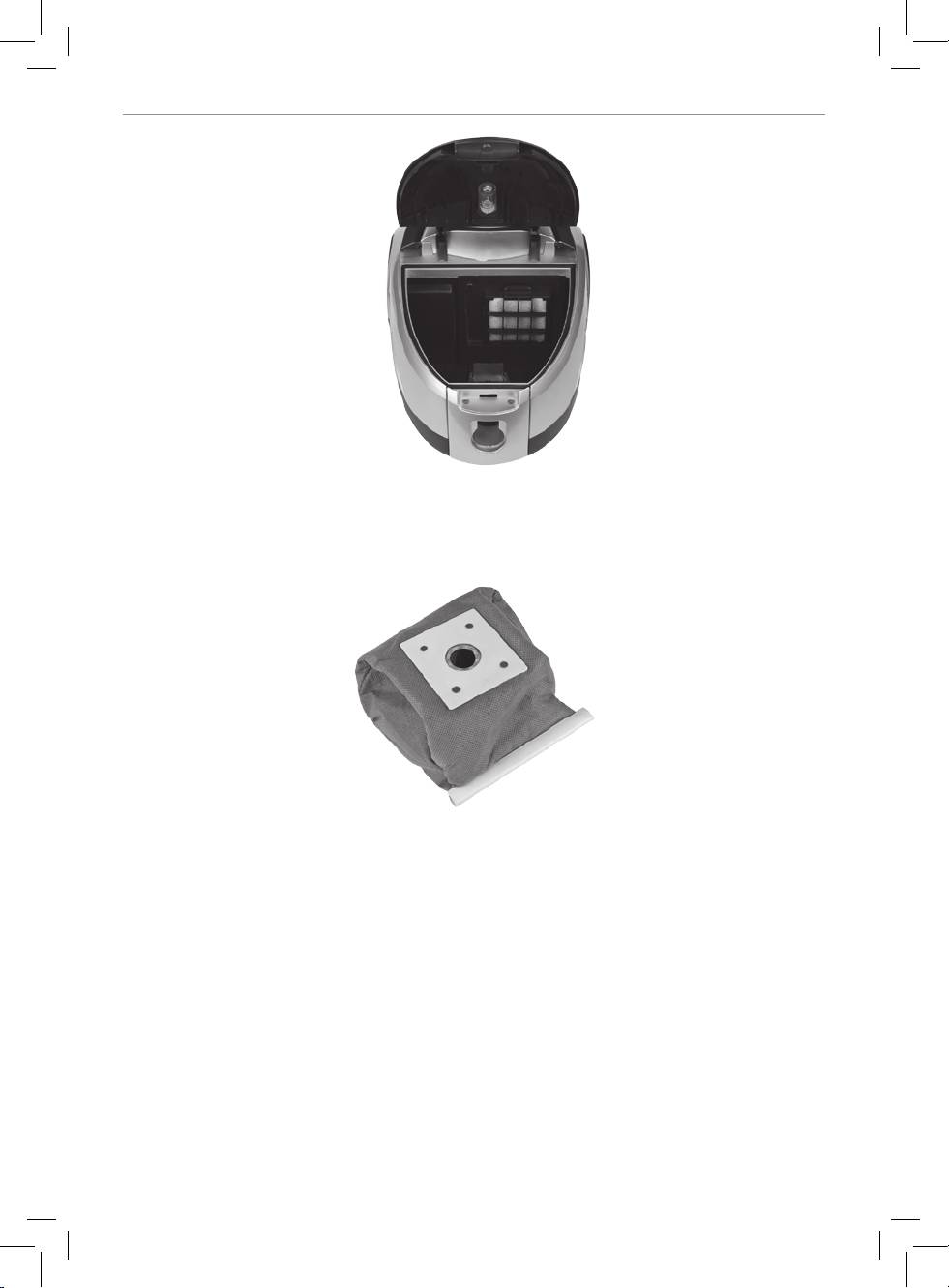

Toemptythedustbag,disconnectthedevicefromthemains,removethesuctionhosefastener(21)

andlifttheuppercover(6)havingpressedthebutton(12)

- Holdingtheplasticangeremoveitfromtheslide.Afterremovingthebagfromthecontainer,

holdthebagintheverticalposition(bytheplasticangewithaninlethole),removethelatch

placedatthebottomofthebag

Notice! Afterremovingthelatch,litterwillfalloutimmediately.Thisactivitymustbedoneover

adustbin!

- Placethedustbaginthecontainer,placingtheplasticangeontheslidewiththearrowindicator

pointingdown

Notice!Fillinglevelofthedustbagisindicatedbytheindicator(5)placedintheupperpartofthe

device,ontheaccessoriescontainer'scover.Ifthedustbagislledtocapacity,theindicatorwill

switchtored.



Fromtimetotime,inthecourseofnormaloperation,itisrequiredthatthemotorcoveringlterand

theairoutletlterbereplacedorcleaned.Switchoffthedeviceandremovethesuctionpipe.

1. Tocleantheairoutletlter(14),presstheltercoverlockingbutton(13)locatedatthebackof

thedeviceandremoveitcarefullyfromthecasing.Carefullyremovethelter’sframe.Cleanthe

lterwithwateranddetergentsanddrythoroughly.

Tocleanthemotor’slter,opentheuppercoverofthedevicebypressingthebutton(12),removethe

bagandcarefullyslideouttheframeandthelterupwards.Removethelterfromtheframeand

cleanwithrunningwateranddetergentanddrythoroughly

20

GB

CLEANING AND MAINTENANCE

1. Theenclosureofvacuumcleaneranditsexternalelementsshouldbeoccasionallycleanedwith

wetclothtomaintaindesirableappearanceoftheappliance.

2.Anysharpobjectsoranyaggressivemediamustbenotusedforthispurpose(e.g.solvents),be

-

causetheenclosureofvacuumcleanerwouldbepermanentlydamaged.

3.Incaseofairltersanddustbag,proceedinaccordancewiththefollowinginstructions.

IN CASE OF FAILURE

Type of failure Possible reasons: Remedies:

Dustbagnotinstalledorinstalled

frontcoverclosedincompletely

InstalldustbagIacorrectmanner

incorrectly

Lightheatingoftheenclosureisnormal;incaseofsignicantoverheating,

overheatingofvacuumcleanerenclosure

immediatelyswitchoffthevacuumcleanerandcontacttheservice

Signicantlycontaminatelters Cleanltersorreplacethem

Dustbagislled Replacedustbagoremptytextilebag

lowsuctionpower

Removeanyobjectscloggingthehose

cloggedhoseofextensionpipe

orpipe

TECHNICAL DATA

Power:1600W

Powersupply:220-240VAC50/60Hz

L

=76dB

WA

Poland

Appropriate disposal of the product

(Used electric and electronic equipment)

Thelabelputontheproductandintextsdescribingtheproductindicatesthatafterthe

use periodtheproductcannotbe disposedtogetherwith otherwastecomingfroma

household.Toavoidaharmfulinuenceonnaturalenvironmentandpeople’shealth

causedbyanuncontrolleddisposalofwaste,weasktoseparatetheproductfromother

wasteandtorecycleitinareasonablewayinordertopromotereuseofnaturalresources

asapermanentpractice.Inordertoobtaininformationregardingtheplaceandsafeway

ofrecycling,householdusersshouldcontactanoutletinwhichtheyboughttheproduct

orwithlocalauthorities.Usersincompaniesshouldcontacttheirsupplierandcheck

conditionsofpurchaseagreement.Theproductcannotbedisposedtogetherwithother

commercialwaste.

Attention!: MPMProductreservesitsrightstomodifythetechnicaldata.
