2. Installation

Pre-installation Precautions

Take note of the following precautions before you install mother-

board components or change any motherboard settings.

1.  Unplug the power cord from the wall socket before touching any

component. Failure to do so may cause severe damage to the

motherboard, peripherals, and/or components.

2.  To avoid damaging the motherboard components due to static

electricity, NEVER place your motherboard directly on the car-

pet or the like. Also remember to use a grounded wrist strap or

touch a safety grounded object before you handle components.

3.  Hold components by the edges and do not touch the ICs.

4.  Whenever you uninstall any component, place it on a grounded

antstatic pad or in the bag that comes with the component.

5.  When placing screws into the screw holes to secure the moth-

erboard to the chassis, please do not over-tighten the screws!

Doing so may damage the motherboard.

2.1 CPU Installation

For the installation of Intel 1155-Pin CPU,

please follow the steps below.

Before you insert the 1155-Pin CPU into the socket, please check if the

CPU surface is unclean or if there is any bent pin on the socket. Do not

force to insert the CPU into the socket if above situation is found. Other-

wise, the CPU will be seriously damaged.

1155-Pin Socket Overview

Contact Array

Socket Body

Load Lever

Load Plate

14

ASRock  Z68 Extreme3 Gen3  Motherboard

Step 1.  Open the socket:

Step 1-1.  Disengaging the lever by depressing

down and out on the hook to clear

retention tab.

Step 1-2.  Rotate the load lever to fully open po-

sition at approximately 135 degrees.

Step 1-3.  Rotate the load plate to fully open po-

sition at approximately 100 degrees.

Step 2.  Remove PnP Cap (Pick and Place Cap).

1. It is recommended to use the cap tab to handle and avoid kicking

    off the PnP cap.

2. This cap must be placed if returning the motherboard for after

    service.

Step 3.  Insert the 1155-Pin CPU:

Step 3-1.  Hold the CPU by the edges where

are marked with black lines.

Step 3-2.  Orient the CPU with IHS (Integrated

Heat Sink) up. Locate Pin1 and the

two orientation key notches.

For proper inserting, please ensure to match the two orientation key

notches of the CPU with the two alignment keys of the socket.

English

black line

Pin1

alignment  key

alignment  key

Pin1

1155-Pin CPU

1155-Pin Socket

orientation key  notch

orientation key  notch

15

ASRock  Z68 Extreme3 Gen3  Motherboard

English

Step 3-3.  Carefully place the CPU into the

socket by using a purely vertical mo-

tion.

Step 3-4.  Verify that the CPU is within the sock-

et and properly mated to the orient

keys.

Step 4.  Close the socket:

Step 4-1.  Rotate the load plate onto the IHS.

Step 4-2.  While pressing down lightly on load

plate, engage the load lever.

Step 4-3.  Secure load lever with load plate tab

under retention tab of load lever.

2.2    Installation of CPU Fan and Heatsink

For proper installation, please kindly refer to the instruction manuals of your CPU

fan and heatsink.

Below is an example to illustrate the installation of the heatsink for 1155-Pin CPU.

Step 1.  Apply thermal interface material onto center of

IHS on the socket surface.

Step 2.  Place the heatsink onto the socket. Ensure

fan cables are oriented on side closest to the

CPU fan connector on the motherboard (CPU_

FAN1, see page 2, No. 4).

Step 3.  Align fasteners with the motherboard through-

holes.

Step 4.  Rotate the fastener clockwise, then press

down on fastener caps with thumb to install

and lock. Repeat with remaining fasteners.

If you press down the fasteners without rotating them clockwise, the

heatsink cannot be secured on the motherboard.

Step 5.  Connect fan header with the CPU fan connector on the motherboard.

Step 6.  Secure excess cable with tie-wrap to ensure cable does not interfere with

fan operation or contact other components.

Apply Thermal

Interface Material

Fan cables on side

closest to MB header

Fastener slots

pointing straight out

Press Down

(4 Places)

Please be noticed that this motherboard supports Combo Cooler

Option (C.C.O.), which provides the

fl

 exible option to adopt three dif-

ferent CPU cooler types, Socket LGA 775, LGA 1155 and LGA 1156.

The white throughholes are for Socket LGA

1155/1156 CPU fan.

16

ASRock  Z68 Extreme3 Gen3  Motherboard

English

2.3  Installation of Memory Modules (DIMM)

This motherboard provides four 240-pin DDR3 (Double Data Rate 3) DIMM

slots, and supports Dual Channel Memory Technology. For dual channel con

fi

 g-

uration, you always need to install

identical

 (the same brand, speed, size and

chip-type) DDR3 DIMM pair in the slots: You have to install

identical

 DDR3

DIMM pair in

Dual Channel A

(DDR3_A1 and DDR3_B1; Black slots; see p.2

No.5) or

identical

 DDR3 DIMM pair in

Dual Channel B

(DDR3_A2 and DDR3_

B2; Black slots; see p.2 No.6), so that Dual Channel Memory Technology can

be activated. This motherboard also allows you to install four DDR3 DIMMs for

dual channel con

fi

 guration, and please install

identical

 DDR3 DIMMs in all four

slots. You may refer to the Dual Channel Memory Con

fi

 guration Table below.

Dual Channel Memory Con

fi

 gurations

DDR3_A1

 DDR3_A2

  DDR3_B1    DDR3_B2

(Black Slot)      (Black Slot)    (Black Slot)     (Black Slot)

(1)

Populated             -

  Populated

   -

(2)

-

 Populated               -               Populated

(3)*

Populated

 Populated

  Populated    Populated

*

  For the con

fi

 guration (3), please install

identical

 DDR3 DIMMs in all four

 slots.

1.  If you want to install two memory modules, for optimal compatibility

and reliability, it is recommended to install them in the slots: DDR3_

A1 and DDR3_B1, or DDR3_A2 and DDR3_B2.

2.  If only one memory module or three memory modules are installed

in the DDR3 DIMM slots on this motherboard, it is unable to activate

the Dual Channel Memory Technology.

3.  If a pair of memory modules is NOT installed in the same Dual

Channel, for example, installing a pair of memory modules in

DDR3_A1 and DDR3_A2, it is unable to activate the Dual Channel

Memory Technology .

4.  It is not allowed to install a DDR or DDR2 memory module into

DDR3 slot; otherwise, this motherboard and DIMM may be dam-

aged.

5.  Some DDR3 1GB double-sided DIMMs with 16 chips may not work

on this motherboard. It is not recommended to install them on this

motherboard.

17

ASRock  Z68 Extreme3 Gen3  Motherboard

English

Installing a DIMM

Please make sure to disconnect power supply before adding or

removing DIMMs or the system components.

Step 1.  Unlock a DIMM slot by pressing the retaining clips outward.

Step 2.  Align a DIMM on the slot such that the notch on the DIMM matches the

break on the slot.

The DIMM only

fi

 ts in one correct orientation. It will cause permanent

damage to the motherboard and the DIMM if you force the DIMM into

the slot at incorrect orientation.

Step 3.  Firmly insert the DIMM into the slot until the retaining clips at both ends

fully snap back in place and the DIMM is properly seated.

18

ASRock  Z68 Extreme3 Gen3  Motherboard

English

2.4 Expansion Slots (PCI and PCI Express Slots)

There are 2 PCI slots and 4 PCI Express slots on this motherboard.

PCI slots:

  PCI slots are used to install expansion cards that have the 32-bit PCI

 interface.

PCIE slots:

PCIE1/PCIE3 (PCIE 2.0 x1 slot) is used for PCI Express cards with x1

lane width cards, such as Gigabit LAN card, SATA2 card, etc.

PCIE2 (PCIE 3.0 x16 slot) is used for PCI Express x16 lane width

graphics cards, or used to install PCI Express graphics cards to support

CrossFireX

TM

 or SLI

TM

 function.

PCIE4 (PCIE 3.0 x16 slot) is used for PCI Express x8 lane width graph-

ics cards, or used to install PCI Express graphics cards to support

CrossFireX

TM

 or SLI

TM

 function.

1. In single VGA card mode, it is recommended to install a PCI Express

    x16 graphics card on PCIE2 slot.

2. In CrossFireX

TM

 mode or SLI

TM

 mode, please install PCI Express x16

    graphics cards on PCIE2 and PCIE4 slots. Therefore, both these two

    slots will work at x8 bandwidth.

3. Please connect a chassis fan to motherboard chassis fan connector

    (CHA_FAN1, CHA_FAN2 or CHA_FAN3) when using multiple

    graphics cards for better thermal environment.

4. To run the PCI Express in Gen 3 speed, please must install the Ivy

    Bridge CPU which supports PCI Express Gen3. If you install the

    Sandy Bridge CPU, the PCI Express will run only at PCI Express Gen

    2 speed.

Installing an expansion card

Step 1.

Before installing the expansion card, please make sure that the power

supply is switched off or the power cord is unplugged. Please read the

documentation of the expansion card and make necessary hardware

settings for the card before you start the installation.

Step 2.

Remove the system unit cover (if your motherboard is already installed

in a chassis).

Step 3.

Remove  the  bracket facing the slot that you intend to use. Keep the

screws for later use.

Step 4.

Align the card connector with the slot and press

fi

 rmly until the card is

completely seated on the slot.

Step 5.

Fasten the card to the chassis with screws.

Step 6.

Replace the system cover.

19

ASRock  Z68 Extreme3 Gen3  Motherboard

English

2.5 SLI

TM

 and Quad SLI

TM

Operation Guide

This motherboard supports NVIDIA

®

 SLI

TM

 and Quad SLI

TM

 (Scalable Link Interface)

technology that allows you to install up to three identical PCI Express x16 graphics

cards. Currently, NVIDIA

®

 SLI

TM

 technology supports Windows

®

 XP / XP 64-bit /

Vista

TM

 / Vista

TM

 64-bit / 7 / 7 64-bit OS. NVIDIA

®

 Quad SLI

TM

 technology support

Windows

®

 Vista

TM

 / Vista

TM

 64-bit / 7 / 7 64-bit OS only. Please follow the installation

procedures in this section.

2.5.1 Graphics Card Setup

2.5.1.1 Installing Two SLI

TM

-Ready Graphics Cards

Step 1.  Install the identical SLI

TM

-ready graphics cards that are NVIDIA

®

 certi

fi

 ed

because different types of graphics cards will not work together properly.

(Even the GPU chips version shall be the same.) Insert one graphics card

into PCIE2 slot and the other graphics card to PCIE4 slot. Make sure that

the cards are properly seated on the slots.

Step2.  If required, connect the auxiliary power source to the PCI Express graph-

ics cards.

Requirements

         1. For SLI

TM

 technology, you should have two identical SLI

TM

-ready graphics

             cards that are NVIDIA

®

 certi

fi

 ed. For Quad SLI

TM

 technology, you should

             have two identical Quad SLI

TM

-ready graphics cards that are NVIDIA

®

             certi

fi

 ed.

         2. Make sure that your graphics card driver supports NVIDIA

®

SLI

TM

 technology

             (driver version 270.61 and later). Download the driver from NVIDIA website

             (www.nvidia.com).

         3. Make sure that your power supply unit (PSU) can provide at least the

             minimum power required by your system. It is recommended to use

             NVIDIA

®

 certi

fi

 ed PSU. Please refer to NVIDIA

®

 website for details.

20

ASRock  Z68 Extreme3 Gen3  Motherboard

English

Step4.  Connect a VGA cable or a DVI cable to the monitor connector or the DVI

connector of the graphics card that is inserted to PCIE2 slot.

Step3.  Align and insert ASRock SLI_Bridge_2S Card to the gold

fi

 ngers on each

graphics card. Make sure ASRock SLI_Bridge_2S Card is

fi

 rmly in place.

ASRock SLI_Bridge_2S Card

21

ASRock  Z68 Extreme3 Gen3  Motherboard

English

2.5.2 Driver Installation and Setup

Install the graphics card drivers to your system. After that, you can enable the Multi-

Graphics Processing Unit (GPU) feature in the NVIDIA

®

 nView system tray utility.

Please follow the below procedures to enable the multi-GPU feature.

For Windows

®

 XP / XP 64-bit OS:

 (For

SLI

TM

 mode only)

 A.

Double-click

NVIDIA Settings icon

 on your Windows

®

 taskbar.

B. From the pop-up menu, select

Set SLI and PhysX con

fi

 guration

. In

    Set PhysX GPU acceleration

 item, please select

Enabled

. In

Select

    an SLI con

fi

 guration

 item, please select

Enable SLI

. And click

Apply

.

C. Reboot your system.

D. You can freely enjoy the bene

fi

 t of SLI

TM

 feature.

22

ASRock  Z68 Extreme3 Gen3  Motherboard

English

 For

Windows

®

 Vista

TM

 / Vista

TM

 64-bit / 7 / 7 64-bit OS:

 (For

SLI

TM

 and Quad SLI

TM

 mode)

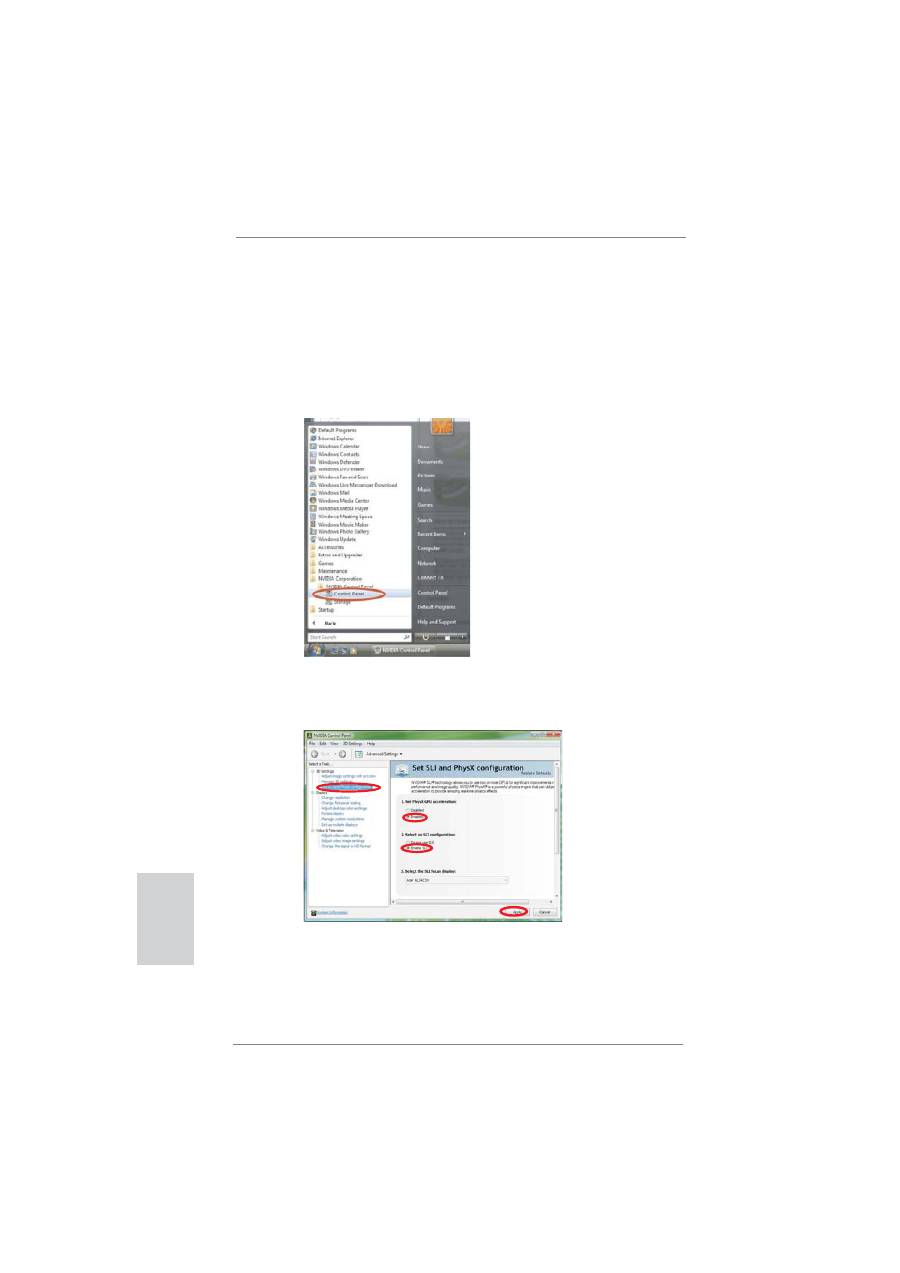

A. Click the

Start

icon on your Windows taskbar.

B. From the pop-up menu, select

All Programs

, and then click

NVIDIA

    Corporation

.

 C.

Select

NVIDIA Control Panel

 tab.

 D.

Select

Control Panel

tab.

E. From the pop-up menu, select

Set SLI and PhysX con

fi

 guration

. In

    Set PhysX GPU acceleration

 item, please select

Enabled

. In

Select

    an SLI con

fi

 guration

 item, please select

Enable SLI

. And click

Apply

.

F. Reboot your system.

G. You can freely enjoy the bene

fi

 t of SLI

TM

 or Quad SLI

TM

 feature.

 * SLI

TM

 appearing here is a registered trademark of NVIDIA

®

 Technologies Inc., and is used

    only for identi

fi

 cation or explanation and to the owners’ bene

fi

 t, without intent to infringe.

23

ASRock  Z68 Extreme3 Gen3  Motherboard

English

1. If a customer incorrectly con

fi

 gures their system they will not see the

    performance bene

fi

 ts of CrossFireX

TM

. All three CrossFireX

TM

 components, a

    CrossFireX

TM

 Ready graphics card, a CrossFireX

TM

 Ready motherboard and a

    CrossFireX

TM

 Edition co-processor graphics card, must be installed correctly to

    bene

fi

 t from the CrossFireX

TM

 multi-GPU platform.

2. If you pair a 12-pipe CrossFireX

TM

 Edition card with a 16-pipe card,  both cards

    will operate as 12-pipe cards while in CrossFireX

TM

 mode.

2.6

CrossFireX

TM

 and Quad CrossFireX

TM

 Operation Guide

This motherboard supports CrossFireX

TM

 and Quad CrossFireX

TM

 feature.

CrossFireX

TM

 technology offers the most advantageous means available of

combining multiple high performance Graphics Processing Units (GPU) in a single

PC. Combining a range of different operating modes with intelligent software design

and an innovative interconnect mechanism, CrossFireX

TM

 enables the highest

possible level of performance and image quality in any 3D application. Currently

CrossFireX

TM

 feature is supported with Windows

®

 XP with Service Pack 2 / Vista

TM

 /

7 OS. Quad CrossFireX

TM

feature are supported with Windows

®

 Vista

TM

 / 7 OS only.

Please check AMD website for ATI

TM

 CrossFireX

TM

 driver updates.

2.6.1 Graphics Card Setup

2.6.1.1 Installing Two CrossFireX

TM

-Ready Graphics Cards

Different CrossFireX

TM

 cards may require different methods to enable CrossFireX

TM

feature. In below procedures, we use Radeon HD 3870 as the example graphics

card. For other CrossFireX

TM

 cards that AMD has released or will release in the

future, please refer to AMD graphics card manuals for detailed installation guide.

Step 1.  Insert one Radeon graphics card into PCIE2 slot and the other Radeon

graphics card to PCIE4 slot. Make sure that the cards are properly seated

on the slots.

24

ASRock  Z68 Extreme3 Gen3  Motherboard

English

CrossFire Bridge

Step 3.  Connect the DVI monitor cable to the DVI connector on the Radeon

graphics card on PCIE2 slot. (You may use the DVI to D-Sub adapter to

convert the DVI connector to D-Sub interface, and then connect the D-Sub

monitor cable to the DVI to D-Sub adapter.)

Step 2.  Connect two Radeon graphics cards by installing CrossFire Bridge on

CrossFire Bridge Interconnects on the top of Radeon graphics cards.

(CrossFire Bridge is provided with the graphics card you purchase, not

bundled with this motherboard. Please refer to your graphics card vendor

for details.)

or

25

ASRock  Z68 Extreme3 Gen3  Motherboard

English

 The Catalyst Uninstaller is an optional download. We recommend using this

 utility to uninstall any previously installed Catalyst drivers prior to installation.

 Please check AMD website for ATI

TM

 driver updates.

Step 3.  Install the required drivers to your system.

For Windows

®

 XP OS:

A. AMD recommends Windows

®

 XP Service Pack 2 or higher to be

    installed (If you have Windows

®

 XP Service Pack 2 or higher installed

    in your system, there is no need to download it again):

   http://www.microsoft.com/windowsxp/sp2/default.mspx

B. You must have Microsoft .NET Framework installed prior to

    downloading and installing the CATALYST Control Center. Please

    check Microsoft website for details.

 For

Windows

®

 7 / Vista

TM

 OS:

Install the CATALYST Control Center. Please check AMD website for de-

tails.

Step 4.  Restart your computer.

Step 5.  Install the VGA card drivers to your system, and restart your computer.

Then you will

fi

 nd “ATI Catalyst Control Center” on your Windows

®

 taskbar.

ATI Catalyst Control Center

2.6.2 Driver Installation and Setup

Step 1.  Power on your computer and boot into OS.

Step 2.  Remove the AMD driver if you have any VGA driver installed in your

 system.

Step 6.  Double-click “ATI Catalyst Control Center”. Click “View”, select “CrossFi-

reX

TM

”, and then check the item “Enable CrossFireX

TM

”. Select “2 GPUs”

and click “Apply” (if you install two Radeon graphics cards). Select “3

GPUs” and click “OK” (if you install three Radeon graphics cards).

26

ASRock  Z68 Extreme3 Gen3  Motherboard

English

Although you have selected the option “Enable CrossFire

TM

”, the CrossFireX

TM

function may not work actually. Your computer will automatically reboot. After

restarting your computer, please con

fi

 rm whether the option “Enable

CrossFire

TM

” in “ATI Catalyst Control Center” is selected or not; if not, please

select it again, and then you are able to enjoy the bene

fi

 t of CrossFireX

TM

feature.

Step 7.  You  can freely enjoy the bene

fi

 t of CrossFireX

TM

 or Quad CrossFireX

TM

feature.

 * CrossFireX

TM

 appearing here is a registered trademark of AMD Technologies Inc., and is

    used only for identi

fi

 cation or explanation and to the owners’ bene

fi

 t, without intent to infringe.

*  For further information of AMD CrossFireX

TM

 technology, please check AMD website for

    updates and details.

27

ASRock  Z68 Extreme3 Gen3  Motherboard

English

2. If you have installed onboard VGA driver from our support CD to your system

    already, you can freely enjoy the bene

fi

 ts of dual monitor function after your

    system boots. If you haven’t installed onboard VGA driver yet, please install

    onboard VGA driver from our support CD to your system and restart your

    computer.

2.7 Dual Monitor and Surround Display Features

Dual Monitor Feature

This motherboard supports dual monitor feature. With the internal VGA output sup-

port (DVI-D, D-Sub and HDMI), you can easily enjoy the bene

fi

 ts of dual monitor

feature without installing any add-on VGA card to this motherboard. This mother-

board also provides independent display controllers for DVI-D, D-Sub and HDMI to

support dual VGA output so that DVI-D, D-sub and HDMI can drive same or different

display contents.

To enable dual monitor feature, please follow the below steps:

1. Connect DVI-D monitor cable to DVI-D port on the I/O panel, connect D-Sub

    monitor cable to D-Sub port on the I/O panel, connect HDMI monitor cable to

    HDMI port on the I/O panel.

D-Sub, DVI-D and HDMI monitors cannot be enabled at the same time.

You can only choose two of them.

HDMI port

D-Sub port

DVI-D port

28

ASRock  Z68 Extreme3 Gen3  Motherboard

English

Surround Display Feature

This motherboard supports surround display upgrade. With the internal VGA output

support (DVI-D, D-Sub and HDMI) and external add-on PCI Express VGA cards,

you can easily enjoy the bene

fi

 ts of surround display feature.

Please refer to the following steps to set up a surround display environment:

1. Install the PCI Express VGA cards on PCIE2 and PCIE4 slots. Please refer to

    page 18 for proper expansion card installation procedures for details.

2. Connect DVI-D monitor cable to DVI-D port on the I/O panel, connect D-Sub

    monitor cable to D-Sub port on the I/O panel, connect HDMI monitor cable

    to HDMI port on the I/O panel. Then connect other monitor cables to the

    corresponding connectors of the add-on PCI Express VGA cards on PCIE2 and

    PCIE4 slots.

3. Boot your system. Press <F2> or <Del> to enter UEFI setup. Enter “Onboard

    VGA Share Memory” option to adjust the memory capability to [32MB], [64MB],

    [128MB], [256MB] or [512MB] to enable the function of D-sub. Please make

    sure that the value you select is less than the total capability of the system

    memory. If you do not adjust the UEFI setup, the default value of “Onboard VGA

    Share Memory”, [Auto], will disable D-Sub function when the add-on VGA card is

    inserted to this motherboard.

4. Install the onboard VGA driver and the add-on PCI Express VGA card driver to

    your system. If you have installed the drivers already, there is no need to install

    them again.

5. Set up a multi-monitor display.

    For Windows

®

 XP / XP 64-bit OS:

Right click the desktop, choose “Properties”, and select the “Settings” tab

so that you can adjust the parameters of the multi-monitor according to

the steps below.

A. Click the “Identify” button to display a large number on each monitor.

B. Right-click the display icon in the Display Properties dialog that you

    wish to be your primary monitor, and then select “Primary”. When

    you use multiple monitors with your card, one monitor will always be

    Primary, and all additional monitors will be designated as Secondary.

C. Select the display icon identi

fi

 ed by the number 2.

D. Click “Extend my Windows desktop onto this monitor”.

E. Right-click the display icon and select “Attached”, if necessary.

F. Set the “Screen Resolution” and “Color Quality” as appropriate for the

    second monitor. Click “Apply” or “OK” to apply these new values.

G. Repeat steps C through E for the diaplay icon identi

fi

 ed by the number

     one to six.

29

ASRock  Z68 Extreme3 Gen3  Motherboard

English

    For Windows

®

 7 / 7 64-bit / Vista

TM

 / Vista

TM

 64-bit OS:

Right click the desktop, choose “Personalize”, and select the “Display

Settings” tab so that you can adjust the parameters of the multi-monitor

according to the steps below.

A. Click the number ”2” icon.

B. Click the items “This is my main monitor” and “Extend the desktop onto

    this monitor”.

C. Click “OK” to save your change.

D. Repeat steps A through C for the display icon identi

fi

 ed by the number

     three to six.

6. Use Surround Display. Click and drag the display icons to positions representing

    the physical setup of your monitors that you would like to use. The placement

    of display icons determines how you move items from one monitor to another.

HDCP Function

HDCP function is supported on this motherboard. To use HDCP

function with this motherboard, you need to adopt the monitor

that supports HDCP function as well. Therefore, you can enjoy

the superior display quality with high-de

fi

 nition HDCP

encryption contents. Please refer to below instruction for more

details about HDCP function.

  What

is

HDCP?

HDCP stands for High-Bandwidth Digital Content Protection,

  a

speci

fi

 cation developed by Intel

®

 for protecting digital

entertainment content that uses the DVI interface. HDCP is a

copy protection scheme to eliminate the possibility of

intercepting digital data midstream between the video source,

or transmitter - such as a computer, DVD player or set-top box -

and the digital display, or receiver - such as a monitor, television

or projector. In other words, HDCP speci

fi

 cation is designed to

protect the integrity of content as it is being transmitted.

Products compatible with the HDCP scheme such as DVD

players, satellite and cable HDTV set-top-boxes, as well as few

entertainment PCs requires a secure connection to a compliant

display. Due to the increase in manufacturers employing HDCP

in their equipment, it is highly recommended that the HDTV or

LCD monitor you purchase is compatible.

30

ASRock  Z68 Extreme3 Gen3  Motherboard

English

USB 2.0 header (9-pin, black)

CIR header (4-pin, gray)

2.8 ASRock Smart Remote Installation Guide

ASRock Smart Remote is only used for ASRock motherboard with CIR header.

Please refer to below procedures for the quick installation and usage of ASRock

Smart Remote.

Step1.

Find the CIR header located next

to the USB 2.0 header on ASRock

 motherboard.

Step2.

Connect the front USB cable to the

USB 2.0 header (as below, pin 1-5)

and the CIR header. Please make

sure the wire assignments and the

pin assignments are matched

 correctly.

USB_PWR

P-

P+

GND

ATX+5VSB

IRRX

IRTX

GND

DUMMY

Step3. Install

Multi-Angle CIR Receiver to the front USB port.

Step4.   Boot up your system. Press <F2> or <Del> to enter BIOS Setup Utility.

Make sure the option "CIR Controller" is setting at [Enabled].

(Advanced -> Super IO Con

fi

 guration -> CIR Controller -> [Enabled])

If you cannot

fi

 nd this option, please shut down your system and install

Multi-Angle CIR Receiver to the other front USB port then try again.

Step5.

Enter Windows. Execute ASRock

support CD and install CIR Driver.

(It is listed at the bottom of driver

 list.)

3 CIR sensors in different angles

31

ASRock  Z68 Extreme3 Gen3  Motherboard

English

2.9 Jumpers Setup

The illustration shows how jumpers are

setup. When the jumper cap is placed on

pins, the jumper is “Short”. If no jumper cap

is placed on pins, the jumper is “Open”. The

illustration shows a 3-pin jumper whose

pin1 and  pin2 are “Short” when jumper cap

is placed on these 2 pins.

Jumper Setting

Description

Clear CMOS Jumper

(CLRCMOS1)

(see p.2,  No. 26)

Note:  CLRCMOS1 allows you to clear the data in CMOS. To clear and reset the

system parameters to default setup, please turn off the computer and unplug

the power cord from the power supply. After waiting for 15 seconds, use a

jumper cap to short pin2 and pin3 on CLRCMOS1 for 5 seconds. However,

please do not clear the CMOS right after you update the BIOS. If you need

to clear the CMOS when you just

fi

 nish updating the BIOS, you must boot

up the system

fi

 rst, and then shut it down before you do the clear-CMOS ac-

tion. Please be noted that the password, date, time, user default pro

fi

 le, 1394

GUID and MAC address will be cleared only if the CMOS battery is removed.

Clear CMOS

Default

The Clear CMOS Switch has the same function as the Clear CMOS

jumper.

* ASRock Smart Remote is only supported by some of ASRock motherboards. Please refer to

  ASRock website for the motherboard support list: http://www.asrock.com

1.

Only one of the front USB port can support CIR function. When

the CIR function is enabled, the other port will remain USB

 function.

2.

Multi-Angle CIR Receiver is used for front USB only. Please do

not use the rear USB bracket to connect it on the rear panel.

Multi-Angle CIR Receiver can receive the multi-direction infrared

signals (top, down and front), which is compatible with most of

the chassis on the market.

3.

The Multi-Angle CIR Receiver does not support Hot-Plug

function. Please install it before you boot the system.

32

ASRock  Z68 Extreme3 Gen3  Motherboard

English

2.10 Onboard Headers and Connectors

Onboard headers and connectors are NOT jumpers. Do NOT place

jumper caps over these headers and connectors. Placing jumper caps

over the headers and connectors will cause permanent damage of the

motherboard!

Serial ATAII Connectors

These four Serial ATAII (SATAII)

(SATA2_2: see  p.2, No. 14)

connectors support SATA data

(SATA2_3: see  p.2, No. 13)

cables for internal storage

(SATA2_4: see  p.2, No. 16)

devices. The current SATAII

(SATA2_5: see  p.2, No. 15)

interface allows up to 3.0 Gb/s

data transfer rate.

SA

TA2_5       SA

TA2_3

SA

TA2_4       SA

TA2_2

Serial ATA (SATA)

Either end of the SATA data

Data Cable

cable can be connected to the

(Optional)

SATA / SATAII / SATA3 hard

disk or the SATAII / SATA3

connector on this motherboard.

Serial ATA3 Connectors

These two Serial ATA3 (SATA3)

(SATA3_0: see  p.2, No. 12)

connectors support SATA data

(SATA3_1: see  p.2, No. 11)

cables for internal storage

devices. The current SATA3

interface allows up to 6.0 Gb/s

data transfer rate. If you install

the HDD on the eSATA port on

the rear I/O, the internal

SATA3_1 will not function.

SA

TA3_1

SA

TA3_0

3.5mm Audio Cable

Either end of the 3.5mm audio

(Optional)

cable can be connected to the

portable audio devices, such

as MP3 player and mobile

phone or the Line-in port of

 your

PC.

33

ASRock  Z68 Extreme3 Gen3  Motherboard

English

USB 2.0 Headers

Besides four default USB 2.0

(9-pin USB6_7)

ports on the I/O panel, there

(see p.2  No. 29)

are four USB 2.0 headers on

this motherboard. Each

USB 2.0 header can support

two USB 2.0 ports.

(9-pin USB8_9)

(see p.2  No. 28)

(9-pin USB10_11)

(see p.2  No. 27)

(9-pin USB12_13)

(see p.2  No. 25)

1

USB_PWR

P-8

GND

DUMMY

USB_PWR

P+8

GND

P-9

P+9

1

USB

_

P

W

R

P

-10

G

N

D

DU

MMY

USB

_

P

W

R

P

+10

G

N

D

P

-11

P

+11

Infrared Module Header

This header supports an

(5-pin IR1)

optional wireless transmitting

(see  p.2  No. 33)

and receiving infrared module.

1

IRTX

+5VSB

DUMMY

IRRX

GND

Consumer Infrared Module Header

This header can be used to

(4-pin CIR1)

connect the remote

(see  p.2  No. 30)

 controller

receiver.

1

ATX+5VSB

IRTX

GND

IRRX

1. High De

fi

 nition Audio supports Jack Sensing, but the panel wire on

    the chassis must support HDA to function correctly. Please follow the

    instruction in our manual and chassis manual to install your system.

2. If you use AC’97 audio panel, please install it to the front panel audio

    header as below:

J_SENSE

OUT2_L

1

MIC_RET

PRESENCE#

GND

OUT2_R

MIC2_R

MIC2_L

OUT_RET

Front Panel Audio Header

This is an interface for front

(9-pin HD_AUDIO1)

panel audio cable that allows

(see p.2  No. 34)

convenient connection and

control of audio devices.

1

USB_PWR

P-13

P+13

USB_PWR

P-12

P+12

GND

GND

DUMMY

34

ASRock  Z68 Extreme3 Gen3  Motherboard

English

System Panel Header

This header accommodates

(9-pin PANEL1)

several system front panel

(see p.2  No. 20)

 functions.

Connect the power switch, reset switch and system status indicator on the

chassis to this header according to the pin assignments below. Note the

positive and negative pins before connecting the cables.

PWRBTN (Power Switch):

Connect to the power switch on the chassis front panel. You may con

fi

 gure

the way to turn off your system using the power switch.

RESET (Reset Switch):

Connect to the reset switch on the chassis front panel. Press the reset

switch to restart the computer if the computer freezes and fails to perform a

normal restart.

PLED (System Power LED):

Connect to the power status indicator on the chassis front panel. The LED

is on when the system is operating. The LED keeps blinking when the sys-

tem is in S1 sleep state. The LED is off when the system is in S3/S4 sleep

state or powered off (S5).

HDLED (Hard Drive Activity LED):

Connect to the hard drive activity LED on the chassis front panel. The LED

is on when the hard drive is reading or writing data.

The front panel design may differ by chassis. A front panel module mainly

consists of power switch, reset switch, power LED, hard drive activity LED,

speaker and etc. When connecting your chassis front panel module to this

header, make sure the wire assignments and the pin assign-ments are

matched correctly.

    A. Connect Mic_IN (MIC) to MIC2_L.

    B. Connect Audio_R (RIN) to OUT2_R and Audio_L (LIN) to OUT2_L.

    C. Connect Ground (GND) to Ground (GND).

    D. MIC_RET and OUT_RET are for HD audio panel only. You don’t

         need to connect them for AC’97 audio panel.

    E. To activate the front mic.

         For Windows

®

 XP / XP 64-bit OS:

                 Select “Mixer”. Select “Recorder”. Then click “FrontMic”.

         For Windows

®

 7 / 7 64-bit / Vista

TM

 / Vista

TM

 64-bit OS:

         Go to the "FrontMic" Tab in the Realtek Control panel. Adjust

         “Recording Volume”.

35

ASRock  Z68 Extreme3 Gen3  Motherboard

English

Chassis and Power Fan Connectors

Please connect the fan cables

(4-pin CHA_FAN1)

to the fan connectors and

(see p.2  No. 23)

match the black wire to the

ground

pin.

(3-pin CHA_FAN2)

(see p.2  No. 9)

(3-pin CHA_FAN3)

(see p.2  No. 41)

(3-pin PWR_FAN1)

(see p.2  No. 3)

Chassis Speaker Header

Please connect the chassis

(4-pin SPEAKER 1)

speaker to this header.

(see p.2  No. 21)

Power LED Header

Please connect the chassis

(3-pin PLED1)

power LED to this header to

(see p.2  No. 18)

indicate system power status.

The LED is on when the system

is operating. The LED keeps

blinking in S1 state. The LED is

off in S3/S4 state or S5 state

(power

off).

1

PLED+

PLED+

PLED-

CPU Fan Connectors

Please connect the CPU fan

(4-pin CPU_FAN1)

cable to the connector and

(see p.2  No. 4)

match the black wire to the

ground

pin.

(3-pin CPU_FAN2)

(see p.2  No. 7)

       Though this motherboard provides 4-Pin CPU fan (Quiet Fan) support, the 3-Pin

       CPU fan still can work successfully even without the fan speed control function.

       If you plan to connect the 3-Pin CPU fan to the CPU fan connector on this

       motherboard, please connect it to Pin 1-3.

3-Pin Fan Installation

Pin 1-3 Connected

GND

+12V

CPU_FAN_SPEED

FAN_SPEED_CONTROL

1  2  3  4

GND

+12V

CHA_FAN_SPEED

FAN_SPEED_CONTROL

36

ASRock  Z68 Extreme3 Gen3  Motherboard

English

ATX Power Connector

Please connect an ATX power

(24-pin ATXPWR1)

supply to this connector.

(see p.2  No. 8)

12

 1

24

13

20-Pin ATX Power Supply Installation

Though this motherboard provides 24-pin ATX power connector,

it can still work if you adopt a traditional 20-pin ATX power supply.

To use the 20-pin ATX power supply, please plug your

power supply along with Pin 1 and Pin 13.

12

 1

24

13

ATX 12V Power Connector

Please connect an ATX 12V

(8-pin  ATX12V1)

power supply to this connector.

(see p.2  No. 1)

8                  5

4                  1

4-Pin ATX 12V Power Supply Installation

Though this motherboard provides 8-pin ATX 12V power connector, it can still work

if you adopt a traditional 4-pin ATX 12V power supply. To use the 4-pin ATX power

supply, please plug your power supply along with Pin 1 and Pin 5.

8

        5

4

        1

HDMI_SPDIF Header

HDMI_SPDIF header, providing

(2-pin HDMI_SPDIF1)

SPDIF audio output to HDMI

(see p.2  No. 32)

VGA card, allows the system to

connect HDMI Digital TV/

projector/LCD devices. Please

connect the HDMI_SPDIF

connector of HDMI VGA card to

this

header.

Serial port Header

This COM1 header supports a

(9-pin COM1)

serial port module.

(see p.2  No. 31)

37

ASRock  Z68 Extreme3 Gen3  Motherboard

English

Reset Switch

Reset Switch is a smart switch,

(RSTBTN)

allowing users to quickly reset

(see p.2  No. 17)

the

system.

Clear CMOS Switch

Clear CMOS Switch is a smart

(CLRCBTN)

switch, allowing users to quickly

(see p.3  No. 13)

clear the CMOS values.

2.11 Smart Switches

The motherboard has three smart switches: power switch, reset switch and clear

CMOS switch, allowing users to quickly turn on/off or reset the sytem clear the

CMOS values.

Power Switch

Power Switch is a smart switch,

(PWRBTN)

allowing users to quickly turn

(see p.2  No. 19)

on/off the system.

38

ASRock  Z68 Extreme3 Gen3  Motherboard

English

2.12 Dr. Debug

Dr. Debug is used to provide code information, which makes troubleshooting even

easier. Please see the diagrams below for reading the Dr. Debug codes.

 Status Code

Description

 0x00

Not used

 0x01

Power on. Reset type detection (soft/hard)

 0x02

AP initialization before microcode loading

 0x03

North Bridge initialization before microcode loading

 0x04

South Bridge initialization before microcode loading

 0x05

OEM initialization before microcode loading

 0x06

Microcode loading

 0x07

AP initialization after microcode loading

 0x08

North Bridge initialization after microcode loading

 0x09

South Bridge initialization after microcode loading

 0x0A

OEM initialization after microcode loading

 0x0B

Cache initialization

 0x0C – 0x0D

Reserved for future AMI SEC error codes

 0x0E

Microcode not found

 0x0F

Microcode not loaded

 0x10

PEI Core is started

 0x11

Pre-memory CPU initialization is started

 0x12

Pre-memory CPU initialization (CPU module speci

fi

 c)

 0x13

Pre-memory CPU initialization (CPU module speci

fi

 c)

 0x14

Pre-memory CPU initialization (CPU module speci

fi

 c)

 0x15

Pre-memory North Bridge initialization is started

 0x16

Pre-Memory North Bridge initialization (North Bridge module speci

fi

 c)

 0x17

Pre-Memory North Bridge initialization (North Bridge module speci

fi

 c)

 0x18

Pre-Memory North Bridge initialization (North Bridge module speci

fi

 c)

 0x19

Pre-memory South Bridge initialization is started

 0x1A

Pre-memory South Bridge initialization (South Bridge module speci

fi

 c)

 0x1B

Pre-memory South Bridge initialization (South Bridge module speci

fi

 c)

 0x1C

Pre-memory South Bridge initialization (South Bridge module speci

fi

 c)

 0x1D – 0x2A

OEM pre-memory initialization codes

 0x2B

Memory initialization. Serial Presence Detect (SPD) data reading

 0x2C

Memory initialization. Memory presence detection

 0x2D

Memory initialization. Programming memory timing information

 0x2E

Memory initialization. Con

fi

 guring memory

 0x2F

Memory initialization (other)

 0x30

Reserved for ASL (see ASL Status Codes section below)

 0x31

Memory Installed

 0x32

CPU post-memory initialization is started

 0x33

CPU post-memory initialization. Cache initialization

 0x34

CPU post-memory initialization. Application Processor(s) (AP) initialization

 0x35

CPU post-memory initialization. Boot Strap Processor (BSP) selection

 0x36

CPU post-memory initialization. System Management Mode (SMM)

 initialization

39

ASRock  Z68 Extreme3 Gen3  Motherboard

English

 0x37

Post-Memory North Bridge initialization is started

 0x38

Post-Memory North Bridge initialization (North Bridge module speci

fi

 c)

 0x39

Post-Memory North Bridge initialization (North Bridge module speci

fi

 c)

 0x3A

Post-Memory North Bridge initialization (North Bridge module speci

fi

 c)

 0x3B

Post-Memory South Bridge initialization is started

 0x3C

Post-Memory South Bridge initialization (South Bridge module speci

fi

 c)

 0x3D

Post-Memory South Bridge initialization (South Bridge module speci

fi

 c)

 0x3E

Post-Memory South Bridge initialization (South Bridge module speci

fi

 c)

 0x3F-0x4E

OEM post memory initialization codes

 0x4F

DXE IPL is started

 0x50

Memory initialization error. Invalid memory type or incompatible memory

 speed

 0x51

Memory initialization error. SPD reading has failed

 0x52

Memory initialization error. Invalid memory size or memory modules do not

 match

 0x53

Memory initialization error. No usable memory detected

 0x54

Unspeci

fi

 ed memory initialization error

 0x55

Memory not installed

 0x56

Invalid CPU type or Speed

 0x57

CPU mismatch

 0x58

CPU self test failed or possible CPU cache error

 0x59

CPU micro-code is not found or micro-code update is failed

 0x5A

Internal CPU error

 0x5B

reset PPI is  not available

 0x5C-0x5F

Reserved for future AMI error codes

 0xE0

S3 Resume is stared (S3 Resume PPI is called by the DXE IPL)

 0xE1

S3 Boot Script execution

 0xE2

Video repost

 0xE3

OS S3 wake vector call

 0xE4-0xE7

Reserved for future AMI progress codes

 0xE8

S3 Resume Failed

 0xE9

S3 Resume PPI not Found

 0xEA

S3 Resume Boot Script Error

 0xEB

S3 OS Wake Error

 0xEC-0xEF

Reserved for future AMI error codes

 0xF0

Recovery condition triggered by

fi

 rmware (Auto recovery)

 0xF1

Recovery condition triggered by user (Forced recovery)

 0xF2

Recovery process started

 0xF3

Recovery

fi

 rmware image is found

 0xF4

Recovery

fi

 rmware image is loaded

 0xF5-0xF7

Reserved for future AMI progress codes

 0xF8

Recovery PPI is not available

 0xF9

Recovery capsule is not found

 0xFA

Invalid recovery capsule

 0xFB – 0xFF

Reserved for future AMI error codes

 0x60

DXE Core is started

 0x61

NVRAM initialization

40

ASRock  Z68 Extreme3 Gen3  Motherboard

English

 0x62

Installation of the South Bridge Runtime Services

 0x63

CPU DXE initialization is started

 0x64

CPU DXE initialization (CPU module speci

fi

 c)

 0x65

CPU DXE initialization (CPU module speci

fi

 c)

 0x66

CPU DXE initialization (CPU module speci

fi

 c)

 0x67

CPU DXE initialization (CPU module speci

fi

 c)

 0x68

PCI host bridge initialization

 0x69

North Bridge DXE initialization is started

 0x6A

North Bridge DXE SMM initialization is started

 0x6B

North Bridge  DXE initialization (North Bridge module speci

fi

 c)

 0x6C

North Bridge  DXE initialization (North Bridge module speci

fi

 c)

 0x6D

North Bridge  DXE initialization (North Bridge module speci

fi

 c)

 0x6E

North Bridge  DXE initialization (North Bridge module speci

fi

 c)

 0x6F

North Bridge  DXE initialization (North Bridge module speci

fi

 c)

 0x70

South Bridge DXE initialization is started

 0x71

South Bridge DXE SMM initialization is started

 0x72

South Bridge devices initialization

 0x73

South Bridge DXE Initialization (South Bridge module speci

fi

 c)

 0x74

South Bridge DXE Initialization (South Bridge module speci

fi

 c)

 0x75

South Bridge DXE Initialization (South Bridge module speci

fi

 c)

 0x76

South Bridge DXE Initialization (South Bridge module speci

fi

 c)

 0x77

South Bridge DXE Initialization (South Bridge module speci

fi

 c)

 0x78

ACPI module initialization

 0x79

CSM  initialization

 0x7A – 0x7F

Reserved for future AMI DXE codes

 0x80 – 0x8F

OEM DXE initialization codes

 0x90

Boot Device Selection (BDS) phase is started

 0x91

Driver connecting is started

 0x92

PCI Bus initialization is started

 0x93

PCI Bus Hot Plug Controller Initialization

 0x94

PCI Bus Enumeration

 0x95

PCI Bus Request Resources

 0x96

PCI Bus Assign Resources

 0x97

Console Output devices connect

 0x98

Console input devices connect

 0x99

Super IO Initialization

 0x9A

USB initialization is started

 0x9B

USB Reset

 0x9C

USB Detect

 0x9D

USB Enable

 0x9E – 0x9F

Reserved for future AMI codes

 0xA0

IDE initialization is started

 0xA1

IDE Reset

 0xA2

IDE Detect

 0xA3

IDE Enable

 0xA4

SCSI initialization is started

 0xA5

SCSI Reset

41

ASRock  Z68 Extreme3 Gen3  Motherboard

English

 0xA6

SCSI Detect

 0xA7

SCSI Enable

 0xA8

Setup Verifying Password

 0xA9

Start of Setup

 0xAA

Reserved for ASL (see ASL Status Codes section below)

 0xAB

Setup Input Wait

 0xAC

Reserved for ASL (see ASL Status Codes section below)

 0xAD

Ready To Boot event

 0xAE

Legacy Boot event

 0xAF

Exit  Boot Services event

 0xB0

Runtime Set Virtual Address MAP Begin

 0xB1

Runtime Set Virtual Address MAP End

 0xB2

Legacy Option ROM Initialization

 0xB3

System Reset

 0xB4

USB hot plug

 0xB5

PCI bus hot plug

 0xB6

Clean-up of NVRAM

 0xB7

Con

fi

 guration Reset (reset of NVRAM settings)

 0xB8 – 0xBF

Reserved for future AMI codes

 0xC0 – 0xCF

OEM BDS initialization codes

 0xD0

CPU initialization error

 0xD1

North Bridge initialization error

 0xD2

South Bridge initialization error

 0xD3

Some of the Architectural Protocols are not available

 0xD4

PCI resource allocation error.  Out of Resources

 0xD5

No Space for Legacy Option ROM

 0xD6

No Console Output Devices are found

 0xD7

No Console Input Devices are found

 0xD8

Invalid password

 0xD9

Error loading Boot Option (LoadImage returned error)

 0xDA

Boot Option is failed (StartImage returned error)

 0xDB

Flash update is failed

 0xDC

Reset protocol is not available

42

ASRock  Z68 Extreme3 Gen3  Motherboard

2.13  Driver Installation Guide

To install the drivers to your system, please insert the support CD to your optical

drive

fi

 rst. Then, the drivers compatible to your system can be auto-detected and

listed on the support CD driver page. Please follow the order from up to bottom side

to install those required drivers. Therefore, the drivers you install can work properly.

2.14 Installing

Windows

®

 7 / 7 64-bit / Vista

TM

/ Vista

TM

 64-bit

With RAID Functions

If you want to install Windows

®

 7 / 7 64-bit / Vista

TM

 / Vista

TM

 64-bit on your SATA

/ SATAII / SATA3 HDDs with RAID functions, please refer to the document at the

following path in the Support CD for detailed procedures:

..\ RAID Installation Guide

English

2.15 Installing

Windows

®

 7 / 7 64-bit / Vista

TM

/ Vista

TM

64-bit / XP

/ XP 64-bit Without RAID Functions

If you want to install Windows

®

 7 / 7 64-bit / Vista

TM

 / Vista

TM

 64-bit / XP / XP 64-

bit OS on your SATA / SATAII / SATA3 HDDs without RAID functions, please follow

below procedures according to the OS you install.

2.15.1   Installing Windows

®

 XP / XP 64-bit Without RAID

 Functions

If you want to install Windows

®

 XP / XP 64-bit OS on your SATA / SATAII / SATA3

HDDs without RAID functions, please follow below steps.

STEP 1: Set Up UEFI.

A. Enter UEFI SETUP UTILITY        Advanced screen        SATA Con

fi

 guration.

B. Set the option “SATA Mode” to [IDE].

STEP 2: Install Windows

®

 XP / XP 64-bit OS on your system.

Using SATA / SATAII / SATA3 HDDs without NCQ function

RAID mode is not supported under Windows

®

 XP / XP 64-bit OS.

AHCI mode is not supported under Windows

®

 XP / XP 64-bit OS.

43

ASRock  Z68 Extreme3 Gen3  Motherboard

English

2.15.2   Installing Windows

®

 7 / 7 64-bit / Vista

TM

/ Vista

TM

64-bit

Without RAID Functions

If you want to install Windows

®

 7 / 7 64-bit / Vista

TM

 / Vista

TM

 64-bit OS on your SATA

/ SATAII / SATA3 HDDs without RAID functions, please follow below steps.

Using SATA / SATAII / SATA3 HDDs with NCQ function

STEP 1: Set Up UEFI.

A. Enter UEFI SETUP UTILITY        Advanced screen        SATA Con

fi

 guration.

B. Set the option “SATA Mode” to [AHCI].

STEP 2: Install Windows

®

 7 / 7 64-bit / Vista

TM

 / Vista

TM

 64-bit OS on your

 system.

Using SATA / SATAII / STA3 HDDs without NCQ function

STEP 1: Set Up UEFI.

A. Enter UEFI SETUP UTILITY        Advanced screen        SATA Con

fi

 guration.

B. Set the option “SATA Mode” to [IDE].

STEP 2: Install Windows

®

 7 / 7 64-bit / Vista

TM

 / Vista

TM

 64-bit OS on your

 system.
