ASRock FM2A75M-ITX R2.0: 2. Installation

2.3 Installation of Memory Modules (DIMM)

This motherboard provides two 240-pin DDR3 (Double Data Rate 3) DIMM slots,

and supports Dual Channel Memory Technology. For dual channel configuration,

you always need to install two identical (the same brand, speed, size and chip-

type) memory modules in the DDR3 DIMM slots to activate Dual Channel Memory

Technology. Otherwise, it will operate at single channel mode.

1. It is not allowed to install a DDR or DDR2 memory module into

DDR3 slot;otherwise, this motherboard and DIMM may be

damaged.

2. If you install only one memory module or two non-identical

memory modules, it is unable to activate the Dual Channel

Memory Technology.

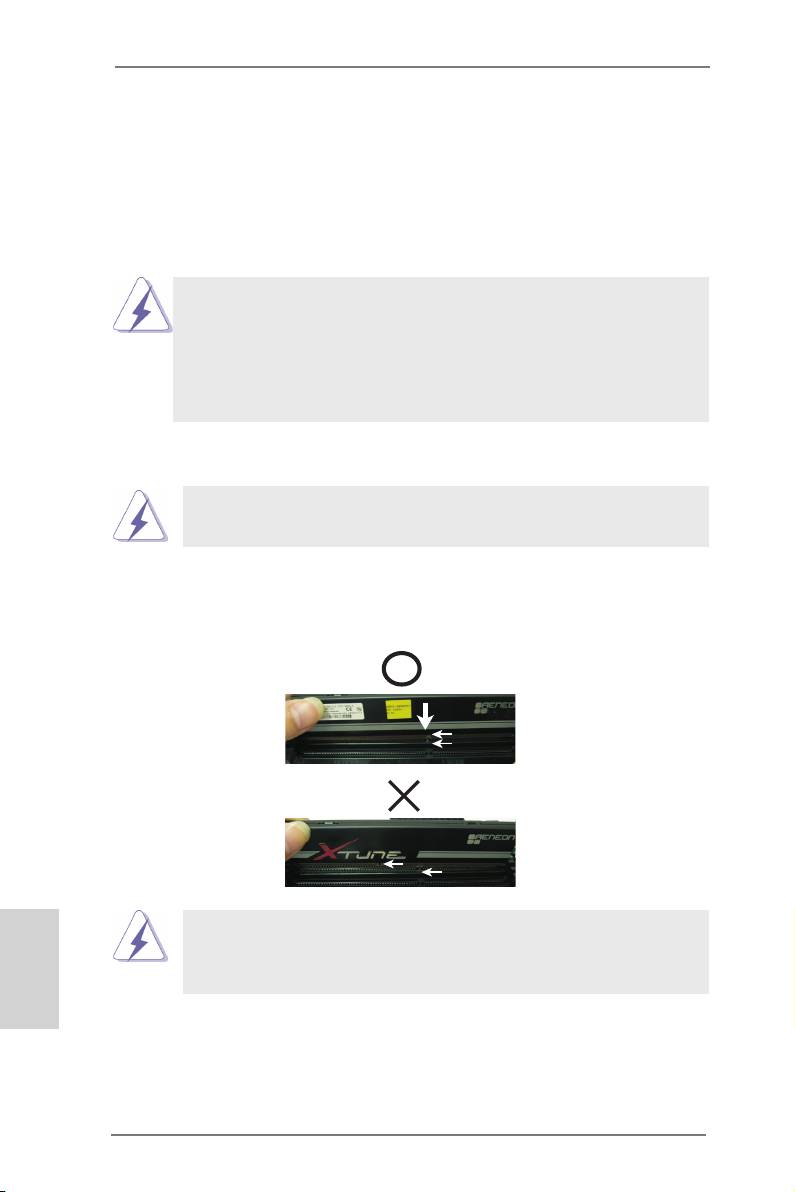

Installing a DIMM

Please make sure to disconnect power supply before adding or

removing DIMMs or the system components.

Step 1. Unlock a DIMM slot by pressing the retaining clips outward.

Step 2. Align a DIMM on the slot such that the notch on the DIMM matches the

break on the slot.

notch

break

notch

break

The DIMM only ts in one correct orientation. It will cause permanent

English

damage to the motherboard and the DIMM if you force the DIMM into

the slot at incorrect orientation.

Step 3. Firmly insert the DIMM into the slot until the retaining clips at both ends

fully snap back in place and the DIMM is properly seated.

16

ASRock FM2A75M-ITX R2.0 Motherboard

2.4 Expansion Slot (PCI Express Slot)

There is 1 PCI Express slot on this motherboard.

PCIE Slot: PCIE1 (PCIE x16 slot) is used for PCI Express x16 lane width graphics

cards.

Installing an expansion card

Step 1. Before installing the expansion card, please make sure that the power

supply is switched off or the power cord is unplugged. Please read the

documentation of the expansion card and make necessary hardware

settings for the card before you start the installation.

Step 2. Remove the system unit cover (if your motherboard is already installed

in a chassis).

Step 3. Remove the bracket facing the slot that you intend to use. Keep the

screws for later use.

Step 4. Align the card connector with the slot and press rmly until the card is

completely seated on the slot.

Step 5. Fasten the card to the chassis with screws.

Step 6. Replace the system cover.

English

17

ASRock FM2A75M-ITX R2.0 Motherboard

2.5 Jumpers Setup

The illustration shows how jumpers are

setup. When the jumper cap is placed on

pins, the jumper is “Short”. If no jumper cap

is placed on pins, the jumper is “Open”. The

illustration shows a 3-pin jumper whose

pin1 and pin2 are “Short” when jumper cap

is placed on these 2 pins.

Jumper Setting Description

Clear CMOS Jumper

(CLRCMOS1)

(see p.2, No. 23)

Clear CMOSDefault

Note: CLRCMOS1 allows you to clear the data in CMOS. To clear and reset the

system parameters to default setup, please turn off the computer and unplug

the power cord from the power supply. After waiting for 15 seconds, use a

jumper cap to short pin2 and pin3 on CLRCMOS1 for 5 seconds. However,

please do not clear the CMOS right after you update the BIOS. If you need

to clear the CMOS when you just nish updating the BIOS, you must boot

up the system rst, and then shut it down before you do the clear-CMOS ac-

tion. Please be noted that the password, date, time, user default prole, 1394

GUID and MAC address will be cleared only if the CMOS battery is removed.

If you clear the CMOS, the case open may be detected. Please adjust

the BIOS option “Clear Status” to clear the record of previous chassis

intrusion status.

English

18

ASRock FM2A75M-ITX R2.0 Motherboard

2.6 Onboard Headers and Connectors

Onboard headers and connectors are NOT jumpers. Do NOT place

jumper caps over these headers and connectors. Placing jumper caps

over the headers and connectors will cause permanent damage of the

motherboard!

Serial ATA3 Connectors These four Serial ATA3

(SATA3_1: see p.2, No. 14)

(SATA3) connectors support

(SATA3_2: see p.2, No. 15)

SATA data cables for internal

(SATA3_3: see p.2, No. 12)

storage devices. The current

(SATA3_4: see p.2, No. 13)

SATA3 interface allows up to

6.0 Gb/s data transfer rate.

SATA3_2 SATA3_4

SATA3_1 SATA3_3

Serial ATA (SATA) Either end of the SATA data

Data Cable cable can be connected to the

(Optional)

SATA3 hard disk or the SATA3

connector on this motherboard.

USB 2.0 Headers Besides four default USB 2.0

(9-pin USB_45)

ports on the I/O panel, there

(see p.2 No. 9)

are two USB 2.0 headers on

this motherboard. Each USB 2.0

header can support two USB

(9-pin USB_67)

2.0 ports.

(see p.2 No. 10)

English

19

ASRock FM2A75M-ITX R2.0 Motherboard

USB 3.0 Header Besides two default USB 3.0

IntA_P_D+

IntA_P_D-

(19-pin USB3_0_1)

ports on the I/O panel, there is

GND

IntA_P_SSTX+

IntA_P_SSTX-

(see p.2, No. 19)

one USB 3.0 header on this

GND

IntA_P_SSRX+

IntA_P_SSRX-

motherboard. This USB 3.0

Vbus

header can support two USB 3.0

ports.

1

Vbus

IntA_P_SSRX-

IntA_P_SSRX+

GND

IntA_P_SSTX-

IntA_P_SSTX+

GND

IntA_P_D-

IntA_P_D+

ID

Consumer Infrared Module Header This header can be used to

(4-pin CIR1)

connect the remote

(see p.2 No. 11)

controller receiver.

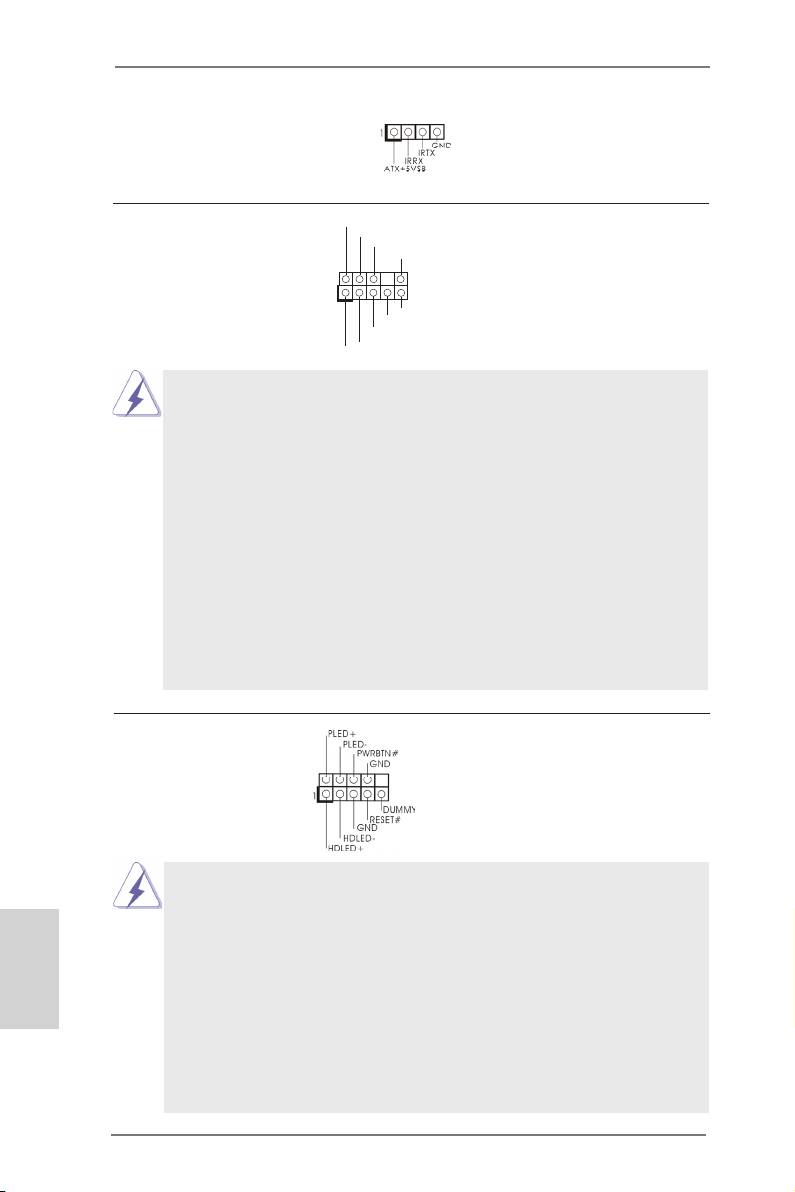

Front Panel Audio Header This is an interface for the front

GND

P RESENCE#

(9-pin HD_AUDIO1)

M IC_RET

panel audio cable that allows

OUT_RET

(see p.2 No. 21)

convenient connection and

control of audio devices.

1

O UT2_L

J _SENSE

O UT2_R

M IC2_R

M IC2_L

1. High Denition Audio supports Jack Sensing, but the panel wire on

the chassis must support HDA to function correctly. Please follow the

instruction in our manual and chassis manual to install your system.

2. If you use AC’97 audio panel, please install it to the front panel audio

header as below:

A. Connect Mic_IN (MIC) to MIC2_L.

B. Connect Audio_R (RIN) to OUT2_R and Audio_L (LIN) to OUT2_L.

C. Connect Ground (GND) to Ground (GND).

D. MIC_RET and OUT_RET are for HD audio panel only. You don’t

need to connect them for AC’97 audio panel.

E. To activate the front mic.

®

TM

TM

For Windows

8 / 8 64-bit / 7 / 7 64-bit / Vista

/ Vista

64-bit OS:

Go to the “FrontMic” Tab in the Realtek Control panel. Adjust

“Recording Volume”.

System Panel Header This header accommodates

(9-pin PANEL1)

several system front panel

(see p.2 No. 8)

functions.

Connect the power switch, reset switch and system status indicator

on the chassis to this header according to the pin assignments below.

Note the positive and negative pins before connecting the cables.

English

PWRBTN (Power Switch):

Connect to the power switch on the chassis front panel. You may con-

gure the way to turn off your system using the power switch.

RESET (Reset Switch):

Connect to the reset switch on the chassis front panel. Press the reset

switch to restart the computer if the computer freezes and fails to per-

form a normal restart.

20

ASRock FM2A75M-ITX R2.0 Motherboard

PLED (System Power LED):

Connect to the power status indicator on the chassis front panel. The

LED is on when the system is operating. The LED keeps blinking

when the sys-tem is in S1 sleep state. The LED is off when the system

is in S3/S4 sleep state or powered off (S5).

HDLED (Hard Drive Activity LED):

Connect to the hard drive activity LED on the chassis front panel. The

LED is on when the hard drive is reading or writing data.

The front panel design may differ by chassis. A front panel module

mainly consists of power switch, reset switch, power LED, hard drive

activity LED, speaker and etc. When connecting your chassis front

panel module to this header, make sure the wire assignments and the

pin assign-ments are matched correctly.

Chassis Speaker Header Please connect the chassis

(4-pin SPEAKER 1)

speaker to this header.

(see p.2 No. 4)

Chassis Fan Connector Please connect the fan cable

(4-pin CHA_FAN1)

GND

to the fan connector and

+12V

(see p.2 No. 6)

CHA_FAN_SPEED

match the black wire to the

FAN_SPEED_CONTROL

ground pin.

CPU Fan Connectors Please connect the CPU fan

FAN_S PEED_CONTROL

CPU_FAN_SPEED

(4-pin CPU_FAN1)

cable to the connector and

+ 12V

(see p.2 No. 1)

GND

match the black wire to the

ground pin.

1 2 3 4

Though this motherboard provides 4-Pin CPU fan (Quiet Fan) support, the 3-Pin

CPU fan still can work successfully even without the fan speed control function.

If you plan to connect the 3-Pin CPU fan to the CPU fan connector on this

motherboard, please connect it to Pin 1-3.

Pin 1-3 Connected

3-Pin Fan Installation

(3-pin CPU_FAN2)

GND

+ 12V

English

(see p.2 No. 2)

CPU_FAN_SPEED

21

ASRock FM2A75M-ITX R2.0 Motherboard

ATX Power Connector Please connect an ATX power

24 13

(24-pin ATXPWR1)

supply to this connector.

(see p.2 No. 3)

12 1

Though this motherboard provides 24-pin ATX power connector, it can still work if

you adopt a traditional 20-pin ATX power supply. To use the 20-pin ATX power

supply, please plug your power supply along with Pin 1 and Pin 13.

24 13

20-Pin ATX Power Supply Installation

12 1

ATX 12V Power Connector Please connect an ATX 12V

(4-pin ATX12V1)

power supply to this connector.

(see p.2, No. 20)

HDMI_SPDIF Header HDMI_SPDIF header, providing

(2-pin HDMI_SPDIF1)

SPDIF audio output to HDMI

1

GND

(

see p.2 No. 22)

VGA card, allows the system to

SPDIFOUT

connect HDMI Digital TV/

projector/LCD devices. Please

connect the HDMI_SPDIF

connector of HDMI VGA card to

this header.

Chassis Intrusion Header This motherboard supports

1

(2-pin CI1)

CASE OPEN detection feature

GND

(see p.2, No. 25)

that detects if the chassis cover

Signal

has been removed. This feature

requires a chassis with chassis

intrusion detection design.

English

22

ASRock FM2A75M-ITX R2.0 Motherboard

2.7 Driver Installation Guide

To install the drivers to your system, please insert the support CD to your optical

drive rst. Then, the drivers compatible to your system can be auto-detected and

listed on the support CD driver page. Please follow the order from up to bottom side

to install those required drivers. Therefore, the drivers you install can work properly.

®

TM

2.8 Installing Windows

8 / 8 64-bit / 7 / 7 64-bit / Vista

/

TM

Vista

64-bit With RAID Functions

®

TM

TM

If you want to install Windows

8 / 8 64-bit / 7 / 7 64-bit / Vista

/ Vista

64-bit on a

RAID disk composed of 2 or more SATA3 HDDs with RAID functions, please follow

below steps.

STEP 1: Set up UEFI.

A. Enter UEFI SETUP UTILITY Advanced screen Storage

Conguration.

B. Set the “SATA Mode” option to [RAID].

STEP 2: Use “RAID Installation Guide” to set RAID conguration.

Before you start to congure RAID function, you need to check the RAID installation

guide in the Support CD for proper conguration. Please refer to the BIOS RAID

installation guide part of the document in the following path in the Support CD:

.. \ RAID Installation Guide

®

TM

TM

STEP 3: Install Windows

8 / 8 64-bit / 7 / 7 64-bit / Vista

/ Vista

64-bit OS on

your system.

Use the option “Easy RAID Installer“ in UEFI setup utility to copy the RAID drivers

®

to your USB ash disk. Insert the Windows

OS optical disk into the optical drive to

boot your system, and follow the instruction to install OS on your system. When you

see “Where do you want to install Windows?” page, please insert your USB ash

disk to your system, and click the “Load Driver” button to load the RAID drivers.

After that, you can continue the OS installation.

®

TM

2.9 Installing Windows

8 / 8 64-bit / 7 / 7 64-bit / Vista

/

TM

Vista

64-bit Without RAID Functions

English

®

TM

TM

If you want to install Windows

8 / 8 64-bit / 7 / 7 64-bit / Vista

/ Vista

64-bit on

your SATA3 HDDs without RAID functions, please follow below steps.

23

ASRock FM2A75M-ITX R2.0 Motherboard
