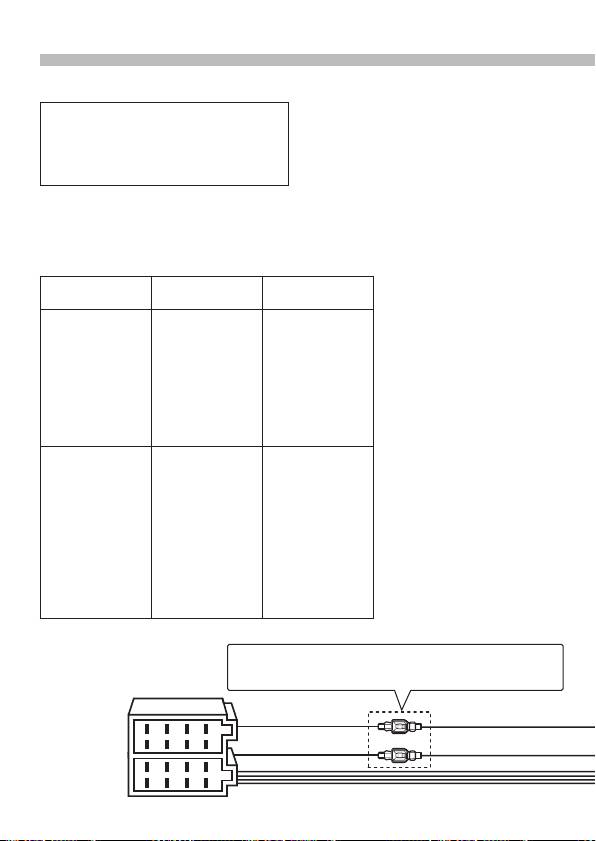

Connecting Wires to Terminals

⁄

• Speaker Impedance: 4 – 8 Ω

• USB terminal Maximum Supply current

: 500 mA

Connector Function Guide

Pin Numbers for

Cable Colour Functions

ISO Connectors

External Power

Connector

A-4 Yellow Battery

A-5 Blue/White Power Control

A-6 Orange/White Dimmer

A-7 Red Ignition (ACC)

A-8 Black Earth (Ground)

Connection

Speaker

Connector

B-1 Purple Rear Right (+)

B-2 Purple/Black Rear Right (–)

B-3 Gray Front Right (+)

B-4 Gray/Black Front Right (–)

B-5 White Front Left (+)

B-6 White/Black Front Left (–)

B-7 Green Rear Left (+)

B-8 Green/Black Rear Left (–)

⁄

See <Connecting the ISO Connector> (page 12).

Yellow (A–4 Pin)

Yellow (Battery wire)

Connector A

8

6

4

2

7

5

3

1

Red (A–7 Pin)

Red (Ignition wire)

8

6

4

2

Connector B

7

5

3

1

10

|
