DESCRIPTION OF THE PARTS

1.Flash Head 2.AF Auxiliary Light 3.Bounce Angle; Up and Down

EXTERNAL

4.Bounce Angle; Right and Left 5.Bounce Lock and Release Button; Up and Down

PARTS

6.Swivel Lock and Release Button; Right and Left 7.LCD Panel 8.Battery Cover

9.Release Button 10.Shoe 11.Catch Light Panel 12.Wide Panel

13.MODE Button 14.SEL SELECT Button 15.

+ Increment Button

CONTROLS

16.

-

Decrement Button 17.ZOOM Button 18.TEST Button

19.LIGHT Button 20.Ready Light 21.Power Switch

ABOUT THE BATTERY

This flash unit uses four “AA” type Alkaline dry cell batteries, Ni-Cad or Ni-MH rechargeable batteries.

Manganese batteries can also be used but as they have a shorter life than Alkaline batteries, we do

not recommend using them. Please replace batteries if it takes more than 30seconds to light the

Ready Lamp.

◆ To assure proper electrical contact, clean the battery terminals before installing the batteries.

◆ Ni-Cad or Ni-MH batteries do not have standardized contacts. If you use Ni-Cad or Ni-MH batteries,

please confirm that the battery contacts touch the battery compartment properly.

◆ To prevent battery explosion, leakage or overheating, use four new AA batteries of the same type

and brand. Do not mix the type or new and used batteries.

◆ Do not disassemble or short-circuit the batteries, or expose them fire or water; they may explode. Do

not recharge the batteries other than Ni-Cad or Ni-MH rechargeable batteries.

◆ When the flash will not be used for an extended period of time, remove the batteries from the flash

to avoid the possibility of damage from leakage.

◆ Battery performance decreases at low temperatures. Keep batteries insulated when using the flash

in cold weather.

◆ As with any flash, it is recommended you carry spare batteries when on a long trip or when

photographing outdoors in cold weather.

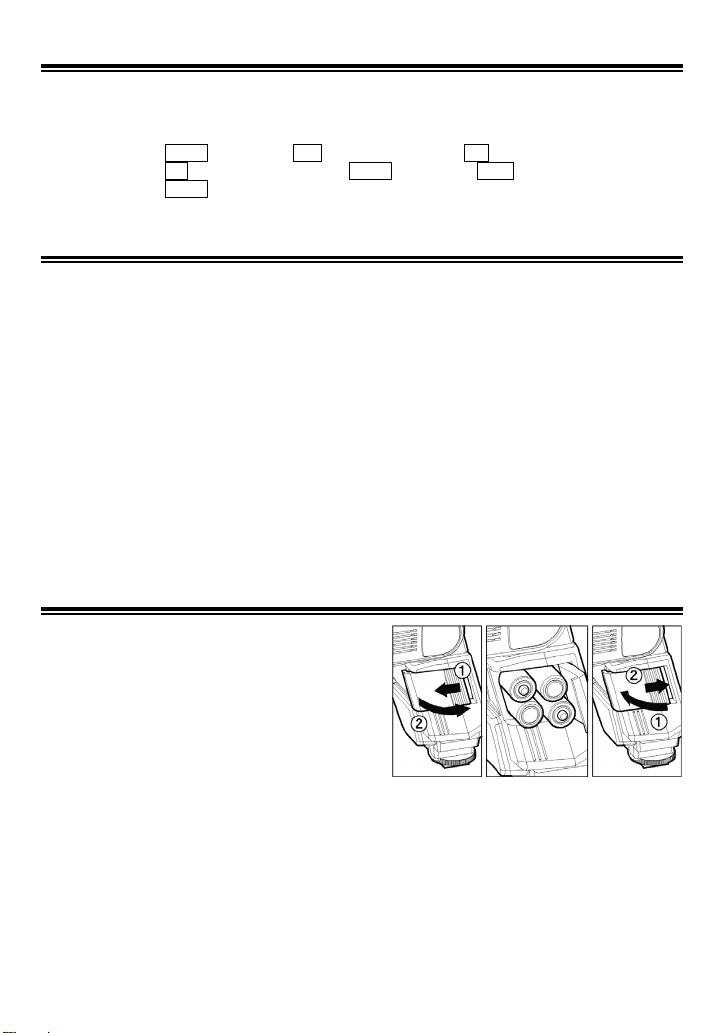

BATTERY LOADING

1. Be sure to set the Power Switch to the off position

then slide, the battery cover in the direction of the

arrow to open.

2. Insert four AA size batteries into the battery chamber.

Be sure the + and – ends of the batteries are aligned

according to the diagram in the chamber.

3. Close the cover.

4. Slide the Power Switch to the ON position. After few

seconds, the Ready Lamp will light, indicating that

the flash unit can be fired.

5. Please press the “Test Button” to be sure that the flash is working properly.

AUTO POWER OFF

To conserve battery power, the flash unit automatically turns itself off when the flash is not used for

approximately 240 seconds. To turn the flash on again, depress the “TEST” button, or depress the

camera shutter button halfway. Please note that, “Auto Power Off” mechanism does not work with

‘Wireless’ off-camera flash mode, normal slave flash, and designated slave flash modes.

ERROR INDICATION

If the battery power is not sufficient or there is electric information error between the camera and flash

unit, the “Er” mark will blink on the LCD panel. When this occurs, turn the power switch off and on. If it

still blinks, after this procedure, check the battery power.
