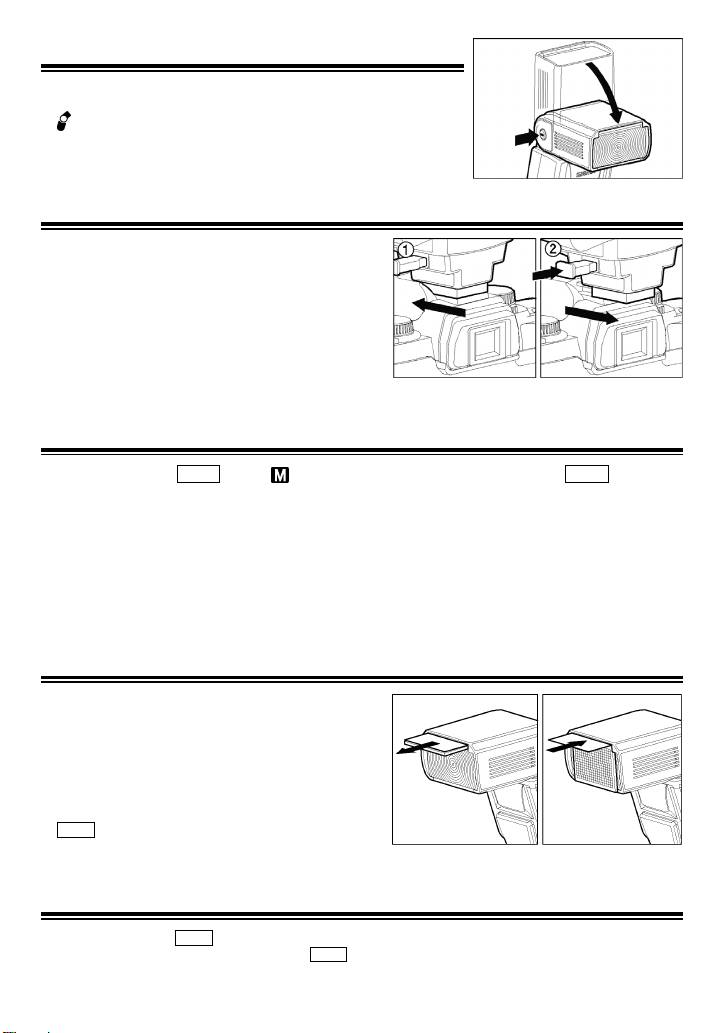

Sigma ELECTRONIC FLASH EF-610 DG SUPER SO-ADI (ソニー用): ADJUSTING THE FLASH HEAD

ADJUSTING THE FLASH HEAD

Depress the Bounce “Up and Down” Lock and Release Button, and

adjust the flash head to the desired position.

◆

appears on the LCD panel, when you turn on the flash, and if

this mark blinks, then the flash head is adjusted to an incorrect

position.

ATTACHING

AND

REMOVING

THE

FLASH

TO

AND

FROM

THE

CAMERA

Be sure turn off the Power Switch. Then insert the

Shoe Base into the hot shoe of the camera until it

clicks and locks. ①

◆ When you attach or remove the flash, grasp the

bottom of the flash to prevent damage to the shoe

foot and camera’s hot shoe.

◆ If the camera’s built-in flash is set in up position,

please close it before you attach the flash unit.

When you remove the flash, slide the flash unit out of

the camera’s hot shoe, while pressing the release button. ②

SETTING OF FLASH COVERAGE ANGLE

When you press the ZOOM button symbol appears. Each time you press the ZOOM button, the

LCD panel display will change and indicate the zoom position in sequence, as follows.

24mm → 28mm → 35mm → 50mm → 70mm → 85mm → 105mm → (Auto)

Generally, in the TTL mode, the flash will automatically set the zoom position according to the focal

length of your lens.

◆ When you turn on the main switch, the flash will memorize and set the zoom head position to the

last setting used.

◆ If you use a lens wider than the flash head setting, there may be under exposed areas around the

edge of the picture.

◆ Depending on the flash head setting, the flash’s Guide Number will be changed.

WIDE PANEL

This flashgun is equipped with a built-in wide panel,

which can provide an ultra wide 17mm angle of

coverage. Slide out the wide panel and catch light

panel and flip it down to cover the flash’s head. (Be

careful to slide the panels out smoothly.) Then put the

catch light panel back in its place. The coverage angle

setting of the flash will be set to 17mm automatically.

◆ If the built-in wide panel comes off accidentally, the

ZOOM button will not function. In this case please

contact the store where the flash was purchased or

a Sigma service station.

LCD PANEL ILLUMINATION

When you press the LIGHT button, the LCD panel will illuminate for about 8 seconds. The illumination

stays on longer than 8sec, if you press the LIGHT button once again.
