1-1 Installation Precautions

The motherboard contains numerous delicate electronic circuits and components which can become

damaged as a result of electrostatic discharge (ESD). Prior to installation, carefully read the user's

manual and follow these procedures:

Prior to installation, do not remove or break motherboard S/N (Serial Number) sticker or

warranty sticker provided by your dealer. These stickers are required for warranty validation.

Always remove the AC power by unplugging the power cord from the power outlet before

installing or removing the motherboard or other hardware components.

When connecting hardware components to the internal connectors on the motherboard,

make sure they are connected tightly and securely.

When handling the motherboard, avoid touching any metal leads or connectors.

It is best to wear an electrostatic discharge (ESD) wrist strap when handling electronic

components such as a motherboard, CPU or memory. If you do not have an ESD wrist strap,

keep your hands dry and first touch a metal object to eliminate static electricity.

Prior to installing the motherboard, please have it on top of an antistatic pad or within an

electrostatic shielding container.

Before unplugging the power supply cable from the motherboard, make sure the power supply

has been turned off.

Before turning on the power, make sure the power supply voltage has been set according to

the local voltage standard.

Before using the product, please verify that all cables and power connectors of your hardware

components are connected.

To prevent damage to the motherboard, do not allow screws to come in contact with the

motherboard circuit or its components.

Make sure there are no leftover screws or metal components placed on the motherboard or

within the computer casing.

Do not place the computer system on an uneven surface

.

Do not place the computer system in a high-temperature environment.

Turning on the computer power during the installation process can lead to damage to system

components as well as physical harm to the user.

If you are uncertain about any installation steps or have a problem related to the use of the

product, please consult a certified computer technician.

Hardware Installation- 9 -

1-2 Product Specifications

CPU Support for AM3/AM2+/AM2 processors:

TM

TM

AMD Phenom

II X4 processor/AMD Phenom

II X3 processor/

TM

TM

AMD Phenom

FX processor/AMD Phenom

X4 processor/

TM

TM

AMD Phenom

X3 processor/AMD Athlon

X2 processor/

TM

TM

AMD Athlon

processor/AMD Sempron

X2 processor/

TM

AMD Sempron

processor

(Go to GIGABYTE's website for the latest CPU support list.)

Hyper Transport Bus 5200 MT/s

Chipset North Bridge: AMD 790GX

South Bridge: AMD SB750

(Note 1)

Memory 4 x 1.8V DDR2 DIMM sockets supporting up to 16 GB of system memory

Dual channel memory architecture

(Note 2)

Support for DDR2 1200(O.C.)/1066

/800/ MHz MHz memory modules

(Go to GIGABYTE's website for the latest memory support list.)

Integrated Memory 128 MB DDR3 SidePort memory

Audio Realtek ALC888 codec

High Definition Audio

2/4/5.1/7.1-channel

Support for S/PDIF In/Out

Support for CD In

LAN RTL8111C chip (10/100/1000 Mbit)

(Note 3)

Expansion Slots 1 x PCI Express x16 slot, running at x16 (PCIEX16_1)

(Note 3)

1 x PCI Express x16 slot, running at x8 (PCIEX8_1)

TM

(The PCIEX16_1 and PCIEX8_1 slots support ATI Hybrid CrossFireX

TM

and CrossFireX

technologies and conform to PCI Express 2.0 standard.)

3 x PCI Express x1 slots

2 x PCI slots

Storage Interface South Bridge:

- 1 x IDE connector supporting ATA-133/100/66/33 and up to 2 IDE devices

- 6 x SATA 3Gb/s connectors supporting up to 6 SATA 3Gb/s devices

- Support for SATA RAID 0, RAID 1, RAID 5, RAID 10, and JBOD

iTE IT8718 chip:

- 1 x floppy disk drive connector supporting up to 1 floppy disk drive

IEEE 1394 T.I. TSB43AB23 chip

Up to 3 IEEE 1394a ports (1 on the back panel, 2 via the IEEE 1394a bracket

connected to the internal IEEE 1394a headers)

USB Integrated in the South Bridge

Up to 12 USB 2.0/1.1 ports (4 on the back panel, 8 via the USB brackets

connected to the internal USB headers)

GA-MA790GP-UD3H Motherboard - 10 -

Internal Connectors 1 x 24-pin ATX main power connector

1 x 8-pin ATX 12V power connector

1 x floppy disk drive connector

1 x IDE connector

6 x SATA 3Gb/s connectors

1 x CPU fan header

2 x system fan headers

1 x power fan header

1 x front panel header

1 x front panel audio header

1 x CD In connector

1 x S/PDIF In/Out header

2 x IEEE 1394a headers

4 x USB 2.0/1.1 headers

1 x serial port header

1 x chassis intrusion header

1 x power LED header

1 x clearing CMOS jumper

Back Panel 1 x PS/2 keyboard port

Connectors 1 x PS/2 mouse port

1 x D-Sub port

(Note 4)

1 x DVI-D port

1 x HDMI port

1 x optical S/PDIF Out connector

1 x IEEE 1394a port

4 x USB 2.0/1.1 ports

1 x RJ-45 port

6 x audio jacks (Center/Subwoofer Speaker Out/Rear Speaker Out/Side

Speaker Out/Line In/Line Out/Microphone)

I/O Controller iTE IT8718 chip

Hardware Monitor System voltage detection

CPU/System temperature detection

CPU/System/Power fan speed detection

CPU overheating warning

CPU/System fan fail warning

(Note 5)

CPU/System fan speed control

BIOS 2 x 8 Mbit flash

Use of licensed AWARD BIOS

TM

Support for DualBIOS

PnP 1.0a, DMI 2.0, SM BIOS 2.4, ACPI 1.0b

Hardware Installation- 11 -

Unique Features Support for @BIOS

Support for Q-Flash

Support for Xpress BIOS Rescue

Support for Download Center

Support for Xpress Install

Support for Xpress Recovery2

(Note 6)

Support for EasyTune

(Note 7)

Support for Easy Energy Saver

Bundled Software Norton Internet Security (OEM version)

®

®

Operating System Support for Microsoft

Windows

Vista/XP

Form Factor ATX Form Factor; 30.5cm x 24.4cm

(Note 1) Due to Windows Vista/XP 32-bit operating system limitation, when more than 4 GB of physical

memory is installed, the actual memory size displayed will be less than 4 GB.

(Note 2) Whether 1066 MHz or above memory speed is supported depends on the CPU being used.

(Note 3) For optimum performance, if only one PCI Express graphics card is to be installed, be sure

to install it in the PCIEX16_1 slot. The PCIEX8_1 slot shares bandwidth with the PCIEX16_1

slot. When PCIEX8_1 is populated with a PCI Express graphics card, the PCIEX16_1 slot will

operate at up to x8 mode.

(Note 4) The DVI-D port does not support D-Sub connection by adapter.

(Note 5) Whether the CPU/system fan speed control function is supported will depend on the CPU/

system cooler you install.

(Note 6) Available functions in EasyTune may differ by motherboard model.

TM

TM

(Note 7) Due to the hardware limitation, you must install an AMD AM3 Phenom

II/AM2+ Phenom

series CPU to enable support for Easy Energy Saver.

GA-MA790GP-UD3H Motherboard - 12 -

1-3 Installing the CPU and CPU Cooler

Read the following guidelines before you begin to install the CPU:

Make sure that the motherboard supports the CPU.

(Go to GIGABYTE's website for the latest CPU support list.)

Always turn off the computer and unplug the power cord from the power outlet before

installing the CPU to prevent hardware damage.

Locate the pin one of the CPU. The CPU cannot be inserted if oriented incorrectly.

Apply an even and thin layer of thermal grease on the surface of the CPU.

Do not turn on the computer if the CPU cooler is not installed, otherwise overheating and

damage of the CPU may occur.

Set the CPU host frequency in accordance with the CPU specifications. It is not recom-

mended that the system bus frequency be set beyond hardware specifications since it

does not meet the standard requirements for the peripherals. If you wish to set the frequency

beyond the standard specifications, please do so according to your hardware specifications

including the CPU, graphics card, memory, hard drive, etc.

1-3-1 Installing the CPU

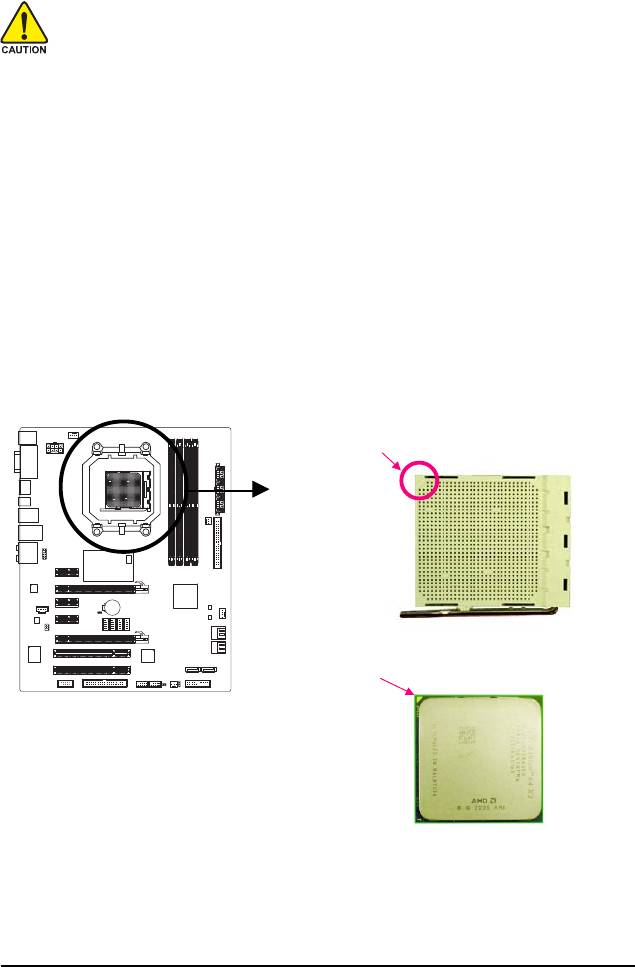

A. Locate the pin one (denoted by a small triangle) of the CPU socket and the CPU.

A Small Triangle Mark

AM2 Socket

Denotes Pin One of the

Socket

A Small Triangle Marking

AM3 / AM2+ / AM2 CPU

Denotes CPU Pin One

Hardware Installation- 13 -

B. Follow the steps below to correctly install the CPU into the motherboard CPU socket.

Before installing the CPU, make sure to turn off the computer and unplug the power

cord from the power outlet to prevent damage to the CPU.

CPU Socket Locking

Lever

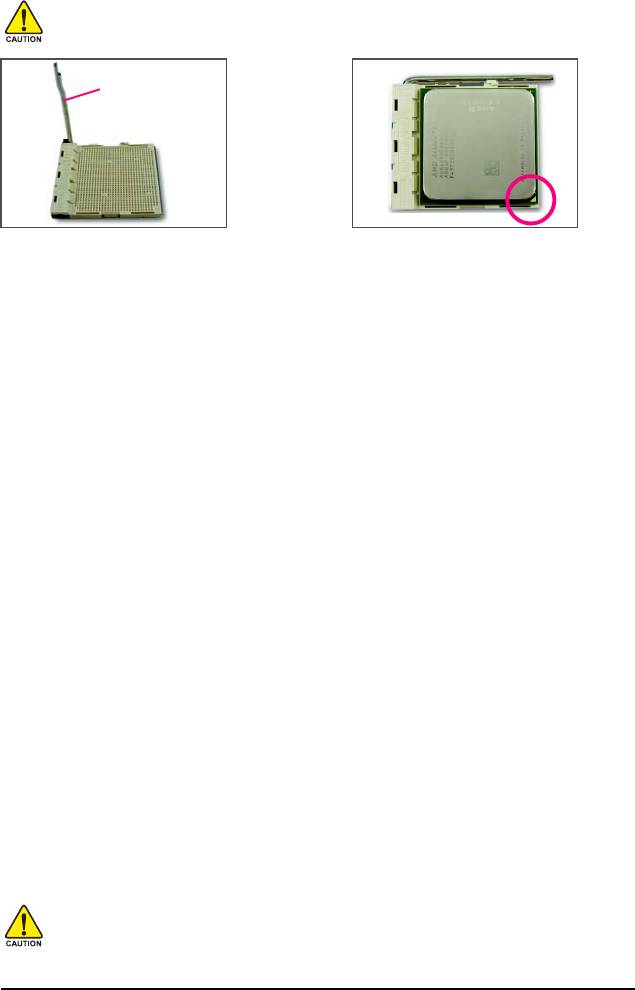

Step 1:

Step 2:

Completely lift up the CPU socket locking lever.

Align the CPU pin one (small triangle marking)

with the triangle mark on the CPU socket and

gently insert the CPU into the socket. Make

sure that the CPU pins fit perfectly into their

holes. Once the CPU is positioned into its

socket, place one finger down on the middle of

the CPU, lowering the locking lever and latch-

ing it into the fully locked position.

Do not force the CPU into the CPU socket. The CPU cannot fit in if oriented incorrectly. Adjust

the CPU orientation if this occurs.

GA-MA790GP-UD3H Motherboard - 14 -

1-3-2 Installing the CPU Cooler

Follow the steps below to correctly install the CPU cooler on the CPU. (The following procedure uses

the GIGABYTE cooler as the example.)

Step 1:

Step 2:

Apply an even and thin layer of thermal grease

Place the CPU cooler on the CPU.

on the surface of the installed CPU.

Step 3:

Step 4:

Hook the CPU cooler clip to the mounting lug on

Turn the cam handle from the left side to the

one side of the retention frame. On the other side,

right side (as the picture above shows) to lock

push straight down on the the CPU cooler clip to

into place. (Refer to your CPU cooler installa-

hook it to the mounting lug on the retention frame.

tion manual for instructions on installing the

cooler.)

Step 5:

Finally, attach the power connector of the CPU

cooler to the CPU fan header (CPU_FAN) on

the motherboard.

Use extreme care when removing the CPU cooler because the thermal grease/tape between

the CPU cooler and CPU may adhere to the CPU. Inadequately removing the CPU cooler

may damage the CPU.

Hardware Installation- 15 -

1-4 Installing the Memory

Read the following guidelines before you begin to install the memory:

Make sure that the motherboard supports the memory. It is recommended that memory of

the same capacity, brand, speed, and chips be used.

(Go to GIGABYTE's website for the latest memory support list.)

Always turn off the computer and unplug the power cord from the power outlet before

installing the memory to prevent hardware damage.

Memory modules have a foolproof design. A memory module can be installed in only one

direction. If you are unable to insert the memory, switch the direction.

1-4-1 Dual Channel Memory Configuration

This motherboard provides four DDR2 memory sockets and supports Dual Channel

Technology. After the memory is installed, the BIOS will automatically detect the

specifications and capacity of the memory. Enabling Dual Channel memory mode

will double the original memory bandwidth.

The four DDR2 memory sockets are divided into two channels and each channel has two memory

sockets as following:

Channel 0: DDR2_1, DDR2_3

Channel 1: DDR2_2, DDR2_4

Dual Channel Memory Configurations Table

DDR2_1 DDR2_2 DDR2_3 DDR2_4

Two Modules

DS/SS DS/SS - - - -

- - - - DS/SS DS/SS

Four Modules

DS/SS DS/SS DS/SS DS/SS

(SS=Single-Sided, DS=Double-Sided, "- -"=No Memory)

If two memory modules are to be installed, it is recom-

mended that you install them in the DDR2_1 and DDR2_2

sockets.

DDR2_1

DDR2_2

DDR2_3

DDR2_4

Due to CPU limitation, read the following guidelines before installing the memory in Dual Channel mode.

1. Dual Channel mode cannot be enabled if only one DDR2 memory module is installed.

2. When enabling Dual Channel mode with two or four memory modules, it is recommended that

memory of the same capacity, brand, speed, and chips be used and installed in the same

colored DDR2 sockets for optimum performance.

GA-MA790GP-UD3H Motherboard - 16 -

1-4-2 Installing a Memory

Before installing a memory module , make sure to turn off the computer and unplug

the power cord from the power outlet to prevent damage to the memory module.

DDR2 DIMMs are not compatible to DDR DIMMs. Be sure to install DDR2 DIMMs on

this motherboard.

Notch

DDR2 DIMM

A DDR2 memory module has a notch, so it can only fit in one direction. Follow the steps below to

correctly install your memory modules in the memory sockets.

Step 1:

Note the orientation of the memory module. Spread the retaining

clips at both ends of the memory socket. Place the memory

module on the socket. As indicated in the picture on the left,

place your fingers on the top edge of the memory, push down

on the memory and insert it vertically into the memory socket.

Step 2:

The clips at both ends of the socket will snap into place when

the memory module is securely inserted.

Hardware Installation- 17 -

1-5 Installing an Expansion Card

Read the following guidelines before you begin to install an expansion card:

Make sure the motherboard supports the expansion card. Carefully read the manual that

came with your expansion card.

Always turn off the computer and unplug the power cord from the power outlet before

installing an expansion card to prevent hardware damage.

PCI Express x1 Slot

PCI Express x16 Slot

PCI Slot

Follow the steps below to correctly install your expansion card in the expansion slot.

1. Locate an expansion slot that supports your card. Remove the metal slot cover from the chassis back panel.

2. Align the card with the slot, and press down on the card until it is fully seated in the slot.

3. Make sure the metal contacts on the card are completely inserted into the slot.

4. Secure the card's metal bracket to the chassis back panel with a screw.

5. After installing all expansion cards, replace the chassis cover(s).

6. Turn on your computer. If necessary, go to BIOS Setup to make any required BIOS changes for

your expansion card(s).

7. Install the driver provided with the expansion card in your operating system.

Example: Installing and Removing a PCI Express Graphics Card:

Installing a Graphics Card:

Gently push down on the top edge of the card

until it is fully inserted into the PCI Express slot.

Make sure the card is securely seated in the

slot and does not rock.

Removing the Card:

Press the white latch at the end of the PCI Express slot to release the card

and then pull the card straight up from the slot.

GA-MA790GP-UD3H Motherboard - 18 -

TM

1-6 Enabling the ATI Hybrid CrossFireX

Function

Combining the onboard GPU with a discrete graphics card, ATI Hybrid CrossFireX can provide

significantly advanced display performance for AMD platform. This section give instructions on config-

uring an ATI Hybrid CrossFireX system.

A. Before you begin--

1. Supported Operating Systems:

Windows Vista and Windows XP*.

2. BIOS Setup:

Enter BIOS Setup to set the following items under the Advanced BIOS Features menu:

Set Internal Graphics Mode to UMA+SidePort.

Set UMA Frame Buffer Size to 256MB.

Set Surround View to Disabled.

Set Init Display First to Onboard.

3. Graphics Card Requirement:

An ATI Hybrid CrossFireX-supported graphics card.

B. ATI Hybrid CrossFireX Driver Installation and Setup

Insert the motherboard driver disk and select Installing Chipset Drivers. Click Xpress Install for

installation. Restart your system when completed. Follow the steps below to enable ATI Hybrid

CrossFireX.

Step 1:

Step 2:

The ATI icon appears in the system tray

Enter the CrossFire menu and select the En-

after the system restarts. Right-click the icon to

able CrossFire checkbox.

enter the Catalyst Control Center.

You do not have to install the graphics card driver if the motherboard chipset driver has been

installed.

To change the Internal Graphic Mode or UMA Frame Buffer Size setting in BIOS Setup,

be sure to disable the CrossFire function in the operating system first.

* For Windows XP, you must install AMD chipset driver version 8.51 or later.

Hardware Installation- 19 -

TM

1-7 Setup of ATI CrossFireX

Configuration

A. System Requirements

- Windows Vista or Windows XP operating system

- A CrossFireX-supported motherboard with two PCI Express x16 slots and correct driver

- Two CrossFireX-ready graphics cards of identical brand and chip and correct driver

(Note)

- Two CrossFire bridge connectors

- A power supply with sufficient power is recommended (Refer to the manual of your graphics

cards for the power requirement)

B. Connecting the Graphics Cards

Step 1:

Observe the steps in "1-5 Installing an Expansion Card" and install two CrossFireX graphics cards on

the PCI Express x16 slots.

(Note)

Step 2:

Insert the CrossFire bridges in the CrossFireX gold edge connectors on top of the two cards.

Step 3:

Plug the display cable into the graphics card on the PCIEX16_1 slot.

C. Configuring the Graphics Card Driver

After installing the graphics card driver in the operating

system, go to the ATI Catalyst Control Center. Browse

TM

to the CrossFireX menu and ensure Enable CrossFireX

check box is selected.

(Note) The bridges may be needed or not depending on your graphics cards.

Procedure and driver screen for enabling CrossFireX technology may differ by graphics

cards. Refer to the manual that came with your graphics cards for more information about

enabling CrossFireX technology.

GA-MA790GP-UD3H Motherboard - 20 -

1-8 Back Panel Connectors

PS/2 Keyboard and PS/2 Mouse Port

Use the upper port (green) to connect a PS/2 mouse and the lower port (purple) to connect a PS/2

keyboard.

D-Sub Port

The D-Sub port supports a 15-pin D-Sub connector. Connect a monitor that supports D-Sub

connection to this port.

DVI-D Port

The DVI-D port supports DVI-D specifictation. Connect a monitor that supports DVI-D connection to

this port.

HDMI Port

The HDMI (High-Definition Multimedia Interface) provides an all-digital audio/video interface to

transmit the uncompressed audio/video signals and is HDCP compliant. Connect the HDMI audio/

video device to this port. The HDMI Technology can support a maximum resolution of 1920x1080

but the actual resolutions supported depend on the monitor being used.

After installing the HDMI device, make sure the default device for sound playback is the

HDMI device. (The item name may differ by operating system. Refer the figures below

for details.), and enter BIOS Setup, then set Onboard VGA output connect to D-SUB/

HDMI or Auto under Advanced BIOS Features.

Please note the HDMI audio output only supports AC3, DTS and 2-channel-LPCM

formats. (AC3 and DTS require the use of an external decoder for decoding.)

In Windows XP, select Start>Control Panel>Sounds

In Windows Vista, select Start>Control Panel>

and Audio Devices>Audio, set the Default device for

Sound, select Realtek HDMI Output and then click

sound playback to Realtek HDA HDMI Out.

Set Default.

Hardware Installation- 21 -

A. Dual Display Configurations:

This motherboard provides three ports for video output: DVI-D, HDMI and D-Sub. The table below

shows the supported dual display configurations.

Dual

Combination Supported or Not

Display

DVI-D + D-Sub Yes

DVI-D + HDMI No

HDMI + D-Sub Yes

B. Playback of HD DVD and Blu-ray Discs:

In order to get better playback quality, when playing the HD DVD or Blu-ray discs, refer to the

recommended system requirements (or better) below.

TM

CPU: AMD Athlon

64 X2 Dual-Core processor (4200+ or above)

Memory: Two 1 GB DDR2 800 memory modules with dual channel mode enabled

BIOS Setup: At least 256 MB of UMA Frame Buffer Size (refer to Chapter 2, "BIOS Setup,"

"Advanced BIOS Features," for more information)

Playback software: CyberLink PowerDVD 8.0 or later (Note: Please ensure Hardware

Acceleration is enabled )

File Format Suitable Resolution

Windows XP Windows Vista

Non-protected contents

1920 x 1080p 1920 x 1080p

HD-DVD 1920 x 1080p 1920 x 1080p

Blu-ray

1920 x 1080p 1920 x 1080p

Optical S/PDIF Out Connector

This connector provides digital audio out to an external audio system that supports digital optical

audio. Before using this feature, ensure that your audio system provides an optical digital audio in

connector.

IEEE 1394a Port

The IEEE 1394 port supports the IEEE 1394a specification, featuring high speed, high bandwidth

and hotplug capabilities. Use this port for an IEEE 1394a device.

USB Port

The USB port supports the USB 2.0/1.1 specification. Use this port for USB devices such as a USB

keyboard/mouse, USB printer, USB flash drive and etc.

RJ-45 LAN Port

The Gigabit Ethernet LAN port provides Internet connection at up to 1 Gbps data rate. The following

describes the states of the LAN port LEDs.

Connection/

Speed LED

Activity LED

Connection/Speed LED:

Activity LED:

State Description

State Description

Orange 1 Gbps data rate

Blinking Data transmission or receiving is occurring

Green 100 Mbps data rate

Off No data transmission or receiving is occurring

Off 10 Mbps data rate

LAN Port

GA-MA790GP-UD3H Motherboard - 22 -

Center/Subwoofer Speaker Out Jack (Orange)

Use this audio jack to connect center/subwoofer speakers in a 5.1/7.1-channel audio configuration.

Rear Speaker Out Jack (Black)

Use this audio jack to connect rear speakers in a 4/5.1/7.1-channel audio configuration.

Side Speaker Out Jack (Gray)

Use this audio jack to connect side speakers in a 7.1-channel audio configuration.

Line In Jack (Blue)

The default line in jack. Use this audio jack for line in devices such as an optical drive, walkman, etc.

Line Out Jack (Green)

The default line out jack. Use this audio jack for a headphone or 2-channel speaker. This jack can

be used to connect front speakers in a 4/5.1/7.1-channel audio configuration.

Mic In Jack (Pink)

The default Mic in jack. Microphones must be connected to this jack.

In addition to the default speakers settings, the ~ audio jacks can be reconfigured to

perform different functions via the audio software. Only microphones still MUST be

connected to the default Mic in jack ( ). Refer to the instructions on setting up a 2/4/5.1/

7.1-channel audio configuration in Chapter 5, "Configuring 2/4/5.1/7.1-Channel Audio."

When removing the cable connected to a back panel connector, first remove the cable

from your device and then remove it from the motherboard.

When removing the cable, pull it straight out from the connector. Do not rock it side to side

to prevent an electrical short inside the cable connector.

Hardware Installation- 23 -

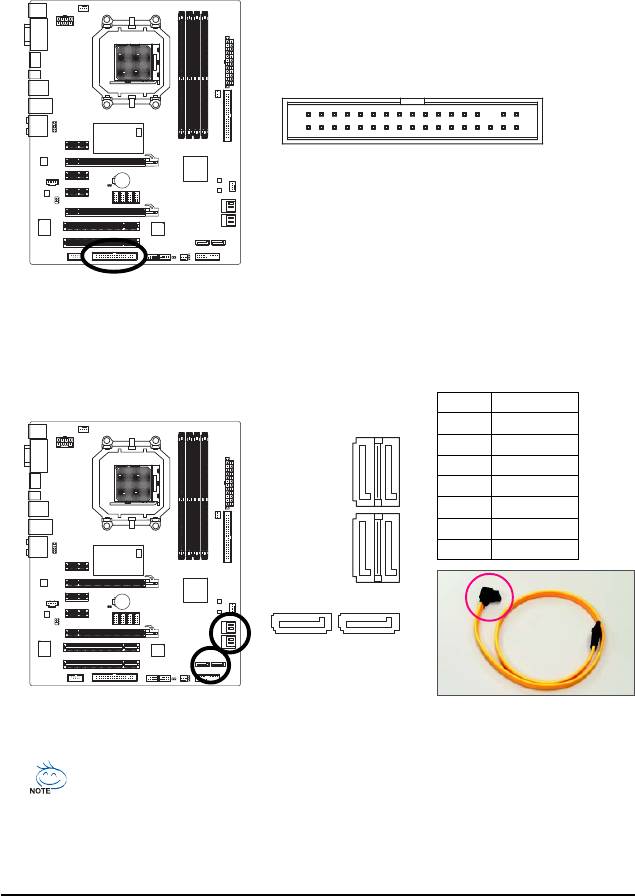

1-9 Internal Connectors

1

3

2

6

7

13

11

14

4

16

15

20

9

8

1718 19

5

10

12

1) ATX_12V_2X4

11) BATTERY

2) ATX

12) F_PANEL

3) CPU_FAN

13) F_AUDIO

4) SYS_FAN1

14) CD_IN

5) SYS_FAN2

15) SPDIF_IO

6) PWR_FAN

16) F_USB1 / F_USB2 / F_USB3 / F_USB4

7) IDE

17) F_1394_1 / F_1394_2

8) FDD

18) COM

9) SATA2_0 / 1 / 2 / 3 / 4 / 5

19) CI

10) PWR_LED

20) CLR_CMOS

Read the following guidelines before connecting external devices:

First make sure your devices are compliant with the connectors you wish to connect.

Before installing the devices, be sure to turn off the devices and your computer. Unplug the

power cord from the power outlet to prevent damage to the devices.

After installing the device and before turning on the computer, make sure the device cable

has been securely attached to the connector on the motherboard.

GA-MA790GP-UD3H Motherboard - 24 -

1/2) ATX_12V_2X4/ATX (2x4 12V Power Connector and 2x12 Main Power Connector)

With the use of the power connector, the power supply can supply enough stable power to all the

components on the motherboard. Before connecting the power connector, first make sure the

power supply is turned off and all devices are properly installed. The power connector possesses

a foolproof design. Connect the power supply cable to the power connector in the correct orientation.

The 12V power connector mainly supplies power to the CPU. If the 12V power connector is not

connected, the computer will not start.

To meet expansion requirements, it is recommended that a power supply that can withstand

high power consumption be used (500W or greater). If a power supply is used that does not

provide the required power, the result can lead to an unstable or unbootable system.

The power connectors are compatible with power supplies with 2x2 12V and 2x10 power

connectors. When using a power supply providing a 2x4 12V and a 2x12 power connector,

remove the protective covers from the 12V power connector and the main power connector on

the motherboard. Do not insert the power supply cables into pins under the protective covers

when using a power supply providing a 2x2 12V and a 2x10 power connector.

ATX_12V_2X4:

Pin No. Definition

58

1 GND (Only for 2x4 pin 12V)

2 GND (Only for 2x4 pin 12V)

3 GND

14

4 GND

ATX_12V_2X4

5 +12V (Only for 2x4 pin 12V)

6 +12V (Only for 2x4 pin 12V)

7 +12V

8 +12V

ATX :

13 1

Pin No. Definition

Pin No. Definition

1 3.3V

13 3.3V

2 3.3V

14 -12V

3 GND

15 GND

4 +5V

16 PS_ON(soft On/Off)

5 GND

17 GND

6 +5V

18 GND

7 GND

19 GND

8 Power Good

20 -5V

9 5V SB(stand by +5V)

21 +5V

10 +12V

22 +5V

11 +12V (Only for 2x12 pin ATX)

23 +5V (Only for 2x12 pin ATX)

24 12

12 3.3V (Only for 2x12 pin ATX)

24 GND (Only for 2x12 pin ATX)

ATX

Hardware Installation- 25 -

3/4/5/6) CPU_FAN/SYS_FAN1/SYS_FAN2/PWR_FAN (Fan Headers)

The motherboard has a 4-pin CPU fan header (CPU_FAN), a 3-pin (SYS_FAN2) and a 4-pin

(SYS_FAN1) system fan headers, and a 3-pin power fan header (PWR_FAN). Most fan headers

possess a foolproof insertion design. When connecting a fan cable, be sure to connect it in the

correct orientation (the black connector wire is the ground wire). The motherboard supports CPU

fan speed control, which requires the use of a CPU fan with fan speed control design. For optimum

heat dissipation, it is recommended that a system fan be installed inside the chassis.

CPU_FAN:

Pin No. Definition

1

1 GND

CPU_FAN

2 +12V / Speed Control

3 Sense

4 Speed Control

SYS_FAN1:

Pin No. Definition

1 GND

1

2 +12V / Speed Control

SYS_FAN1

3 Sense

4 Reserve

SYS_FAN2/PWR_FAN:

1

Pin No. Definition

1

1 GND

SYS_FAN2

2 +12V

PWR_FAN

3 Sense

Be sure to connect fan cables to the fan headers to prevent your CPU and system from

overheating. Overheating may result in damage to the CPU or the system may hang.

These fan headers are not configuration jumper blocks. Do not place a jumper cap on the headers.

7) IDE (IDE Connector)

The IDE connector supports up to two IDE devices such as hard drives and optical drives. Before

attaching the IDE cable, locate the foolproof groove on the connector. If you wish to connect two IDE

devices, remember to set the jumpers and the cabling according to the role of the IDE devices (for

example, master or slave). (For information about configuring master/slave settings for the IDE

devices, read the instructions from the device manufacturers.)

40

39

2

1

GA-MA790GP-UD3H Motherboard - 26 -

8) FDD (Floppy Disk Drive Connector)

This connector is used to connect a floppy disk drive. The types of floppy disk drives supported

are: 360 KB, 720 KB, 1.2 MB, 1.44 MB, and 2.88 MB. Before connecting a floppy disk drive, be

sure to locate pin 1 of the connector and the floppy disk drive cable. The pin 1 of the cable is

typically designated by a stripe of different color.

33

1

34

2

9) SATA2_0/1/2/3/4/5 (SATA 3Gb/s Connectors)

The SATA connectors conform to SATA 3Gb/s standard and are compatible with SATA 1.5Gb/s

standard. Each SATA connector supports a single SATA device. The AMD SB750 controller

supports RAID 0, RAID 1, RAID 5, RAID 10, and JBOD. Refer to Chapter 5, "Configuring SATA Hard

Drive(s)," for instructions on configuring a RAID array.

Pin No. Definition

1 GND

1

1

2 TXP

3 TXN

4 GND

SATA2_4

SATA2_5

5 RXN

6 RXP

7 GND

SATA2_3

SATA2_2

7

7

1

7

SATA2_0

SATA2_1

Please connect the L-shaped end

of the SATA 3Gb/s cable to your

SATA hard drive.

A RAID 0 or RAID 1 configuration requires at least two hard drives. If more than two hard

drives are to be used, the total number of hard drives must be an even number.

A RAID 5 configuration requires at least three hard drives. (The total number of hard

drives does not have to be an even number.)

A RAID 10 configuration requires at least four hard drives and the total number of hard

drives must be an even number.

Hardware Installation- 27 -

10) PWR_LED (System Power LED Header)

This header can be used to connect a system power LED on the chassis to indicate system power

status. The LED is on when the system is operating. The LED keeps blinking when the system is

in S1 sleep state. The LED is off when the system is in S3/S4 sleep state or powered off (S5).

Pin No. Definition

1 MPD+

1

2 MPD-

3 MPD-

System Status LED

S0 On

S1 Blinking

S3/S4/S5 Off

11) BATTERY

The battery provides power to keep the values (such as BIOS configurations, date, and time

information) in the CMOS when the computer is turned off. Replace the battery when the battery

voltage drops to a low level, or the CMOS values may not be accurate or may be lost.

You may clear the CMOS values by removing the battery:

1. Turn off your computer and unplug the power cord.

2. Gently remove the battery from the battery holder and wait for one minute.

(Or use a metal object like a screwdriver to touch the positive and

negative terminals of the battery holder, making them short for 5 seconds.)

3. Replace the battery.

4. Plug in the power cord and restart your computer.

Always turn off your computer and unplug the power cord before replacing the battery.

Replace the battery with an equivalent one. Danger of explosion if the battery is replaced

with an incorrect model.

Contact the place of purchase or local dealer if you are not able to replace the battery by

yourself or uncertain about the battery model.

When installing the battery, note the orientation of the positive side (+) and the negative

side (-) of the battery (the positive side should face up).

Used batteries must be handled in accordance with local environmental regulations.

GA-MA790GP-UD3H Motherboard - 28 -

12) F_PANEL (Front Panel Header)

Connect the power switch, reset switch, speaker and system status indicator on the chassis front

panel to this header according to the pin assignments below. Note the positive and negative pins

before connecting the cables.

Message/Power/

Power

Sleep LED Speaker

Switch

MSG+

PW+

MSG-

PW-

SPEAK+

SPEAK-

2

20

1

19

HD-

RES+

NC

HD+

RES-

Hard Drive

Reset

Activity LED

Switch

MSG (Message/Power/Sleep LED, Yellow):

System Status LED

Connects to the power status indicator on the chassis front panel. The

S0 On

LED is on when the system is operating. The LED keeps blinking when

S1 Blinking

the system is in S1 sleep state. The LED is off when the system is in

S3/S4/S5 Off

S3/S4 sleep state or powered off (S5).

PW (Power Switch, Red):

Connects to the power switch on the chassis front panel. You may configure the way to turn off

your system using the power switch (refer to Chapter 2, "BIOS Setup," "Power Management

Setup," for more information).

SPEAK (Speaker, Orange):

Connects to the speaker on the chassis front panel. The system reports system startup status

by issuing a beep code. One single short beep will be heard if no problem is detected at system

startup. If a problem is detected, the BIOS may issue beeps in different patterns to indicate the

problem. Refer to Chapter 5, "Troubleshooting," for information about beep codes.

HD (Hard Drive Activity LED, Blue)

Connects to the hard drive activity LED on the chassis front panel. The LED is on when the hard

drive is reading or writing data.

RES (Reset Switch, Green):

Connects to the reset switch on the chassis front panel. Press the reset switch to restart the

computer if the computer freezes and fails to perform a normal restart.

NC (Purple):

No connection

The front panel design may differ by chassis. A front panel module mainly consists of

power switch, reset switch, power LED, hard drive activity LED, speaker and etc. When

connecting your chassis front panel module to this header, make sure the wire assign-

ments and the pin assignments are matched correctly.

Hardware Installation- 29 -

13) F_AUDIO (Front Panel Audio Header)

The front panel audio header supports Intel High Definition audio (HD) and AC'97 audio. You may

connect your chassis front panel audio module to this header. Make sure the wire assignments of

the module connector match the pin assignments of the motherboard header. Incorrect connection

between the module connector and the motherboard header will make the device unable to work

or even damage it.

For HD Front Panel Audio:

For AC'97 Front Panel Audio:

10

9

Pin No. Definition

Pin No. Definition

1 MIC2_L

1 MIC

21

2 GND

2 GND

3 MIC2_R

3 MIC Power

4 -ACZ_DET

4NC

5 LINE2_R

5 Line Out (R)

6 GND

6NC

7 FAUDIO_JD

7NC

8 No Pin

8 No Pin

9 LINE2_L

9 Line Out (L)

10 GND

10 NC

The front panel audio header supports HD audio by default. If your chassis provides an

AC'97 front panel audio module, refer to the instructions on how to activate AC'97 function-

ality via the audio software in Chapter 5, "Configuring 2/4/5.1/7.1-Channel Audio."

Audio signals will be present on both of the front and back panel audio connections

simultaneously. If you want to mute the back panel audio (only supported when using an HD

front panel audio module), refer to Chapter 5, "Configuring 2/4/5.1/7.1-Channel Audio."

Some chassis provide a front panel audio module that has separated connectors on each

wire instead of a single plug. For information about connecting the front panel audio

module that has different wire assignments, please contact the chassis manufacturer.

14) CD_IN (CD In Connector)

You may connect the audio cable that came with your optical drive to the header.

Pin No. Definition

1 CD-L

2 GND

1

3 GND

4 CD-R

GA-MA790GP-UD3H Motherboard - 30 -

15) SPDIF_IO (S/PDIF In/Out Header, Red)

This header supports digital S/PDIF in/out. Via an optional S/PDIF in and out cable, this header can

connect to an audio device that supports digital audio out and an audio system that supports digital

audio in. For purchasing the optional S/PDIF in and out cable, please contact the local dealer.

Pin No. Definition

1 Power

2 No Pin

6

5

3 SPDIF

2

1

4 SPDIFI

5 GND

6 GND

16) F_USB1/F_USB2/F_USB3/F_USB4 (USB Headers, Yellow)

The headers conform to USB 2.0/1.1 specification. Each USB header can provide two USB ports

via an optional USB bracket. For purchasing an additional USB bracket, please contact the local

dealer.

Pin No. Definition

1 Power (5V)

2 Power (5V)

3 USB DX-

10 9

4USB DY-

5 USB DX+

2

1

6 USB DY+

7 GND

8 GND

9 No Pin

10 NC

Do not plug the IEEE 1394 bracket (2x5-pin) cable into the USB header.

Prior to installing the USB bracket, be sure to turn off your computer and unplug the

power cord from the power outlet to prevent damage to the USB bracket.

Hardware Installation- 31 -

17) F_1394_1/F_1394_2 (IEEE 1394a Header, Gray)

The headers conform to IEEE 1394a specification. Each IEEE 1394a header can provide one IEEE

1394a port via an optional IEEE 1394a bracket. For purchasing the optional IEEE 1394a bracket,

please contact the local dealer.

Pin No. Definition

1TPA+

2TPA-

3 GND

9

1

4 GND

10

2

5 TPB+

6 TPB-

7 Power (12V)

8 Power (12V)

9 No Pin

10 GND

Do not plug the USB bracket cable into the IEEE 1394a header.

Prior to installing the IEEE 1394a bracket, be sure to turn off your computer and unplug

the power cord from the power outlet to prevent damage to the IEEE 1394a bracket.

To connect an IEEE 1394a device, attach one end of the device cable to your computer

and then attach the other end of the cable to the IEEE 1394a device. Ensure that the cable

is securely connected.

18) COM (Serial Port Header)

The COM header can provide one serial port via an optional COM port cable. For purchasing the

optional COM port cable, please contact the local dealer.

Pin No. Definition

1 NDCD -

2 NSIN

9

1

3 NSOUT

4 NDTR -

5 GND

10

2

6 NDSR -

7 NRTS -

8 NCTS -

9 NRI -

10 No Pin

GA-MA790GP-UD3H Motherboard - 32 -

19) CI (Chassis Intrusion Header)

This motherboard provides a chassis detection feature that detects if the chassis cover has been

removed. This function requires a chassis with chassis intrusion detection design.

Pin No. Definition

1

1 Signal

2 GND

20) CLR_CMOS (Clearing CMOS Jumper)

Use this jumper to clear the CMOS values (e.g. date information and BIOS configurations) and

reset the CMOS values to factory defaults. To clear the CMOS values, place a jumper cap on the

two pins to temporarily short the two pins or use a metal object like a screwdriver to touch the two

pins for a few seconds.

Open: Normal

Short: Clear CMOS Values

Always turn off your computer and unplug the power cord from the power outlet before

clearing the CMOS values.

After clearing the CMOS values and before turning on your computer, be sure to remove

the jumper cap from the jumper. Failure to do so may cause damage to the motherboard.

After system restart, go to BIOS Setup to load factory defaults (select Load Optimized

Defaults) or manually configure the BIOS settings (refer to Chapter 2, "BIOS Setup," for

BIOS configurations).

Hardware Installation- 33 -

GA-MA790GP-UD3H Motherboard - 34 -
