ASRock P67 Pro: 2. Installation

11

ASRock  P67 Pro  Motherboard

2. Installation

Pre-installation Precautions

Take note of the following precautions before you install mother-

board components or change any motherboard settings.

1.  Unplug the power cord from the wall socket before touching any

component. Failure to do so may cause severe damage to the

motherboard, peripherals, and/or components.

2.  To avoid damaging the motherboard components due to static

electricity, NEVER place your motherboard directly on the car-

pet or the like. Also remember to use a grounded wrist strap or

touch a safety grounded object before you handle components.

3.  Hold components by the edges and do not touch the ICs.

4.  Whenever you uninstall any component, place it on a grounded

antstatic pad or in the bag that comes with the component.

5.  When placing screws into the screw holes to secure the moth-

erboard to the chassis, please do not over-tighten the screws!

Doing so may damage the motherboard.

2.1 CPU Installation

For the installation of Intel 1155-Pin CPU,

please follow the steps below.

Before you insert the 1155-Pin CPU into the socket, please check if the

CPU surface is unclean or if there is any bent pin on the socket. Do not

force to insert the CPU into the socket if above situation is found. Other-

wise, the CPU will be seriously damaged.

1155-Pin Socket Overview

English

Contact Array

Socket Body

Load Lever

Load Plate

12

ASRock  P67 Pro  Motherboard

Step 1.  Open the socket:

Step 1-1.  Disengaging the lever by depressing

down and out on the hook to clear

retention tab.

Step 1-2.  Rotate the load lever to fully open po-

sition at approximately 135 degrees.

Step 1-3.  Rotate the load plate to fully open po-

sition at approximately 100 degrees.

Step 2.  Remove PnP Cap (Pick and Place Cap).

1. It is recommended to use the cap tab to handle and avoid kicking

    off the PnP cap.

2. This cap must be placed if returning the motherboard for after

    service.

Step 3.  Insert the 1155-Pin CPU:

Step 3-1.  Hold the CPU by the edges where

are marked with black lines.

Step 3-2.  Orient the CPU with IHS (Integrated

Heat Sink) up. Locate Pin1 and the

two orientation key notches.

For proper inserting, please ensure to match the two orientation key

notches of the CPU with the two alignment keys of the socket.

black line

Pin1

alignment  key

alignment  key

Pin1

1155-Pin CPU

1155-Pin Socket

orientation key  notch

orientation key  notch

English

13

ASRock  P67 Pro  Motherboard

English

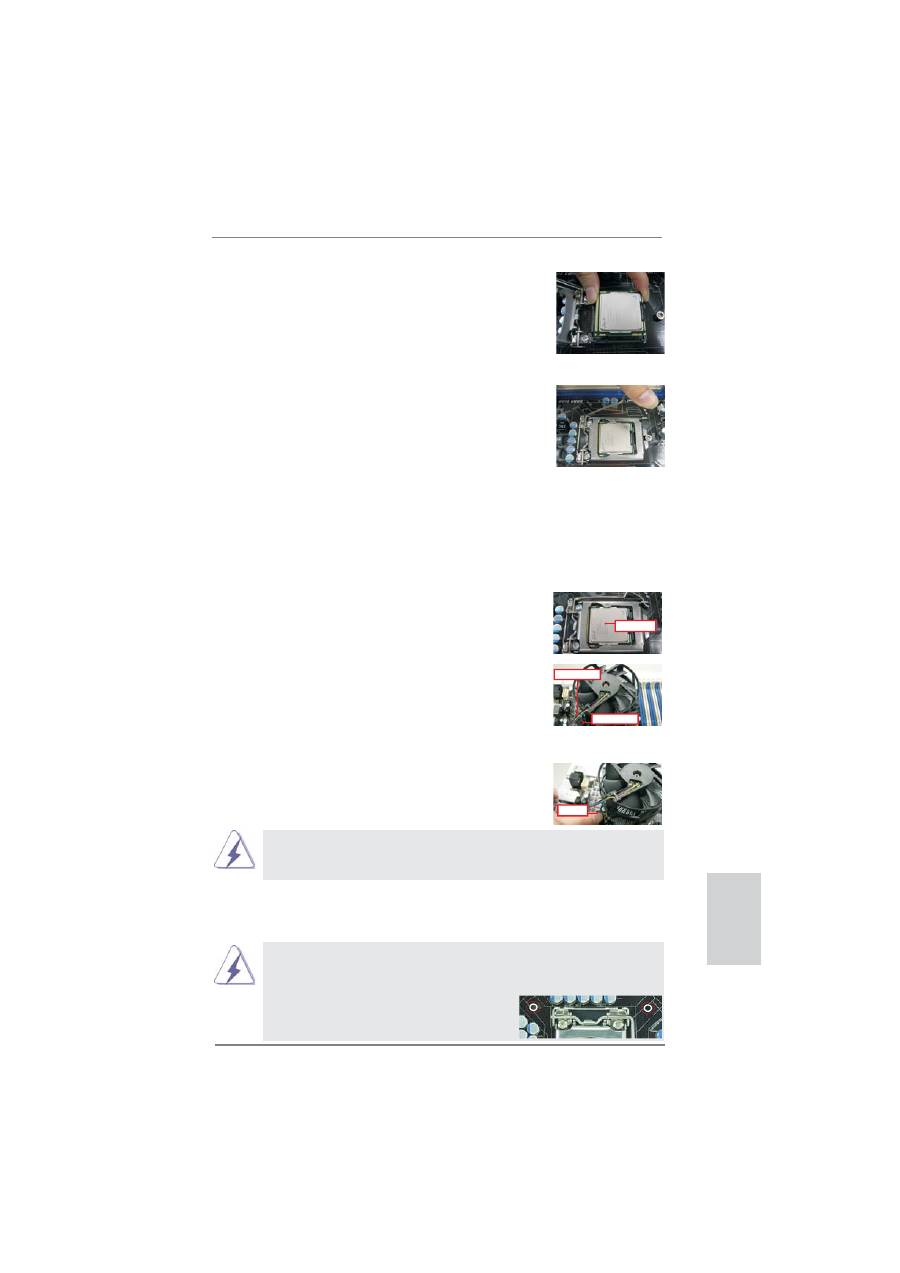

Step 3-3.  Carefully place the CPU into the

socket by using a purely vertical mo-

tion.

Step 3-4.  Verify that the CPU is within the sock-

et and properly mated to the orient

keys.

Step 4.  Close the socket:

Step 4-1.  Rotate the load plate onto the IHS.

Step 4-2.  While  pressing down lightly on load

plate, engage the load lever.

2.2    Installation of CPU Fan and Heatsink

For proper installation, please kindly refer to the instruction manuals of your CPU

fan and heatsink.

Below is an example to illustrate the installation of the heatsink for 1155-Pin CPU.

Step 1.  Apply thermal interface material onto center of

IHS on the socket surface.

Step 2.  Place the heatsink onto the socket. Ensure

fan cables are oriented on side closest to the

CPU fan connector on the motherboard (CPU_

FAN1, see page 2, No. 36).

Step 3.  Align fasteners with the motherboard through-

holes.

Step 4.  Rotate the fastener clockwise, then press

down on fastener caps with thumb to install

and lock. Repeat with remaining fasteners.

If you press down the fasteners without rotating them clockwise, the

heatsink cannot be secured on the motherboard.

Step 5.  Connect fan header with the CPU fan connector on the motherboard.

Step 6.  Secure excess cable with tie-wrap to ensure cable does not interfere with

fan operation or contact other components.

Apply Thermal

Interface Material

Fan cables on side

closest to MB header

Fastener slots

pointing straight out

Press Down

(4 Places)

Please be noticed that this motherboard supports Combo Cooler

Option (C.C.O.), which provides the

fl

 exible option to adopt three dif-

ferent CPU cooler types, Socket LGA 775, LGA 1155 and LGA 1156.

The white throughholes are for Socket LGA

1155/1156 CPU fan.

14

ASRock  P67 Pro  Motherboard

English

2.3  Installation of Memory Modules (DIMM)

This motherboard provides four 240-pin DDR3 (Double Data Rate 3) DIMM

slots, and supports Dual Channel Memory Technology. For dual channel con-

fi

 guration, you always need to install

identical

 (the same brand, speed, size

and chip-type) DDR3 DIMM pair in the slots of the same color. In other words,

you have to install

identical

 DDR3 DIMM pair in

Dual Channel A

(DDR3_A1

and DDR3_B1; Blue slots; see p.2 No.4) or

identical

 DDR3 DIMM pair in

Dual

Channel B

(DDR3_A2 and DDR3_B2; White slots; see p.2 No.5), so that Dual

Channel Memory Technology can be activated. This motherboard also allows

you to install four DDR3 DIMMs for dual channel con

fi

 guration, and please in-

stall

identical

 DDR3 DIMMs in all four slots. You may refer to the Dual Channel

Memory Con

fi

 guration Table below.

Dual Channel Memory Con

fi

 gurations

DDR3_A1

 DDR3_A2

  DDR3_B1    DDR3_B2

(Blue Slot)      (White Slot)    (Blue Slot)       (White Slot)

(1)

Populated             -

  Populated

   -

(2)

-

 Populated               -               Populated

(3)*

Populated

 Populated

  Populated    Populated

*

  For the con

fi

 guration (3), please install

identical

 DDR3 DIMMs in all four

 slots.

1.  If you want to install two memory modules, for optimal compatibility

and reliability, it is recommended to install them in the slots of the

same color. In other words, install them either in the set of blue

slots (DDR3_A1 and DDR3_B1), or in the set of white slots (DDR3_

A2 and DDR3_B2).

2.  If only one memory module or three memory modules are installed

in the DDR3 DIMM slots on this motherboard, it is unable to activate

the Dual Channel Memory Technology.

3.  If a pair of memory modules is NOT installed in the same Dual

Channel, for example, installing a pair of memory modules in

DDR3_A1 and DDR3_A2, it is unable to activate the Dual Channel

Memory Technology .

4.  It is not allowed to install a DDR or DDR2 memory module into

DDR3 slot; otherwise, this motherboard and DIMM may be dam-

aged.

5.  Some DDR3 1GB double-sided DIMMs with 16 chips may not work

on this motherboard. It is not recommended to install them on this

motherboard.

15

ASRock  P67 Pro  Motherboard

English

notch

break

notch

break

Installing a DIMM

Please make sure to disconnect power supply before adding or

removing DIMMs or the system components.

Step 1.  Unlock a DIMM slot by pressing the retaining clips outward.

Step 2.  Align a DIMM on the slot such that the notch on the DIMM matches the

break on the slot.

 The DIMM only

fi

 ts in one correct orientation. It will cause permanent

 damage to the motherboard and the DIMM if you force the DIMM into the slot

 at incorrect orientation.

Step 3.  Firmly insert the DIMM into the slot until the retaining clips at both ends

fully snap back in place and the DIMM is properly seated.

16

ASRock  P67 Pro  Motherboard

2.4 Expansion Slots (PCI and PCI Express Slots)

There are 3 PCI slots and 4 PCI Express slots on this motherboard.

PCI slots:

  PCI slots are used to install expansion cards that have the 32-bit PCI

 interface.

PCIE slots:

PCIE1 / PCIE3 / PCIE4 (PCIE x1 slot; White) is used for PCI Express

cards with x1 lane width cards, such as Gigabit LAN card, SATA2 card,

etc.

PCIE2 (PCIE x16 slot; Blue) is used for PCI Express x16 lane width

graphics cards.

Installing an expansion card

Step 1.

Before installing the expansion card, please make sure that the power

supply is switched off or the power cord is unplugged. Please read the

documentation of the expansion card and make necessary hardware

settings for the card before you start the installation.

Step 2.

Remove the system unit cover (if your motherboard is already installed

in a chassis).

Step 3.

Remove  the  bracket facing the slot that you intend to use. Keep the

screws for later use.

Step 4.

Align the card connector with the slot and press

fi

 rmly until the card is

completely seated on the slot.

Step 5.

Fasten the card to the chassis with screws.

Step 6.

Replace the system cover.

English

17

ASRock  P67 Pro  Motherboard

English

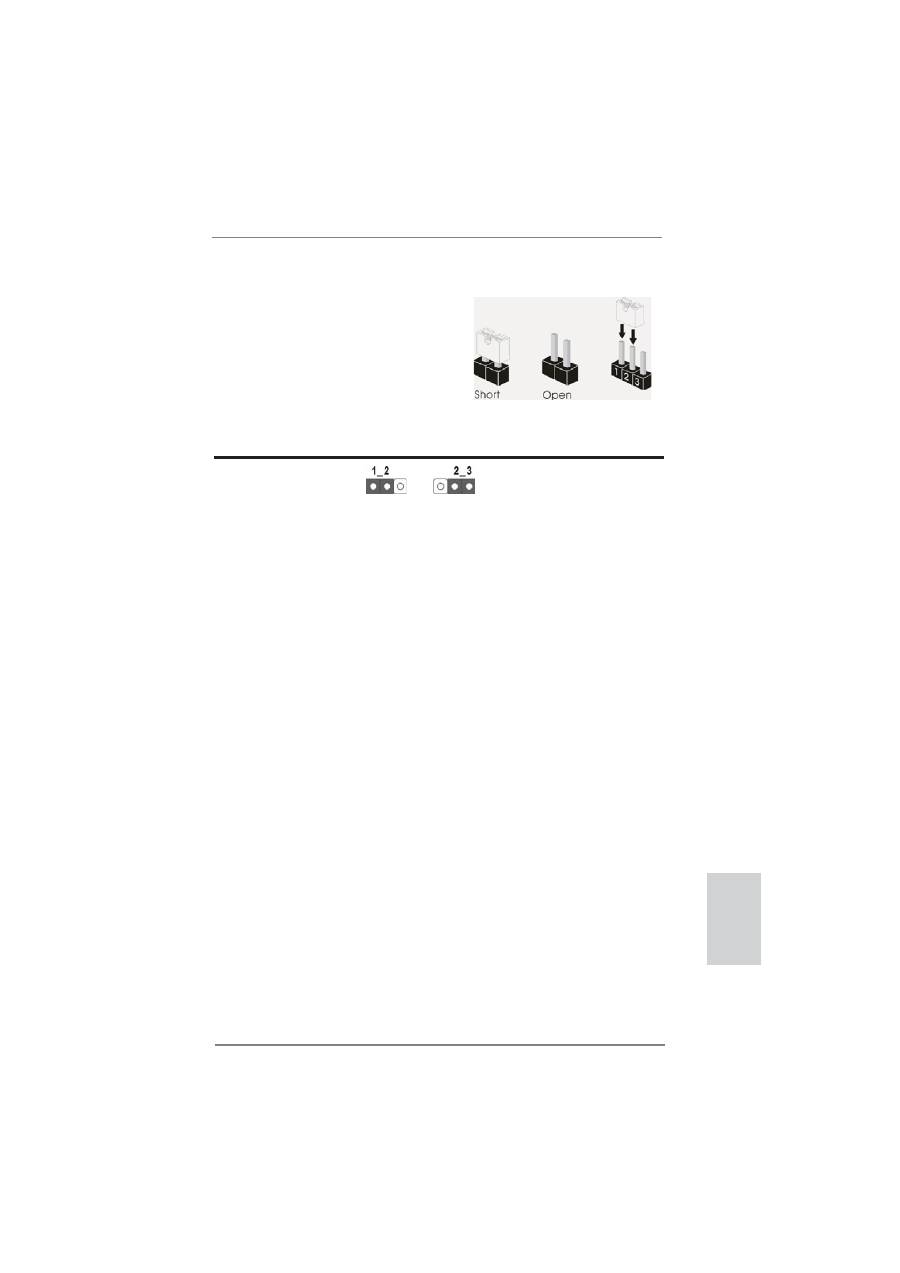

2.5 Jumpers Setup

The illustration shows how jumpers are

setup. When the jumper cap is placed on

pins, the jumper is “Short”. If no jumper cap

is placed on pins, the jumper is “Open”. The

illustration shows a 3-pin jumper whose

pin1 and  pin2 are “Short” when jumper cap

is placed on these 2 pins.

Jumper Setting

Description

Clear CMOS Jumper

(CLRCMOS1)

(see p.2,  No. 30)

Note:  CLRCMOS1 allows you to clear the data in CMOS. To clear and reset the

system parameters to default setup, please turn off the computer and unplug

the power cord from the power supply. After waiting for 15 seconds, use a

jumper cap to short pin2 and pin3 on CLRCMOS1 for 5 seconds. However,

please do not clear the CMOS right after you update the BIOS. If you need

to clear the CMOS when you just

fi

 nish updating the BIOS, you must boot

up the system

fi

 rst, and then shut it down before you do the clear-CMOS ac-

tion. Please be noted that the password, date, time, user default pro

fi

 le, 1394

GUID and MAC address will be cleared only if the CMOS battery is removed.

Clear CMOS

Default

18

ASRock  P67 Pro  Motherboard

English

the red-striped side to Pin1

2.6 Onboard Headers and Connectors

Onboard headers and connectors are NOT jumpers. Do NOT place

jumper caps over these headers and connectors. Placing jumper caps

over the headers and connectors will cause permanent damage of the

motherboard!

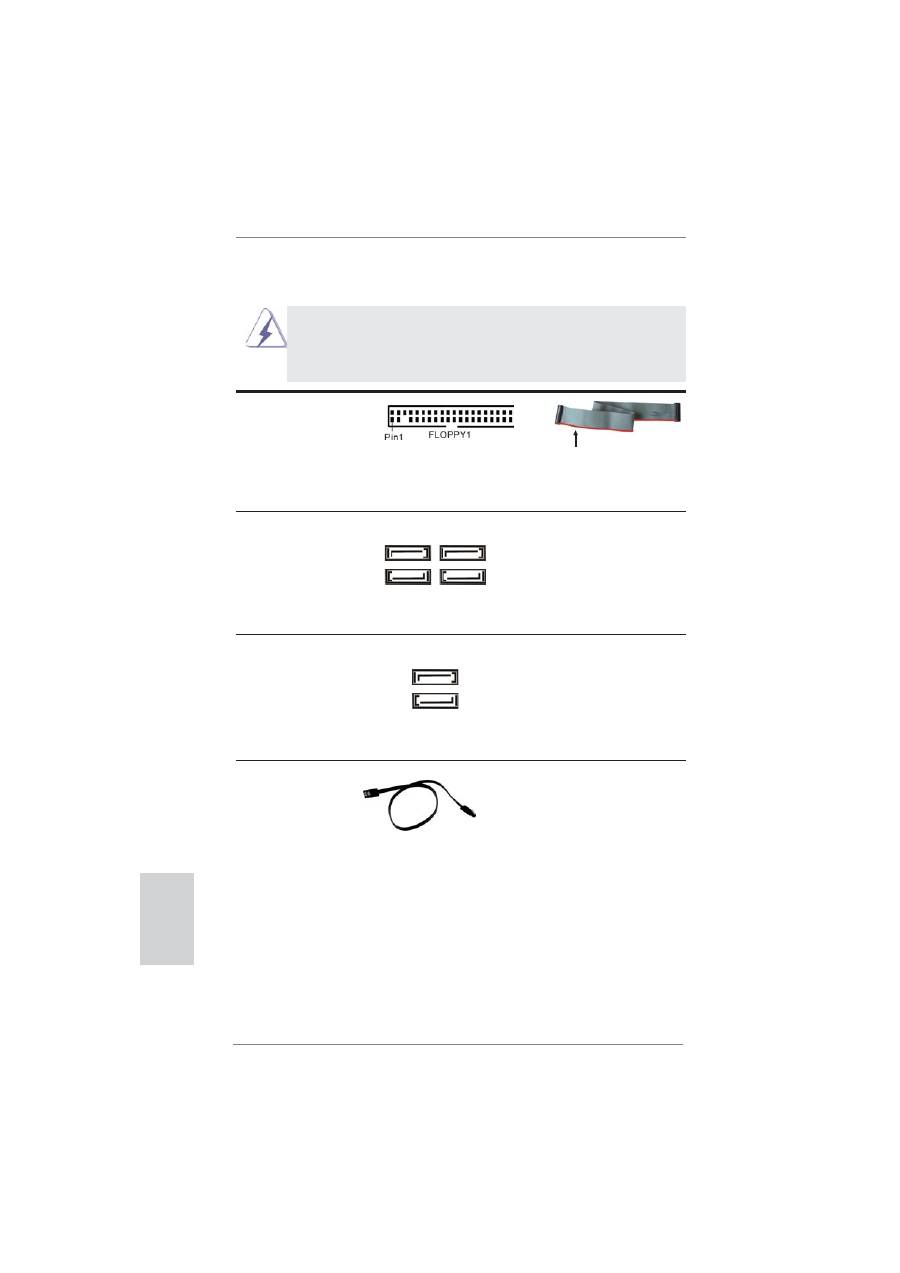

FDD connector

(33-pin FLOPPY1)

(see p.2  No. 25)

Note:  Make sure the red-striped side of the cable is plugged into Pin1 side of the

 connector.

Serial ATAII Connectors

These four Serial ATAII (SATAII)

(SATA2_2: see  p.2, No. 10)

connectors support SATA data

(SATA2_3: see  p.2, No. 16)

cables for internal storage

(SATA2_4: see  p.2, No. 9)

devices. The current SATAII

(SATA2_5: see  p.2, No. 19)

interface allows up to 3.0 Gb/s

data transfer rate.

Serial ATA3 Connectors

These two Serial ATA3 (SATA3)

(SATA3_0: see  p.2, No. 11)

connectors support SATA data

(SATA3_1: see  p.2, No. 12)

cables for internal storage

devices. The current SATA3

interface allows up to 6.0 Gb/s

data transfer rate.

Serial ATA (SATA)

Either end of the SATA data

Data Cable

cable can be connected to the

(Optional)

SATA / SATAII / SATA3 hard

disk or the SATAII / SATA3

connector on this motherboard.

SATA2_4     SATA2_2

SATA2_5     SATA2_3

SATA3_0

SATA3_1

19

ASRock  P67 Pro  Motherboard

English

Infrared Module Header

This header supports an

(5-pin IR1)

optional wireless transmitting

(see  p.2  No. 24)

and receiving infrared module.

USB 2.0 Headers

Besides eight default USB 2.0

(9-pin USB8_9)

ports on the I/O panel, there

(see p.2  No. 22)

are three USB 2.0 headers on

this motherboard. Each

USB 2.0 header can support

two USB 2.0 ports.

(9-pin USB10_11)

(see p.2  No. 20)

(9-pin USB12_13)

(see p.2  No. 18)

1

IRTX

+5VSB

DUMMY

IRRX

GND

1

DUMMY

GND

P+13

P-13

USB_PWR

USB_PWR

GND

P+12

P-12

1

USB_PWR

P-8

GND

DUMMY

USB_PWR

P+8

GND

P-9

P+9

1

USB

_

P

W

R

P

-10

G

N

D

DU

MMY

USB

_

P

W

R

P

+10

G

N

D

P

-11

P

+11

J_SENSE

OUT2_L

1

MIC_RET

PRESENCE#

GND

OUT2_R

MIC2_R

MIC2_L

OUT_RET

Front Panel Audio Header

This is an interface for front

(9-pin HD_AUDIO1)

panel audio cable that allows

(see p.2  No. 28)

convenient connection and

control of audio devices.

1. High De

fi

 nition Audio supports Jack Sensing, but the panel wire on

    the chassis must support HDA to function correctly. Please follow the

    instruction in our manual and chassis manual to install your system.

2. If you use AC’97 audio panel, please install it to the front panel audio

    header as below:

    A. Connect Mic_IN (MIC) to MIC2_L.

    B. Connect Audio_R (RIN) to OUT2_R and Audio_L (LIN) to OUT2_L.

    C. Connect Ground (GND) to Ground (GND).

    D. MIC_RET and OUT_RET are for HD audio panel only. You don’t

         need to connect them for AC’97 audio panel.

    E. To activate the front mic.

         For Windows

®

 XP / XP 64-bit OS:

                 Select “Mixer”. Select “Recorder”. Then click “FrontMic”.

         For Windows

®

 7 / 7 64-bit / Vista

TM

 / Vista

TM

 64-bit OS:

         Go to the "FrontMic" Tab in the Realtek Control panel. Adjust

         “Recording Volume”.

20

ASRock  P67 Pro  Motherboard

English

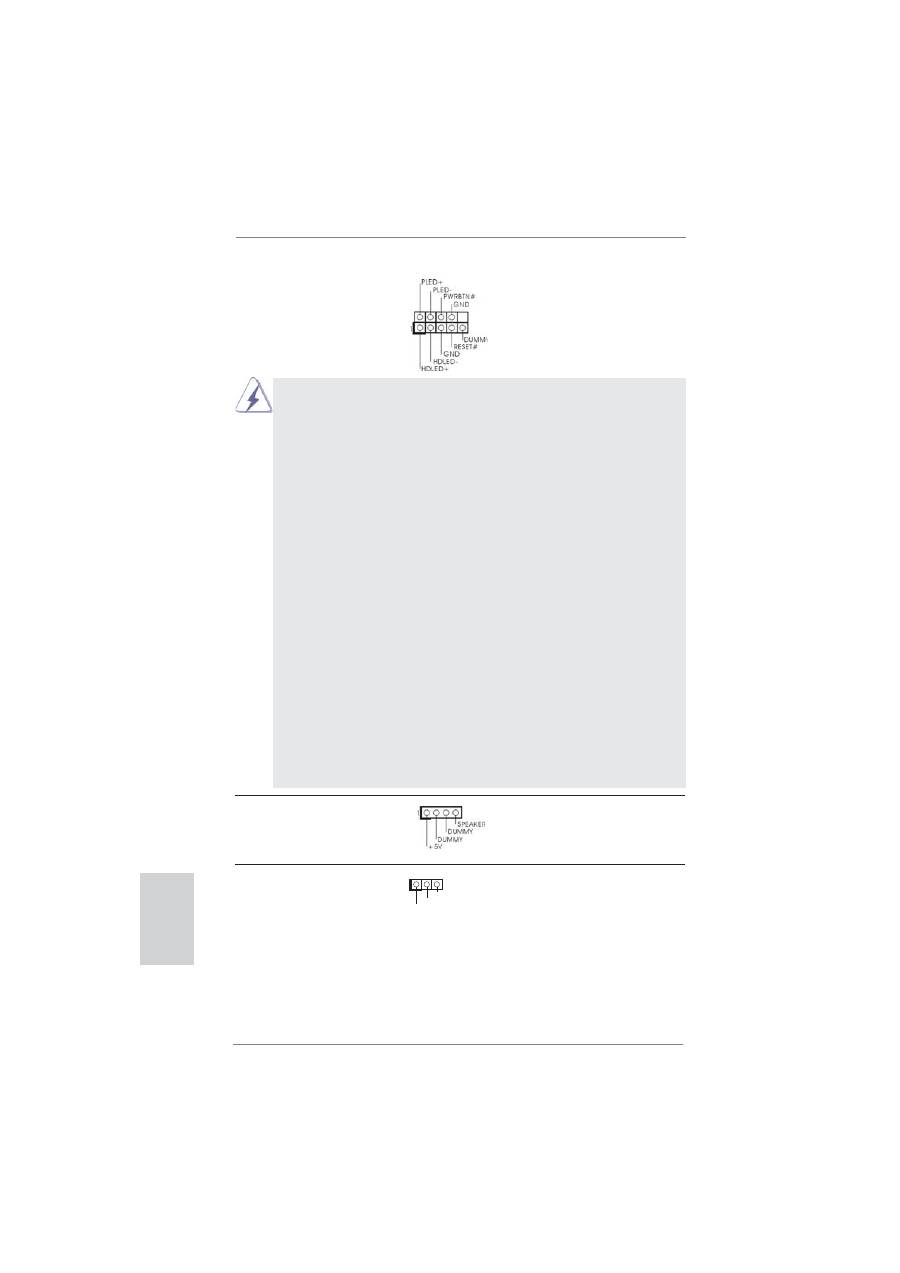

System Panel Header

This header accommodates

(9-pin PANEL1)

several system front panel

(see p.2  No. 15)

 functions.

Connect the power switch, reset switch and system status indicator on the

chassis to this header according to the pin assignments below. Note the

positive and negative pins before connecting the cables.

PWRBTN (Power Switch):

Connect to the power switch on the chassis front panel. You may con

fi

 gure

the way to turn off your system using the power switch.

RESET (Reset Switch):

Connect to the reset switch on the chassis front panel. Press the reset

switch to restart the computer if the computer freezes and fails to perform a

normal restart.

PLED (System Power LED):

Connect to the power status indicator on the chassis front panel. The LED

is on when the system is operating. The LED keeps blinking when the sys-

tem is in S1 sleep state. The LED is off when the system is in S3/S4 sleep

state or powered off (S5).

HDLED (Hard Drive Activity LED):

Connect to the hard drive activity LED on the chassis front panel. The LED

is on when the hard drive is reading or writing data.

The front panel design may differ by chassis. A front panel module mainly

consists of power switch, reset switch, power LED, hard drive activity LED,

speaker and etc. When connecting your chassis front panel module to this

header, make sure the wire assignments and the pin assign-ments are

matched correctly.

Power LED Header

Please connect the chassis

(3-pin PLED1)

power LED to this header to

(see p.2  No. 13)

indicate system power status.

The LED is on when the system

is operating. The LED keeps

blinking in S1 state. The LED is

off in S3/S4 state or S5 state

(power

off).

1

PLED+

PLED+

PLED-

Chassis Speaker Header

Please connect the chassis

(4-pin SPEAKER 1)

speaker to this header.

(see p.2  No. 14)

21

ASRock  P67 Pro  Motherboard

English

Chassis and Power Fan Connectors

Please connect the fan cables

(4-pin CHA_FAN1)

to the fan connectors and

(see p.2  No. 23)

match the black wire to the

ground

pin.

(3-pin CHA_FAN2)

(see p.2  No. 17)

(3-pin CHA_FAN3)

(see p.2  No. 7)

(3-pin PWR_FAN1)

(see p.2  No. 2)

CPU Fan Connectors

Please connect the CPU fan

(4-pin CPU_FAN1)

cable to the connector and

(see p.2  No. 36)

match the black wire to the

ground

pin.

       Though this motherboard provides 4-Pin CPU fan (Quiet Fan) support, the 3-Pin

       CPU fan still can work successfully even without the fan speed control function.

       If you plan to connect the 3-Pin CPU fan to the CPU fan connector on this

       motherboard, please connect it to Pin 1-3.

3-Pin Fan Installation

Pin 1-3 Connected

GND

+12V

CHA_FAN_SPEED

FAN_SPEED_CONTROL

4  3  2  1

(3-pin CPU_FAN2)

(see p.2  No. 35)

ATX Power Connector

Please connect an ATX power

(24-pin ATXPWR1)

supply to this connector.

(see p.2  No. 6)

12

 1

24

13

20-Pin ATX Power Supply Installation

Though this motherboard provides 24-pin ATX power connector,

it can still work if you adopt a traditional 20-pin ATX power supply.

To use the 20-pin ATX power supply, please plug your

power supply along with Pin 1 and Pin 13.

12

 1

24

13

G

N

D

+1

2

V

C

HA_FAN_

SP

EE

D

PWR_FAN_SPEED

GND

+12V

GND

+12V

CPU_FAN_SPEED

FAN_SPEED_CONTROL

22

ASRock  P67 Pro  Motherboard

English

ATX 12V Power Connector

Please connect an ATX 12V

(8-pin  ATX12V1)

power supply to this connector.

(see p.11  No. 1)

4-Pin ATX 12V Power Supply Installation

Though this motherboard provides 8-pin ATX 12V power connector, it can still work

if you adopt a traditional 4-pin ATX 12V power supply. To use the 4-pin ATX power

supply, please plug your power supply along with Pin 1 and Pin 5.

5               1

8               4

5

1

8

4

HDMI_SPDIF Header

HDMI_SPDIF header, providing

(2-pin HDMI_SPDIF1)

SPDIF audio output to HDMI

(see p.11  No. 27)

VGA card, allows the system to

connect HDMI Digital TV/

projector/LCD devices. Please

connect the HDMI_SPDIF

connector of HDMI VGA card to

this

header.

SPDIFOUT

GND

1

Serial port Header

This COM1 header supports a

(9-pin COM1)

serial port module.

(see p.11  No. 26)

23

ASRock  P67 Pro  Motherboard

2.7   Driver Installation Guide

To install the drivers to your system, please insert the support CD to your optical

drive

fi

 rst. Then, the drivers compatible to your system can be auto-detected and

listed on the support CD driver page. Please follow the order from up to bottom side

to install those required drivers. Therefore, the drivers you install can work properly.

2.8 Installing

Windows

®

 7 / 7 64-bit / Vista

TM

/ Vista

TM

64-bit / XP / XP 64-bit With RAID Functions

If you want to install Windows

®

 7 / 7 64-bit / Vista

TM

 / Vista

TM

 64-bit / XP / XP 64-

bit on your SATA / SATAII / SATA3 HDDs with RAID functions, please refer to the

document at the following path in the Support CD for detailed procedures:

..\ RAID Installation Guide

2.9 Installing

Windows

®

 7 / 7 64-bit / Vista

TM

/ Vista

TM

64-bit / XP

/ XP 64-bit Without RAID Functions

If you want to install Windows

®

 7 / 7 64-bit / Vista

TM

 / Vista

TM

 64-bit / XP / XP 64-

bit OS on your SATA / SATAII / SATA3 HDDs without RAID functions, please follow

below procedures according to the OS you install.

2.9.1   Installing Windows

®

 XP / XP 64-bit Without RAID

 Functions

If you want to install Windows

®

 XP / XP 64-bit OS on your SATA / SATAII / SATA3

HDDs without RAID functions, please follow below steps.

STEP 1: Set up BIOS.

A. Enter BIOS SETUP UTILITY        Advanced screen        SATA Con

fi

 guration.

B. Set the option “SATA Mode” to [IDE].

STEP 2: Install Windows

®

 XP / XP 64-bit OS on your system.

Using SATA / SATAII / SATA3 HDDs without NCQ function

English

24

ASRock  P67 Pro  Motherboard

2.9.2   Installing Windows

®

 7 / 7 64-bit / Vista

TM

/ Vista

TM

64-bit

Without RAID Functions

If you want to install Windows

®

 7 / 7 64-bit / Vista

TM

 / Vista

TM

 64-bit OS on your SATA

/ SATAII / SATA3 HDDs without RAID functions, please follow below steps.

Using SATA / SATAII / SATA3 HDDs with NCQ function

STEP 1: Set Up BIOS.

A. Enter BIOS SETUP UTILITY        Advanced screen        SATA Con

fi

 guration.

B. Set the option “SATA Mode” to [AHCI].

STEP 2: Install Windows

®

 7 / 7 64-bit / Vista

TM

 / Vista

TM

 64-bit OS on your

 system.

Using SATA / SATAII / SATA3 HDDs without NCQ function

STEP 1: Set up BIOS.

A. Enter BIOS SETUP UTILITY        Advanced screen        SATA Con

fi

 guration.

B. Set the option “SATA Mode” to [IDE].

STEP 2: Install Windows

®

 7 / 7 64-bit / Vista

TM

 / Vista

TM

 64-bit OS on your

 system.

English
