Installing an expansion card

Step 1. Before installing an expansion card, please make sure that the power

supply is switched off or the power cord is unplugged. Please read the

documentation of the expansion card and make necessary hardware

settings for the card before you start the installation.

Step 2. Remove the system unit cover (if your motherboard is already installed

in a chassis).

Step 3. Remove the bracket facing the slot that you intend to use. Keep the

screws for later use.

Step 4. Align the card connector with the slot and press rmly until the card is

completely seated on the slot.

Step 5. Fasten the card to the chassis with screws.

Step 6. Replace the system cover.

English

21

ASRock Z77 OC Formula Motherboard

TM

TM

2.7 SLI

and Quad SLI

Operation Guide

®

TM

TM

This motherboard supports NVIDIA

SLI

and Quad SLI

(Scalable Link Interface)

technology that allows you to install up to two identical PCI Express x16 graphics

®

TM

®

cards. Currently, NVIDIA

SLI

technology supports Windows

XP / XP 64-bit /

TM

TM

®

TM

Vista

/ Vista

64-bit / 7 / 7 64-bit OS. NVIDIA

Quad SLI

technology support

®

TM

TM

Windows

Vista

/ Vista

64-bit / 7 / 7 64-bit OS only. Please follow the installation

procedures in this section.

Requirements

TM

TM

1. For SLI

technology, you should have two identical SLI

-ready graphics

®

TM

cards that are NVIDIA

certied. For Quad SLI

technology, you should

TM

have two identical Quad SLI

-ready graphics cards (dual-GPU on each

®

graphics card) that are NVIDIA

certied.

®

TM

2. Make sure that your graphics card driver supports NVIDIA

SLI

®

technology. Download the driver from NVIDIA

website

(www.nvidia.com).

3. Make sure that your power supply unit (PSU) can provide at least the

minimum power required by your system. It is recommended to use

®

®

NVIDIA

certied PSU. Please refer to NVIDIA

website for details.

2.7.1 Graphics Card Setup

TM

2.7.1.1 Installing Two SLI

-Ready Graphics Cards

TM

®

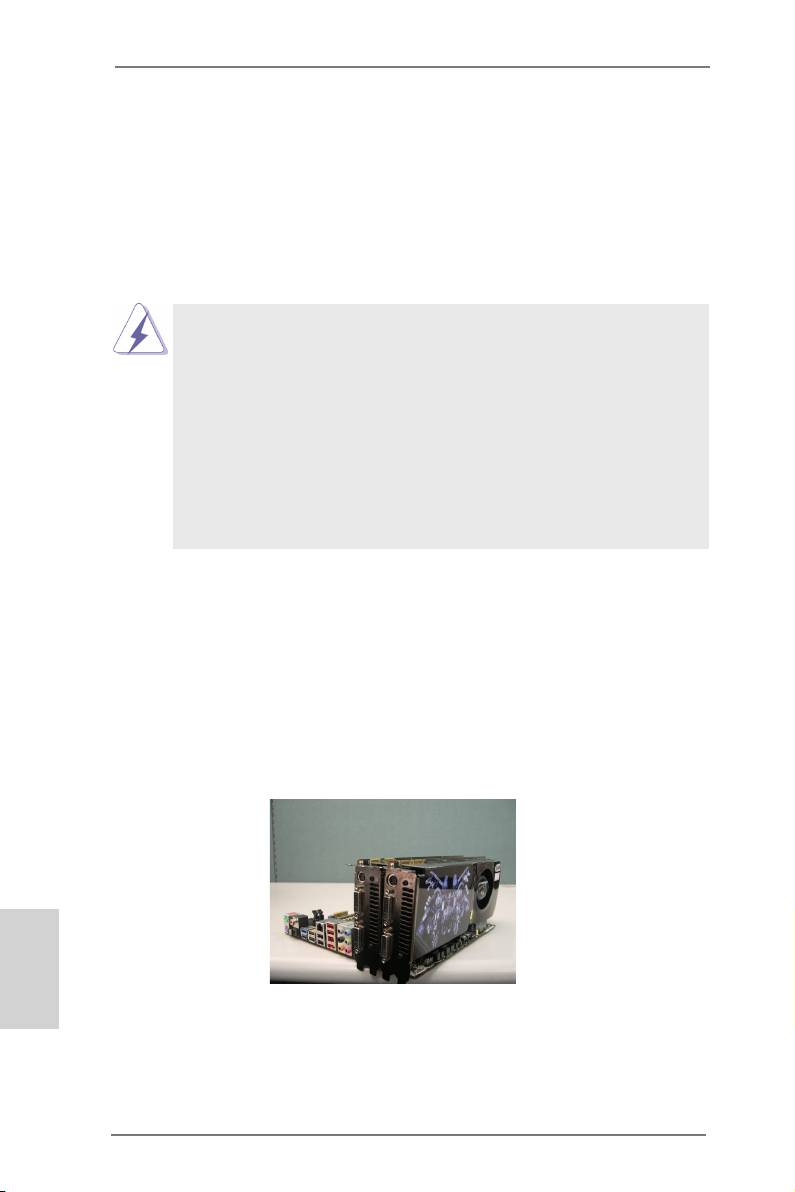

Step 1. Install the identical SLI

-ready graphics cards that are NVIDIA

certied

because different types of graphics cards will not work together properly.

(Even the GPU chips version shall be the same.) Insert one graphics card

into PCIE2 slot and the other graphics card to PCIE4 slot. Make sure that

the cards are properly seated on the slots.

English

Step2. If required, connect the auxiliary power source to the PCI Express

graphics cards.

22

ASRock Z77 OC Formula Motherboard

Step3. Align and insert the ASRock SLI_Bridge_2S Card to the goldngers on

each graphics card. Make sure the ASRock SLI_Bridge_2S Card is rmly

in place.

ASRock SLI_Bridge_2S Card

Step4. Connect a VGA cable or a DVI cable to the monitor connector or the DVI

connector of the graphics card that is inserted to PCIE2 slot.

English

23

ASRock Z77 OC Formula Motherboard

2.7.2 Driver Installation and Setup

Install the graphics card drivers to your system. After that, you can enable the Multi-

®

Graphics Processing Unit (GPU) feature in the NVIDIA

nView system tray utility.

Please follow the below procedures to enable the multi-GPU feature.

®

For Windows

XP / XP 64-bit OS:

TM

(For SLI

mode only)

®

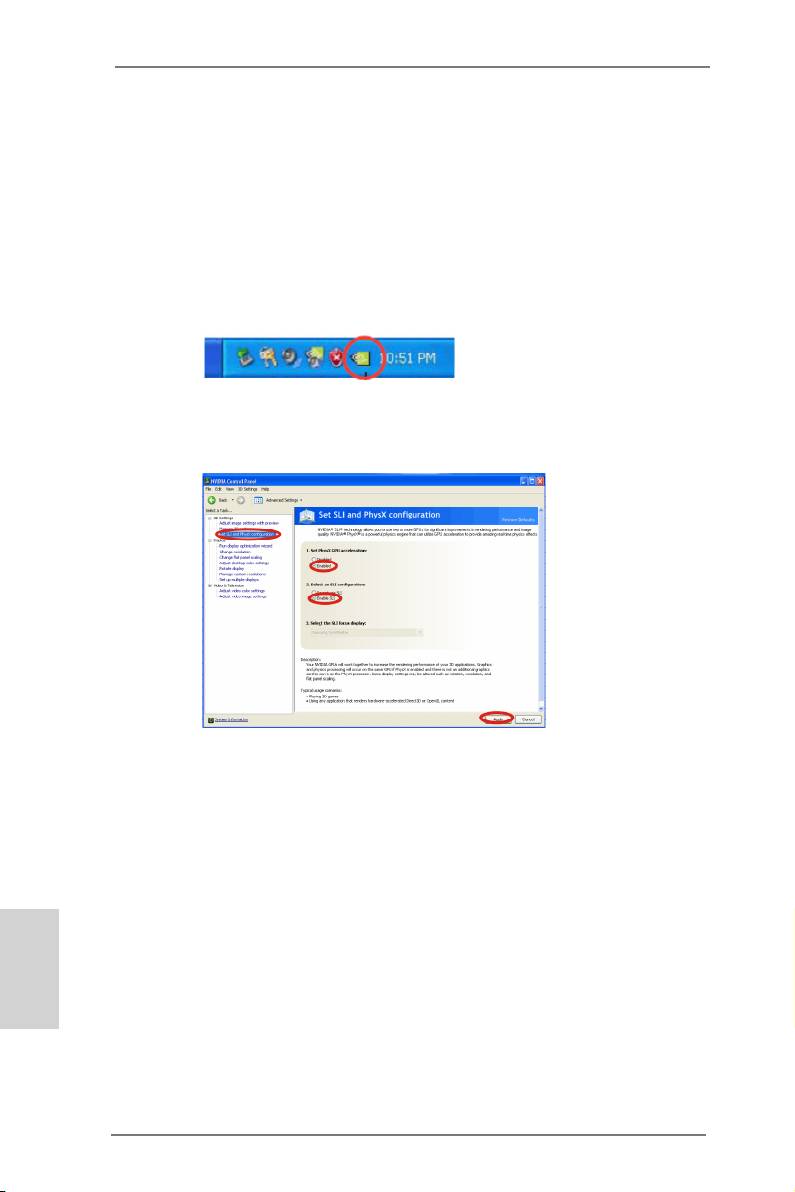

A. Double-click NVIDIA Settings icon on your Windows

taskbar.

B. From the pop-up menu, select Set SLI and PhysX conguration. In

Set PhysX GPU acceleration item, please select Enabled. In Select

an SLI conguration item, please select Enable SLI. And click Apply.

C. Reboot your system.

TM

D. You can freely enjoy the benet of SLI

feature.

English

24

ASRock Z77 OC Formula Motherboard

®

TM

TM

For Windows

Vista

/ Vista

64-bit / 7 / 7 64-bit OS:

TM

TM

(For SLI

and Quad SLI

mode)

A. Click the Start icon on your Windows taskbar.

B. From the pop-up menu, select All Programs, and then click NVIDIA

Corporation.

C. Select NVIDIA Control Panel tab.

D. Select Control Panel tab.

E. From the pop-up menu, select Set SLI and PhysX conguration. In

Set PhysX GPU acceleration item, please select Enabled. In Select

an SLI conguration item, please select Enable SLI. And click Apply.

F. Reboot your system.

English

TM

TM

G. You can freely enjoy the benet of SLI

or Quad SLI

feature.

TM

®

* SLI

appearing here is a registered trademark of NVIDIA

Technologies Inc., and is used

only for identication or explanation and to the owners’ benet, without intent to infringe.

25

ASRock Z77 OC Formula Motherboard

D. Click “Extend my Windows desktop onto this monitor”.

E. Right-click the display icon and select “Attached”, if necessary.

F. Set the appropriate “Screen Resolution” and “Color Quality” for the

second monitor. Click “Apply” or “OK” to apply these new values.

G. Repeat steps C through E for the display icon identied by the

numbers three to seven.

®

TM

TM

For Windows

7 / 7 64-bit / Vista

/ Vista

64-bit OS:

Right click the desktop, choose “Personalize”, and select the “Display

Settings” tab so that you can adjust the parameters of the multi-monitors

according to the steps below.

A. Click the number ”2” icon.

B. Click the items “This is my main monitor” and “Extend the desktop onto

this monitor”.

C. Click “OK” to save your change.

D. Repeat steps A through C for the display icons identied by the number

three to seven.

6. Use Surround Display. Click and drag the display icons to positions representing

the physical setup of your monitors that you would like to use. The placement of

display icons determines how you move items from one monitor to another.

English

32

ASRock Z77 OC Formula Motherboard

HDCP Function

HDCP function is supported on this motherboard. To use HDCP

function with this motherboard, you need to adopt a monitor

that supports HDCP function as well. Therefore, you can enjoy

the superior display quality with high-denition HDCP

encryption contents. Please refer to the instructions below for

more details about HDCP function.

What is HDCP?

HDCP stands for High-Bandwidth Digital Content Protection, a

®

specication developed by Intel

for protecting digital

entertainment content that uses the HDMI interface. HDCP is a

copy protection scheme to eliminate the possibility of

intercepting digital data midstream between the video source,

or transmitter - such as a computer, DVD player or set-top box -

and the digital display, or receiver - such as a monitor, television

or projector. In other words, HDCP specication is designed to

protect the integrity of content as it is being transmitted.

Products compatible with the HDCP scheme such as DVD

players, satellite and cable HDTV set-top-boxes, as well as few

entertainment PCs requires a secure connection to a compliant

display. Due to the increase in manufacturers employing HDCP

in their equipment, it is highly recommended that the HDTV or

LCD monitor you purchase is compatible.

English

33

ASRock Z77 OC Formula Motherboard

2.10 ASRock Smart Remote Installation Guide

ASRock Smart Remote is only used for ASRock motherboard with CIR header.

Please refer to below procedures for the quick installation and usage of ASRock

Smart Remote.

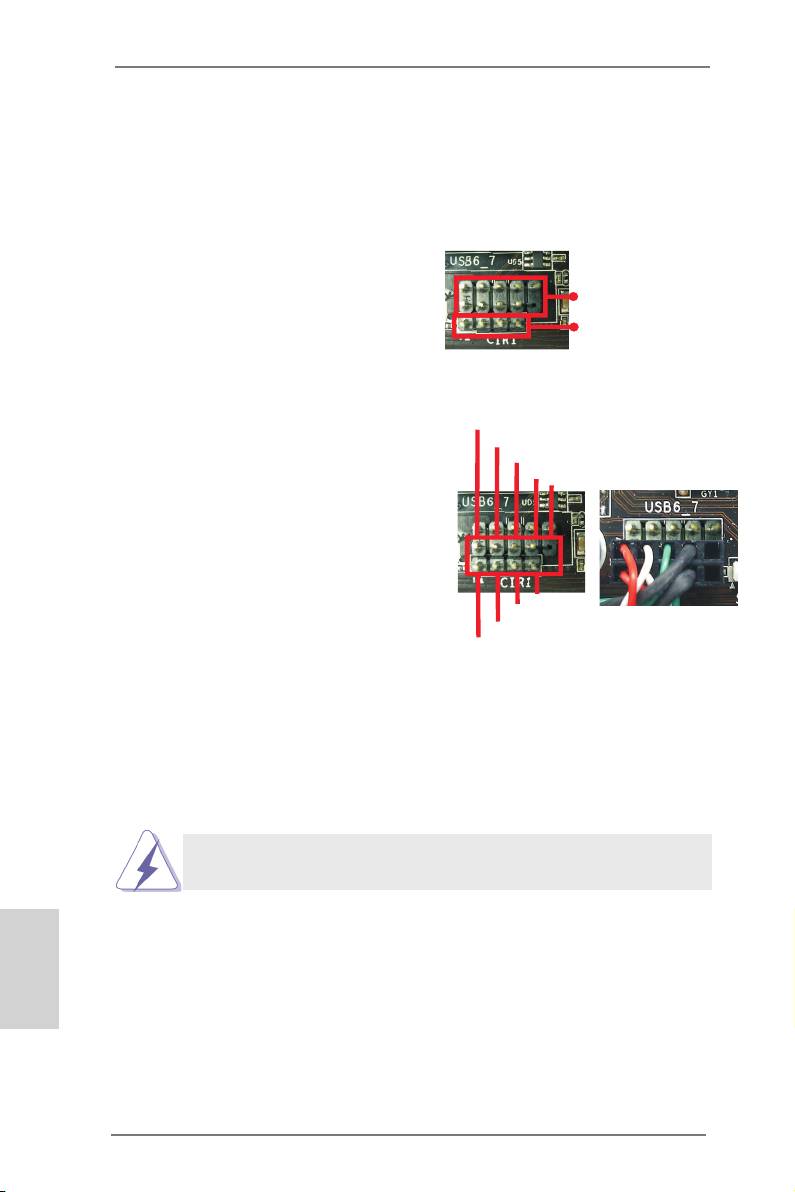

Step1. Find the CIR header located next

to the USB 2.0 header on ASRock

USB 2.0 header (9-pin, black)

motherboard.

CIR header (4-pin, gray)

USB_PWR

Step2. Connect the front USB cable to the

P-

USB 2.0 header (as below, pin 1-5)

P+

and the CIR header. Please make

GND

DUMMY

sure the wire assignments and the

pin assignments are matched

correctly.

1

2

3

4

5

GND

IRTX

IRRX

ATX+5VSB

Step3. Install Multi-Angle CIR Receiver to the front USB port.

Step4. Boot up your system. Press <F2> or <Del> to enter BIOS Setup Utility.

Make sure the option "CIR Controller" is setting at [Enabled].

(Advanced -> Super IO Conguration -> CIR Controller -> [Enabled])

If you cannot nd this option, please shut down your system and install

Multi-Angle CIR Receiver to the other front USB port then try again.

English

Step5. Enter Windows. Execute ASRock support CD and install CIR Driver. (It is

listed at the bottom of driver list.)

34

ASRock Z77 OC Formula Motherboard

3 CIR sensors in different angles

1. Only one of the front USB port can support CIR function. When

the CIR function is enabled, the other port will remain USB

function.

2. Multi-Angle CIR Receiver is used for front USB only. Please do

not use the rear USB bracket to connect it on the rear panel.

Multi-Angle CIR Receiver can receive the multi-direction infrared

signals (top, down and front), which is compatible with most of

the chassis on the market.

3. The Multi-Angle CIR Receiver does not support Hot-Plug

function. Please install it before you boot the system.

* ASRock Smart Remote is only supported by some of ASRock motherboards. Please refer to

ASRock website for the motherboard support list: http://www.asrock.com

English

35

ASRock Z77 OC Formula Motherboard

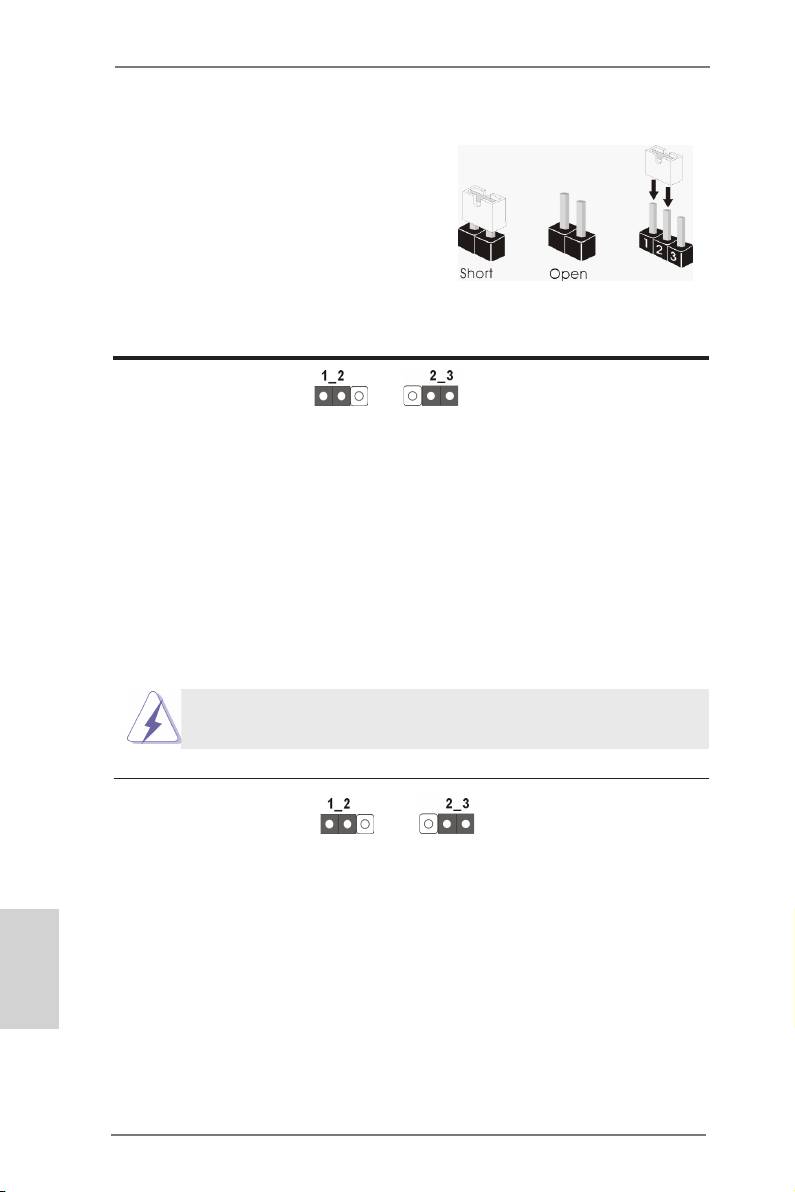

2.11 Jumpers Setup

The illustration shows how jumpers are

setup. When the jumper cap is placed on

pins, the jumper is “Short”. If no jumper cap

is placed on pins, the jumper is “Open”. The

illustration shows a 3-pin jumper whose

pin1 and pin2 are “Short” when jumper cap

is placed on these 2 pins.

Jumper Setting Description

Clear CMOS Jumper

(CLRCMOS1)

(see p.2, No. 46)

Clear CMOSDefault

Note: CLRCMOS1 allows you to clear the data in CMOS. To clear and reset the

system parameters to default setup, please turn off the computer and unplug

the power cord from the power supply. After waiting for 15 seconds, use a

jumper cap to short pin2 and pin3 on CLRCMOS1 for 5 seconds. However,

please do not clear the CMOS right after you update the BIOS. If you need

to clear the CMOS when you just nish updating the BIOS, you must boot

up the system rst, and then shut it down before you do the clear-CMOS ac-

tion. Please be noted that the password, date, time, user default prole, 1394

GUID and MAC address will be cleared only if the CMOS battery is removed.

The Clear CMOS Switch has the same function as the Clear CMOS

jumper.

BIOS Selection Jumper

(BIOS_SEL1)

(see p.2, No. 32)

Backup BIOSDefault

(Main BIOS)

Note: This motherboard has two BIOS onboard, a main BIOS and a backup BIOS,

English

which enhances protection for the safety and stability of your system. Nor-

mally, the system works on the main BIOS. However, if the main BIOS is

corrupted or damaged, please use a jumper cap to short pin2 and pin3, then

the backup BIOS will take over on the next system boot. After that, short pin1

and pin2 again, then use “ASRock Instant Flash“ or “ASRock Internet Flash“

in BIOS setup utility to copy the BIOS le to the main BIOS to ensure normal

system operation. For the sake of system safety, users cannot update the

backup BIOS manually.

36

ASRock Z77 OC Formula Motherboard

2.12 Onboard Headers and Connectors

Onboard headers and connectors are NOT jumpers. Do NOT place

jumper caps over these headers and connectors. Placing jumper caps

over the headers and connectors will cause permanent damage of the

motherboard!

Serial ATA2 Connectors These four Serial ATA2 (SATA2)

(SATA2_2_3: see p.2, No. 19)

connectors support SATA data

(SATA2_4_5: see p.2, No. 18)

cables for internal storage

SATA2_4

SATA2_5

devices. The current SATA2

interface allows up to 3.0 Gb/s

data transfer rate.

SATA2_2

SATA2_3

Serial ATA3 Connectors These six Serial ATA3 (SATA3)

(SATA3_0_1: see p.2, No. 20)

connectors support SATA data

(SATA3_M0_M1: see p.2, No. 21)

cables for internal storage

SATA3_0

SATA3_1

(SATA3_M2_M3: see p.2, No. 22)

devices. The current SATA3

interface allows up to 6.0 Gb/s

data transfer rate.

SATA3_M0

SATA3_M1

SATA3_M2

SATA3_M3

Serial ATA (SATA) Either end of the SATA data

Data Cable cable can be connected to the

(Optional)

SATA / SATA2 / SATA3 hard

disk or the SATA2 / SATA3

connector on this motherboard.

Serial ATA (SATA) Please connect the black end

Power Cable of SATA power cable to the

(Optional)

power connector on each drive.

connect to the SATA

Then connect the white end of

HDD power connector

SATA power cable to the power

connect to the

power supply

connector of the power supply.

English

37

ASRock Z77 OC Formula Motherboard

USB 2.0 Headers Besides four default USB 2.0

(9-pin USB4_5)

ports on the I/O panel, there are

(see p.2, No. 31)

three USB 2.0 headers on this

motherboard. Each USB 2.0

header can support two USB 2.0

ports.

(9-pin USB6_7)

(see p.2, No. 34)

(9-pin USB8_9)

U SB_PWR

P-9

(see p.2, No. 35)

P +9

GND

DUMMY

1

GND

P +8

P-8

U SB_PWR

USB 3.0 Header Besides six default USB 3.0

(19-pin USB3_6_7)

ports on the I/O panel, there is

(see p.2, No. 15)

one USB 3.0 header on this

motherboard. This USB 3.0

header can support two USB 3.0

ports.

Infrared Module Header This header supports an

(5-pin IR1)

optional wireless transmitting

(see p.2, No. 38)

and receiving infrared module.

Consumer Infrared Module Header This header can be used to

(4-pin CIR1)

connect the remote

(see p.2 No. 36)

English

controller receiver.

38

ASRock Z77 OC Formula Motherboard

Front Panel Audio Header This is an interface for front

GND

P RESENCE#

M IC_RET

(9-pin HD_AUDIO1)

panel audio cable that allows

OUT_RET

(see p.2, No. 41)

convenient connection and

control of audio devices.

1

O UT2_L

J _SENSE

O UT2_R

M IC2_R

M IC2_L

1. High Denition Audio supports Jack Sensing, but the panel wire on the

chassis must support HDA to function correctly. Please follow the

instruction in our manual and chassis manual to install your system.

2. If you use AC’97 audio panel, please install it to the front panel audio

header as below:

A. Connect Mic_IN (MIC) to MIC2_L.

B. Connect Audio_R (RIN) to OUT2_R and Audio_L (LIN) to OUT2_L.

C. Connect Ground (GND) to Ground (GND).

D. MIC_RET and OUT_RET are for HD audio panel only. You don’t need

to connect them for AC’97 audio panel.

E. To activate the front mic.

®

For Windows

XP / XP 64-bit OS:

Select “Mixer”. Select “Recorder”. Then click “FrontMic”.

®

TM

TM

For Windows

7 / 7 64-bit / Vista

/ Vista

64-bit OS:

Go to the “FrontMic” Tab in the Realtek Control panel. Adjust

“Recording Volume”.

System Panel Header This header accommodates

(9-pin PANEL1)

several system front panel

(see p.2, No. 25)

functions.

Connect the power switch, reset switch and system status indicator on the

chassis to this header according to the pin assignments below. Note the

positive and negative pins before connecting the cables.

PWRBTN (Power Switch):

Connect to the power switch on the chassis front panel. You may congure

the way to turn off your system using the power switch.

RESET (Reset Switch):

Connect to the reset switch on the chassis front panel. Press the reset

switch to restart the computer if the computer freezes and fails to perform a

English

normal restart.

PLED (System Power LED):

Connect to the power status indicator on the chassis front panel. The LED

is on when the system is operating. The LED keeps blinking when the

39

ASRock Z77 OC Formula Motherboard

system is in S1/S3 sleep state. The LED is off when the system is in S4

sleep state or powered off (S5).

HDLED (Hard Drive Activity LED):

Connect to the hard drive activity LED on the chassis front panel. The LED

is on when the hard drive is reading or writing data.

The front panel design may differ by chassis. A front panel module mainly

consists of power switch, reset switch, power LED, hard drive activity LED,

speaker and etc. When connecting your chassis front panel module to this

header, make sure the wire assignments and the pin assign-ments are

matched correctly.

Chassis Speaker Header Please connect the chassis

(4-pin SPEAKER 1)

speaker to this header.

(see p.2, No. 23)

Power LED Header Please connect the chassis

(3-pin PLED1)

power LED to this header to

(see p.2, No. 24)

indicate system power status.

The LED is on when the system

is operating. The LED keeps

blinking in S1/S3 state. The

LED is off in S4 state or S5

state (power off).

Chassis, Power and MOS Fan Please connect the fan cables

Connectors to the fan connectors and match

CH A_FAN_SPEED

+1 2V

FA N_SPEED_CONT ROL

(4-pin CHA_FAN1)

the black wire to the ground pin.

GN D

(see p.2, No. 37)

(3-pin CHA_FAN2)

(see p.2, No. 33)

CHA_FAN_SPEED

(3-pin CHA_FAN3)

+12V

(see p.2, No. 17)

English

GND

(3-pin CHA_FAN4)

GND

+ 12V

(see p.2, No. 49)

CHA_FAN_SPEED

(3-pin PWR_FAN1)

(see p.2, No. 16)

(3-pin MOS_FAN1)

(see p.2, No. 50)

40

ASRock Z77 OC Formula Motherboard
